239

TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must

be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient

temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

2.0 litre HDi PEF 163 hp

Gearboxes

Automatic

Model codes:

4H...

RHH-A

- Unladen

weight

1 603

- Kerb

weight

1 678

- Payload

642

Gross vehicle weight (GVW)

2 245

Gross train weight (GTW)

on a 12% gradient

3 445

Braked trailer (within GTW limit)

on a 10% or 12% gradient

1 200

- Braked

trailer

* (with load transfer

within the GTW limit)

1 200

- Unbraked

trailer

750

Recommended nose weight

240

TECHNICAL DATA

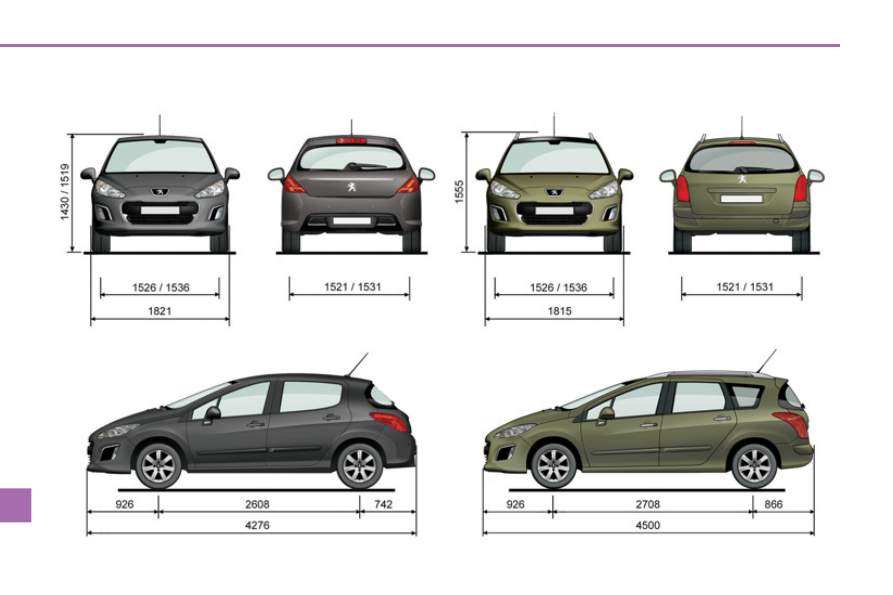

DIMENSIONS (IN MM)

308 saloon

308 SW

241

TECHNICAL DATA

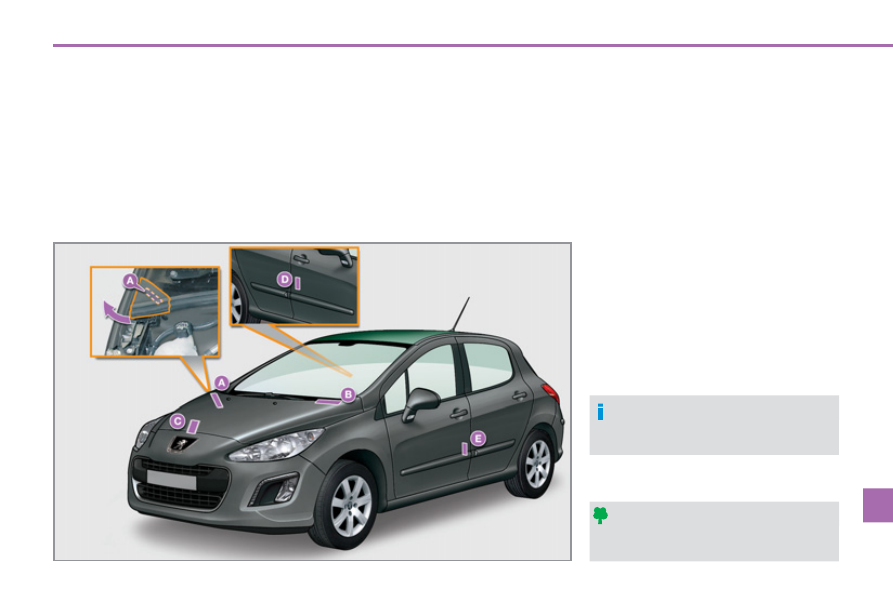

IDENTIFICATION MARKINGS

Various visible markings for the identifi -

cation and tracking of your vehicle.

If the tyre pressures are too low,

this increases fuel consumption.

The tyre pressures must be

checked when the tyres are cold,

at least once a month.

A. Vehicle Identifi cation Number

(VIN) under the bonnet.

This number is engraved on the

bodywork near the damper support.

To gain access to it, raise the plastic

cover.

B. VIN on the windscreen lower

crossmember.

This number is indicated on a self-

adhesive label which is visible

through the windscreen.

C. Manufacturer's plate.

This plate is riveted onto the engine

mounting.

or
D. Manufacturer's label.

This number is indicated on a self-

destroying label affi xed to the right

hand centre pillar.

This plate / label also indicates

the kerb weight, the gross vehicle

weight (GVW) and the gross train

weight (GTW).

E. Tyre/paint label.

This label is affi xed to the middle pil-

lar, on the driver's side.

It bears the following information:
- the tyre infl ation pressures with and

without load,

the tyre sizes,

- the

infl ation pressure of the spare

wheel,

the paint colour code.

242

TECHNICAL DATA

243

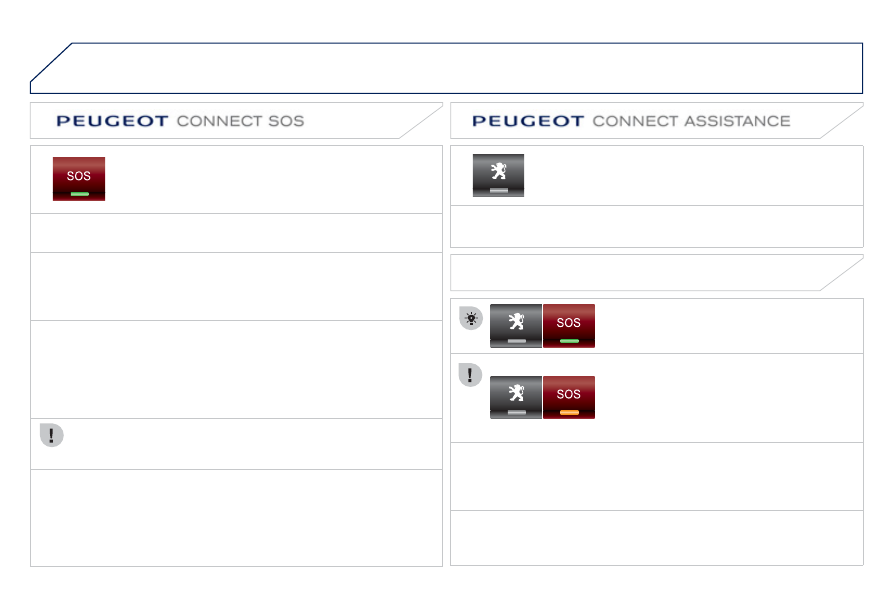

EMERGENCY OR ASSISTANCE CALL

244

EMERGENCY OR ASSISTANCE CALL

In an emergency, press this button for more than

2 seconds. Flashing of the green LED and a voice

message confi rm that the call has been made to the

PEUGEOT CONNECT SOS call centre * .

The green LED remains on (without fl ashing) when communication is

established. It goes off at the end of communication.

When the ignition is switched on, the green

LED comes on for 3 seconds indicating that

the system is operating correctly.

Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request

assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .

OPERATION OF THE SYSTEM

Pressing this button again immediately cancels the request. The green

LED goes off. Cancellation is confi rmed by a voice message.
To cancel a call, reply to the PEUGEOT CONNECT SOS call centre that it

was a mistake.

PEUGEOT CONNECT SOS immediately locates you vehicle, starts

communication with you in your language ** , and where necessary sends

the appropriate public emergency services ** . In countries where the

team is not operational, or when the locating service has been expressly

declined, the call sent directly to the emergency services (112) without the

vehicle location.

If an impact is detected by the airbag control unit, and

independently of the deployment of any airbags, an emergency call

is made automatically.

* Subject to the general conditions for the service available from dealers

and to technological and technical limitations.

** Depending on the geographical cover of PEUGEOT CONNECT SOS,

PEUGEOT CONNECT ASSISTANCE and the offi cial national language

selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services are

available from dealers or at www.peugeot.co.uk.

If the orange LED fl ashes: there is a system

fault.
If the orange LED is on continuously: the

backup battery must be replaced.
In either case, contact a PEUGEOT dealer.

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the confi guration of these services

and, if desired, modifi ed to suit your wishes. In a multi-lingual country,

confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the quality of

PEUGEOT CONNECT services to customers, the manufacturer reserves

the right to carry out updates to the vehicle's on-board telematic system.

245

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR

BOOK

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR

BOOK

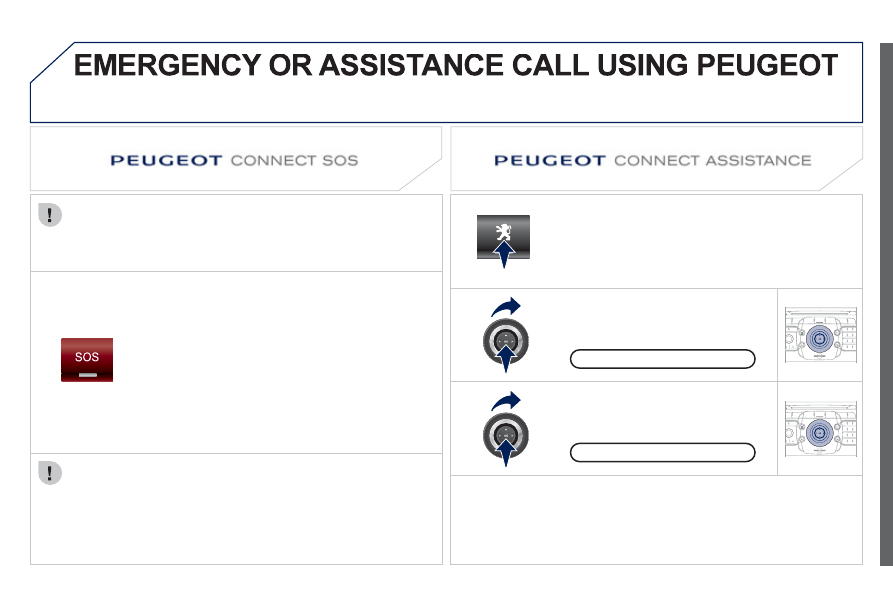

CONNECT MEDIA

In an emergency, press the SOS button until an audible

signal is heard and a "Confi rmation / Cancellation"

screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team

which receives locating information from the vehicle

and can send a detailed alert to the relevant emergency

services.
In countries in which the team is not operational, or

when the locating service has been expressly declined,

the call is sent to the emergency services (112).

Warning - the emergency call and the services are only active

if the internal telephone is used with a valid SIM card. With a

Bluetooth telephone and without a SIM card, these services are not

operational.

Press this button for access to PEUGEOT services.

Customer call

Select "Customer call" to request

any information about the PEUGEOT

marque.

Select "PEUGEOT Assistance" to

make a roadside assistance call.

PEUGEOT Assistance

This service is subject to conditions and availability. Consult a

PEUGEOT dealer. If you have purchased your vehicle outside the

PEUGEOT dealer network, we invite you to have a dealer check the

confi guration of these services and, if desired, modifi ed to suit your

wishes.

If an impact is detected by the airbag control unit, and independently

of the deployment of any airbags, an emergency call is made

automatically.
The message "Deteriorated emergency call" associated with

fl ashing of the orange indicator lamp indicates a malfunction.

Contact a PEUGEOT dealer.

246

247

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR

BOOK

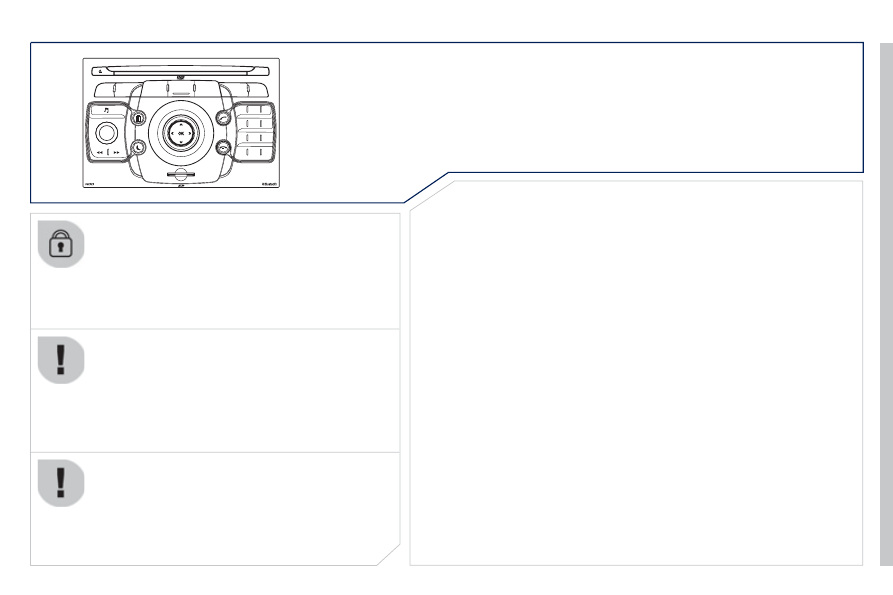

The Peugeot Connect Media Navigation (NG4 3D) is

protected in such a way that it will only operate in your

vehicle. If it is to be installed in another vehicle, contact

a PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will

become available during the course of the year.

Peugeot Connect Media
Navigation (NG4 3D)

For safety reasons, it is imperative that the driver

carries out operations which require prolonged attention

while the vehicle is stationary.
When the engine is switched off and to prevent

discharging of the battery, the Peugeot Connect Media

Navigation (NG4 3D) switches off following activation of

the Energy Economy mode.

01 First steps
02 Voice commands and

steering mounted controls

  03  General operation
  04  Navigation - Guidance
  05  Traffic information
  06 Radio
  07  Music media players
  08  Using the telephone
09    Screen menu map
  Frequently asked questions

p.
p.

p.
p.
p.
p.
p.
p.
p.
p.

248

250

253
258
267
269
270

275

280
285

CONTENTS

MULTIMEDIA AUDIO SYSTEM / BLUETOOTH TELEPHONE
GPS EUROPE

248

01 FIRST STEPS

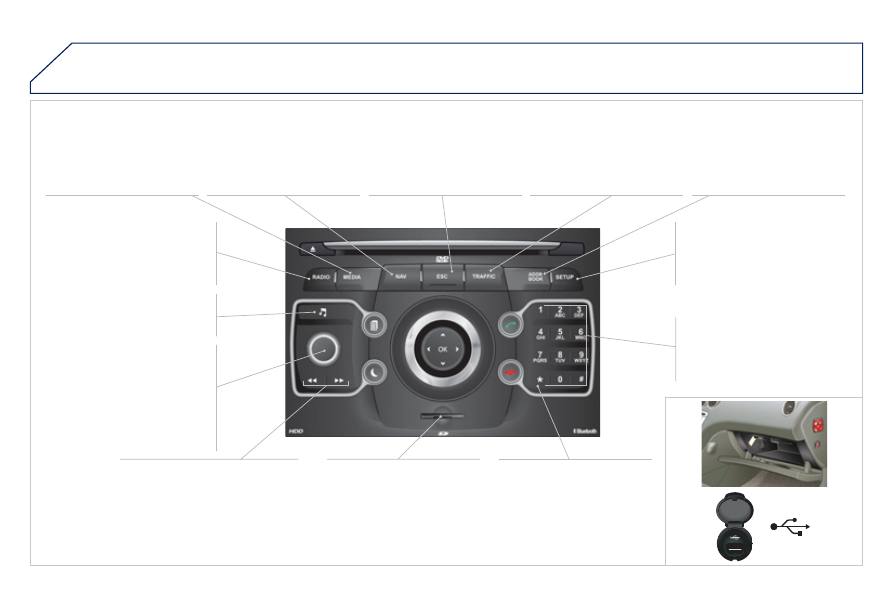

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL

Access to the Radio Menu
Display the list of stations in

alphabetical order (FM band) or

frequency order (AM band).

Access to the Media Menu

(audio CD, Jukebox,

Auxiliary input).
Display the list of tracks.
Change the audio source.

Access to the Navigation

Menu and display recent

destinations.

Abandon the current

operation.
Long press: return to main

display.

Access to the Traffi c Menu.

Access to the Address book

Menu.

Access to the "SETUP" menu

(confi guration).
Long press: GPS coverage.

Audio settings (Balance /

Fader, Bass / Treble, Musical

ambience...).

Adjust volume (each source

is independent, including

navigation messages and alerts).
Long press: reinitialise the

system.
Short press: mute.

Automatic search down/up for

radio frequencies.
Select previous/next CD or MP3

track.

SD card reader.

Short press: clears the last

character.

Enter the numbers or letters

using the alpha-numeric keypad.
Presetting 10 radio frequencies.

249

01 FIRST STEPS

Peugeot Connect Media Navigation (NG4 3D) NAVIGATOR

Press to left / right:
With display of the "RADIO" screen:

select the previous / next frequency.
With display of the "MEDIA" screen:

select the previous / next track.
With display of the "MAP" or "NAV":

horizontal movement on the map.

Press up / down:
With display of the "RADIO" screen:

select the previous / next radio station

in the list.
With display of the "MEDIA" screen:

select the MP3 folder.
With display of the "MAP" or "NAV":

vertical movement on the map.
Go the the next or previous page in a

menu.
Movement on the virtual keypad

displayed.

OK: confi rm the highlighted item.

END CALL: access to the

Phone menu.
End a call in progress or reject

an incoming call, Bluetooth

connection.

Normal display or black screen.

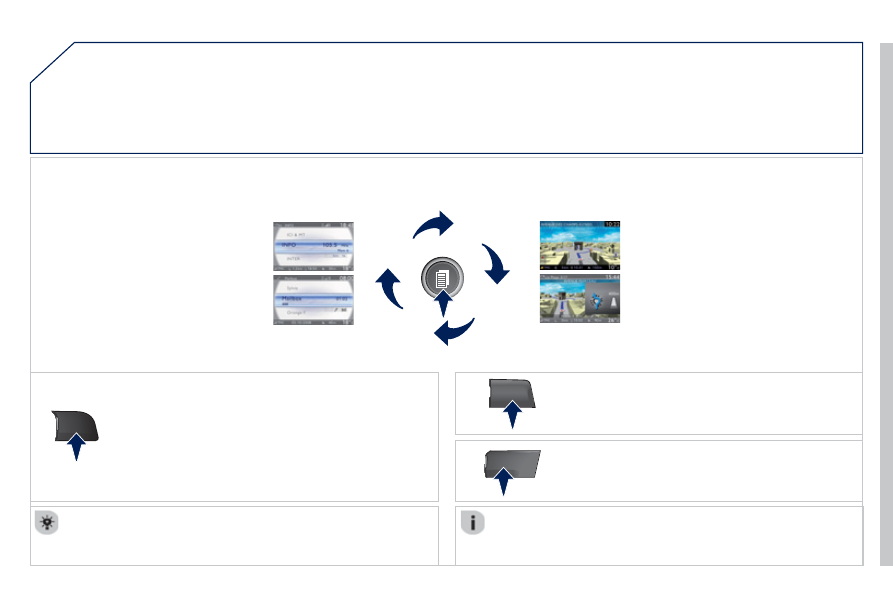

Select successive display in the

screen of "MAP" / "NAV" (if navigation

in progress) / "TEL" (if a call is in

progress) / "RADIO" or "MEDIA"

being played.

CALL: access to the Phone

menu.
Bluetooth connection, accept

an incoming call.

Rotate the dial:
With display of the "RADIO" screen:

select the previous / next radio station

in the list.
With display of the "MEDIA" screen:

select the previous / next CD or MP3

track.
With display of the "MAP" or "NAV":

zoom the map in/out.
Movement of the menu selection cursor.

250

SETUP

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

NAV

ESC

TRAFFIC

ADDR

BOOK

SETUP

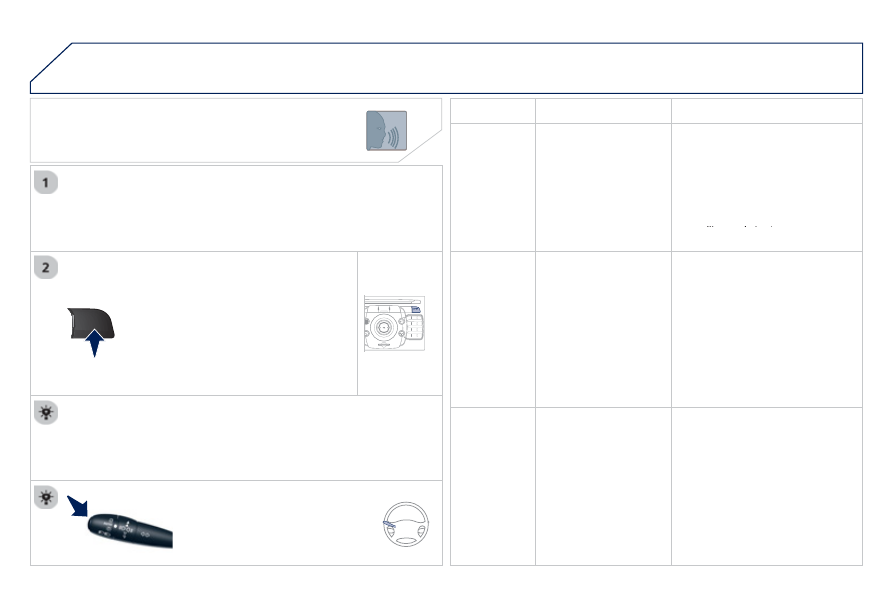

Before using the system for the fi rst time, you are advised to listen

to, say and practice the tutorial.

Press the SETUP button and select

the "Language & Speech" function.

Turn the ring and select "Voice control".

Activate voice recognition.
Select "Tutorial".

VOICE COMMANDS - VOICE

RECO. INITIATION

The phrases to be spoken according to the context are indicated in

the tables below.
Speak and Peugeot Connect Media acts.

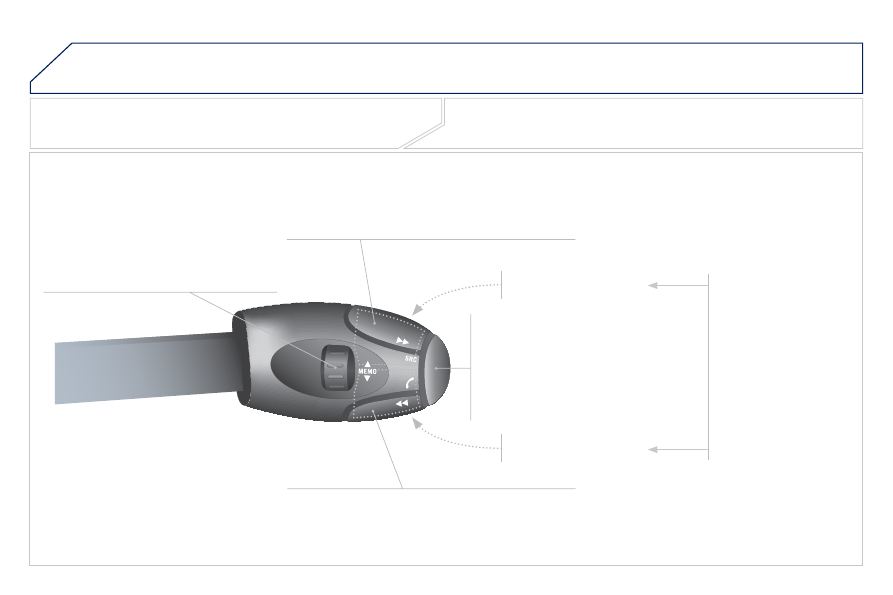

Pressing the end of the lighting

control stalk activates voice

recognition.

CONTEXT

SAY

ACTION

GENERAL

Help address book
Help voice control
Help media
Help navigation
Help telephone
Help radio
Cancel

Correction

Access to the address book help
Access to the voice recognition help
Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help
To cancel a voice command which is in

progress
Request to correct the last voice

recognition carried out

Clear

RADIO

Select station
Station <tts:stationName>

Read out station list
Enter frequency

Select wave band
AM
FM
TA on
TA off

Select a radio station
Select a radio station using its RDS

description <tts:station Name> from the

RADIO list
Listen to the list of stations available
Listen to the frequency of the current

radio station
Choose the frequency waveband (AM or FM)
Change the frequency waveband to AM
Change the frequency waveband to FM
Activate Traffi c Info (TA)
Deactivate Traffi c Info

NAVIGATION

Destination input

Voice advice off

Voice advice on
Save address
Start guidance

Abort guidance
Navigate entry

POI Search

Command to enter a new destination

address
Deactivate the spoken guidance

instructions
Activate the spoken guidance instructions
Save an address in the address book
Start guidance (once the address has

been entered)
Stop the guidance
Start guidance to an entry in the address

book
Start guidance to a point of interest

VOICE COMMANDS AND STEERING MOUNTED CONTROLS

251

VOICE COMMANDS - VOICE

RECO. INITIATION

VOICE COMMANDS AND STEERING MOUNTED CONTROLS

CONTEXT

SAY

ACTION

MEDIA

Media
Select media
Single slot
Jukebox
USB
External device
SD-Card
Track <1 - 1000>

Folder <1 - 1000>

Select the MEDIA source
Choose a source
Select the CD player source
Select the Jukebox source
Select the USB player source
Select the audio AUX input source
Select the SD card source
Select a specifi c track (number between 1

and 1 000) on the active MEDIUM
Select a Folder (number between 1 and

1000) on the active MEDIUM

TELEPHONE

Phone menu
Enter number
Phone book
Dial
Save number
Accept
Reject

Open the Telephone Menu
Enter a telephone number to be called
Open the phone book
Make a call
Save a number in the phone book
Accept an incoming call
Reject an incoming call

ADDRESS
BOOK

Address book menu
Call <entry>

Navigate <entry>

Open the address book
Call fi le using its <fi le> description as

described in the address book
Start guidance to an address in the

address book using its <fi le> description

252

02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS

STEERING MOUNTED CONTROLS

Wiper stalk: display "RADIO" and "MEDIA".
Lighting stalk: activate voice commands with a short press; indication of the

current navigation instruction with a long press .

Change audio source.
Start a call from the contacts list
Call/hang up the telephone.
Confi rm a selection.
Press for more than 2 seconds:

telephone menu.

Radio: automatic search for a lower frequency.
CD / SD CARD / JUKEBOX: select the previous track.
CD / SD CARD / JUKEBOX: continuous press: fast

backwards.

Radio: select the previous/next pre-set

station.
CD audio: select the previous/next track .
If "MEDIA" is displayed in the screen:
MP3 CD / SD CARD / JUKEBOX: select the

previous/next folder.
Select the previous/next item in the contacts

list.

Radio: automatic search for a higher frequency.
CD / SD CARD / JUKEBOX: select the next track.
CD / SD CARD / JUKEBOX: continuous press: fast

forwards.

Volume increase.

Volume decrease.

Mute: press the volume

increase and decrease

buttons simultaneously.
The sound is restored by

pressing one of the two

volume buttons.

253

SETUP

TRAFFIC

MEDIA

GENERAL OPERATION

For a detailed global view of the menus available, refer to the

"Screen menu map" section of this handbook.

Press the MODE button several times in succession to gain access to the following displays:

Long press: access to the GPS coverage and to the demonstration

mode.
For maintenance of the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, without any additional product.

RADIO / MUSIC MEDIA /

VIDEO

TELEPHONE

(If a conversation is in progress)

FULL SCREEN MAP

NAVIGATION
(If guidance is in progress)

SETUP:
access to the "SETUP" Menu: system language *

and voice functions * , voice initialisation (section 09),

date and time * , display, unit and system parameters.

TRAFFIC:
access to the Traffi c Menu: display of the current

traffi c alerts.

DISPLAY ACCORDING TO THE CONTEXT

MEDIA:
"DVD-audio" menu
"DVD-Video" menu

* Available according to model.

254

03 GENERAL OPERATION

Pressing OK gives access to short-cut

menus according to the display on the

screen.

DISPLAY ACCORDING TO THE CONTEXT

NAVIGATION (IF GUIDANCE IS IN

PROGRESS):

Abort guidance

Repeat advice

Block road

Unblock

Less

Route type

Avoid

Satellites

Calculate

Zoom/Scroll

Browse route

Route info

Show destination

Trip info

Stopovers

Browse route

Zoom/Scroll

Voice advice

Route options

Route type

Route dynamics

Avoidance criteria

Recalculate

TELEPHONE:

End call

Hold call

Dial

DTMF-Tones

Private mode

Micro off

MUSIC MEDIA PLAYERS:

Play options

Select media

Normal order

Random track

Scan

Content .. 14 15 16 17 ..
