INSTRUMENTS and CONTROLS

Coolant temperature indicator

System which informs the driver of the

changes in the temperature of the en-

gine coolant while driving.

With the engine running, when the nee-

dle is:

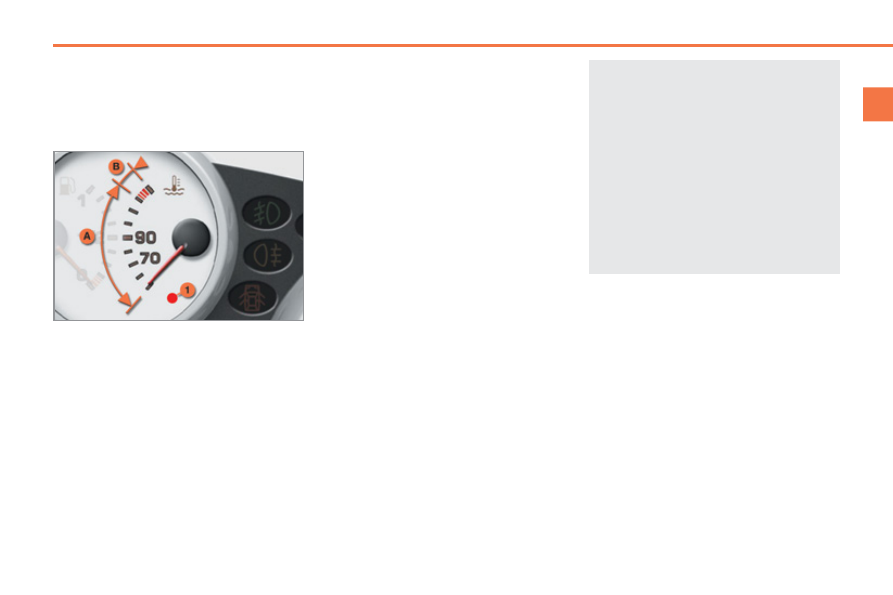

- in zone A , the temperature is cor-

rect,

- in zone

B , the temperature is too

high; the max temperature warning

lamp 1 and the central STOP warn-

ing lamp come on, accompanied by

an audible signal and a message in

the multifunction screen.

You MUST stop as soon as it is safe

to do so.
Contact a PEUGEOT dealer or a qualifi ed

workshop.

After driving for a few minutes, the tem-

perature and pressure in the cooling

system increase.
To top up the level:
) wait for the engine to cool,
) unscrew the cap by two turns to allow

the pressure to drop,

) when the pressure has dropped, re-

move the cap,

) top up the level to the "MAX" mark

(circular line).

On petrol engines, the cooling of the

engine is managed electronically to

reduce fuel consumption. Conse-

quently, the coolant temperature

levels are no longer simply linked

with the external ambient conditions

and the use of the vehicle.
For example, in town, it is normal

for the coolant temperature to be

slightly higher in cold weather than

in hot weather (normal operation

may lead to a temperature of over

100 °).

INSTRUMENTS and CONTROLS

Total distance recorder

System which measures the total dis-

tance travelled by the vehicle during its

life.

Lighting dimmer

Permits manual adjustment of the bright-

ness of the instruments and controls to suit

the ambient light level. Only operates when

the vehicle lighting is on, with the exception

of the daytime running lamps.

The total and trip distances are displayed

for thirty seconds when the ignition is

switched off, when the driver's door is

opened and when the vehicle is locked

or unlocked.

Trip distance recorder

System which measures a distance

travelled during a day or other period

since it was reset to zero by the driver.

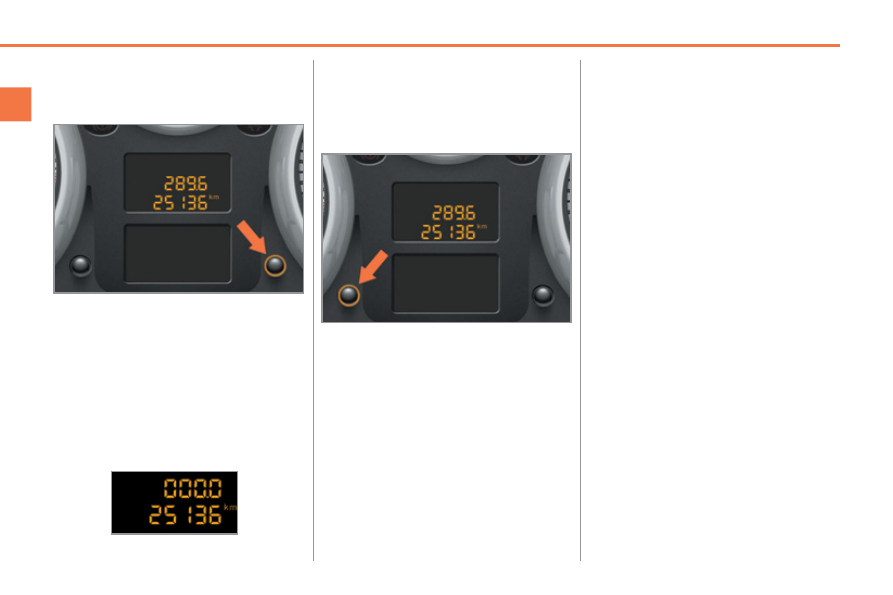

) With the ignition on, press the button

until zeros appear.

Activation
) Press the button to change the

brightness of the instruments and

controls.

) When the lighting reaches the mini-

mum setting, release the button,

then press again to increase it.

or
) When the lighting reaches the maxi-

mum setting, release the button,

then press again to reduce it.

) When the lighting reaches the level of

brightness required, release the button.

Deactivation
When the vehicle lighting is off, or in

day mode on vehicles fi tted with day-

time running lamps, pressing the button

does not have any effect.

INSTRUMENTS and CONTROLS

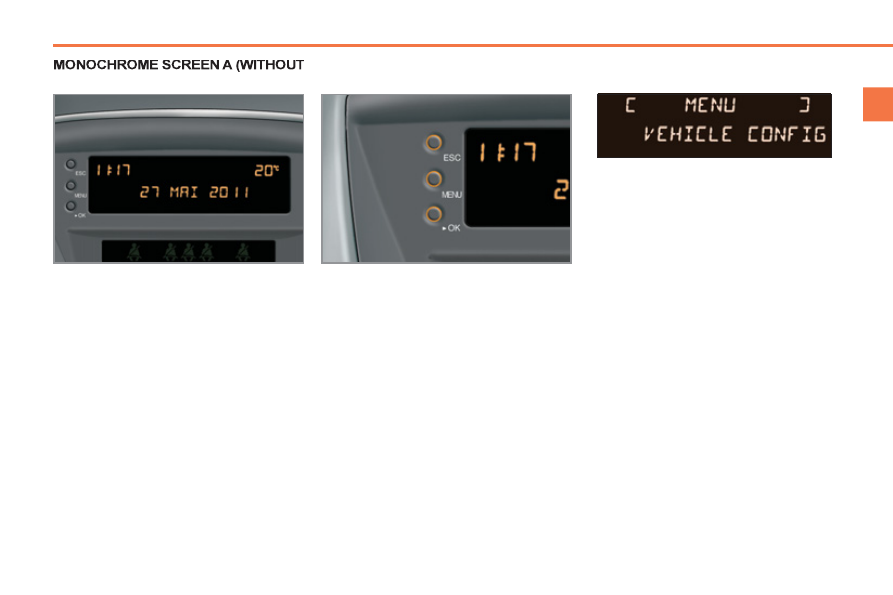

Displays on the screen

This displays the following information:
   -  time,
  -  date,
  -  ambient

temperature

* (this fl ashes if

there is a risk of ice),

status of the openings (doors, boot, ...),

trip computer (refer to the end of the

section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Boot open") may ap-

pear temporarily. These can be cleared

by pressing the "ESC" button.

PEUGEOT CONNECT SOUND)

Controls

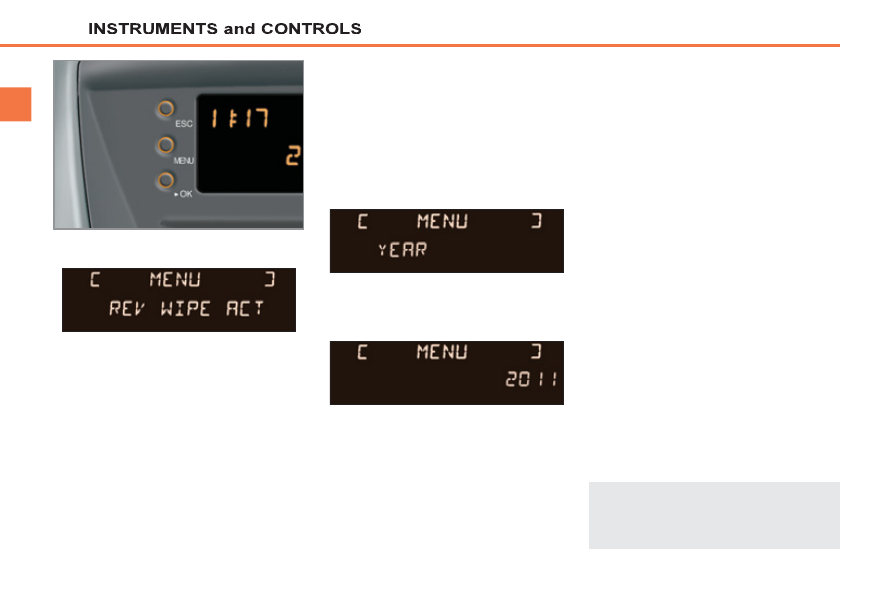

Main menu

There are three display control buttons:
-

"ESC" to abandon the operation in

progress,

"MENU" to scroll through the menus

or sub-menus,

"OK" to select the menu or sub-

menu required.

) Press the "MENU" button to scroll

through the various menus of the

main menu :

   -  vehicle confi guration,
  -  options,
  -  display settings,
  -  language,
  -  units.

) Press the "OK" button to select the

menu required.

* With air conditioning only.

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active, not

active, faulty).

Language
Once the "Language" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has

been selected, you can gain access to

the following settings:
   -  year,
  -  month,
  -  day,
  -  hour,
  -  minutes,
  -

12 or 24 hour mode.

) Wait for approximately ten sec-

onds without any action to allow

the changed data to be recorded or

press the "ESC" button to cancel.

The screen then returns to the normal

display.

Once the "Vehicle confi guration" menu

has been selected, you can activate or

deactivate the following equipment:
-

wiper linked with reverse gear (refer

to the "Visibility" section),

- "guide-me-home" lighting (refer to

the "Visibility" section).

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when

stationary.

Units
Once the "Units" menu has been se-

lected, you can change the units of the

following parameters:
-

temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).

Vehicle confi guration

) Once you have selected a setting,

press the "OK" button to change its

value.

INSTRUMENTS and CONTROLS

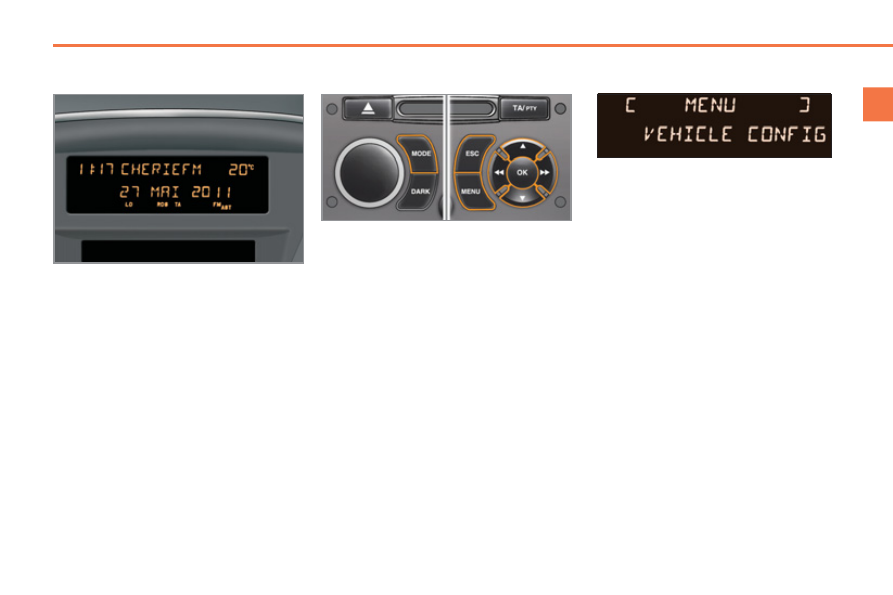

MONOCHROME SCREEN A (WITH
PEUGEOT CONNECT SOUND)

Controls

Displays in the screen

This displays the following information:
   -  time,
  -  date,
  -  ambient

temperature

* (this fl ashes if

there is a risk of ice),

status of the openings (doors, boot, ...),

audio sources (radio, CD, ...),

trip computer (refer to the end of the

section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Boot open") may ap-

pear temporarily. These can be cleared

by pressing the "ESC" button.

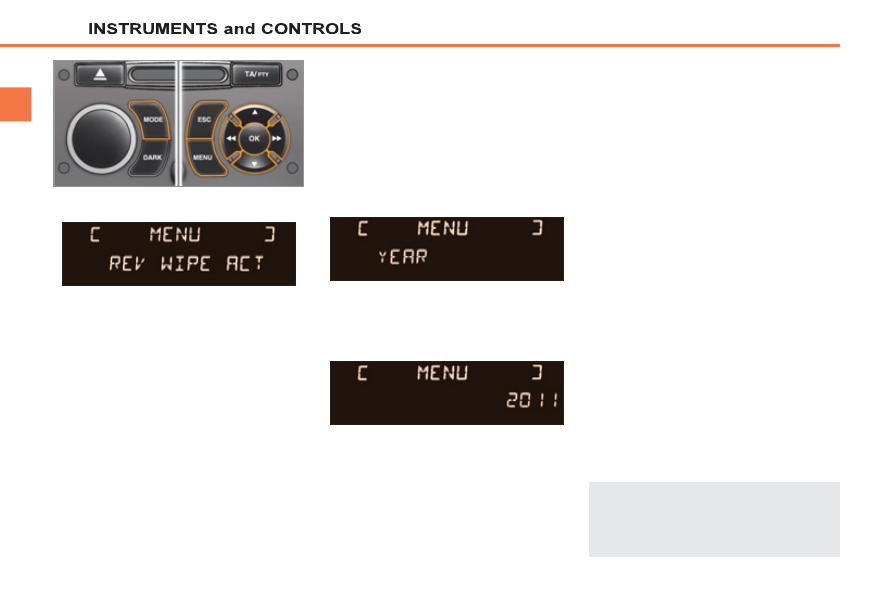

Main menu

) Press the "MENU" button for access

to the main menu , then press the

" " or " " buttons to scroll through

the various menus:

   -  radio-CD,
  -  vehicle confi guration,
  -  options,
  -  display settings,
  -  language,
  -  units.

) Press the "OK" button to select the

menu required.

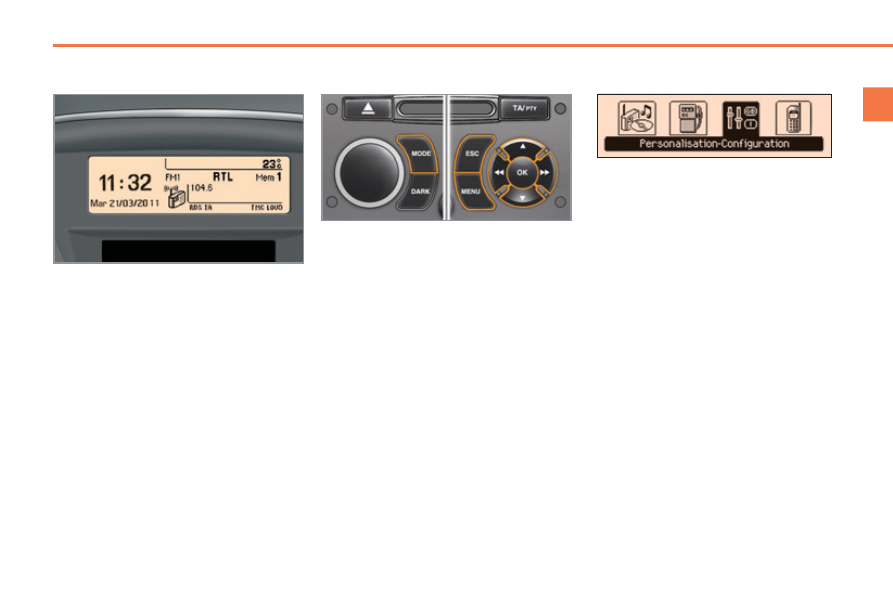

From the audio equipment control panel,

you can:
) press the

"MENU" button to gain

access to the main menu ,

) press the " " or " " buttons to scroll

through the items on the screen,

) press the "MODE" button to change

the permanent application (trip com-

puter, audio source, ...),

) press the "

" or "

" buttons to

change a setting value,

) press the "OK" button to confi rm,
or
) press the "ESC" button to abandon

the operation in progress.

Radio-CD
With the audio equipment switched on,

once the "Radio-CD" menu has been

selected you can activate or deactivate

the functions linked with use of the ra-

dio (RDS, REG) or the CD (introscan,

shuffl e, CD repeat).
For more information on the "Radio-

CD" application, refer to the Peugeot

Connect Sound part of the "Audio and

Telematics" section.

* With air conditioning only.

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when

stationary.

Display settings
Once the "Display settings" menu has

been selected, you can gain access to

the following settings:
   -  year,
  -  month,
  -  day,
  -  hour,
  -  minutes,
  -

12 or 24 hour mode.

Language
Once the "Language" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-

lected, you can change the units of the

following parameters:
-

temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).

) Once you have selected a setting,

press the "

" or "

" buttons to

change its value.

) Press the "

" or "

" buttons to

switch respectively to the previous

or next setting.

) Press the

"OK" button to record

the change and return to the normal

display or press the "ESC" button to

cancel.

Vehicle confi guration

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active, not

active, faulty).

Once the "Vehicle Confi guration" menu

has been selected, you can activate or

deactivate the following equipment:
-

wiper linked with reverse gear (refer

to the "Visibility" section),

- "guide-me-home" lighting (refer to

the "Visibility" section).

INSTRUMENTS and CONTROLS

MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND)

Main menu

Displays in the screen

This displays the following information:
   -  time,
  -  date,
  -  ambient

temperature

* (this fl ashes if

there is a risk of ice),

status of the openings (doors, boot...),

audio sources (radio, CD...),

trip computer (refer to the end of the

section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Automatic headlamp

lighting activated") may appear tempo-

rarily. These can be cleared by pressing

the " ESC " button.

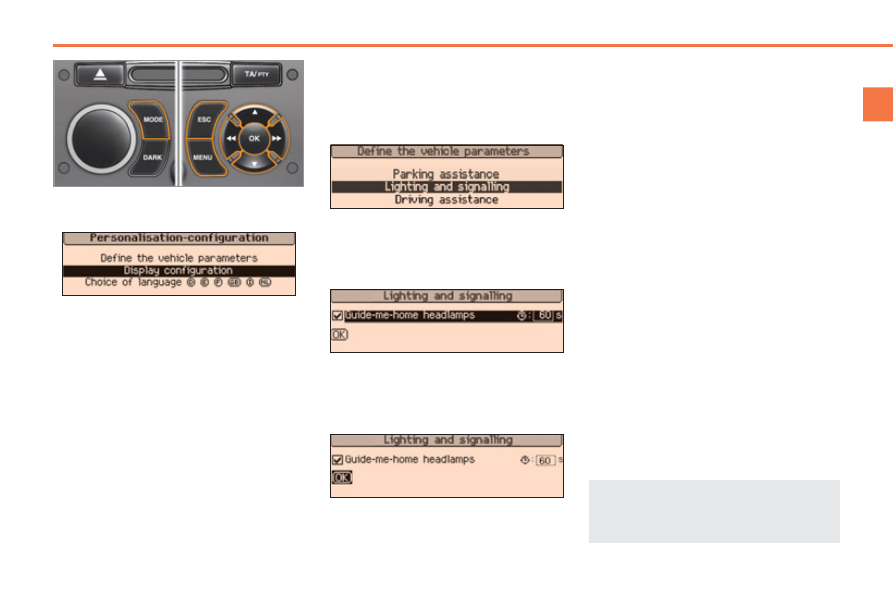

Controls

From the audio equipment control panel,

you can:
) press the "

MENU " button to gain

access to the main menu ,

) press the " " or " " buttons to scroll

through the items on the screen,

) press the " MODE " button to change

the permanent application (trip com-

puter, audio source...),

) press the "

" or "

" buttons to

change a setting value,

) press the " OK " button to confi rm,
or
) press the " ESC " button to abandon

the operation in progress.

"Audio functions" menu

With the audio equipment switched on,

once this menu has been selected you

can activate or deactivate the functions

linked with use of the radio (RDS, REG,

RadioText) or the CD (introscan, shuf-

fl e, CD repeat).
For more information on the "Audio

functions" application, refer to the

Peugeot Connect Sound part of the

"Audio and Telematics" section.

* With air conditioning only.

) Press the "MENU" button for access

to the main menu :

- audio functions,
- trip computer (refer to the end of

the section),

- personalisation-confi guration,
- telephone (Bluetooth hands-free

system).

) Press the " " buttons to select

the menu required, then confi rm by

pressing the " OK " button.

INSTRUMENTS and CONTROLS

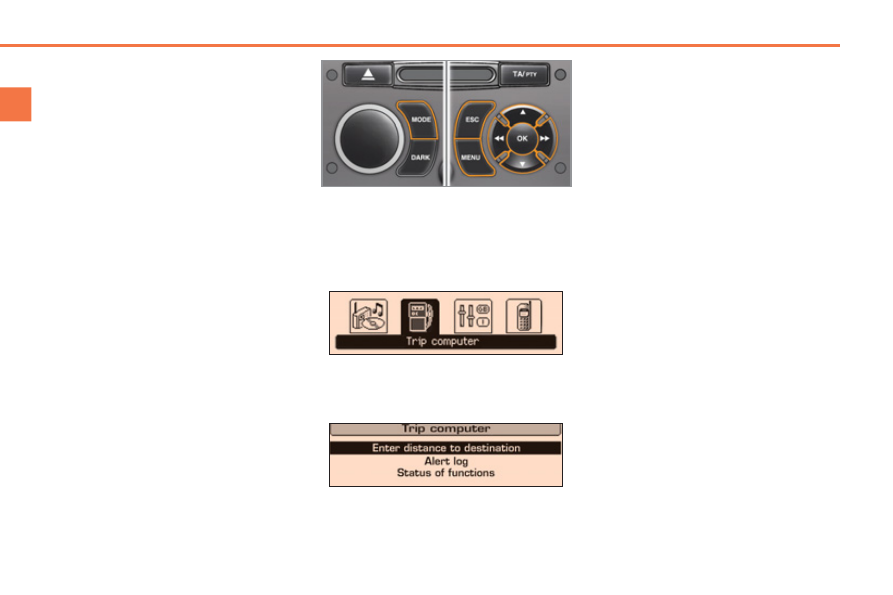

"Trip computer" menu

Once this menu has been selected, you

can consult information concerning the

status of the vehicle (alert log, status of

the functions...).

) Press the

"MENU" button to gain

access to the general menu.

) Press the arrows, then the "OK" button

to select the "Trip computer" menu.

) On the

"Trip computer" menu,

select one of the following applica-

tions:

Enter the distance to the destination
This allows you to enter an approximate

value for the distance to the fi nal desti-

nation.

Status of functions
This summarises the active or inactive

status of the functions present on the

vehicle.

Alert log
This summarises the active warning

messages, displaying them in succes-

sion in the multifunction screen

INSTRUMENTS and CONTROLS

Defi ne the vehicle parameters
Once this menu has been selected, you

can activate or deactivate the following

equipment:
-

wiper linked with reverse gear (refer

to the "Visibility" section),

- "guide-me-home" lighting (refer to

the "Visibility" section).

- rear parking sensors (see "Driving"

section).

Choice of language
Once this menu has been selected,

you can change the screen display

language (Deutsch, English, Espanol,

Français, Italiano, Nederlands, Portugues,

Portugues-Brasil, Türkçe * ).

"Telephone" menu
With the audio equipment switched on,

once this menu has been selected you can

confi gure your Bluetooth hands-free sys-

tem (pairing), consult the various telephone

directories (calls log, services...) and man-

age your communications (pick up, hang

up, call waiting, secret mode...).
For further details concerning the "Tele-

phone" application, refer to the Peugeot

Connect Sound part of the "Audio and

Telematics" section.

Example: setting of the duration of the

"guide-me-home" lighting

"Personalisation-Configuration"

menu

Once this menu has been selected, you

can gain access to the following func-

tions:
- defi ne the vehicle parameters,
- display

confi guration,

choice of language.

) Press the " " or " " buttons, then

the " OK " button to select the menu

required.

) Press the " " or " " buttons, then

the " OK " button to select the "Guide-

me-home headlamps" line.

) Press the "

the value required (15, 30 or 60 sec-

onds), then press the " OK " button to

confi rm.

) Press the " " or " " buttons, then

the " OK " button to select the " OK "

box and confi rm or press the " ESC "

button to cancel.

Display confi guration
Once this menu has been selected, you

can gain access to the following set-

tings:
- brightness-video

setting,

date and time setting,

selection of the units.

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

* According to country.

INSTRUMENTS and CONTROLS

16/9 COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION)

For more information on these ap-

plications, refer to the "Audio and

Telematics" section or to the spe-

cifi c user guide given to you with

the other owner's documents.

Displays on the screen

This displays the following information

automatically and directly:
   -  time,
  -  date,
  -  altitude,
  -

ambient temperature (the value dis-

played fl ashes if there is a risk of

ice),

check on openings,

- warning and vehicle function status

messages, displayed temporarily,

- audio

functions,

trip computer information,

satellite navigation system information.

Controls

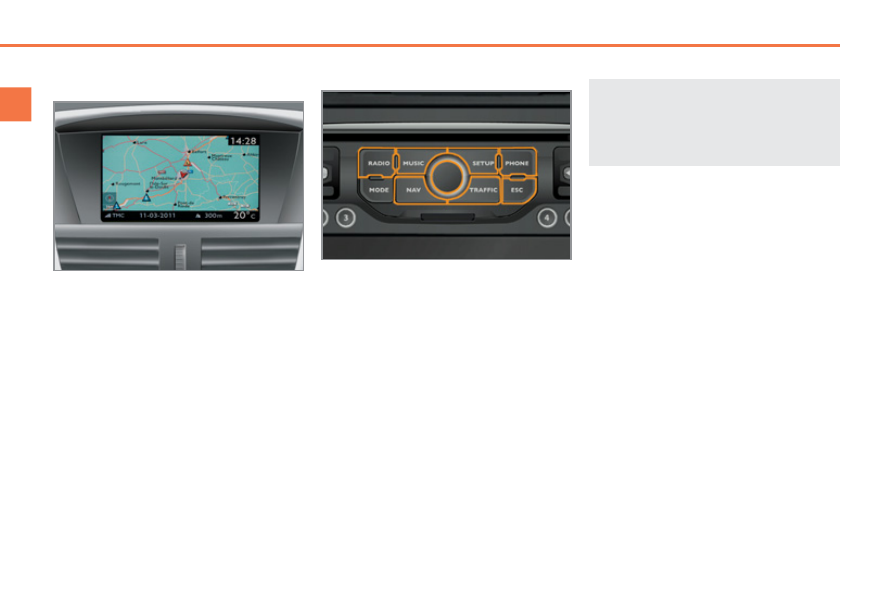

From the Peugeot Connect Navigation

control panel, to select one of the ap-

plications:
)

press the dedicated

"RADIO" ,

"MUSIC" ,

"NAV" ,

"TRAFFIC" ,

"SETUP" or

"PHONE" button for

access to the corresponding menu,

) turn the navigator to move the se-

lection,

) press the navigator to confi rm the

selection,

or
) press the "ESC" button to abandon

the current operation and return to

the previous display.

INSTRUMENTS and CONTROLS

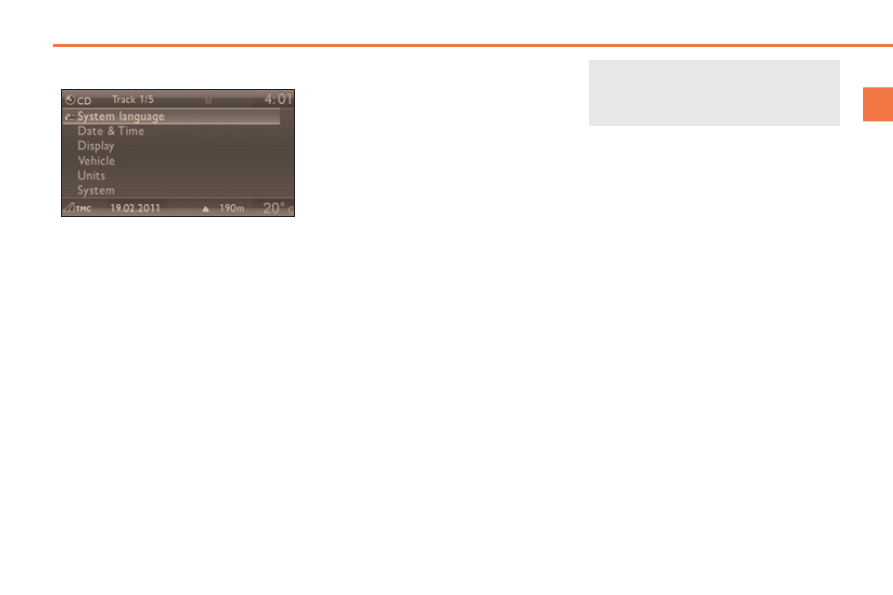

"SETUP" menu

) Press the "SETUP" button for access

to the

"SETUP" menu. This allows

you to select from the following func-

tions:

   -  "System language",
  -   "Date and time",
  -  "Display",
  -  "Vehicle",
  -  "Units",
  -  "System".

System language
This menu allows you to select the language

used by the display: Deutsch, English,

Espanol, Français, Italiano, Nederlands,

Polski, Portugues, Türkçe * .

* According to country.

Date and time
This menu allows you to set the date

and time, the format of the date and the

format of the time (refer to the "Audio

and Telematics" section or to the specif-

ic user guide given to you with the other

owner's documents).

Display
This menu allows you to set the bright-

ness of the screen, the screen colour

scheme and the colour of the map (day/

night or auto mode).

Vehicle
This menu allows you to activate or

deactivate certain driving and comfort

equipment:
-

wiper linked with reverse gear (refer

to the "Visibility" section),

guide-me-home lighting and duration

(refer to the "Visibility" section),

Units
This menu allows you to select the

units: temperature (°C or °F) and con-

sumption (km/l, l/100 or mpg).

System
This menu allows you to restore the fac-

tory confi guration, display the software

version and activate scrolling text.

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when

stationary.

INSTRUMENTS and CONTROLS

TRIP COMPUTER

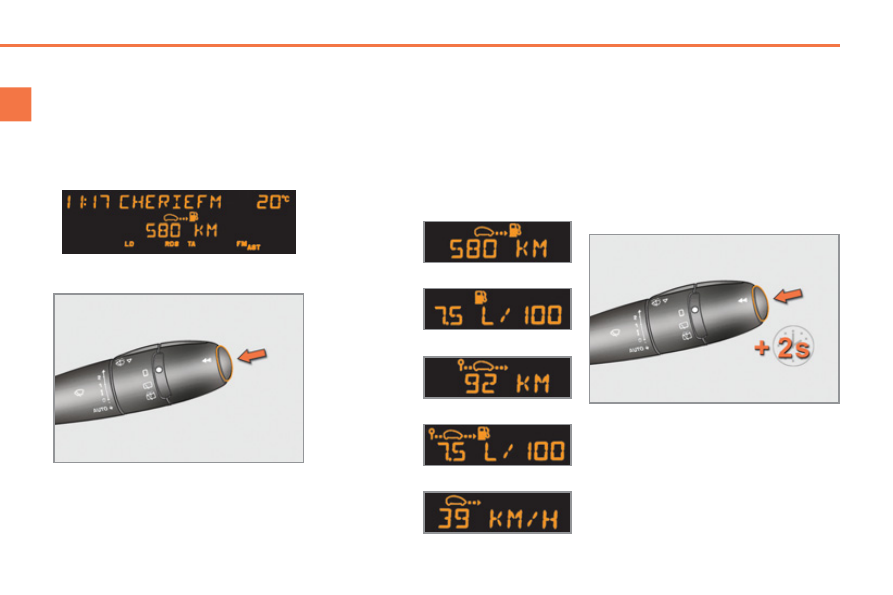

) Press the button, located at the end

of the

wiper stalk , to display the

various items of trip computer data

in succession.

The trip computer provides the following

information:

System which provides current informa-

tion concerning the trip travelled (range,

fuel consumption...).

) Press the control for more than

two seconds to reset to zero the

distance travelled, the average

fuel consumption and the average

speed.

Monochrome screen A

Zero reset

Information displays

- range,

current fuel consumption,

- distance

travelled,

average fuel consumption,

- average

speed.

) The next press then returns you to

the normal display.

INSTRUMENTS and CONTROLS

16/9 colour screen

- the current information

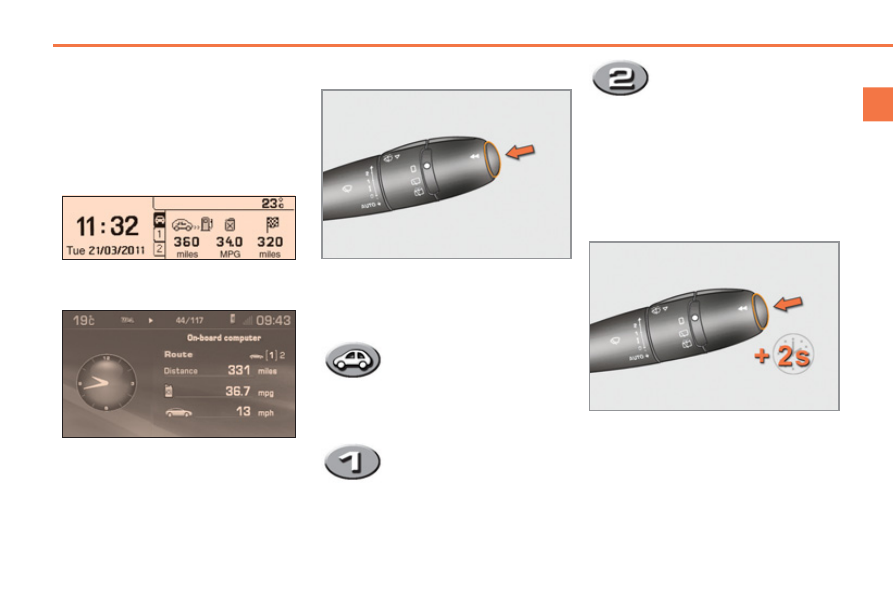

tab with:

● the range,
● the current fuel

consumption,

● the distance remaining

to be travelled,

Trip zero reset

Monochrome screen C

) Press the button, located at the end

of the

wiper stalk, to display the

various trip computer tabs in suc-

cession:

Information displays

) When the trip required is displayed,

press the control for more than

two seconds.

the trip "1" tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,

for the fi rst trip.

the trip "2" tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,

for the second trip.

TRIP COMPUTER

System which provides current infor-

mation concerning the route travelled

(range, fuel consumption, …).

Trips "1" and "2" are independent but

their use is identical.
For example, trip "1" can be used for daily

fi gures and trip "2" for monthly fi gures.

) Press again to return to the normal

display.

INSTRUMENTS and CONTROLS

Distance remaining to be

travelled
(miles or km)
This is the distance remaining

to be travelled to the fi nal destination. It

is calculated either instantly by the navi-

gation system if guidance is activated,

or entered by the user.
If the distance is not entered, dashes

are displayed in place of the digits.

Average speed
(mph or km/h)
This is the average speed calcu-

lated since the last trip computer

zero reset (ignition on).

Range
(miles or km)
This indicates the num-

ber of miles (or kilometres)

which can still be travelled with the fuel

remaining in the tank in relation to the

average fuel consumption over the last

few miles (kilometres) travelled.

Current fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity of

fuel consumed over the last few

seconds.

Average fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity

of fuel consumed since the

last trip computer zero re-

set.

Distance travelled
(miles or km)
This indicates the distance

travelled since the last trip

computer zero reset.

A few definitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After fi ll-

ing with at least 5 litres of fuel, the range

is recalculated and is displayed when it

exceeds 60 miles (100 km).

If dashes are displayed continu-

ously while driving in place of the

digits, contact a PEUGEOT dealer

or a qualifi ed workshop.

This function is only displayed

from 20 mph (30 km/h).

This fi gure may increase following

a change of driving style or relief,

resulting in a signifi cant change in

the current fuel consumption.

COMFORT

VENTILATION

Air treatment

The incoming air follows various routes

depending on the controls selected by

the driver:
- direct arrival in the passenger com-

partment (air intake),

- passage through a heating circuit

(heating),

- passage through a cooling circuit

(air conditioning).

The temperature control enables you to

obtain the level of comfort required by

mixing the air of the various circuits.
The air distribution control enables you

to diffuse the air in the passenger com-

partment combining several air vents.
The air fl ow control enables you to

increase or reduce the speed of the

ventilation blower.

Air intake

The air circulating in the passenger com-

partment is fi ltered and originates either

from the outside via the grille located at

the base of the windscreen or from the

inside in air recirculation mode.

Control panel

The controls of this system are grouped

together on control panel A on the centre

console. Depending on the model, the

functions offered are:
-

the level of comfort required,

- air

fl ow,

- air

distribution,

- demisting-defrosting,
- manual or digital air conditioning

controls.

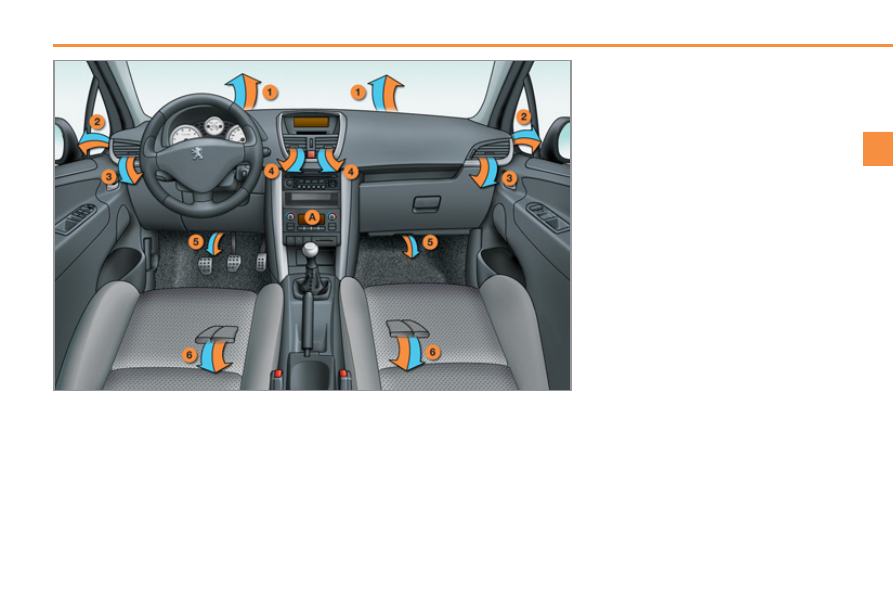

Air distribution

1. Windscreen demisting-defrosting ents.
2. Front side window demisting-defrosting

vents.

  3.   Side adjustable air vents.
  4.   Central adjustable air vents.
  5.   Air outlets to the front footwells.
  6.   Air outlets to the rear footwells.

COMFORT

The condensation created by the

air conditioning results in a dis-

charge of water under the vehicle

which is perfectly normal.

RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING

In order for these systems to be fully effective, follow the operation and main-

tenance guidelines below:
) To obtain an even air distribution, take care not to obstruct the exterior air

intake grilles located at the base of the windscreen, the nozzles, the vents

and the air outlets, as well as the air extractor located in the boot.

) Do not cover the sunshine sensor, located on the dashboard; this is used

for regulation of the digital air conditioning system.

) Operate the air conditioning system for at least 5 to 10 minutes, once or

twice a month to keep it in perfect working order.

) Ensure that the passenger compartment fi lter is in good condition and have

the fi lter elements replaced regularly (refer to the "Checks" section).

We recommend the use of a combined passenger compartment fi lter.

Thanks to its special active additive, it contributes to the purifi cation of

the air breathed by the occupants and the cleanliness of the passenger

compartment (reduction of allergic symptoms, bad odours and greasy de-

posits).

) To ensure correct operation of the air conditioning system, you are also

advised to have it checked regularly as recommended in the Maintenance

and Warranty Guide.

) If the system does not produce cold air, switch it off and contact a PEUGEOT

dealer or a qualifi ed workshop.

When towing the maximum load on a steep gradient in high temperatures,

switching off the air conditioning increases the available engine power and so

improves the towing ability.

If after an extended stop in sunshine, the interior temperature is very high,

fi rst ventilate the passenger compartment for a few moments.
Put the air fl ow control at a setting high enough to quickly change the air in

the passenger compartment.
The air conditioning system does not contain chlorine and does not present

any danger to the ozone layer.

Peugeot 207 (2011 year). Manual - part 3
