Peugeot 207 (2011 year). Manual - part 1

Handbook

Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of

your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be

shown the recommended equipment and accessories.

PEUGEOT's SERVICE BOX Internet site permits easy

and free consultation of your vehicle documentation

on line.

Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you

access:

● to your Handbook,
● to previous Vehicle documentation.

select your language,

click on the link in the "Private customer access"

zone to consult the Vehicle documentation,

A window opens giving access to all of the handbooks...

select your vehicle,

choose its body type then the date of publication

of the handbook,

fi nally, click on the item which is of interest to you.

Thank you for choosing a 207, a symbol

of confi dence, passion and inspiration.

Page reference:

this symbol invites you to refer to

the pages which provide details

of the function.

Key

Protection of the environment:

this symbol accompanies advice

relating to protection of the envi-

ronment.

Information:

this symbol draws your attention

to additional information for better

use of your vehicle.

Warning:

this symbol marks warnings which

it is essential to observe for your

own safety, for the safety of others

or to avoid any risk of damaging

your vehicle.

Your vehicle may be fi tted with only

some of the equipment mentioned in

this document, depending on the trim

level, version and the specifi cation for

the country in which it is sold.

WELCOME

This handbook has been designed to

enable you to make the most of your

207.

On the fi rst few pages, you will fi nd a

detailed summary, followed by a quick

reference guide intended to make it

easier for you to become familiar with

your vehicle.

All of the details specifi c to your 207,

comfort, safety, driving, are then pre-

sented in this handbook, to increase

your appreciation of the vehicle and to

help you make the most of it.

CONTENTS

Instrument panels

Indicator and warning lamps

Indicators

Adjustment buttons

Screens without audio system 33
Screens with audio system

16/9 colour screen
(Peugeot Connect Navigation) 40
Trip computer

Ventilation

Heating

Manual air conditioning

Rear screen demist - defrost

Digital air conditioning

Front seats

Rear seats

Mirrors

Steering wheel adjustment

Interior fi ttings 59

COMFORT 45 Î 67

Remote control key

Window controls

Rear quarter windows

Doors

Boot

Panoramic sunroof

Fuel tank

Misfuel prevention

ACCESS 68

Lighting control stalk

Headlamp adjustment

Wiper control stalk

Courtesy lamps

VISIBILITY 82

Child seats

Isofi x child seats

Child lock 100

CHILD

SAFETY 90 Î 100

FAMILIARISATION 4

INSTRUMENTS and

CONTROLS

19 Î 44

ECO-DRIVING

17 Î 18

CONTENTS

Direction indicators

101

Emergency or assistance call 101
Hazard warning lamps

102

Horn

102

Braking assistance systems

103

Trajectory control systems

104

Seat belts

105

Airbags

108

SAFETY 101 Î 111

Parking brake

112

Manual gearbox

112

Gear shift indicator 113
Automatic gearbox

114

Speed limiter

117

Cruise control 119
Parking sensors

121

DRIVING 112 Î 122

Bonnet

124

Running out of fuel (Diesel)

124

Petrol engines

126

Diesel engines

127

Checking levels

128

Checks

130

CHECKS

123 Î 131

Temporary puncture repair kit 13

Changing a wheel

137

Changing a bulb

142

Changing a fuse 148
Battery

153

Energy economy mode

155

Changing a wiper blade

155

Towing the vehicle

156

Towing a trailer

158

Fitting roof bars

159

Accessories

160

PRACTICAL

INFORMATION 132 Î 161

Petrol engines

162

Petrol weights

164

Diesel engines

170

Diesel weights

171

Dimensions

174

Identifi cation markings 175

TECHNICAL

DATA

162 Î 175

AUDIO EQUIPMENT and

TELEMATICS 176

234

Emergency or assistance

177

Peugeot Connect Navigation 179
Peugeot Connect Sound 213

ALPHABETICAL

INDEX 240

243

VISUAL

SEARCH 235

239

FAMILIARISATION

EXTERIOR

Panoramic sunroof
This extensively glazed roof provides

incomparable visibility and light in the

passenger compartment.
78

Temporary tyre repair kit
This kit is a complete system, consist-

ing of a compressor and an integral

sealant, for the temporary repair of a

tyre.
132

Rear parking sensors
This system provides a warn-

ing when reversing by detecting

obstacles located behind the

vehicle.
121

FAMILIARISATION

OPEN

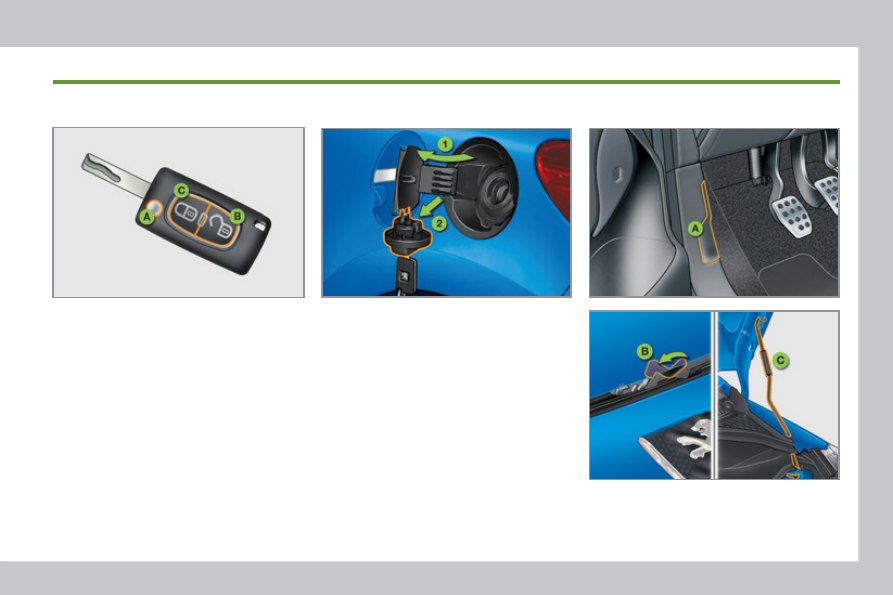

Remote control key

  A.   Unfolding/Folding the key.
  B.   Unlocking the vehicle.
  C.   Locking the vehicle.
     68

Fuel tank

1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller

cap.

Capacity of the tank: approximately

50 litres.
79

Bonnet

   A.   Interior release lever.
  B.   Exterior safety catch.
  C.  Bonnet stay.

124

On Diesel vehicles, the fuel fi ller

neck incorporates a misfuel preven-

tion device which prevents fi lling

with petrol.

FAMILIARISATION

ACCESS

Boot

   1.   Unlocking the vehicle.
  2.   Opening the boot.
     77

Panoramic sunroof (SW)

   1.   Opening the blind.
  2.   Closing the blind.
     78

FAMILIARISATION

INTERIOR

Dual-zone digital air conditioning
This system allows different levels of

comfort to be set for the driver and the

front passenger. It then automatically

controls these levels according to the

ambient conditions.
50

Distance recorder
The trip distance recorder is reset to

zero by pressing the right-hand button

in the instrument panel for more than

two seconds.
32

Audio and communication systems
This equipment benefi ts from the latest

technology: MP3 compatible Peugeot

Connect Sound, Peugeot Connect USB,

Bluetooth hands-free system, Peugeot

Connect Navigation, auxiliary sockets.
  Peugeot Connect Navigation
     179
  Peugeot Connect Sound
     213
  Peugeot Connect USB
     220

FAMILIARISATION

INSTRUMENTS AND CONTROLS

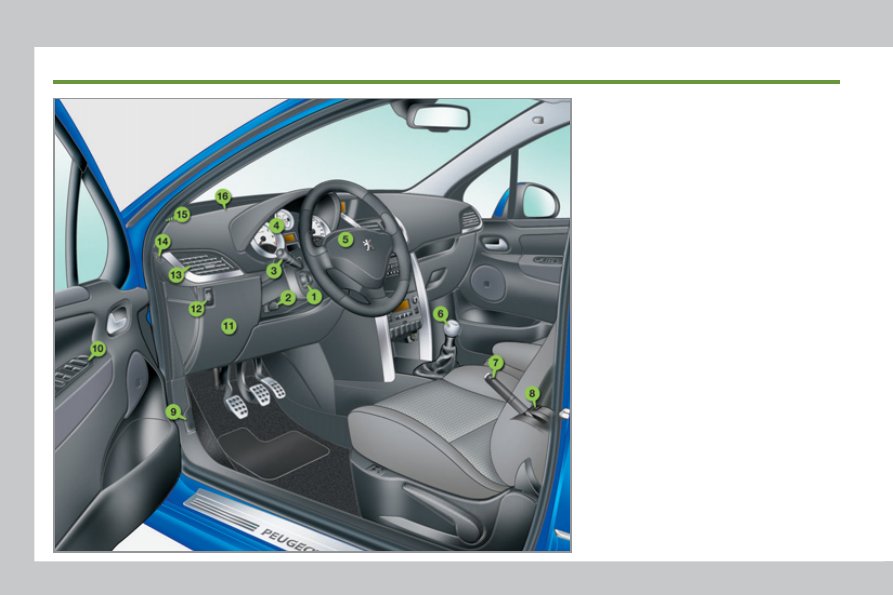

1. Cruise control/speed limiter

switches.

2. Steering wheel adjustment control.
3. Lighting and direction indicator

control stalk.

4. Instrument panel.
5. Driver's airbag.

Horn.
  6.  Gear lever.
  7.  Parking brake.
  8.   Panoramic sunroof blind control

(SW).

9. Bonnet release lever.
10. Door mirror controls.

Electric window controls.

Rear electric windows deactivation

control.

  11.  Fusebox.
  12.  Headlamp height adjustment.
  13.  Side adjustable air vent.
  14.  Front door window demisting vent.
  15.  Speaker  (tweeter).
  16.  Windscreen demisting vent.

FAMILIARISATION

INSTRUMENTS AND CONTROLS

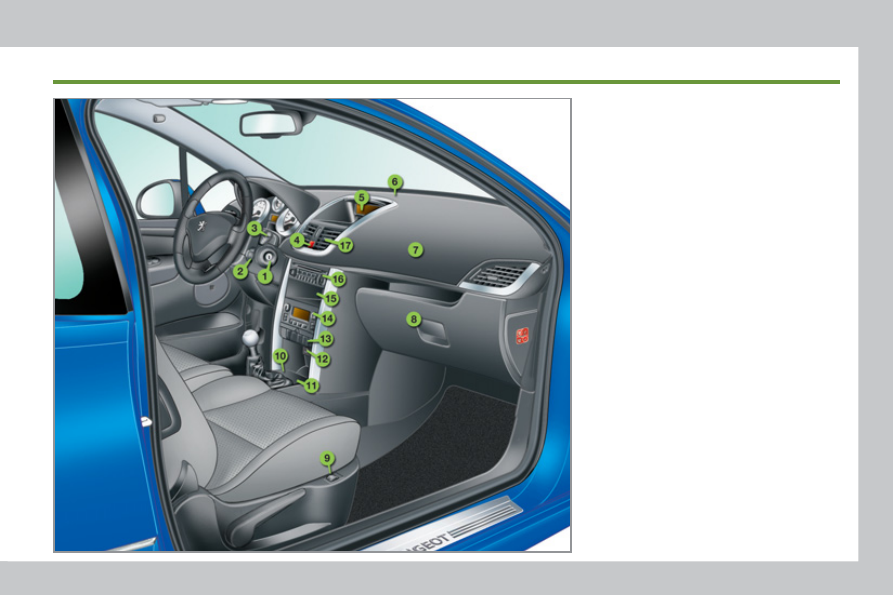

1. Steering lock and ignition.
2. Audio equipment steering mounted

controls.

3. Wiper/wash-wipe/trip computer

control stalk.

4. Hazard warning lamps switch.
5. Multifunction screen.

Seat belt fastening status warning

lamps.

  6.  Sunshine sensor.
  7.  Passenger's airbag.
  8.   Glove box/Passenger's airbag

deactivation/Audio/video sockets.

  9.   Heated seat control.
  10.  Front  ashtray.
  11.  12 V accessory socket.
  12.  USB  port.
  13.  Dynamic stability control

(ESP/ASR) button.

Central locking button.

Electric child lock button.

  14.  Heating/air conditioning controls.
  15.  Storage  compartment.
  16.  Peugeot Connect Sound or

Peugeot Connect Navigation.

17. Central adjustable air vents.

FAMILIARISATION

SITTING COMFORTABLY

  Also...
  5.   Access to the rear seats (3-door).
  6.   Armrest (except 3-door).
  7.  Heated seat.

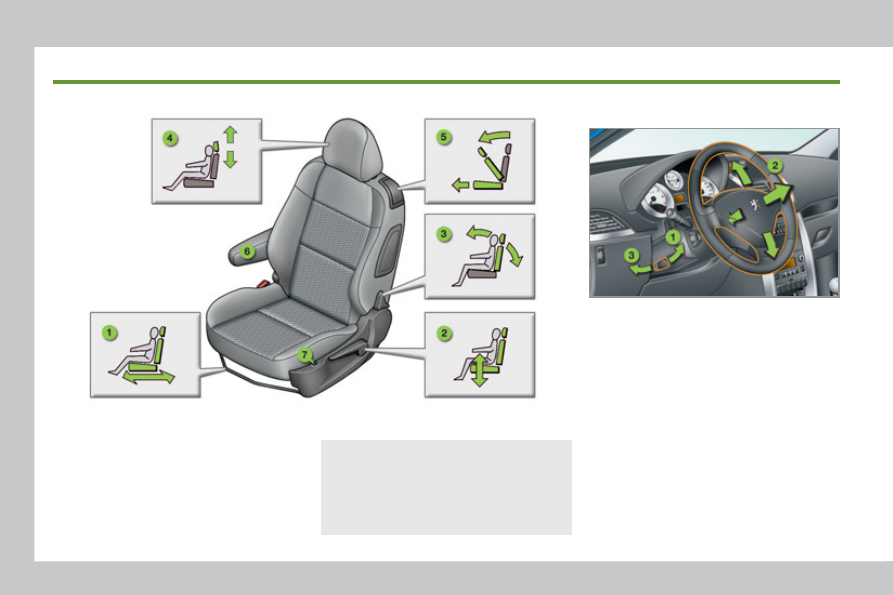

Front seat adjustment

Steering wheel adjustment

  1.  Forwards-backwards adjustment.
  2.   Height adjustment.
  3.   Seat back angle adjustment.
  4.   Head restraint height adjustment.
     52

   1.   Releasing the adjustment mechanism.
  2.   Adjustment for height and reach.
  3.   Locking the adjustment mechanism.
As a safety precaution, these operations

must only be carried out when stationary.

FAMILIARISATION

SITTING COMFORTABLY

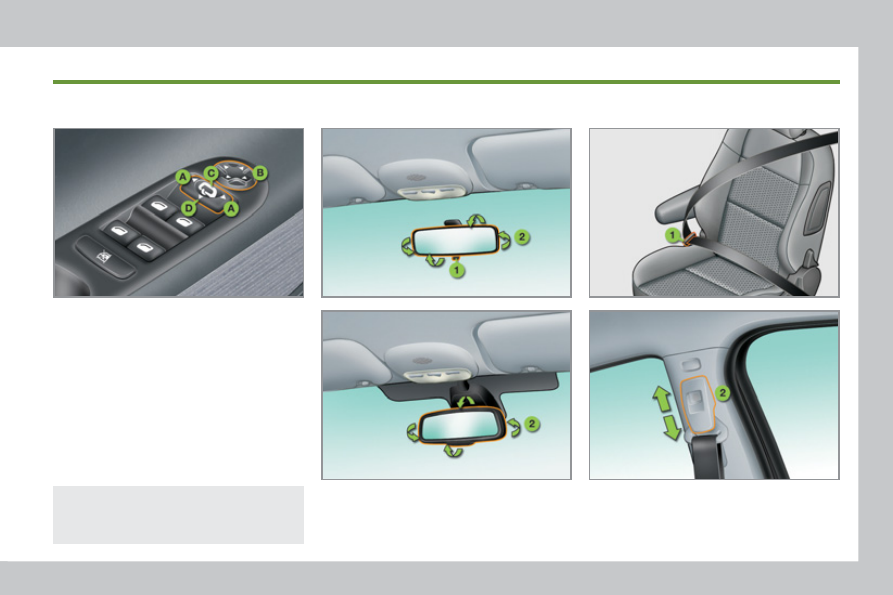

Door mirror adjustment

  A.   Selecting the mirror.
  B.   Adjusting the position of the mirror.
  C.   De-selecting the mirror.
     57

Also...
D. Folding/Unfolding.

Rear view mirror adjustment

1. Selecting the "day" position of the

mirror.

2. Adjusting the mirror.

Front seat belts

1. Fastening.
2. Height adjustment.

105

FAMILIARISATION

SEEING CLEARLY

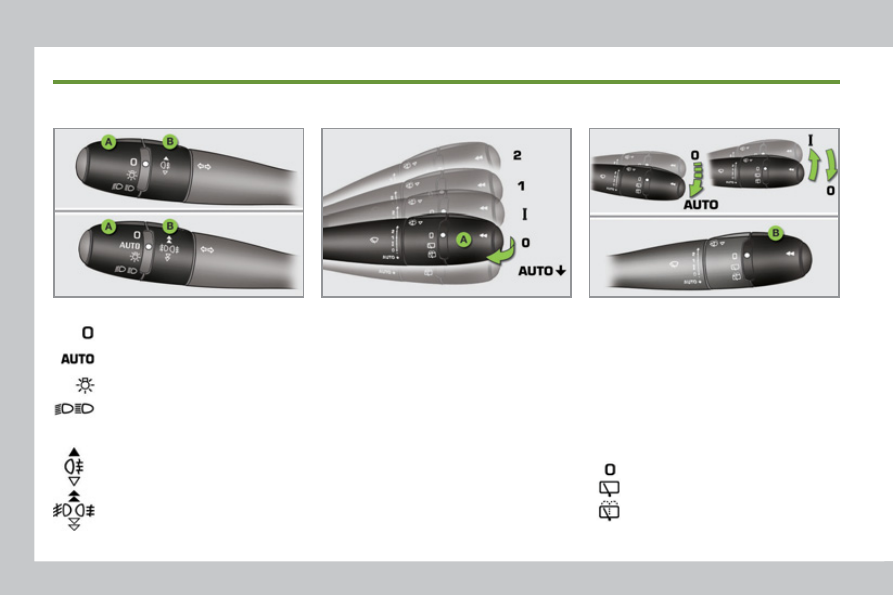

Lighting

Ring A

Switching on "AUTO" mode
) Push the control downwards and re-

lease it.

Ring B

  Control A: windscreen wipers
  2.  Fast wipe.
  1.    Normal wipe.
  I.   Intermittent wipe.
  0.   Park.
  AUTO È    Automatic wiping or single wipe.
Wash-wipe: pull the control towards you.

Wipers

Switching off "AUTO" mode
) Push the control upwards and return

it to position "0" .

Lighting off.

Sidelamps.

Dipped/main beam headlamps.

Rear foglamps.

Front and rear foglamps.

Automatic illumination of headlamps.

Ring B: rear wiper

Park.

Intermittent wipe.

Wash-wipe.

–

FAMILIARISATION

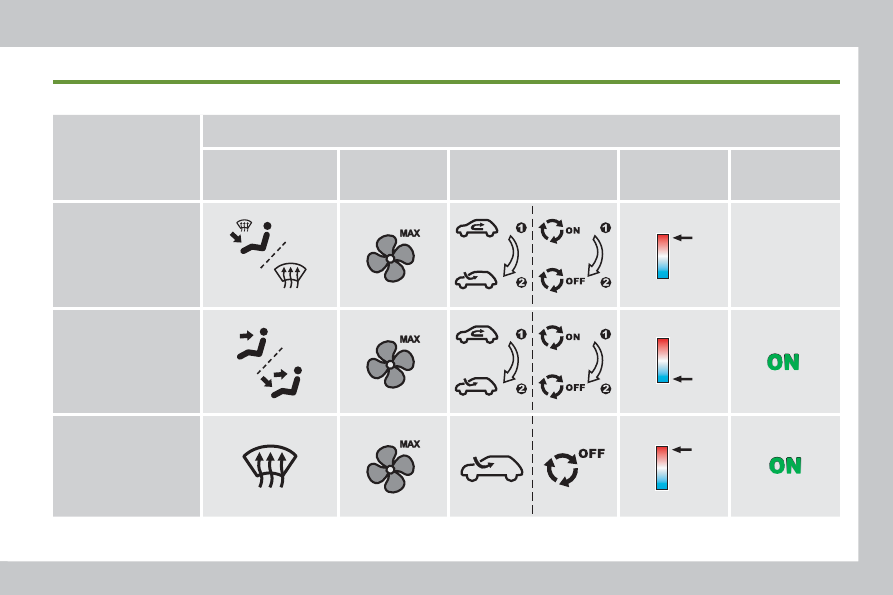

Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.

I require...

Heating or Manual air conditioning

Air distribution

Air fl ow

Air recirculation /

Exterior air intake

Temperature

Manual A/C

HEAT

COOL

DEMISTING

DEFROSTING

VENTILATION

Advice on interior settings

FAMILIARISATION

MONITORING

Instrument panel

A. With the ignition on, the fuel gauge

needle should rise.

B. With the engine running, the associ-

ated low level warning lamp should

switch off.

C. With the ignition on, the oil level in-

dicator should display "OIL OK" for

a few seconds.

If the levels are not correct, top up the

level which is low.
19

1. With the ignition on, the orange and

red warning lamps come on.

2. With the engine running, these

warning lamps should go off.

If a warning lamp remains on, refer to

the corresponding page.
20

Warning lamps

* Except 3-door.

Lighting of the indicator lamp indicates

the status of the corresponding function.
A. Deactivation of the ESP/ASR system.

104

B. Central locking.

C. Activation of the electric child lock * .

100

Switch panel
