Peugeot 206 CC (2006 year). Manual - part 2

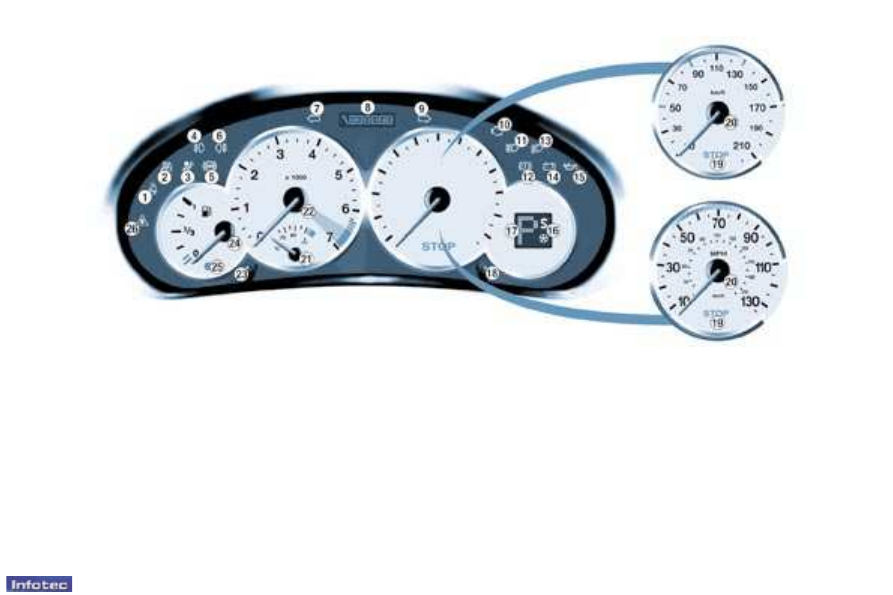

18 - Instruments and controls

01-01-2006

1. Seat belt not fastened warning

light*

2. Passenger air bag disarmed

indicator light*

Front and side air

bags warning

light

4. Front fog lamps indicator light
5.

Anti-lock braking system (ABS)

warning light

6.  Rear fog lamp indicator light
7.  Left-hand direction indicator
8.  Total distance recorder, service

indicator and engine oil level

indicator

9.  Right-hand direction indicator
10.  Emission control warning light
11.  Main beam headlamps
12.  Handbrake, brake ﬂuid level

and electronic brake force

distribution warning light

13.  Dipped beam headlamps
14.  Battery charge warning light
15.  Engine oil pressure and

temperature warning light

16.  Operating programmes
17.  Gear lever position indicator
18.  Total distance recorder button

19.  Central (STOP) warning light
20.  Speedometer
21.  Coolant temperature indicator
22.  Rev counter
23.  Lighting rheostat button
24.  Fuel gauge
25.  Low fuel level warning light
26.  Dynamic stability control (ESP/

ASR) warning light

INSTRUMENT DIALS: AUTOMATIC GEARBOX

* According to country.

Instruments and controls

01-01-2006

WARNING LIGHTS

A permanently lit warning light

or one ﬂashing

with the engine

running, indicates an operating

fault of the unit concerned.

The illumination of certain warning

lights may be accompanied by

an audible signal and a message

on the multifunction display. Do

not ignore this warning: consult

a PEUGEOT dealer as soon as

possible.

If the central STOP warning light

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

Central (STOP)

warning light

Linked to the warning

lights:

- engine

oil

pressure

and

temperature,

- low coolant level,

- handbrake,

- low brake ﬂuid level,

- electronic brake force distribution

system fault.

Linked to the coolant temperature

indicator.

You must stop if the light ﬂashes

with the engine running.

Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

Linked to the central (STOP) warning

light.

You must stop.

This warning light indicates one of

the following:

- insufﬁcient oil pressure,

- a lack of oil in the lubrication circuit.

Top up the level.

- an oil temperature which is too high.

The warning light is acompanied by

an audible signal. To lower the oil

temperature, reduce your speed.

Consult a PEUGEOT dealer.

Diesel engine low

coolant level warning

light

Linked to the central (STOP) warning

light.

You must stop.

Wait for the engine to cool before

topping up the level.

The cooling circuit is pressurised.

In the event of breakdown and to

prevent any risk of burns, unscrew

the cap by two turns to allow the

pressure to drop.

When the pressure has dropped,

remove the cap and top up the level.

Consult a PEUGEOT dealer.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds

each time the ignition is switched

on.

If the warning light remains on or

comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.

However,

the

vehicle

retains

conventional servo-assisted braking.

Illumination of this warning light, ac-

companied by an audible signal and a

message on the multi-function display,

indicates a fault in the ABS system.

Consult a PEUGEOT dealer.

Handbrake, low

brake ﬂuid and

Electronic Brake Force

Distribution system

fault warning light

Linked to the central (STOP) warning

light.

This indicates one of the following:

- that the handbrake is applied or not

fully released,

- an excessive drop in brake ﬂuid

level (if the warning light remains

on even when the handbrake is

released).

- a fault in the Electronic Brake Force

Distribution system, if lit at the same

time as the ABS warning light.

You must stop.

Consult a PEUGEOT dealer.

20 - Instruments and controls

01-01-2006

Dynamic stability

control system (ESP/

ASR) warning light

This comes on for a few seconds

each time the ignition is switched

on.

With the engine running and when

the vehicle is moving, it comes on if

the system is activated.

It lights permanently, accompanied

by a message on the multifunction

display, when the system is

disarmed.

If the warning light remains lit with the

engine running and when the vehicle

is moving, consult a PEUGEOT

dealer.

Battery charge warning

light

This indicates one of the

following:

- faulty operation of the charging

circuit,

- slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Diesel additive level warning

An audible signal and a message

on the multifunction display indicate

a low diesel additive level. This

additive must be topped up, consult

a PEUGEOT dealer as soon as

possible.

Diesel engine pre-heat

warning light

Wait until the warning light

goes out before starting the

engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

Low fuel level

warning light

When this light ﬁrst

comes on, you have enough fuel

to drive at least 30 miles (50 km).

The tank capacity is approximately

47 litres.

Emission control

warning light

(according to version)

This comes on for a few seconds

each time the ignition is switched

on.

If it comes on with the engine running,

this indicates incorrect operation of

the injection, ignition or emission

control system.

If the warning light ﬂashes, there

is a risk of damage to the catalytic

converter on petrol engines.

Consult a PEUGEOT dealer.

PEF saturation warning

(Diesel)

An audible signal and a message

on the multifunction display indicate

clogging of the diesel ﬁlter (PEF),

this is the beginning of saturation

of the particle emission ﬁlter due

to exceptionally prolonged urban

driving conditions: low speed, long

trafﬁc jams, ...

In order to regenerate the ﬁlter, you

are advised to drive at a speed of

40 mph (60 km/h) or above as soon

as possible when trafﬁc conditions

permit for at least ﬁve minutes, until

the message disappears. If this fault

persists, consult a PEUGEOT dealer

as soon as possible.

Instruments and controls

01-01-2006

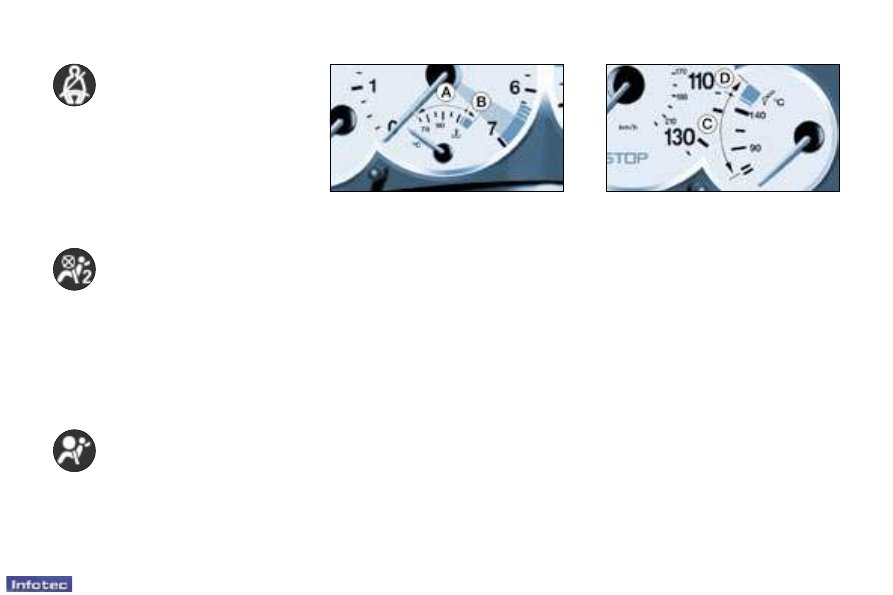

Seat belt not fastened

warning light*

When the ignition is switched

on, this indicator light comes

on if the driver has not fastened his

seat belt.

Above 12 mph (20 km/h), the warning

light ﬂashes for about two minutes

accompanied by an increasingly

audible signal and a message on the

multifunction display. This warning

light remains lit until the driver’s seat

belt is fastened.

Passenger air bag

disarmed warning

light*

Illumination of this warning light

accompanied by a message on the

multi-function display, indicates that

the passenger air bag is disarmed.

The warning light remains lit as

long as the passenger air bag is

disarmed.

Always consult a PEUGEOT dealer if

the warning light ﬂashes.

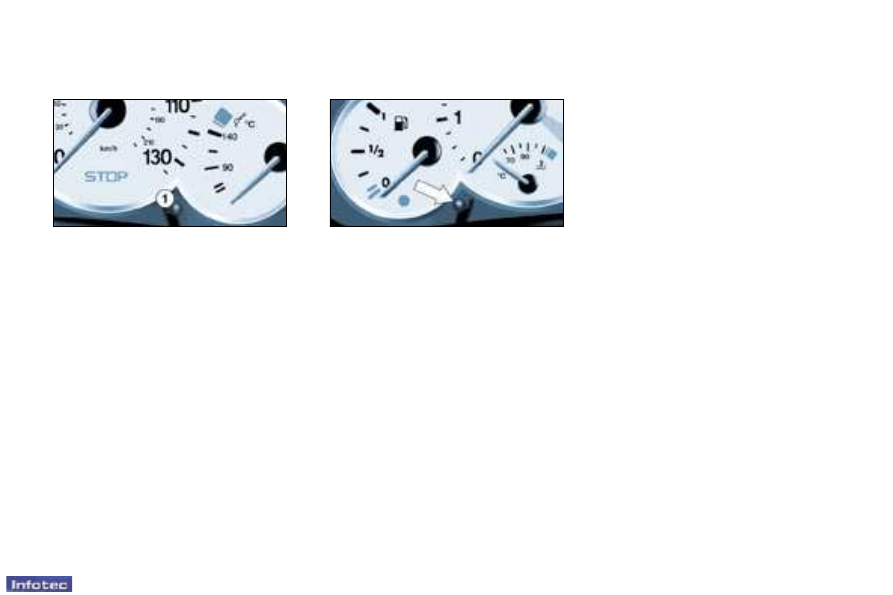

Coolant temperature indicator

- needle in zone

(A), the temperature

is correct,

- needle in zone

(B), the temperature

is too high. The central

STOP

warning light ﬂashes.

You must stop.

Consult a PEUGEOT dealer.

Air bags warning light

The light will come on for

a few seconds when the

ignition is switched on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal and a message on

the multi-function display, indicates a

fault in the air bags.

Consult a PEUGEOT dealer.

Engine oil temperature

indicator

With the engine running, this indicates

the oil temperature:

- needle in zone

(C), the temperature

is correct,

- needle in zone

(D), the temperature

is too high. To lower the oil

temperature, reduce your speed.

* According to country.

Instruments and controls

01-01-2006

Seat belt not fastened

warning light*

When the ignition is switched

on, this indicator light comes

on if the driver has not fastened his

seat belt.

Above 12 mph (20 km/h), the warning

light ﬂashes for about two minutes

accompanied by an increasingly

audible signal and a message on the

multifunction display. This warning

light remains lit until the driver’s seat

belt is fastened.

Passenger air bag

disarmed warning

light*

Illumination of this warning light

accompanied by a message on the

multi-function display, indicates that

the passenger air bag is disarmed.

The warning light remains lit as

long as the passenger air bag is

disarmed.

Always consult a PEUGEOT dealer if

the warning light ﬂashes.

Coolant temperature indicator

- needle in zone

(A), the temperature

is correct,

- needle in zone

(B), the temperature

is too high. The central

STOP

warning light ﬂashes.

You must stop.

Consult a PEUGEOT dealer.

Air bags warning light

The light will come on for

a few seconds when the

ignition is switched on.

With the engine running, illumination

of this warning light, accompanied by

an audible signal and a message on

the multi-function display, indicates a

fault in the air bags.

Consult a PEUGEOT dealer.

Engine oil temperature

indicator

With the engine running, this indicates

the oil temperature:

- needle in zone

(C), the temperature

is correct,

- needle in zone

(D), the temperature

is too high. To lower the oil

temperature, reduce your speed.

* According to country.

22 - Instruments and controls

01-01-2006

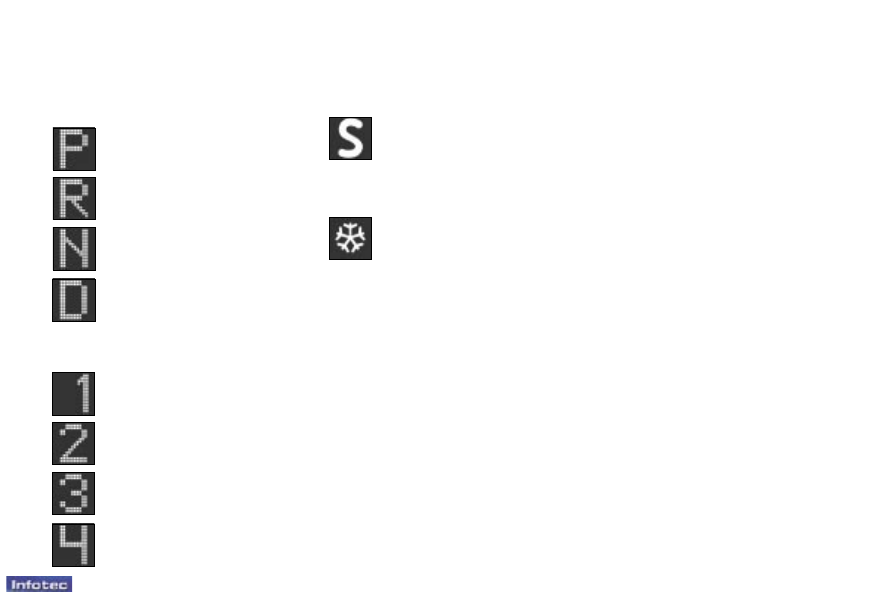

Display screen showing the

positions of the automatic

gearbox selector lever

Park

Reverse

Neutral

Drive

Manual mode:

gear engaged

Automatic gearbox indicator

lights

“SPORT” Indicator light

This comes on when the

“SPORT” programme is

selected.

“SNOW” Indicator light

This comes on when the

“SNOW” programme is

selected.

Operating abnormality

If the Sport and Snow indicator lights

ﬂash, accompanied by an audible

signal and a message on the multi-

function diplay, consult a PEUGEOT

dealer.

Instruments and controls

01-01-2006

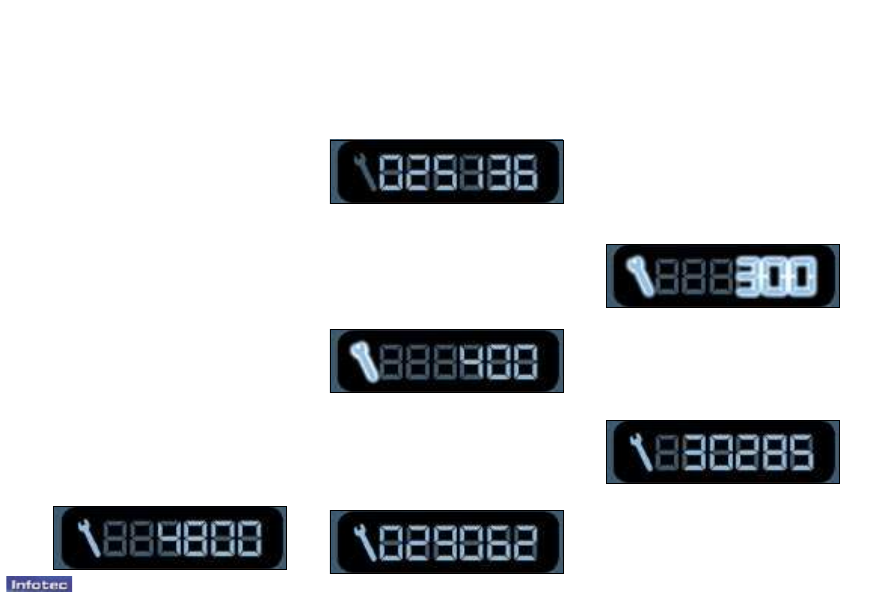

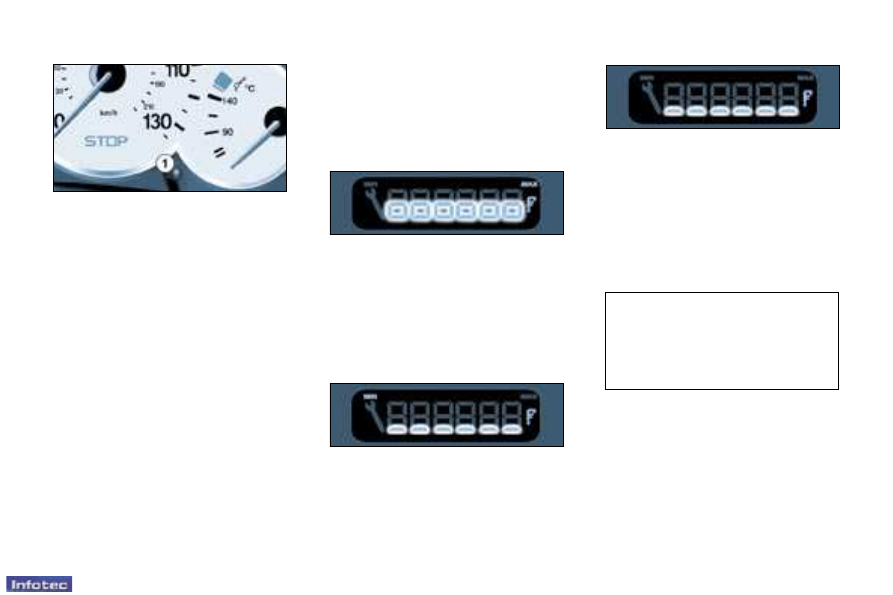

Service indicator

This is a visual reminder of when

the next service is due. This service

is to be carried out according to the

manufacturer’s servicing schedule.

5 seconds after the ignition is

switched on, the total distance

recorder resumes normal operation

and the display shows the total or trip

distances.

The distance remaining before

the next service is less than

500 miles (1,000 km).

Example: 400 miles (900 km) remain

before the next service is due.

When switching on the ignition and

for 5 seconds, the display shows:

5 seconds after the ignition is

switched on, the total distance

recorder resumes normal operation

and the symbol remains lit.

This indicates that a service should

be carried out shortly. The display

shows the total or trip distances.

The service is overdue.

Each time the ignition is switched on

and for 5 seconds, the symbol and

the excess distance ﬂash.

Example: the service is overdue by

300 miles/km. The service should be

carried out very shortly.

When the ignition is switched on and

for 5 seconds, the display shows:

5 seconds after the ignition is switched

on, the total distance recorder

resumes normal operation and the

symbol remains lit. The display

shows the total or trip distances.

Note: the service spanner lights

if the two-year interval has been

exceeded*.

INSTRUMENT PANEL

DISPLAY

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder, it remains

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on

locking and unlocking the vehicle.

* According to country.

Operation

As soon as the ignition is switched

on and for 5 seconds, the spanner

symbolising ‘’service operation’’ is lit.

The trip recorder display shows the

distance remaining (in round ﬁgures)

before the next service.

Example: 4,800 miles/km remain

before the next service is due.

When the ignition comes on and for

5 seconds the display indicates:

24 - Instruments and controls

01-01-2006

Engine oil level indicator

When the ignition is switched on,

the engine oil level is indicated for

approximately 10 seconds, after the

service information.

Surplus of oil

Flashing of the six squares and

displaying of "max" indicate a surplus

of oil which could damage the

engine.

If the surplus of oil is conﬁrmed by

a check using the dipstick, contact a

PEUGEOT dealer without delay.

Resetting the service indicator

Your PEUGEOT dealer carries out

this operation after each service.

The reset procedure is as follows:

- Switch off the ignition.

- Press and hold button

- Switch on the ignition.

The display begins a 10 second

countdown.

- Keep button

1 pressed for 10 sec-

onds.

The display shows

[=0] and the

service symbol disappears.

Lack of oil

Flashing of the six segments and

displaying of "min" indicate a lack of

oil which could damage the engine.

If the lack of oil is conﬁrmed by a

check using the dipstick, it is essential

that the level is topped up.

Oil level gauge fault

Flashing of the six segments indicates

a malfunction of the oil level gauge.

There is a risk of damage to the

engine.

Contact a PEUGEOT dealer.

The level read on the gauge will

only be correct if the vehicle

is on level ground and the

engine has been off for more

than 10 minutes.

Instruments and controls

01-01-2006

Brieﬂy pressing button

1 alternates

between the total and trip distance

displays.

To reset the trip recorder to zero,

when it is displayed press button

until zeros appear.

Total distance recorder

With the lights on, press the button

to vary the intensity of the lighting of

the instruments and controls. When

the lighting reaches the minimum (or

maximum) setting, release the button

then press it again to increase (or

reduce) the brightness.

As soon as the lighting is of the

required brightness, release the

button.

LIGHTING RHEOSTAT

26 - Multifunction displays

01-01-2006

Setting the parameters

Press button

1 for two seconds to

access the settings. The information

ﬂashes to show it is ready to be

modiﬁed.

Then, individual presses on button

allow you to scroll through the various

data in the following sequence:

- language in which the information

is displayed,

- unit of distance (kms or miles),

- unit of temperature (degrees

Celsius or Fahrenheit),

- time format (12 then 24 hour

mode),

- hour,

- minutes,

- year,

- month,

- day.

Pressing button

2 allows you to

change the information selected.

Maintain the pressure for rapid

scrolling.

After 7 seconds without operation, the

screen returns to the normal display

and the modiﬁed data is recorded.

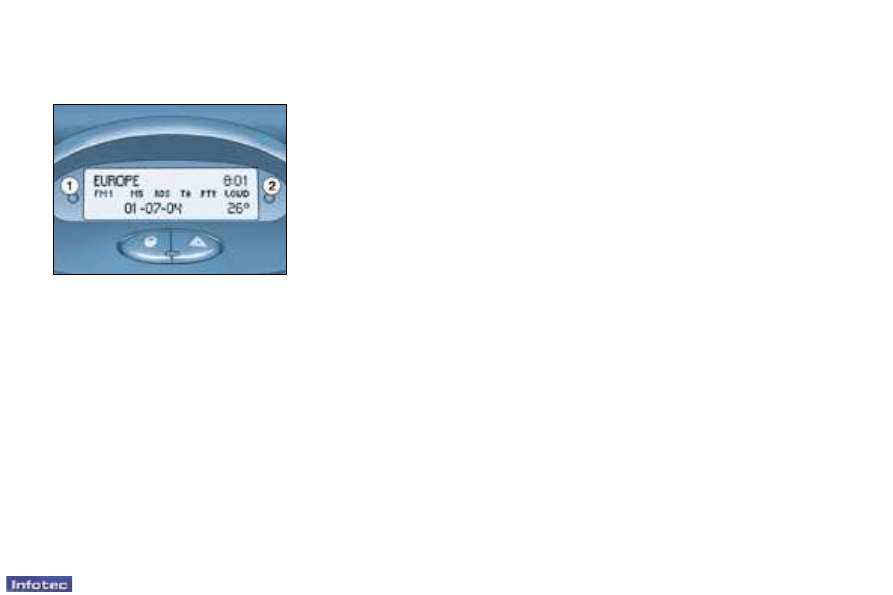

MONOCHROME DISPLAY B

This enables the following information

to be displayed:

- the time,

- the date,

- the outside temperature (this

ﬂashes when there is a risk of ice),

- the radio displays,

- the status of the doors. The display

shows you, by means of a graphic,

whether a door is open,

- the warning messages (e.g. “battery

charge fault’’) or information

messages (e.g. “fuel level low’’),

displayed temporarily, can be

cleared by pressing button

1 or 2,

- the trip computer.

Multifunction displays

01-01-2006

This enables the following information

to be displayed:

- the time,

- the date,

- the outside temperature (this

ﬂashes when there is a risk of ice),

- the radio displays,

- the status of the doors. The display

shows you, by means of a graphic,

whether a door is open,

- the

warning

messages

are

displayed temporarily (e.g. “low fuel

level’’) and can be cleared using

the remote control,

- the trip computer (see corresponding

section),

- the satellite navigation system (see

corresponding section).

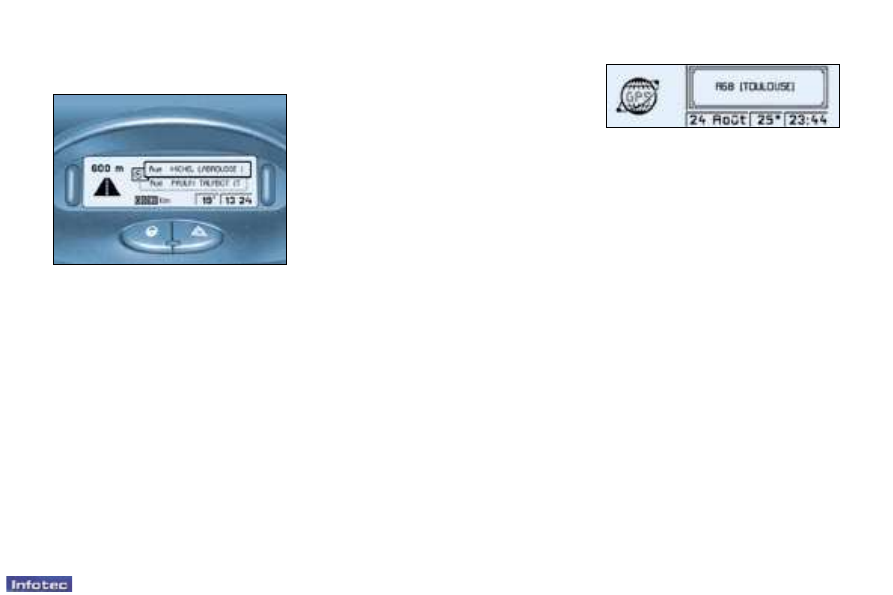

Permanent Localisation

This function displays the name of the

street in which the vehicle is located

when guidance is inactive.

Press the button

“mod” of the remote

control, to display the name of the

street in which you are located.

In order to

“zoom” to see the

information more clearly, press the

right arrow of the remote control.

IMPORTANT

the

CD-Rom

containing the map data must be

present in the drive.

DISPLAY C

Setting the parameters

The remote control allows you to

access the settings. Accessing

the different menus is described in

the section “Satellite Navigation

System”.

28 - Multifunction displays

01-01-2006

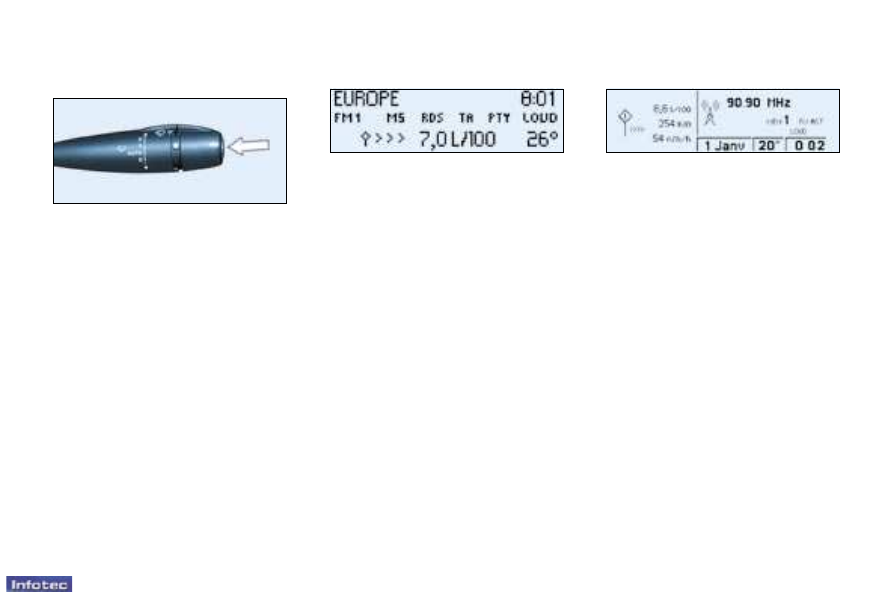

TRIP COMPUTER

Pressing the button on the end of

the

wash/wipe stalk enables the

following data to be displayed:

Display B

- the range

- the distance travelled

- the average consumption

- the current consumption

- the average speed

Display C

- the current consumption and the

range,

- the average consumption, the

distance travelled and the average

speed calculated over a period

"1",

- the average consumption, the

distance travelled and the average

speed calculated over a period

"2".

Periods

"1" and "2" are deﬁned by

the frequency of the zero reset. They

allow, for instance, daily calculations

over period

"1" and monthly

calculations over period

"2".

Zero reset

Press the stalk for more than two

seconds.

Zero reset

When the required period is

displayed, press the stalk for more

than two seconds.

Multifunction displays

01-01-2006

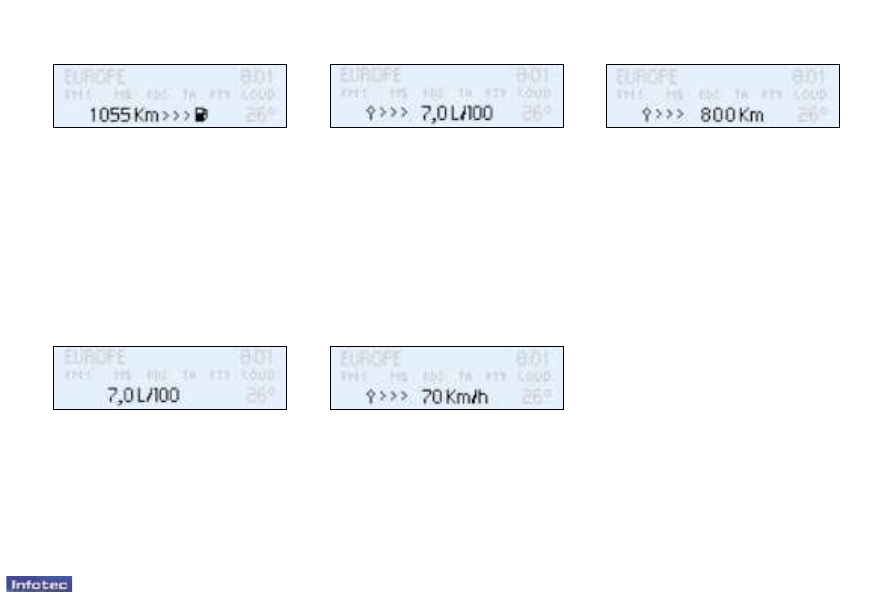

Range

The display shows the distance that

can still be covered with the fuel

remaining in the tank.

Note: this ﬁgure may rise if there

is a change in driving style or road

surface, causing a signiﬁcant drop in

current fuel consumption.

If there are less than 3 litres of fuel in

the tank, only three segments will be

displayed.

Current fuel consumption

This gives the fuel consumption

recorded during the last two seconds.

This function is only displayed when

the vehicle is travelling at more than

12 m.p.h. (20 km/h).

Average consumption

This is the ratio between the amount

of fuel consumed and the distance

travelled since the computer was last

reset to zero.

Average speed

This is obtained by dividing the

distance travelled by the period of

time the vehicle has been in use (with

the ignition on), since the computer

was last reset to zero.

Distance travelled

This shows the distance travelled

since the computer was last reset to

zero.

After the trip computer has been reset

to zero, the range data becomes

meaningful only after the vehicle has

been in use for a certain period.

If horizontal segments are displayed

instead of ﬁgures when driving,

contact a PEUGEOT dealer.

30 - Audio equipment and telematics

01-01-2006

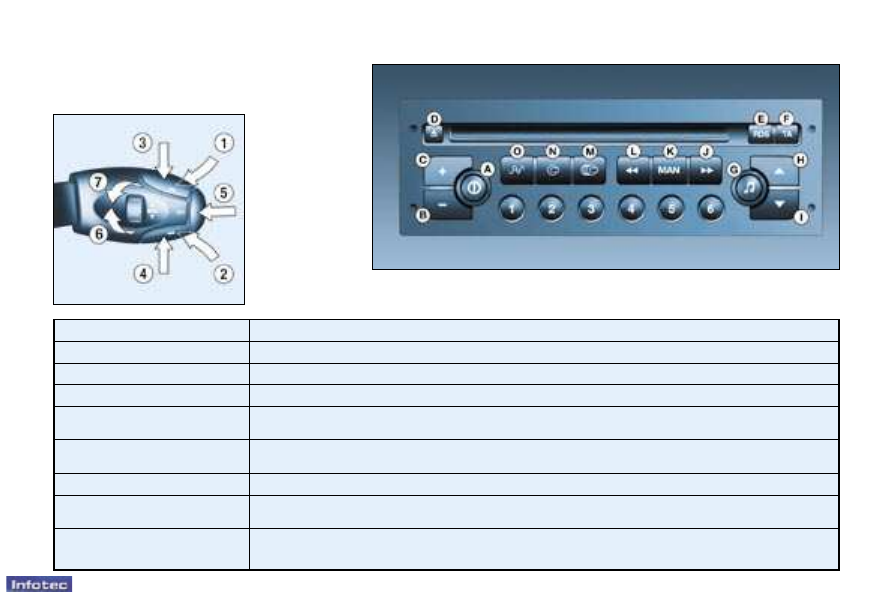

AUDIO RD3

Stalk movement

Function

1 - Press (behind)

Increase volume

2 - Press (behind)

Decrease volume

1 + 2 - Simultaneous presss Sound cut-off (mute); restoring of the sound by pressing any button

3 - Press

Automatic search of higher frequencies (radio)

Selection of the next track (CD)

4 - Press

Automatic search of lower frequencies (radio)

Selection of the previous track (CD)

5 - Press the end

Change of source (radio/CD/CD changer)

6 - Rotation

(clockwise)

Selection of next station stored in memory (radio) -

Selection of following CD

7 - Rotation

(anti-clockwise)

Selection of previous station stored in memory (radio) -

Selection of previous CD

Audio equipment and telematics

01-01-2006

Button

Function

Radio on/off

Reduction in volume

Increase in volume



Ejection of CD

RDS

RDS function on/off

Press for more than 2 seconds: regional following mode on/off

Trafﬁc information priority on/off

Press for more than 2 seconds: PTY function on/off



Adjustment of bass, treble, loudness, sound distribution and automatic volume correction



Increase of the functions associated with button



Decrease of the functions associated with button



Manual and automatic search of higher frequency

Selection of next CD track and of the PTY (radio)

MAN

Manual/automatic operation of buttons

J and L



Manual and automatic search of lower frequency

Selection of previous CD track and of the PTY (radio)

CH. CD

Selection of CD changer

Press for more than 2 seconds: shufﬂe

Selection of the CD source

Press for more than 2 seconds: shufﬂe

Radio

Selection of the radio source. Selection of wavebands FM1, FM2, FMAST, AM

Press for more than 2 seconds: automatic storing of stations (autostore)

1 to 6

1 2 3 4 5 6 Selection of station stored in memory

Press for more than 2 seconds: storing of a station in memory

1 to 5

1 2 3 4 5

Selection of the CDs in the CD changer

32 - Audio equipment and telematics

01-01-2006

GENERAL FUNCTIONS

AUDIO SETTINGS

Adjusting the loudness

This function automatically empha-

sises bass and treble tones.

Press button

H or I to switch the

function on or off.

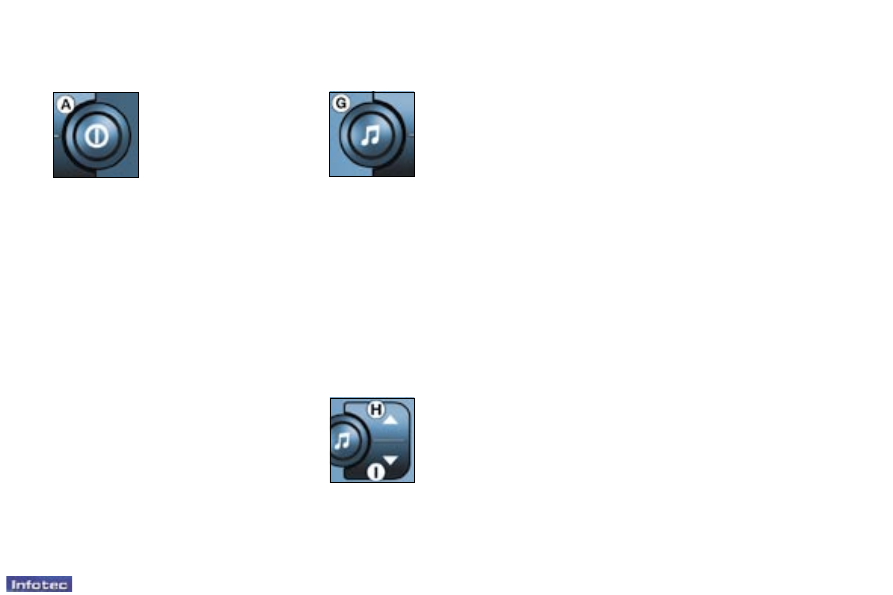

On/off

With the ignition key

in the accessories or

ignition position, press

button

A to switch the

set on or off.

The set can operate

for

minutes

without the vehicle ignition being

switched on.

Anti-theft system

The audio system is coded in such a

way that it can operate only on your

vehicle. It would not function if ﬁtted

to another vehicle.

The anti-theft system is automatic

and requires no action on your

part.

ADJUSTING THE VOLUME

Press the button

C to increase the

volume, or button

to decrease it.

Continuous pressure on buttons

and

C allows a gradual adjustment of

the

volume.

Adjusting the bass

Adjusting the treble

When

"TREB" is displayed, press

button

H or I to vary the setting.

"TREB -9" for a minimum treble

setting,

"TREB 0" for a normal setting,

"TREB +9" for a maximum treble

setting.

Press button

G sev-

eral times in succes-

sion to access the

bass (

BASS), treble

(TREB),

loudness

(LOUD), fader (FAD),

balance (

BAL) and

automatic volume cor-

rection settings.

Exit from audio mode is automatic

after a few seconds without pressing

any button, or by pressing button

after conﬁguration of the automatic

volume correction.

Note: bass, treble and loudness

settings are speciﬁc to each source.

It is possible to set them differently

for radio, CD or CD changer.

When

"BASS" is dis-

played, press button

H or I to vary the set-

ting.

"BASS -9" for a

minimum

bass

setting,

"BASS 0" for a

normal setting,

"BASS +9" for a maximum bass

setting.

Adjusting the front/rear sound

distribution (Fader)

When

"FAD" is displayed, press

button

H or I.

Button

H increases the volume at the

front.

Button

I increases the volume at the

rear.

Adjusting the right/left sound

distribution (Balance)

When

"BAL" is displayed, press

button

H or I.

Button

H increases the volume on

the right-hand side.

Button

I increases the volume on the

left-hand side.

Content .. 1 2 3 ..
