Nissan Rogue Hybrid (2019 year). Manual - part 16

NOTE:

The blue MOD icon will change to orange
if one of the following has occurred:

∙ When the system is malfunctioning.

∙ When the component temperature

reaches a high level (icon will blink).

∙ When the Rear View camera has de-

tected a blockage (icon will blink).

If the icon light continues to illuminate
orange, have the MOD system checked. It
is recommended that you visit a NISSAN
dealer for this service.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on any of
the cameras

䊊

, the MOD system may not

operate properly. Clean the camera by wip-
ing with a cloth dampened with a diluted
mild cleaning agent and then wiping with a
dry cloth.

LHA3700

4-28

Monitor, climate, audio, phone and voice recognition systems

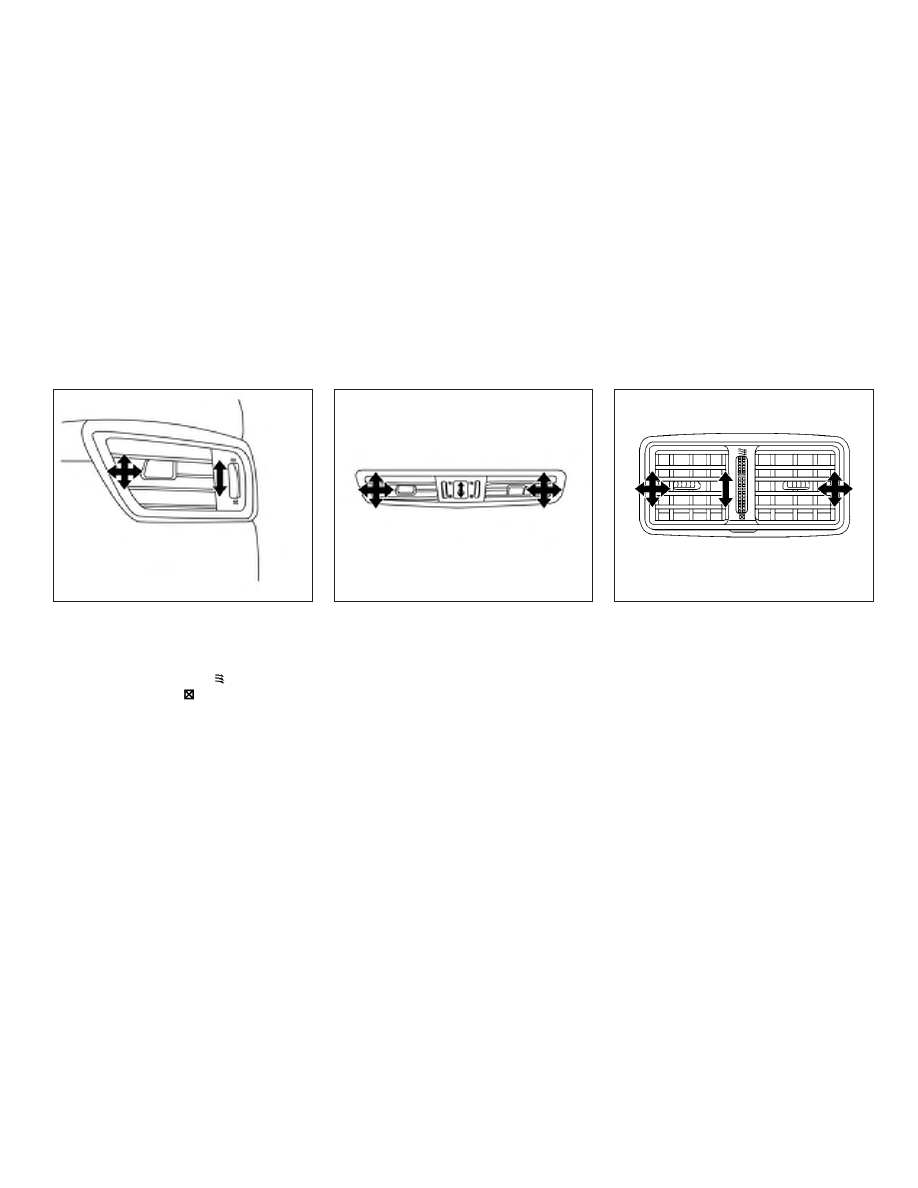

Adjust air flow direction by moving the vent
slides.

Open or close the vents by using the dial.
Move the dial toward the

to open the

vents or toward the

to close them.

Side

LHA4301

Center

LHA4302

Rear

LHA1134

VENTS

Monitor, climate, audio, phone and voice recognition systems

4-29

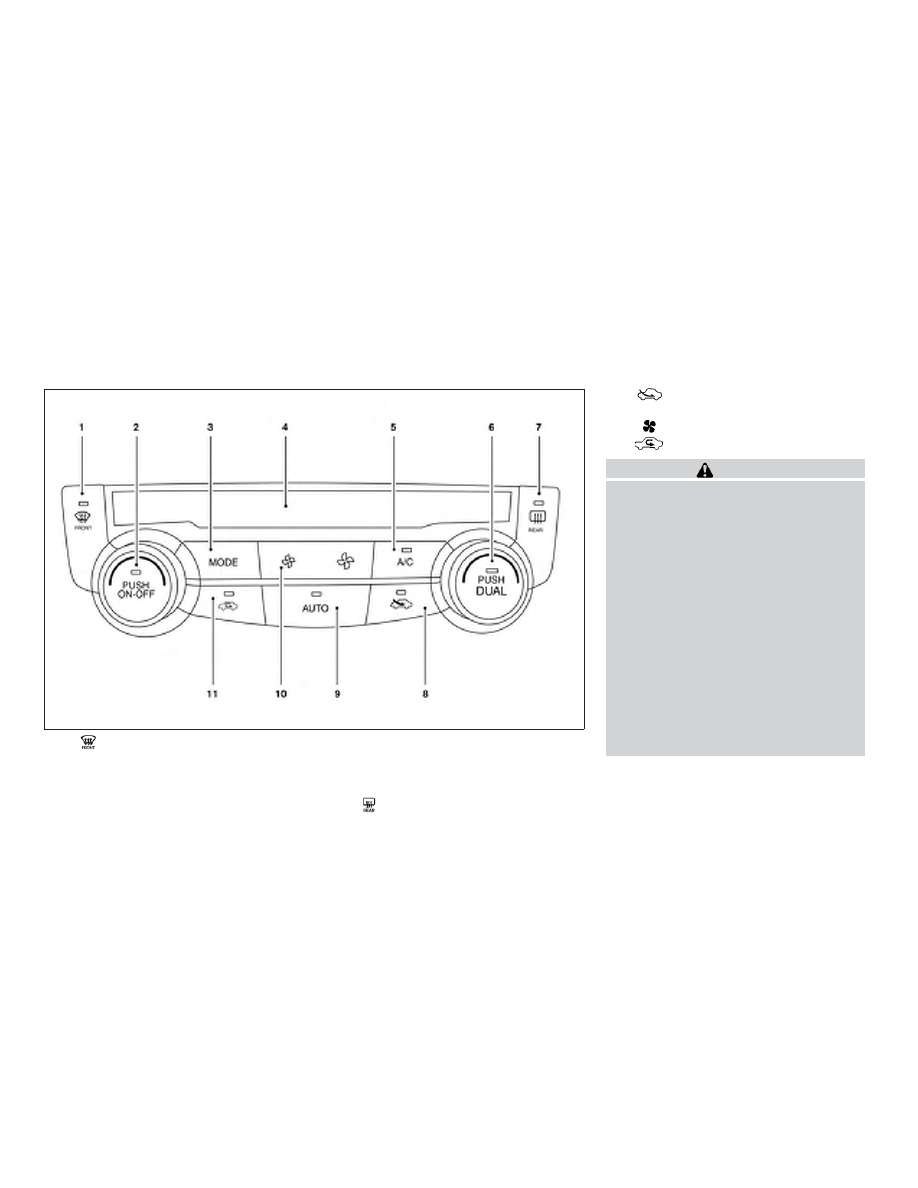

Front defroster button

Temperature control dial (driver’s
side) / ON-OFF button

MODE (manual air flow control)
button

Display screen

A/C (air conditioner) button

Temperature control dial (passen-
ger’s side)/DUAL (passenger’s side
temperature control) button

Rear window and outside

mirror defroster switch

Fresh air intake button

AUTO (automatic mode) button

10.

Fan speed control buttons

11.

Air recirculation button

WARNING

∙ The air conditioner cooling function

operates only when the hybrid sys-
tem is running.

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

LHA2875

HEATER AND AIR CONDITIONER
(automatic)

4-30

Monitor, climate, audio, phone and voice recognition systems

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air condi-
tioner unit. Odor can enter the pas-
senger compartment through the
vents.

∙ When parking, set the heater and air

conditioner controls to turn off air re-
circulation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

AUTOMATIC OPERATION

Cooling and/or dehumidified
heating (AUTO)

This mode may be used all year round as
the system automatically works to keep a
constant temperature. Air flow distribution,
air intake control and fan speed are also
controlled automatically.

1. Press the AUTO button on. The indica-

tor on the button will illuminate.

2. Turn the temperature control dial to

the left or right to set the desired tem-
perature.

∙ The temperature of the passenger

compartment will be maintained auto-
matically. Air flow distribution, air intake
control and fan speed are also con-
trolled automatically.

∙ A visible mist may be seen coming from

the vents in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.

3. You can individually set driver’s and

front passenger’s side temperature us-
ing each temperature control dial.
When the DUAL button is pressed or
passenger’s side temperature dial is
turned, the DUAL indicator will come
on. To turn off the passenger’s side
temperature control, press the DUAL
button.

Heating (A/C OFF)

The air conditioner does not activate. When
you need to heat only, use this mode.

1. Press the AUTO button.

2. Turn the temperature control dial to set

the desired temperature.

∙ The temperature of the passenger

compartment will be maintained auto-
matically. Air flow distribution and fan
speed are also controlled automatically.

∙ Do not set the temperature lower than

the outside air temperature. Otherwise,
the system may not work properly.

∙ Not recommended if windows fog up.

Dehumidified defrosting or
defogging

1. Press the

front defroster button

on. The indicator light on the button will
come on.

2. Turn the temperature control dial to set

the maximum temperature to aid in
defrosting or defogging.

∙ To quickly remove ice from the outside

of the windows, use the fan speed con-
trol dial to set the fan speed to maxi-
mum.

∙ As soon as possible after the wind-

shield is clean, press the AUTO button to
return to the automatic mode.

Monitor, climate, audio, phone and voice recognition systems

4-31

∙ When the

front defroster button is

pressed, the air conditioner will auto-
matically be turned on at outside tem-
peratures above 36°F (2°C). The air recir-
culate mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove

the

defogging

performance.

When the air recirculate mode auto-
matically turns off, the air fresh mode
will automatically turn on.

Remote Hybrid Start with
Intelligent Climate Control (if so
equipped)

Vehicles equipped with automatic climate
controls and Remote Hybrid Start function
may go into automatic heating or cooling
mode when Remote Hybrid Start is acti-
vated depending on outside and cabin
temperatures. During this period, the cli-
mate control display and buttons will be
inoperable until the ignition switch is
turned on. In Remote Hybrid Start defrost-
ing mode, the rear window defroster and
heated steering wheel (if so equipped) may
be activated automatically.

Voice Recognition logic (if so
equipped)

When the climate control system is on, the
fan speed may be automatically lowered
so that commands are more easily recog-
nized. Fan speed can be adjusted using
the

fan speed control buttons, if de-

sired.

MANUAL OPERATION

Fan speed control

Press the

fan speed control buttons

to manually control the fan speed.
Press the AUTO button to return to auto-
matic control of the fan speed.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right. Temperature can be ad-
justed on the driver’s and passenger’s side.

Air recirculation

Press the

air recirculation button to

recirculate interior air inside the vehicle.
The

indicator light on the button will

come on.

The air recirculation cannot be activated
when the air conditioner is in the
front defrosting mode.
When the outside temperature exceeds
70°F (21°C), the air conditioning system may
default to air recirculation mode automati-
cally to reduce overall power consumption.
To exit air recirculation mode, select the
fresh air intake button (indicator will turn
off) to enter fresh air mode.

Fresh air intake

Press the

fresh air intake button to

draw outside air into the passenger com-
partment.

Automatic intake air control

In the AUTO mode, the intake air will be
controlled automatically. When the outside
temperature exceeds 70°F (21°C), the air
conditioning system may default to air re-
circulation mode automatically to reduce
overall power consumption. To exit air re-
circulation mode, select the fresh air intake
button to enter fresh air mode.

To manually control the intake air, press
the

air

recirculation

button

fresh air intake button. To return to

the

automatic

control

mode

the

fresh air indicator is illuminated,

4-32

Monitor, climate, audio, phone and voice recognition systems

press and hold the

fresh air intake

button for about 2 seconds. The fresh air
indicator and air recirculation indicator
lights will flash twice, and then the intake air
will be controlled automatically. To return
to

the

automatic

control

mode

the

air recirculation icon is illumi-

nated, press and hold the

air recircu-

lation

button

for

about

seconds.

The

air

recirculation

indicator

and

fresh air intake indicator lights

will flash twice and the intake air will be
controlled automatically.

A/C (air conditioner) button

The button is provided only on vehicles
equipped with an air conditioner.

Start the hybrid system, turn the fan con-
trol dial to the desired position and push
the

button to turn on the air condi-

tioner. The indicator light comes on when
the air conditioner is operating. To turn off
the air conditioner, push the

button

again.
The air conditioner cooling function op-
erates only when the hybrid system is
running.

Air flow control

Pressing the MODE button manually con-
trols air flow and selects the air outlet:

— Air flows mainly from center

and side vents.

— Air flows mainly from center

and side vents and foot
outlets.

— Air flows mainly from foot out-

lets and partly from defroster.

— Air flows mainly from defroster

and foot outlets.

To turn system off

Press the ON-OFF button.

Rear window and outside mirror
defroster switch

For additional information, refer to “Rear
window

and

outside

mirror

defroster

switch” in the “Instruments and controls”
section of this manual.

OPERATING TIPS

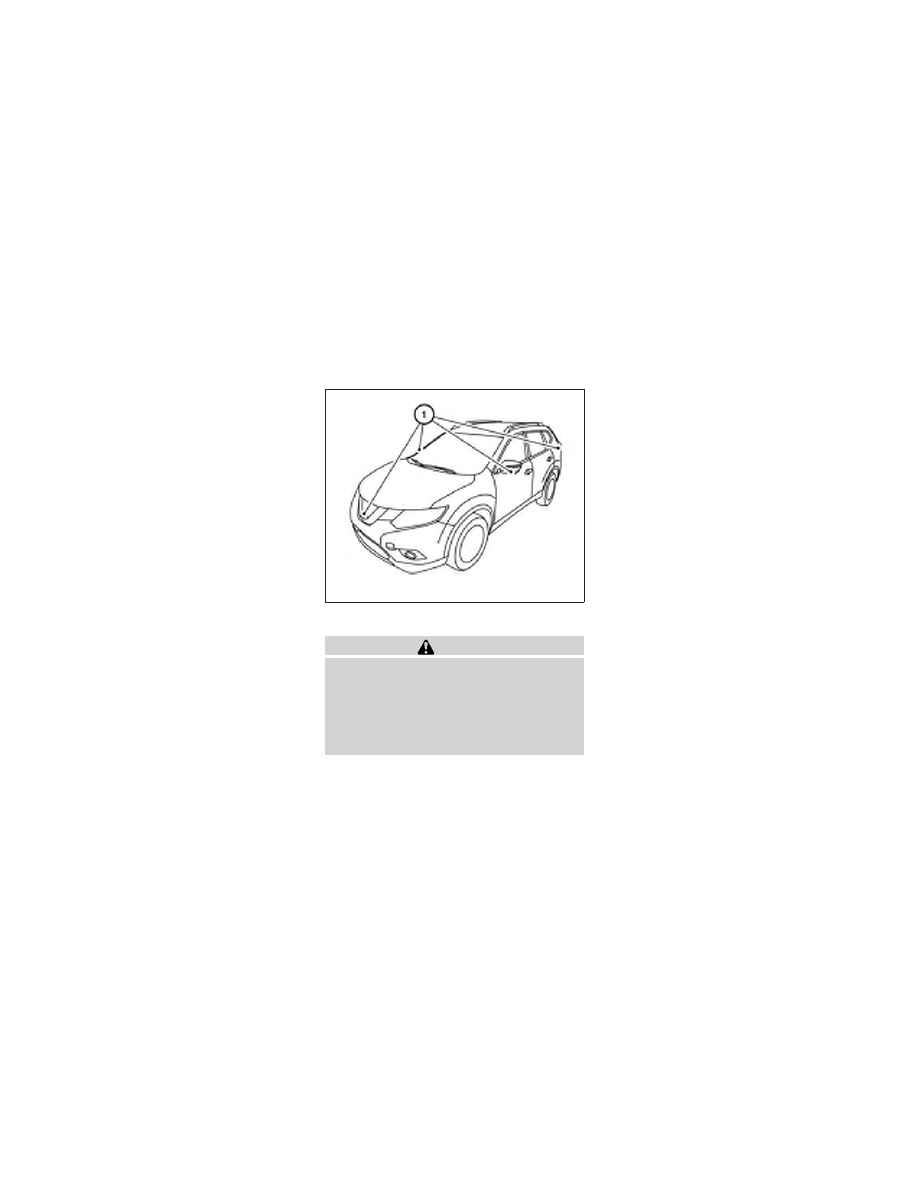

The sunload sensor, located on the top and
center of the instrument panel, helps the
system maintain a constant temperature.
Do not put anything on or around this sen-
sor.

LHA2949

Monitor, climate, audio, phone and voice recognition systems

4-33

∙ When the climate system is in auto-

matic operation and the hybrid system
coolant temperature and outside air
temperature are low, the air flow outlet
may default to defroster mode for a
maximum of 2 minutes 30 seconds.
This is not a malfunction. After the cool-
ant temperature warms up, the air flow
outlet will return to foot mode and op-
eration will continue normally.

∙ When the outside and interior cabin

temperatures are moderate to high, the
intake setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may no-
tice air flow from the foot mode, bi-level
mode, or side demist vent outlets for a
maximum of 15 seconds. This may oc-
cur when previous climate setting was
system off. This is not a malfunction.
After the initial warm air is expelled, the
intake will return to automatic control,
air flow outlet will return to previous set-
tings, and operation will continue nor-
mally. To exit, press any climate control
button.

∙ Keep the moonroof (if so equipped)

closed while the air conditioner is in op-
eration.

∙ If you feel that the air flow mode you

have selected and the outlets the air is
coming out do not match, select
the

mode.

∙ When you change the air flow mode,

you may feel air flow from the feet vents
for just a moment. This is not a mal-
function.

The air conditioner system in your NISSAN
vehicle is charged with a refrigerant de-
signed with the environment in mind.
This refrigerant does not harm the
earth’s ozone layer.

Special charging equipment and lubricant
is required when servicing your NISSAN air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to
your air conditioner system. For additional
information, refer to “Air conditioner sys-
tem refrigerant and oil recommendations”
in the “Technical and consumer informa-
tion” section of this manual.

It is recommended that you visit a NISSAN
dealer to service your “environmentally
friendly” air conditioner system.

WARNING

The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced

technician

with

proper

equipment.

SERVICING AIR CONDITIONER

4-34

Monitor, climate, audio, phone and voice recognition systems

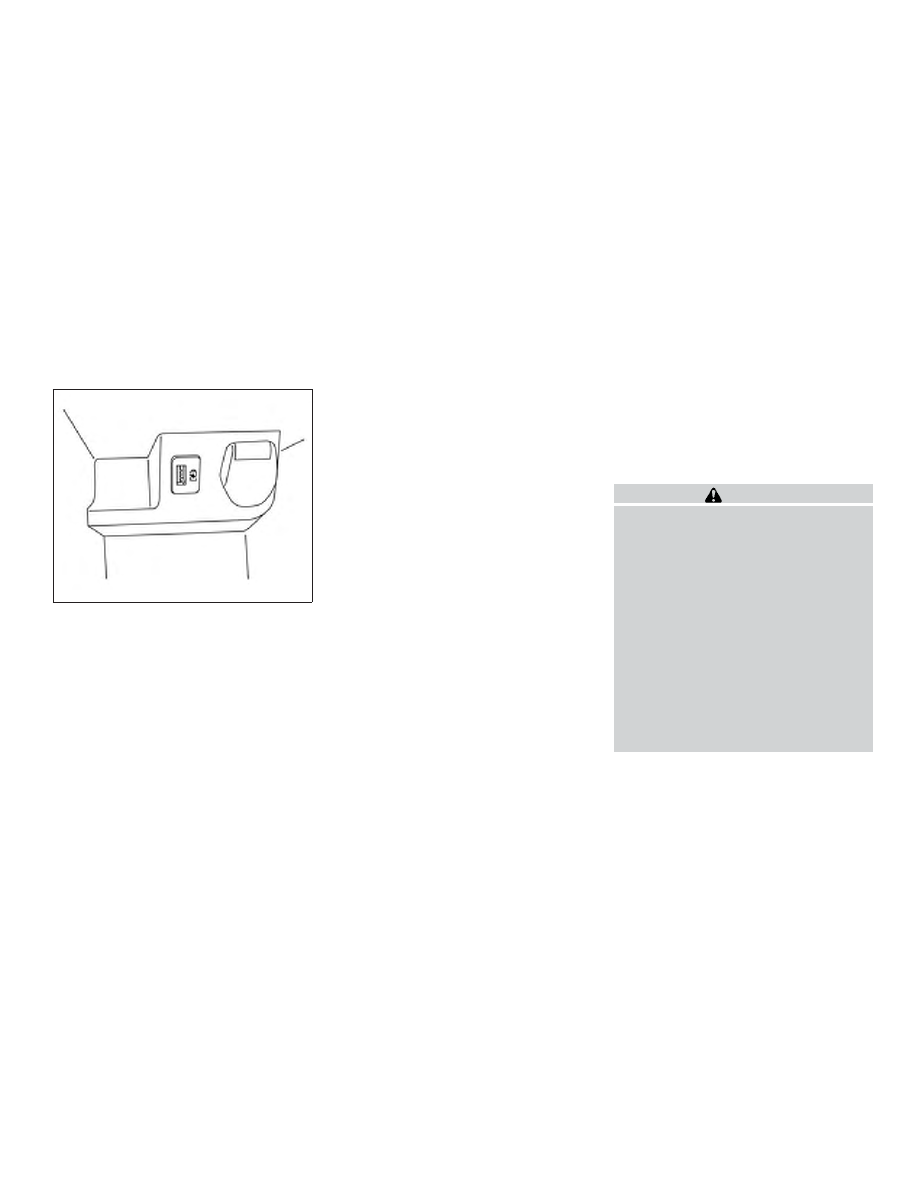

There is a USB/iPod® charging port located
in the center console. This port will charge
compatible devices.

NOTE:

Only the USB connection port located
below the instrument panel will allow
operation of the USB/iPod® devices
through the audio system.

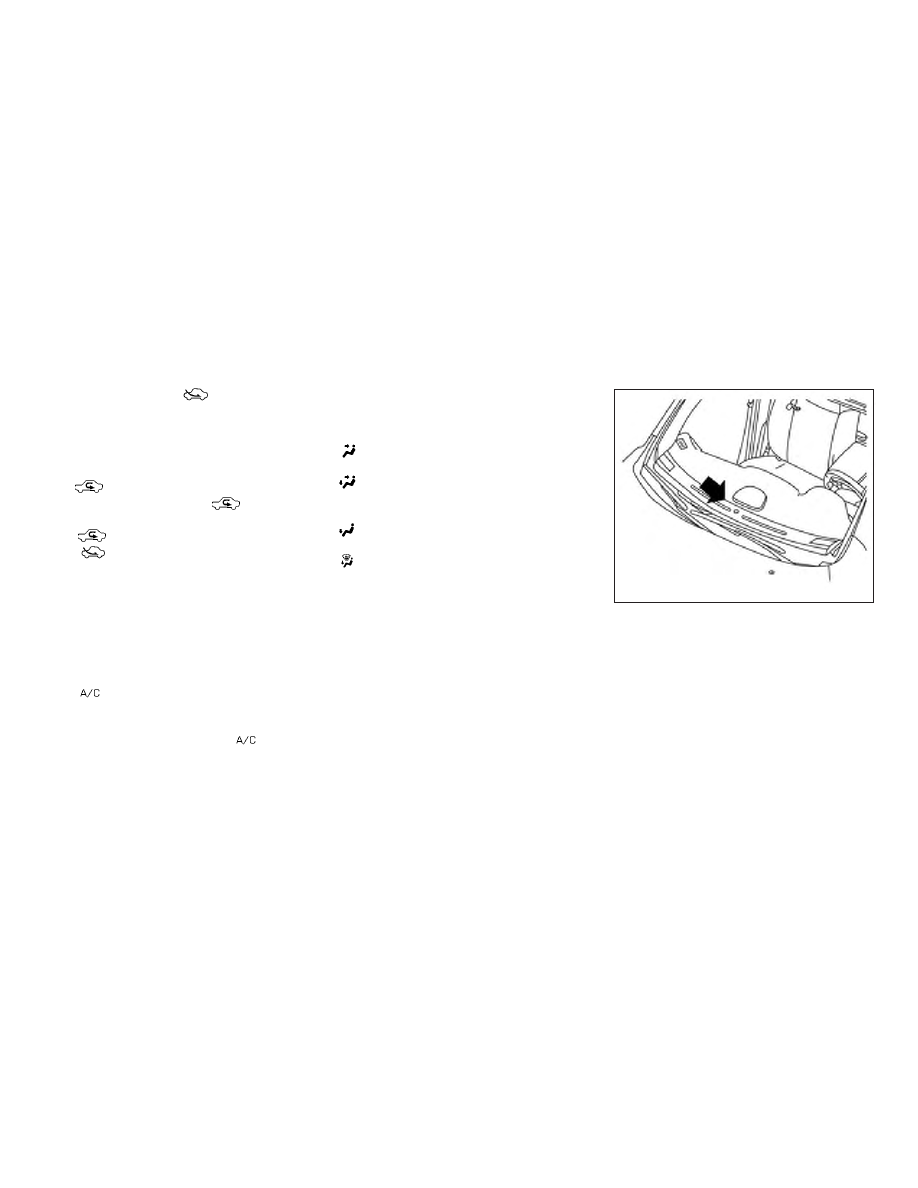

The vehicle is equipped with a shark fin
antenna.

When installing a CB, ham radio or car
phone in your vehicle, be sure to observe
the following precautions; otherwise, the
new equipment may adversely affect the
hybrid control system and other electronic
parts.

WARNING

∙ A cellular phone should not be used

for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while
driving.

∙ If you must make a call while your ve-

hicle is in motion, the hands free cellu-
lar phone operational mode is highly
recommended. Exercise extreme cau-
tion at all times so full attention may
be given to vehicle operation.

∙ If you are unable to devote full atten-

tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.

LHA4476

USB/iPod® CHARGING PORT

ANTENNA

CAR PHONE OR CB RADIO

Monitor, climate, audio, phone and voice recognition systems

4-35

CAUTION

∙ Keep the antenna as far away as pos-

sible

from

the

electronic

control

modules.

∙ Keep the antenna wire more than 8 in

(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.

∙ Adjust the antenna standing-wave

ratio

recommended

the

manufacturer.

∙ Connect the ground wire from the CB

radio chassis to the body.

∙ For additional information, it is rec-

ommended that you visit a NISSAN
dealer for servicing.

4-36

Monitor, climate, audio, phone and voice recognition systems

5 Starting and driving

Precautions when starting and driving . . . . . . . . . . 5-4

Push-button ignition switch . . . . . . . . . . . . . . . . . . . . 5-14

Operating range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
Push-button ignition switch positions . . . . . . . 5-15
Emergency hybrid system shut off . . . . . . . . . . 5-16
NISSAN Intelligent Key® battery
discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
NISSAN Vehicle Immobilizer System . . . . . . . . . 5-17

Before starting the NISSAN PURE DRIVE®
Hybrid System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Starting the NISSAN PURE DRIVE® Hybrid
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18

Remote Hybrid Start. . . . . . . . . . . . . . . . . . . . . . . . . 5-18

Driving the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Continuously Variable Transmission
(CVT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
SPORT mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
ECO mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . . 5-26

LDW system operation . . . . . . . . . . . . . . . . . . . . . . 5-27
How to enable/disable the LDW system . . . . . 5-28
LDW system limitations. . . . . . . . . . . . . . . . . . . . . . 5-29
System temporarily unavailable . . . . . . . . . . . . . 5-30
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-30
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 5-30

Intelligent Lane Intervention (I-LI) . . . . . . . . . . . . . . . 5-31

I-LI system operation . . . . . . . . . . . . . . . . . . . . . . . . 5-32
How to enable/disable the I-LI system. . . . . . . 5-33
I-LI system limitations . . . . . . . . . . . . . . . . . . . . . . . 5-34
System temporarily unavailable . . . . . . . . . . . . . 5-35
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-36
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 5-36

Blind Spot Warning (BSW) . . . . . . . . . . . . . . . . . . . . . . . 5-37

BSW system operation . . . . . . . . . . . . . . . . . . . . . . 5-39
How to enable/disable the BSW system . . . . . 5-40

BSW system limitations. . . . . . . . . . . . . . . . . . . . . . 5-41
BSW driving situations . . . . . . . . . . . . . . . . . . . . . . . 5-42
System temporarily unavailable . . . . . . . . . . . . . 5-45
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 5-46

Rear Cross Traffic Alert (RCTA) . . . . . . . . . . . . . . . . . . 5-47

RCTA system operation. . . . . . . . . . . . . . . . . . . . . . 5-48
How to enable/disable the RCTA
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-50
RCTA system limitations . . . . . . . . . . . . . . . . . . . . . 5-51
System temporarily unavailable . . . . . . . . . . . . . 5-53
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 5-54

Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . 5-55

Precautions on cruise control. . . . . . . . . . . . . . . . 5-55
Cruise control operations. . . . . . . . . . . . . . . . . . . . 5-56

Intelligent Cruise Control (ICC) (if so equipped) . . 5-57

System temporarily unavailable . . . . . . . . . . . . . 5-73
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 5-75
Conventional (fixed speed) cruise
control mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-76

Automatic Emergency Braking (AEB)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-81

AEB system operation . . . . . . . . . . . . . . . . . . . . . . . 5-82
Turning the AEB system on/off . . . . . . . . . . . . . . 5-84
AEB system limitations . . . . . . . . . . . . . . . . . . . . . . 5-85
System temporarily unavailable . . . . . . . . . . . . . 5-86
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-87
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 5-87

Automatic Emergency Braking (AEB) with
Pedestrian Detection (if so equipped) . . . . . . . . . . . 5-89

Rear Automatic Braking (RAB) (if so equipped) . . 5-98

RAB system operation . . . . . . . . . . . . . . . . . . . . . . . 5-99
Turning the RAB system on/off . . . . . . . . . . . . . 5-100
RAB system limitations . . . . . . . . . . . . . . . . . . . . . 5-101
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . 5-102
System maintenance. . . . . . . . . . . . . . . . . . . . . . . 5-103

Break-in schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103
Fuel efficient driving tips . . . . . . . . . . . . . . . . . . . . . . . 5-104
Increasing fuel economy . . . . . . . . . . . . . . . . . . . . . . 5-105
All-Wheel Drive (AWD) (if so equipped) . . . . . . . . . . 5-105

All-Wheel Drive (AWD) LOCK switch
operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106

Parking/parking on hills . . . . . . . . . . . . . . . . . . . . . . . 5-108
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-110

Brake precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5-110
Anti-lock Braking System (ABS) . . . . . . . . . . . . . . 5-111
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-112

Vehicle Dynamic Control (VDC) system . . . . . . . . 5-112

Brake force distribution . . . . . . . . . . . . . . . . . . . . . 5-114

Chassis Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-115

Intelligent Trace Control (I-TC) . . . . . . . . . . . . . . . 5-115
Intelligent Engine Brake (I-EB) . . . . . . . . . . . . . . . 5-116
Active Ride Control (ARC) . . . . . . . . . . . . . . . . . . . .5-117

Hill start assist system. . . . . . . . . . . . . . . . . . . . . . . . . 5-118
Rear Sonar System (RSS) (if so equipped) . . . . . . 5-119

System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-120
How to enable/disable the sonar
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-122
Sonar limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-123
System temporarily unavailable . . . . . . . . . . . . 5-123
System maintenance. . . . . . . . . . . . . . . . . . . . . . . 5-124

Cold weather driving . . . . . . . . . . . . . . . . . . . . . . . . . . 5-124

WARNING

∙ Do not leave children or adults who

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ To avoid raising the center of gravity

excessively, do not exceed the rated
capacity

the

roof

rack

(if

equipped) and evenly distribute the
load.

EXHAUST GAS (carbon monoxide)

WARNING

∙ Do not breathe exhaust gases; they

contain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

∙ If you suspect that exhaust fumes are

entering the vehicle, drive with all
windows fully open, and have the ve-
hicle inspected immediately.

∙ Do not run the engine in closed spaces

such as a garage.

∙ Do not park the vehicle with the en-

gine running for any extended length
of time.

∙ Keep the rear vent windows, liftgates,

doors and trunk lids (if so equipped)
closed while driving, otherwise ex-
haust gases could be drawn into the
passenger compartment. If you must
drive with one of these open, follow
these precautions:

1. Open all the windows.

2. Set the

air recirculation but-

ton to off and the fan control dial to
high to circulate the air.

∙ If electrical wiring or other cable con-

nections

must

pass

trailer

through the seal on the liftgate or the
body, follow the manufacturer’s rec-
ommendation

prevent

carbon

monoxide entry into the vehicle.

∙ The exhaust system and body should

be inspected by a qualified mechanic
whenever:

a. The vehicle is raised for service.

b. You suspect that exhaust fumes

are entering into the passenger
compartment.

c. You notice a change in the sound of

the exhaust system.

d. You have had an accident involving

damage to the exhaust system,
underbody, or rear of the vehicle.

PRECAUTIONS WHEN STARTING AND
DRIVING

5-4

Starting and driving

THREE-WAY CATALYST

The three-way catalyst is an emission con-
trol device installed in the exhaust system.
Exhaust gases in the three-way catalyst
are burned at high temperatures to help
reduce pollutants.

WARNING

∙ The exhaust gas and the exhaust sys-

tem are very hot. Keep people, ani-
mals or flammable materials away
from

the

exhaust

system

components.

∙ Do not stop or park the vehicle over

flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.

CAUTION

∙ Do not use leaded gasoline. Deposits

from leaded gasoline will seriously re-
duce the three-way catalyst’s ability
to help reduce exhaust pollutants.

∙ Keep your engine tuned up. Malfunc-

tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if no-
ticeable loss of performance or other
unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended that you
visit a NISSAN dealer for this service.

∙ Avoid driving with an extremely low

fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.

∙ Do not race the engine while warming

it up.

∙ Do not push or tow your vehicle to

start the hybrid system.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle

placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)

As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as pos-
sible, and inflate them to the proper pres-
sure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.

Please note that the TPMS is not a substi-
tute for proper tire maintenance, and it is
the driver’s responsibility to maintain cor-
rect tire pressure, even if under-inflation
has not reached the level to trigger illumi-
nation of the TPMS low tire pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.

Starting and driving

5-5

When the system detects a malfunction,
the telltale will flash for approximately one
minute and then remain continuously illu-
minated. This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists. When the malfunc-
tion indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions
may occur for a variety of reasons, includ-
ing the installation of replacement or alter-
nate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

Additional information:

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
does not monitor the tire pressure of
the spare tire.

∙ The TPMS will activate only when the

vehicle is driven at speeds above
16 mph (25 km/h). Also, this system may
not detect a sudden drop in tire pres-
sure (for example, a flat tire while driv-
ing).

∙ The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

∙ The “Tire Pressure Low - Add Air” warn-

ing appears each time the ignition
switch is placed in the ON position as
long as the low tire pressure warning
light remains illuminated.

∙ The “Tire Pressure Low - Add Air” warn-

ing appears in the vehicle information
display when the low tire pressure
warning light is illuminated and low tire
pressure is detected. The “Tire Pressure
Low - Add Air” warning turns off when
the low tire pressure warning light turns
off.

∙ The “Tire Pressure Low - Add Air” warn-

ing does not appear if the low tire pres-
sure warning light illuminates to indi-
cate a TPMS malfunction.

∙ Tire pressure rises and falls depending

on the heat caused by the vehicle’s op-
eration and the outside temperature.
Do not reduce the tire pressure after
driving because the tire pressure rises
after driving. Low outside temperature
can lower the temperature of the air
inside the tire which can cause a lower
tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illumi-
nates, check the tire pressure for all four
tires.

∙ The Tire and Loading Information label

is located in the driver’s door opening.

∙ You can also check the pressure of all

tires (except the spare tire) on the ve-
hicle information display screen. The or-
der of the tire pressure figures dis-
played on the screen corresponds with
the actual order of the tire position.

5-6

Starting and driving

For additional information, refer to “Low tire
pressure warning light” in the “Instruments
and controls” section and “Tire Pressure
Monitoring System (TPMS)” in the “In case of
emergency” section of this manual.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the low tire pressure warning light

illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop
the vehicle as soon as possible. Driv-
ing with under-inflated tires may per-
manently damage the tires and in-
crease the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and could
result

serious

personal

injury.

Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label to turn the low tire pres-
sure warning light off. If you have a flat
tire, replace it with a spare tire as soon
as possible. (For additional informa-
tion on changing a flat tire, refer to
“Flat tire” in the “In case of emer-
gency” section of this manual.)

∙ When replacing a wheel without the

TPMS such as the spare tire, when a
spare tire is mounted or a wheel is
replaced, tire pressure will not be indi-
cated, the TPMS will not function and
the low tire pressure warning light will
flash for approximately 1 minute. The
light will remain on after 1 minute.
Have your tires replaced and/or TPMS
system reset as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

Starting and driving

5-7

Content .. 14 15 16 17 ..
