Nissan Rogue Hybrid (2019 year). Manual - part 13

CANCELING A REMOTE HYBRID
START

To cancel a Remote Hybrid Start, perform
one of the following:

∙ Aim the Intelligent Key at the vehicle

and press

until the parking lights

turn off.

∙ Turn on the hazard warning flashers.

∙ Cycle the ignition switch ON and then

OFF.

∙ The extended hybrid system run time

has expired.

∙ The first 10 minute timer has expired.

∙ The engine hood has been opened.

∙ The shift lever is moved out of park.

∙ The alarm sounds due to illegal entry

into the vehicle.

∙ The ignition switch is pushed without

an Intelligent Key in the vehicle.

∙ The ignition switch is pushed with an

Intelligent Key in the vehicle but the
brake pedal is not depressed.

CONDITIONS THE REMOTE HYBRID
START WILL NOT WORK

The Remote Hybrid Start will not operate if
any of the following conditions are present:

∙ The ignition switch is placed in the ON

position.

∙ The hood is not securely closed.

∙ The hazard indicator lights are on.

∙ The hybrid system is still running. The

hybrid system must be completely
stopped. Wait at least 6 seconds if the
hybrid system goes from running to off.
This is not applicable when extending
hybrid system run time.

∙ The

button is not pressed and

held for at least 2 seconds.

∙ The

button is not pressed and

held within 5 seconds of pressing the
lock button.

∙ The brake is pressed.

∙ The doors are not closed and locked.

∙ The liftgate is open.

∙ The I–Key Indicator Light remains solid

in the vehicle information display.

∙ The alarm sounds due to illegal entry

into the vehicle.

∙ Two Remote Hybrid Starts, or a single

Remote Hybrid Start with an extension,
have already been used.

∙ The vehicle is not in P (Park).

∙ There is a detected registered key al-

ready inside of the vehicle.

∙ The Remote Start function has been

switched to the OFF position in “Vehicle
Settings” of the vehicle information dis-
play. For additional information, refer to
“Vehicle information display” in the “In-
struments and controls” section of this
manual.

The Remote Hybrid Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, re-
fer to “Vehicle information display” in the
“Instruments and controls” section of this
manual.

3-22

Pre-driving checks and adjustments

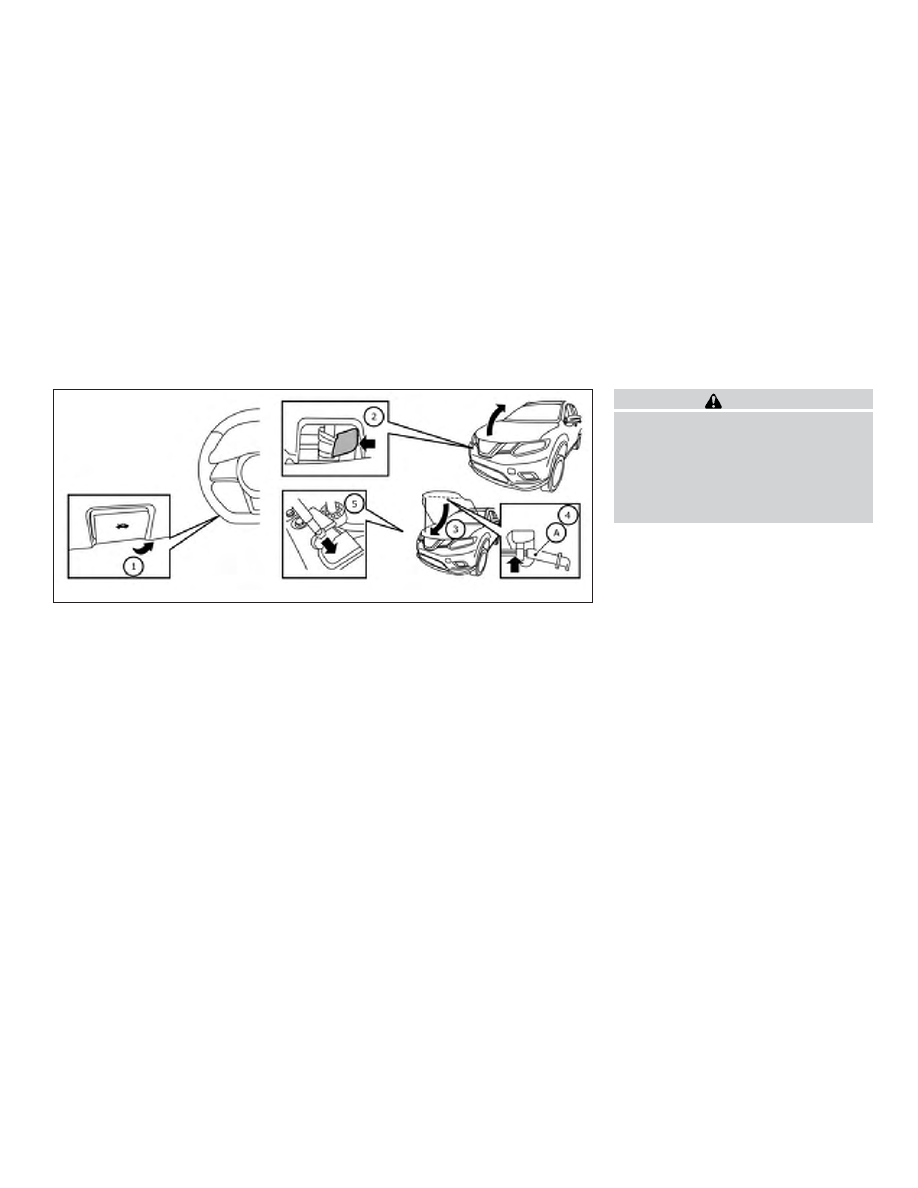

1. Pull the hood lock release handle

䊊

located below the instrument panel
until the hood springs up slightly.

2. Locate the lever

䊊

in between the

hood and grille and push the lever side-
ways with your fingertips.

3. Raise the hood

䊊

4. Remove the support rod

䊊

and insert

it into the slot

䊊

Hold the coated parts

䊊

when removing

or resetting the support rod. Avoid direct
contact with the metal parts, as they
may be hot immediately after the hybrid
system has been stopped.

When closing the hood, return the support
rod to its original position, lower the hood
to approximately 12 in (30 cm) above the
latch and release it. This allows proper en-
gagement of the hood latch.

WARNING

∙ Make sure the hood is completely

closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

∙ If you see steam or smoke coming

from the engine compartment, to
avoid injury do not open the hood.

LPD2751

HOOD

Pre-driving checks and adjustments

3-23

WARNING

∙ Always be sure the liftgate has been

closed securely to prevent it from
opening while driving.

∙ Do not drive with the liftgate open.

This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of this
manual.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

∙ Always be sure that hands and feet

are clear of the door frame to avoid
injury while closing the liftgate.

CAUTION

Do not use accessory carriers that at-
tach to the hatch. Doing so will cause
damage to the vehicle.

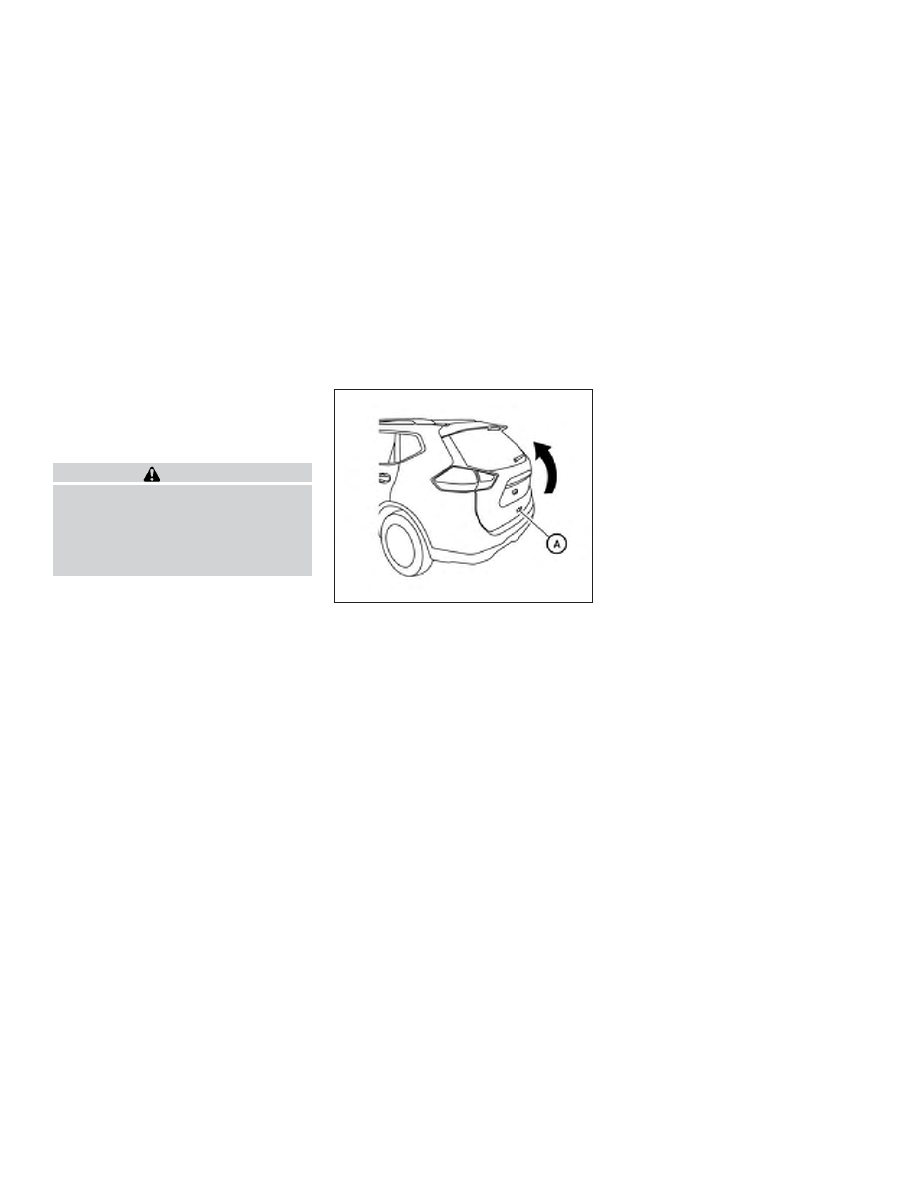

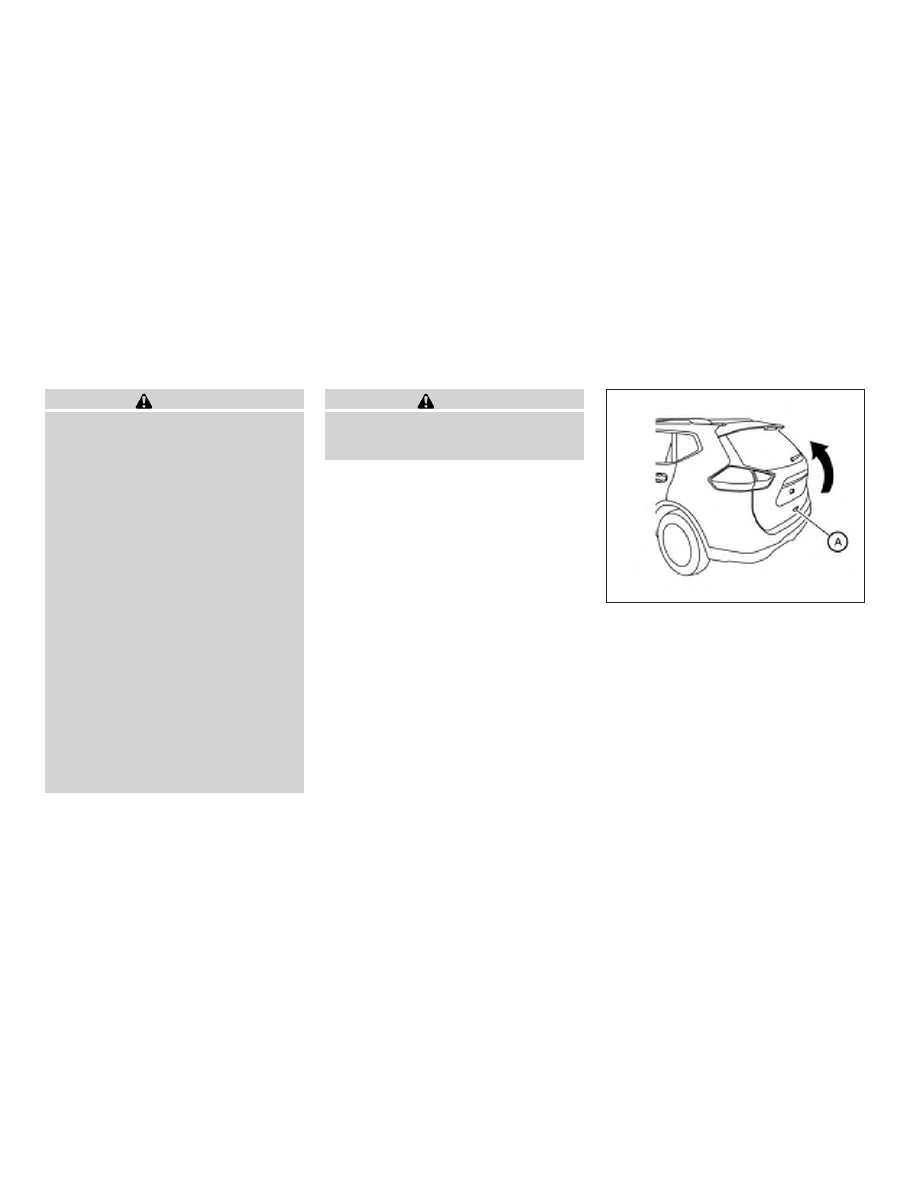

OPERATING THE MANUAL
LIFTGATE (if so equipped)

The power door lock system allows you to
lock or unlock all doors including the lift-
gate simultaneously.

To open the liftgate, push the liftgate
opener switch

䊊

and pull up on the

handle.

To close, lower and push the liftgate down
securely.

LPD2655

LIFTGATE

3-24

Pre-driving checks and adjustments

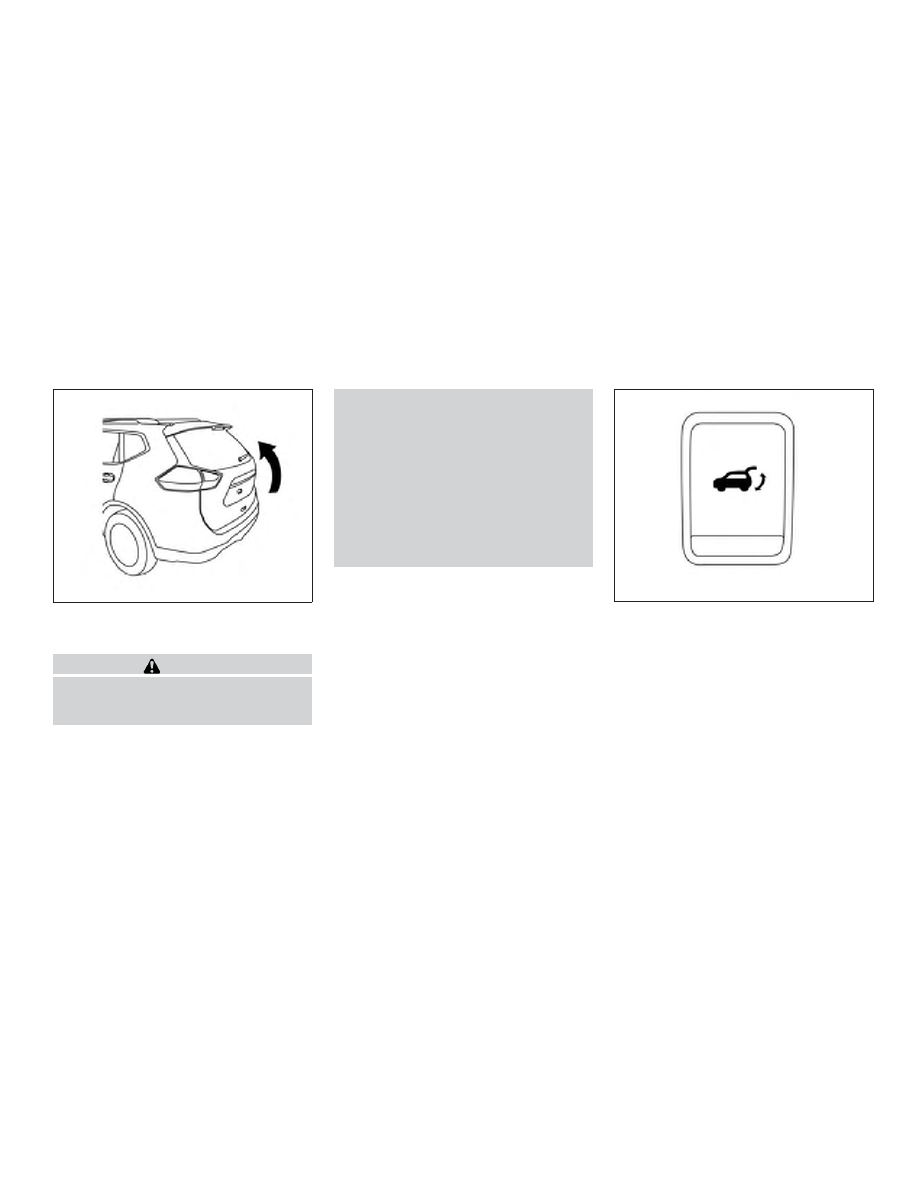

OPERATING THE POWER LIFTGATE
(if so equipped)

WARNING

∙ Make sure that all passengers have

their hands, etc., inside the vehicle be-
fore closing the liftgate.

∙ To help avoid risk of injury or death

NOTE:

To open, close or reverse the power lift-
gate, the shift lever must be in P (Park).
Also, the power liftgate will not operate if
battery voltage is low.

Power Open:
The power liftgate automatically moves
from the fully closed position to the fully
open position in approximately five – eight
seconds. The power open feature can be
activated by the button on the key fob, the
instrument panel switch or the liftgate open
switch. A chime sounds to indicate the
power open sequence has been started.

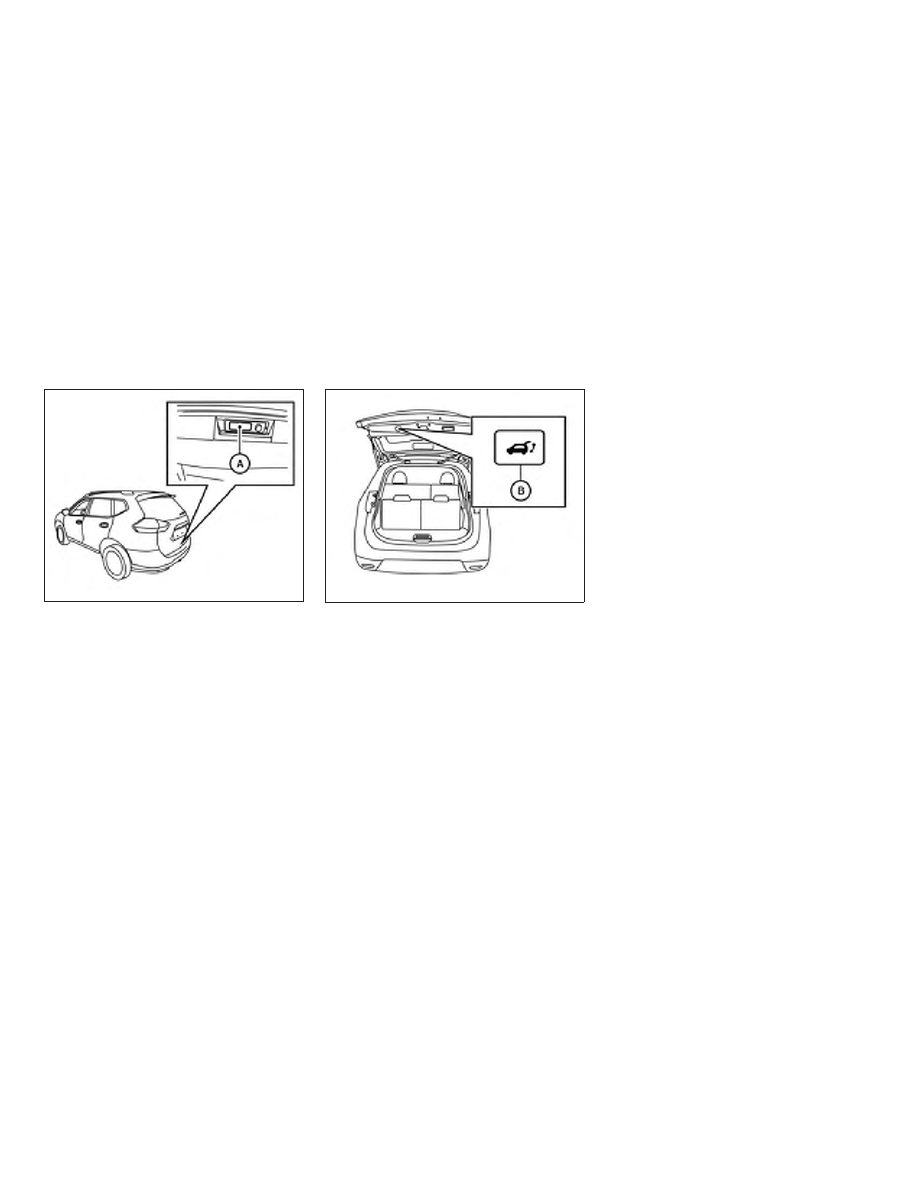

LPD2900

Instrument panel switch

LPD2212

Pre-driving checks and adjustments

3-25

∙ When the vehicle is locked, the liftgate

can be opened with the instrument
panel switch or key fob.

∙ The key fob button must be held for

0.5 second before the liftgate opens.

∙ The liftgate must be unlocked (or the

key fob must be within range) to open
with the liftgate open switch

䊊

A warning chime will sound if the shift lever
is moved out of P (Park) and the vehicle is
beginning to move, during a power open
operation.

Power Close:
The power liftgate automatically moves
from the fully open position to the second-
ary position. When the liftgate reaches the
secondary position, the cinching motor en-
gages and pulls the liftgate to its primary
latch position. Power close takes approxi-
mately seven – ten seconds. The power
close feature can be activated by the but-
ton on the key fob, the instrument panel
switch or the liftgate close switch

䊊

. A

chime sounds to indicate the power close
sequence has been started.

∙ If the liftgate open switch

䊊

is acti-

vated while the cinching motor is en-
gaged, the cinching motor will disen-
gage and release the latch.

∙ The key fob button must be held for

0.5 second before the liftgate closes.

Stop - Reverse:
During the open/close movement, the lift-
gate can be stopped, if the Intelligent Key,
instrument panel or liftgate switch (

䊊

) is pressed. The liftgate can be reversed

in the Intelligent Key, instrument panel or
liftgate switch (

䊊

) is pressed again.

Auto Reverse:
If an obstacle is detected during power
open or power close, a warning chime will
sound and the liftgate will reverse direction
and return to the full open or full close po-
sition. If a second obstacle is detected, the
liftgate motion will stop and the liftgate will
enter manual mode.

A pinch strip is mounted on each side of
the liftgate. If an obstacle is detected by a
pinch strip during power close, the liftgate
will reverse direction and return to the full
open position.

Liftgate opener switch

LCE2322

LPD2270

3-26

Pre-driving checks and adjustments

NOTE:

If the pinch strip is damaged or removed,
the power close function will not oper-
ate.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
liftgate.

Manual Mode:
If power operation is not available, the lift-
gate may be operated manually. Power op-
eration may not be available under the fol-
lowing conditions:

∙ Multiple obstacles have been detected

in a single power cycle

∙ Battery voltage is low

If the power liftgate open switch

䊊

pushed during power open or close, the
power operation will be canceled and the
liftgate can be operated manually.

To open the liftgate manually, push the lift-
gate open switch

䊊

and raise the liftgate.

To close, lower and push the liftgate down
securely.

MOTION-ACTIVATED LIFTGATE (if
so equipped)

The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.

To operate, the Intelligent Key must be
within 31.5 in (80 cm) of the liftgate.

NOTE:

Accessory receivers are available for this
vehicle. If an accessory receiver is in-
stalled, the liftgate electronic control
unit (ECU) needs to be replaced with an
ECU compatible with the accessory re-
ceiver for the Motion-Activated Liftgate
to function properly.

LCE2321

Pre-driving checks and adjustments

3-27

Proper operation technique

∙ While at the rear of the vehicle, begin

making a quick forward kicking motion.

∙ Raise your foot straight under the cen-

ter of the rear bumper then immedi-
ately return your foot to the ground in a
continuous motion.

∙ The kicking motion should be straight,

smooth and consistent.

∙ After your kick motion is complete, step

back

and

allow

the

liftgate

open/close.

∙ Three beeps will sound and the liftgate

will begin moving within two seconds
after the kick.

CAUTION

Before performing the kicking motion,
steady your stance to prevent any loss
of balance. Also, while making the kick-
ing motion, take caution around hot ex-
haust system parts. Otherwise, there
may be danger of injury.

WARNING

Prevent

unintentional

liftgate

opening/closing. There may be condi-
tions when opening/closing the liftgate
is not desired. Keep the Intelligent Key
out of range of the liftgate, (31.5 in or
80 cm), when washing or working
around the back of the vehicle.

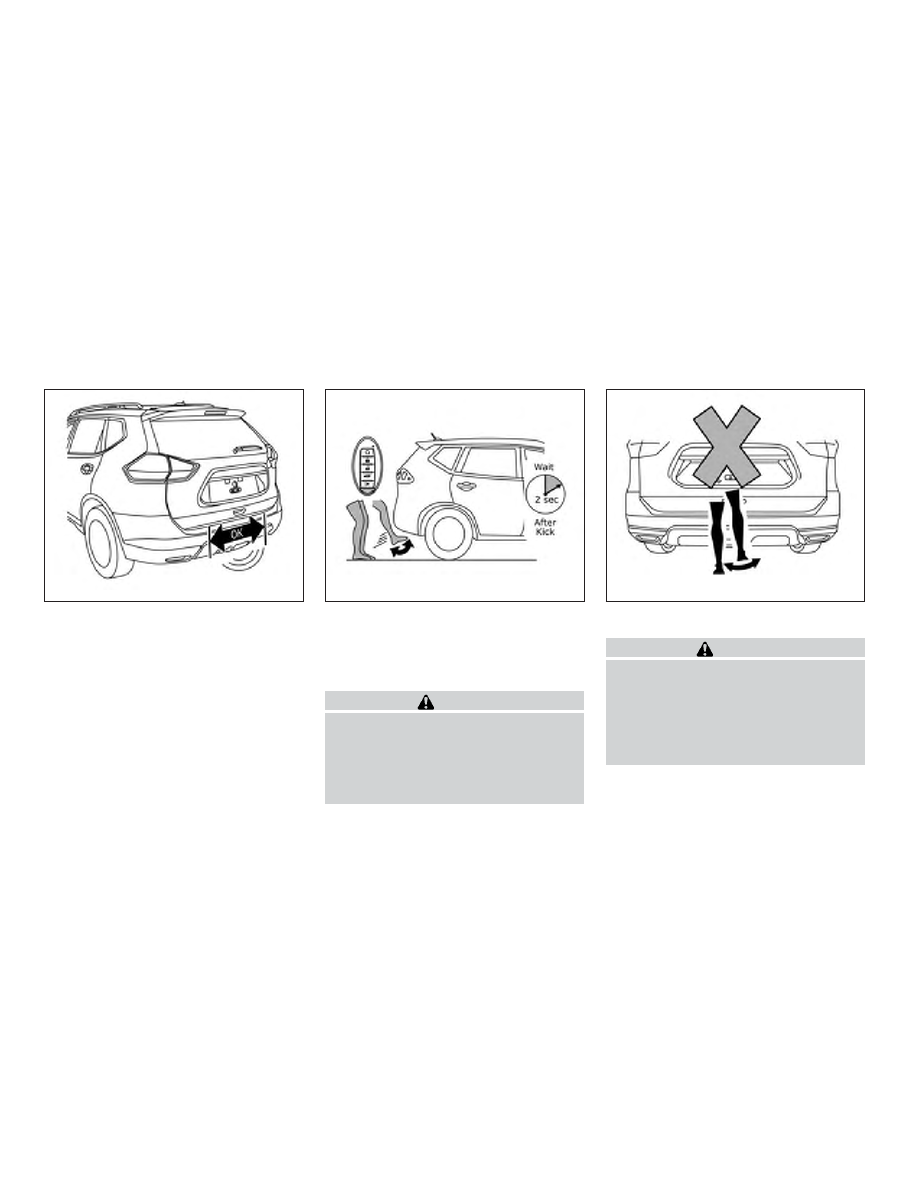

Activation zone

LPD2762

DO: Quick forward kick and return while

the key fob is within range

LPD2948

DO NOT: Swing foot side to side or pause

during kick

LPD2764

3-28

Pre-driving checks and adjustments

CAUTION

∙ Interference or malfunction can be

caused by parking in close proximity
to radio or satellite towers.

∙ Intelligent Key interference could be

caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional in-
formation, refer to “NISSAN Intelligent
Key®” in this section.

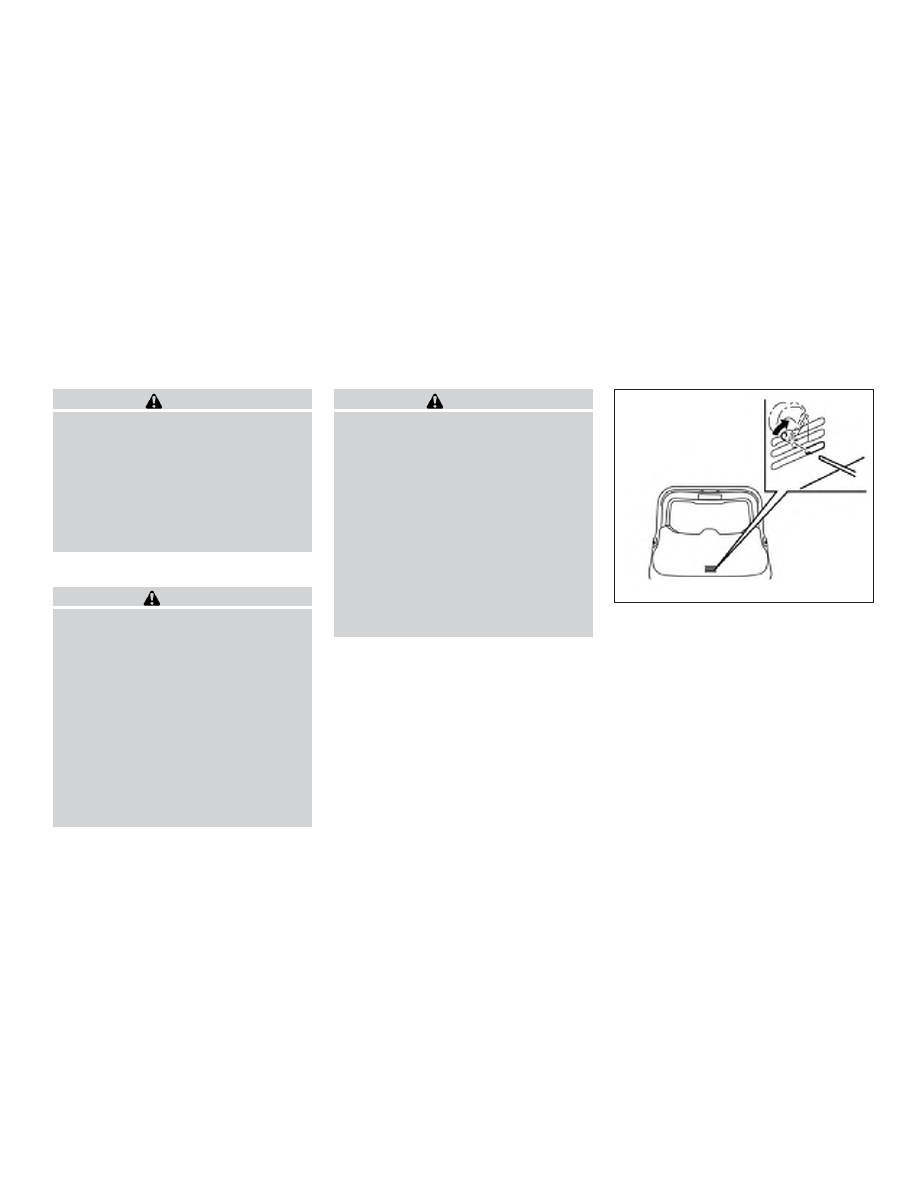

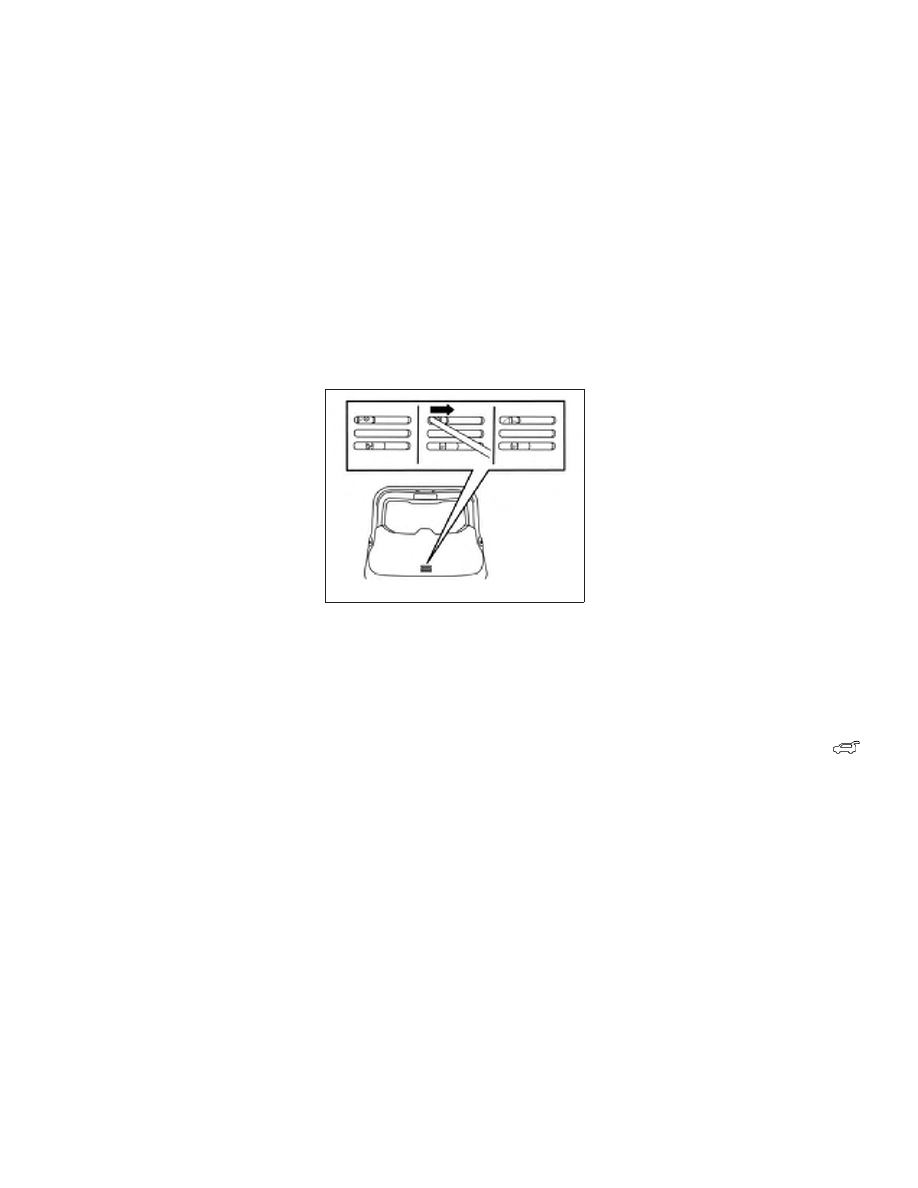

LIFTGATE RELEASE

WARNING

∙ Always be sure the liftgate has been

closed securely to prevent it from
opening while driving.

∙ Do not drive with the liftgate open.

∙ To avoid personal injury, do not at-

tempt to activate the power liftgate if
one or both of the liftgate struts are
removed.

CAUTION

∙ If the power liftgate does not stay

open or if the liftgate unexpectedly
closes at any time while a continuous
warning chime sounds, do not oper-
ate the liftgate. There may be a pres-
sure loss in one or both of the liftgate
struts. It is recommended that you
have the liftgate inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.

∙ Do not activate the power liftgate if

one or both of the liftgate struts are
removed. Damage to the liftgate or
power

liftgate

mechanisms

may

occur.

Manual liftgate release (if so
equipped)

The liftgate release mechanism allows the
liftgate to be opened in the event of a dis-
charged battery.

To release the liftgate from the inside of the
vehicle, perform the following operations:

1. Fold the rear seats down. For additional

information, refer to “Folding the bench
seat” in the “Safety—Seats, seat belts
and supplemental restraint system”
section of this manual.

LPD2375

Pre-driving checks and adjustments

3-29

2. Insert a suitable tool in the lower ac-

cess opening hole. Move the release
lever to the right. The liftgate will be
unlatched.

3. Push the liftgate up to open.

NOTE:

If you had to open the liftgate using this
lever, it is recommended that you have
your vehicle checked as soon as pos-
sible. It is recommended that you visit a
NISSAN dealer for this service.

Power liftgate release (if so
equipped)

The liftgate release mechanism allows the
liftgate to be opened in the event of a dis-
charged battery.

To release the liftgate from the inside of the
vehicle, perform the following operations:

1. Fold the rear seats down. For additional

information, refer to “Folding the bench
seat” in the “Safety—Seats, seat belts
and supplemental restraint system”
section of this manual.

2. Insert a suitable tool in the top access

opening hole. Move the release lever to
the right. The liftgate will be unlatched.

3. Push the liftgate up to open.

NOTE:

If you had to open the liftgate using this
lever, it is recommended that you have
your vehicle checked as soon as pos-
sible. It is recommended that you visit a
NISSAN dealer for this service.

LIFTGATE POSITION SETTING

The liftgate can be set to open to a specific
height by performing the following:

1. Open the liftgate using the request

switch or the Intelligent Key.

2. Pull the liftgate down to the desired

position and hold the liftgate (the lift-
gate will have some resistance when
being manually adjusted).

3. While holding the liftgate in position,

push and hold the liftgate switch
located on the liftgate for approxi-
mately 5 seconds or until two beeps
are heard.

LPD2949

3-30

Pre-driving checks and adjustments

The liftgate will open to the selected posi-
tion setting. To change the position of the
liftgate, repeat steps 1-3 for setting the po-
sition of the liftgate.

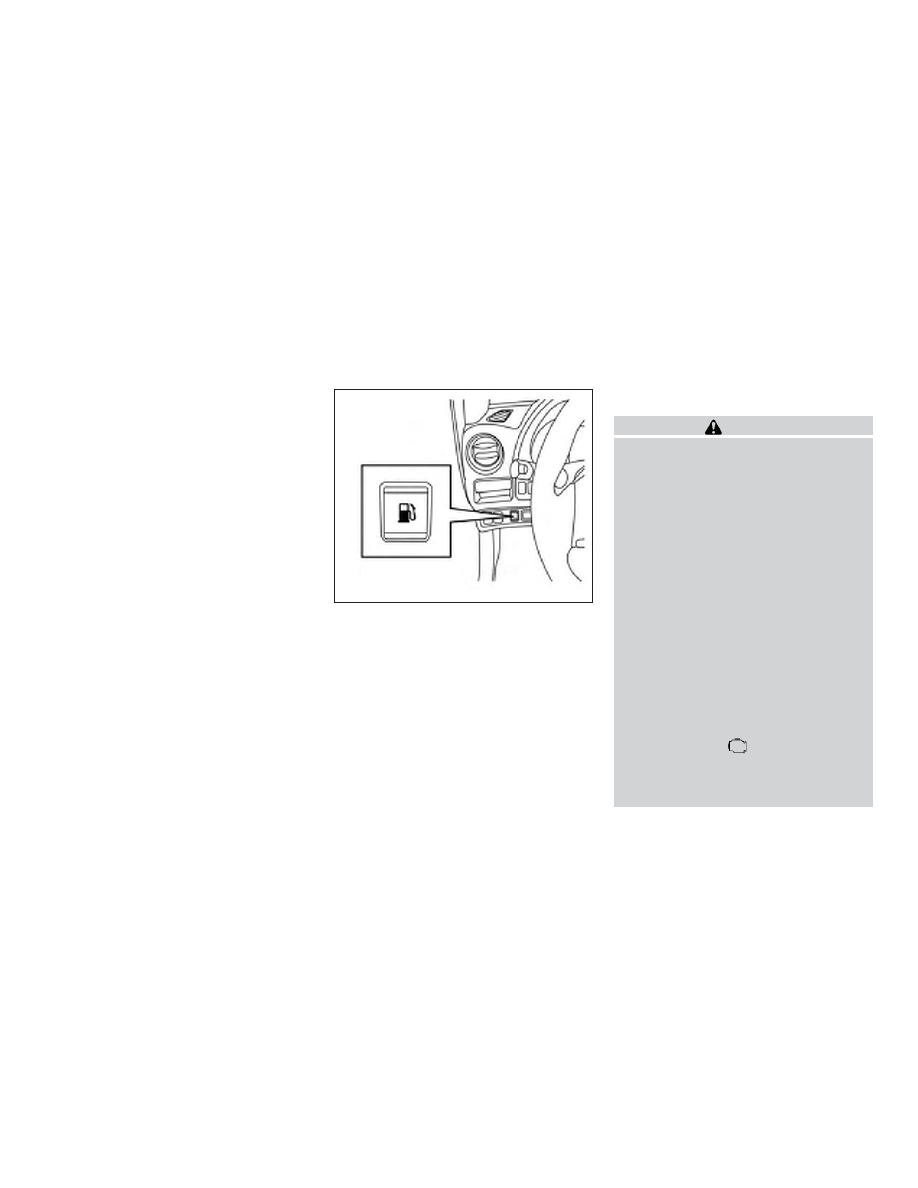

OPENER OPERATION

The fuel-filler door opener switch is located
on the instrument panel. To open, push the
fuel-filler opener switch.

To lock, close the fuel-filler door securely.

FUEL-FILLER CAP

WARNING

∙ Gasoline is extremely flammable and

highly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled.

Always

stop

the

hybrid

system and do not smoke or allow
open flames or sparks near the ve-
hicle when refueling

∙ Do not attempt to top off the fuel tank

after the fuel pump nozzle shuts off
automatically.

Continued

refueling

may cause fuel overflow, resulting in
fuel spray and possibly a fire.

∙ Use only an original equipment type

fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the

Malfunction Indi-

cator Light (MIL) to come on.

∙ Never pour fuel into the throttle body

to attempt to start your vehicle.

LPD2283

FUEL-FILLER DOOR

Pre-driving checks and adjustments

3-31

∙ Do not fill a portable fuel container in

the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:

– Always place the container on the

ground when filling.

– Do not use electronic devices when

filling.

– Keep the pump nozzle in contact

with the container while you are
filling it.

– Use only approved portable fuel

containers for flammable liquid.

CAUTION

∙ Do not use a fuel containing more

than 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual.

∙ The Loose Fuel Cap warning message

will be displayed if the fuel-filler cap is
not properly tightened. It may take a
few driving trips for the message to
be displayed. Failure to tighten the
fuel-filler cap properly after the Loose
Fuel Cap warning message is dis-
played may cause the

Malfunc-

tion Indicator Light (MIL) to illuminate.

∙ Failure to tighten the fuel-filler cap

properly may cause the

Mal-

function Indicator Light (MIL) to illumi-
nate. If the

light illuminates be-

cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue

drive

the

vehicle.

The

light should turn off after a

few driving trips. If the

light does

not turn off after a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” sec-
tion of this manual.

∙ If fuel is spilled on the vehicle body,

flush it away with water to avoid paint
damage.

3-32

Pre-driving checks and adjustments

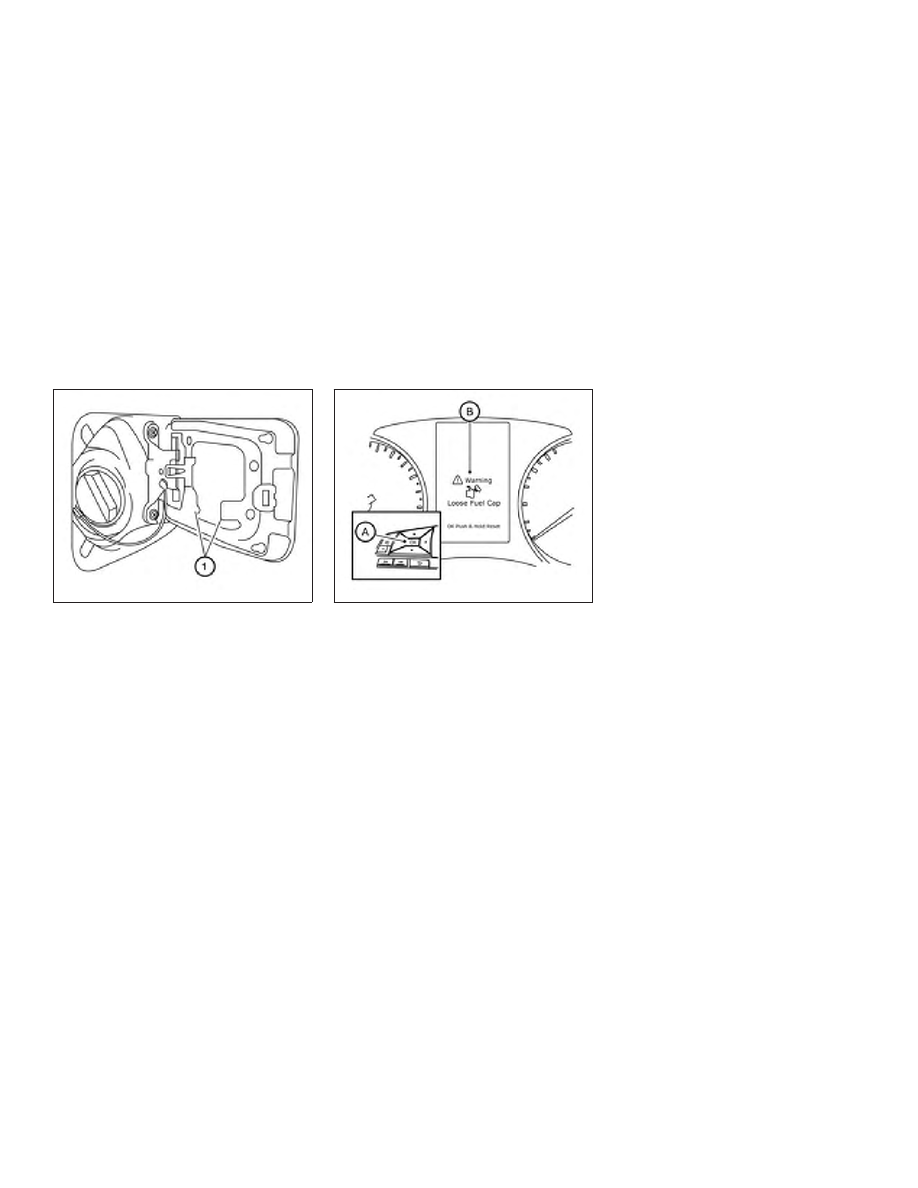

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclock-

wise to remove.

2. Put the fuel-filler cap on the cap holder

䊊

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the

fuel-filler tube.

2. Turn the fuel-filler cap clockwise until a

single click is heard.

Loose Fuel Cap warning

The Loose Fuel Cap warning message will
be displayed in the vehicle information dis-
play when the fuel-filler cap is not tight-
ened correctly after the vehicle has been
refueled. It may take a few driving trips for
the message to be displayed. To turn off
the warning message, perform the follow-
ing:

1. Remove and install the fuel-filler cap as

soon as possible. For additional infor-
mation, refer to “Fuel-filler cap” in this
section.

2. Tighten the fuel-filler cap until a single

click is heard.

3. Press the OK button

䊊

on the steering

wheel for about one second to turn off
the Loose Fuel Cap warning message

䊊

after tightening the fuel-filler cap.

LPD2186

LPD2659

Pre-driving checks and adjustments

3-33

WARNING

∙ Do not adjust the steering wheel while

driving. You could lose control of your
vehicle and cause an accident.

∙ Do not adjust the steering wheel any

closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.

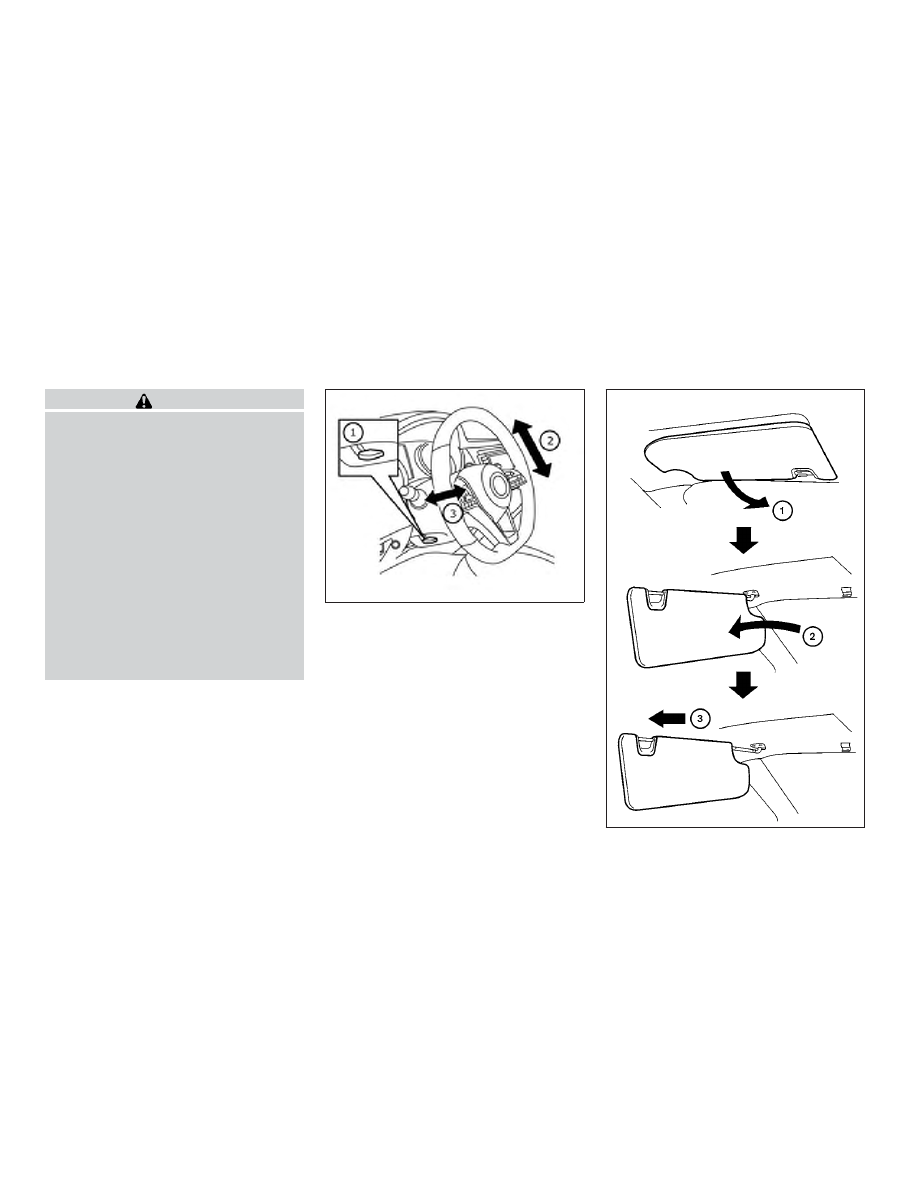

MANUAL OPERATION

Tilt and telescopic operation

Pull the lock lever

䊊

down:

∙ Adjust the steering wheel up or down in

direction

䊊

to the desired position.

∙ Adjust the steering wheel forward or

backward in direction

䊊

to the desired

position.

Push the lock lever

䊊

up firmly to lock the

steering wheel in place.

LPD2648

WPD0344

STEERING WHEEL

SUN VISORS

3-34

Pre-driving checks and adjustments

1. To block glare from the front, swing

down the sun visor

䊊

2. To block glare from the side, remove

the sun visor from the center mount
and swing the visor to the side

䊊

3. To extend the sun visor, slide

䊊

in or

out as needed.

CAUTION

∙ Do not store the sun visor before re-

turning the extension to its original
position.

∙ Do not pull the extension sun visor

forcedly downward.

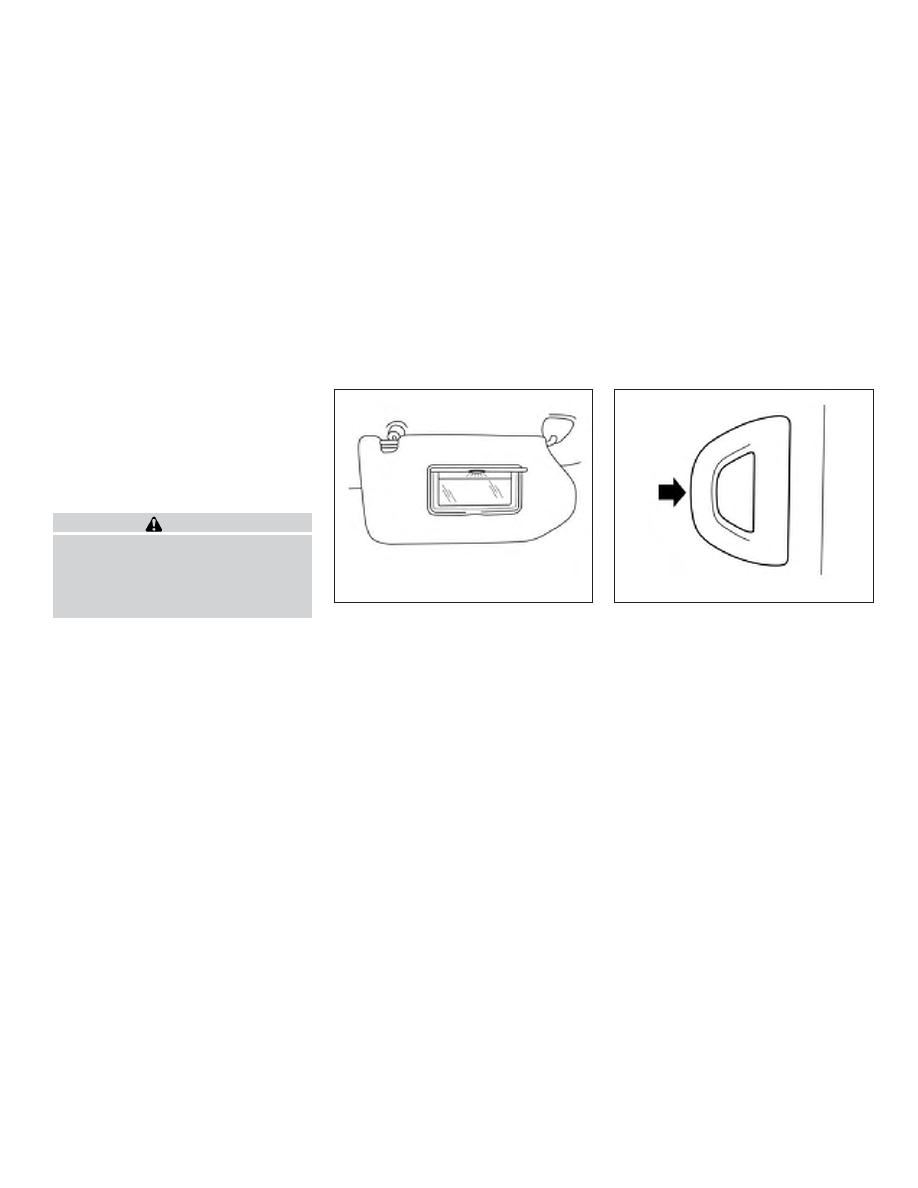

VANITY MIRRORS

To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
The vanity mirror will illuminate when the
mirror cover is open.

CARD HOLDER (driver’s side only)

To access the card holder, pull the sun visor
down and slide card in the card holder. Do
not view information while operating the
vehicle.

LPD2067

LPD2598

Pre-driving checks and adjustments

3-35

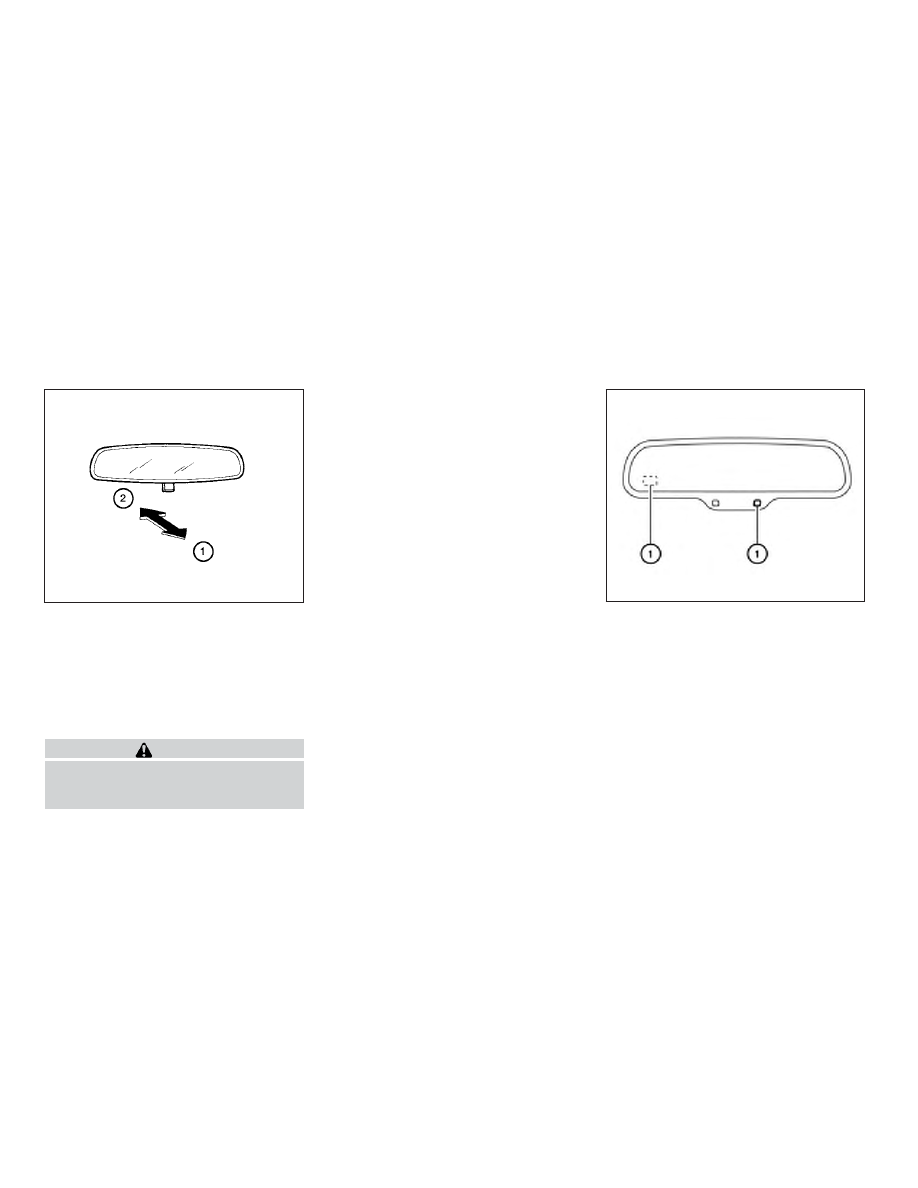

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)

Use the night position

䊊

to reduce glare

from the headlights of vehicles behind you
at night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view
clarity.

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)

The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.

NOTE:

Do not hang any objects over the sen-
sors

䊊

or apply glass cleaner to the sen-

sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.

Type A (if so equipped)

WPD0126

Type A (if so equipped)

LPD2418

MIRRORS

3-36

Pre-driving checks and adjustments

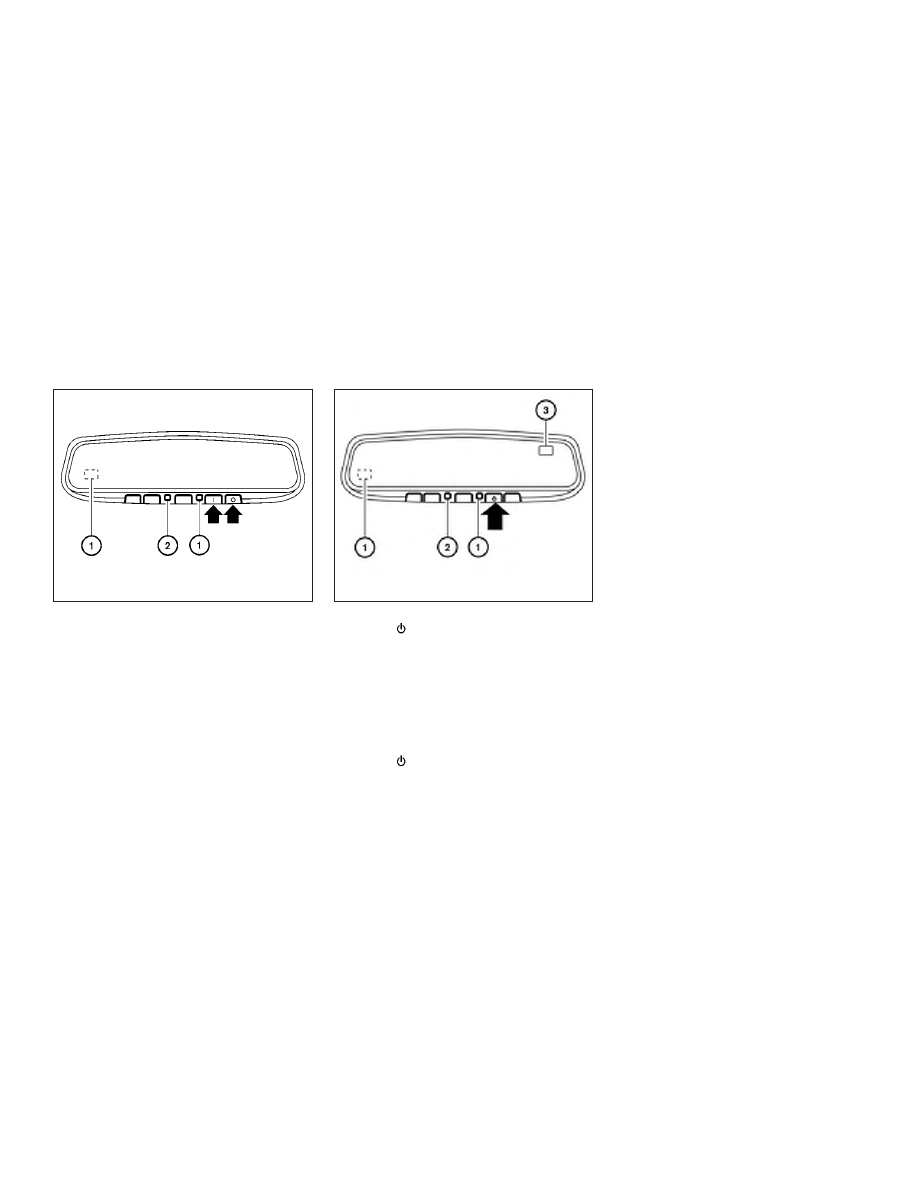

Type B and Type C (if so equipped)

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

To turn off the automatic anti-glare feature,
press:

∙ The O

button for inside mirrors with-

out compass, and the indicator light will
turn off.

∙ The

button for inside mirrors

with compass, and the indicator light
will turn off.

To turn on the automatic anti-glare feature,
press:

∙ The I

button for inside mirrors with-

out compass, and the indicator light will
turn on.

∙ The

button for inside mirrors

with compass, and the indicator light
will turn on.

For additional information on HomeLink®
Universal Transceiver operation, refer to
the “HomeLink® Universal Transceiver” in
the “Instruments and controls” section of
this manual.
For information on the compass display

䊊

(if so equipped), refer to “Compass display”
in the “Instruments and controls” section of
this manual.

Type B— Without compass

(if so equipped)

LPD0469

Type C— With compass (if so equipped)

LPD2419

Pre-driving checks and adjustments

3-37

Content .. 11 12 13 14 ..
