Nissan Quest (2017 year). Manual - part 6

1-64

Safety — Seats, seat belts and supplemental restraint system

SPA1097

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light, display-
ing

in the instrument panel, monitors the

circuits for the air bag systems, pretensioners
and all related wiring.

When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the SRS air bag systems are
operational.

If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:
. The supplemental air bag warning light

remains on approximately 7 seconds after
the ignition switch is pushed to the ON
position.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light does

not come on at all.

Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. It is
recommended you visit a NISSAN dealer for
this service.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It
is recommended you visit a NISSAN
dealer for this service.

REPAIR AND REPLACEMENT PRO-
CEDURE

The front air bags, side air bags and curtain air
bags and pretensioners are designed to activate
on a one-time-only basis. As a reminder, unless
it is damaged, the supplemental air bag warning
light will remain illuminated after inflation has
occurred. These systems should be repaired
and/or replaced as soon as possible. It is
recommended you visit a NISSAN dealer for
this service.

When maintenance work is required on the
vehicle, the front air bags, side air bags and
curtain air bags, pretensioners and related parts
should be pointed out to the person conducting
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.

WARNING

. Once a front air bag, side air bag or

curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced. It is recommended you

visit a NISSAN dealer for this ser-
vice. However, the air bag module
and pretensioner system cannot be
repaired.

. The front air bag, side air bag,

curtain air bag and the pretensioner
should be inspected if there is any
damage to the front end or side
portion of the vehicle. It is recom-
mended you visit a NISSAN dealer
for this service.

. If you need to dispose of a supple-

mental air bag or pretensioner or
scrap the vehicle, it is recommended
you visit a NISSAN dealer. Correct
supplemental air bag and preten-
sioner system disposal procedures
are set forth in the appropriate
NISSAN Service Manual. Incorrect
disposal procedures could cause
personal injury.

. If there is an impact to your vehicle

from any direction, your Occupant
Classification Sensor (OCS) should
be checked to verify it is still
functioning correctly. It is recom-
mended you visit a NISSAN dealer
for this service. The OCS should be
checked even if no air bags deploy

as a result of the impact. Failure to
verify proper OCS function may
result in an improper air bag deploy-
ment resulting in injury or death.

Safety — Seats, seat belts and supplemental restraint system

1-65

1-66

Safety — Seats, seat belts and supplemental restraint system

MEMO

Safety — Seats, seat belts and supplemental restraint system

1-67

1-68

Safety — Seats, seat belts and supplemental restraint system

MEMO

2 Instruments and controls

Cockpit ........................................................................................ 2-3
Instrument panel ........................................................................ 2-4
Meters and gauges ................................................................... 2-5

Meter/ring illumination and needle sweep .................... 2-5
Speedometer and odometer ............................................ 2-6
Tachometer ........................................................................... 2-7
Engine coolant temperature gauge ................................ 2-7
Fuel gauge ............................................................................ 2-8

Compass (if so equipped) ...................................................... 2-8

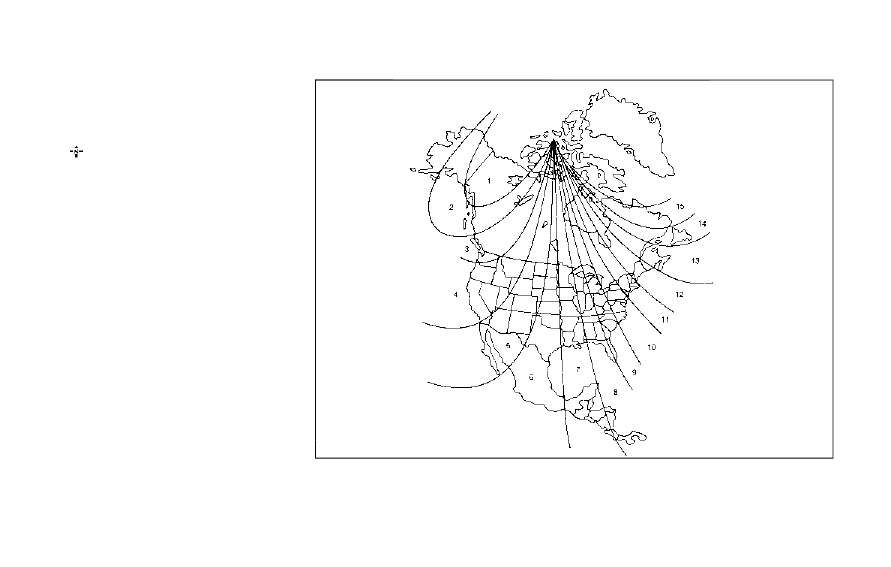

Zone variation change procedure ................................ 2-10

Warning lights, indicator lights and
audible reminders ................................................................... 2-11

Checking lights ................................................................. 2-12
Warning lights ................................................................... 2-12
Indicator lights ................................................................... 2-16
Audible reminders ............................................................ 2-18

Vehicle information display .................................................. 2-19

Operational indicators ..................................................... 2-21
Maintenance indicators ................................................... 2-23
Trip computer .................................................................... 2-24

Security systems .................................................................... 2-28

Vehicle security system .................................................. 2-28
NISSAN vehicle immobilizer system ........................... 2-30

Wiper and washer switch .................................................... 2-31

Rear window wiper and washer switch ..................... 2-32

Rear window and outside mirror defroster switch ....... 2-33
Headlight and turn signal switch ....................................... 2-33

Xenon headlights (if so equipped) ............................ 2-33
Headlight switch ............................................................ 2-34
Turn signal switch .......................................................... 2-38
Fog light switch (if so equipped) .............................. 2-39

Horn .......................................................................................... 2-39
Heated seats (if so equipped) ........................................... 2-39
Blind Spot Warning (BSW) switch (if so equipped) ..... 2-41
Vehicle Dynamic Control (VDC) OFF switch ................. 2-41
Power outlet ............................................................................ 2-42
Storage .................................................................................... 2-44

Sunshade (if so equipped) ................................................. 2-51
Windows ................................................................................. 2-52

Power windows .............................................................. 2-52

Moonroof (if so equipped) ................................................... 2-54

Power moonroof ............................................................... 2-54
Front moonroof ................................................................. 2-55
Rear moonroof .................................................................. 2-56
If the front or rear moonroof does not operate ........ 2-56

Interior lights .......................................................................... 2-57

Map lights ........................................................................... 2-57
Rear personal lights ......................................................... 2-57
Interior light control switch ............................................ 2-58

Mood lights .............................................................................. 2-59
Vanity mirror lights ................................................................. 2-59

Cargo lights ............................................................................ 2-60
HomeLink

Universal Transceiver (if so equipped) ...... 2-60

Programming HomeLink

............................................. 2-61

Programming HomeLink

for Canadian Customers

and gate openers ........................................................... 2-62
Operating the HomeLink

Universal Transceiver .................................................... 2-62
Programming troubleshooting ..................................... 2-63
Clearing the programmed information ...................... 2-63
Reprogramming a single HomeLink

button .......... 2-63

If your vehicle is stolen ................................................. 2-63

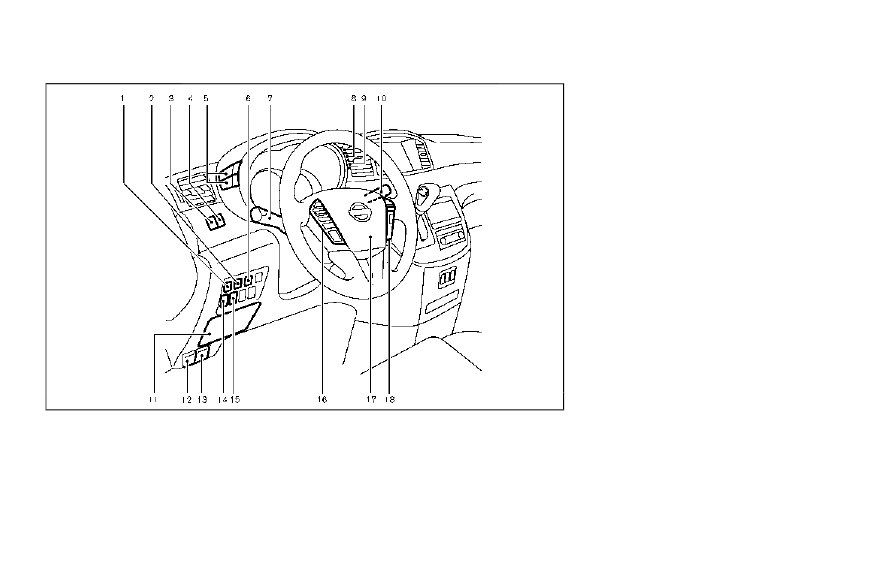

SSI0825

Vehicle Dynamic Control (VDC) OFF switch

Blind Spot Warning (BSW) switch*
— Blind Spot Warning (BSW)*

Sliding door switch* (driver’s side)

Sliding door switch* (passenger’s side)

Instrument brightness control switch

Power liftgate switch*

Headlight, fog light and turn signal switch
— Headlight
— Turn signal
— Fog light*

Trip computer switch

TRIP/RESET switch for twin trip odometer

10.

Wiper and washer switch

11.

Fuse box cover

12.

Fuel-filler door opener handle

13.

Hood release handle

14.

Headlight aiming control*

15.

Power door main switch*

16.

Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Hands-Free Phone System switch*

17.

Horn

18.

Steering-wheel-mounted controls (right side)
— Cruise control system

if so equipped

Instruments and controls

2-3

COCKPIT

2-4

Instruments and controls

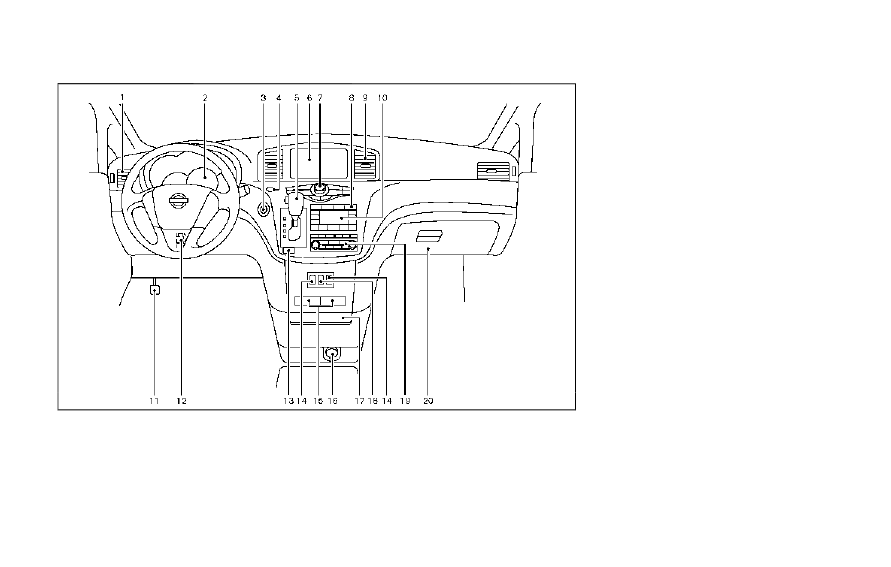

SSI0824

Side ventilator

Meters and gauges

Push-button ignition switch

Hazard warning flasher switch

Shift lever

Center display
— Center color display*

— Navigation system**

Center multi-function control panel*
— Navigation system**
— Vehicle information and setting buttons*
— RearView Monitor*
— Around View

Monitor*

Rear window and outside mirror* defroster
switch

Center ventilator

10.

Heater/air conditioner control or audio system

11.

Parking brake

12.

Tilting telescopic steering wheel lever

13.

Front passenger air bag status light

14.

Heated seat switch*

15.

Cup holders

16.

Power outlet

17.

Instrument lower box or CD/DVD slot

18.

Power outlet main switch*

19.

Audio system

20.

Glove box

if so equipped

**:

Refer to the separate Navigation System Own-
er’s Manual (if so equipped).

INSTRUMENT PANEL

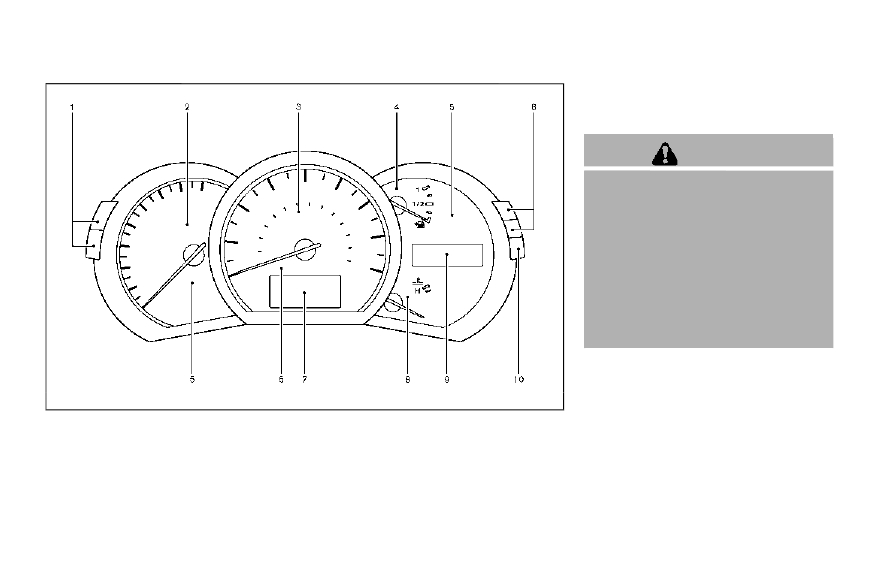

JVC0210X

Instrument brightness control switch

Tachometer

Speedometer

Fuel gauge

Warning/indicator lights

Trip computer switch

Vehicle information display
— Trip computer

Engine coolant temperature gauge

Odometer/twin trip odometer/Continuously Vari-
able Transmission (CVT) position indicator

10.

TRIP/RESET switch for twin trip odometer

The needle indicators may move slightly
after the ignition switch is pushed to the
OFF position. This is not a malfunction.

CAUTION

. For cleaning, use a soft cloth, dam-

pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.

. Do not spray any liquid such as

water on the meter lens. Spraying
liquid may cause the system to
malfunction.

METER/RING ILLUMINATION AND
NEEDLE SWEEP

The ring illumination surrounding meters and
gauges illuminates when the driver’s door is
closed after getting into the vehicle with the
Intelligent Key carried in.

When the engine is started, the indicator
needles will sweep in the speedometer and
tachometer and the ring illumination will be
brightened gradually. This function can be
turned off. (See “Trip computer” (P.2-24).)

Instruments and controls

2-5

METERS AND GAUGES

2-6

Instruments and controls

JVI0252X

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).

SIC4632

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed when the ignition switch is in the
ON position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the TRIP RESET switch

on the right

side of the combination meter panel changes
the display as follows:

TRIP A

? TRIP B ? TRIP A

Resetting the trip odometer:

Pushing the TRIP RESET switch

for more

than 1 second resets the trip odometer to zero.

JVI0253X

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the
engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

SIC4634

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant tem-
perature.

The engine coolant temperature is within the
normal range when the gauge needle points
within the zone

shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the

normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible and let the
engine idle. If the engine is overheated,
continued operation of the vehicle may
seriously damage the engine. See “If
your vehicle overheats” (P.6-12) for
immediate action required.

Instruments and controls

2-7

2-8

Instruments and controls

JVI0357X

FUEL GAUGE

The gauge indicates the approximate fuel level
in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

The gauge needle returns to “0” (empty) after
the ignition switch is pushed to the OFF
position.

Refill the fuel tank before the gauge
registers “0” (empty).

The low fuel warning

appears on the vehicle

information display when the fuel level in the tank
is getting low. Refuel as soon as it is convenient,
preferably before the gauge reaches “0”. There

will be a small reserve of fuel in the tank when
the fuel gauge needle reaches “0”.

The

indicates that the fuel-filler door is

located on the driver’s side of the vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL)

may come on. Refuel as soon as
possible. After a few driving trips,
the

light should turn off. If the

light remains on after a few driving
trips, have the vehicle inspected. It
is recommended you visit a NISSAN
dealer for this service.

. For additional information, see

“Malfunction Indicator Light (MIL)”
(P.2-17).

SIC3181

When the ignition switch is pushed to the ON
position, the compass display

will indicate

the direction of the vehicle’s heading.

If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle

COMPASS (if so equipped)

on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.

To turn on and off the compass manually, push
the

switch

while the ignition switch is in

the ON position.

SIC0611B

Zone map

Instruments and controls

2-9

2-10

Instruments and controls

ZONE VARIATION CHANGE PROCE-
DURE

The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:

1. Push the

switch for more than 3

seconds. The current zone number will
appear in the display.

2. Find your current location and variance

number on the zone map.

NOTE:
Use zone number 5 for Hawaii.

3. Push the

switch repeatedly until the

new zone number appears in the display,
then release the switch. After you release
the switch, the display will show a compass
direction within a few seconds.

If the compass deviates from the correct

indication soon after repeated adjust-
ment, have the compass checked. It is
recommended you visit a NISSAN dealer
for this service.

The compass may not indicate the

correct compass point in tunnels or while
driving up or down a steep hill.

(The compass returns to the correct com-
pass point when the vehicle moves to an
area where the geomagnetism is stabilized.)

CAUTION

. Do not install a ski rack, antenna,

etc., which are attached to the
vehicle by means of a magnet. They
affect the operation of the compass.

. When cleaning the mirror, use a

paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as it may cause the liquid
cleaner to enter the mirror housing.

Anti-lock Braking System (ABS) warning
light

Intelligent Key system warning light

Exterior light indicator

Low tire pressure warning light

Front passenger air bag status light

Blind Spot Warning (BSW) system warning
light (if so equipped)

Master warning light

High beam indicator light

Seat belt warning light and chime

Malfunction Indicator Light (MIL)

Brake warning light

Supplemental air bag warning light

Overdrive off indicator light

Charge warning light

Vehicle Dynamic Control (VDC) warning
light

Security indicator light

Engine oil pressure warning light

Continuously Variable Transmission (CVT)
position indicator light

Turn signal/hazard indicator lights

Hydraulic pump electric power steering
warning light

Cruise indicator light

Vehicle Dynamic Control (VDC) off indicator
light

Instruments and controls

2-11

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

Content .. 4 5 6 7 ..
