Nissan NV200 Compact Cargo Van (2018 year). Manual

The NISSAN Voice Recognition system al-
lows hands-free operation of the systems
equipped on this vehicle, such as the
phone and navigation systems.

To operate NISSAN Voice Recognition,
press the

button located on the

steering wheel. When prompted, speak the
command for the system you wish to acti-
vate. The command given is picked up by
the microphone and performed when it is
properly recognized. NISSAN Voice Recog-
nition will provide a voice response as well
as a message in the center display to in-
form you of the command results.

USING THE SYSTEM

Initialization

When the ignition switch is in the ON posi-
tion, NISSAN Voice Recognition is initialized,
which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the

button is pressed

before the initialization completes, the sys-
tem will announce: “Voice Recognition Sys-
tem not ready. Please wait.”

Giving voice commands

1. Press the

button.

2. The system announces: “Please say a

category like phone or a command like
points of interest followed by a brand
name”. A list of available commands is
then spoken by the system.

3. After the tone sounds and the face icon

on the display changes, speak a com-
mand. Available commands are dis-
cussed in this section.

4. Voice and display feedback are pro-

vided when the command is accepted.

∙ If the command is not recognized, the

system announces: “Command not
recognized”. Repeat the command in a
clear voice.

∙ If you want to cancel the command or

go back to the previous menu of com-
mands, press the

button. The sys-

tem will announce: “Canceling voice
recognition” or “Go back” depending on
the current menu level.

∙ Press the BACK button on the control

panel to move back through the menus
displayed on the screen.

∙ If you want to adjust the volume of the

voice feedback, use the volume control
switches on the steering wheel or the
volume knob on the control panel.

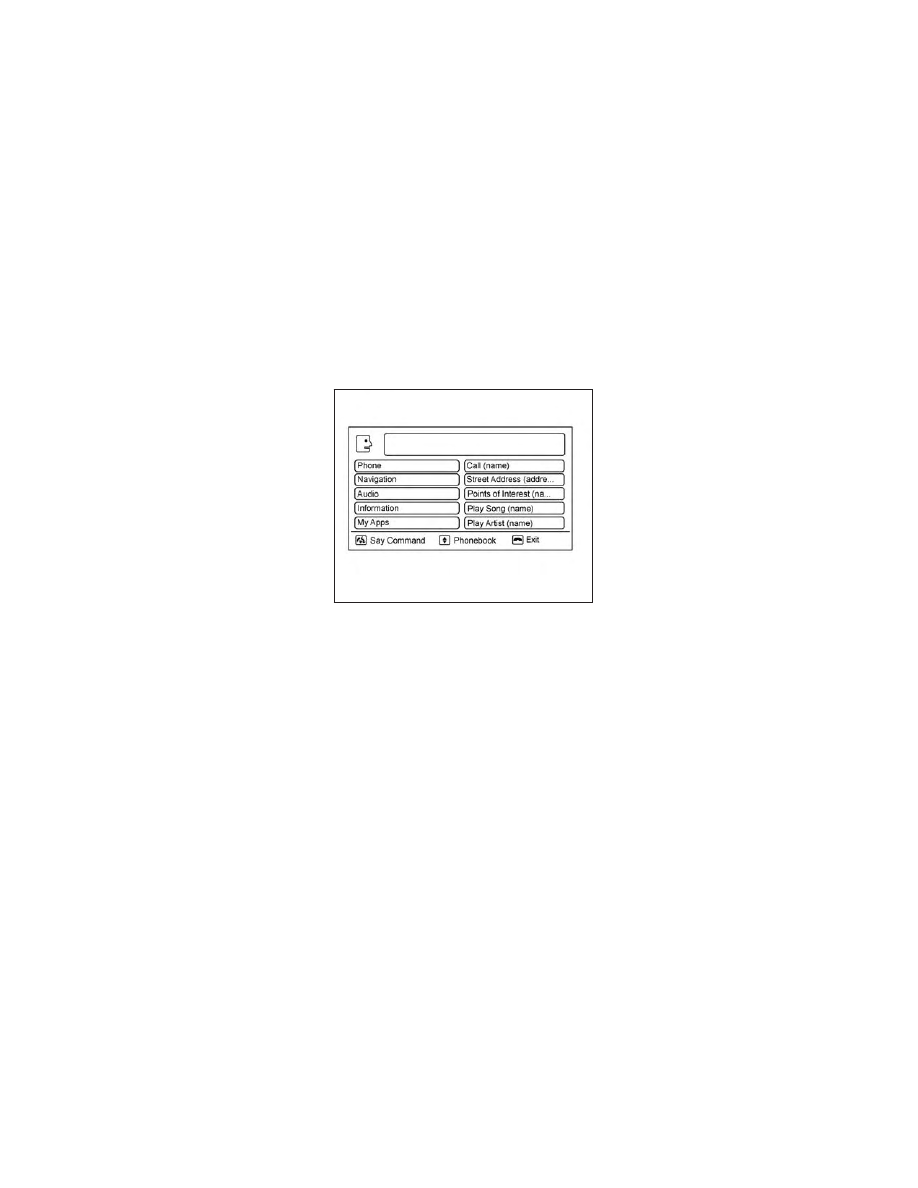

∙ The voice command screen can also be

accessed using the control panel dis-
play:

1. Press the [

] button.

2. Select the “Voice Commands” key.

LHA4437

NISSAN VOICE RECOGNITION
SYSTEM

4-86

Monitor, climate, audio, phone and voice recognition systems

Operating tips

To get the best performance out of NISSAN
Voice Recognition, observe the following:

∙ Keep the interior of the vehicle as quiet

as possible. Close the windows to elimi-
nate the surrounding noises (traffic
noises, vibration sounds, etc.), which
may prevent the system from recogniz-
ing the voice commands correctly.

∙ Wait until a tone sounds before speak-

ing a command. Otherwise, the com-
mand will not be received properly.

∙ Start speaking a command within

3.5 seconds after the tone sounds.

∙ Speak in a natural voice without paus-

ing between words.

SYSTEM FEATURES

NISSAN Voice Recognition can activate the
following systems:

∙ Bluetooth® Hands-Free Phone System

∙ Navigation

∙ Audio

∙ Information

∙ My Apps

∙ Help

For additional information, refer to the
separate NissanConnect® Owner’s Manual.

How to say numbers

NISSAN Voice Recognition requires a cer-
tain way to speak numbers in voice com-
mands. Refer to the following examples.

General rule: Either “zero” or “oh” can be
used for “0”.

Phone numbers

Speak phone numbers according to the
following example. For 1-800-662-6200, say
dial number and then speak the phone
number in any of the following formats:

∙ “one eight oh oh six six two six two oh

oh”

∙ “one eight hundred six six two six two oh

oh”

∙ “one eight zero zero six six two six two

oh oh”

For the best voice recognition phone dial-
ing results, say phone numbers as single
digits. Also, full numbers can only be spo-
ken for “800”. For example, you cannot say
555-6000 as “five five five six thousand”.

LHA2780

Monitor, climate, audio, phone and voice recognition systems

4-87

BLUETOOTH® HANDS-FREE
PHONE SYSTEM VOICE
COMMANDS

To access the Bluetooth® Hands-Free
Phone System voice commands:

1. Press the

button.

2. Say “Call” and then a name in the ve-

hicle phonebook to call that entry. Oth-
erwise, say “Phone” to access various
phone commands.

If the Bluetooth® has been set to “Off ”, the
system announces: “Bluetooth® is off.
Would you like to turn Bluetooth® on?”

If no phone is connected to the system and
the vehicle is stationary, the system an-
nounces: “There is no phone connected.
Would you like to connect a phone now?”
Say “Yes” to connect a phone. All further
Bluetooth® Hands-Free Phone System
voice commands are only available if a
phone is connected.

If a phone is connected and Bluetooth® is
set to “On”, the following voice commands
are available:

∙ Call (a name)

Speak the name of the contact in
which you are trying to call. System will

confirm correct contact. Say “Dial” to
initiate dialing.

∙ Dial Number

Allows for up to 24 digits to be dialed.
After the number is entered, say “Dial”
to initiate dialing. Say “Correction” to
correct the number entered. Say “Go
Back” to return to the main menu.

∙ List Phonebook

Starting with the first alphabetical en-
try in the vehicle phonebook, the sys-
tem prompts for an additional com-
mand. Say “Dial” to call the number of
the phonebook entry. Say “Send Text”
to send a text message to the number
of the phonebook entry. Say “Next En-
try” to skip to the next alphabetical en-
try in the vehicle phonebook, where
the same options will then be available.

∙ Recent Calls

The system prompts for an additional
command. Say “Missed Calls”, “Incom-
ing Calls” or “Outgoing Calls” to display
a list of such calls on the screen.

Speak the number of the entry dis-
played on the screen to dial that

number or say “Next Page” to view en-
tries on the next page (if available).

∙ Redial

Redials the last called number.

∙ Read Text

Reads an incoming text message. For
additional

information,

refer

“Bluetooth® Hands-Free Phone Sys-
tem with Navigation System” in this
section.

∙ Send Text

Sends a text message. For additional
information,

refer

“Bluetooth®

Hands-Free Phone System with Navi-
gation System” in this section.

∙ Select Phone

The system replies “Please use manual
controls to continue”. Use manual con-
trols to change the active phone from
among the listed phones connected
to the vehicle.

For

additional

information,

refer

“Bluetooth® Hands-Free Phone System
with Navigation System” in this section.

4-88

Monitor, climate, audio, phone and voice recognition systems

NAVIGATION SYSTEM VOICE
COMMANDS

The following voice commands are avail-
able for the Navigation System:

∙ Street Address (address)

∙ Points of Interest (name)

∙ POI by Category

∙ Home

∙ Address Book

∙ Previous Destinations

∙ Enter Address in Steps

∙ Cancel Route

For additional information about these
commands,

see

the

separate

NissanConnect® Owner’s Manual.

AUDIO SYSTEM VOICE COMMANDS

To access the audio system voice commands:

1. Press the

button.

2. Say “Audio”

3. Speak a command from the following

available commands:

∙ Play (AM, FM, etc.)

Allows user to select radio band

∙ Tune AM (number)

Allows user to tune directly to a desired
AM frequency

∙ Tune FM (number)

Allows user to tune directly to a desired
FM frequency

∙ SXM channel (number)

Allows user to tune directly to a desired
SXM station (if so equipped)

∙ CD Track (number)

Allows user to select track to be played

∙ Play Song (name)

Allows user to select song name to be
played

∙ Play Artist (name)

Allows user to select artist to be played

∙ Play Album (name)

Allows user to select album name to
be played

For additional information, refer to “Audio
system” in this section.

INFORMATION VOICE COMMANDS

The following voice commands are avail-
able for the information functions of the
Navigation System:

∙ Traffic

∙ Fuel Prices

∙ Stocks

∙ Movie Listings

∙ Current Weather

∙ Weather Map

∙ 5 — day Forecast

∙ 6 — hour Forecast

For additional information, refer to the
separate NissanConnect® Owner’s Manual.

MY APPS VOICE COMMANDS

Many Apps can be accessed using this
voice command. For additional informa-
tion, refer to “NissanConnect® Mobile Apps”
in this section.

Monitor, climate, audio, phone and voice recognition systems

4-89

HELP VOICE COMMANDS

The following voice commands can be
spoken to have the system provide in-
structions and tips for using the NISSAN
Voice Recognition System.

∙ List Commands

∙ What Can I Say?

∙ General Help

∙ Quit

∙ Exit

TROUBLESHOOTING GUIDE

The system should respond correctly to all
voice commands without difficulty. If prob-
lems are encountered, follow the solutions
given in this guide for the appropriate error.
Where the solutions are listed by number,
try each solution in turn, starting with num-
ber one, until the problem is resolved.

Symptom/error message

Solution

The system responds “Command
Not Recognized” or the system fails
to recognize the command
correctly.

1. Ensure that the command format is valid. Use the “List Commands” or “What Can I Say?” command under the “Help”

menu.

2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.

3. Ensure that the ambient noise level is not excessive (for example, with the windows open or the defroster on).

NOTE:

If it is too noisy to use the phone, it is likely that voice commands will not be recognized.

4. If optional words of the command have been omitted, then the command should be tried with these in place.

4-90

Monitor, climate, audio, phone and voice recognition systems

WARNING

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Properly secure all cargo to help pre-

vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

EXHAUST GAS (carbon monoxide)

WARNING

∙ Do not breathe exhaust gases; they

contain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

∙ If you suspect that exhaust fumes are

entering the vehicle, drive with all
windows fully open, and have the ve-
hicle inspected immediately.

∙ Do not run the engine in closed spaces

such as a garage.

∙ Do not park the vehicle with the en-

gine running for any extended length
of time.

∙ Keep the rear vent windows, doors

and trunk lids (if so equipped) closed
while

driving,

otherwise

exhaust

gases could be drawn into the pas-
senger compartment. If you must
drive with one of these open, follow
these precautions:

1. Open all the windows.

2. Turn the air recirculation mode off

and set the fan speed control to
the highest level to circulate the
air.

∙ The exhaust system and body should

be inspected by a qualified mechanic
whenever:

a. The vehicle is raised for service.

b. You suspect that exhaust fumes

are entering into the passenger
compartment.

c. You notice a change in the sound of

the exhaust system.

d. You have had an accident involving

damage to the exhaust system,
underbody, or rear of the vehicle.

THREE-WAY CATALYST

The three-way catalyst is an emission con-
trol device installed in the exhaust system.
Exhaust gases in the three-way catalyst
are burned at high temperatures to help
reduce pollutants.

WARNING

∙ The exhaust gas and the exhaust sys-

tem are very hot. Keep people, ani-
mals or flammable materials away
from

the

exhaust

system

components.

∙ Do not stop or park the vehicle over

flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.

PRECAUTIONS WHEN STARTING AND
DRIVING

5-2

Starting and driving

CAUTION

∙ Do not use leaded gasoline. Deposits

from leaded gasoline will seriously re-
duce the three-way catalyst’s ability
to help reduce exhaust pollutants.

∙ Keep your engine tuned up. Malfunc-

tions in the ignition, fuel injection, or
electrical systems can cause over rich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if no-
ticeable loss of performance or other
unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended that you
visit a NISSAN dealer for this service.

∙ Avoid driving with an extremely low

fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.

∙ Do not race the engine while warming

it up.

∙ Do not push or tow your vehicle to

start the engine.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure
label.

(If your vehicle has tires of a different size
than the size indicated on the vehicle plac-
ard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)

As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as pos-
sible, and inflate them to the proper pres-
sure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.

Please note that the TPMS is not a substi-
tute for proper tire maintenance, and it is
the driver’s responsibility to maintain cor-
rect tire pressure, even if under-inflation
has not reached the level to trigger illumi-
nation of the TPMS low tire pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one
minute and then remain continuously illu-
minated. This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists. When the malfunc-
tion indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions
may occur for a variety of reasons, includ-
ing the installation of replacement or alter-
nate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

Starting and driving

5-3

Additional information:

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
does not monitor the tire pressure of
the spare tire.

∙ The TPMS will activate only when the

vehicle is driven at speeds above
16 mph (25 km/h). Also, this system may
not detect a sudden drop in tire pres-
sure (for example, a flat tire while driv-
ing).

∙ The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted for all four tires. Af-
ter all your tires are inflated to the rec-
ommended pressure, the vehicle must
be driven at speeds above 16 mph
(25 km/h) to activate the TPMS and turn
off the low tire pressure warning light.
Use a tire pressure gauge to check the
tire pressure.

∙ The CHECK TIRE PRES (pressure) warn-

ing message is displayed in the odom-
eter when the low tire pressure warning
light is illuminated and low tire pressure
is detected. The CHECK TIRE PRES warn-
ing message turns off when the low tire
pressure warning light turns off.

∙ The low tire pressure warning light re-

mains illuminated until the tires are in-
flated to the recommended COLD tire
pressure. The CHECK TIRE PRES warning
message is displayed each time the ig-
nition switch is placed in the ON posi-
tion as long as the low tire pressure
warning light remains illuminated.

∙ The CHECK TIRE PRES warning mes-

sage is not displayed if the low tire pres-
sure warning light illuminates to indi-
cate a TPMS malfunction.

∙ Tire pressure rises and falls depending

on the heat caused by the vehicle’s op-
eration and the outside temperature.
Do not reduce the tire pressure after
driving because the tire pressure rises
after driving. Low outside temperature
can lower the temperature of the air
inside the tire which can cause a lower
tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illumi-
nates, check the tire pressure for all four
tires.

∙ The Tire and Loading Information label

is located in the driver’s door opening.

For additional information, refer to “Low tire
pressure warning light” in the “Instruments
and controls” section and “Tire Pressure
Monitoring System (TPMS)” in the “In case of
emergency” section of this manual.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

5-4

Starting and driving

∙ If the low tire pressure warning light

illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop
the vehicle as soon as possible. Driv-
ing with under-inflated tires may per-
manently damage the tires and in-
crease the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and could
result

serious

personal

injury.

Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label to turn the low tire pres-
sure warning light off. If you have a flat
tire, replace it with a spare tire as soon
as possible. For additional informa-
tion, refer to “Flat tire” in the “In case of
emergency” section of this manual.

∙ When replacing a wheel without the

TPMS such as the spare tire, when a
spare tire is mounted or a wheel is
replaced, tire pressure will not be indi-
cated, the TPMS will not function and
the low tire pressure warning light will
flash for approximately 1 minute. The
light will remain on after 1 minute.
Have your tires replaced and/or TPMS
system reset as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

CAUTION

Do not place metalized film or any
metal parts (antenna, etc.) on the win-
dows. This may cause poor reception of
the signals from the tire pressure sen-
sors, and the TPMS will not function
properly.

Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate.

Some examples are:

∙ Facilities or electric devices using simi-

lar radio frequencies are near the ve-
hicle.

∙ If a transmitter set to similar frequen-

cies is being used in or near the vehicle.

∙ If a computer (or similar equipment) or

a DC/AC converter is being used in or
near the vehicle.

The low tire pressure warning light may
illuminate in the following cases:

∙ If the vehicle is equipped with a wheel

and tire without TPMS.

∙ If the TPMS has been replaced and the

ID has not been registered.

∙ If the wheel is not originally specified by

NISSAN.

Starting and driving

5-5

FCC Notice

For USA

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

AVOIDING COLLISION AND
ROLLOVER

WARNING

Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.

Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden
steering maneuvers, because these driving
practices could cause you to lose control of
your vehicle.

As with any vehicle, loss of control could
result in a collision with other vehicles or
objects or cause the vehicle to roll over,
particularly if the loss of control causes
the vehicle to slide sideways.

Be attentive at all times, and avoid driving
when tired. Never drive when under the in-
fluence of alcohol or drugs (including pre-
scription or over-the-counter drugs which
may cause drowsiness). Always wear your
seat belt as outlined in the “Safety – Seats,
seat belts and supplemental restraint sys-
tem” section of this manual, and also in-
struct your passengers to do so.

Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash,
an unbelted or improperly belted person
is significantly more likely to be injured
or killed than a person properly wearing
a seat belt.

OFF-ROAD RECOVERY

While driving, the right side or left side
wheels may unintentionally leave the road
surface. If this occurs, maintain control of
the vehicle by following the procedure be-
low. Please note that this procedure is only
a general guide. The vehicle must be driven
as appropriate based on the conditions of
the vehicle, road and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering

wheel with both hands and try to hold a
straight course.

4. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

5-6

Starting and driving

5. If there is nothing in the way, steer the

vehicle to follow the road while vehicle
speed is reduced. Do not attempt to
drive the vehicle back onto the road
surface until vehicle speed is reduced.

6. When it is safe to do so, gradually turn

the steering wheel until both tires re-
turn to the road surface. When all tires
are on the road surface, steer the ve-
hicle to stay in the appropriate driving
lane.

∙ If you decide that it is not safe to re-

turn the vehicle to the road surface
based on vehicle, road or traffic con-
ditions, gradually slow the vehicle to a
stop in a safe place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged
due to hitting a curb or pothole. Rapid air
pressure loss can also be caused by driving
on under-inflated tires.

Rapid air pressure loss can affect the han-
dling and stability of the vehicle, especially
at highway speeds.

Help prevent rapid air pressure loss by
maintaining the correct air pressure and
visually inspecting the tires for wear and
damage. For additional information, refer
to “Wheels and tires” in the “Do-it-yourself ”
section of this manual. If a tire rapidly loses
air pressure or “blows-out” while driving,
maintain control of the vehicle by following
the procedure below. Please note that this
procedure is only a general guide. The ve-
hicle must be driven as appropriate based
on the conditions of the vehicle, road and
traffic.

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pres-
sure. Losing control of the vehicle may
cause a collision and result in personal
injury.

∙ The vehicle generally moves or pulls

in the direction of the flat tire.

∙ Do not rapidly apply the brakes.

∙ Do not rapidly release the accelerator

pedal.

∙ Do not rapidly turn the steering wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering

wheel with both hands and try to hold a
straight course.

3. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

4. Gradually steer the vehicle to a safe

location off the road and away from
traffic if possible.

5. Lightly apply the brake pedal to gradu-

ally stop the vehicle.

6. Turn on the hazard warning flashers

and contact a roadside emergency
service to change the tire. For addi-
tional information, refer to “Changing a
flat tire” in the “In case of emergency”
section of this manual.

Starting and driving

5-7

DRINKING ALCOHOL/DRUGS AND
DRIVING

WARNING

Never drive under the influence of alco-
hol or drugs. Alcohol in the bloodstream
reduces coordination, delays reaction
time and impairs judgement. Driving
after drinking alcohol increases the
likelihood of being involved in an acci-
dent injuring yourself and others. Addi-
tionally, if you are injured in an accident,
alcohol can increase the severity of the
injury.

NISSAN is committed to safe driving. How-
ever, you must choose not to drive under the
influence of alcohol. Every year thousands of
people are injured or killed in alcohol-related
collisions. Although the local laws vary on
what is considered to be legally intoxicated,
the fact is that alcohol affects all people dif-
ferently and most people underestimate the
effects of alcohol.

Remember, drinking and driving don’t mix!
That is true for drugs (over-the-counter,
prescription) and illegal drugs, too. Don’t
drive if your ability to operate your vehicle is
impaired by alcohol, drugs, or some other
physical condition.

WARNING

∙ Never remove the ignition key or place

the ignition switch in the LOCK posi-
tion while driving. The steering wheel
will lock (for models with a steering
lock mechanism). This may cause the
driver to lose control of the vehicle
and could result in serious vehicle
damage or personal injury.

CONTINUOUSLY VARIABLE
TRANSMISSION

The ignition lock is designed so that the
ignition switch cannot be turned to the
LOCK position until the shift lever is moved
to the P (Park) position.

∙ When placing the ignition switch in the

LOCK position, make sure that the shift
lever is in the P (Park) position

∙ When removing the key from the igni-

tion switch (if it is inserted), make sure
that the shift lever is in the P (Park) po-
sition.

SSD0392

IGNITION SWITCH

5-8

Starting and driving

When the ignition switch cannot be placed
in the LOCK position:

1. Shift the shift lever to the P (Park) posi-

tion.

2. Move the ignition switch slightly in the

ON direction.

3. Turn the ignition switch to the LOCK

position.

4. Remove the key if it is inserted in the

ignition switch.

If the ignition switch is placed in the LOCK
position, the shift lever cannot be moved
from the P (Park) position.

The shift lever can be moved if the igni-
tion switch is in the ON position and the
foot brake pedal is depressed.

There is an OFF position

䊊

between the

LOCK and ACC positions. The OFF posi-
tion is indicated by a “1” on the key cylin-
der.

IGNITION SWITCH POSITIONS

LOCK: Normal parking position (0)

OFF: (1)

The engine can be turned off without lock-
ing the steering wheel.

ACC: (Accessories) (2)

This position activates electrical accesso-
ries such as the radio when the engine is
not running.

ON: Normal operating position (3)

This position turns on the ignition system
and the electrical accessories.

START: (4)

This position starts the engine. As soon as
the engine has started, release the key. It
automatically returns to the ON position.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedure:

1. Leave the ignition switch in the ON po-

sition for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position, and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the

device (which may have caused the in-
terference) separate from the regis-
tered key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

Starting and driving

5-9

Nissan NV200 Compact Cargo Van (2018 year). Manual - part 14
