Nissan NV200 Compact Cargo Van (2018 year). Manual

iPod® supports charging via a USB connec-
tion, its battery will be charged while con-
nected to the vehicle with the ignition
switch in the ACC or ON position.

While connected to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.

To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod®.

* iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

Compatibility

The following models are compatible:

∙ iPod® 5th Generation (firmware version

1.3 or later)

∙ iPod® Classic (80GB) (firmware version

1.1.2PC or later)

∙ iPod® Classic (120GB) (firmware version

2.0.1PC or later)

∙ iPod® nano - 1st generation (firmware

version 1.3.1 or later)

∙ iPod® nano - 2nd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 3rd generation (firmware

version 1.1.3PC or later)

∙ iPod® nano - 4th generation (firmware

version 1.0PC or later)

∙ iPod® nano - 5th generation (8GB) (firm-

ware version 1.0.2PC or later)

∙ iPod® nano - 5th generation (16GB)

(firmware version 1.0.1PC or later)

∙ iPod® nano - 6th generation (8GB) (firm-

ware version 1.2PC or later)

∙ iPod® nano - 6th generation (8GB) (firm-

ware version 1.1PC or later)

∙ iPod® Touch - 1st generation (firmware

version 2.2.1 or later)

∙ iPod® Touch - 2nd generation (firmware

version 2.2.1 or later)

∙ iPod® Touch - 3rd generation (firmware

version 3.1.3 or later)

∙ iPod® Touch - 4th generation (firmware

version 4.3.5 or later)

∙ iPhone® 3G (firmware version 4.1 or later)

∙ iPhone® 3GS (firmware version 4.3 or

later)

∙ iPhone® 4 (firmware version 5.0 or later)

∙ iPhone® 4S (firmware version 5.1 or later)

∙ iPad® (firmware version 4.3.2 or later)

∙ iPad® 2 (firmware version 4.3.3 or later)

Make sure that your iPod® firmware is up-
dated to the version indicated above.

Audio main operation

Place the ignition switch to the ACC or ON
position. Then, press the iPod MENU button
or MEDIA button repeatedly to switch to
the iPod® mode.

If the audio system is turned off while the
iPod® is playing, the iPod® plays when the
audio system is turned back on.

If the audio system is off, pressing the iPod
MENU button or MEDIA button turns the
audio system on and plays the iPod®.

If the audio system is on, the audio system
automatically begins playing tracks from
the iPod® when it is plugged into the con-
nection port.

4-54

Monitor, climate, audio, phone and voice recognition systems

SEEK/TRACK buttons

Press the

SEEK/TRACK but-

tons to skip backward or forward one
track.

Press

and

hold

the

SEEK/TRACK buttons for 1.5 seconds while
a track is playing to reverse or fast forward
the track being played. The track plays at
an increased speed while reversing or fast
forwarding. When the button is released,
the track returns to normal play speed.

(RPT) REPEAT
When the RPT button is pressed while a
track is being played, the play pattern can
be changed as follows:

Repeat Off

→ 1 Track Repeat → All Repeat →

Repeat Off

1 Track Repeat: the current track will be
repeated.

All Repeat: all songs in the current list are
repeated.

Repeat Off: no repeat play pattern is ap-
plied.

(RDM) RANDOM
When the RDM button is pressed while a
track is being played, the play pattern can
be changed as follows:

Shuffle Off

→ Track Shuffle → Album Shuffle

→ Shuffle Off

Track Shuffle: the tracks in the current list
will be played randomly.

Album Shuffle: the albums in the current list
will be played randomly.

Shuffle Off: no random play pattern is ap-
plied.

BACK button

When the

BACK button is pressed, it

returns to the previous menu.

iPod®* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

LHA2584

Monitor, climate, audio, phone and voice recognition systems

4-55

CAUTION

∙ Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.

∙ Do not grab the USB port cover (if so

equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

∙ Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the
port.

For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.

To connect an iPod® to the vehicle so that
the iPod® can be controlled with the audio
system controls and display screen, use
the USB connection port located on the
center console below the heater and air
conditioner

controls

䊊

Connect

the

iPod®-specific end of the cable to the iPod®
and the USB end of the cable to the USB
connection port on the vehicle. If your
iPod® supports charging via a USB connec-

tion, its battery will be charged while con-
nected to the vehicle with the ignition
switch in the ACC or ON position.

While connected to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.

To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod®.

* iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

Compatibility

The following models are compatible:

∙ iPod® Classic 5th generation (firmware

version 1.3.0 or later)

∙ iPod® Classic 6th generation (firmware

version 2.0.1 or later)

∙ iPod® Classic 7th generation (firmware

version 2.0.4 or later)

∙ iPod® Touch 2nd generation (firmware

version 4.2.1 or later)*

∙ iPod® Touch 3rd generation (firmware

version 5.1 or later)

∙ iPod® Touch 4th generation (firmware

version 5.1 or later)

∙ iPod® nano - 1st generation (firmware

version 1.3.1 or later)

∙ iPod® nano - 2nd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 3rd generation (firmware

version 1.1.3 or later)

∙ iPod® nano - 4th generation (firmware

version 1.0.4 or later)

∙ iPod® nano - 5th generation (firmware

version 1.0.2 or later)

∙ iPod® nano - 6th generation (firmware

version 1.1 or later)

∙ iPhone® 3G (firmware version 4.2.1 or

later)

∙ iPhone® 3GS (firmware version 5.1 or

later)

∙ iPhone® 4 (firmware version 5.1 or later)

∙ iPhone® 4S (firmware version 5.1 or later)

* Some features of this iPod® may not be
fully functional.

Make sure that your iPod® firmware is up-
dated to the version indicated above.

4-56

Monitor, climate, audio, phone and voice recognition systems

Audio main operation

Place the ignition switch in the ACC or ON
position. Press the AUX button repeatedly
to switch to the iPod® mode.

If the system has been turned off while the
iPod® was playing, pressing the ON·OFF
button will start the iPod®.

AUX (auxiliary) button

When the AUX button is pressed with the
system off and the iPod® connected, the
system will turn on. If another audio source
is playing and the iPod® is connected, press
the AUX button repeatedly until the center
display changes to the iPod® mode.

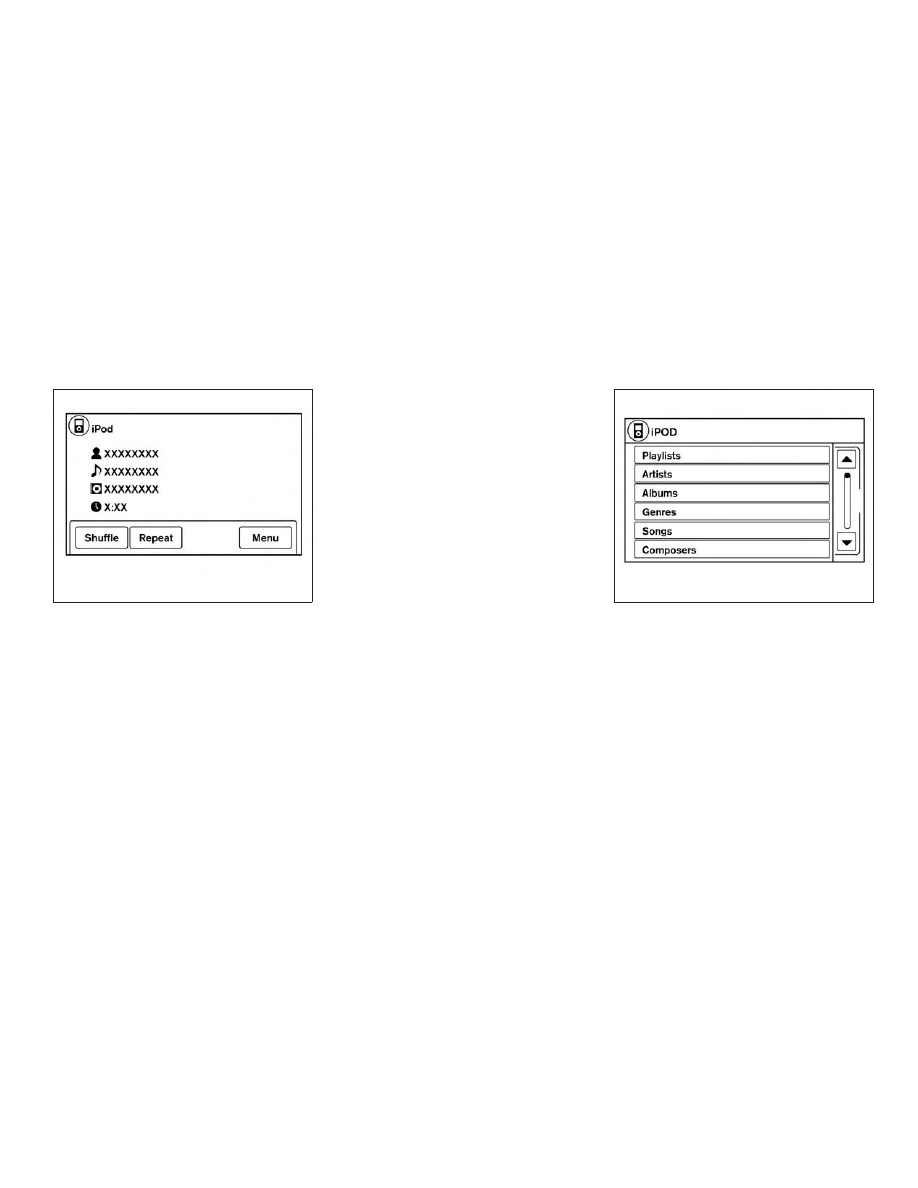

Interface

The interface for iPod® operation shown on
the vehicle’s audio system display screen is
similar to the iPod® interface. Use the
touch-screen, BACK button or the TUNE
knob to navigate the menus on the screen.

When the iPod® is playing, touch the “Menu”
key to bring up the iPod® interface.

LHA2911

LHA2907

Monitor, climate, audio, phone and voice recognition systems

4-57

Depending on the iPod® model, the follow-
ing items may be available on the menu list
screen. For additional information about
each item, refer to the iPod® Owner’s
Manual.

∙ Playlists

∙ Artists

∙ Albums

∙ Genres

∙ Songs

∙ Composers

∙ Audiobooks

∙ Podcasts

Shuffle and repeat play mode

Item

Result

Shuffle and repeat play mode

While the iPod® is playing, the play pattern can be altered so that songs are repeated or played
randomly.

Shuffle

Touch the “Shuffle” key to apply a random play pattern to the iPod®. When the shuffle mode is ac-
tive it will appear on the screen. To cancel shuffle mode, touch the “Shuffle” key until it is not
displayed.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the iPod®. When the repeat mode is active
it will appear on the screen. To cancel repeat mode, touch the “Repeat” key until it is not displayed.

4-58

Monitor, climate, audio, phone and voice recognition systems

SEEK buttons

Press the SEEK button

skip backward or forward one track.

Press and hold the SEEK button
or

for 1.5 seconds while a track is

playing to reverse or fast forward the track
being played. The track plays at an in-
creased speed while reversing or fast for-
warding. When the button is released, the
track returns to normal play speed.

Scrolling menus
While navigating long lists of artists, al-
bums or songs in the music menu, it is
possible to scroll the list by the first charac-
ter in the name. To activate character in-
dexing, touch the “A-Z” key in the upper
right corner of the screen. Turn the TUNE
knob to choose the number or letter to
jump to in the list and then press the AUDIO
button.

BLUETOOTH® STREAMING AUDIO
WITHOUT NAVIGATION SYSTEM (if
so equipped)

If you have a compatible Bluetooth® audio
device that is capable of playing audio files,
the device can be connected to the vehi-
cle’s audio system so that the audio files on
the device play through the vehicle’s
speakers.

LHA2279

Monitor, climate, audio, phone and voice recognition systems

4-59

Connecting Bluetooth® audio

To connect your Bluetooth® audio device
to the vehicle, follow the procedure below:

1. Press the ENTER/SETTING button.

2. Select the “Bluetooth” key.

3. Select the “Add Phone” key. This same

screen can be accessed to remove, re-
place or select a different Bluetooth®
device.

4. The system acknowledges the com-

mand and asks you to initiate connect-
ing from the phone handset. The con-
necting

procedure

the

cellular

phone varies according to each cellular
phone model. For additional informa-
tion, refer to the cellular phone Owner’s
Manual.

You

can

also

visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for instruc-
tions on connecting NISSAN recom-
mended cellular phones.

Audio main operation

To switch to the Bluetooth® audio mode,
press the MEDIA button repeatedly until the
Bluetooth® audio mode is displayed on the
screen.

The controls for the Bluetooth® audio are
displayed on the screen. Use the Preset 3
button for play and the Preset 4 button for
pause.

BLUETOOTH® STREAMING AUDIO
WITH NAVIGATION SYSTEM (if so
equipped)

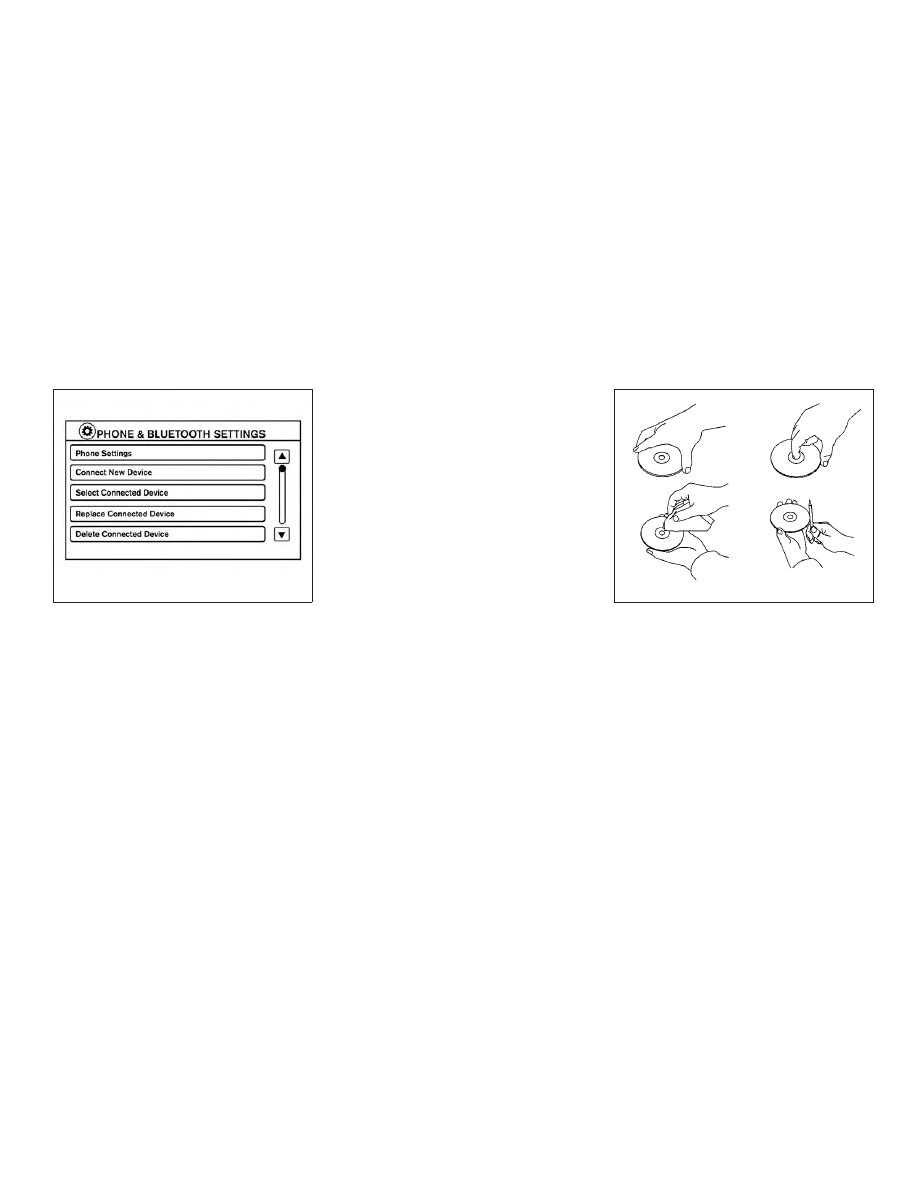

Connecting Bluetooth® audio

To connect your Bluetooth® audio device
to the vehicle, follow the procedure below:

1. Press the [

] button.

2. Touch the “Settings” key.

3. Touch the “Phone & Bluetooth” key.

LHA2775

LHA2773

4-60

Monitor, climate, audio, phone and voice recognition systems

4. Touch the “Connect New Device” key.

5. The system acknowledges the com-

mand and asks you to initiate connect-
ing from the phone handset.

NOTE:

The connecting procedure of the cellular
phone varies according to each cellular
phone model. For additional informa-
tion, refer to the cellular phone Owner’s
Manual.

You

can

also

visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for instruc-
tions on connecting NISSAN recom-
mended cellular phones.

Audio main operation

To switch to the Bluetooth® audio mode,
press the AUX button repeatedly until the
Bluetooth® audio mode is displayed on the
screen.

The controls for the Bluetooth® audio are
displayed on the screen.

CD CARE AND CLEANING

∙ Handle a CD by its edges. Do not bend

the disc. Never touch the surface of the
disc.

∙ Always place the discs in the storage

case when they are not being used.

∙ To clean a disc, wipe the surface from

the center to the outer edge using a
clean, soft cloth. Do not wipe the disc
using a circular motion.

∙ Do not use a conventional record

cleaner or alcohol intended for indus-
trial use.

LHA2844

LHA0049

Monitor, climate, audio, phone and voice recognition systems

4-61

∙ A new disc may be rough on the inner

and outer edges. Remove the rough
edges by rubbing the inner and outer
edges with the side of a pen or pencil as
illustrated.

STEERING WHEEL SWITCH FOR
AUDIO CONTROL

The audio system can be operated using
the controls on the steering wheel.

1. SOURCE switch

2. Tuning switch

3. Volume control switch

SOURCE switch

Press the SOURCE switch to change the
mode in the following sequence:

→ FM1 → FM2 → (SXM1→SXM2→SXM3

(satellite,

equipped))

→ CD* →

USB/iPod®*

→ Bluetooth® Audio* → AUX* →

AM.

* These modes are only available when
compatible media storage is inserted into
the device or connected to the system.

Volume control switch

Push the volume control switch + or — to
increase or decrease the volume.

Tuning switch

For most audio sources, tilting the switch
up/down for more than 1.5 seconds pro-
vides a different function than a tilting
up/down for less than 1.5 seconds.

AM and FM

∙ Tilt up/down for less than 1.5 seconds to

increase or decrease the preset station.

∙ Tilt up/down for more than 1.5 seconds

to seek up or down to the next station.

LHA2054

4-62

Monitor, climate, audio, phone and voice recognition systems

SXM (if so equipped)

∙ Tilt up/down for less than 1.5 seconds to

increase or decrease the preset station.

∙ Tilt up/down for more than 1.5 seconds

to go to the next or previous category.

iPod®

∙ Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

∙ Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

∙ Tilt up/down for more than 1.5 seconds

to increase or decrease the folder num-
ber (if playing compressed audio files)
or to fast forward or rewind the current
track.

USB

∙ Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

Bluetooth® Audio

∙ Tilt up/down for less than 1.5 seconds to

skip ahead or back to the next song.

ANTENNA

The antenna cannot be shortened, but can
be removed. When you need to remove the
antenna, turn the antenna rod counter-
clockwise.

To install the antenna rod, turn the antenna
rod clockwise and hand tighten.

CAUTION

∙ Always properly tighten the antenna

rod during installation or the antenna
rod

may

break

during

vehicle

operation.

∙ Be sure that the antenna is removed

before the vehicle enters an auto-
matic car wash.

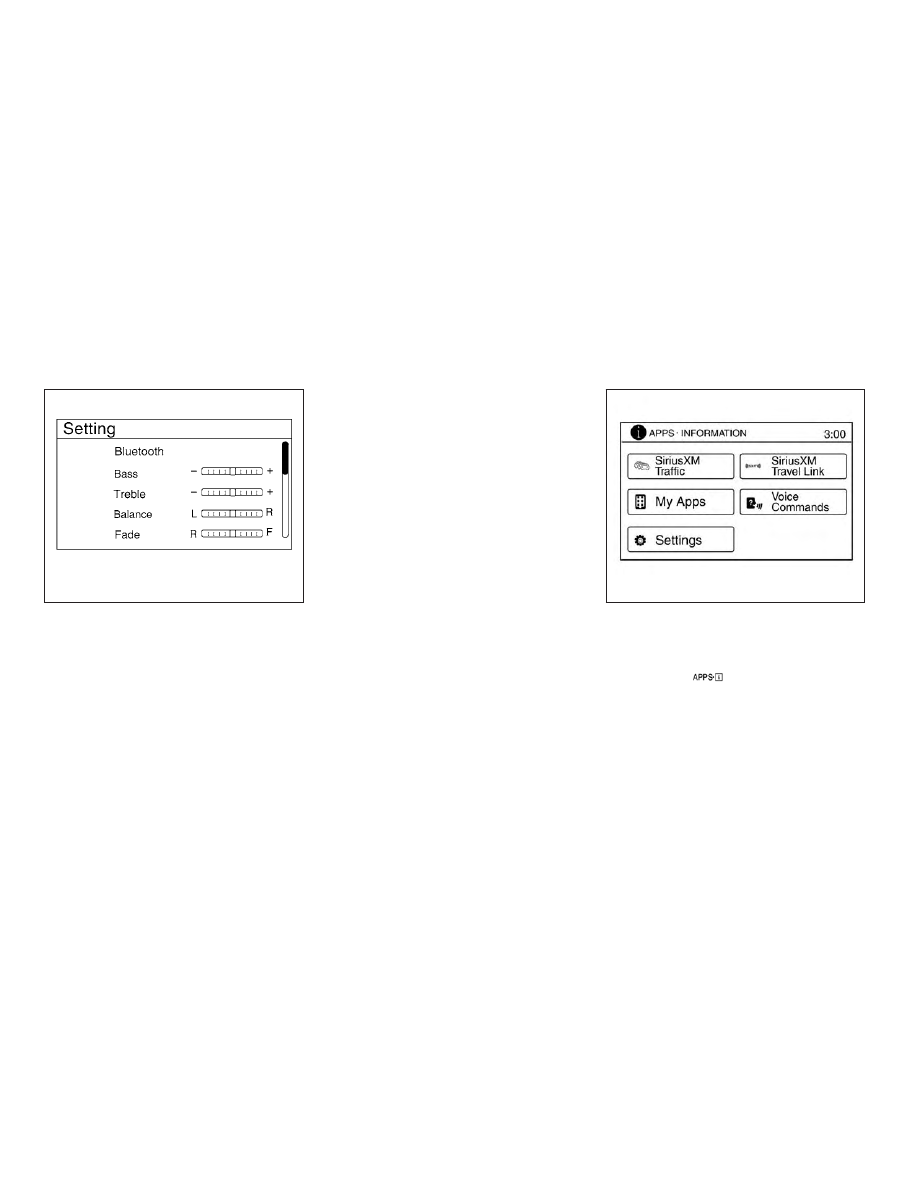

This vehicle is equipped with Smartphone
Integration technology. This allows many
compatible Smartphone applications to
be displayed and easily controlled through
the vehicle’s touch-screen.

NOTE:

A compatible smartphone and registra-
tion is required to use mobile applica-
tions or to access connected features of
certain vehicle applications.

REGISTERING WITH
NISSANCONNECT® MOBILE APPS

To use the Smartphone Integration feature,
it is necessary for the user to register. In
order to register, visit the NissanConnect®
Mobile

Apps

website,

www.nissanusa.com/connect/

www.nissan.ca/en/connect

www.nissan.ca/fr/connect and sign up or
create an account through the prompts on
the NissanConnect Mobile Apps. Once reg-
istered, download the NissanConnect Mo-
bile Apps from your compatible phone’s
application download source and then log
into the application. If you already have an
account created through the App, please
log in.

NISSANCONNECT® MOBILE APPS (if
so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-63

CONNECT PHONE

To use this feature, a compatible smart-
phone must be connected via Bluetooth®
or USB to the vehicle. For additional infor-
mation on connecting your phone, refer to
“Bluetooth® Hands-Free Phone System
with Navigation System” in this section.

NOTE:

Apple iPhones® REQUIRE the phone to be
plugged in via USB for NissanConnect
Apps to function.

NOTE:

For

Android

phones,

NissanConnect

Apps REQUIRES the phone to be paired
via Bluetooth®.

APPLICATION DOWNLOAD

Once connected, the NissanConnect App
will search your phone to determine which
compatible

applications

are

currently

installed. The user will then choose which
apps they want to bring into their vehicle
from the list of apps within the “Manage My
Apps” section of the NissanConnect App on
their smartphone. The vehicle will then
download the in-vehicle interface for each
of these compatible applications. Once
downloaded, the user can access their
selected

smartphone

applications

through the vehicle touch-screen. For
additional

information,

refer

www.nissanusa.com/connect

www.nissan.ca/en/connect

www.nissan.ca/fr/connect regarding ap-
plication availability.

When installing a CB, ham radio or car
phone in your vehicle, be sure to observe
the following precautions; otherwise, the
new equipment may adversely affect the
engine control system and other electronic
parts.

WARNING

∙ A cellular phone should not be used

for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while
driving.

∙ If you must make a call while your ve-

hicle is in motion, the hands free cellu-
lar phone operational mode (if so
equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to ve-
hicle operation.

∙ If you are unable to devote full atten-

tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.

CAR PHONE OR CB RADIO

4-64

Monitor, climate, audio, phone and voice recognition systems

CAUTION

∙ Keep the antenna as far away as pos-

sible

from

the

electronic

control

modules.

∙ Keep the antenna wire more than 8 in

(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.

∙ Adjust the antenna standing-wave

ratio

recommended

the

manufacturer.

∙ Connect the ground wire from the CB

radio chassis to the body.

∙ For additional information, it is rec-

ommended that you visit a NISSAN
dealer for this service.

WARNING

∙ Use a phone after stopping your ve-

hicle in a safe location. If you have to
use a phone while driving, exercise ex-
treme caution at all times so full at-
tention may be given to vehicle
operation.

∙ If you are unable to devote full atten-

tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.

CAUTION

To avoid discharging the vehicle bat-
tery, use a phone after starting the
engine.

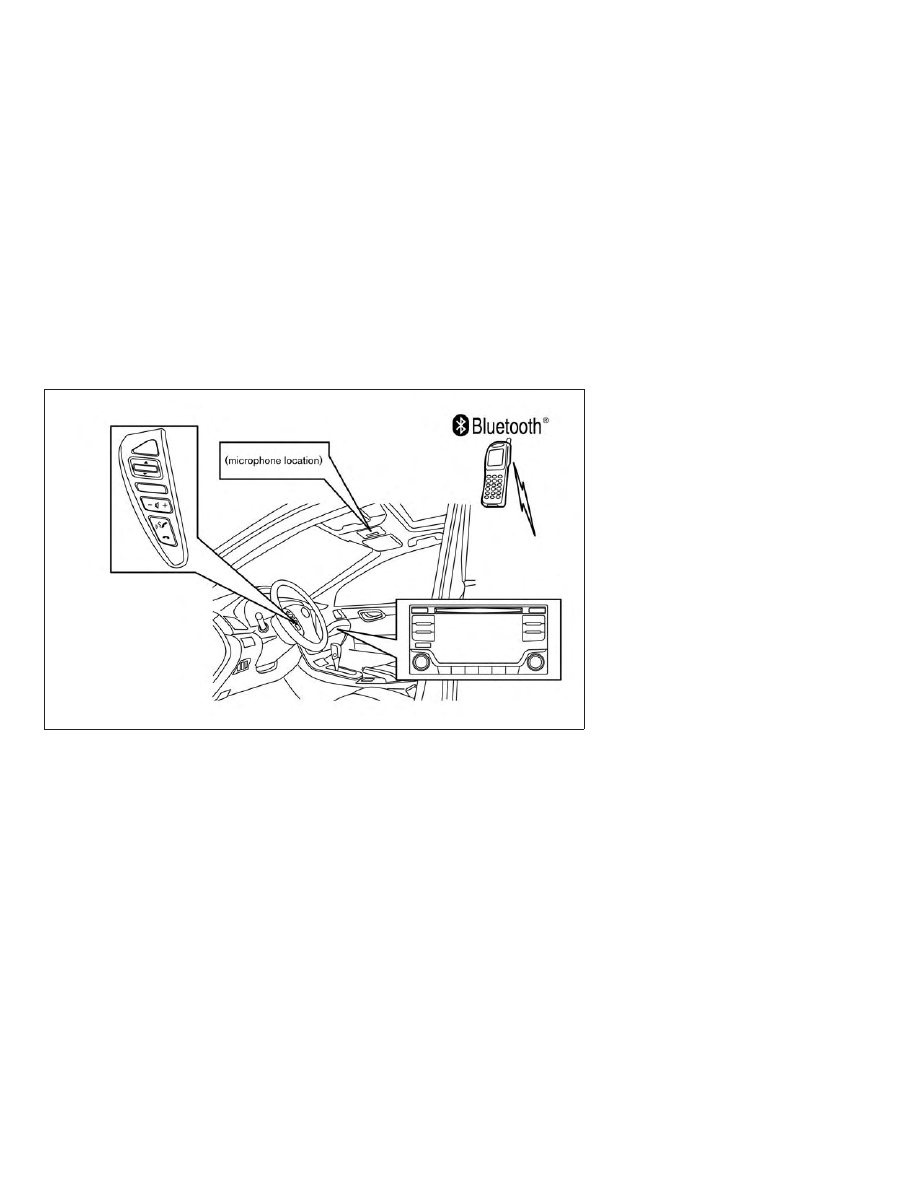

BLUETOOTH® HANDS-FREE PHONE
SYSTEM WITHOUT NAVIGATION
SYSTEM (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-65

Your

NISSAN

equipped

with

the

Bluetooth® Hands-Free Phone System. If
you have a compatible Bluetooth® enabled
cellular phone, you can set up the wireless
connection between your cellular phone
and the in-vehicle phone module. With
Bluetooth® wireless technology, you can

make or receive a hands-free telephone
call with your cellular phone in the vehicle.

Once your cellular phone is connected to
the in-vehicle phone module, no other
phone connecting procedure is required.
Your phone is automatically connected

with the in-vehicle phone module when
the ignition switch is placed in the ON po-
sition with the previously connected cellu-
lar phone turned on and carried in the ve-
hicle.

NOTE:

Some devices require the user to accept
connections to other Bluetooth® de-
vices. If your phone does not connect au-
tomatic ally to the system, consult the
phone’s Owner’s Manual for details on
device operation.

You can connect up to five different
Bluetooth® cellular phones to the in-
vehicle phone module. However, you can
talk on only one cellular phone at a time.

Before using the Bluetooth® Hands-Free
Phone System, refer to the following notes.

∙ Set up the wireless connection be-

tween a compatible cellular phone and
the in-vehicle phone module before us-
ing the hands-free phone system.

LHA3506

4-66

Monitor, climate, audio, phone and voice recognition systems

∙ Some

Bluetooth®

enabled

cellular

phones may not be recognized or work
properly.

Please

visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for a recom-
mended phone list and connecting in-
structions.

∙ You will not be able to use a hands-free

phone under the following conditions:

– Your vehicle is outside of the cellular

service area.

– Your vehicle is in an area where it is

difficult to receive a cellular signal;
such as in a tunnel, in an under-
ground parking garage, near a tall
building or in a mountainous area.

– Your cellular phone is locked to pre-

vent it from being dialed.

∙ When the radio wave condition is not

ideal or ambient sound is too loud, it
may be difficult to hear the other per-
son’s voice during a call.

∙ Do not place the cellular phone in an

area surrounded by metal or far away
from the in-vehicle phone module to
prevent tone quality degradation and
wireless connection disruption.

∙ While a cellular phone is connected

through the Bluetooth® wireless connec-
tion, the battery power of the cellular
phone may discharge quicker than usual.
The Bluetooth® Hands-Free Phone Sys-
tem cannot charge cellular phones.

∙ For additional information, you can visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for trouble-
shooting help.

∙ Some cellular phones or other devices

may cause interference or a buzzing
noise to come from the audio system
speakers. Storing the device in a differ-
ent location may reduce or eliminate
the noise.

∙ For additional information, refer to the

cellular phone Owner’s Manual regard-
ing the telephone charges, cellular
phone antenna and body, etc.

REGULATORY INFORMATION

FCC Regulatory information

– CAUTION: To maintain compliance with

FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized an-
tenna,

modification,

attachments

could damage the transmitter and may
violate FCC regulations.

– Operation is subject to the following two

conditions:

1. This device may not cause interference

and

2. this device must accept any interfer-

ence, including interference that may
cause undesired operation of the de-
vice.

IC Regulatory information

– Operation is subject to the following two

conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

– This Class B digital apparatus meets all

requirements

the

Canadian

Interference-Causing Equipment Regu-
lations.

BLUETOOTH® is a
trademark owned
by Bluetooth SIG,
Inc. and licensed
to Visteon.

Monitor, climate, audio, phone and voice recognition systems

4-67

USING THE SYSTEM

The system allows hands-free operation of
the Bluetooth® Hands-Free Phone System.

If the vehicle is in motion, some commands
may not be available so full attention may
be given to vehicle operation.

Initialization

When the ignition switch is placed in the ON
position, NISSAN Voice Recognition is initial-
ized, which takes a few seconds. If the
button is pressed before the initialization
completes, the system will announce
“Hands-free phone system not ready” and
will not react to voice commands.

Operating tips

To get the best performance out of the
NISSAN Voice Recognition system, observe
the following:

∙ Keep the interior of the vehicle as quiet

as possible. Close the windows to elimi-
nate surrounding noises (traffic noises,
vibration sounds, etc.), which may pre-
vent the system from recognizing voice
commands correctly.

∙ Wait until the tone sounds before

speaking a command. Otherwise, the
command will not be received properly.

∙ Start speaking a command within

5 seconds after the tone sounds.

∙ Speak in a natural voice without paus-

ing between words.

Giving voice commands

To operate NISSAN Voice Recognition,
press and release the

button located

on the steering wheel. After the tone
sounds, speak a command.
The command given is picked up by the
microphone, and voice feedback is given
when the command is accepted.

∙ If you need to hear the available com-

mands for the current menu again, say
“Help” and the system will repeat them.

∙ If a command is not recognized, the

system announces, “Command not
recognized. Please try again.” Make sure
the

command

said

exactly

prompted by the system and repeat
the command in a clear voice.

∙ If you want to go back to the previous

command, you can say “Go back” or
“Correction” any time the system is
waiting for a response.

∙ You can cancel a command when the

system is waiting for a response by say-
ing, “Cancel” or “Quit.” The system an-
nounces “Cancel” and ends the Voice
Recognition session. You can also press
and hold the

button on the steer-

ing wheel for 5 seconds at any time to
end the Voice Recognition session.
Whenever the Voice Recognition ses-
sion is canceled, a double beep is
played to indicate you have exited the
system.

∙ If you want to adjust the volume of the

voice feedback, push the volume con-
trol switches (+ or -) on the steering
wheel while being provided with feed-
back. You can also use the radio volume
control knob.

Voice Prompt Interrupt
In most cases you can interrupt the voice
feedback to speak the next command by
pressing the

button on the steering

wheel. After interrupting the system, wait
for a beep before speaking your command.

4-68

Monitor, climate, audio, phone and voice recognition systems

One Shot Call
To use the system faster, you may speak
the second level commands with the main
menu command on the main menu. For
example, press the

button and after

the tone say, “Call Redial”.

CONTROL BUTTONS

The control buttons for the Bluetooth®
Hands-Free Phone System are located on
the steering wheel.

PHONE/SEND

Press the

button to initi-

ate a Voice Recognition ses-
sion or answer an incoming
call.

You can also use the
button to interrupt the sys-
tem feedback and give a
command at once. For addi-
tional information, refer to
“Voice commands” and “Dur-
ing a call” in this section.

PHONE/END
While the voice recognition
system is active, press and

hold the

button for

5 seconds to quit the voice
recognition system at any
time.

Tuning switch
While using the voice recogni-
tion system, tilt the tuning
switch up or down to manu-
ally control the phone system.

LHA2499

Monitor, climate, audio, phone and voice recognition systems

4-69

Nissan NV200 Compact Cargo Van (2018 year). Manual - part 12
