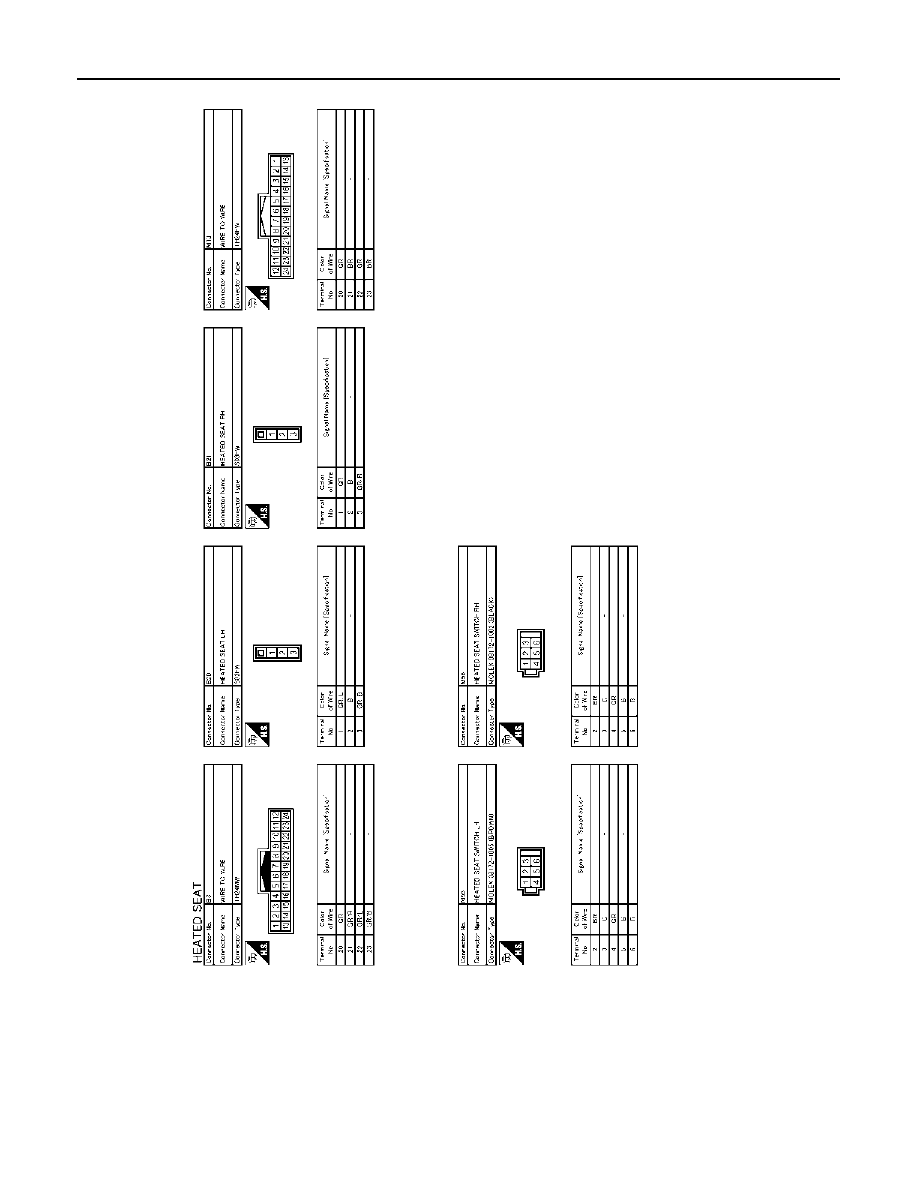

HEATED SEAT

JCJWA0081GB

BOTH DRIVER SEAT HEATER AND PASSENGER SEAT HEATER DO NOT OP-

ERATE

SE-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SYMPTOM DIAGNOSIS

BOTH DRIVER SEAT HEATER AND PASSENGER SEAT HEATER DO NOT
OPERATE

Diagnosis Procedure

INFOID:0000000001059478

1.

CHECK HEATED SEAT POWER SUPPLY AND GROUND CIRCUIT

Check heated seat power supply and ground circuit.
Refer to

SE-5, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

SE-12

< SYMPTOM DIAGNOSIS >

BOTH DRIVER SEAT HEATER AND PASSENGER SEAT HEATER DO NOT OP-

ERATE

BOTH DRIVER SEAT HEATER AND PASSENGER SEAT HEATER DO NOT
OPERATE

Diagnosis Procedure

INFOID:0000000001059479

1.

CHECK HEATED SEAT POWER SUPPLY AND GROUND CIRCUIT

Check heated seat power supply and ground circuit.
Refer to

SE-5, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK HEATED SEAT SWITCH

Check heated seat switch.
Refer to

SE-6, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK SEAT HEATER

Check seat heater.
Refer to

SE-8, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

PASSENGER SIDE HEATER DOES NOT OPERATE

SE-13

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER SIDE HEATER DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000001059480

1.

CHECK HEATED SEAT POWER SUPPLY AND GROUND CIRCUIT

Check heated seat power supply and ground circuit.
Refer to

SE-5, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK HEATED SEAT SWITCH

Check heated seat switch.
Refer to

SE-6, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK SEAT HEATER

Check seat heater.
Refer to

SE-8, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.
