SE-6

< COMPONENT DIAGNOSIS >

HEATED SEAT SWITCH

HEATED SEAT SWITCH

Description

INFOID:0000000001059434

• Power is supplied to each heater.
• Temperature of seat can be adjusted by operating on heated seat switch.

Component Function Check

INFOID:0000000001059435

1.

CHECK HEATED SEAT SWITCH FUNCTION

1.

Turn ignition switch ON.

2.

Check heated seat operation with heated seat switch.

Is the inspection results normal?

YES

>> Power seat switch is OK.

NO

>> Refer to

SE-6, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001059436

1.

CHECK HEATED SEAT SWITCH SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect heated seat switch and heated seat connector.

3.

Check continuity between heated seat switch and heated seat connector.

4.

Check continuity between heated seat switch and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace circuit.

2.

CHECK HEATED SEAT SWITCH

Check heated seat switch.
Refer to

SE-6, "Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Heated seat switch. Refer to

SE-35, "Removal and Installation"

.

Component Inspection

INFOID:0000000001059437

NOTE:
Same component inspection procedure for driver seat and passenger seat.

1.

CHECK HEATED SEAT SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect heated seat switch connector.

3.

Check continuity between heated seat switch terminals.

 Heated seat switch connector

Terminal

Heated seat connector

Terminal

Continuity

M55 (LH)

M56 (RH)

2

B20 (LH)

B21 (RH)

3

Existed

4

1

 Heated seat switch connector

Terminal

Ground

Continuity

M55 (LH)

M56 (RH)

2

Not existed

4

HEATED SEAT SWITCH

SE-7

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace heated seat switch. Refer to

SE-35, "Removal and Installation"

.

Terminal

Switch condition

Continuity

3

2

High

Existed

OFF

Not existed

Low

Not existed

4

High

Not existed

OFF

Not existed

Low

Existed

3 (+)

6 (-)

High

Existed

OFF

Not existed

Low

Existed

3 (-)

6 (+)

High

Not existed

OFF

Not existed

Low

Not existed

SE-8

< COMPONENT DIAGNOSIS >

SEAT HEATER

SEAT HEATER

Description

INFOID:0000000001093529

• With a built-in seat cushion, the heater operates with the power supplied by heater seat switch.
• With a built-in seat back, the heater operates with the power supplied by heater seat switch.

Component Function Check

INFOID:0000000001093530

1.

CHECK SEAT HEATER FUNCTION

Check heated operation with heated seat switch.
Is the inspection results normal?

YES

>> Power seat switch is OK.

NO

>> Refer to

SE-8, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001093531

1.

CHECK SEAT HEATER GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect heated seat connector.

3.

Check continuity between heated seat connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace circuit.

2.

CHECK SEAT HEATER UNIT

Check seat heater unit.
Refer to

SE-8, "Component Inspection"

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Replace seat heater unit. Refer to

SE-25, "Disassembly and Assembly"

.

Component Inspection

INFOID:0000000001093548

1.

CHECK SEAT HEATER

1.

Turn ignition switch OFF.

2.

Disconnect  heated seat connector.

3.

Check continuity between heated seat terminals.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace seat heater unit.Refer to

SE-25, "Disassembly and Assembly"

.

Heated seat connector

Terminal

Ground

Continuity

B20 (LH)

B21 (RH)

2

Existed

Heated seat connector

Terminal

Continuity

B20 (LH)

B21 (RH)

1

2

Existed

3

HEATED SEAT

SE-9

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT

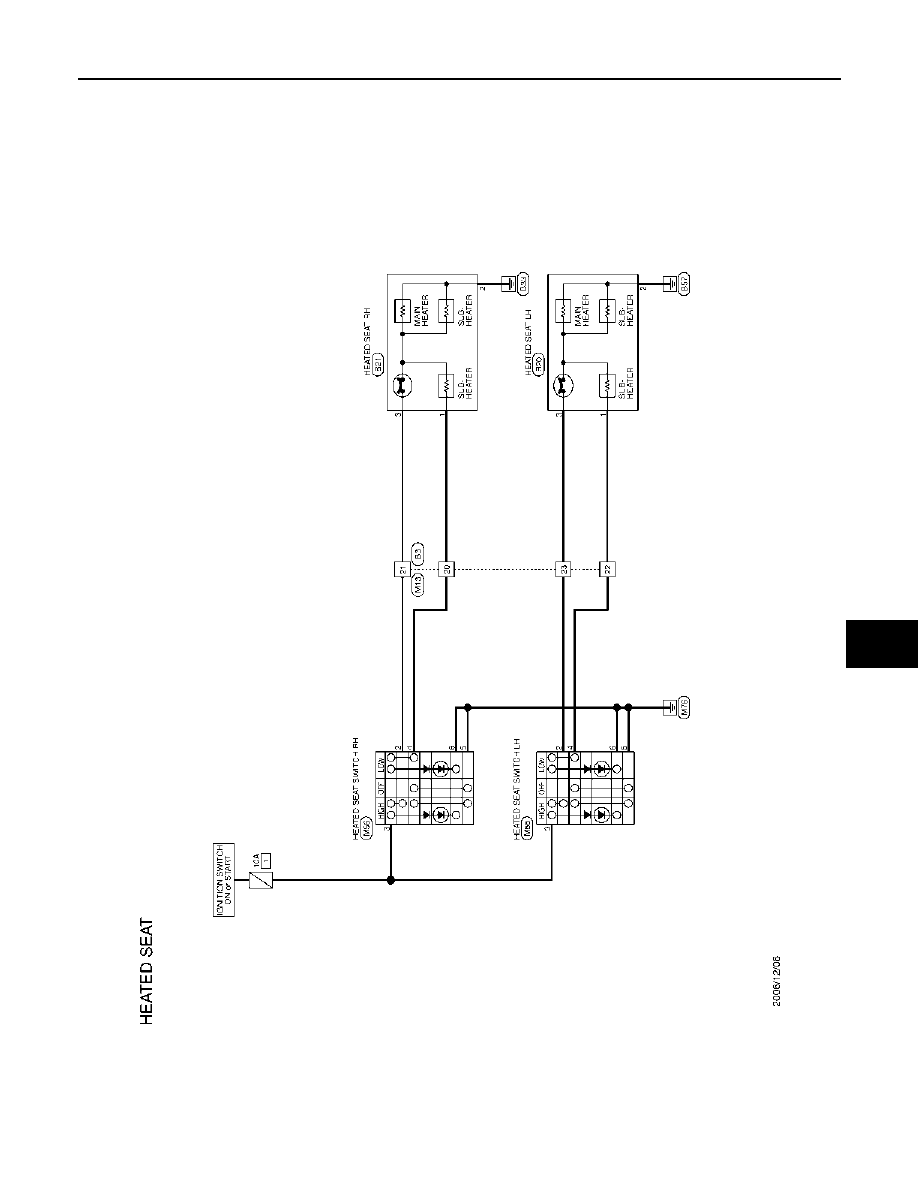

Wiring Diagram - HEATED SEAT SYSTEM -

INFOID:0000000001059474

JCJWA0080GB
