FRONT DRIVE SHAFT BOOT

29. Install transverse to steering knuckle. Refer to

FSU-12, "Exploded View"

.

30. Install steering outer socket to steering knuckle. Refer to

ST-13, "Exploded View"

.

31. Install disc rotor.

32. Install torque member to steering knuckle. Refer to

BR-37, "BRAKE CALIPER ASSEMBLY : Exploded

View"

 (LHD),

BR-81, "BRAKE CALIPER ASSEMBLY : Exploded View"

 (RHD).

33. Install lock plate to strut assembly. Refer to

BR-19, "FRONT BRAKE (WITH ABS) : Exploded View"

 (LHD

with ABS),

BR-21, "FRONT BRAKE (WITH ESP) : Exploded View"

 (LHD with ESP),

BR-63, "FRONT

BRAKE (WITH ABS) : Exploded View"

 (RHD with ABS),

BR-65, "FRONT BRAKE (WITH ESP) : Exploded

View"

 (RHD with ESP).

34. Install wheel sensor to steering knuckle. Refer to

BRC-67, "FRONT WHEEL SENSOR : Exploded View"

(with ABS),

BRC-172, "FRONT WHEEL SENSOR : Exploded View"

 (with ESP).

35. Tighten the hub lock nut to the specified torque. Refer to

FAX-7, "Exploded View"

.

36. Install cotter pin.

CAUTION:

• Never reuse cotter pin.
• Bend cotter pin at the root sufficiently to prevent any looseness.

37. Install tires to vehicle.

FRONT DRIVE SHAFT

FAX-15

< ON-VEHICLE REPAIR >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

FRONT DRIVE SHAFT

HR16DE MODELS

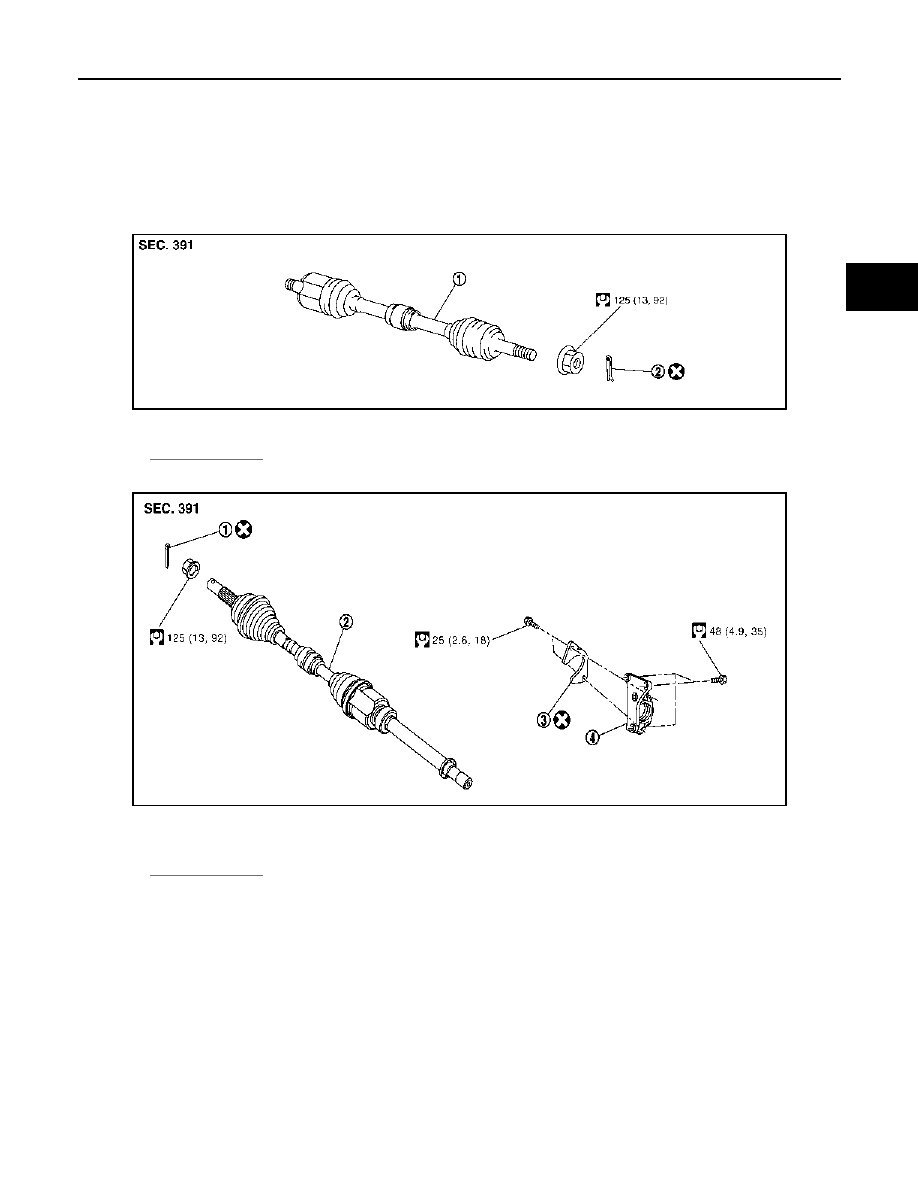

HR16DE MODELS : Exploded View

INFOID:0000000000970486

REMOVAL

Left side

Right side

DISASSEMBLY

PDIA1192J

1.

Drive shaft

2.

Cotter pin

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIF0043GB

1.

Cotter pin

2.

Drive shaft

3.

Plate

4.

Support bearing bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

FAX-16

< ON-VEHICLE REPAIR >

[2WD]

FRONT DRIVE SHAFT

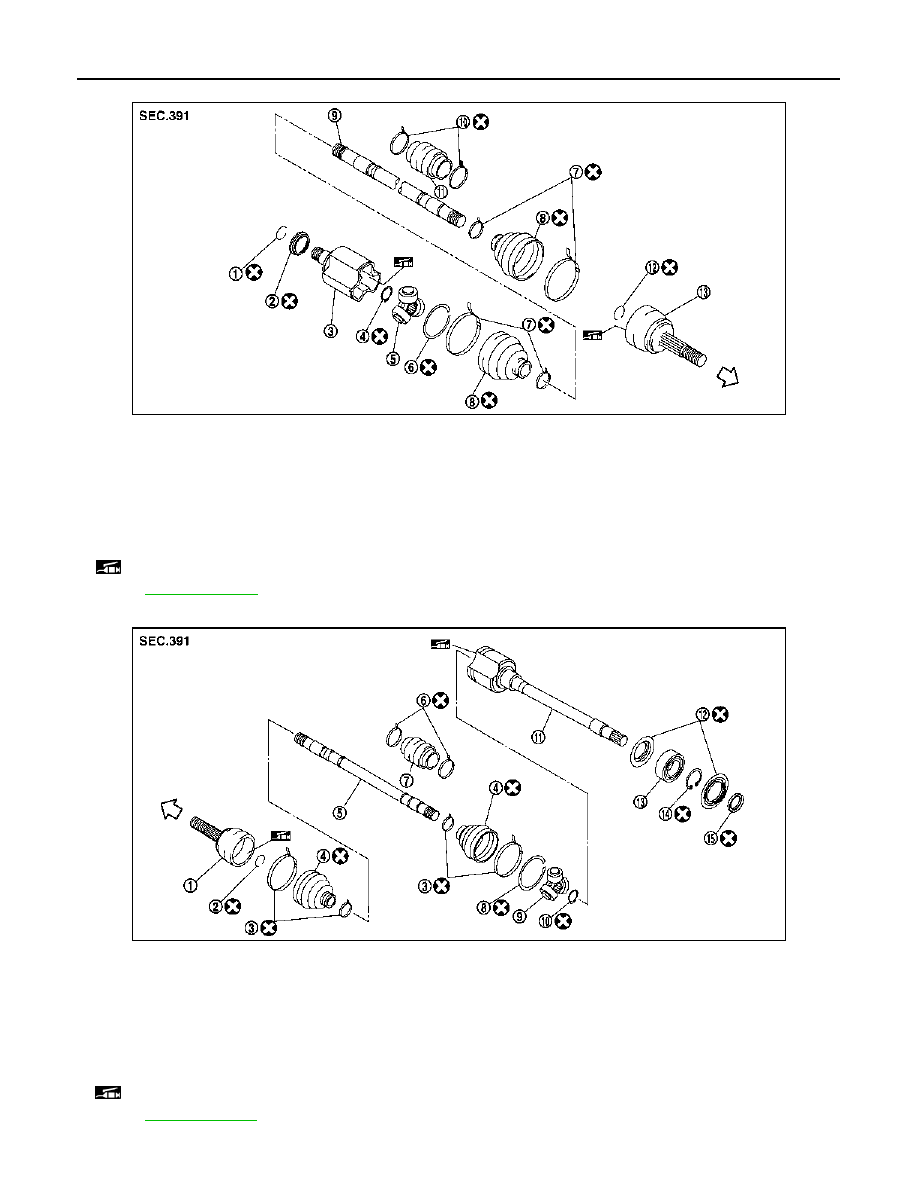

Left side

Right side

JPDIF0047ZZ

1.

Circular clip

2.

Dust shield

3.

Housing

4.

Snap ring

5.

Spider assembly

6.

Stopper ring

7.

Boot band

8.

Boot

9.

Shaft

10. Damper band

11. Dynamic damper

12. Circular clip

13. Joint sub-assembly

: Wheel side

: Fill NISSAN Genuine grease or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIF0045ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Damper band

7.

Dynamic damper

8.

Stopper ring

9.

Spider assembly

10. Snap ring

11. Housing

12. Dust shield

13. Support bearing

14. Snap ring

15. Dust shield

: Wheel side

: Fill NISSAN Genuine grease or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

FRONT DRIVE SHAFT

FAX-17

< ON-VEHICLE REPAIR >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

HR16DE MODELS : Removal and Installation

INFOID:0000000000970487

REMOVAL

Left Side

1.

Refer to the procedure from 1 to 11 in

FAX-11, "Replacement"

.

2.

Remove drive shaft from transaxle assembly.
• Use the drive shaft attachment (A) (SST:KV40107500) and a

sliding hammer (B) while inserting tip of the drive shaft attach-
ment between housing and transaxle assembly.

CAUTION:

Never place drive shaft joint at an extreme angle when
removing drive shaft. Also be careful not to overextend
slide joint.

Right Side

1.

Refer to the procedure from 1 to 11 in

FAX-11, "Replacement"

.

2.

Remove plate bolts and plate.

3.

If necessary, remove the support bearing bracket bolts and the support bearing bracket.

4.

Remove drive shaft from transaxle assembly.
• Use the drive shaft attachment (SST:KV40107500) and a sliding hammer while inserting tip of the drive

shaft attachment between housing and transaxle assembly.

CAUTION:

Never place drive shaft joint at an extreme angle when removing drive shaft. Also be careful not
to overextend slide joint.

INSTALLATION

Left Side

Note the following, and install in the reverse order of removal.
• Place the protector (A) (SST:KV38107900) onto transaxle assem-

bly to prevent damage to the oil seal while inserting drive shaft.
Slide drive shaft sliding joint and tap with a hammer to install
securely.

CAUTION:

Make sure that circular clip is completely engaged.

Right Side

Note the following, and install in the reverse order of removal.
• Place the protector (A) (SST:KV38107900) onto transaxle assem-

bly to prevent damage to the oil seal while inserting drive shaft.
Slide drive shaft sliding joint and tap with a hammer to install
securely.

JPDIF0004ZZ

JPDIF0023ZZ

JPDIF0049ZZ
