DOOR LOCK FUNCTION

DLK-723

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

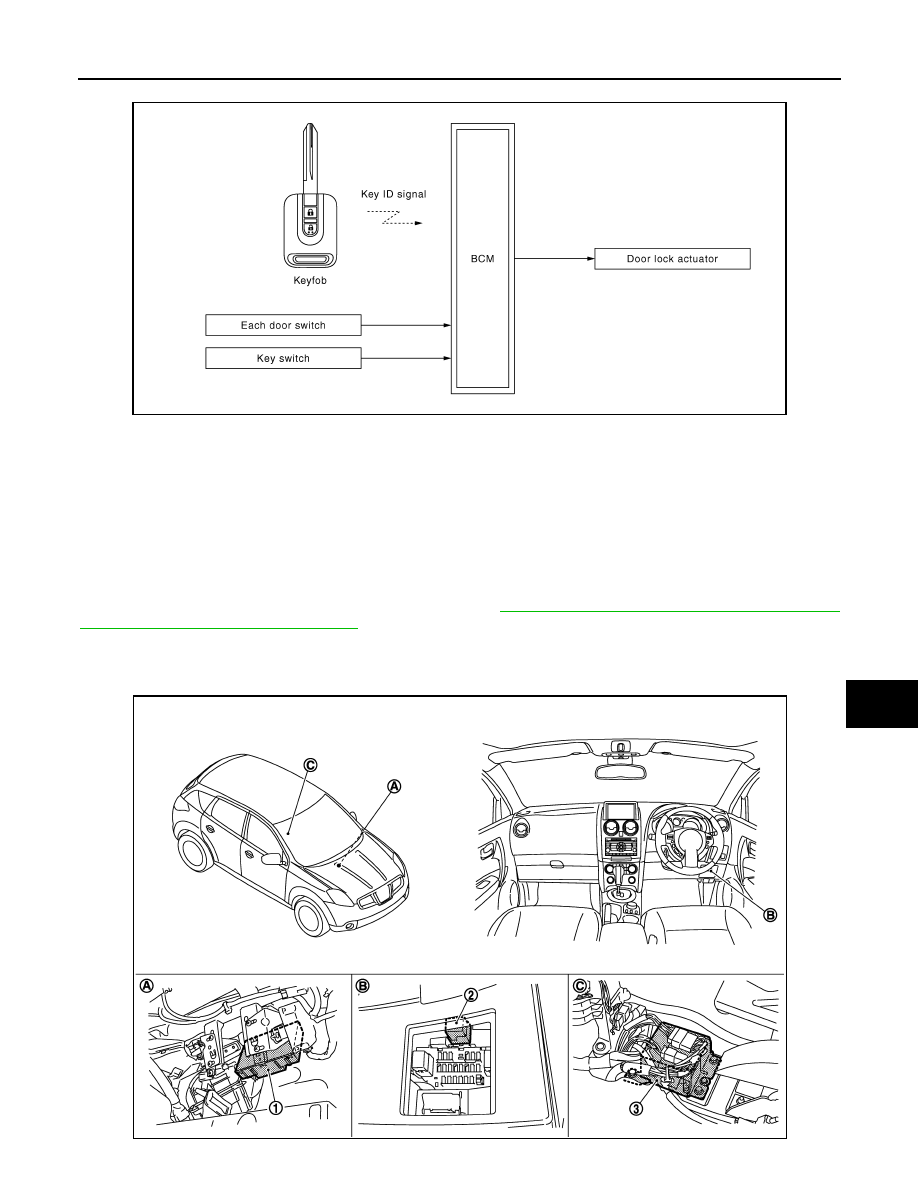

AUTO RELOCK OPERATION

AUTO DOOR LOCK : System Description

INFOID:0000000001088453

AUTO RELOCK OPERATION

When all doors are locked and then doors are unlocked with keyfob, if BCM does not receive the following sig-
nal within 2 minutes

*1

, all doors are automatically locked.

• Any door is opened.
• Ignition key is inserted into ignition key cylinder.
• Door is locked with keyfob.
• Door is locked/unlocked with door lock and unlock switch.

*1

: The time can be changed with CONSULT-III. Refer to

DLK-740, "MULTIREMOTE ENT : CONSULT-III

Function (BCM - MULTIREMOTE ENT)"

.

AUTO DOOR LOCK : Component Parts Location

INFOID:0000000001117085

JMKIA0509GB

JMKIA0489ZZ

DLK-724

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

AUTO DOOR LOCK : Component Description

INFOID:0000000001088455

VEHICLE SPEED SENSING AUTO DOOR LOCK

VEHICLE SPEED SENSING AUTO DOOR LOCK : System Diagram

INFOID:0000000001088456

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

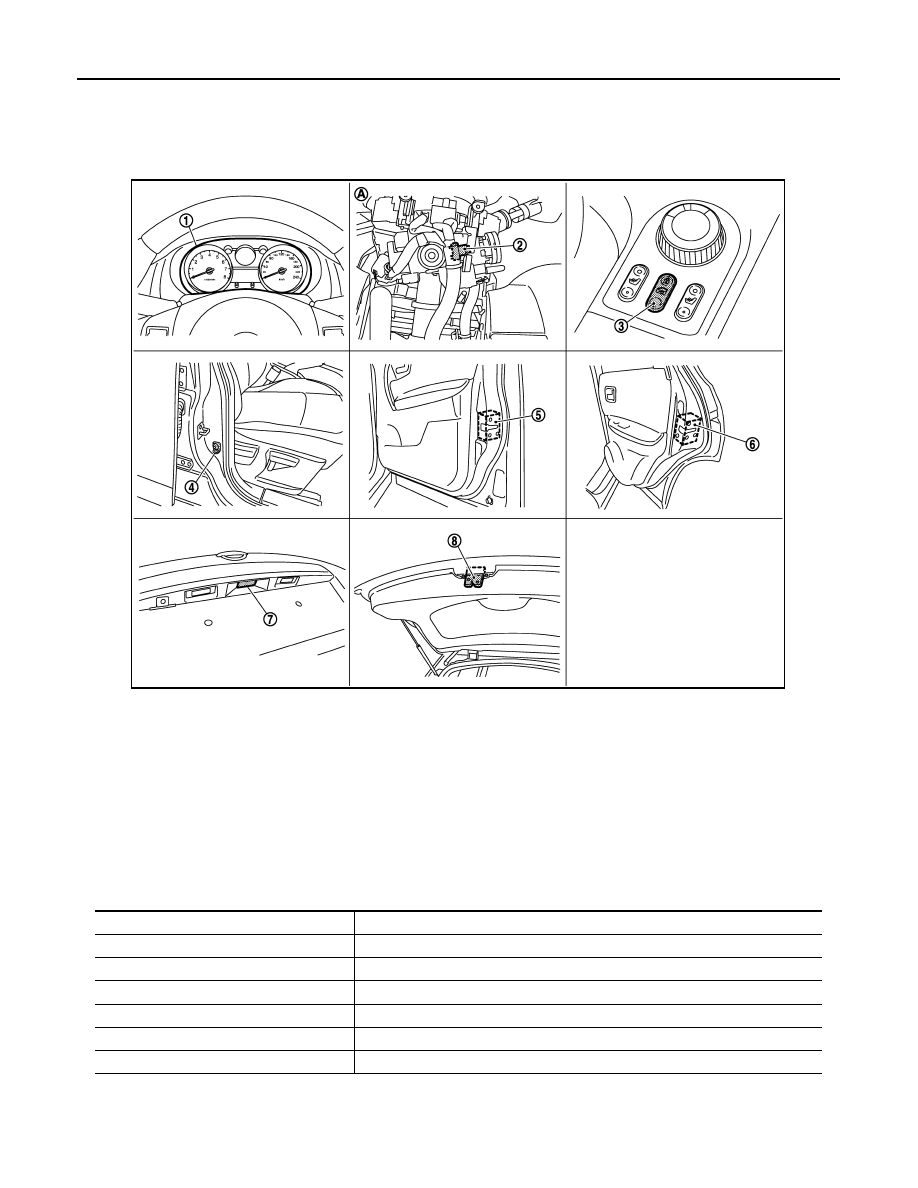

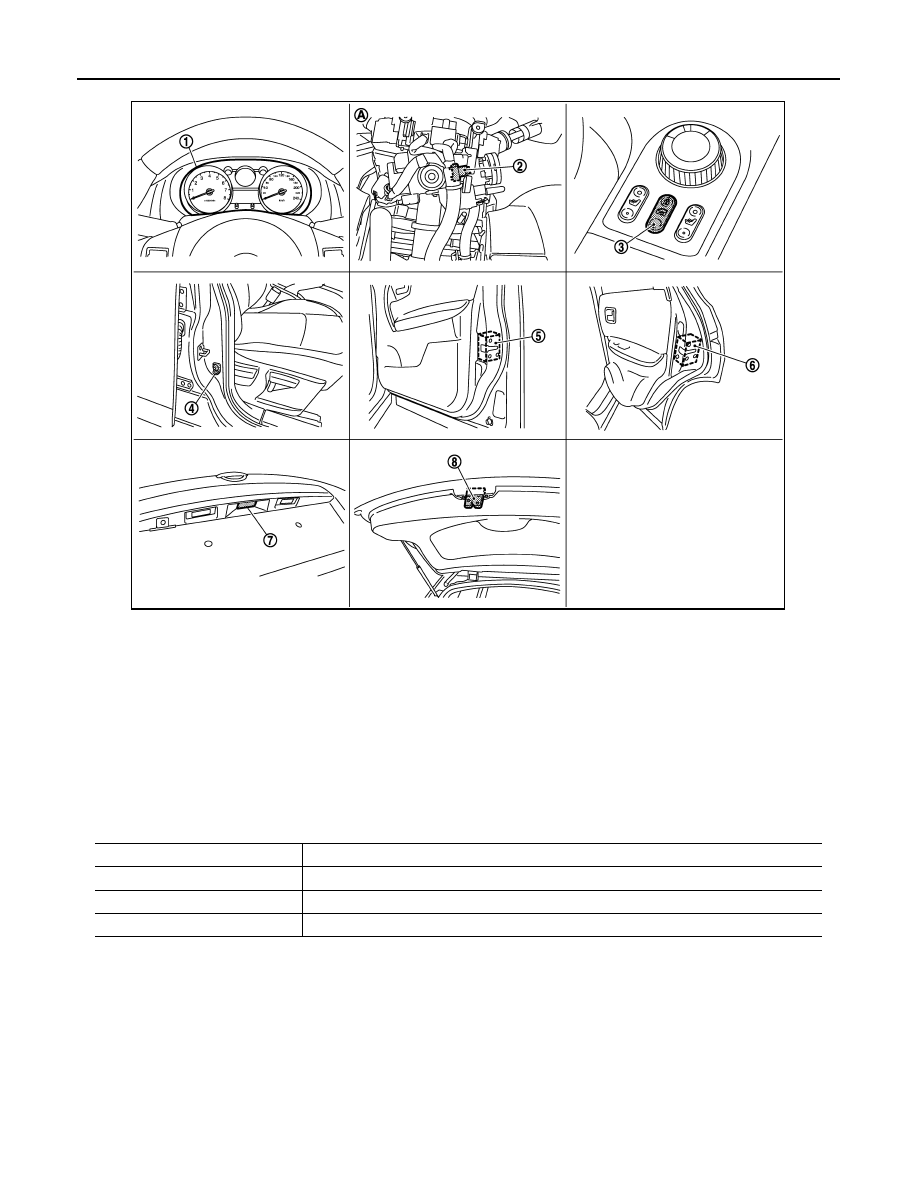

JMKIA0490ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock awitch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D29

6.

Rear door lock actuator RH
D95

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock function.

Door switch

Detects door state (open or closed).

Key switch

Detects that ignition key is inserted into ignition key cylinder.

Door lock/unlock switch

Transmits door lock/unlock signal to BCM.

Keyfob

Transmits key ID to BCM when lock and unlock button is pressed.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

DOOR LOCK FUNCTION

DLK-725

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

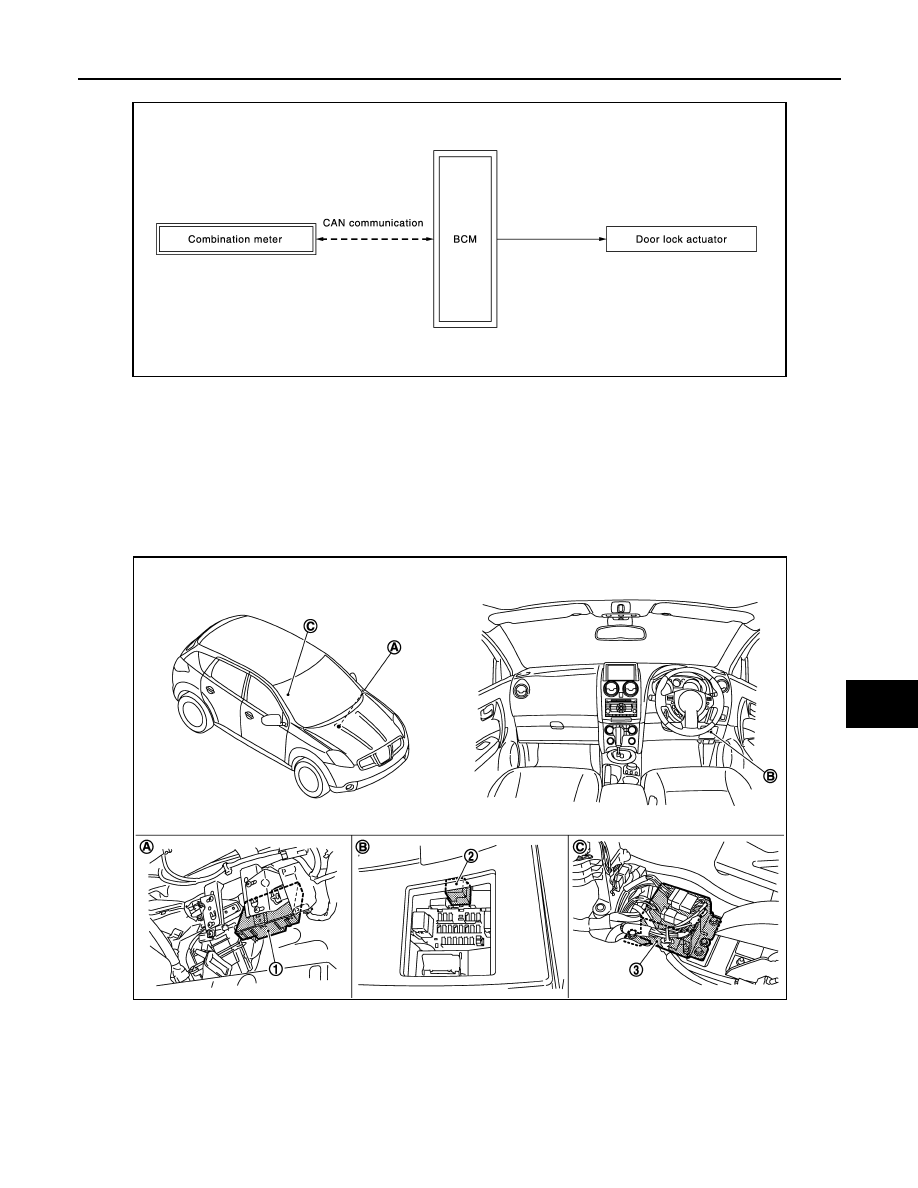

VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

VEHICLE SPEED SENSING AUTO DOOR LOCK : System Description

INFOID:0000000001088457

VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

When the vehicle speed exceeds more than 12 km/h (7 MPH), all doors are automatically locked. The vehicle
speed signal is received from combination meter via CAN communication.

VEHICLE SPEED SENSING AUTO DOOR LOCK : Component Parts Location

INFOID:0000000001117086

JMKIA0403GB

JMKIA0489ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

DLK-726

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

VEHICLE SPEED SENSING AUTO DOOR LOCK : Component Description

INFOID:0000000001088459

AIR BAG INTERLOCK UNLOCK

AIR BAG INTERLOCK UNLOCK : System Diagram

INFOID:0000000001088460

JMKIA0490ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock awitch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D29

6.

Rear door lock actuator RH
D95

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock function.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

Door lock actuator

Receives door lock and unlock signal from BCM and locks and unlocks each door.
