DOOR LOCK FUNCTION

DLK-719

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

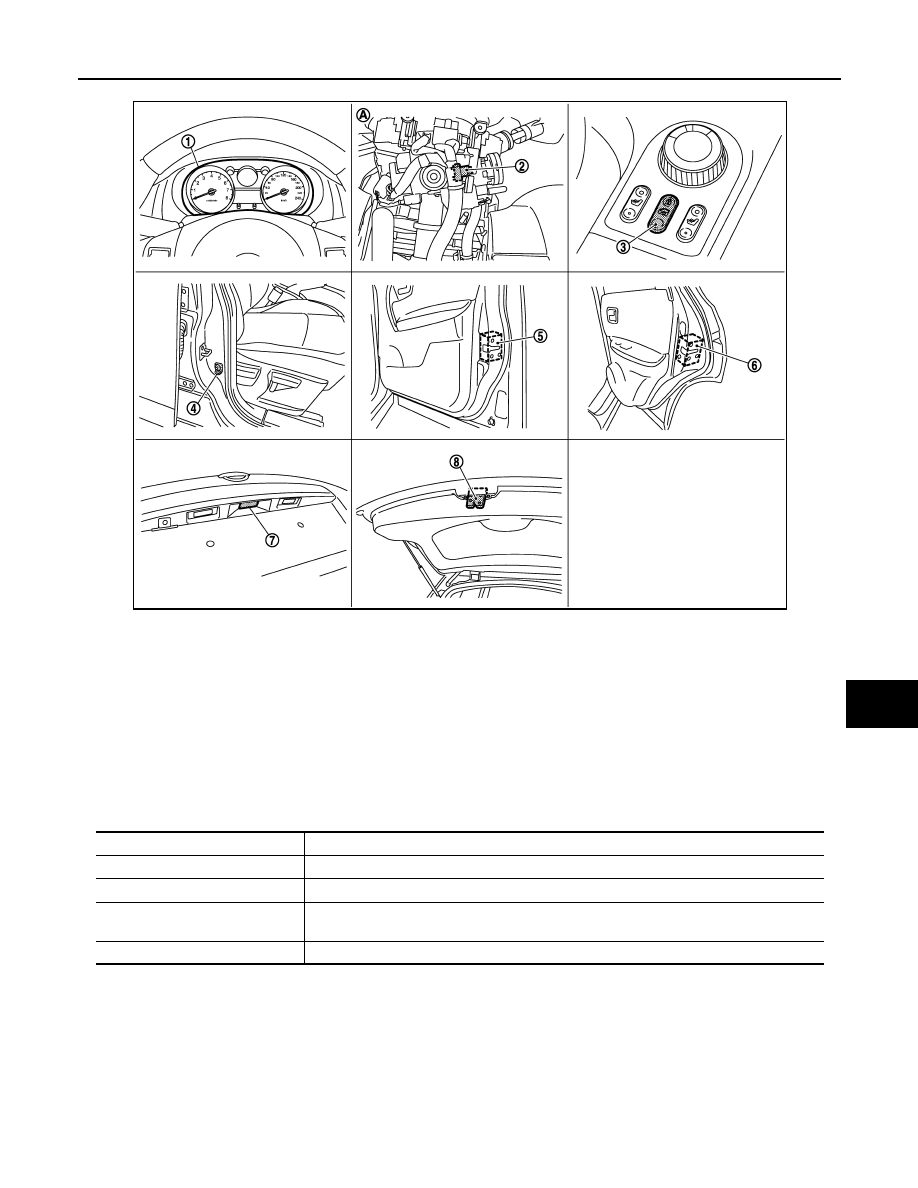

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001088467

KEYFOB

KEYFOB : System Diagram

INFOID:0000000001088020

JMKIA0490ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock awitch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D29

6.

Rear door lock actuator RH
D95

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock and unlock function.

Door switch

Detects door state (open or closed).

Door lock and unlock switch

Transmits door lock and unlock signal to BCM. Door lock and unlock switch indicator is built
in door lock and unlock switch.

Door lock actuator

Receives door lock and unlock signal from BCM and locks and unlocks each door.

DLK-720

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

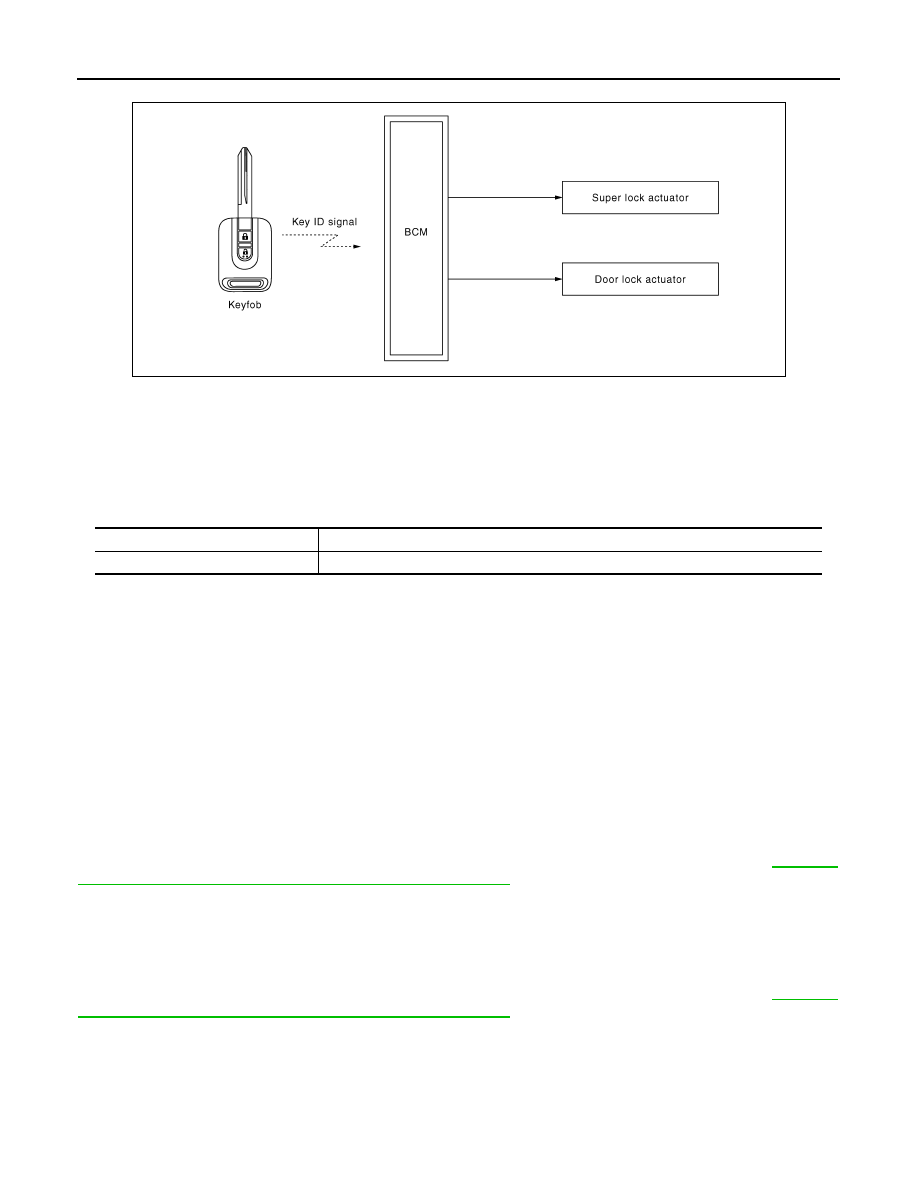

DOOR LOCK FUNCTION

KEYFOB OPERATION

KEYFOB : System Description

INFOID:0000000001088021

KEYFOB OPERATION

The the multi remote control system can be locked and unlocked pressing door lock and unlock button of key-
fob.

OPERATION CONDITION

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm range of each door, however the operable
range may differ according to surroundings.

DOOR LOCK AND UNLOCK CONTROL

When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to
BCM. When BCM receives the door lock and unlock signal, it operates door lock actuator.

SUPER LOCK CONTROL WITH ANTI-HIJACK MODE

• Super lock provides a higher anti-theft performance than a conventional power door lock system. The super

lock system is controlled by BCM.

• When door lock is unlocked, pressing LOCK button on keyfob once will lock and super lock set all doors.

When super lock is set, pressing UNLOCK button on keyfob once will unlock (and super lock release) driver
side door and super lock release all other doors. Pressing UNLOCK button on keyfob within 5 seconds from
the first time will unlock all doors and back door can be opened with back door opener switch.

NOTE:
Anti-hijack mode can be set to ON or OFF with CONSULT-III. For the setting information, refer to

DLK-738,

"DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

SUPER LOCK CONTROL WITHOUT ANTI-HIJACK MODE

When door lock is unlocked, pressing LOCK button on keyfob once will lock and super lock set all doors.
When all doors are set to super lock, pressing UNLOCK button on keyfob will unlock all doors and super lock
release all doors and back door can be opened with back door opener switch.
NOTE:
Anti-hijack mode can be set to ON or OFF with CONSULT-III. For the setting information, refer to

DLK-738,

"DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

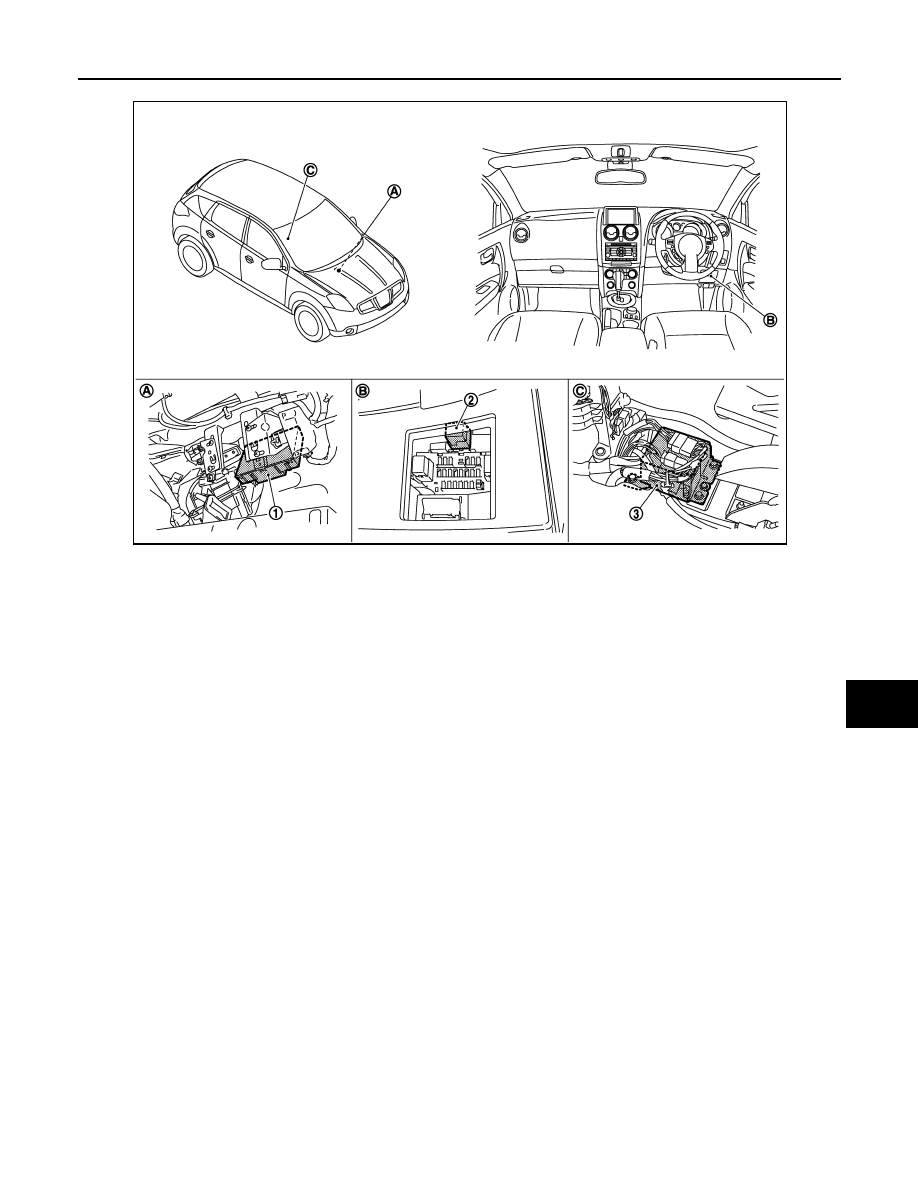

KEYFOB : Component Parts Location

INFOID:0000000001117084

JMKIA0508GB

Remote controller operation

Operation condition

Lock/unlock

Key switch is OFF (key is removed from ignition key cylinder).

DOOR LOCK FUNCTION

DLK-721

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JMKIA0489ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

DLK-722

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

KEYFOB : Component Description

INFOID:0000000001088023

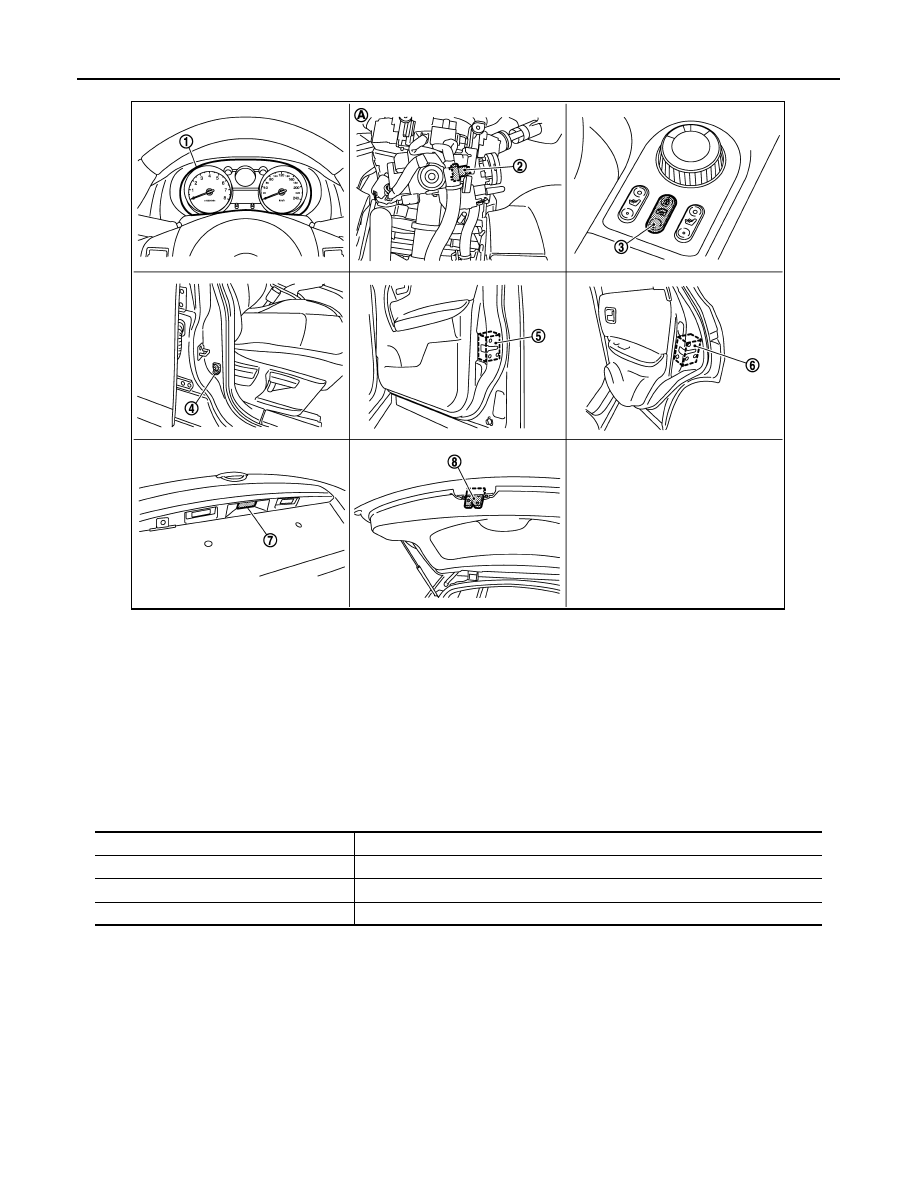

AUTO DOOR LOCK

AUTO DOOR LOCK : System Diagram

INFOID:0000000001088452

JMKIA0490ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock awitch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D29

6.

Rear door lock actuator RH
D95

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock function.

Key switch

Detect that ignition key is inserted into ignition key cylinder.

Door lock actuator

Receives lock and unlock signal from BCM and locks and unlocks each door.
