HAZARD AND BUZZER REMINDER FUNCTION

DLK-323

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

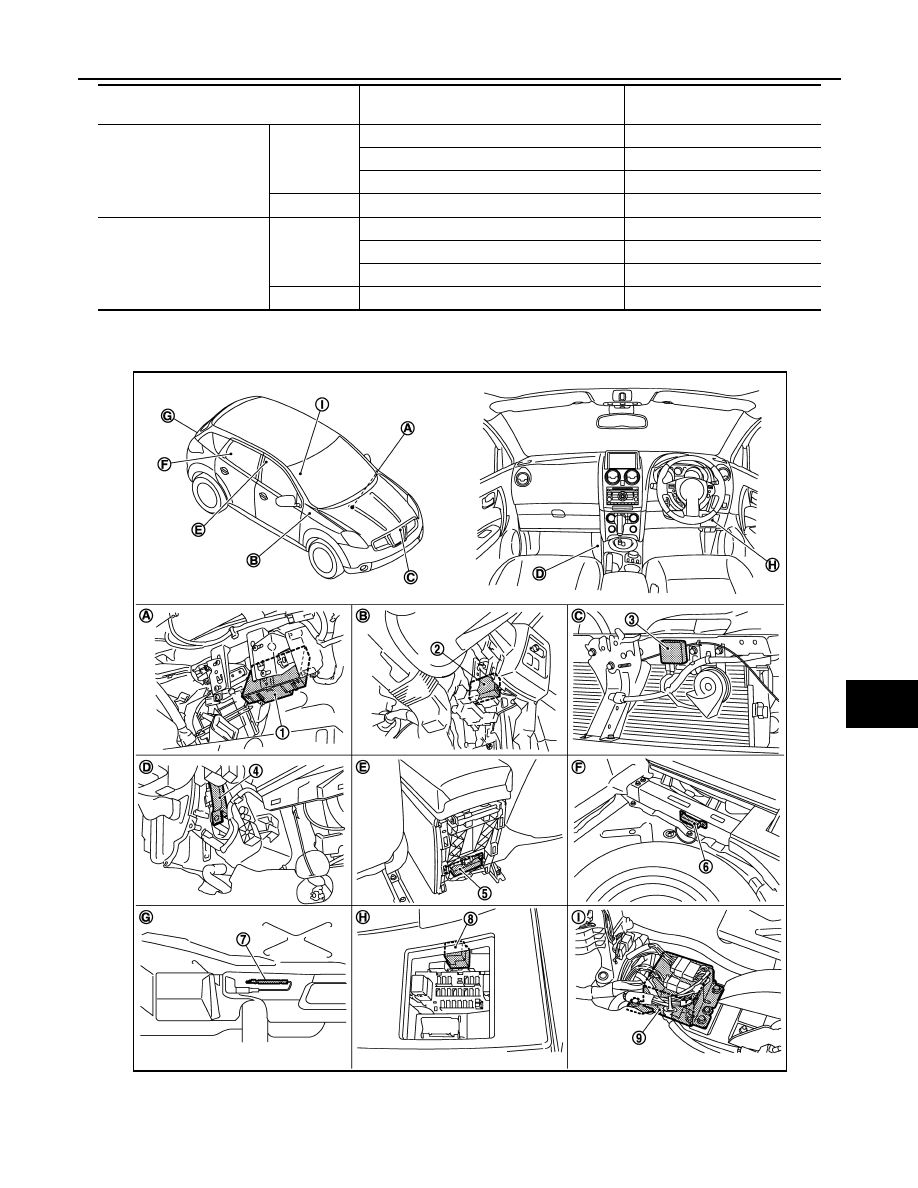

Component Parts Location

INFOID:0000000001117081

ANSWER BACK WITH
 I-KEY
UNLOCK

BUZZER

Lock

Depends on other setting

Unlock

Twice

Unlock (Anti-hijack)

Twice

OFF

Any

—

ANSWER BACK FUNC-
TION

ON

Lock

Once

Unlock

Twice

Unlock (Anti-hijack)

Twice

OFF

Any

—

Buzzer reminder setting

(With CONSULT-III)

Door lock operation

(with Intelligent Key or door request switch)

Buzzer warning sounds

JMKIA0483ZZ

DLK-324

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

HAZARD AND BUZZER REMINDER FUNCTION

1.

BCM
M65, M66, M67

2.

Intelligent Key unit
M40

3.

Intelligent Key warning buzzer
E25

4.

Inside key antenna (instrument center)
M70

5.

Inside key antenna (center console)
M61

6.

Inside key antenna (rear seat)
B45

7.

Inside key antenna (rear bumper)
B81

8.

Passenger side anti-hijack relay
M90

9.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

Over the instrument lower panel (driver
side)

C. View with front bumper removed

D.

View with lower instrument cover re-
moved

E.

View with center console rear finisher re-
moved

F.

View with luggage floor spacer (LH)
removed

G.

View with rear bumper fascia removed

H.

View with fuse box lid removed

I.

View with center console removed

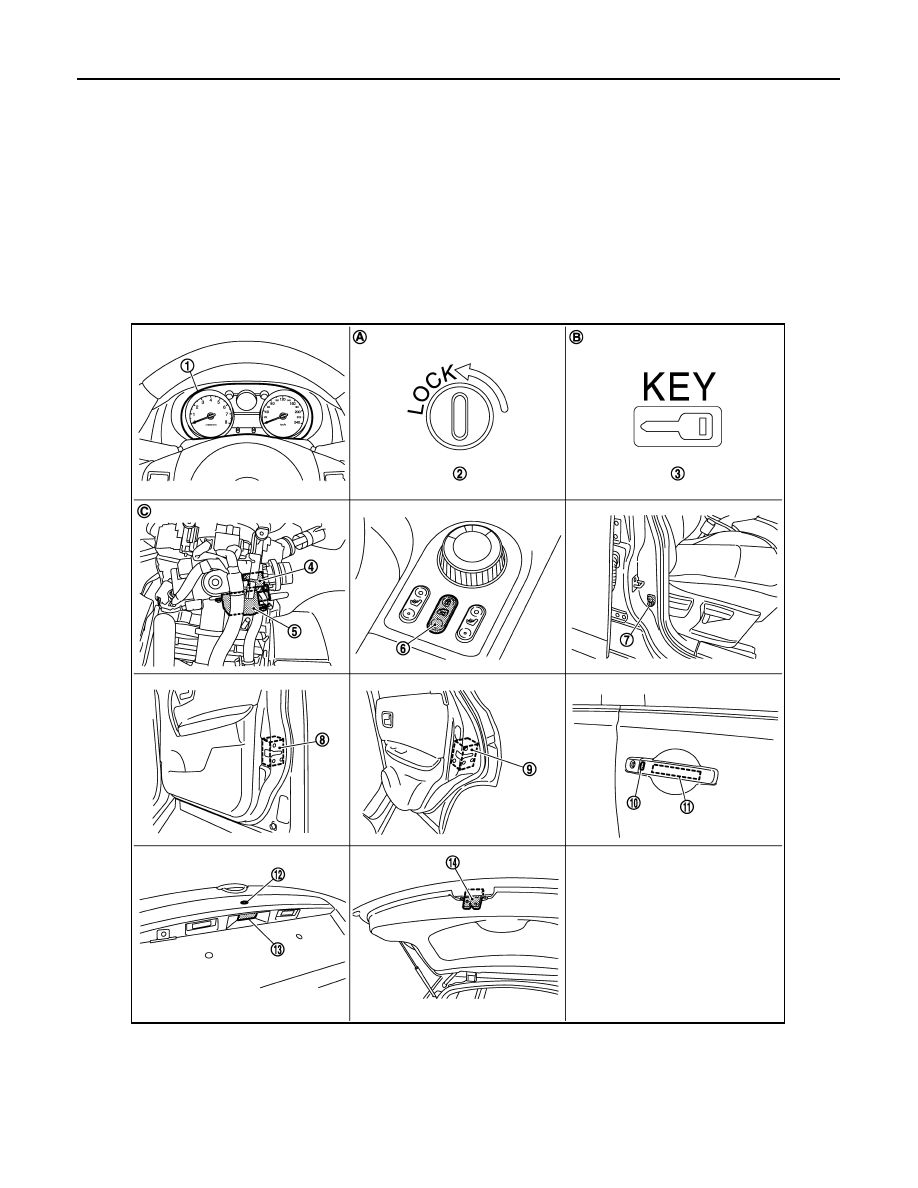

1.

Combination meter
M34

2.

Lock warning lamp
M34

3.

Key warning lamp
M34

4.

Ignition knob switch, key switch and
key lock solenoid (key switch)
M25

5.

Ignition knob switch, key switch and key
lock solenoid (key lock solenoid)
M25

6.

Door lock and unlock switch
M89

JMKIA0484ZZ

HAZARD AND BUZZER REMINDER FUNCTION

DLK-325

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Description

INFOID:0000000001081325

7.

Front door switch (driver side)
B34

8.

Front door lock actuator (driver side)
D29

9.

Rear door lock actuator RH
D95

10. Front door request switch (driver side)

D30

11. Outside key antenna (driver side)

D31

12. Back door request switch

D187

13. Back door opener switch

D186

14. Back door lock assembly

D152

A.

Inside the combination meter

B.

Inside the combination meter

C.

View with steering column cover re-
moved

Item

Function

BCM

Controls the hazard and buzzer reminder function with Intelligent Key unit.

Intelligent Key unit

Controls the hazard and buzzer reminder function with BCM.

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer

Sounds by the request signal from Intelligent Key unit via CAN communication.

DLK-326

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001097285

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000001097286

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-61, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×
