Jaguar XK. Service manual - part 36

147

Convertible top

R

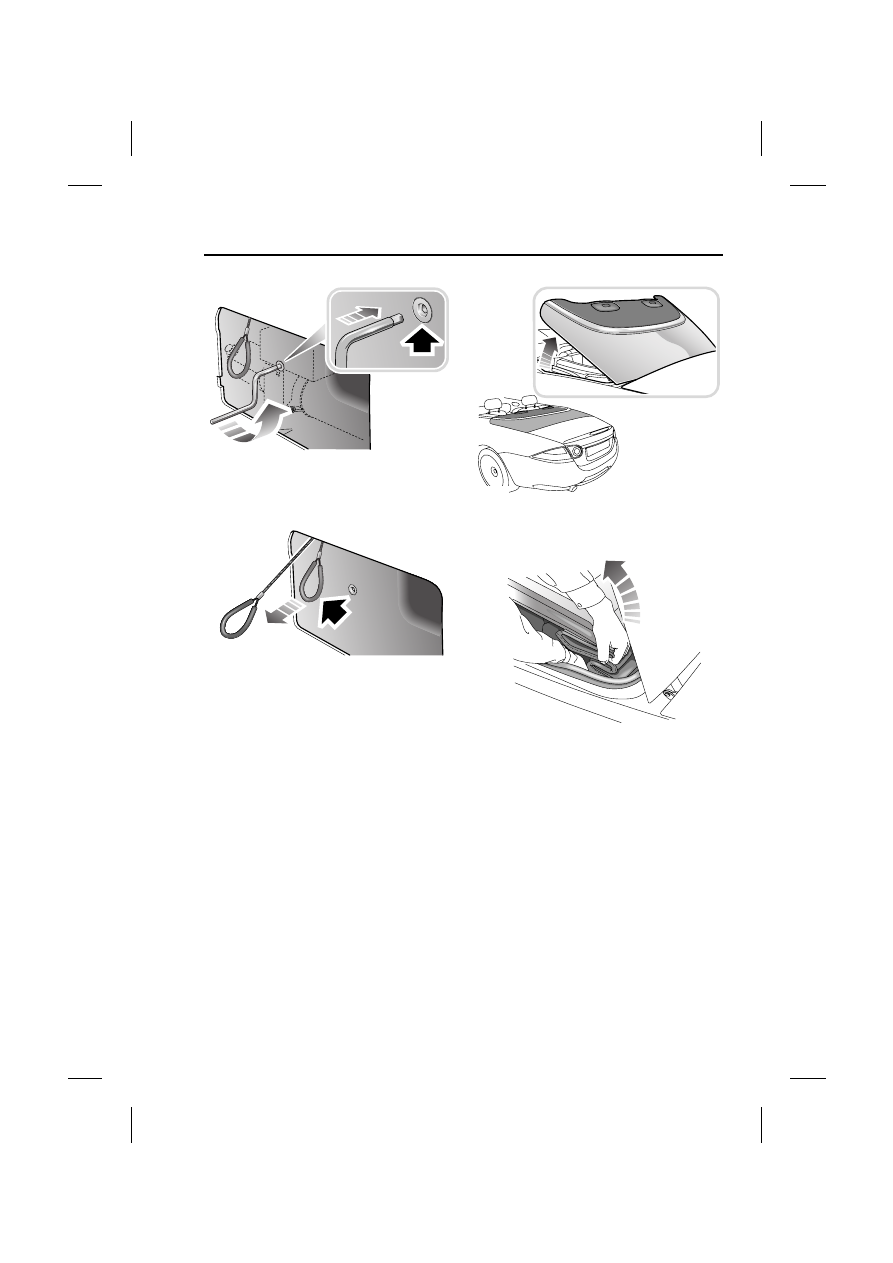

3. Insert the Allen key into the pump and

rotate counterclockwise
(approximately one turn).

4. Pull the tonneau release cable, until

fully extended. Close the luggage
compartment lid.

5. Fully open the tonneau panel. It will

self-support when fully opened.

6. From the left-hand side of the vehicle,

place your right hand down the side
of the folded convertible top. Ensure
that the bottom of the convertible top,
which includes the tension bow, is
securely held. Securely hold the
convertible top header assembly with
your left hand. With both hands pull
the whole of the convertible top up
and forward.

E91373

E91383

E91384

E91385

Convertible top

148

L

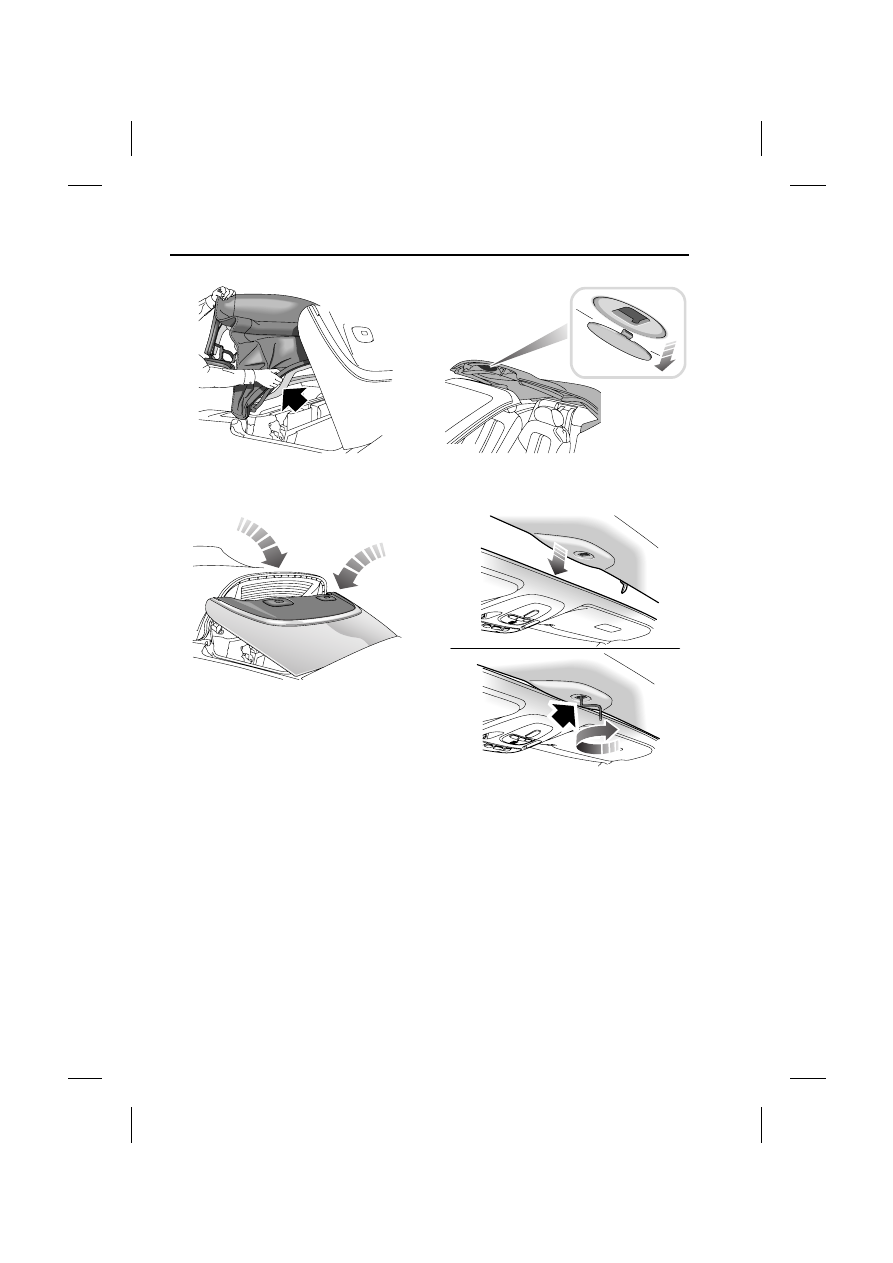

7. Ensure that the tension bow is fully

raised.

8. Supporting the tension bow, lower

the tonneau panel 1. Then lower the
tension bow 2 onto the tonneau
panel.

9. Remove the plug from the convertible

top header trim.

10. Support the front header. Insert the

Allen key into the header panel key
slot and turn clockwise until the top is
securely latched and resistance is
felt.

11. Return the Allen key to its stowed

position, refit the rear seat centre
section, luggage compartment vent
screen and the plug into the
convertible top header trim.

E91386

1

2

E91387

E91388

E91389

149

Convertible top

R

Message centre information
displays

Message

Warnin
g Light

Priority

Indicat

or

Meaning

HOOD NOT LATCHED

None

Red

The convertible roof is not latched,

check for security.

HOOD OUT OF POSITION

None

Amber

The convertible roof is not positioned

correctly. Open or close the convertible

roof again and check for correct

positioning.

LUGGAGE COVER OUT

OF POSITION

None

Amber The luggage separator is out of position

and should be checked.  See OPENING

THE CONVERTIBLE TOP (page 140).

Convenience features

150

L

Convenience features

MEMORY FUNCTION

This facility enables the position of the
driver’s seat, steering column and
exterior rear-view mirrors to be
memorised and recalled. Three different
position sets can be entered into the
memory.

Setting a driving position

To store a driving position in the memory:

1. Adjust the seat, steering column and

exterior rear-view mirrors to the
desired positions.

2. In the door switch pack, push the M

memory button, A, and the red LED,
B, will illuminate for a five second
period.

3. While the red LED is illuminated, push

either button 1, 2 or 3 to memorise.
The LED will go out and a chime will
indicate that the setting procedure is
complete. Additionally, if the ignition
is on, the message centre will display
a message that the settings have
been saved.

To replace a memorised position
with a new position

Adjust the seat to the desired position,
perform steps 2 and 3. The previous
memory will be erased and the new
position will be set.

Recalling a memorised position
from the door switchpack

Press and hold the appropriate memory
button (1, 2 or 3). The button has to be
pressed and remain pressed until the
recall is complete. If the button is
released before total recall is completed,
all movement will cease.

Memory system operating tips

• When making adjustments to a set

driving position, reset the new
position using the same memory
button.

• Ensure that the seat has completed

moving into the required memory
position before shifting the gear
selector from the P position.

Passenger seat memory setting

The passenger door has a seat memory
switch pack similar to that on the driver’s
door.

The passenger seat can be set to three
memory positions by using the memory
setting buttons 1, 2 and 3.

The procedure for the setting and the
recalling of the passenger seat memory is
the same as for the driver’s seat.

However, there are no acceptance
messages or a completed procedure
chime.

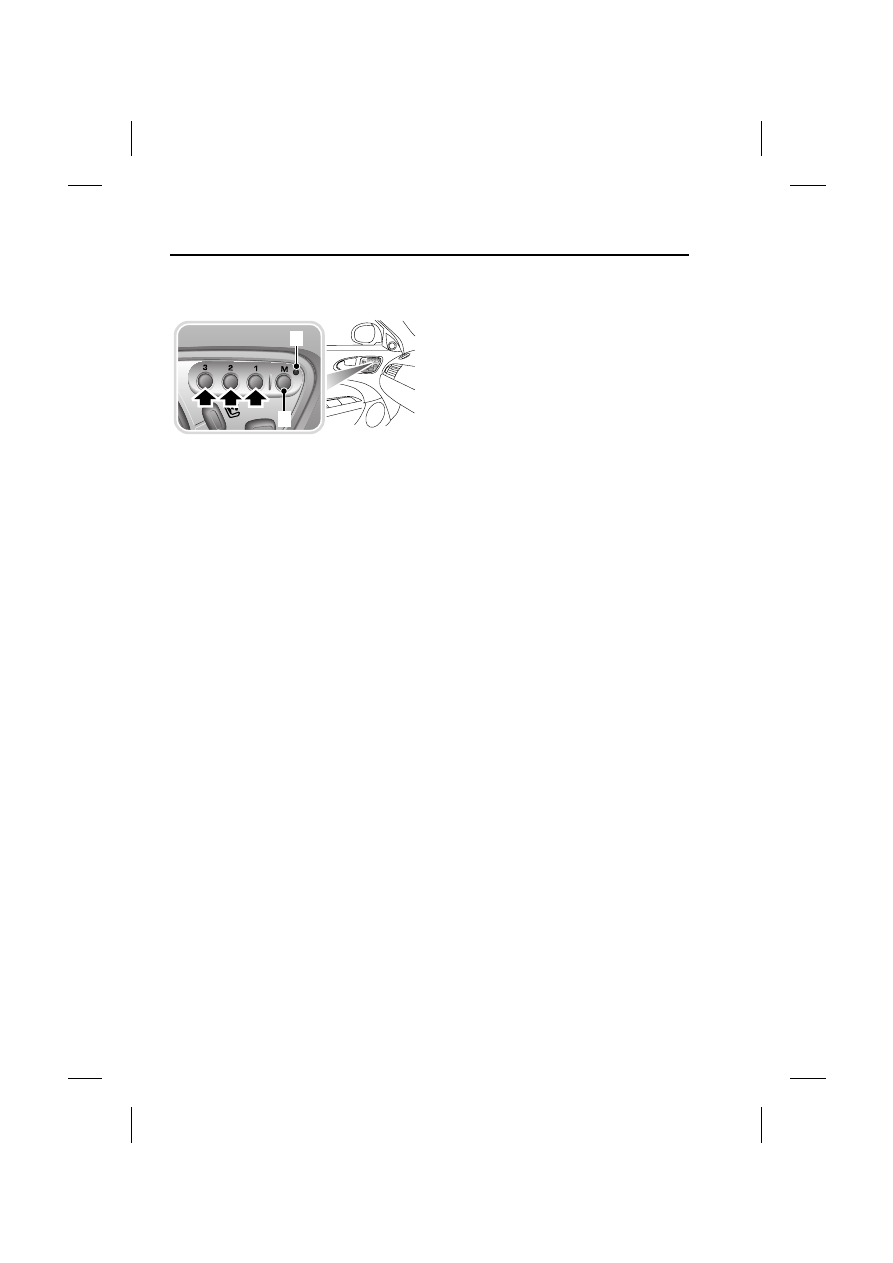

E91398

B

A
