Hyundai Veloster (2019 year). Manual - part 12

STORAGE COMPARTMENT

Center Console Storage

Glove Box

WARNING

Never store cigarette lighters,

propane cylinders, or other

flammable/explosive materials

in the vehicle. These items may

catch fire and/or explode if the

vehicle is exposed to hot tem-

peratures for extended periods.

WARNING

OJS048040

OJS048041

ALWAYS keep the storage com-

partment covers closed secure-

To open :

To open:

ly while driving. Items inside

Grab and hold the latch (1) on the

Pull the lever (1).

your vehicle are moving as fast

arm rest then lift the lid.

as the vehicle. If you have to

WARNING

stop or turn quickly, or if there

is a crash, the items may fly out

ALWAYS close the glove box

of the compartment and may

door after use.

cause an injury if they strike the

driver or a passenger.

An open glove box door can

cause serious injury to the pas-

senger in an accident, even if the

NOTICE

passenger is wearing a seat belt.

To avoid possible theft, do not

leave valuables in the storage

compartments.

3-119

Convenient features of your vehicle

Sunglass Holder

WARNING

•

Do not keep objects except

sunglasses inside the sun-

glass holder. Such objects can

be thrown from the holder in

the event of a sudden stop or

an accident, possibly injuring

the passengers in the vehicle.

•

Do not open the sunglass

holder while the vehicle is

moving. The rear view mirror

OOS047058

of the vehicle can be blocked

by an open sunglass holder.

To open:

•

Do not put the glasses forcibly

Push and release the cover and the

into a sunglass holder. It may

holder will slowly open. Place your

cause personal injury if you

sunglasses in the compartment door

try to open it forcibly when the

with the lenses facing out.

glasses are jammed in holder.

To close:

Push back into position.

Make sure the sunglass holder is

closed while driving.

3-120

INTERIOR FEATURES

Cup Holder

NOTICE

WARNING

■ Front

•

Keep your drinks sealed while

•

Avoid abrupt starting and

driving to prevent spilling your

braking when the cup holder

drink. If liquid spills, it may get

is in use to prevent spilling

into the vehicle's electrical/elec-

your drink. If hot liquid spills,

tronic system and damage elec-

you could be burned. Such a

trical/electronic parts.

burn to the driver could cause

•

When cleaning spilled liquids do

loss of vehicle control result-

not use hot air to blow out or dry

ing in an accident.

the cup holder. This may dam-

•

Do not place uncovered or

age the interior.

unsecured cups, bottles,

OJS048042

cans, etc., in the cup holder

■ Rear

containing hot liquid while the

vehicle is in motion. Injuries

may result in the event of a

sudden stop or collision.

•

Only use soft cups in the cup

holders. Hard objects can

injure you in an accident.

WARNING

OJS048043

Keep cans or bottles out of

Cups or small beverages cups may

direct sun light and do not put

be placed in the cup holders.

them in a hot vehicle. It may

explode.

3-121

Convenient features of your vehicle

Sunvisor

NOTICE

Power Outlet

Close the vanity mirror cover

securely and return the sunvisor

to its original position after use.

WARNING

For your safety, do not block

your view when using the sunvi-

sor.

OAEE046511N

NOTICE

OJS048045

To use the sunvisor, pull it down-

Do not put multiple tickets in the

The power outlet is designed to pro-

ward.

ticket holder at one time. This

vide power for mobile telephones or

To use the sunvisor to block the sun

could cause damage to the ticket

other devices designed to operate

holder.

with vehicle electrical systems. The

from the side window, pull it down-

devices should draw less than 180 W

ward, release it from the bracket (1)

with the engine running.

and swing it to the side (2) towards

the window.

To use the vanity mirror, pull down

the sunvisor and slide the mirror

cover (3).

Adjust the sunvisor forward or back-

ward (4) as needed (if equipped).

Use the ticket holder (5) to hold tick-

ets (if equipped).

3-122

•

Some electronic devices can

USB charger

WARNING

cause electronic interference

when plugged into a vehicle's

Avoid electrical shocks. Do not

power outlet. These devices may

place your fingers or foreign

cause excessive audio static

objects (pin, etc.) into a power

and malfunctions in other elec-

outlet or touch the power outlet

tronic systems or devices used

with a wet hand.

in your vehicle.

•

Push the plug in as far as it will

NOTICE

go. If good contact is not made,

the plug may overheat and the

To prevent damage to the Power

fuse may open.

Outlets :

• Plug in battery equipped electri-

OJS048046

• Use the power outlet only when

cal/electronic devices with

the engine is running and

reverse current protection. The

The USB charger is designed to

remove the accessory plug after

recharge batteries of small size elec-

current from the battery may

use. Using the accessory plug

trical devices using a USB cable.

flow into the vehicle's electri-

for prolonged periods of time

cal/electronic system and cause

The electrical devices can be

with the engine off could cause

system malfunction.

recharged when the ignition switch

the battery to discharge.

is in the ACC/ON position.

• Only use

12V electric acces-

Insert the USB charger into the USB

sories which are less than 180 W

port, and re-charge a smart phone or

in electric capacity.

a tablet PC.

• Adjust the air-conditioner or

The battery charging state may be

heater to the lowest operating

monitored on the electrical device.

level when using the power outlet.

Disconnect the USB cable from the

• Close the cover when not in use.

USB port after use.

3-123

Convenient features of your vehicle

•

A smart phone or a tablet PC may

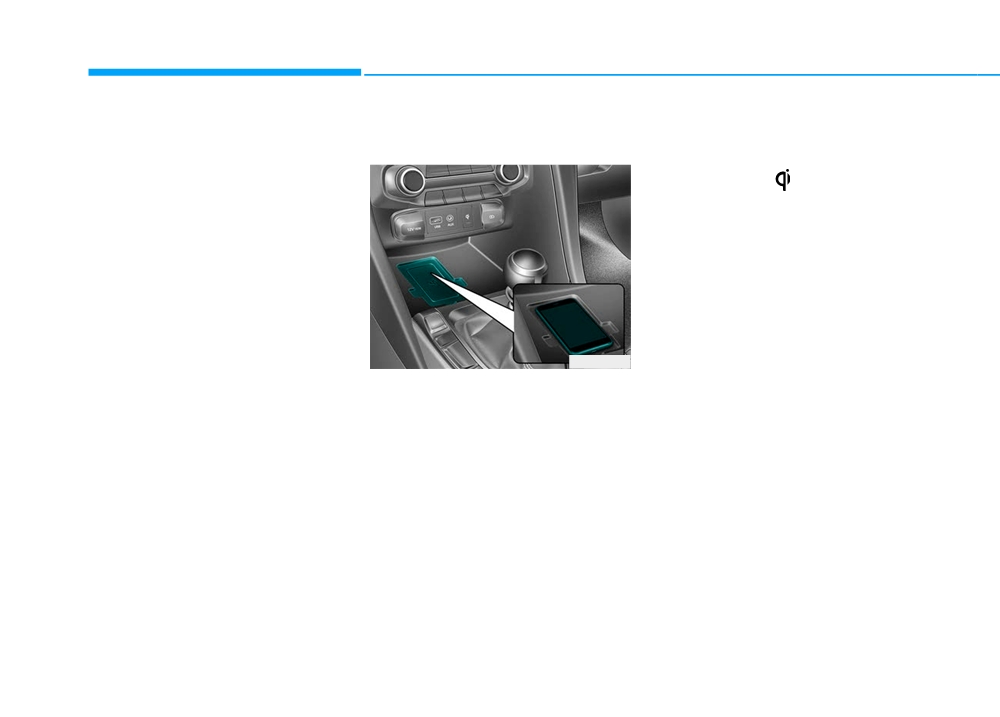

Wireless Cellular Phone

To charge a cellular phone

get warmer during the re-charging

Charging System (if equipped)

The wireless cellular phone charging

process. It does not indicate any

system charges only the Qi-enabled

malfunction with the charging sys-

cellular phones (

). Read the label

tem.

on the cellular phone accessory

•

A smart phone or a tablet PC,

cover or visit your cellular phone

which adopts a different re-charg-

manufacturer's website to check

ing method, may not be properly

whether your cellular phone supports

re-charged. In this case, use an

the Qi technology.

exclusive charger of your device.

The wireless charging process starts

•

The charging terminal is only to

when you put a Qi-enabled cellular

recharge a device. Do not use the

phone on the wireless charging unit.

charging terminal either to turn ON

1. Remove other items, including the

an audio or to play media on the

OJS048047

smart key, from the wireless

AVN.

charging unit. If not, the wireless

On certain models, the vehicle

charging process may be inter-

comes equipped with a wireless cel-

rupted. Place the cellular phone

lular phone charger.

on the center of the charging pad.

The system is available when all

2. The indicator light is orange when

doors are closed, and when the igni-

the cellular phone is charging. The

tion switch is in the ACC/ON position.

indicator light turns green when

phone charging is complete.

3. You can turn ON or OFF the wire-

less charging function in the user

settings mode on the instrument

cluster. For further information,

refer to the "LCD Display Modes"

in this chapter.

3-124

If your cellular phone is not charging:

NOTICE

•

The wireless charging process

may temporarily stop due to the

- Slightly change the position of the

•

The wireless cellular phone

"self-protection" function of the

cellular phone on the charging pad.

charging system may not sup-

cellular phone, when tempera-

- Make sure the indicator light is

port certain cellular phones,

ture abnormally increases inside

orange.

which are not verified for the Qi

the wireless cellular phone

specification (

charging system. The wireless

The indicator light will blink orange

•

When placing your cellular

charging process restarts, when

for 10 seconds if there is a malfunc-

phone on the charging mat,

temperature falls to a certain

tion in the wireless charging system.

position the phone in the middle

level.

In this case, temporarily stop the

of the mat for optimal charging

•

The wireless charging process

charging process, and re-attempt to

performance. If your cell phone

may temporarily stop when

charge your cellular phone again.

is off to the side, the charging

there is any metallic item, such

The system warns you with a mes-

rate may be less and in some

as a coin, between the wireless

sage on the LCD display if the cellular

cases the cell phone may experi-

cellular phone charging system

phone is still on the wireless charging

ence higher heat conduction.

and cellular phone.

unit after the engine is turned OFF

•

In some cases, the wireless

•

When charging some cell phones

and the front door is opened.

charging may stop temporarily

with the case still applied, the

when the Smart Key is used,

wireless charging speed may

either when starting the vehicle or

decrease and the wireless charg-

Information

locking/unlocking the doors, etc.

ing may stop.

For some manufacturer's cellular

•

When charging certain cellular

•

If the cellular phone has a thick

phones, the system may not warn you

phones, the charging indicator

cover, the wireless charging may

even though the cellular phone is left

may not change to green when

not be possible.

on the wireless charging unit. This is

the cell phone is fully charged.

due to the particular characteristic of

•

If the cell phone is not complete-

the cellular phone and not a malfunc-

ly contacting the charging pad,

tion of the wireless charging.

wireless charging may not oper-

ate properly.

3-125

Convenient features of your vehicle

•

Some magnetic items like credit

Clock

Information

cards, phone cards or rail tickets

may be damaged if left with the

This device complies with part 15 of

WARNING

cellular phone during the charg-

the FCC Rules.

ing process.

Operation is subject to the following

Do not attempt to adjust the

•

If the cellular phone without the

two conditions:

clock while driving. Doing so

wireless charging function or

1. This device may not cause harmful

may result in distracted driving

the metallic items are placed on

interference, and

which may lead to an accident

the charging pad, it may cause

involving personal injury or

2. This device must accept any inter-

slight noise. This noise does not

death.

ference received, including interfer-

affect the cellular phone and the

ence that may cause undesired

vehicle, because this noise is an

operation.

Vehicles with Audio system

operating sound during deter-

mining the item on the charging

Select the [SETUP] button on the

pad.

audio system ➟ Select [Date/Time].

•

If the ignition switch is OFF, the

• Set time: Set the time displayed on

charging also stops.

the audio screen.

• Time format: Choose between 12-

hour and 24-hour time formats.

Vehicles with Navigation system

Select the Settings menu on the

Navigation system

➟ Select

[Date/Time].

• GPS time: Displays time according

to the received GNSS time.

•

24-hour: Switches to 12 hour or 24

hour.

3-126

Clothes Hanger

Floor Mat Anchor(s)

WARNING

OJS048056

OJS048048

OJS048057

These hangers are not designed to

Do not hang other objects such

ALWAYS use the Floor Mat Anchors

hold large or heavy items.

as hangers or hard objects

to attach the front floor mats to the

except clothes. Also, do not put

vehicle. The anchors on the front

heavy, sharp or breakable

floor carpet keep the floor mats from

objects in the clothes pockets.

sliding forward.

In an accident or when the cur-

tain air bag is inflated, it may

WARNING

cause vehicle damage or per-

sonal injury.

Do not overlay additional mats

or liners over the floor mats. If

using All Weather mats, remove

the carpeted floor mats before

installing them. Only use floor

mats designed to connect to the

anchors.

3-127

Convenient features of your vehicle

Cargo Area Cover

NOTICE

WARNING

Since the cargo area cover may be

The following must be observed

damaged or deformed, do not put

when installing ANY floor mat

luggage on it when it is being

to the vehicle.

used.

• Ensure that the floor mats are

securely attached to the vehi-

WARNING

cle's floor mat anchor(s)

before driving the vehicle.

•

Do not place objects on the

• Do not use ANY floor mat that

cargo area cover while driv-

cannot be firmly attached to

ing. Such objects may be

the vehicle's floor mat anchors.

thrown about inside the vehi-

OJS048049N

• Do not stack floor mats on top

cle and possibly injure vehicle

of one another (e.g. all-weath-

Use the cover to hide items stored in

occupants during an accident

er rubber mat on top of a car-

the cargo area.

or when braking.

peted floor mat). Only a single

The cargo area cover will lift when

•

Never allow anyone to ride in

floor mat should be installed

the luggage compartment. It

the liftgate is opened.

in each position.

is designed for luggage only.

Disconnect the strap

(1) from the

IMPORTANT - Your vehicle was

•

Maintain balance of the vehi-

holder if you want to return the cover

manufactured with driver's side

to the original position. To remove the

cle and locate the weight as

floor mat anchors that are

far forward as possible.

cargo area cover completely, lift the

designed to securely hold the

cover to a 50-degree angle and pull it

floor mat in place. To avoid any

out (2).

interference with pedal opera-

tion, HYUNDAI recommends

that the HYUNDAI floor mat

designed for use in your vehicle

be installed.

3-128

Multimedia System

4-2

AUX, USB and iPod® Port

4-2

Antenna

4-2

Steering Wheel Audio Controls

4-3

Bluetooth® Wireless Technology Hands-Free

4-4

Audio (Display Audio) / Video /

Navigation System (AVN)

4-4

Multimedia System

MULTIMEDIA SYSTEM

NOTICE

AUX, USB and iPod® Port

Antenna

• If you install an aftermarket HID

head lamp, your vehicle's audio

and electronic devices may not

function properly.

• Prevent chemicals such as per-

fume, cosmetic oil, sun cream,

hand cleaner, and air freshener

from contacting the interior

parts because they may cause

damage or discoloration.

OJS048055

OJS048050

You can use an AUX or USB cable to

The roof antenna receives transmit-

connect audio devices to the vehicle

ted data. (For example : AM/FM)

AUX or USB port.

Information

When using a portable audio device

connected to the power outlet, noise

may occur during playback. If this

happens, use the portable audio

device's power source.

❈ iPod® is a trademark of Apple Inc.

4-2

Steering Wheel Audio Control

SEEK/PRESET (

) (2)

MODE (3)

If the SEEK/PRESET switch is

Press the MODE button to toggle

pressed up or down and held for 0.8

through Radio, SXM, or AUX modes.

second or more, it will function in the

following modes:

MUTE (

) (4)

RADIO mode

• Press the MUTE button to mute the

It will function as the AUTO SEEK

sound.

select button. It will SEEK until you

• Press the MUTE button again to

release the button.

activate the sound.

MEDIA mode

Information

It will function as the FF/RW button.

OJS048052

Detailed information for audio control

If the SEEK/PRESET switch is

buttons are described in the separately

NOTICE

pressed up or down, it will function

supplied manual with the vehicle.

Do not operate multiple audio

in the following modes:

remote control buttons simultane-

RADIO mode

ously.

It will function as the PRESET STA-

TION UP/DOWN button.

VOLUME (VOL + / - ) (1)

MEDIA mode

• Press the VOLUME switch up to

increase volume.

It will function as the TRACK UP/

• Press the VOLUME switch down to

DOWN button.

decrease volume.

4-3

Multimedia System

Bluetooth® Wireless

(1) Call / Answer button

Audio (Display Audio) / Video /

Technology Hands-Free

(2) Call end button

Navigation System (AVN)

(if equipped)

(3) Microphone

Detailed information for the Bluetooth®

Detailed information for the AVN sys-

tem is described in the Car Multimedia

Wireless Technology hands-free is

described in the Car Multimedia

User's Manual.

OJS048053

OOS047076

With the Bluetooth® Wireless

Technology in the vehicle, you can

use the phone wireless.

4-4

Driving your vehicle

Before Driving

5-4

Hill-Start Assist Control (HAC)

5-48

Before Entering the Vehicle

5-4

Good Braking Practices

5-49

Before Starting

5-4

Drive Mode Integrated Control System

5-51

Ignition Switch

5-6

DRIVE MODE (with Automatic Transmission/

Key Ignition Switch

5-6

Dual Clutch Transmission)

5-51

Engine Start/Stop Button

5-9

SPORT MODE (with Manual Transmission)

5-53

Manual Transmission

5-18

Blind-Spot Collision Warning (BCW) System...5-55

Manual Transmission Operation

5-18

BCW (Blind-Spot Collision Warning)

5-56

Good Driving Practices

5-20

RCCW (Rear Cross-Traffic Collision Warning)

5-58

Automatic Transmission

5-22

Blind Spot Collision Warning - Sensor Location

5-60

Automatic Transmission Operation

5-22

Limitations of the System

5-61

Good Driving Practices

5-27

Forward Collision-Avoidance Assist (FCA)

Dual clutch Transmission

5-29

System (Camera)

5-63

Dual Clutch Transmission Operation

5-29

System Setting and Activation

5-63

LCD display for transmission temperature and

FCA Warning Message and System Control

5-65

warning message

5-31

FCA Sensor

5-67

Good Driving Practices

5-38

System Malfunction

5-68

Limitations of the System

5-70

Braking System

5-40

Power Brakes

5-40

Forward Collision-Avoidance Assist (FCA)

Disc Brakes Wear Indicator

5-41

System (Fusion Sensor)

5-75

Parking Brake

5-41

System Setting and Activation

5-75

Anti-lock Brake System (ABS)

5-43

FCA Warning Message and System Control

5-77

Electronic Stability Control (ESC)

5-45

FCA Sensor

5-79

Vehicle Stability Management (VSM)

5-47

System Malfunction

5-80

Limitations of the System

5-82

Lane Keeping Assist (LKA) System

5-87

Special Driving Conditions

5-120

LKA System Operation

5-88

Hazardous Driving Conditions

5-120

Warning Light and Message

5-92

Rocking the Vehicle

5-120

Limitations of the System

5-93

Smooth Cornering

5-121

LKA system Function Change

5-94

Driving at Night

5-121

Driver Attention Warning (DAW) System

5-95

Driving in the Rain

5-121

System Setting and Activation

5-95

Driving in Flooded Areas

5-122

Resetting the System

5-96

Highway Driving

5-122

System Standby

5-97

Winter Driving

5-123

System Malfunction

5-97

Snow or Icy Conditions

5-123

Cruise Control

5-99

Winter Precautions

5-125

Cruise Control operation

5-99

Vehicle Load Limit

5-127

Smart Cruise Control System

5-104

Tire Loading Information Label

5-128

Smart Cruise Control Switch

5-105

Trailer Towing

5-132

Smart Cruise Control Speed

5-106

Smart Cruise Control Vehicle-to-Vehicle

Distance

5-110

Sensor to Detect Distance to the Vehicle

Ahead

5-112

To Adjust the Sensitivity of

Smart Cruise Control

5-114

To Convert to Cruise Control Mode

5-115

Limitations of the System

5-115

WARNING

Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.

Engine exhaust contains carbon monoxide which cannot be seen or smelled.

Do not inhale engine exhaust.

If at any time you smell engine exhaust inside the vehicle, open the windows immediately. Exposure to CO can cause

unconsciousness and death by asphyxiation.

Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If

you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the

vehicle, have the exhaust system checked as soon as possible by an authorized HYUNDAI dealer.

Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only

long enough to start the engine and to move the vehicle out of the garage.

Avoid idling the engine for prolonged periods with people inside the vehicle.

If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in an

open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.

Keep the air intakes clear.

To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windshield

clear of snow, ice, leaves, or other obstructions.

If you must drive with the liftgate open:

Close all windows.

Open instrument panel air vents.

Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.

5-3

Content .. 10 11 12 13 ..
