Hyundai Veloster (2019 year). Manual - part 10

Turn signals and lane change

Onetouch turn signal function

•

Do not place objects on the

signals

To activate the One Touch Turn

crash pad that reflect light

Signal function, push the turn signal

such as mirrors, white paper,

lever up or down to position (B) and

etc. The system may malfunc-

then release it.

tion if sunlight is reflected.

The lane change signals will blink 3,

•

At times, the High Beam

5 or 7 times.

Assist

(HBA) may not work

3

properly. The system is for

You can activate or deactivate the

your convenience only. It is

One Touch Turn Signal function or

the responsibility of the driver

choose the number of blinks (3, 5, or

for safe driving practices and

7) from the User Settings mode in

always check the road condi-

the LCD display.

tions for your safety.

•

When the system does not

OOS047410N

For more details, refer to the "LCD

operate normally, change the

Display" section in this chapter.

To signal a turn, push down on the

headlamp position manually

lever for a left turn or up for a right

between the high beam and

turn in position (A).

low beam.

If an indicator stays on and does not

flash or if it flashes abnormally, one of

the turn signal bulbs may be burned

out and will require replacement.

3-85

Daytime running light (DRL)

Interior Lights

Front lamps

The Daytime Running Lights (DRL)

■ Type A

can make it easier for others to see

WARNING

the front of your vehicle during the

day, especially after dawn and before

Do not use the interior lights

sunset.

when driving in the dark. The

The DRL system will turn the dedi-

interior lights may obscure your

view and cause an accident.

3

cated lamp OFF when :

• The headlamps are ON.

• The parking lamps are ON.

NOTICE

• The vehicle is turned off.

Do not use the interior lights for

• The parking brake is engaged.

extended periods when the vehi-

OPD046041

cle is turned off or the battery will

■ Type B

discharge.

Interior lamp AUTO cut

The interior lamps will automatically

go off approximately 20 minutes after

the engine is turned off and the

doors are closed. If a door is opened,

the lamp will go off 40 minutes after

the engine is turned off. If the doors

are locked by the remote key or

smart key and the vehicle enters the

OPD046040

armed stage of the theft alarm sys-

tem, the lamps will go off five sec-

onds later.

3-87

Convenient features of your vehicle

Front Map Lamp (1) :

Front room lamp

Rear lamp (if equipped)

Press either lenses to turn the map

•

(3) :

lamp on or off. This light produces a

Press the button to turn ON the

spot beam for convenient use as a

room lamp for the front/rear seats.

map lamp at night or as a personal

lamp for the driver and the front pas-

senger.

•

(4) :

Press the button to turn OFF the

Front Door Lamp (2) (

):

room lamp for the front/rear seats

regardless of front or rear door open

The front or rear room lamps come on

position.

when the front or rear doors are

opened if the engine is running or not.

When doors are unlocked by the

OOS047321

remote key or smart key, the front and

Rear Room Lamp (

):

rear lamps come on for approximate-

ly 30 seconds as long as any door is

Press this switch to turn the rear

room lamp on and off.

not opened. The front and rear room

lamps go out gradually after approxi-

mately 30 seconds when the door is

closed. However, if the ignition switch

is in the ON position or all doors are

locked, the front and rear lamps will

turn off. If a door is opened with the

ignition switch in the ACC position or

the OFF position, the front and rear

lamps stay on for about 20 minutes.

3-88

Luggage compartment lamp

Vanity mirror lamp

Welcome System

Welcome light

Headlamp and Parking lamp

When the headlamp (lamp switch in

the headlamp or AUTO position) is on

and all doors (and tailgate) are locked

and closed, the parking lamp and

3

headlamp will come on for 15 seconds

if/or any of the below is performed.

• When the door unlock button is

pressed on the remote key or

smart key.

OJS048038

OOS047055

At this time, if you press the door lock

The luggage compartment lamp

Push the switch to turn the light on or

or unlock button on the remote key or

comes on when the liftgate is

off.

smart key the parking lamp and

opened.

•

: The lamp will turn on if this

headlamp will turn off immediately.

button is pressed.

You can activate or deactivate the

NOTICE

•

: The lamp will turn off if this

Welcome Light from the User Settings

button is pressed.

Mode (Light) on the LCD display.

The luggage compartment lamp

comes on as long as the liftgate is

NOTICE

open. To prevent unnecessary bat-

For more details, refer to the "LCD

tery system drain, close the lift-

Always have the switch in the off

Display" section in this chapter.

gate securely after using the lug-

position when the vanity mirror

gage compartment.

lamp is not in use. If the sunvisor

is closed without the lamp off, it

may discharge the battery or dam-

age the sunvisor.

3-89

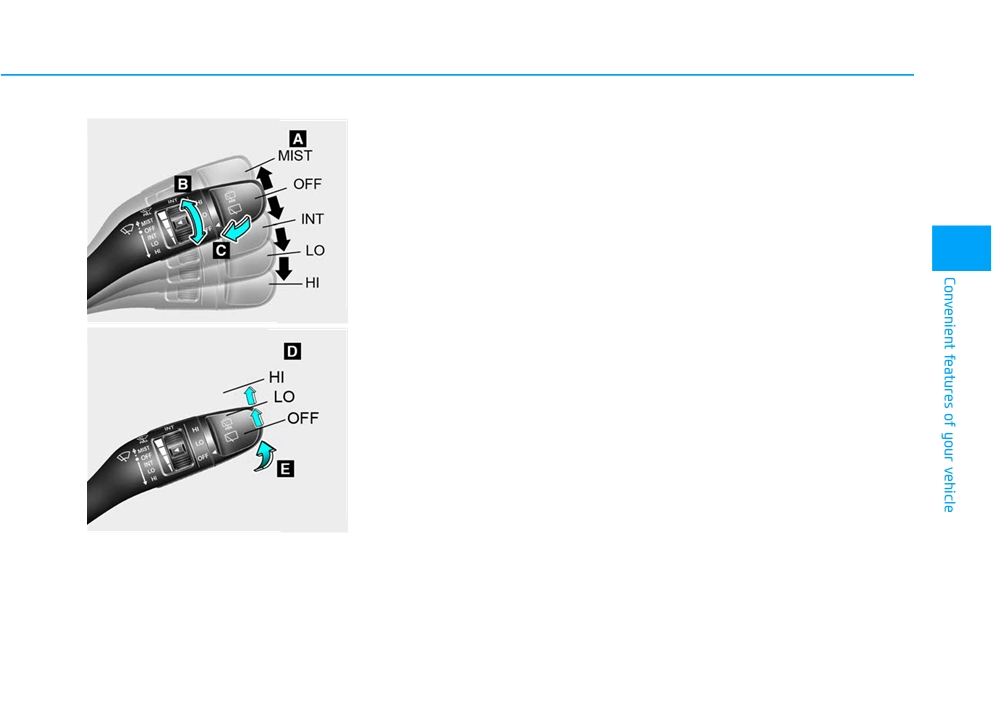

WIPERS AND WASHERS

■ Front windshield wiper/washer

· LO - Low wiper speed

Windshield Wipers

· HI - High wiper speed

Operates as follows when the igni-

tion switch is in the ON position.

B : Intermittent control wipe time

adjustment

MIST : For a single wiping cycle,

push the lever upward and

C : Wash with brief wipes

release. The wipers will oper-

(pull lever towards you)

ate continuously if the lever is

3

held in this position.

D : Rear wiper/washer control

OFF : Wiper is not in operation.

· HI - High wiper speed

INT : Wiper operates intermittently at

· LO - Low wiper speed

OPD047454L

the same wiping intervals. To

· OFF - Off

■ Rear windshield wiper/washer

vary the speed setting, move

the speed control lever. The top

E : Wash with brief wipes (rear)

most setting will run the wipers

(push lever away from you)

most frequently (for more rain).

* : if equipped

The bottom setting will run the

wipers the least frequently (for

less rain).

AUTO : The rain sensor located on

the upper end of the wind-

shield glass senses the

amount of rainfall and con-

OTLA045318

trols the wiping cycle for the

proper interval. The more it

A : Wiper speed control

rains, the faster the wiper

· MIST - Single wipe

operates. When the rain

· OFF - Off

stops, the wiper stops.To

vary the speed setting, turn

· INT - Intermittent wipe

the speed control knob (B).

AUTO* - Auto control wipe

3-91

Convenient features of your vehicle

LO : The wiper runs at a lower speed.

AUTO (Automatic) control

WARNING

HI : The wiper runs at a higher speed.

(if equipped)

The rain sensor located on the upper

To avoid personal injury from

end of the windshield glass senses

i

Information

the windshield wipers, when the

the amount of rainfall and controls

engine is running and the wind-

If there is heavy accumulation of snow

the wiping cycle for the proper inter-

shield wiper switch is placed in

or ice on the windshield, defrost the

val.

the AUTO mode:

windshield for about 10 minutes, or

The wiper operation time will be

until the snow and/or ice is removed

• Do not touch the upper end of

automatically controlled depends on

before using the windshield wipers to

the windshield glass facing

rainfall.

ensure proper operation.

the rain sensor.

When the rain stops, the wiper stops.

If you do not remove the snow and/or

• Do not wipe the upper end of

ice before using the wiper and washer,

To vary the sensitivity setting, turn

the windshield glass with a

it may damage the wiper and washer

the sensitivity control knob.

damp or wet cloth.

system.

If the wiper switch is set in AUTO

• Do not put pressure on the

mode when the ignition switch is in

windshield glass.

the ON position, the wiper will oper-

ate once to perform a self-check of

the system. Set the wiper to OFF

position when the wiper is not in use.

3-92

Windshield Washers

CAUTION

WARNING

•

When washing the vehicle, set

When the outside temperature

the wiper switch in the OFF

is below freezing, ALWAYS

position to stop the auto wiper

warm the windshield using the

operation. The wiper may oper-

defroster to help prevent the

ate and be damaged if the

washer fluid from freezing on

3

switch is set in the AUTO mode

the windshield and obscuring

while washing the vehicle.

your vision which could result

in an accident and serious

•

Do not remove the sensor

injury or death.

cover located on the upper

end of the passenger side

windshield glass. Damage to

OTLE045164

system parts could occur and

In the OFF position, pull the lever

may not be covered by your

gently toward you to spray washer

vehicle warranty.

fluid on the windshield and to run the

•

Because of using a photo sen-

wipers

1-3 cycles. The spray and

sor, temporary malfunction

wiper operation will continue until

could occur according to

you release the lever. If the washer

sudden ambient light change

does not work, you may need to add

made by stone and dust while

washer fluid to the washer fluid

driving.

reservoir.

3-93

Convenient features of your vehicle

NOTICE

Rear Window Wiper and Washer

•

To prevent possible damage to

the washer pump, do not oper-

ate the washer when the fluid

reservoir is empty.

•

To prevent possible damage to

the wipers or windshield, do not

operate the wipers when the

windshield is dry.

•

To prevent damage to the wiper

arms and other components, do

OTLE045166

not attempt to move the wipers

Push the lever away from you to

OTLE045165

manually.

spray rear washer fluid and to run the

•

To prevent possible damage to

The rear window wiper and washer

rear wipers 1~3 cycles. The spray

the wipers and washer system,

switch is located at the end of the

and wiper operation will continue

use anti-freezing washer fluids

wiper and washer switch lever. Turn

until you release the lever.

in the winter season or cold

the switch to the desired position to

weather.

operate the rear wiper and washer.

Auto rear wiper

HI - High wiper speed

The rear wiper will operate while the

LO - Low wiper speed

vehicle is in reverse with the front

OFF - Off

wiper ON by selecting the function on

the LCD display.

Go to 'User Settings → Convenience

→ Auto Rear Wiper (in R)'.

3-94

DRIVER ASSIST SYSTEM

Rear view monitor

WARNING

• During winter the camera

image may be foggy due to

The rear view monitor is not a

the exhaust gas if the vehicle

safety device. It only serves to

is stopped for a long time or

assist the driver in identifying

parked in an indoor parking

objects directly behind the mid-

lot and when you park or stop

dle of the vehicle. The camera

your vehicle on hills.

3

does NOT cover the complete

• Due to the location of the

area behind the vehicle.

camera, the license plate may

be partially shown on the bot-

tom of the rear view screen.

WARNING

OJS048033N

NOTICE

•

Never rely solely on the Rear

The rear view monitor will activate

view monitor when backing-

Always keep the camera lens

when the engine is running and the

up.

clean. The camera may not work

shift lever is in the R (Reverse) posi-

normally if the lens is covered

tion.

•

ALWAYS look around your

vehicle to make sure there are

with dirt, water or snow.

This is a supplemental system that

no objects or obstacles before

helps provide a view of the area

moving the vehicle in any

behind the vehicle through the audio

direction to prevent a collision.

display while the vehicle is in the R

(Reverse) position.

•

Always pay close attention

when the vehicle is driven

close to objects, particularly

pedestrians, and especially

children.

3-95

Convenient features of your vehicle

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)

1. Fan speed control knob

2. Temperature control knob

3. Mode selection buttons

4. Front windshield defroster button

5. Rear window defroster button

6. A/C (Air conditioning) button

7. Air intake control (recirculation) button

OJS048300N

3-96

Heating and Air Conditioning

Mode selection

1. Start the engine.

2. Set the mode to the desired posi-

tion.

To improve the effectiveness of

heating and cooling, select the

mode according to the following:

3

- Heating:

- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to

improve the effectiveness of heat-

ing and cooling, select the mode

according to the following:

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn

the air conditioning system on.

OJS048304

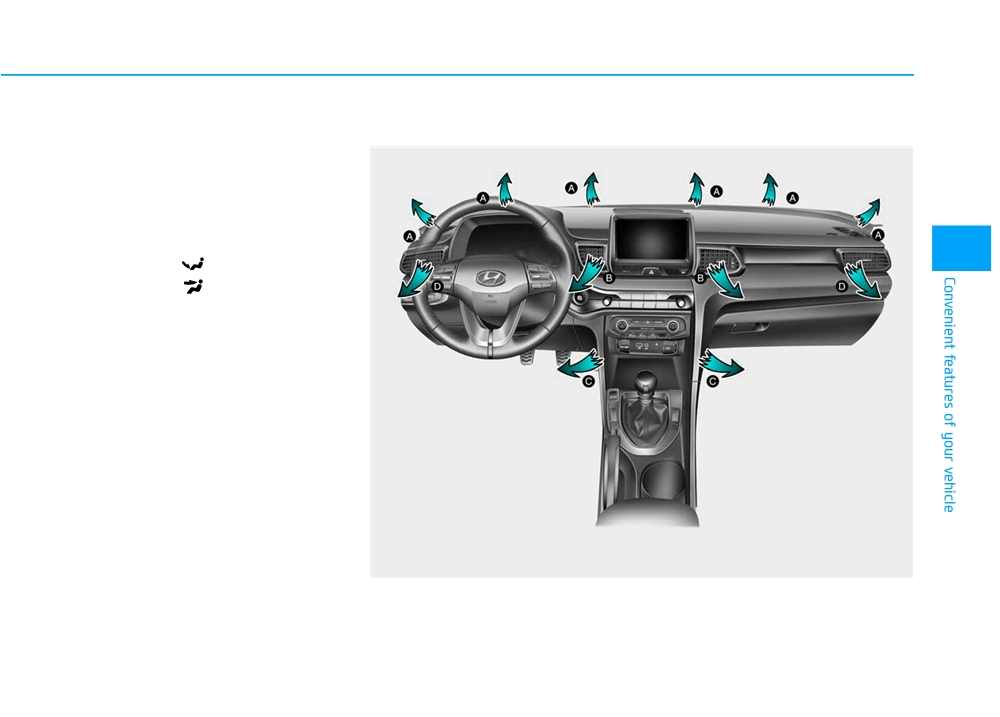

The mode selection button controls the direction of the air flow through the

ventilation system. Air can be directed to the floor, dashboard outlets, or wind-

shield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost

and Defrost air position.

3-97

Convenient features of your vehicle

Floor & Defrost

Face-Level (B, D)

(A, C, D)

Air flow is directed toward the upper

Most of the air flow is directed to the

body and face. Additionally, each

floor and the windshield with a small

outlet can be controlled to direct the

amount directed to the side window

air discharged from the outlet.

defrosters.

Defrost-Level (A, D)

Bi-Level (B, C, D)

OJS048305

Most of the air flow is directed to the

MAX A/C-Level (B, D)

Air flow is directed towards the face

windshield with a small amount of air

The MAX A/C mode is used to cool

and the floor.

directed to the side window defrosters.

the inside of the vehicle faster. Air

flow is directed toward the upper

body and face.

Floor-Level (A, C, D)

In this mode, the A/C button and the

Recirculation mode button cannot be

selected. Turn the fan speed mode to

Most of the air flow is directed to the

adjust.

floor, with a small amount of the air

being directed to the windshield and

After the interior cabin has cooled

side window defrosters.

sufficiently, move the temperature

knob away from the MAX A/C setting

and adjust the knob to the desired

position.

If you wish to continue using A/C ON,

make sure the A/C button LED is illu-

minated.

3-98

Instrument panel vents

Temperature control (2)

i

Information

The temperature will increase by

Using the system primarily in Fresh

turning the knob to the right.

mode and Recirculation mode only

The temperature will decrease by

when needed is recommended for best

turning the knob to the left.

results.

Prolonged operation of the heater in

Air intake control (7)

Recirculation mode and without the

3

A/C ON can cause fogging of the

The air intake control button is used

windshield.

to select either Fresh mode (outside

air) or Recirculation mode (cabin air).

In addition, prolonged use of the A/C

ON in Recirculation mode may result

in excessively dry, dehumidified air in

OJS048306

Recirculation mode

the cabin.

The instrument panel vent air flow

When Recirculation

can be directed up/down or left/right

mode is selected, air

using the vent adjustment lever.

from the passenger

The air flow can also be CLOSED

compartment will be

using the vent adjustment lever. The

recirculated through the

instrument panel air vents are the

system and heated or

"click-to-close" type.

cooled according to the

function selected.

To CLOSE the instrument panel

vents perform the following:

Fresh mode

- For the driver side vents, slide the

vent adjustment lever to the LEFT

When Fresh mode is

until it clicks.

selected, air enters the

- For the passenger side vents, slide

vehicle from outside and

the vent adjustment lever to the

is heated or cooled

right until it clicks.

according to the function

selected.

3-99

Convenient features of your vehicle

Fan speed control (1)

System Operation

WARNING

Turn the knob to the right to increase

Cooling / Ventilation

the fan speed and airflow. Turn the

•

Continued use of the climate

1. Select the Face Level

mode.

knob to the left to decrease fan

control system operation in

2. Set the air intake control to fresh

speed and airflow.

Recirculation mode for a pro-

mode.

longed period of time may

Setting the fan speed control knob to

the "0" position turns off the fan.

3. Set the temperature control to the

cause drowsiness to the

desired position.

occupants in the cabin. This

may lead to loss of vehicle

NOTICE

4. Set the fan speed control to the

control which may lead to an

desired speed.

Operating the fan speed when the

accident.

ignition switch is in the ON posi-

•

Continued use of the climate

Heating

tion could cause the battery to

control system operation in

discharge. Operate the fan speed

1. Select the Floor Level

mode.

Recirculation mode with the

when the engine is running.

2. Set the air intake control to fresh

A/C OFF may allow humidity

mode.

to increase inside the cabin.

This may cause condensation

Air conditioning (6)

3. Set the temperature control to the

to accumulate on the wind-

desired position.

Push the A/C button to turn the sys-

shield and obscure visibility.

tem on (indicator light will illuminate)

4. Set the fan speed control to the

•

Do not sleep in your vehicle or

and off.

desired speed.

remain parked in your vehicle

5. If desired, turn the air conditioning

with the windows up and

ON with the temperature control

either the heater or the air

knob set to heat in order to dehu-

conditioning ON for pro-

midify the air before it enters into

longed periods of time. Doing

the cabin.

so may increase the levels of

If the windshield fogs up, select the

carbon dioxide in the cabin

Floor & Defrost

mode or press

which may lead to serious

the Front Defrost

mode.

injury or death.

3-100

Operation Tips

Air conditioning

NOTICE

•

To keep dust or unpleasant fumes

Your HYUNDAI vehicle air condition-

When using the air conditioning

from entering the vehicle through

ing system is filled with R-1234yf

system, monitor the engine tem-

the ventilation system, temporarily

refrigerant.

perature gauge closely while driv-

set the air intake control to recircu-

1. Start the engine.

ing up hills or in heavy traffic when

lation mode. Return the control to

2. Press the air conditioning button.

outside temperatures are high. Air

Fresh mode when the unpleasant

conditioning system operation

air outside has diminished. This will

3. Set the mode to the Face Level

3

when climbing a steep grade or in

help keep the driver alert and com-

mode.

high outside ambient tempera-

fortable.

4. Set the air intake control to

tures can cause engine overheat-

•

To help prevent the inside of the

Recirculation mode temporarily to

ing.

windshield from fogging, set the air

allow the cabin to cool quickly.

Continue to use the fan, but turn

intake control to fresh mode and

When the desired temperature in

the air conditioning system off if

fan speed to the desired position,

the cabin is reached, change the

the engine temperature gauge

turn on the air conditioning system,

air intake control back to Fresh

indicates engine overheating.

and adjust the temperature control

mode.

to the desired temperature.

5. Adjust the fan speed control and

temperature control to maintain

maximum comfort.

When maximum cooling is desired,

set the temperature control to the

MAX A/C position, then set the fan

speed control to the highest setting.

3-101

Content   ..  8  9  10  11   ..
