Hyundai Ioniq Plug-in Hybrid (2018 year). Manual - part 11

Convenient features of your vehicle

Edit settings after shifting to P/

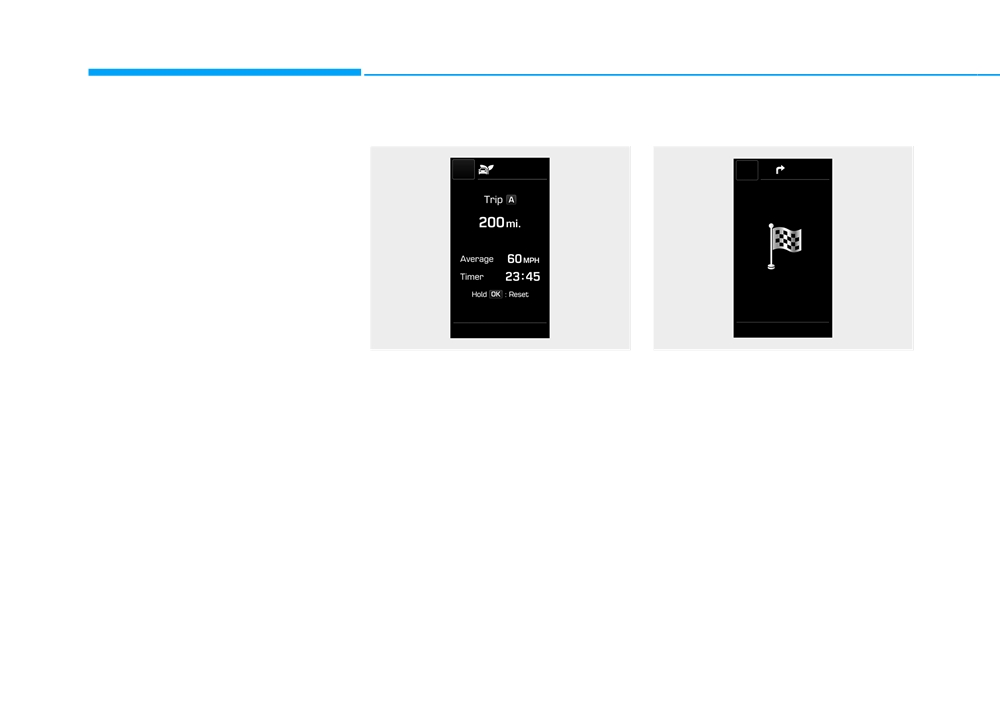

Trip computer mode

Turn By Turn (TBT) mode

Shift to P to edit settings

Either message appears if you try to

adjust the User Settings while driv-

ing.

For your safety, change the User

Settings after parking the vehicle,

applying the parking brake and mov-

ing the shift lever to P (Park).

Quick guide (Help)

This mode provides quick guides for

OAE046503N

OTL045174

the systems in the User Settings

mode.

The trip computer mode displays

This mode displays the state of the

information related to vehicle driving

navigation.

Select an item, press and hold the

parameters including fuel economy,

OK button.

tripmeter information and vehicle

speed.

For more information, about each

system, refer to this Owner's

For more information, refer to

Manual.

"Trip Computer" in this chapter.

3-90

SCC/LKAS mode

A/V mode

Information mode

This mode displays the service inter-

val (mileage and days).

3

OAE057195N

OTL045178

This mode displays the state of the

This mode displays the state of the

Smart Cruise Control

(SCC) and

A/V system.

OTLA045182

Lane Keeping Assist System (LKAS).

Service interval

Service in

For more information, refer to

It calculates and displays the mainte-

"Smart Cruise Control (SCC)" and

nance schedule (mileage or days),

"Lane Keeping Assist System

as set in the system.

(LKAS)" in chapter 5.

When the set mileages or days

passed, "Service in" message is dis-

played for several seconds each time

Engine Start/Stop button is turned

ON.

3-91

Convenient features of your vehicle

Warning message

If one of followings occurs, warning

messages will be displayed in the

information mode for several seconds.

-

Low washer fluid (if equipped)

-

Exterior lamp malfunction

-

Blind Spot Detection (BSD) mal-

function (if equipped)

-

Tire Pressure Monitoring System

(TPMS) malfunction

OTLA045297

OTL045299L

-

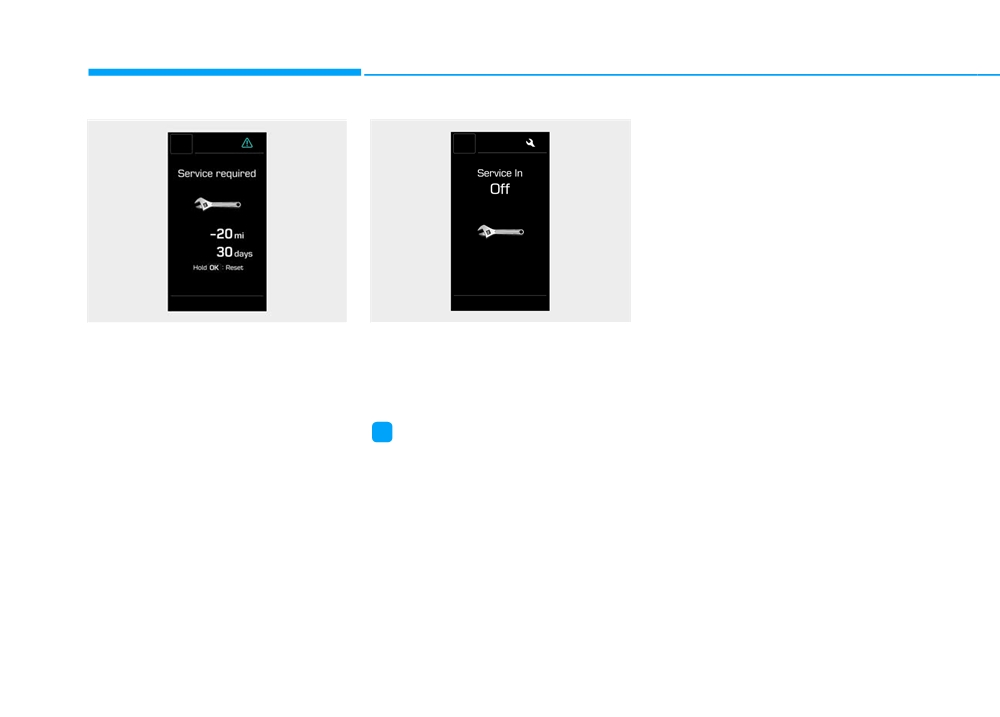

Autonomous Emergency Braking

Service required

Service in OFF

(AEB) malfunction (if equipped)

If you exceed the specified service

If the service interval is not set,

-

Smart cruise control malfunction

interval, a message indicating,

"Service in OFF" message is dis-

(if equipped)

"Service required" will be displayed

played on the LCD display.

-

Service reminder

each time you turn ON the vehicle.

i

Information

To reset the service interval in

If any of the following conditions

mileages or days that you initially

occur, the mileage and number of days

set, press the OK button for more

to service may be incorrect.

than 1 second.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

3-92

4. Convenience

• Gear Position Pop-up

If the service interval is activated and

the time and distance is adjusted,

• Seat Easy Access

To activate or deactivate the gear

messages are displayed in the fol-

position pop-up.

- Off: The seat easy access function

lowing situations each time the vehi-

is deactivated.

When activated, the gear position

cle is turned on.

will be displayed on the LCD display.

- Normal/Extended: When you turn

- Service in

off the engine, the driver's seat will

: Displayed to inform the driver the

automatically move rearward short

5. Service Interval

remaining mileage and days to

3

(Normal) or long (Extended) for you

• Service Interval

service.

to enter or exit the vehicle more

comfortably.

To activate or deactivate the service

- Service required

interval function.

For more information, refer to

: Displayed when the mileage and

"Driver Position Memory System"

If the service interval menu is acti-

days to service has been reached

in this chapter.

vated, you may adjust the time and

or passed.

distance.

• Wireless Charging System

i

Information

To activate or deactivate the wireless

i

Information

If any of the following conditions

charging system in the front seat.

occur, the mileage and number of days

To use the service interval menu, con-

For more information, refer to

sult an authorized HYUNDAI dealer.

to service may be incorrect.

"Wireless Charging System" in

- The battery cable is disconnected.

this chapter.

- The fuse switch is turned off.

- The battery is discharged.

• Wiper/Lights Display

To activate or deactivate the Wiper/

Light mode.

When activated, the LCD display

shows the selected Wiper/Light

mode whenever you change the

mode.

3-95

LCD Display Modes (for cluster type B)

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, etc.

Trip Computer

For more information, refer to "Trip Computer" in this chapter.

3

Turn By Turn (TBT)

This mode displays the state of the navigation.

This mode displays the state of :

- Lane Keeping Assist System (LKAS)

- Smart Cruise Control

Assist

- Tire Pressure

For more information, refer to "Lane Keeping Assist System (LKAS)", "Smart

Cruise Control (SCC)" in chapter 5 and "Tire Pressure Monitoring System

(TPMS)" in chapter 6.

User Settings

In this mode, you can change settings of the doors, lamps, etc.

Warning

This mode displays warning messages related to the Blind Spot Detection system, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

3-97

Convenient features of your vehicle

Edit settings after shifting to P/

Quick guide help

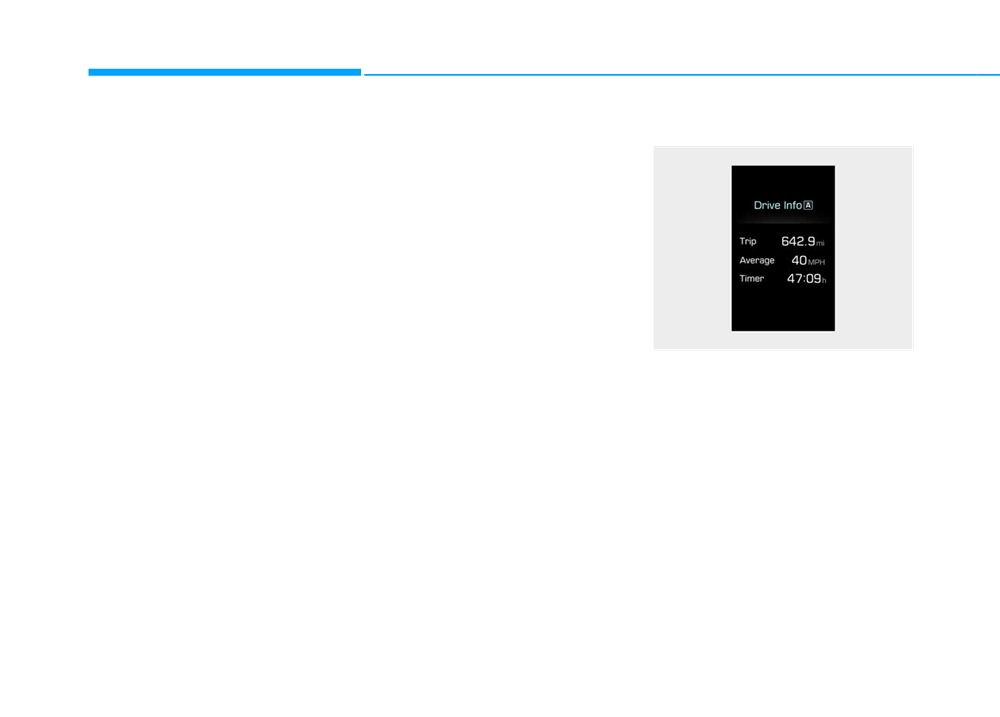

Trip computer mode

Shift to P to edit settings

This mode provides quick guides for

Either message appears if you try to

the systems in the User Settings

adjust the User Settings while driv-

mode.

ing.

Select an item, press and hold the

For your safety, change the User

OK button.

Settings after parking the vehicle,

For more information about each

applying the parking brake and mov-

system, refer to this Owner's

ing the shift lever to P (Park).

Manual.

OAEE046191N

The trip computer mode displays

information related to vehicle driving

parameters including fuel economy,

tripmeter information and vehicle

speed.

For more information, refer to

"Trip Computer" in this chapter.

3-98

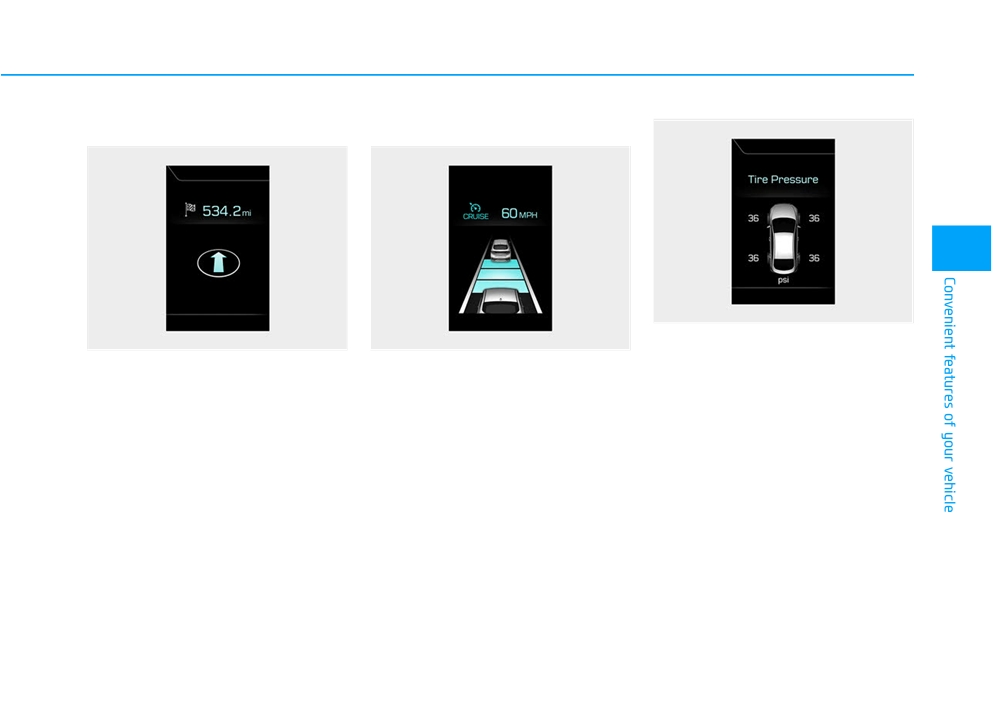

Turn By Turn (TBT) mode

Assist mode

3

OAE066030L

Tire Pressure

OAEE046505N

OAEE046137R

This mode displays information relat-

This mode displays the state of the

SCC/LKAS

ed to Tire Pressure.

navigation.

This mode displays the state of the

Smart Cruise Control

(SCC) and

For more information, refer to

Lane Keeping Assist System (LKAS).

"Tire Pressure Monitoring System

(TPMS)" in chapter 6.

For more information, refer to

"Smart Cruise Control (SCC)" and

"Lane Keeping Assist System

(LKAS)" in chapter 5.

3-99

If the service interval is activated and

6. Other (Features)

• Fuel Economy Unit

the time and distance is adjusted,

To select the fuel economy unit.

• Aux. Battery Saver+

messages are displayed in the fol-

(US gallon, UK gallon)

To activate or deactivate the Aux.

lowing situations each time the vehi-

Battery Saver+ function.

cle is turned on.

• Temperature Unit

When activated, the high voltage bat-

To select the temperature unit.

- Service in

tery is used to keep the 12V battery

(°C,°F)

: Displayed to inform the driver the

charged.

remaining mileage and days to

3

For more information, refer to

• Tire Pressure Unit

service.

"Hybrid System Overview" provid-

To select the tire pressure unit.

- Service required

ed in the front of the owner's man-

(psi, kPa, bar)

: Displayed when the mileage and

ual.

days to service has been reached

• Language

or passed.

To select language.

• Fuel Economy (Auto) Reset

- Off: The average fuel economy will

i

Information

7. Reset

not reset automatically whenever

If any of the following conditions

refueling.

You can reset the menus in the User

occur, the mileage and number of days

Settings Mode. All menus in the User

- After Ignition: When the engine has

to service may be incorrect.

Settings Mode are reset to factory

been OFF for 4 hours or longer the

settings, except language and serv-

- The battery cable is disconnected.

average fuel economy will reset

ice interval.

- The fuse switch is turned off.

automatically.

- After Refueling: The average fuel

- The battery is discharged.

economy will reset automatically

after adding 1.6 gallons (6 liters) of

fuel or more and after driving speed

exceeds 1 mph (1 km/h).

For more information, refer to

"Trip Computer" in this chapter.

3-103

Convenient features of your vehicle

TRIP COMPUTER (HYBRID VEHICLE)

The trip computer is a microcomput-

Trip modes

■ Type A

er-controlled driver information sys-

tem that displays information related

• Range

to driving.

(Only for cluster type A)

• Average Fuel Economy

■ Type B

i

Information

• Instant Fuel Economy

Some driving information stored in the

trip computer (for example Average

Vehicle Speed) resets if the battery is

■ Type C

disconnected.

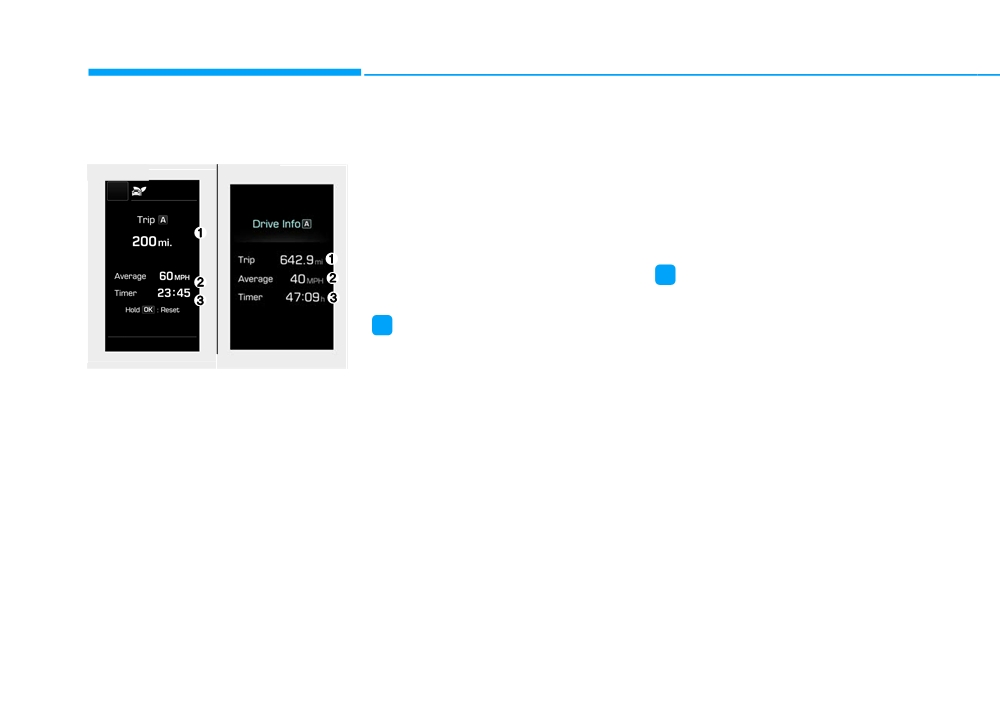

• Tripmeter

• Average Vehicle Speed

• Timer

OAE046402

To change the trip mode, toggle the

"

,

" switch on the steering wheel.

Digital Speedometer

Driving Style

Energy Flow

Engine Coolant Temperature

(Only for cluster type B)

3-104

Range/Average fuel economy/

(Continued)

Automatic reset

Instant fuel economy

• The range may differ from the actu-

To automatically reset the average

al driving distance as it is an esti-

fuel economy, select between "After

■ Type A

■ Type B

mate of the available driving dis-

Ignition" or "After Refueling" in the

tance.

User Settings mode on the LCD dis-

• The trip computer may not register

play.

additional fuel if less than 1.6 gallons

- After Ignition: When the vehicle has

(6 liters) of fuel are added to the vehi-

been OFF for 4 hours or longer the

3

cle.

average fuel economy will reset

• The fuel economy and range may

automatically.

vary significantly based on driving

- After Refueling: The average fuel

conditions, driving habits, and condi-

economy will reset automatically

tion of the vehicle.

after adding 1.6 gallons (6 liters) of

fuel or more and after driving speed

OAEPH047208N/OAEPH047506N

exceeds 1 mph (1 km/h).

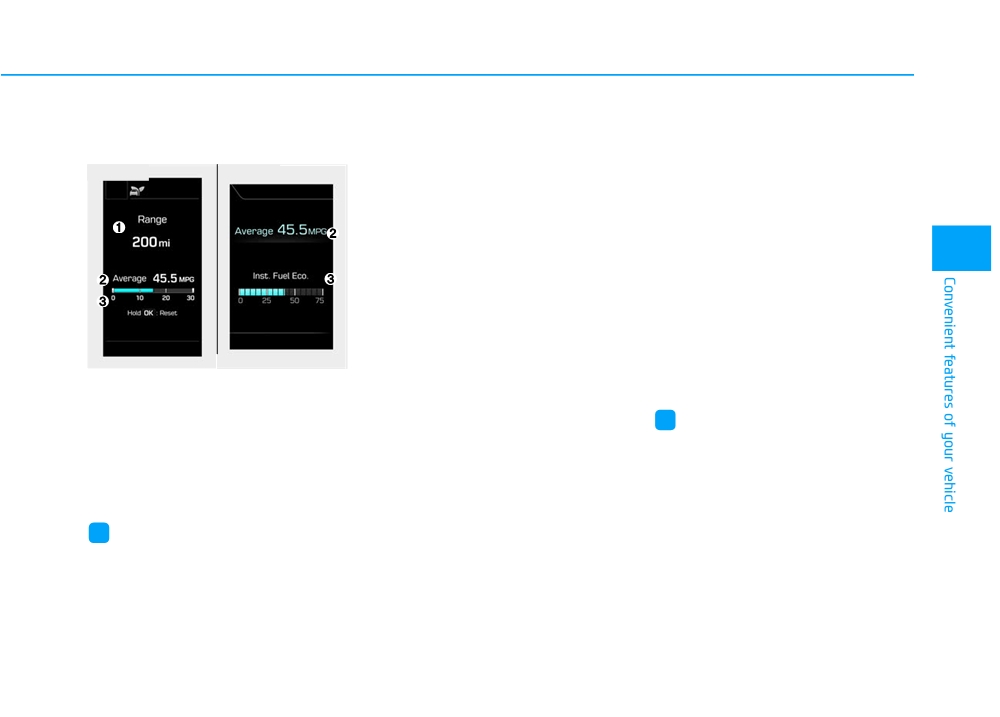

Range (1)

Average Fuel Economy (2)

• The range is the estimated dis-

• The average fuel economy is calcu-

tance the vehicle can be driven

lated by the total driving distance

i

Information

with the remaining fuel.

and fuel consumption since the last

The vehicle must be driven for a min-

average fuel economy reset.

• If the estimated distance is below

imum of 0.19 miles (300 meters) since

1 mi. (1 km), the trip computer will

• The average fuel economy can be

the last ignition key cycle before the

display "----" as range.

reset both manually and automati-

average fuel economy will be recalcu-

cally.

lated.

i

Information

Manual reset

• If the vehicle is not on level ground

Instant Fuel Economy (3)

To clear the average fuel economy

or the battery power has been inter-

• This mode displays the instanta-

manually, press the OK button on the

rupted, the range function may not

neous fuel economy while driving.

steering wheel for more than 1 sec-

operate correctly.

ond when the average fuel economy

(Continued)

is displayed.

3-105

Convenient features of your vehicle

Tripmeter/Average vehicle speed/

Average Vehicle Speed (2)

Timer (3)

Timer

• The average vehicle speed is cal-

• The timer is the total driving time

culated by the total driving dis-

since the last timer reset.

■ Type A

■ Type B

tance and driving time since the

• To reset the timer, press the OK

last average vehicle speed reset.

button on the steering wheel for

• To reset the average vehicle speed,

more than 1 second when the timer

press the OK button on the steering

is displayed.

wheel for more than 1 second when

the average vehicle speed is dis-

i

Information

played.

The timer will continue to be counted

while the engine is still running (for

i

Information

example, when the vehicle is in traffic

• The average vehicle speed is not dis-

or stopped at a stop light.)

OAE046503N/OAEE046191N

played if the driving distance is less

Tripmeter (1)

than 0.19 miles (300 meters) or the

driving time is less than 10 seconds,

• The tripmeter is the total driving

distance since the last tripmeter

after resetting the vehicle speed.

reset.

• The average vehicle speed will con-

• To reset the tripmeter, press the

tinue to be calculated and will start

to decrease if the vehicle is stopped

OK button on the steering wheel

for more than 1 second when the

while the engine is still running (for

example, when the vehicle is in traf-

tripmeter is displayed.

fic or stopped at a stop light.)

3-106

Content   ..  9  10  11  12   ..
