Press START button with key

Door, Hood, Liftgate Open

■ Type A

This message is displayed if you

press the Engine Start/Stop button

while the warning message "Key not

detected" is displayed.

At this time, the immobilizer indicator

light blinks.

Check BRAKE SWITCH fuse

This message is displayed if the

brake switch fuse is disconnected.

OAD045136

You need to replace the fuse with a

If the door/liftgate open warning is

OAE046165

new one before starting the engine.

blocked with another warning mes-

This warning is displayed indicating

sage, an icon will appear on the top

If that is not possible, you can start

which door, or hood, or liftgate is

of the LCD display.

the engine by pressing the Engine

open.

Start/Stop button for 10 seconds in

the ACC position.

CAUTION

Shift to P to start vehicle

Before driving the vehicle, you

This message is displayed if you try

should confirm that the door/

to start the engine with the shift lever

hood/liftgate is fully closed.

not in the P (Park) position.

Also, check there is no door

/hood/liftgate open warning light

or message displayed on the

instrument cluster.

3-74

Sunroof Open (if equipped)

Icy Road Warning Light

i

Information

(if equipped)

If the icy road warning light appears

■ Type A

■ Type B

while driving, you should drive more

attentively and safely refraining from

over-speeding, rapid acceleration, sud-

den braking or sharp turning, etc.

3

OAEE046114

OAE046461L/OAE046099L

This warning is displayed if you turn

off the engine when the sunroof is

This warning light is to warn the driver

open.

the road may be icy.

When the temperature on the out-

side temperature gauge is approxi-

mately below

40°F (4°C), the Icy

Road Warning Light and Outside

Temperature Gauge blinks and then

illuminates. Also, the warning chime

sounds 1 time.

3-75

Convenient features of your vehicle

Low Pressure

Turn on FUSE SWITCH/

Low Washer Fluid (if equipped)

Turn FUSE SWITCH On

This message is displayed if the

■ Type A

■ Type B

washer fluid level in the reservoir is

nearly empty.

Have the washer fluid reservoir

refilled.

Low Fuel

This message is displayed if the fuel

tank is almost out of fuel.

When this message is displayed, the

low fuel level warning light in the

OAE046114L/OAE046115L

cluster will come on.

OLFH044149L/OAEPH047564N

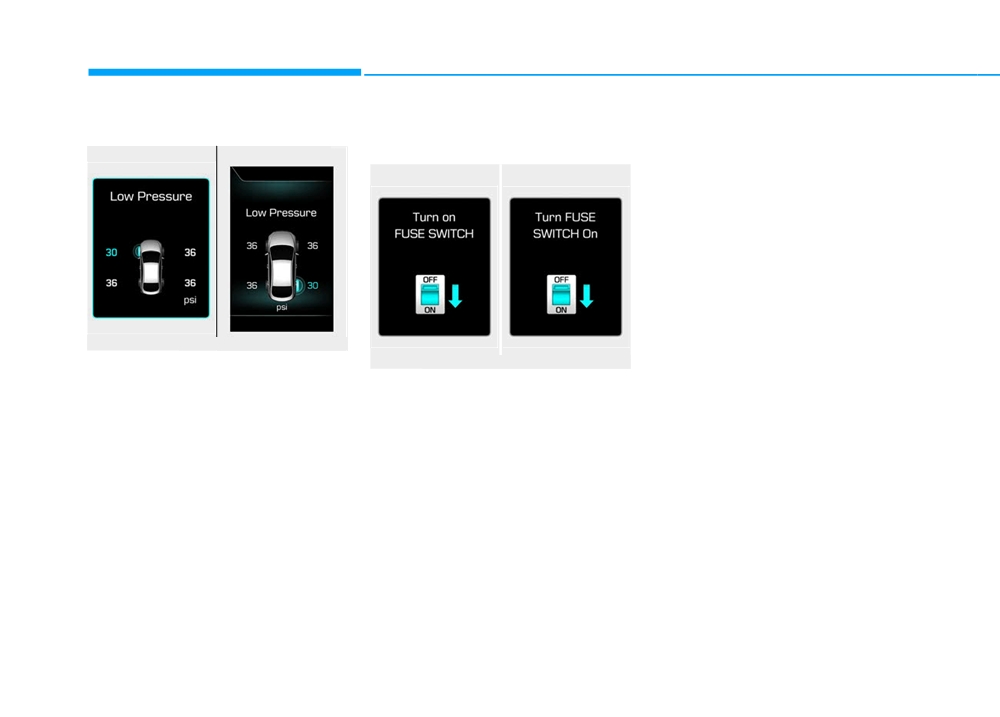

This message is displayed if the tire

It is recommended to look for the

pressure is low. The corresponding

Either message is displayed if the

nearest fueling station and refuel as

tire on the vehicle will be illuminated.

fuse switch located on the fuse box

soon as possible.

under the steering wheel is OFF.

For more details, refer to "Tire

Add fuel as soon as possible.

You should turn the fuse switch on.

Pressure Monitoring System

(TPMS)" in chapter 6.

For more details, refer to "Fuses"

Engine has overheated / Engine

in chapter 7.

overheated

Either message is displayed when

the engine coolant temperature is

above 248°F (120°C). This means

that the engine is overheated and

may be damaged.

If your vehicle is overheated, refer

to "Overheating" in chapter 6.

3-76

Lights Mode

Wiper

Check headlight (if equipped)

This message is displayed if the

headlamps are not operating proper-

ly. A headlamp bulb may need to be

replaced.

i

Information

3

Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

OAE046117L

OAE046118L

Check LKAS/Check Lane

Keeping Assist System

This indicator displays which exterior

This indicator displays which wiper

(if equipped)

light is selected using the lighting

speed is selected using the wiper

Either message is displayed if there

control.

control.

is a problem with the Lane Keeping

Assist System

(LKAS). Have the

vehicle inspected by an authorized

HYUNDAI dealer.

For more information, refer to

"Lane Keeping Assist System

(LKAS)" in chapter 5.

3-77

Convenient features of your vehicle

Rear parking assist system mal-

Check Active Air Flap System

Check Hybrid system

function (if equipped)

OLFH044262L

OLFH044248L

OAE046462L

This message is displayed in the fol-

This message is displayed when

This warning is displayed if there is a

lowing situations:

there is a problem with the hybrid

problem with the Parking Assist

- There is a malfunction with the

control system.

System. Have the vehicle inspected

actuator flap

Refrain from driving when the warn-

by an authorized dealer of

ing message is displayed.

- There is a malfunction with the

HYUNDAI.

actuator air flap controller

In this case, have your vehicle inspect-

ed by an authorized HYUNDAI dealer.

- The air flap does not open

For more information, refer to

"Driver Assist System" in chapter 3.

When all of the above conditions are

fixed, the warning will disappear.

3-78

Check Hybrid system.

Check Hybrid system.

Stop vehicle and check power

Turn engine Off

Do not start engine

supply

3

OAEPH047560N

OLFH044240L

OLFH044230L

This message is displayed when

This message is displayed when the

This message is displayed when a

there is a problem with the hybrid

hybrid battery power (SOC) level is

failure occurs in the power supply

system. The "

" indicator will blink

low. A warning chime will sound until

system.

and a warning chime will sound until

the problem is solved.

In this case, park the vehicle in a

the problem is solved.

In this case have your vehicle inspect-

safe location and tow your vehicle to

In this case, have your vehicle inspect-

ed by an authorized HYUNDAI dealer.

the nearest authorized HYUNDAI

ed by an authorized HYUNDAI dealer.

dealer and have the vehicle inspect-

ed.

3-79

Convenient features of your vehicle

Stop vehicle to charge battery/

Refuel to prevent Hybrid battery

Refill inverter coolant

Park with engine On to charge

damage

battery

OLFH044244L

OLFH044242L

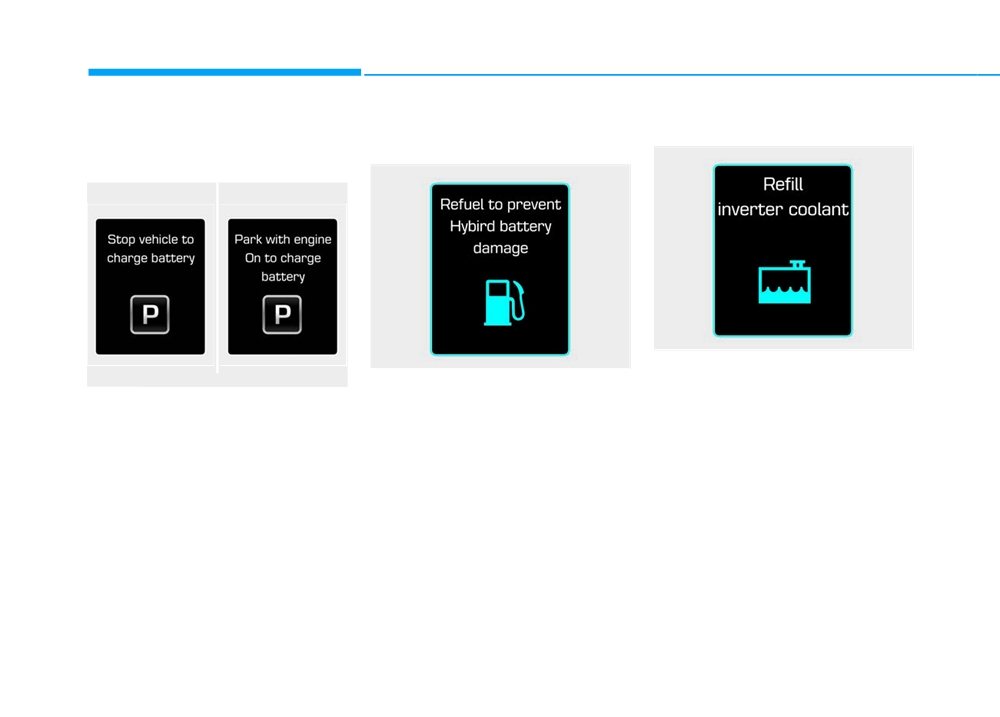

This message is displayed when the

OLFH044232L/OAEPH047561N

This message is displayed when the

inverter coolant is nearly empty.

fuel tank is nearly empty.

You should refill the inverter coolant.

Either message is displayed when

the hybrid battery power (SOC) level

You should refill the fuel tank to pre-

is low.

vent hybrid battery damage.

In this case, park the vehicle in a

safe location and wait until the hybrid

battery is charged.

3-80

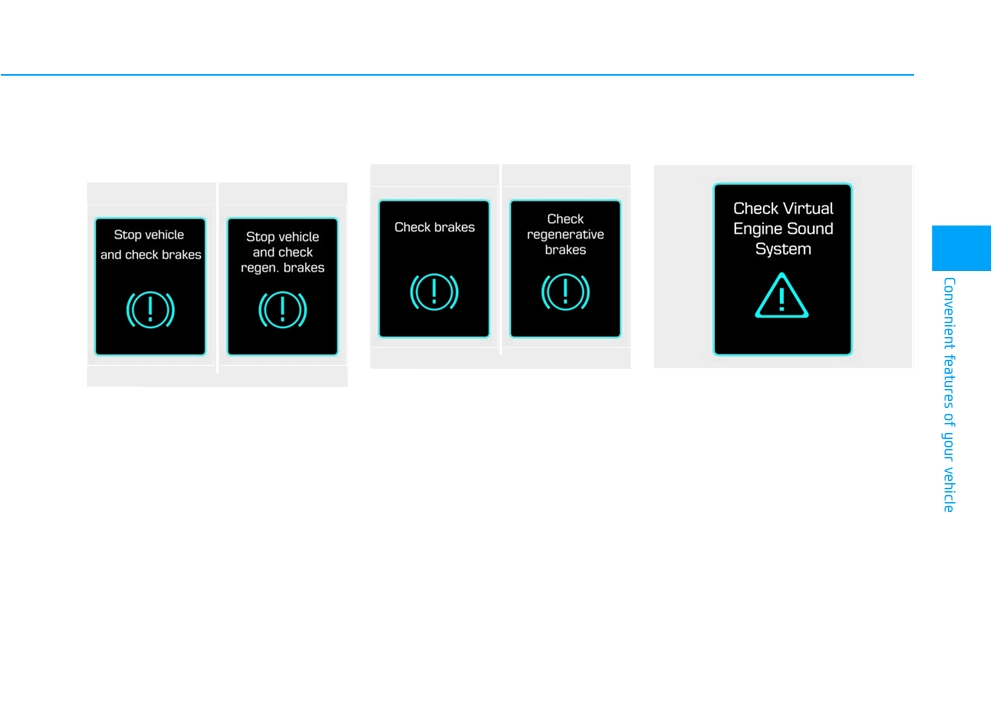

Stop vehicle and check brakes/

Check brakes/Check regenera-

Check Virtual Engine Sound

Stop vehicle and check regen.

tive brakes

System

brakes

3

OLFH044250L/OAEPH047563N

OLFH044543L

OLFH044234L/OAEPH047562N

Either message is displayed when

This message is displayed when

the brake performance is low or the

there is a problem with the Virtual

Either message is displayed when a

regenerative brake does not work

Engine Sound System (VESS).

failure occurs in the brake system.

properly due to a failure in the brake

In this case, have your vehicle inspect-

In this case, park the vehicle in a safe

system.

ed by an authorized HYUNDAI dealer.

location and tow your vehicle to the

In this case, it may take longer for the

nearest authorized HYUNDAI dealer

brake pedal to operate and the brak-

and have the vehicle inspected.

ing distance may become longer.

3-81

Convenient features of your vehicle

Unplug vehicle to start

Remaining time

Wait until fuel door opens

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

OLFP045258N

OAEPH047193N

OAEPH047201L

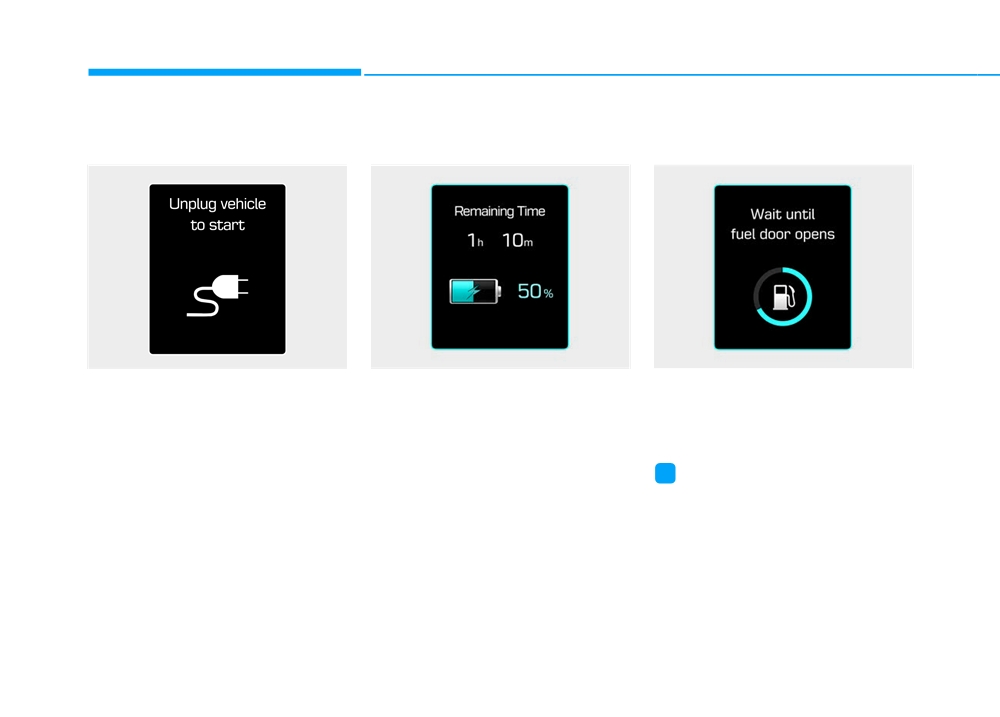

This message is displayed when you

This message is displayed to notify

This message is displayed when you

start the engine without unplugging

the remaining time to fully charge the

attempt to open the fuel filler door

the charging cable. Unplug the

battery.

with the fuel tank pressurized. Wait

charging cable, and then start the

until the fuel tank is depressurized.

vehicle.

i

Information

It may take up to 20 seconds to open

fuel filler door.

3-82

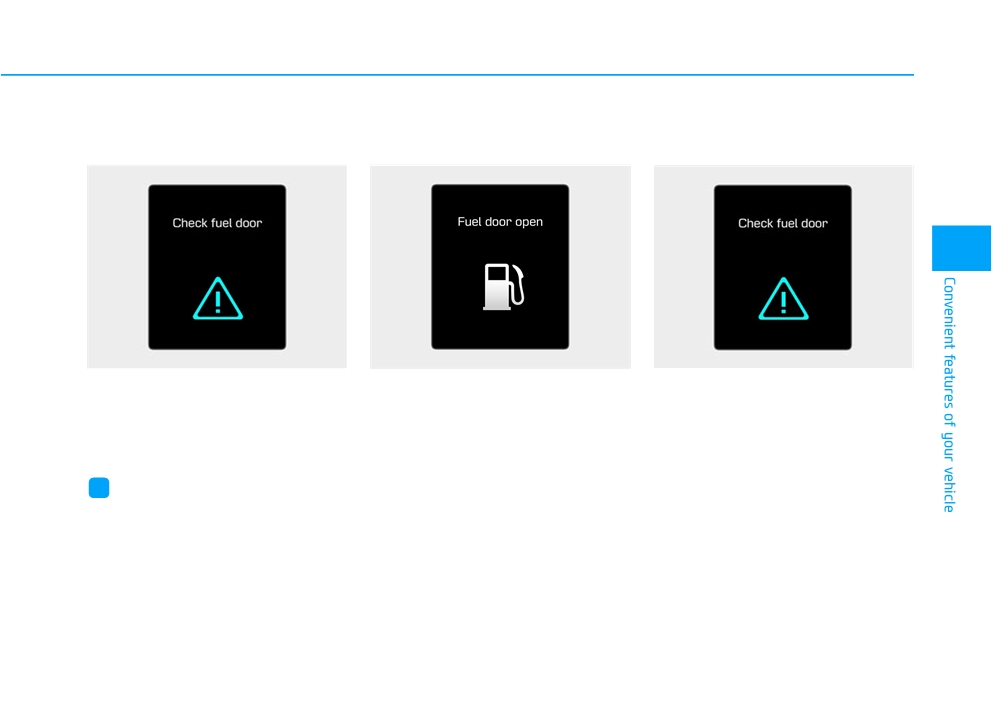

Check fuel door

Fuel door open

Check fuel door

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

3

OAEPH047526L

OAEPH047525L

OAEPH047526L

This message is displayed when

This message is displayed when the

This message is displayed when the

there is a problem with the fuel filler

fuel filler door opens after the fuel

vehicle is driven with the fuel filler

door. Such as, when the fuel filler

tank is depressurized. If this mes-

door opened. Close the fuel filler

door does not open after 20 seconds

sage is displayed, you can refuel the

door and then start driving.

at freezing temperature.

fuel tank.

i

Information

When the fuel filler door is frozen and

does not open after

20 seconds at

freezing temperature, slightly tap the

fuel filler door and then attempt to

open it. In other cases, have your vehi-

cle inspected by an authorized

HYUNDAI dealer.

3-83

Convenient features of your vehicle

Shift to P to charge

AC Charger Error!

Aux. Battery Saver+ was used

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

while parked

(Plug-in hybrid vehicle)

OAEPH047202L

OAEE047134N

OAEE047143N

This message is displayed when the

This message is displayed when

charging connector is plugged with

there is a problem with the charger.

This message is displayed when the

the shift lever in R

(Reverse), N

Aux. Battery Saver+ function has

(Neutral) or D (Drive). Move the shift

been completed when the vehicle is

lever to P

(Park) and re-start the

turned ON.

charging process.

For more information, refer to

"Hybrid System Overview" provided

in the front of the owner's manual.

3-84

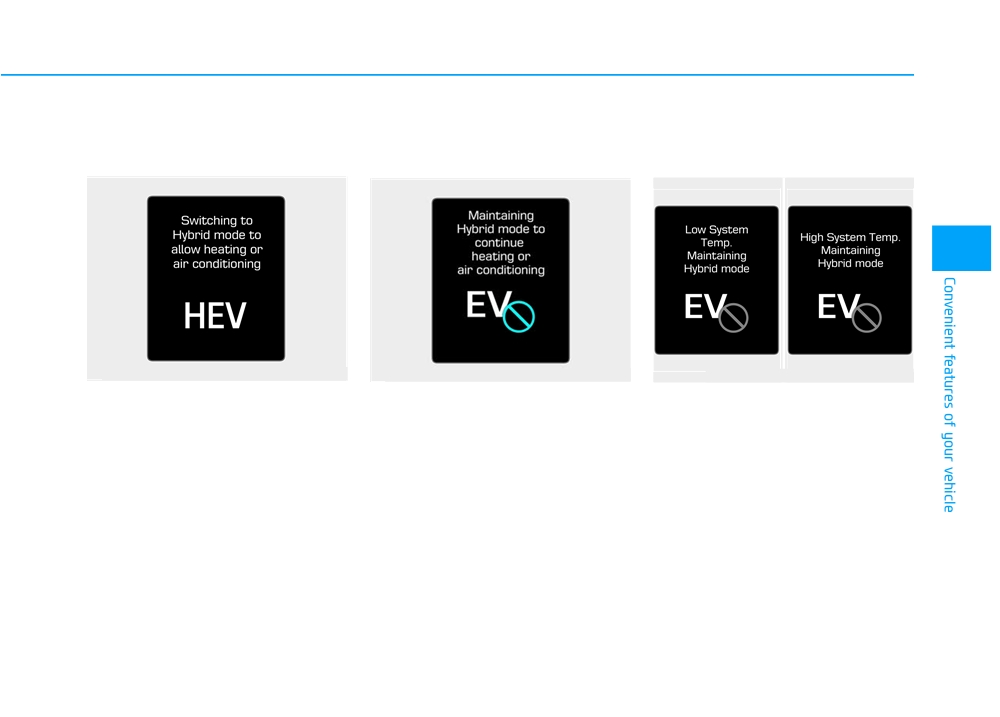

Switching to Hybrid mode to

Maintaining Hybrid mode to

Low/High System Temp.

allow heating or air condition-

continue heating or air condi-

Maintaining Hybrid mode

ing (Plug-in hybrid vehicle)

tioning (Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

3

OAEPH047207L

OAEPH047527L

OAEPH047203L/OAEPH047204L

This message is displayed when the

This message is displayed when the

This message is displayed when the

vehicle automatically switches to

vehicle maintains the HEV mode to

temperature of the high-voltage

HEV mode to allow heating or air

allow heating or air conditioning. The

(hybrid) battery is too low or too high.

conditioning. It is when the coolant

mode does not change when the

This warning message is to protect

temperature is low (below 7 °F (-14

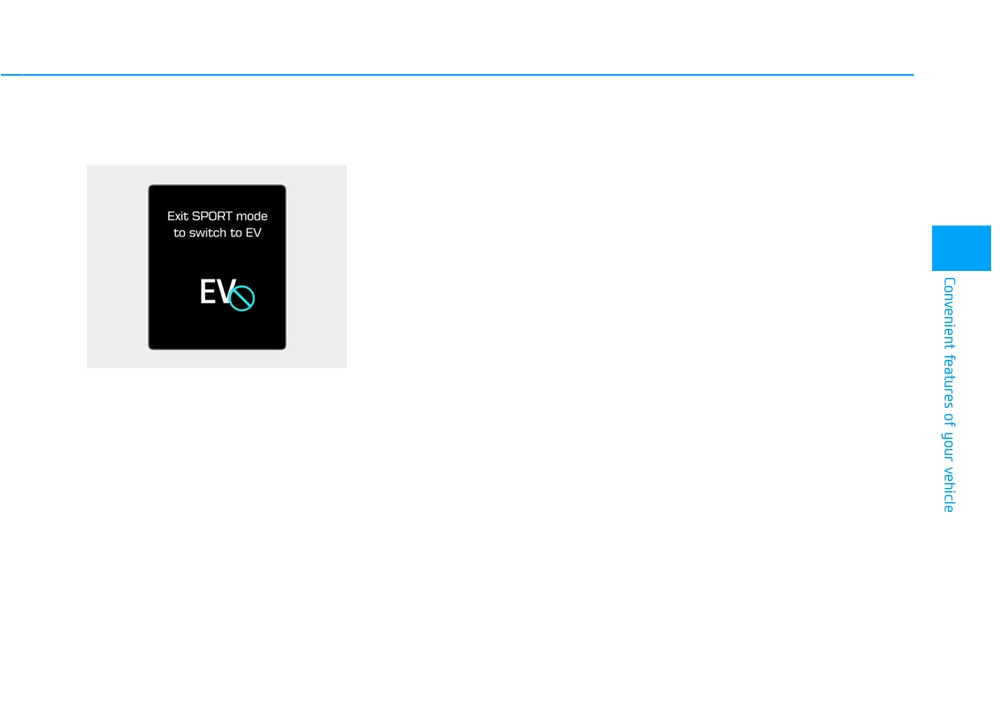

driver presses the [EV/HEV] button

the battery and the hybrid system.

°C)) and the driver turns on the heat-

to switch from the HEV mode to EV

ing or cooling system.

mode while the heating and cooling

system is on and the coolant temper-

If the coolant temperature gets high-

er than 7 °F (-14 °C) or the driver

ature is below 7 °F (-14 °C).

turns off the heating or cooling sys-

tem the vehicle returns to its default

(EV) mode.

3-85

Convenient features of your vehicle

Low/High System Temp.

Switching to Hybrid mode to

Maintaining Hybrid mode to

Switching to Hybrid mode

lubricate engine

protect engine

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

(Plug-in hybrid vehicle)

OAEPH047205L/OAEPH047206L

OAEPH047530L

OAEPH047528L

This message is displayed when the

This message is displayed when the

This message is displayed when the

temperature of the high-voltage

vehicle is automatically switched to

[EV/HEV] button is pressed but it is

(hybrid) battery is too low or high.

the HEV mode to lubricate engine

impossible to switch from the HEV

This warning message is to protect

while the Engine Start/Stop button is

mode to EV mode due to engine

the battery and the hybrid system.

in the ON position.

lubrication.

3-86

Exit SPORT mode to switch to

EV (Plug-in hybrid vehicle)

3

OAEPH047531N

This message is displayed when

[EV/HEV] button is pressed but it is

impossible to switch from the HEV

mode to EV mode because the

SPORT mode is engaged.

3-87

Convenient features of your vehicle

LCD DISPLAY

LCD Display Control

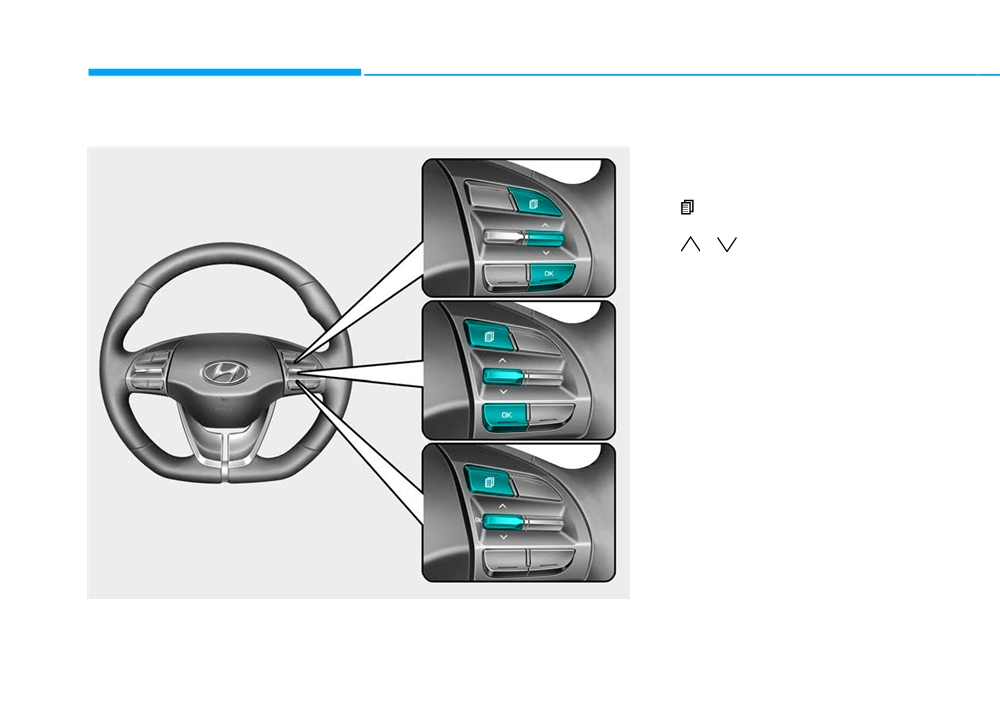

The LCD display modes can be

■ Type A

changed by using the control buttons.

(1)

: MODE button for changing

modes

(2)

,

: MOVE switch for

changing items

(3) OK : SELECT/RESET button for

setting or resetting the select-

■ Type B

ed item

■ Type C

OAE046402

3-88

LCD Display Modes (for cluster type A)

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, etc.

Trip Computer

For more information, refer to "Trip Computer" in this chapter.

3

Turn By Turn (TBT)

This mode displays the state of the navigation.

This mode displays the state of :

- Lane Keeping Assist System (LKAS)

- Smart Cruise Control

SCC/LKAS

For more information, refer to "Smart Cruise Control (SCC)" and

"Lane Keeping Assist System (LKAS)" in chapter 5.

A/V

This mode displays the state of the A/V system.

This mode displays the service interval (mileage or days) and warning mes-

Information

or

or

sages related to the Blind Spot Detection system, etc.

User Settings

In this mode, you can change settings of the doors, lamps, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

3-89

Content   ..  8  9  10  11   ..
