Honda Accord (2019 year). Manual - part 44





688

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

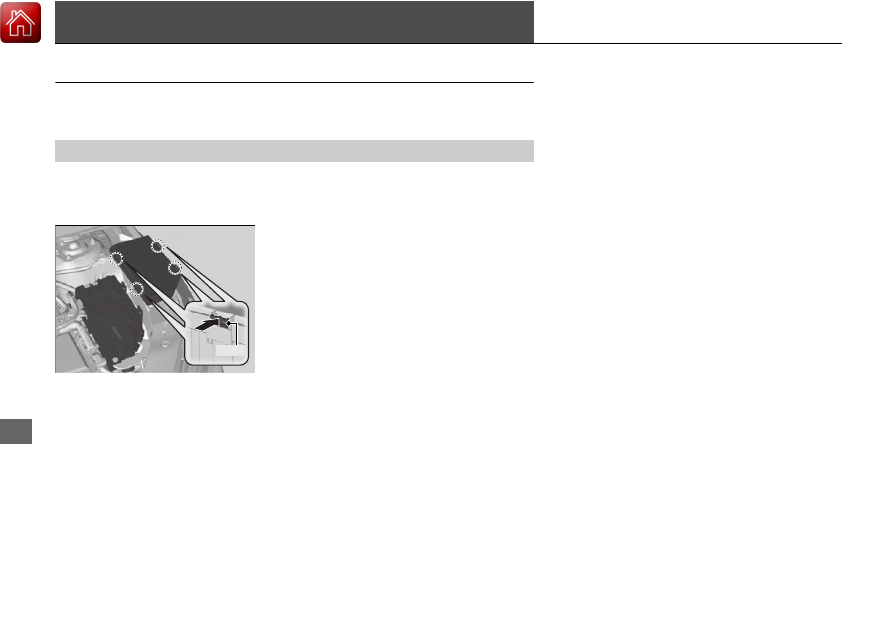

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse Box

Tab

689

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

BATTERY

125 A

2

−

(70 A)

EPS

70 A

−

(30 A)

FUSE BOX MAIN 2

60 A

EBB

40 A

ABS/VSA FSR

40 A

−

(30 A)

IG MAIN1

30 A

3

REAR DEFROSTER

40 A

FUSE BOX MAIN 1

60 A

−

(30 A)

HEATER MOTOR

40 A

−

(40 A)

ST MG

30 A

SUB FAN MOTOR

30 A

−

(30 A)

4

−

(30 A)

FUSE BOX OP 2

*

(70 A)

−

(40 A)

FUSE BOX OP 1

60 A

5

−

(40 A)

MAIN FAN MOTOR

30 A

SPM2

30 A

ABS/VSA MOTOR

40 A

IG MAIN2

30 A

WIPER MOTOR

30 A

6

SRM1

30 A

7

−

−

8

−

−

9

STOP LIGHT

10 A

10

TCU

*

(15 A)

11

INJ

20 A

12

TCU2

*

(10 A)

13

IGP

15 A

14

TCU3

*

(10 A)

15

FI ECU

10 A

16

BATT SNSR

7.5 A

17

DBW

15 A

18

IG COIL

15 A

19

HAZARD

15 A

20

−

−

21

−

−

22

H/STRG

*

(10 A)

23

−

−

24

AUDIO

15 A

25

REAR H/SEAT

*

(20 A)

26

FR WIPER DEICER

*

(15 A)

Circuit Protected

Amps

27

BACK UP

10 A

28

HORN

10 A

29

FR FOG LIGHT

*

(10 A)

30

SHUTTER GRILLE

*

(7.5 A)

31

MG CLUTCH

10 A

32

WASHER MOTOR

15 A

33

−

−

34

−

(10 A)

35

AUDIO SUB

*

(7.5 A)

36

IGPS

7.5 A

37

IGPS (LAF)

7.5 A

38

VB ACT

7.5 A

39

IG1 TCU

*

(10 A)

40

IG1 FUEL PUMP

20 A

41

IG1 ABS/VSA

7.5 A

42

IG1 ACG

10 A

43

IG1 ST MOTOR

10 A

44

IG1 MONITOR

7.5 A

45

−

−

Circuit Protected

Amps

* Not available on all models

690

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

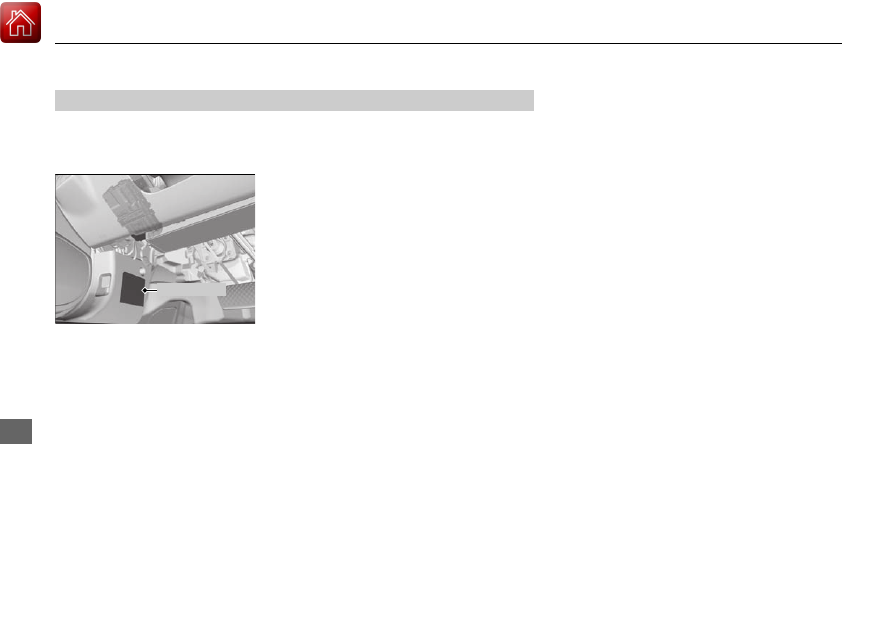

Located under the dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.

■

Interior Fuse Box

Fuse Label

691

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

−

−

2

L SIDE DOOR UNLOCK

10 A

3

R SIDE DOOR UNLOCK

10 A

4

ACC

10 A

5

ACC KEY LOCK

7.5 A

6

SRS

10 A

7

−

−

8

IG HOLD2

*

(10 A)

9

SMART

10 A

10

−

−

11

L SIDE DOOR LOCK

10 A

12

DR DOOR LOCK

(10 A)

13

R SIDE DOOR LOCK

10 A

14

OPTION

10 A

15

DRL

10 A

16

CTR ACC SOCKET

(20 A)

17

MOON ROOF

*

(20 A)

18

−

−

19

−

−

20

SBW ECU

*

(10 A)

21

DR DOOR UNLOCK

(10 A)

22

−

−

23

−

−

24

PREMIUM AMP

*

(20 A)

25

−

−

26

−

−

27

−

−

28

−

−

29

−

−

30

−

−

31

−

−

32

IG HOLD3

*

(15 A)

33

DR P/SEAT SLI

*

(20 A)

34

AS P/SEAT SLI

*

(20 A)

35

OPTION2

10 A

36

METER

10 A

37

OPTION1

10 A

38

DR P/SEAT REC

*

(20 A)

39

AS P/SEAT REC

*

(20 A)

40

DR P/LUMBAR

*

(10 A)

41

−

−

42

AVS

*

(20 A)

43

OPTION

10 A

44

ADS

*

(20 A)

45

−

−

46

SRS

10 A

47

−

−

48

HUD

*

(10 A)

49

DOOR LOCK

20 A

50

FR ACC SOCKET

20 A

51

RR R P/W

20 A

52

RR L P/W

20 A

Circuit Protected

Amps

53

AS P/W

20 A

54

DR P/W

20 A

55

−

−

Circuit Protected

Amps

* Not available on all models

692

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

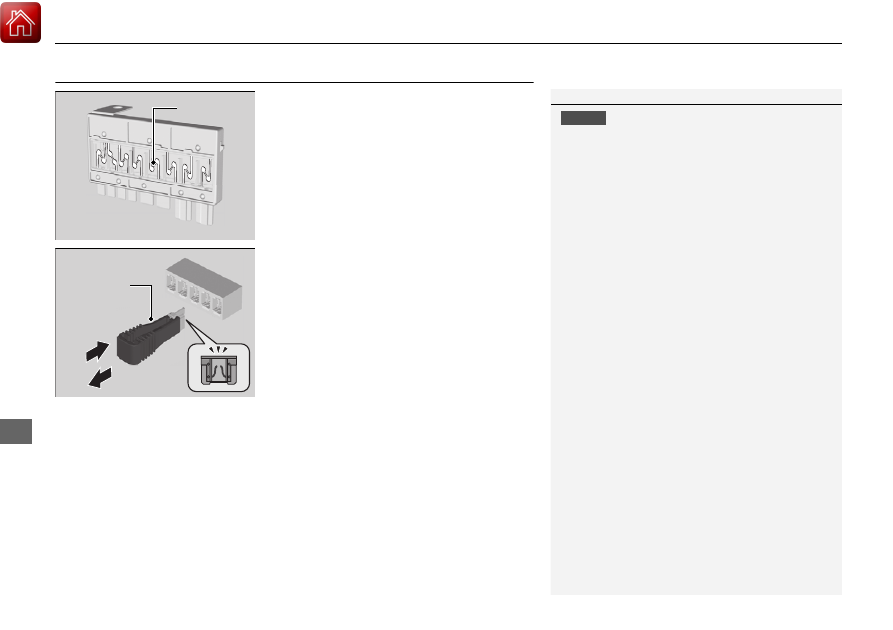

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF. Turn

headlights and all accessories off.

2. Open the fuse box cover in the engine

compartment.

3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2 Fuse Locations P. 688

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

693

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.

2 Parking Brake P. 571

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

694

Han

d

lin
g the U

n

expected

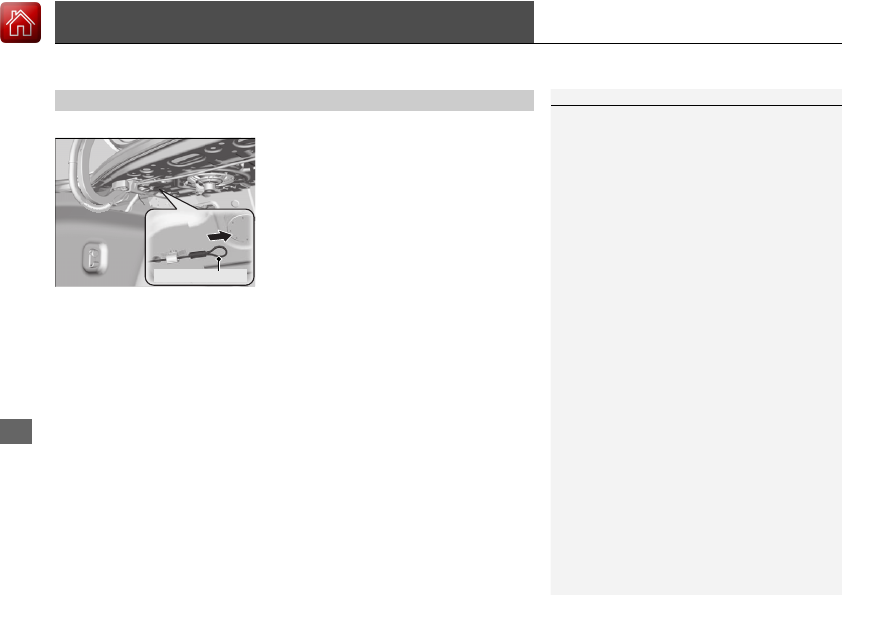

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1. Open the trunk.
2. Pull the release handle toward you.

u

The fuel fill door unlocks.

3. Open the fuel fill door.

2 How to Refuel P. 598

■

What to Do When Unable to Unlock the Fuel Fill Door

1

When You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Release Handle

695

Continued

Han

d

lin
g the U

n

expected

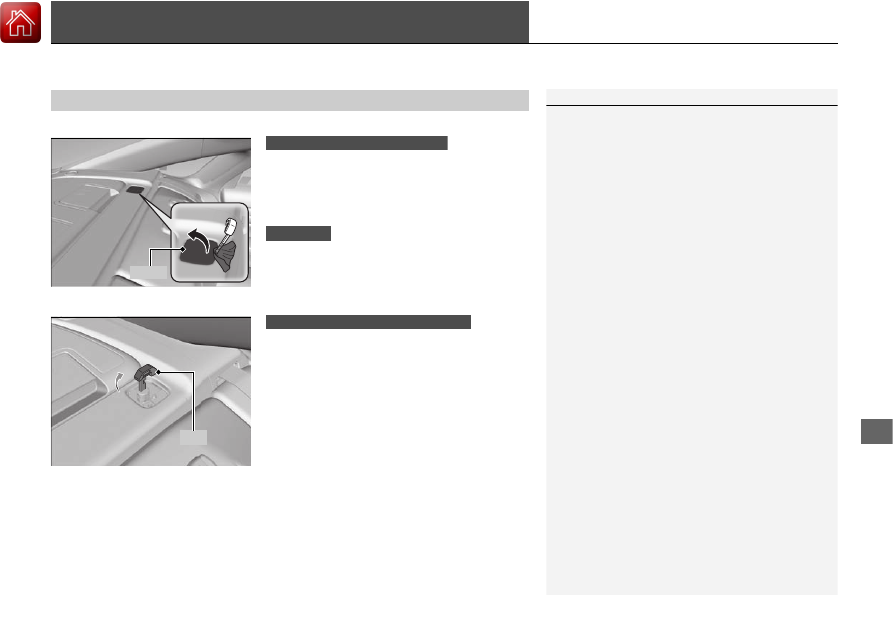

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1. Remove the driver side rear outer head

restraint.

2 Removing and Reinstalling the Head

Restraints P. 218

2. Remove the built-in key from the remote.
3. Wrap a cloth around the tip of the built-in

key. Put it into the cover (as shown in the
image) and remove the cover.

4. Insert the key into the cylinder and turn the

key to the right.

u

The trunk unlocks and opens.

■

What to Do When Unable to Open the Trunk

1

When You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Models with adjustable headrest

All models

Key

Models with the cylinder in the cover

696

uu

When You Cannot Open the Trunk

u

Han

d

lin
g the U

n

expected

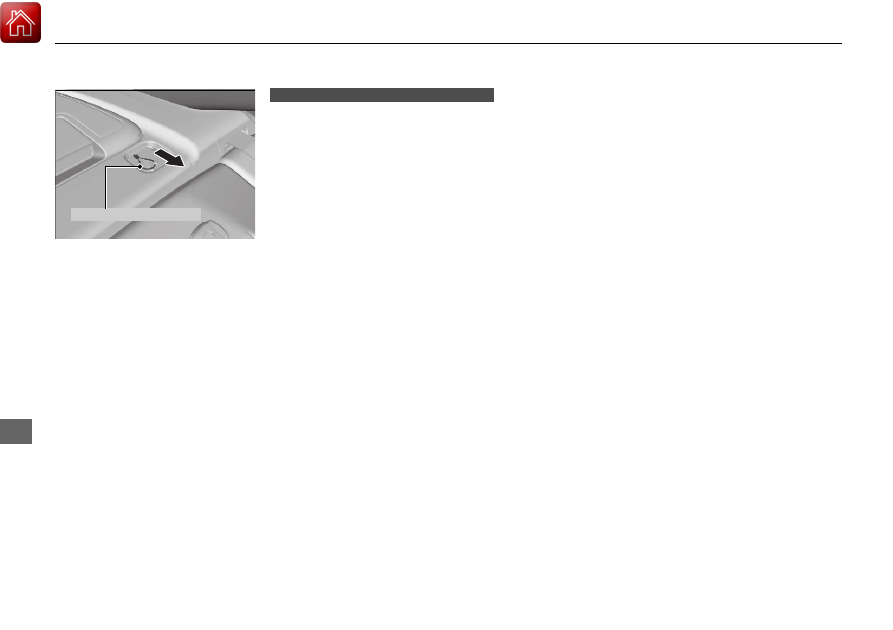

4. Pull the trunk release handle up in the

direction of the arrow in the image.

u

The trunk unlocks and opens.

Trunk Release Handle

Models without the cylinder in the cover

697

Han

d

lin
g the U

n

expected

Refueling

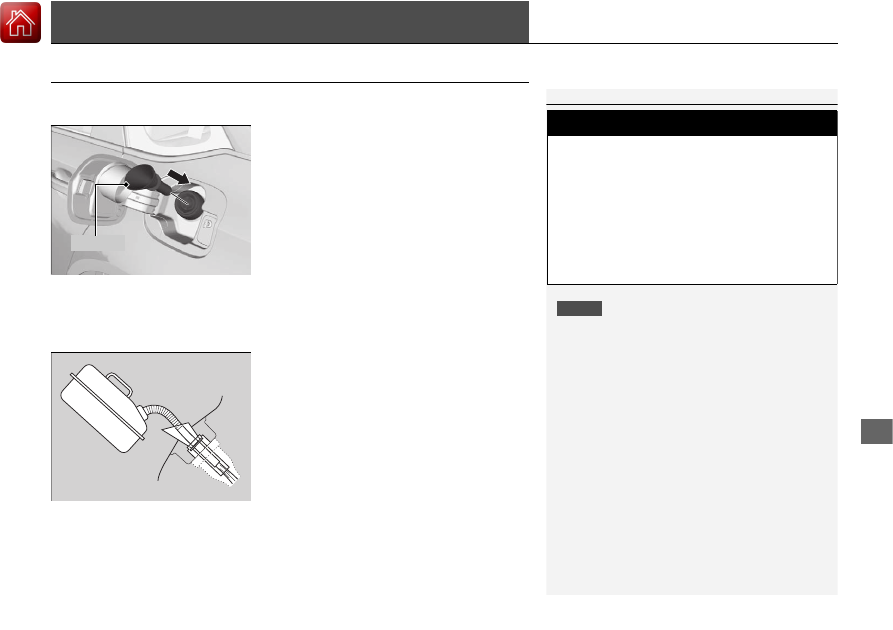

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press on the edge of the fuel fill door until

you hear a click when the driver’s door is
unlocked.

u

The fuel fill door opens.

3. Take the funnel out of the tool case in the

trunk.

2 Types of Tools P. 664

4. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5. Fill the tank with fuel from the portable fuel

container.

u

Pour fuel carefully so you do not spill any.

6. Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7. Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

698

700

Info

rm

ation

Specifications

■

Vehicle Specifications

■

Air Conditioning

Model

ACCORD

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.9 – 15.7 oz (395 – 445 g)

Lubricant Type

ND-OIL 14

Quantity

5.6 – 6.5 cu-in (92 – 107 cm

3

)

1.5 L engine models

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

91.38 cu-in (1,498 cm

3

)

Spark Plugs

NGK

DILKAR8P8SY

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

14.8 US gal (56 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

*1: Models with halogen high beam headlights
*2: Models with LED high beam headlights

Headlights (Low Beam)

LED

Headlights (High Beam)

60W (HB3)

*1

LED

*2

Fog Lights

*

LED

Parking/Daytime Running Lights

LED

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

LED

Rear Turn Signal Lights

21W (Amber)

Rear Side Marker Lights

LED

Taillights

LED

Back-Up Lights

16W

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

8W

Ceiling Light

8W

Ambient Lights

LED

Vanity Mirror Lights

1.4W

Center Pocket Light

LED

Door Courtesy Lights

*

2CP (3.8W)

Door Inner Handle Lights

*

LED

Trunk Light

5W

Console Compartment Light

*

LED

* Not available on all models

701

uu

Specifications

u

Continued

Info

rm

ation

■

Brake/Clutch

*

 Fluid

■

Continuously Variable Transmission
Fluid

*

■

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2 Transmission Fluid

Capacity

Change

3.9 US qt (3.7 L)

Specified

Honda Manual Transmission Fluid (MTF)

Capacity

Change

2.0 US qt (1.9 L)

■

Engine Oil

■

Engine Coolant

*1: Continuously variable transmission models
*2: Manual transmission models

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.4 US qt (3.2 L)

Change
including
filter

3.7 US qt (3.5 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.59 US gal (6.03 L)

*1

1.56 US gal (5.90 L)

*2

(change including the remaining
0.17 US gal (0.66 L) in the reserve tank)

■

Tire

*1: U.S. LX, EX, EX-L, EX-LN models and Canadian LX, SE, EX-L

models

*2: U.S. Sport, Touring models and Canadian Sport, Touring models

Regular

Size

225/50R17 94V

*1

235/40R19 96V

*2

Pressure
psi (kPa [kgf/cm

2

])

Front

32 (220 [2.2])

*1

33 (225 [2.25])

*2

Rear

32 (220 [2.2])

*1

33 (225 [2.25])

*2

Compact
Spare

Size

T135/90D16 102M

*1

T135/80D17 103M

*2

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7 1/2J

*1

19 x 8 1/2J

*2

Compact Spare

16 x 4T

*1

17 x 4T

*2

* Not available on all models

702

uu

Specifications

u

Info

rm

ation

■

Vehicle Specifications

■

Air Conditioning

Model

ACCORD

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.9 – 15.7 oz (395 – 445 g)

Lubricant Type

ND-OIL 14

Quantity

5.6 – 6.5 cu-in (92 – 107 cm

3

)

2.0 L engine models

■

Engine Specifications

■

Fuel

■

Washer Fluid

Displacement

121.76 cu-in (1,996 cm

3

)

Spark Plugs

NGK

DILKAR8P8SY

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

14.8 US gal (56 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

■

Light Bulbs

*1: Models with halogen high beam headlights
*2: Models with LED high beam headlights

Headlights (Low Beam)

LED

Headlights (High Beam)

60W (HB3)

*1

LED

*2

Fog Lights

LED

Parking/Daytime Running Lights

LED

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake Lights

LED

Rear Turn Signal Lights

21W (Amber)

Rear Side Marker Lights

LED

Taillights

LED

Back-Up Lights

16W

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

8W

Ceiling Light

8W

Ambient Lights

LED

Vanity Mirror Lights

1.4W

Center Pocket Light

LED

Door Courtesy Lights

*

2CP (3.8W)

Door Inner Handle Lights

*

LED

Trunk Light

5W

Console Compartment Light

*

LED

* Not available on all models

703

uu

Specifications

u

Info

rm

ation

■

Brake/Clutch

*

 Fluid

■

Automatic Transmission Fluid

*

■

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda Automatic Transmission Fluid
ATF-type 2.0

Capacity

Change

4.5 US qt (4.3 L)

Specified

Honda Manual Transmission Fluid (MTF)

Capacity

Change

2.27 US qt (2.15 L)

■

Engine Oil

■

Engine Coolant

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.6 US qt (4.4 L)

Change
including
filter

5.0 US qt (4.8 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.34 US gal (5.06 L)
(change including the remaining
0.17 US gal (0.66 L) in the reserve tank)

■

Tire

*1: U.S. EX-L, EX-LN models
*2: U.S. Sport, Touring models and Canadian Sport, Touring models

Regular

Size

225/50R17 94V

*1

235/40R19 96V

*2

Pressure
psi (kPa [kgf/cm

2

])

32 (220 [2.2])

*1

33 (225 [2.25])

*2

Front

Rear

32 (220 [2.2])

*1

33 (225 [2.25])

*2

Compact
Spare

Size

T135/80D17 103M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7 1/2J

*1

19 x 8 1/2J

*2

Compact Spare

17 x 4T

* Not available on all models















Content   ..  42  43  44  45   ..
