Chery Tiggo 5 (T21). Service manual - part 469





43–

56

43

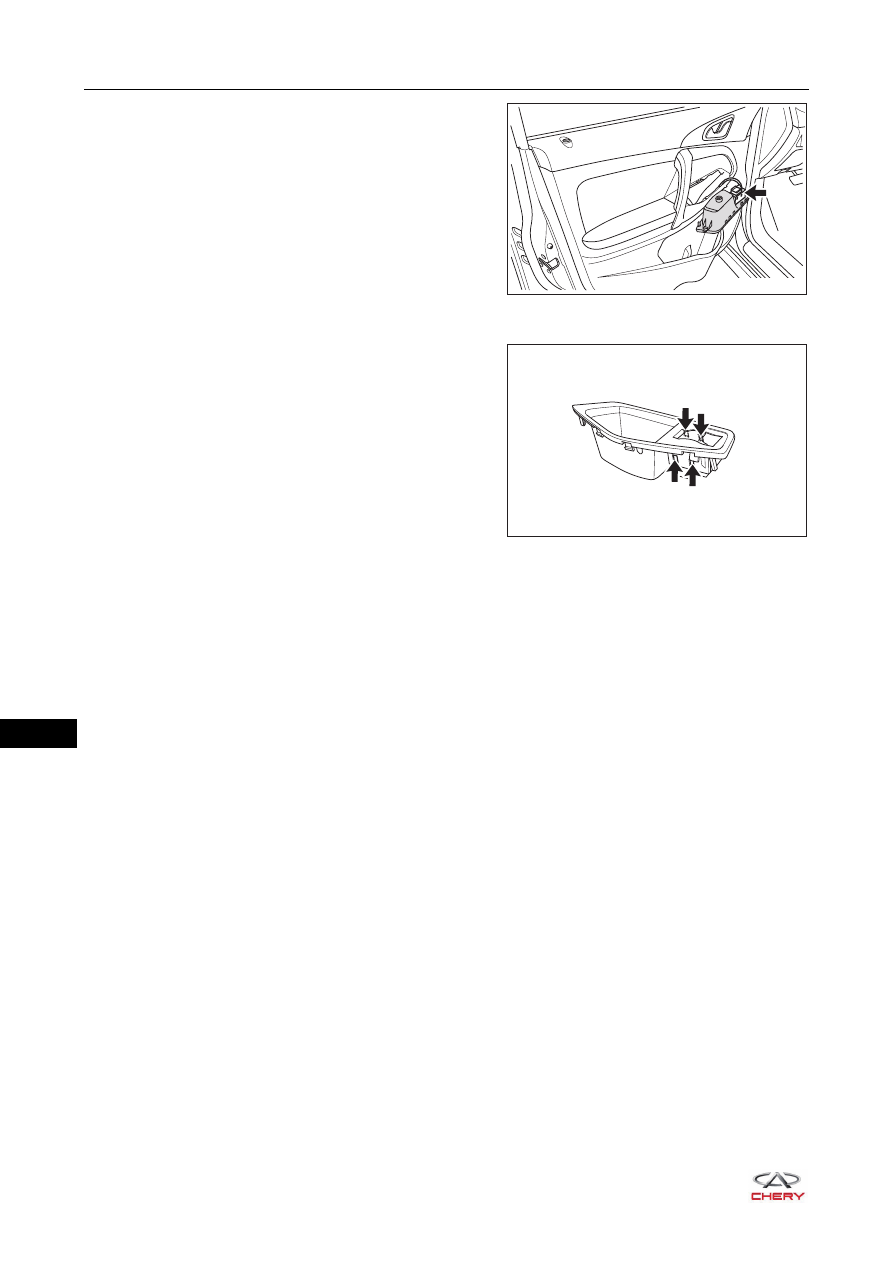

d. Disconnect the connector (arrow) from power glass

regulating switch assembly, and remove the left power
glass regulating switch assembly.

4. Remove the left power glass regulating switch.

a. Using a screwdriver wrapped with protective tape, pry

up the claws (arrow) on power glass regulating switch,
and remove the left power glass regulating control
switch.

RT21430220

RT21430230

43–

57

43

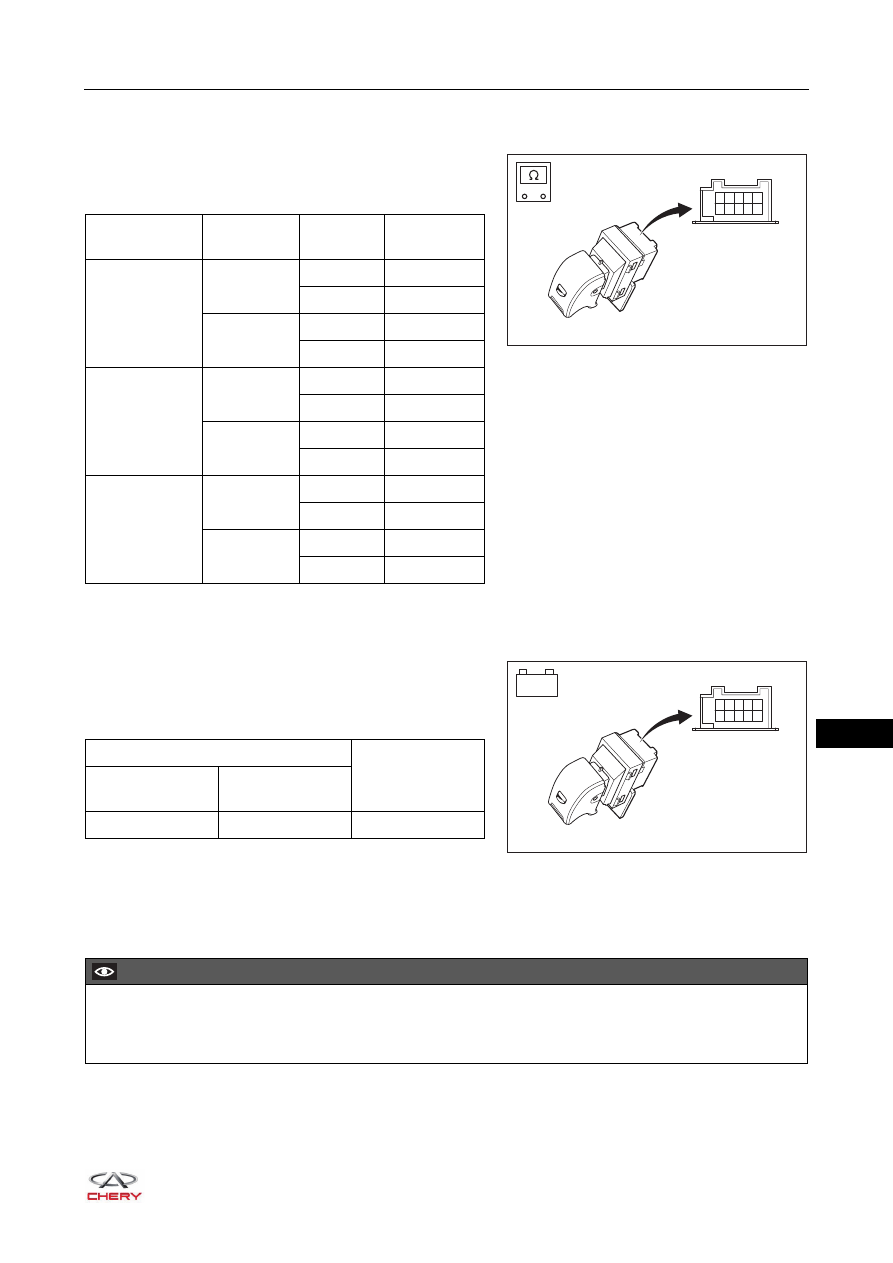

Inspection

1. Check power glass regulating switch.

a. Using a digital multimeter, check for continuity of

power glass regulating switch according to the table
below.

If result is not as specified, replace power glass
regulating switch.

2. Check power glass regulating switch illumination.

a. Apply battery voltage to the terminals of power glass

regulating switch connector, and check the operation
of power glass regulating switch according to the table
below.

If result is not as specified, replace power glass
regulating switch.

Installation

Installation is in the reverse order of removal.

6 7 8 9

1 2 3 4 5

10

-

+

RT21430240

Area

Multimeter

Connection

Switch

Condition

Specified

Condition

Front right door
glass regulating
switch

6 - 9

UP

220 Ω

OFF

No continuity

6 - 9

DOWN

Continuity

OFF

No continuity

Rear left door
glass regulating
switch

6 - 9

UP

220 Ω

OFF

No continuity

6 - 9

DOWN

Continuity

OFF

No continuity

Rear right door
glass regulating
switch

6 - 9

UP

220 Ω

OFF

No continuity

6 - 9

DOWN

Continuity

OFF

No continuity

-

+

6 7 8 9

1 2 3 4 5

10

RT21430241

Measurement Condition

Specified

Condition

Battery positive

(+)

Battery negative

(-)

1

3

LED comes on

CAUTION

 Check if connector is correctly installed when installing power glass regulating switch.
 Check if switch operates normally after installing power glass regulating switch.

43–

58

43

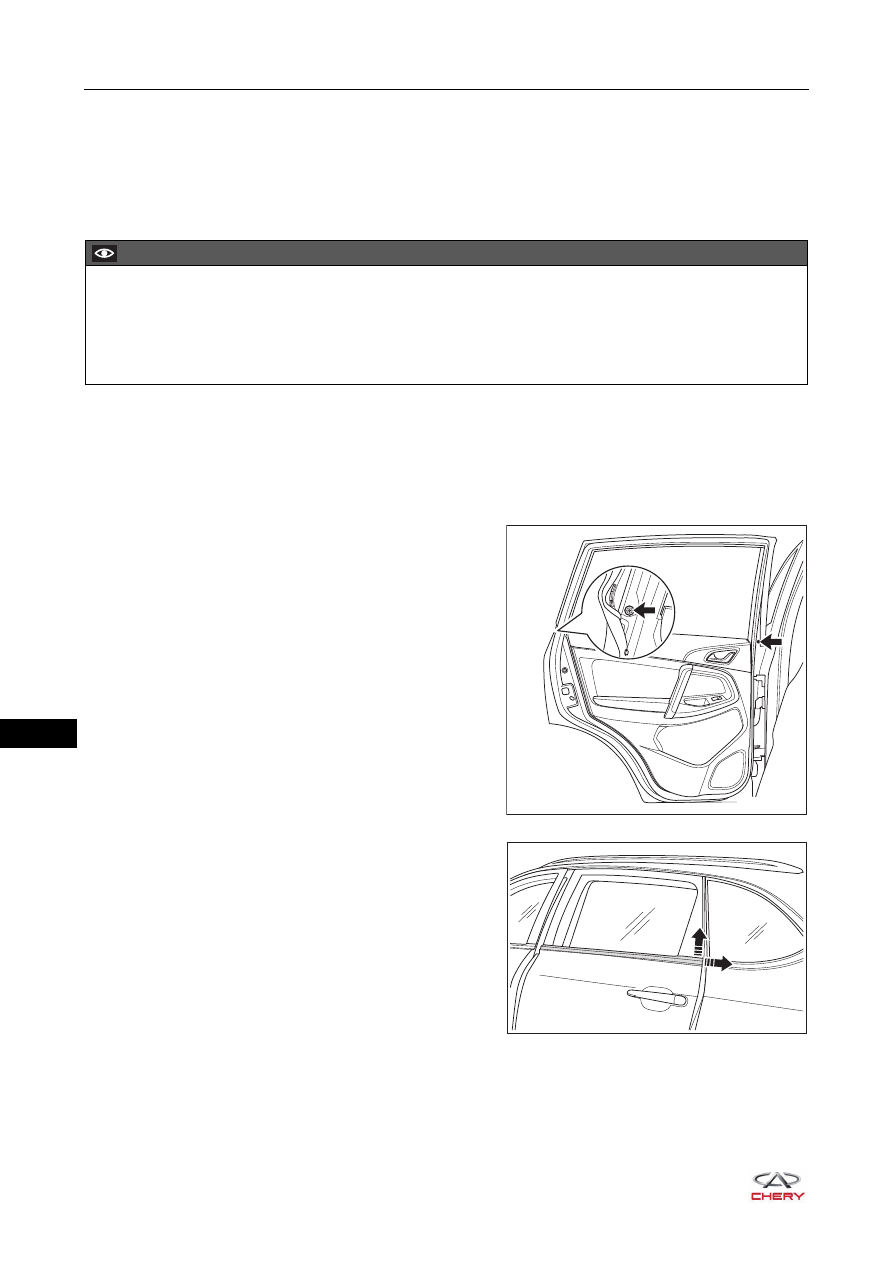

Rear Door Outer Weather bar

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the rear left door outer weather bar.

a. Remove the rear left door frame weatherstrip.

HINT:
It is not necessary to remove the rear left door weatherstrip completely. There is a fixing screw in the
rear door weatherstrip.

b. Remove 2 fixing screws (arrow) from rear door outer

weather bar.

(Tightening torque: 1.3 ± 0.2 N·m)

c. Remove the rear left door outer weather bar in the

direction of arrow as shown in the illustration.

Installation

Installation is in the reverse order of removal.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing rear door outer weather bar.
 Appropriate force should be applied when removing rear door outer weather bar. Be careful not to

operate roughly.

 Try to prevent body paint surface from being scratched when removing rear door outer weather bar.

RT21430180

RT21430190

43–

59

43

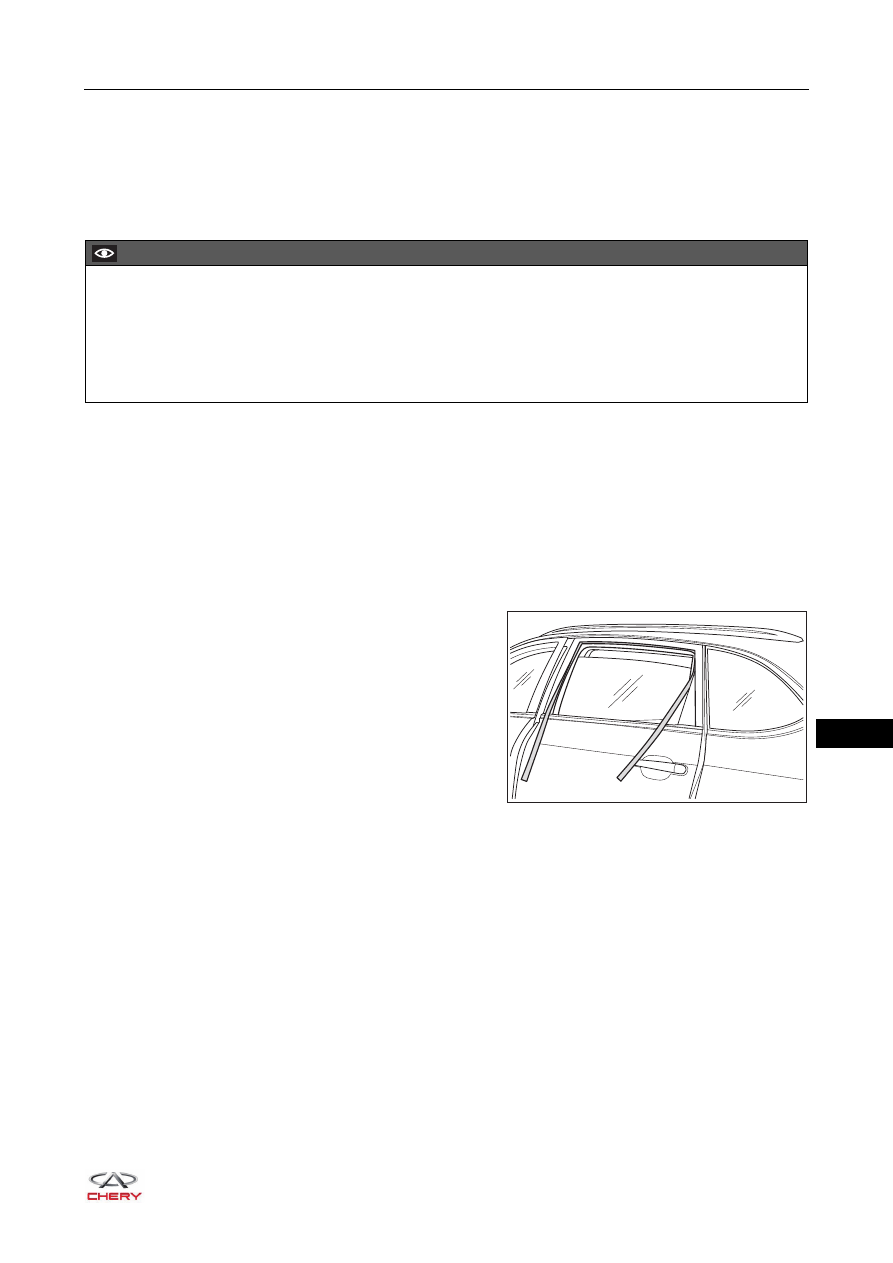

Rear Door Glass Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear door outer weather bar (

See page 43-58

).

4. Remove the rear left door protector assembly (

See page 47-36

).

5. Remove the rear left door assist grip mounting bracket assembly (

See page 47-39

).

6. Remove the rear left door protective film assembly (

See page 47-39

).

7. Remove the rear door glass rear guide rail assembly (

See page 43-61

).

8. Remove the rear left door glass run.

a. Lower the rear door glass assembly and pull out the

rear left door glass run from the slot.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing rear door glass assembly.
 Appropriate force should be applied when removing rear door glass assembly. Be careful not to operate

roughly.

 When removing the rear door glass assembly, avoid the window glass from dropping and becomes

damaged.

RT21430250
