43–

52

43

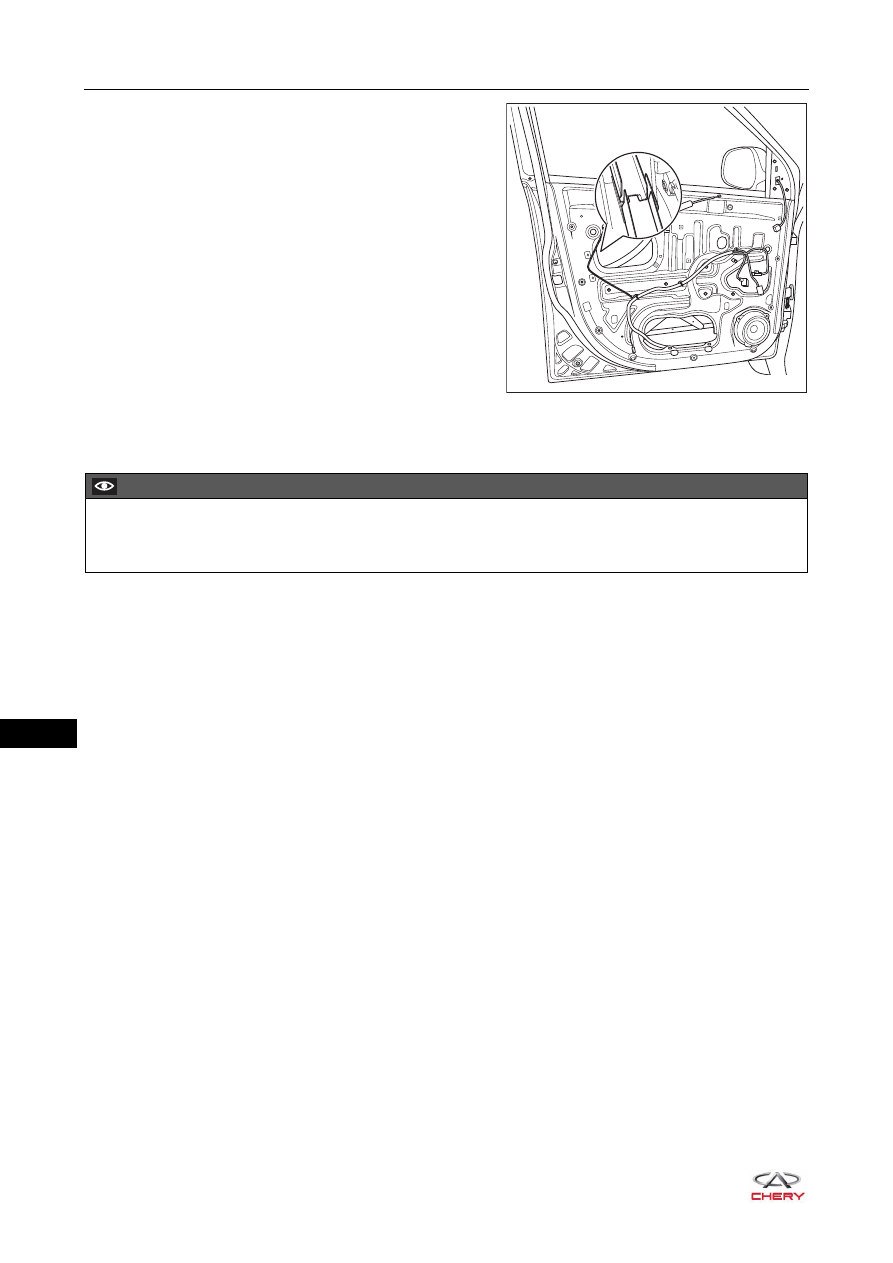

b. Take out the front left door glass rear guide rail

assembly from the slot.

Installation

Installation is in the reverse order of removal.

RT21430130

CAUTION

 After glass regulating system is installed, make sure that the window glass can go up and down smoothly

and freely without any vibration, chattering or shock loading, etc.

43–

53

43

Front Door Power Glass Regulator Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front left door protector assembly (

See page 47-23

).

4. Remove the front left door assist grip mounting bracket assembly (

See page 47-28

).

5. Remove the front left door protective film assembly (

See page 47-28

).

6. Remove the front left door glass assembly (

See page 43-49

).

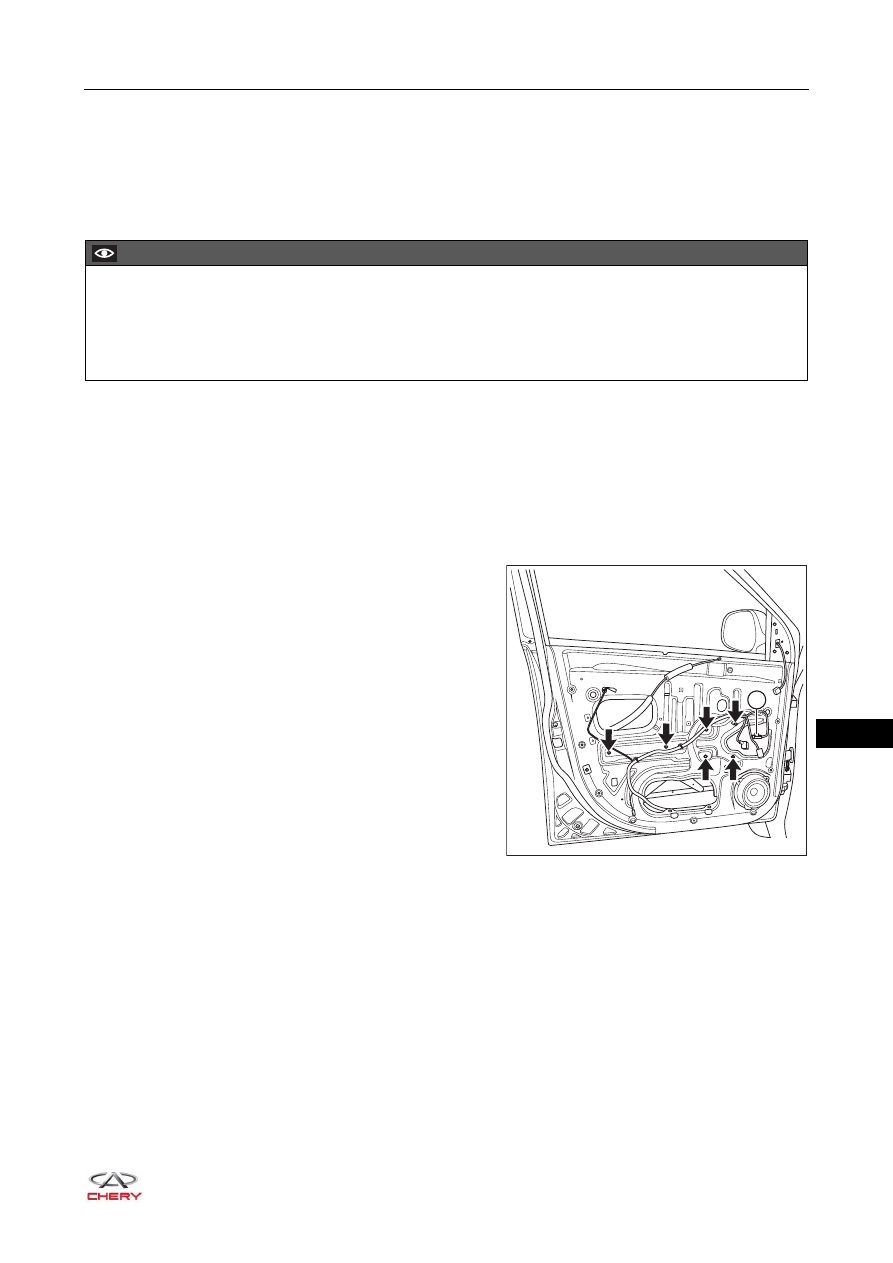

7. Remove the front left door power glass regulator assembly.

a. Disconnect the connector (1) from front left door

power glass regulator assembly.

b. Remove 6 fixing bolts (arrow) from front left door

power glass regulator assembly, and remove the front
left door power glass regulator assembly.

(Tightening torque: 9 ± 1 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing front door power glass

regulator assembly.

 Appropriate force should be applied when removing front door power glass regulator assembly. Be

careful not to operate roughly.

1

RT21430140

43–

54

43

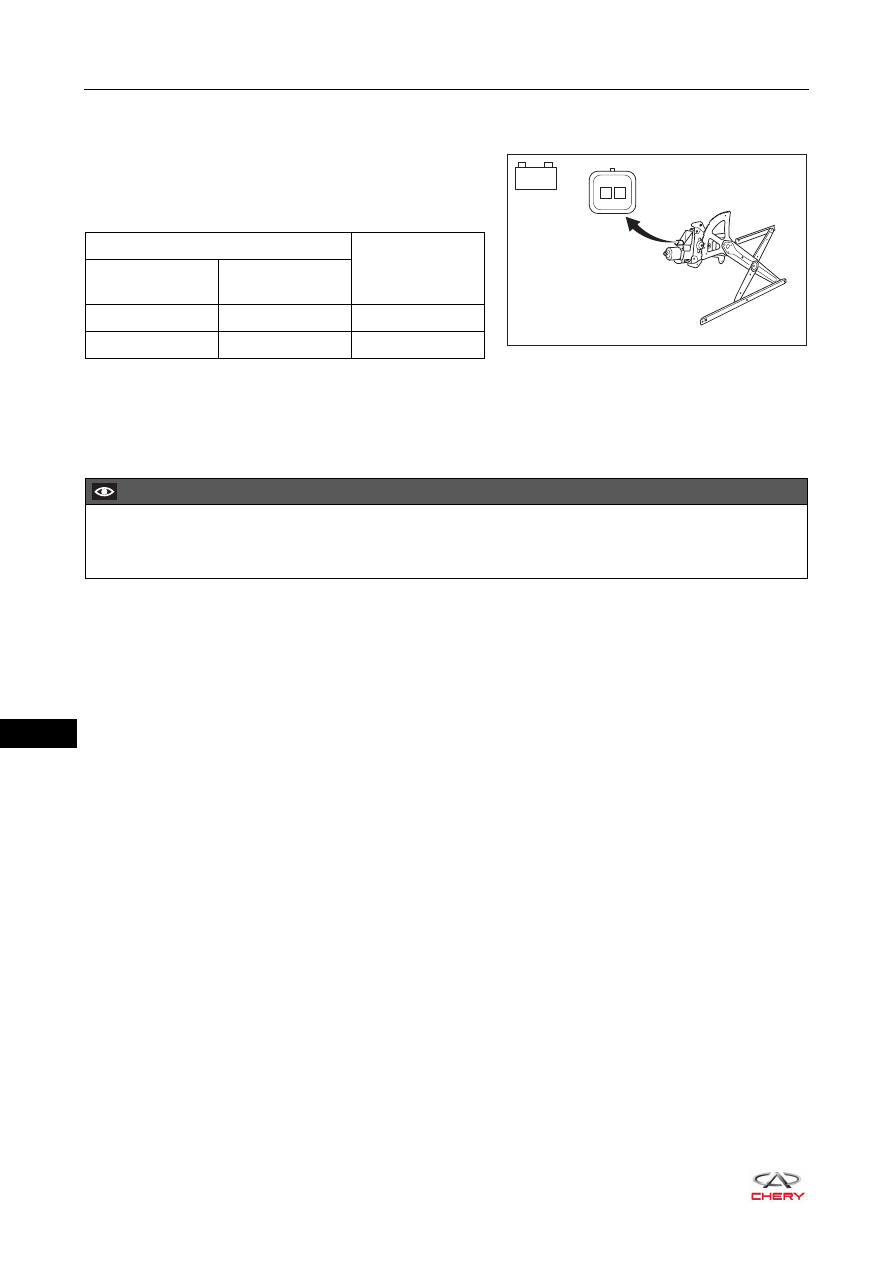

Inspection

1. Check front door power glass regulator motor.

a. Apply battery voltage to the terminals of power glass

regulator motor connector, and check the operation of
power glass regulator motor according to the table
below.

If result is not as specified, replace front door power
glass regulator assembly.

Installation

Installation is in the reverse order of removal.

RT21430150

1 2

-

+

Measurement Condition

Specified

Condition

Battery positive

(+)

Battery negative

(-)

1

2

UP smoothly

2

1

Down smoothly

CAUTION

 After front door power glass regulator is installed, make sure that the window glass can go up and down

smoothly and freely without any vibration, chattering or shock loading, etc.

43–

55

43

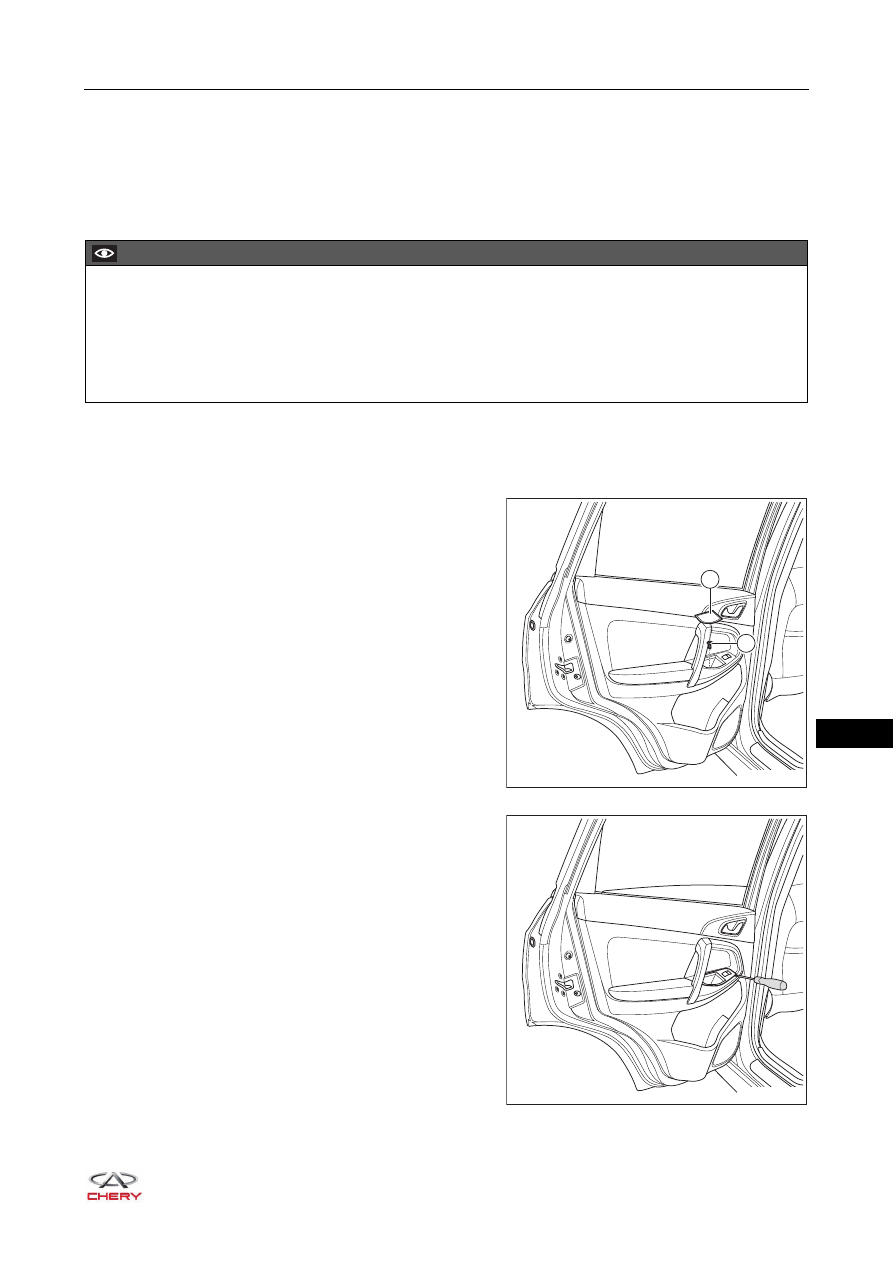

Power Glass Regulating Switch

Removal

HINT:

 Use the same procedures for the front right/rear right side and rear left side.

 Procedures listed below are for the rear left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the left power glass regulating switch assembly.

a. Remove the cushion rubber (1) from power glass

regulating switch assembly.

b. Remove the fixing screw (2) from power glass

regulating switch assembly.

(Tightening torque: 2 ± 0.5 N·m)

c. Using a screwdriver wrapped with protective tape, pry

up the power glass regulating switch assembly.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing power glass regulating switch.
 Appropriate force should be applied when removing power glass regulating switch. Be careful not to

operate roughly.

 Try to prevent rear door protector assembly from being scratched when removing power glass regulating

switch.

RT21430200

2

1

RT21430210
