Chery Tiggo 5 (T21). Service manual - part 454

42–

4

42

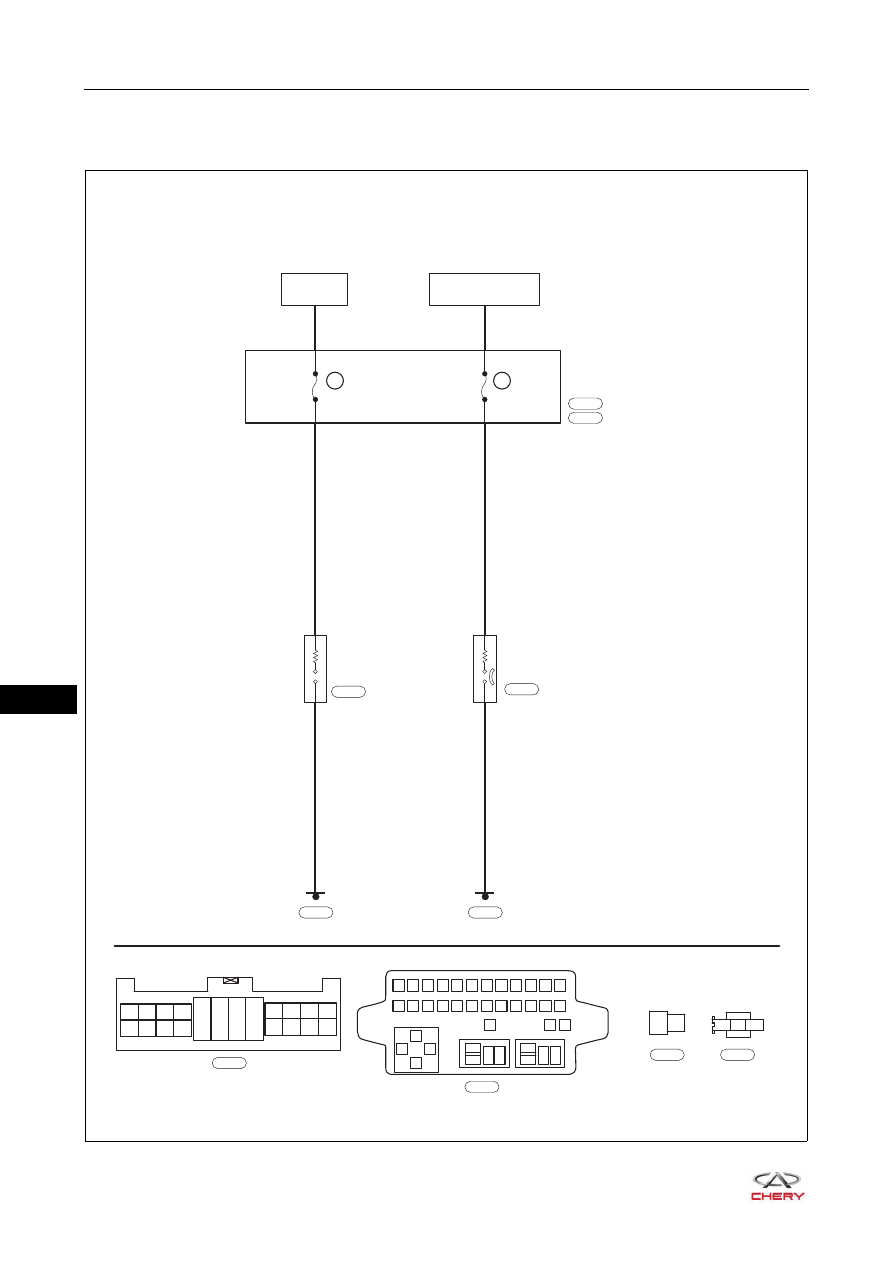

Circuit Diagram

Cigarette Lighter System

E17

14

2

BACKUP
POWER
SUPPLY

1

2

3

B

B

R

RY

CIGARETTE
LIGHTER

IGNITION SEITCH
     ACC OR ON

BATTERY

RF14

15A

RF45

10A

E20

E19

E18

E17

E12

E11

E10

E9

E4

E3

E2

E1

E8

E7

E6

E5

E16

E15

E14

E13

1

2

3

1

2

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

B

I-007

I-007
I-031

I-047

I-041

I-049

I-047

W

I-031

W

I-041

W

I-049

INSTRUMENT
PANEL FUSE
AND RELAY
BOX

ET21420010

42–

5

42

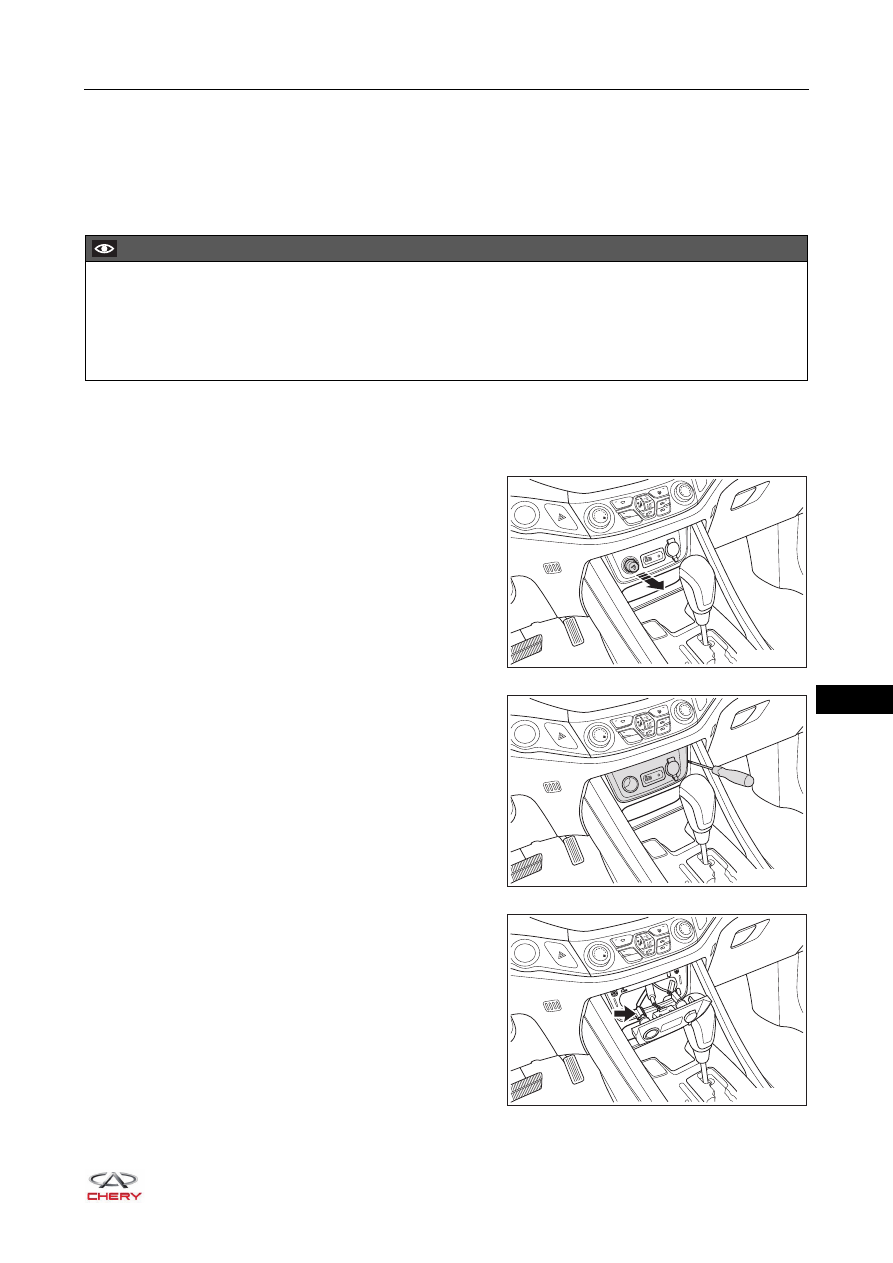

ON-VEHICLE SERVICE

Cigarette Lighter Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the cigarette lighter assembly.

a. Remove the cigarette lighter end in the direction of

arrow as shown in the illustration.

b. Using a screwdriver wrapped with protective tape, pry

off the clips on USB panel assembly, and remove the
cigarette lighter panel.

c. Disconnect the cigarette lighter connector (arrow).

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing cigarette lighter assembly.
 Appropriate force should be applied when removing cigarette lighter assembly. Be careful not to operate

roughly.

 Try to prevent USB panel assembly from being scratched when removing cigarette lighter assembly.

AUX

iPod

POWER

OUTLET

12V   120W

A/C

OFF

RT21420030

AUX

iPod

POWER

OUTLET

12V   120W

A/C

OFF

RT21420040

A/C

OFF

RT21420050

42–

6

42

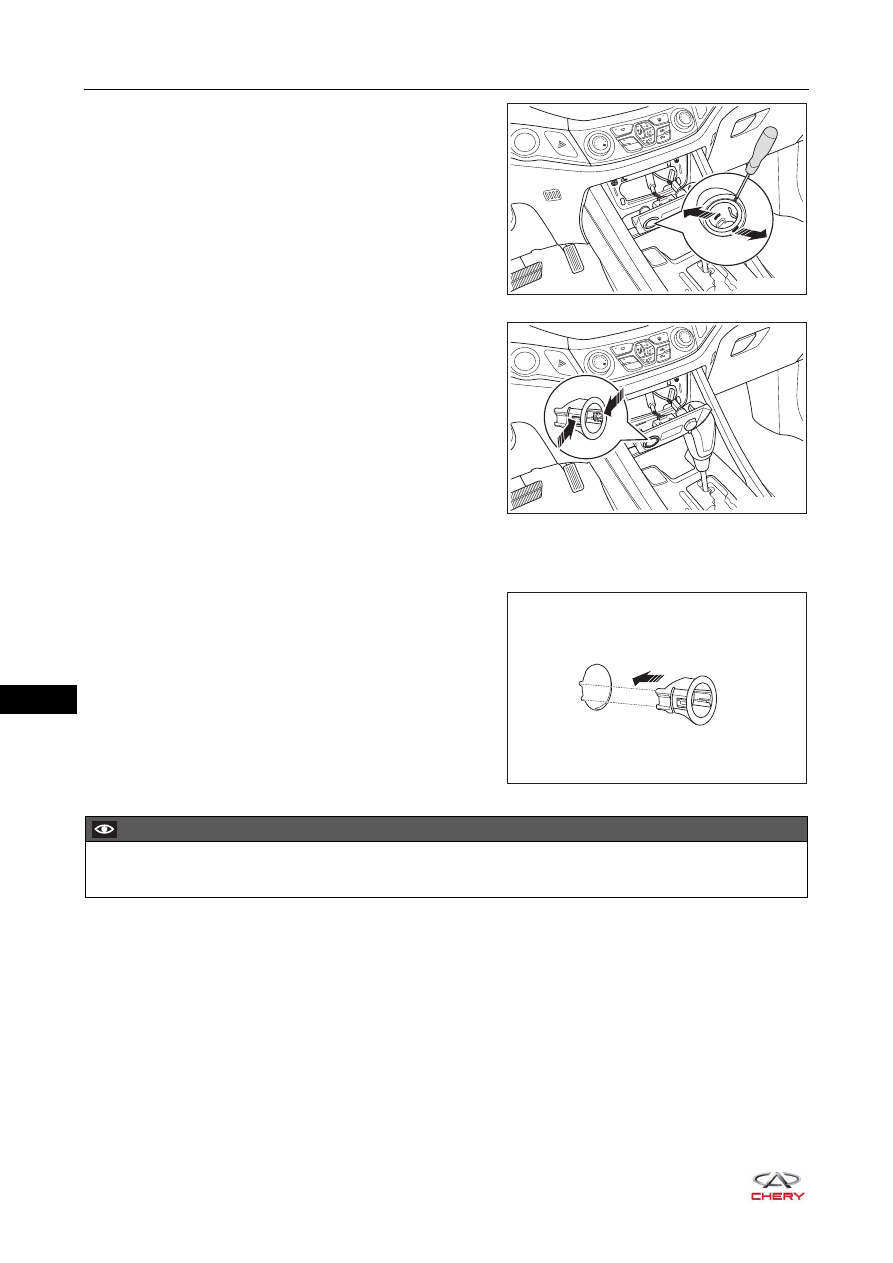

d. While pressing the claws on cigarette lighter housing

in the direction of arrow as shown in the illustration,
remove the cigarette lighter fixing bush using a
screwdriver wrapped with protective tape.

e. Press the claws on cigarette lighter housing in the

direction of arrow as shown in the illustration, and
remove the cigarette lighter housing.

Installation

Installation is in the reverse order of removal.
HINT:
When installing cigarette lighter housing, align the protrusion
of cigarette lighter housing end with the slot on USB panel,
and install the cigarette lighter housing securely.

A/C

OFF

RT21420060

A/C

OFF

RT21420070

RT21420080

CAUTION

 Check the cigarette lighter for proper operation after installing cigarette lighter assembly.

42–

7

42

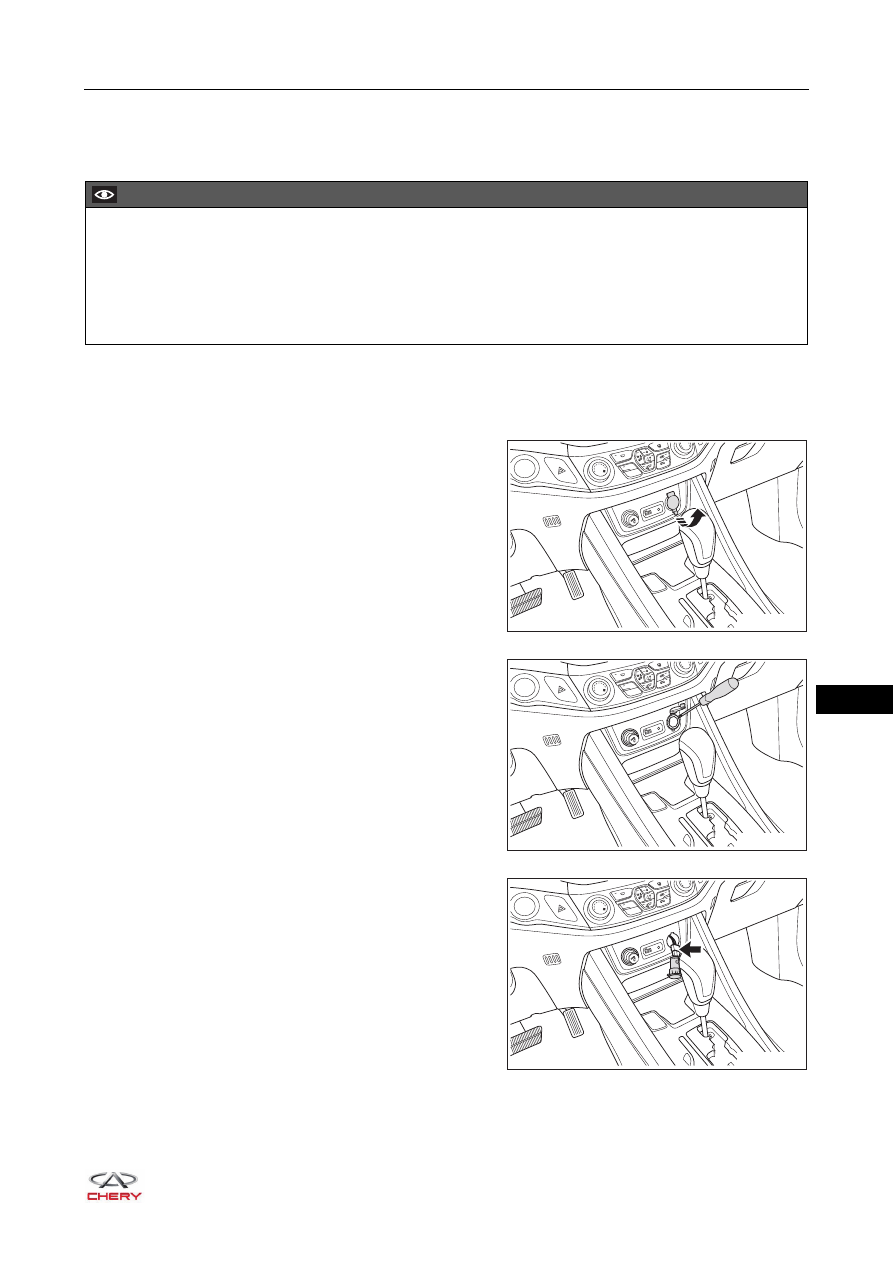

Backup Power Supply Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the backup power supply assembly.

a. Open the backup power supply cover in the direction

of arrow as shown in the illustration.

b. Using a screwdriver wrapped with protective tape, pry

off the backup power supply assembly.

c. Disconnect the backup power supply connector

(arrow), and remove the backup power supply
assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing backup power supply assembly.
 Appropriate force should be applied when removing backup power supply assembly. Be careful not to

operate roughly.

 Try to prevent USB panel assembly from being scratched when removing backup power supply

assembly.

AUX

iPod

POWER

OU

TLET

12V   120W

A/C

OFF

RT21420090

AUX

iPod

A/C

OFF

RT21420100

AUX

iPod

A/C

OFF

RT21420110
