OTHER SYSTEM

GENERAL INFORMATION

Description

Cigarette lighter assembly is located on the USB panel assembly.
This model is equipped with a 12 V backup power supply, which is located on the USB panel assembly for
charging at any time.

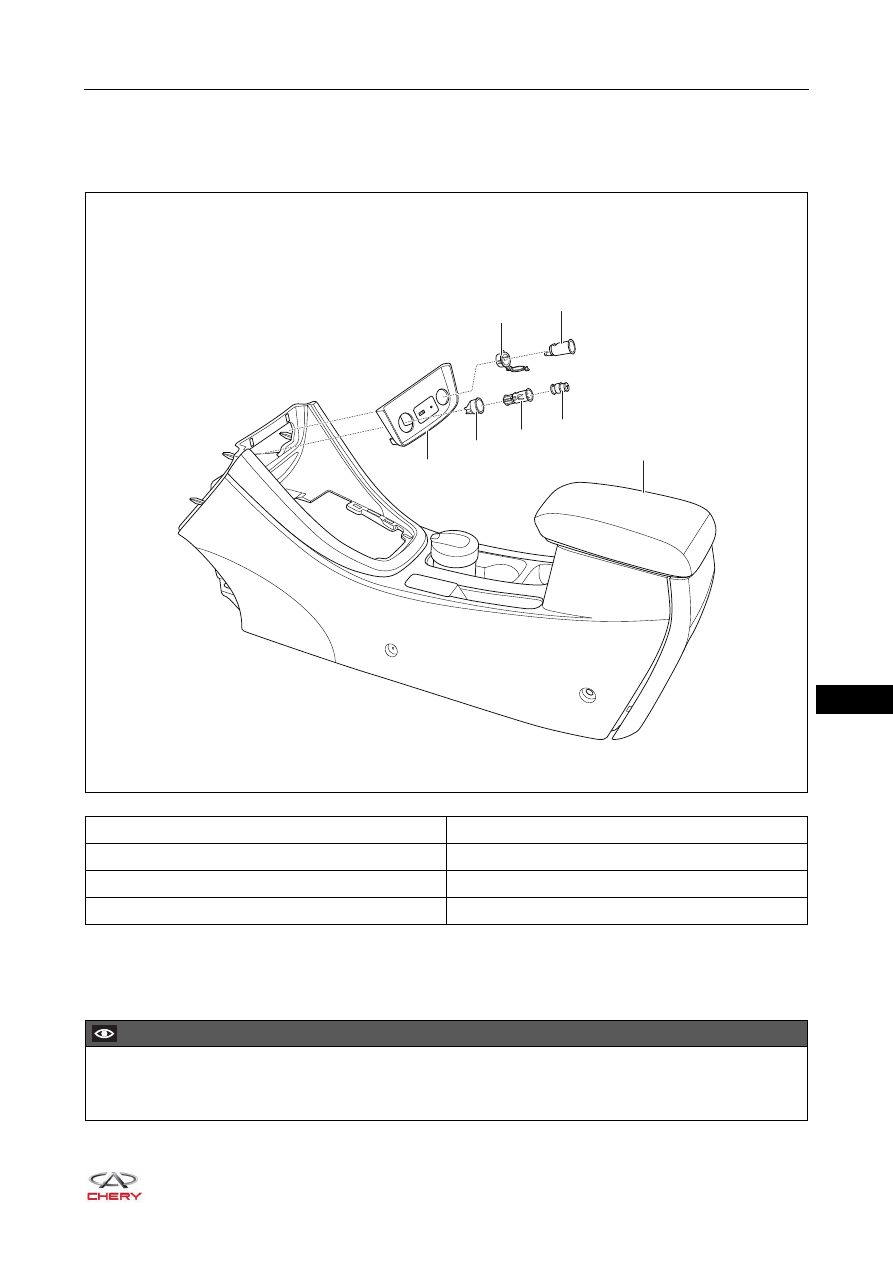

1 - Auxiliary Fascia Console Assembly

2 - Cigarette Lighter End

3 - Cigarette Lighter Fixing Bush

4 - Cigarette Lighter Housing

5 - USB Panel Assembly

6 - Power Socket Cover

7 - Power Socket

RT21420010

2

3

4

5

7

6

1

CAUTION

 Rated voltage of cigarette lighter socket is 12 V. DO NOT use electrical equipment with higher rated

voltage.
