Lotus Service Notes

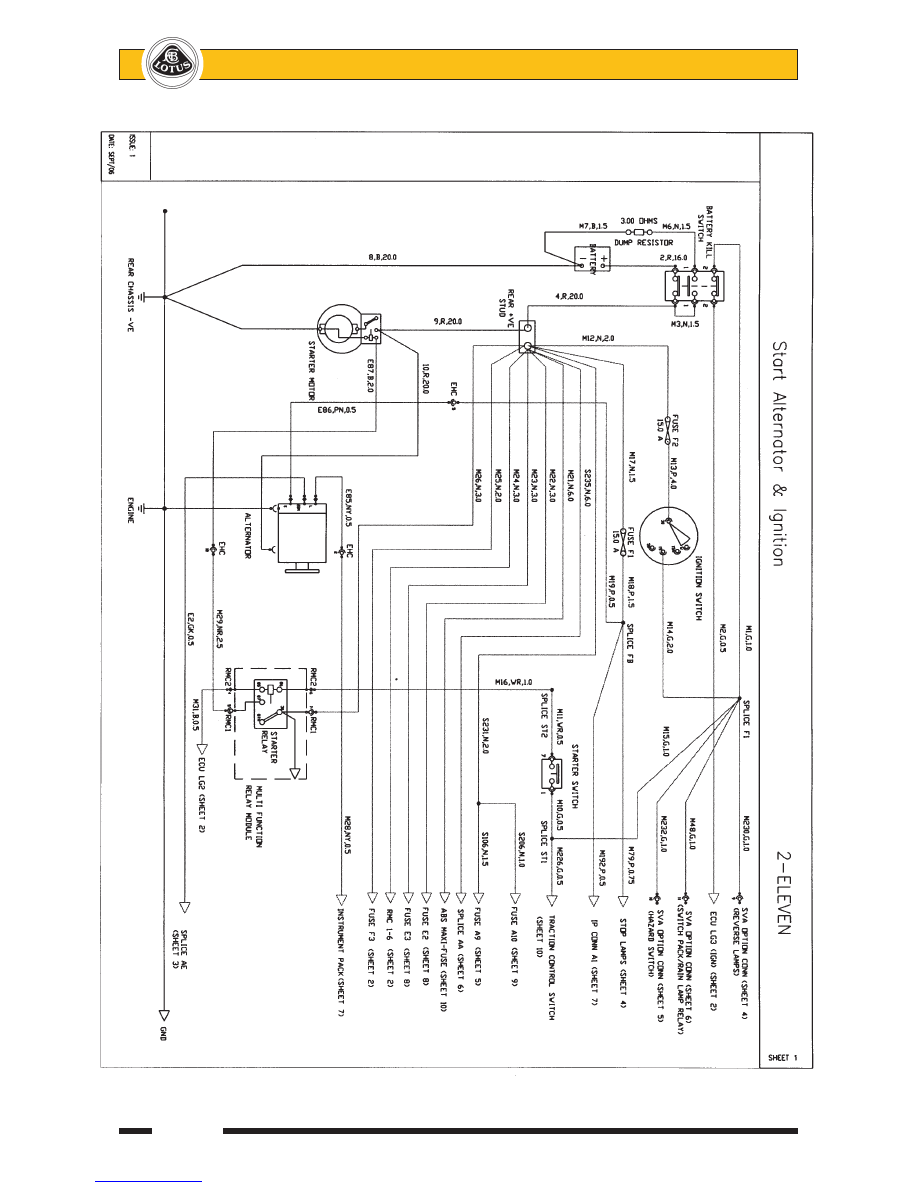

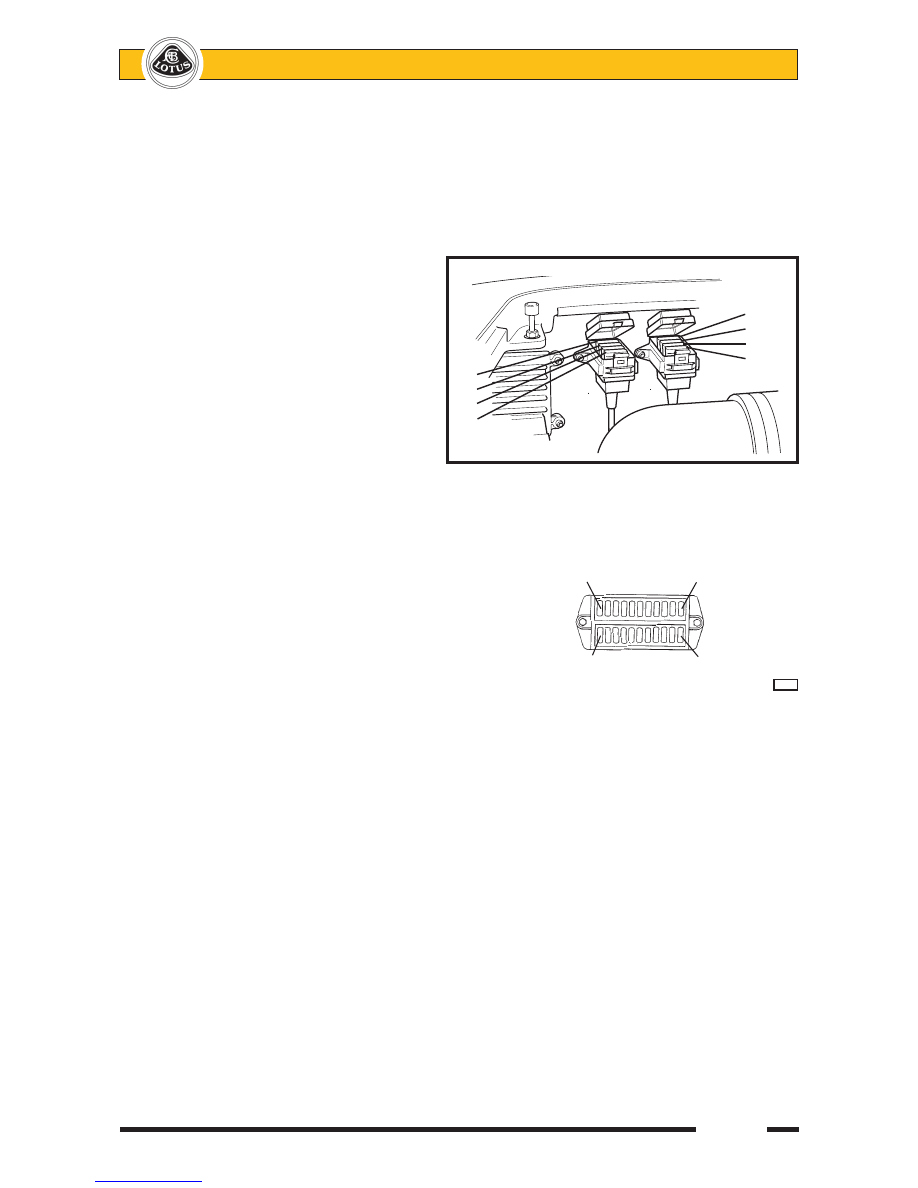

2-Eleven Fuses Two 4-slot fuseboxes are mounted on the rear bulkhead and control the principal engine circuits. Track cars fitted with rear lamps, use a third 4-slot fusebox, located within the battery compartment for the lighting circuits. Cars with full lighting sets replace this 4-slot box with a 22-slot fusebox within the battery compartment. The ‘Littel’ type fuses are numbered and coloured according to their amperage rating, and may be removed by withdrawing from their slots. Engine Bay Fuses Track Lights Fusebox Full Lighting Set Fusebox ABS Fuse: A 60A Maxi fuse protecting the ABS circuits is located within the battery box. Fuse colours: 2A - Black; 3A - Violet; 4A - Pink; 5A - Orange; 7.5A - Brown; 10A - Red; 15A - Light Blue; 20A - Yellow; 25A - Clear. Slot Rate Circuit E1 7.5A Engine control relay E2 15A Cooling fan 1 E3 15A Cooling fan 2 E4 - Not used Slot Rate Circuit F1 15A Batt. services F2 15A Ign. services F3 20A Fuel pump F4 10A Main relay Slot Rate Circuit R1 5A Turn lamps R2 5A Rain lamp Slot Rate Circuit R3 5A Rvrs. lamps R4 5A Stop lamps Slot Rate Circuit A1 - Not used A2 - Not used A3 7.5A Reverse lamps A4 - Not used A5 5A Brake lamps A6 7.5A Turn lamps A 7 - Not used A8 - Not used A9 10A Hazard A10 7.5A Horn A11 - Not used A12 20A Aux power socket Slot Rate Circuit A13 - Not used A14 - Not used A15 15A Switch pack & dipswitch A16 10A Sidelamps, rear fog A17 10A Dip beam LH A18 10A Dip beam RH A19 - Not used A20 10A Main beam LH A21 10A Main beam RH A22 - Not used
ENGINE BAY FUSES m265 F4 F3 F2 F1 E4 E3 E2 E1
Fuse 1 Fuse 11 Fuse 12 Fuse 22 RHD front LHD front
