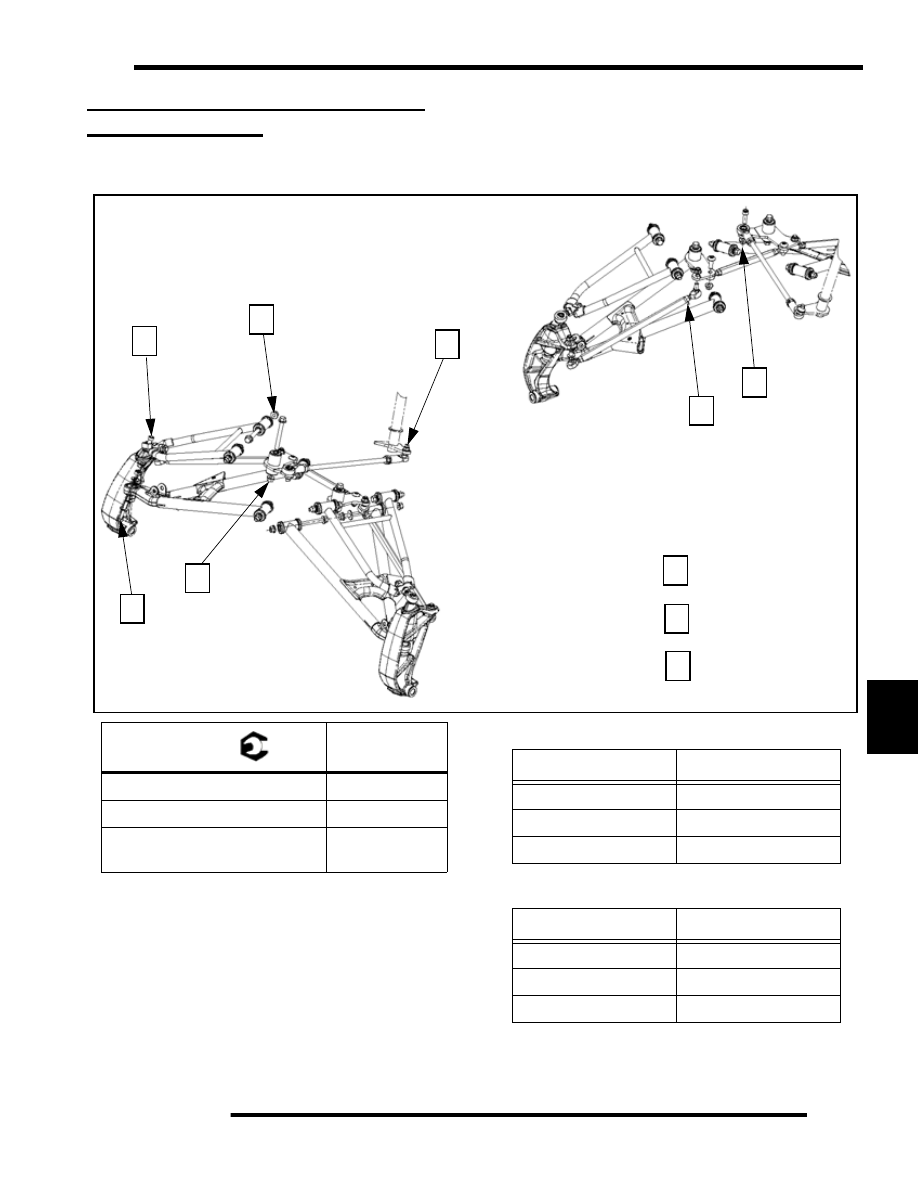

8.3

FRONT SUSPENSION & STEERING

8

FRONT SUSPENSION TORQUE &
SPECIFICATIONS

IQ/IQ LX/IQ RMK/Switchback

2

3

3

3

1

1

2

1   11 ft-lb (15 N-m)

2   29 ft-lb (39 N-m)

3   40 ft-lb (54 N-m)

= T

Tie Rod Lock Nuts

11 ft-lb (15 N-m)

Draglink Fasteners and Tie Rod  29 ft-lb (39 N-m)

Upper and Lower Spindle and

Control Arm fasteners

40 ft-lb (54 N-m)

IQ RMK Specifications

I

TEM

M

EASUREMENT

Camber

2.17" ±.31" / 55 ± 8mm

Toe

0-.12" / 0 - 3mm

Width (skis off the ground)

38.67" / 98.2 cm

IQ/IQ LX/Switchback Specifications

I

TEM

M

EASUREMENT

Camber

2.25" ±.31" / 57 ±8mm

Toe

0-.12" / 0 - 3 mm

Width (skis off the ground)

41.16" / 104.5 cm

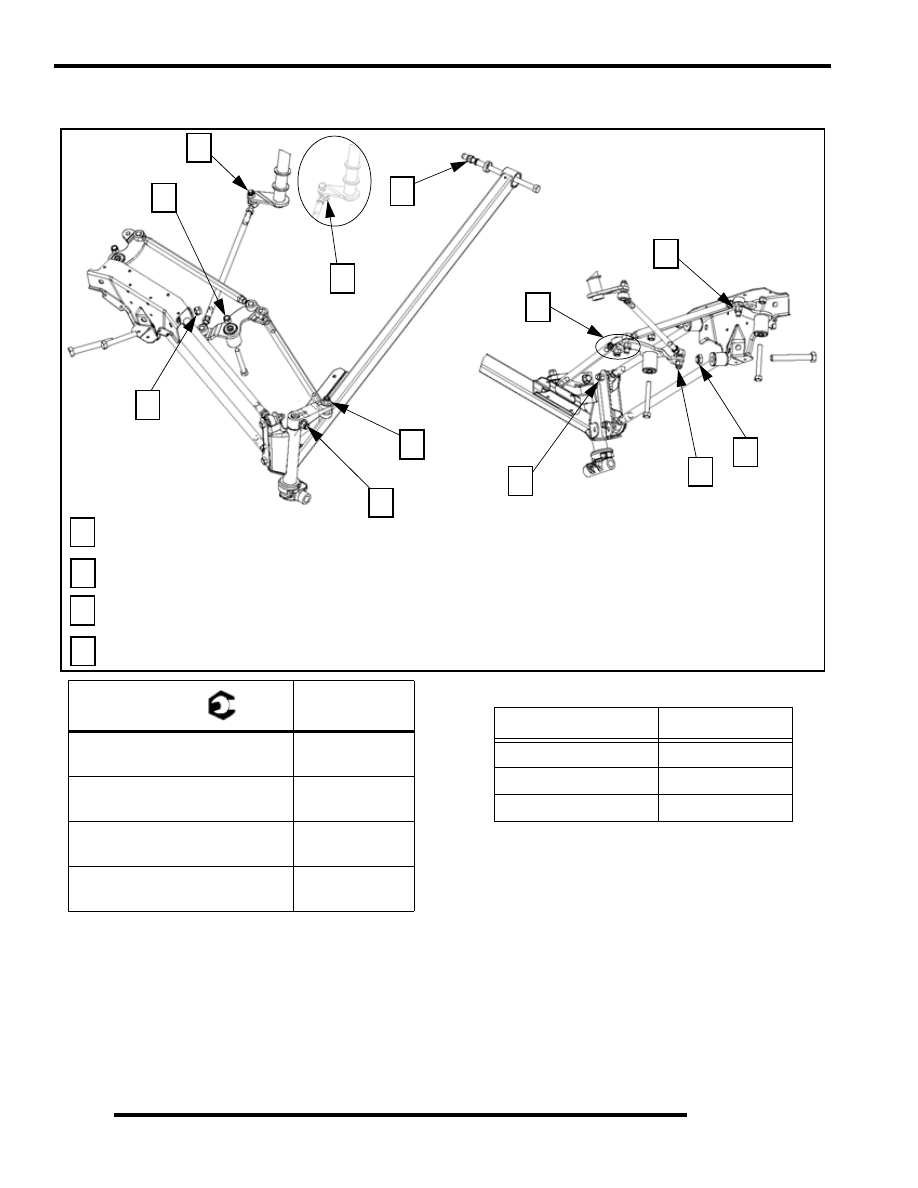

8.4

FRONT SUSPENSION & STEERING

Edge/Edge LX

Edge LX

1

1

2

1

1

1

3

1

1

1

1

4

2   35-40 ft-lb (47-54 N-m)

1   28-30 ft-lb (38-41 N-m)

4   95-100 ft-lb (129-136 N-m)

3   55-60 ft-lb (75-81 N-m)

= T

Drag link fasteners, Steering arm

fasteners, Tie rod fasteners

28-30 ft-lb

(38-41 N-m)

Trailing arm fastener

35-40 ft-lb

(47-54N-m)

Upper Radius Rod fasteners

55-60 ft-lb

(75-81 N-m)

Lower Radius Rod fasteners

95-100 ft-lb

(129-136 N-m)

Edge/Edge LX Specifications

I

TEM

M

EASUREMENT

Camber

.59" ±.31" / 15 ± 8mm

Toe

.12 - .25" / 3-6mm

Width

40.44" / 102.7cm

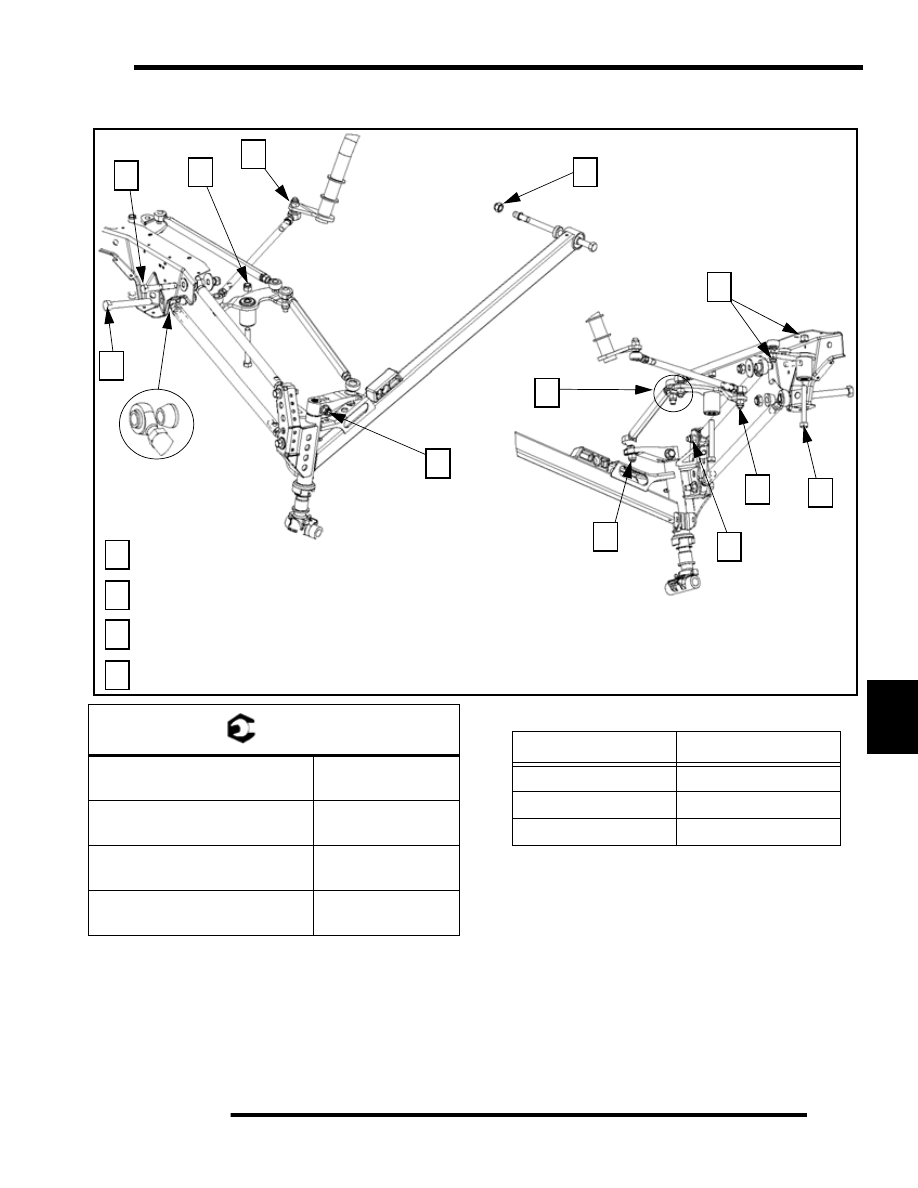

8.5

FRONT SUSPENSION & STEERING

8

Edge RMK

1   28-30 ft-lb (38-41 N-m)

1

2

1

1

3

4

1

1

1

1

1

1

2   35-40 ft-lb (47-54 N-m)

3   60 ft-lb (81 N-m)

4   150 ft-lb (203 N-m)

= T

Drag link fasteners, Steering arm

fasteners, Tie rod fasteners

28-30 ft-lb

(38-41 N-m)

Trailing Arm fastener

35-40 ft-lb

(47-54N-m)

Upper Radius Rod fasteners

60 ft-lb

(81 N-m)

Lower Radius Rod fasteners

150 ft-lb

(203 N-m)

Edge RMK Specifications

I

TEM

M

EASUREMENT

Camber

.735" ±.31" / 18.7 ± 8mm

Toe

.12 - .25" / 3-6mm

Width

41" / 104 cm

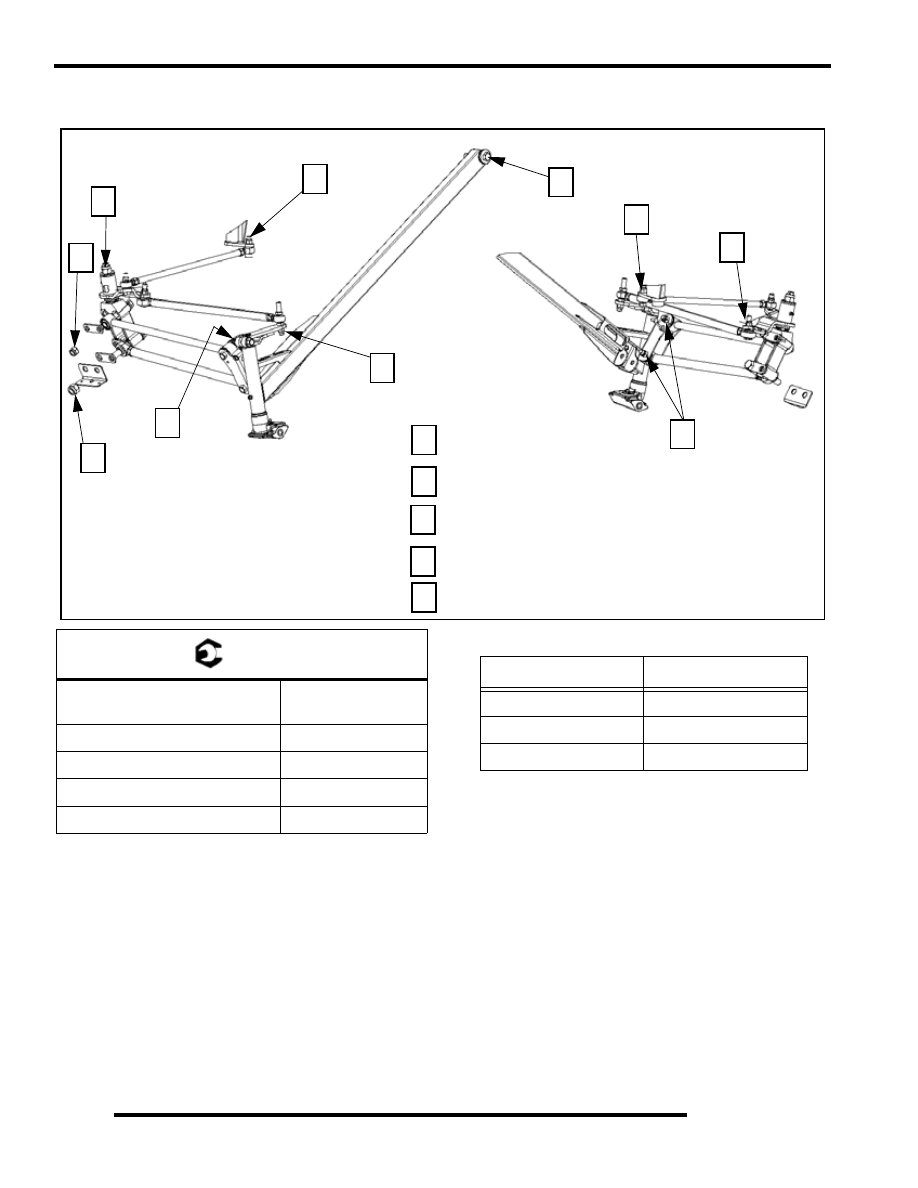

8.6

FRONT SUSPENSION & STEERING

Widetrack LX

4

1

2

5

1

3

1

1

1

1   29 ft-lb (39 N-m)

2   38 ft-lb (52 N-m)

3   43 ft-lb (58 N-m)

4   48 ft-lb (65 N-m)

5   58 ft-lb (79 N-m)

1

= T

Drag link fasteners, Steering arm

fasteners, Tie rod fasteners

29 ft-lb (39 N-m)

Upper Radius Rod (Inner)

38 ft-lb (52 N-m)

Trailing arm fastener

43 ft-lb (58 N-m)

Lower Radius Rod (Inner)

48 ft-lb (65 N-m)

Center Steering Arm

58 ft-lb (79 N-m)

Widetrack LX Specifications

I

TEM

M

EASUREMENT

Camber

.82" ±.72" / 21 ± 18mm

Toe

0-.12" / 3 mm

Width

37.6" / 95.5 cm
