Snowmobile Polaris 340 Edge / 550 LX (2008 year). Instruction - part 23

92

MAINTENANCE

Clutch System

Drive Belt Removal

1. Stop the engine after operating in a forward motion.
2. Turn the ignition key off. Wait for the engine to stop completely.
3. Lock the parking brake (if equipped).
4. Open the hood.
5. Remove the clutch guard retain-

ing pin and open the clutch

guard.

6. Locate the L-wrench in the tool

kit and install it into the open

threaded hole in the outer sheave

of the clutch. Rotate the wrench

until the sheaves open far enough

to remove the belt.

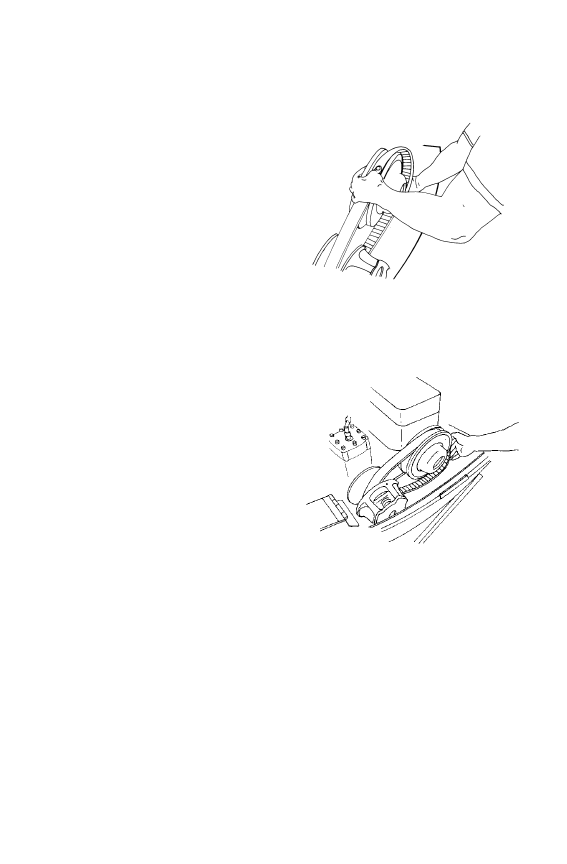

7. Firmly grasp the belt midway

between the clutches and pull

upward and rearward to remove.

See illustration.

CAUTION

Do not attempt to remove the drive belt after operating in reverse. The snow-

mobile must be stopped after forward motion to prevent damage to compo-

nents during belt removal.

93

MAINTENANCE

Clutch System

Drive Belt Installation

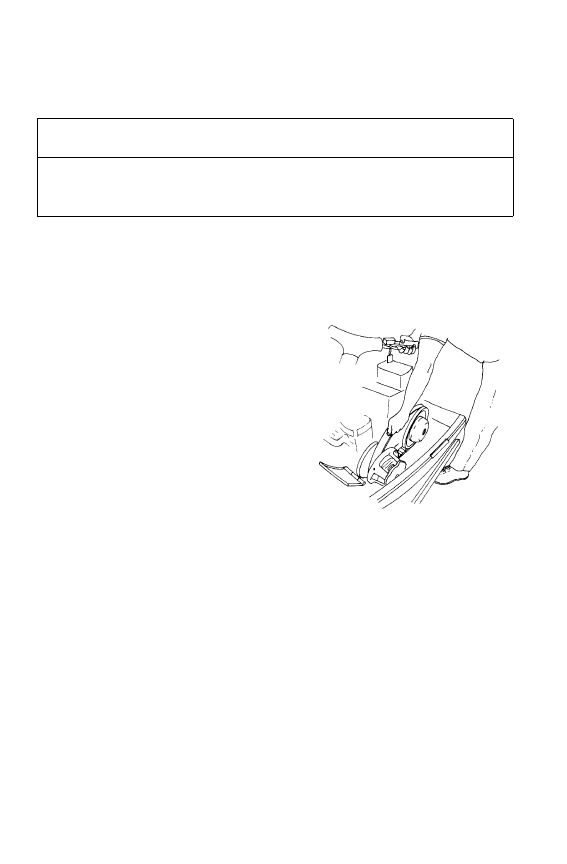

1. Drop the drive belt over the

drive clutch and pull back

the slack.

NOTE: To ensure satisfactory

belt life, install belts so

they operate in the

same direction of rota-

tion by positioning the

identification numbers

so that you can read

them. If required, sepa-

rate the sheaves as

outlined in the belt removal procedures.

2. Turn the driven clutch moveable sheave clockwise while pushing

inward and forcing the belt down between the sheaves.

3. Hold the belt down between

the sheaves and roll the bot-

tom portion over the outer

clutch sheave. Work the belt

to the outer edge of the

sheave.

4. Rotate the L-wrench to

tighten the sheaves. Remove

the wrench and store in the

tool kit.

5. Close the clutch guard and

reinstall the retaining pin.

6. Close and secure the hood and release the parking brake.

94

MAINTENANCE

Clutch System

n

Drive Belt Deflection

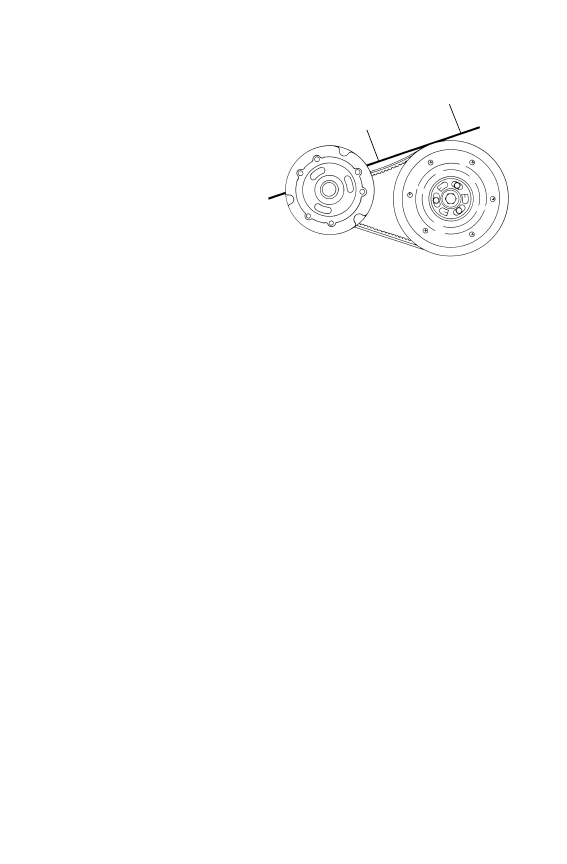

Measure belt deflection with

both clutches at rest and in

their full neutral position.

Place a straight edge (1) on the

belt and apply downward pres-

sure while measuring at point

2. This measurement should be

1 1/4I (3.2 cm).

Drive Belt Adjustment

Belt deflection should be adjusted without removing the clutch from the

jackshaft.
1. Loosen the 7/16I jam nut on the belt width adjuster.
2. Using a 1/8I Allen wrench, adjust the threaded set screw as needed.

NOTE: Turn the set screw in (clockwise) to increase the distance

between the sheaves and out (counterclockwise) to decrease

the distance.

3. Tighten the jam nut.

1

2

95

MAINTENANCE

Clutch System

Torque Stop

If your snowmobile is equipped with

an engine torque stop, periodically

check torque stop clearance.

With clutches in proper alignment,

the torque stop clearance should be

.010I-.030I (.25-.75 mm) from the

engine case.

Adjust if necessary, and lock the jam

nut.

Chain Tension

Maintain the proper chain tension as outlined on page 84.

Fall Tune-Up

For maximum performance, arrange for a fall service tune-up with your

Polaris dealer. His experienced and trained service technician will keep

your machine in peak operating condition.

Tool Kit

A tool kit is included with each machine for emergency and routine

maintenance. Always keep the tool kit with the snowmobile.

.010-.030

I

(.25-.75 mm)
