Maintenance

Slider Replacement

Polaris rail slides have a wear limit

indicator groove to indicate the

minimum permissible slide thick-

ness. Replace the rail slides if they

are worn to the top of the groove at

any point along their length. Fail-

ure to do so may result in perma-

nent damage to the track or rails.

Track Lubrication

Track failure, loss of vehicle control and braking ability can result from

extended use of this vehicle on surfaces providing marginal lubrication

between the slider and track guide clips. Examples of marginal lubrica-

tion would include lakes without snow cover, icy trails and no-snow

conditions.
The slide rail is designed to operate in conditions with adequate snow

cover in order to provide sufficient lubrication. Excessive wear indicates

insufficient lubrication. A new slider can cause faster heat build up in

limited lubrication than a used slider, resulting in excessive wear.

NOTE:

Track damage or failure caused by operation on ice or poor lubrication

conditions may void the track warranty.

Steering System

The steering systems on Polaris snowmobiles can be adjusted with ski

toe alignment. Improper toe alignment can cause erratic steering. See

your dealer for adjustments.

WARNING

Improper alignment or adjustment may cause loss of steering control, result-

ing in serious injury or death. Do not attempt to change the ski alignment. See

your Polaris dealer.

Replace when

worn to top of

groove

Minimum

Thickness

69

ADULT SECTION

Maintenance

Steering Inspection

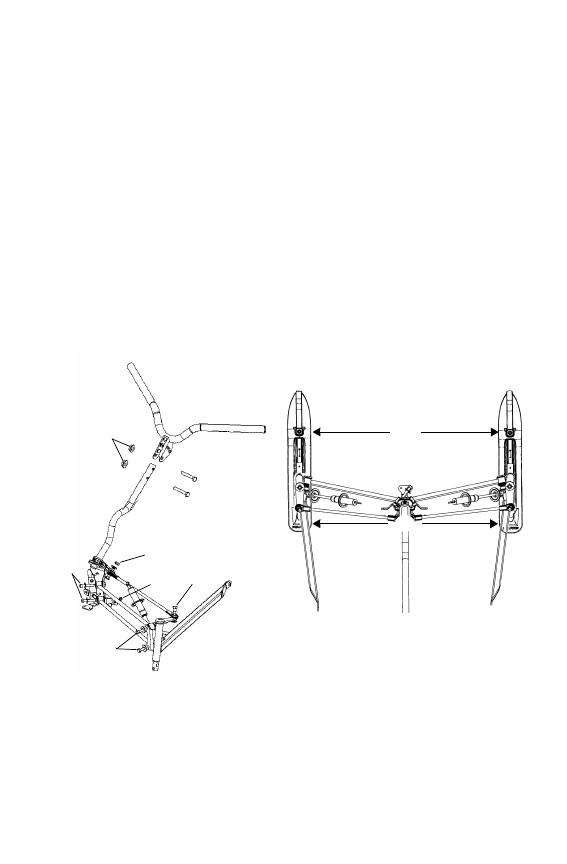

Each week, or before a long ride, check all steering system fasteners.

Tighten any loose fasteners. The stars in the illustration below indicate

fastener locations.

Steering Adjustment

With the handlebars in a straight ahead position, and with vehicle

weight compressing the suspension, measure from the straight edge of

the skis at the center of the ski mounting bolt. The measurement

between the skis at point X should be 1/8I (3 mm) greater than the mea-

surement at point Y.

NOTE:

If the skis are misaligned, we recommend that your dealer make the

necessary adjustments.

X

+

Y

+

+

+

+

+

70

ADULT SECTION

Maintenance

Handlebar Adjustment

1. Slide the handlebar pad

upward to access the

adjuster bolts. If additional

room is required, unzip one

of the handlebar pad zippers

and roll the pad to the side.

2. Remove the upper flange

nut and carriage bolt.

3. Loosen the lower flange nut

only enough so the bracket

can move freely.

4. Position the handlebar to

the desired height.

5. Reinstall the upper carriage

bolt and flange nut.

6. Torque both flange nuts to 15-17 ft. lbs. (20-23 Nm).
7. Reinstall the handlebar pad.

Lower

Nut

Upper Bolt

71

ADULT SECTION

Maintenance

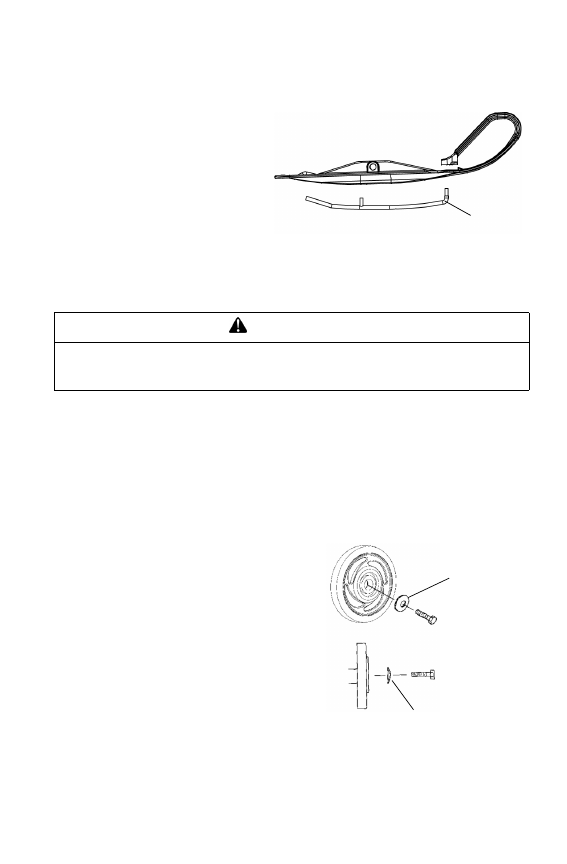

Ski Skags

The skag is a replaceable bar

attached to the underside of

the ski. The purpose of the

skag is to assist in turning the

snowmobile and to prevent

the wearing away of the ski

caused by contact with roads

and other bare terrain.
Check skags weekly to maintain positive steering characteristics.

Replace skags when they are worn to half their original diameter.

NOTE:

See the dealer track studding and skag chart for recommended skags.

Skag Replacement

1. Raise and support the front of the machine so the skis are approxi-

mately 6" (15 cm) off the ground.

2. Remove the attaching nuts and pry the skag downward.
3. Remove the forward portion of the skag.
4. Reverse this procedure for new skag installation.

NOTE:

If the rear idler wheel

assembly washers are

removed, be sure they are

reinstalled with the domed

side of the washer facing

outward as shown.

WARNING

Worn skis and/or skags will adversely affect handling and can cause loss of

vehicle control, which can lead to serious injury or death. Replace worn skis

and/or skags when inspection reveals wear.

Skag

Rear Idler

Wheel

Washer

Domed Side

Outward
