Maintenance

Track Tension Adjustment

1. Loosen the rear idler shaft bolt.
2. Tighten or loosen the track adjusting screws to provide equal adjust-

ment on both sides of the track.

3. Repeat the measurement on the other side of the track.

NOTE:

Check tension more frequently when the machine is new.

4. Start the engine and slowly rotate the track at least five revolutions.

Allow the track to stop rotating by itself (do not apply brakes).

5. Check and adjust track alignment. See page 65.
6. Tighten the idler shaft bolt. Torque to 35-40 ft. lbs. (47-54 Nm).
7. Readjust the toe block to proper spacing and tighten.

WARNING

When performing the following checks and adjustments, stay clear of all mov-

ing parts to avoid serious personal injury. Make sure the track contains no

objects that could be thrown out while the track is rotating. Keep clear of track.

This includes but is not limited to hands, tools, feet and clothing. Make sure no

one is standing close to the machine while the track is rotating.

65

ADULT SECTION

Maintenance

Track Alignment

Check track alignment at the intervals outlined in the periodic mainte-

nance chart beginning on page 50. Make sure the track is centered and

running evenly on the slide rails. Misalignment will cause excessive

wear to the track and slide rail.

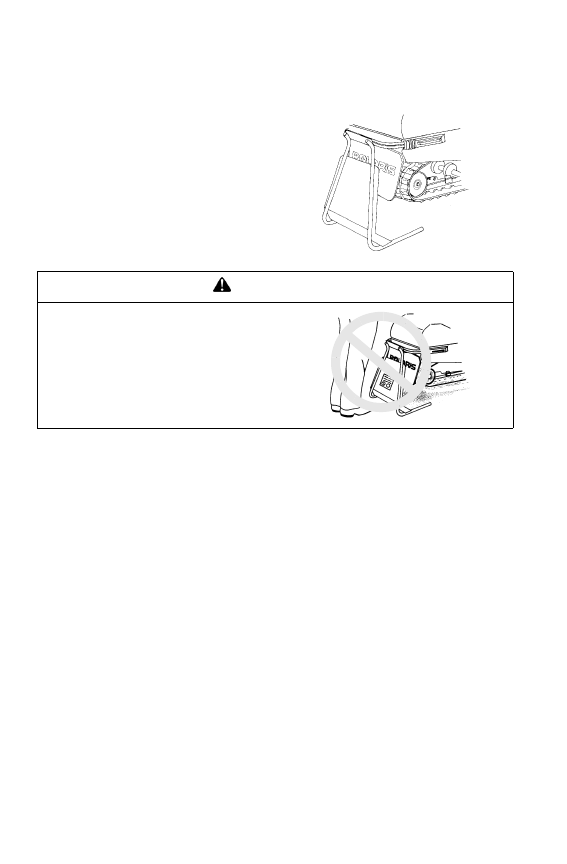

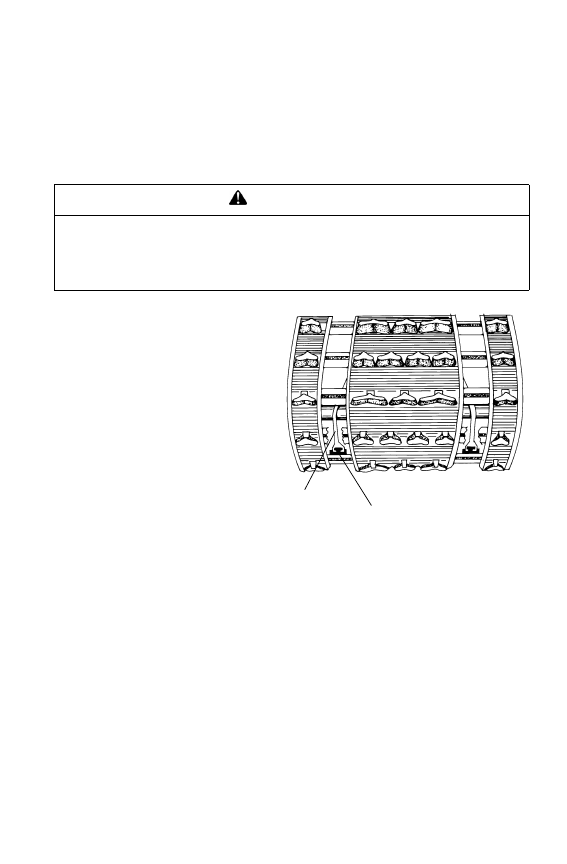

1. Support the rear of the

snowmobile slightly off the

ground with an appropriate

snowmobile support.

2. Start the engine and apply a

small amount of throttle

until the track turns slowly

at least five complete revo-

lutions. Stop the engine.

3. Inspect track alignment by

looking through the track

windows to make sure the

rails are evenly spaced on

each side. If the track runs

to the left, loosen the left

idler wheel mounting bolt and tighten the left track adjusting bolt. If

the track runs to the right, loosen the right idler wheel mounting bolt

and tighten the right track adjusting bolt.

4. After adjustments are complete, tighten the locknuts and idler shaft

bolts. Torque to 35-40 ft. lbs. (47-54 Nm).

5. Repeat step 2 to verify proper alignment.

WARNING

When performing the following checks and adjustments, stay clear of all mov-

ing parts to avoid serious personal injury. Make sure the track contains no

objects that could be thrown out while the track is rotating. Keep clear of track.

This includes but is not limited to hands, tools, feet and clothing. Make sure no

one is standing close to the machine while the track is rotating.

Slider

Rail

66

ADULT SECTION

Maintenance

Track Warm Up

After storing your snowmobile

outside overnight, warm up the

track before driving the snow-

mobile. This reduces drive

clutch wear.
1. Support the rear of the

snowmobile slightly off the

ground with an appropriate

snowmobile support.

2. Start the engine.
3. Abruptly engage the clutch, allowing the track to turn for several

revolutions.

4. Release the throttle and apply the brakes.
5. Stop the engine.
6. Lower the rear of the snowmobile to the ground while the engine is

off.

WARNING

Never hold the snowmobile up or

stand behind it while rotating the

track. A loose track or flying debris

could cause serious personal injury

or death.

67

ADULT SECTION

Maintenance

Track Inspection

Check track condition at the intervals outlined in the periodic mainte-

nance chart beginning on page 50.

1. Support the rear of the

snowmobile slightly off the

ground with an appropriate

snowmobile support.

2. Rotate the track by hand to

check for wear or damage.

3. Carefully examine the

track along the entire

length of each track rod,

bending the track and

inspecting for breakage.

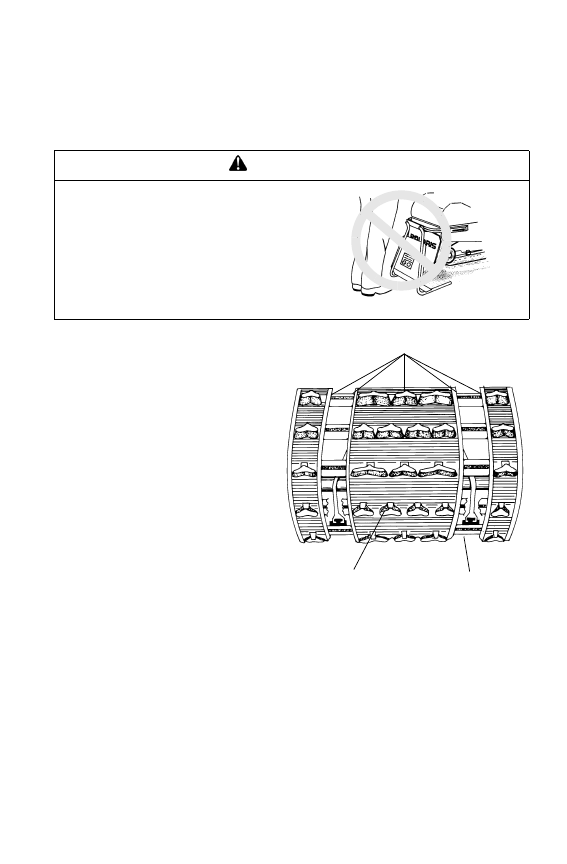

NOTE:

The three most common

places where breakage

occurs are shown in the

illustration.

4. Check the track clips and

tighten any loose clips. If

any rod damage is found, install a new track.

NOTE:

This snowmobile track has molded-in track clips. It is common for a

thin layer of rubber to detach from the clip area and peel off during ini-

tial use.

WARNING

Inspecting the track while the engine

is running can result in serious per-

sonal injury if the track should being

to move. Never inspect the track with

the engine running. Never hold the

snowmobile up or stand behind it

while rotating the track. A loose track

or flying debris could cause serious

personal injury or death.

Track

Window

Lug

Common Breakage Areas
