Related information

Instrument panel (p. 80)

App menu in instrument panel

The application menu (App menu) in the instru-
ment panel provides quick access to commonly
used functions for certain apps.

The App menu in the instrument panel can be used

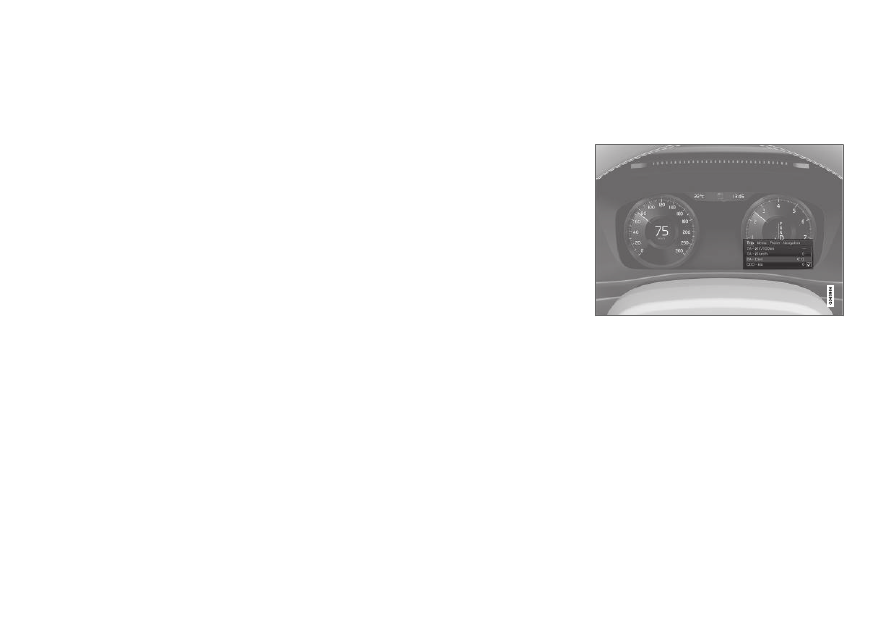

instead of the center display. The illustration is generic –
layout may vary.

The App menu is displayed in the instrument
panel and is controlled using the right-side steer-
ing wheel keypad. The app menu makes it easier
to switch between different apps or functions
within the apps without having to let go of the
steering wheel.

App menu functions

Different apps provide access to different types
of functions. The following apps and their func-
tions can be controlled from the App menu:

DISPLAYS AND VOICE CONTROL

}}

101

App

Functions

Trip com-
puter

Select a trip odometer, change
instrument panel display set-
tings, etc.

Media player

Select active source for media
player.

Phone

Call a contact from the call list.

Navigation

Guide to destination, etc.

Related information

Instrument panel (p. 80)

Center display overview (p. 107)

Handling the App menu in the instrument
panel (p. 101)

Handling the App menu in the

instrument panel

The App (application) menu in the instrument
panel is controlled using the right-side steering
wheel keypad.

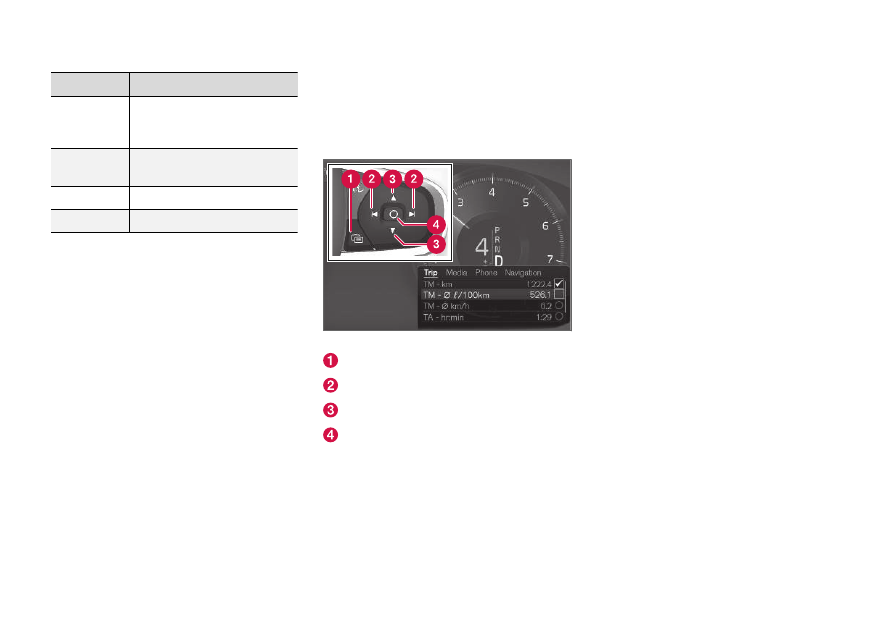

App menu and right-side steering wheel keypad.

Open/close

Left/right

Up/down

Confirm

Opening and closing the app menu

Tap open/close (1).

(The App menu cannot be opened while
there is an unacknowledged message in the
instrument panel. The message must be con-
firmed before the App menu can be opened.)
> The App men opens/closes.

The App menu turns off automatically after a
period of inactivity or after certain selections are
made.

Navigating and making selections in the
App menu

1. Navigate among the apps available by press-

ing the left/right arrow keys (2).
> Functions for the previous/next app will

be shown in the App menu.

2. Scroll through the functions for the selected

app using the up or down arrows (3).

3. Confirm or make a selection for the function

by pressing confirm (4).
> The function will be activated and, for

some selections, the App menu will then
close.

The next time the App menu is opened, the func-
tions for the most recently selected app will be
displayed automatically.

||

DISPLAYS AND VOICE CONTROL

102

Related information

App menu in instrument panel (p. 100)

Messages in the instrument panel (p. 102)

Messages in the instrument panel

The instrument panel shows messages in certain
circumstances to inform or assist the driver.

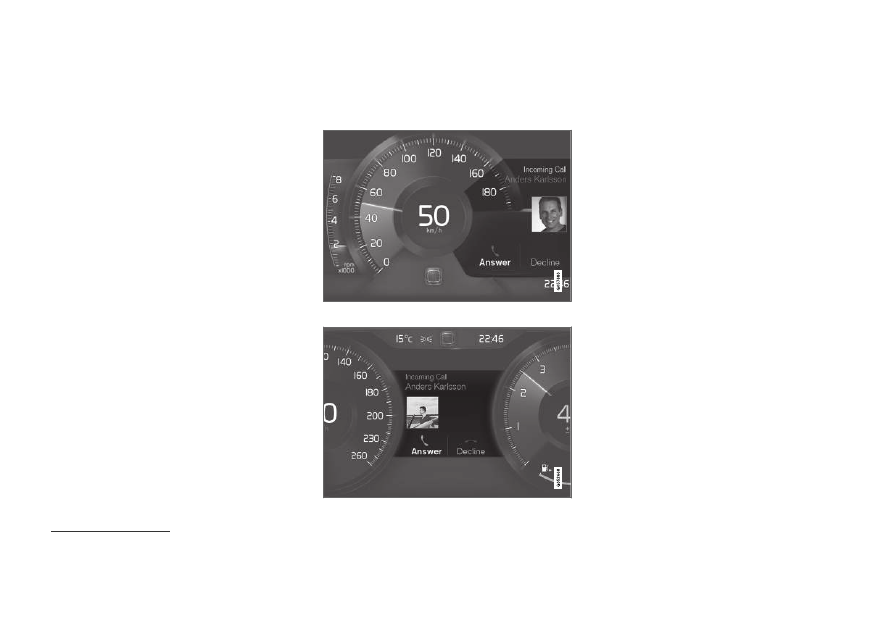

Message in the instrument panel

4

.

Message in the instrument panel

5

.

High-priority messages for the driver are dis-
played in the instrument panel.

The messages may appear in different parts of
the instrument panel depending on what other
information is currently being displayed. The mes-
sage will disappear from the instrument panel
after a short period of time or after it has been
acknowledged or any required action has been
taken. Messages that need to be saved are

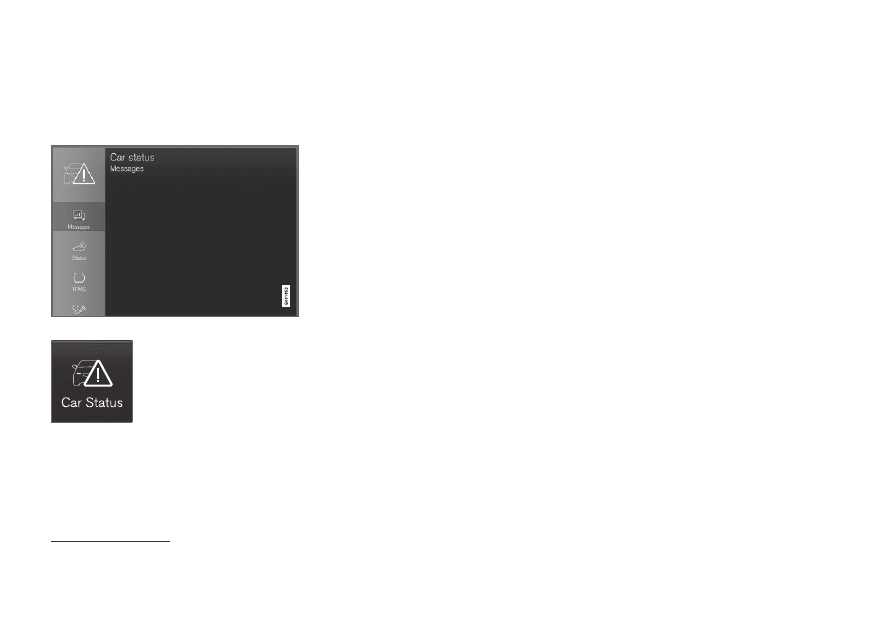

stored in the

Car Status

 app, which can be

opened from the App view in the center display.

The message may be shown along with graphics,
symbols or buttons to e.g. acknowledge the mes-
sage or accept a request.

4

With 8" instrument panel.

5

With 12" instrument panel.

DISPLAYS AND VOICE CONTROL

}}

103

Service messages

The following table lists a selection of important
service messages and what they mean.

Message

Meaning

Stop safely

A

Stop and switch off the
engine. Serious risk of
damage - contact a work-
shop

B

.

Turn off
engine

A

Stop and switch off the
engine. Serious risk of
damage - contact a work-
shop

B

.

Service urgent
Drive to work-
shop

A

Contact a workshop

B

 to

have the vehicle inspected
immediately.

Service
required

A

Contact a workshop

B

 to

have the vehicle inspected
as soon as possible.

Regular main-
tenance

Book time for
maintenance

Time for service - contact
a workshop

B

. Shown

before the next service
date.

Regular main-
tenance

Time for main-
tenance

Time for service - contact
a workshop

B

. Shown on

the next service date.

Message

Meaning

Regular main-
tenance

Maintenance
overdue

Time for service - contact
a workshop

B

. Shown when

the date for service has
passed.

Temporarily
off

A

A function has been tem-
porarily deactivated and
will be reactivated auto-
matically while driving or
after the engine is restar-
ted.

A

Part of message, shown along with information on the location

of the problem.

B

An authorized Volvo workshop is recommended.

Related information

Handling messages in the instrument panel
(p. 103)

Handling messages saved from the instru-
ment panel (p. 105)

Messages in the center display (p. 138)

Handling messages in the

instrument panel

Messages in the instrument panel are controlled
using the right-side steering wheel keypad.

||

DISPLAYS AND VOICE CONTROL

104

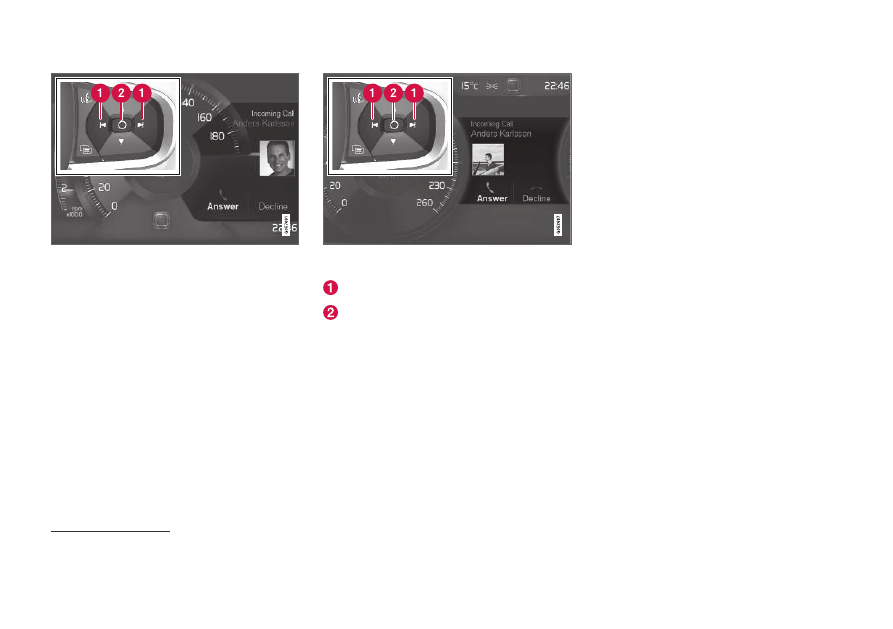

Messages in the instrument panel

6

 and the right-side

steering wheel keypad.

Messages in the instrument panel

7

 and the right-side

steering wheel keypad.

Left/right

Confirm

Some messages in the instrument panel contain
one or more buttons for e.g. confirming the mes-
sage or accepting a request.

Handling new messages

For messages with buttons:

1. Navigate among the buttons available by

pressing the left/right arrow keys (1).

2. Confirm your selection by pressing confirm

(2).
> The message will disappear from the

instrument panel.

For messages without buttons:

Close the message by pressing confirm (2)
or let the message automatically time-out
after a short period.
> The message will disappear from the

instrument panel.

Messages that need to be saved are stored in
the

Car Status

 app, which can be opened from

the App view in the center display. The message

Vehicle message stored in Car Status app

will simultaneously appear in the center display.

Related information

Messages in the instrument panel (p. 102)

Handling messages saved from the instru-
ment panel (p. 105)

Messages in the center display (p. 138)

6

With 8" instrument panel.

7

With 12" instrument panel.

DISPLAYS AND VOICE CONTROL

}}

105

Handling messages saved from the

instrument panel

Messages saved from the instrument panel and
center displays are handled in the center display.

Saved messages can be viewed in the Car Status app.

The messages displayed in the
instrument panel that need to
be saved are stored in the

Car

Status

 app in the center dis-

play. The message

Vehicle

message stored in Car
Status app

 will simultaneously

appear in the center display.

Reading saved messages

To read a saved message immediately:

Tap the button to the right of the message

Vehicle message stored in Car Status
app

 in the center display.

> The saved message will be displayed in

the

Car Status

 app.

To read saved messages at a later time:

1. Open the

Car Status

 app from App view in

the center display.
> The app will open in the bottom tile of

Home view.

2. Select the

Messages

 tab in the app.

> A list of saved messages will be displayed.

3. Tap a message to expand/minimize it.

> More information about the message will

appear in the list and the image to the left
of the app will display information about
the message in graphic form.

Handling saved messages

In expanded form, some messages have two but-
tons available for booking service or reading the
Owner's Manual.

Booking service for saved messages:

With the message in expanded form, tap

Request appoint.Call to make
Appointment

8

 for assistance booking serv-

ice.
> With

Request appoint.

: The

Appointments

 tab will open in the app

and create a request for a service/repair
appointment.

With

Call to make Appointment

: The

phone app will open and call a service
center to make an appointment for service
or repairs.

Reading the Owner's Manual for saved mes-
sages:

With the message in expanded form, tap

Owner's manual

 to read relevant informa-

tion about the message in the Owner's Man-
ual.
> The Owner's Manual will open in the cen-

ter display and provide information related
to the message.

Saved messages in the app are automatically
deleted each time the engine is started.

8

Market dependent. Volvo ID and selected workshop also need to be registered

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

108

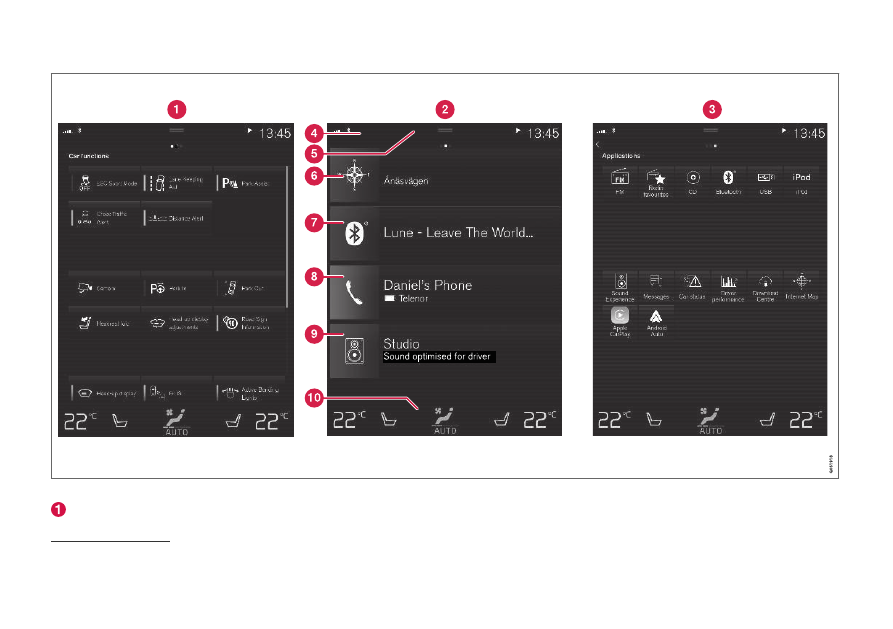

Three of the center display's basic views. Swipe to the right/left to access Function or App view

9

.

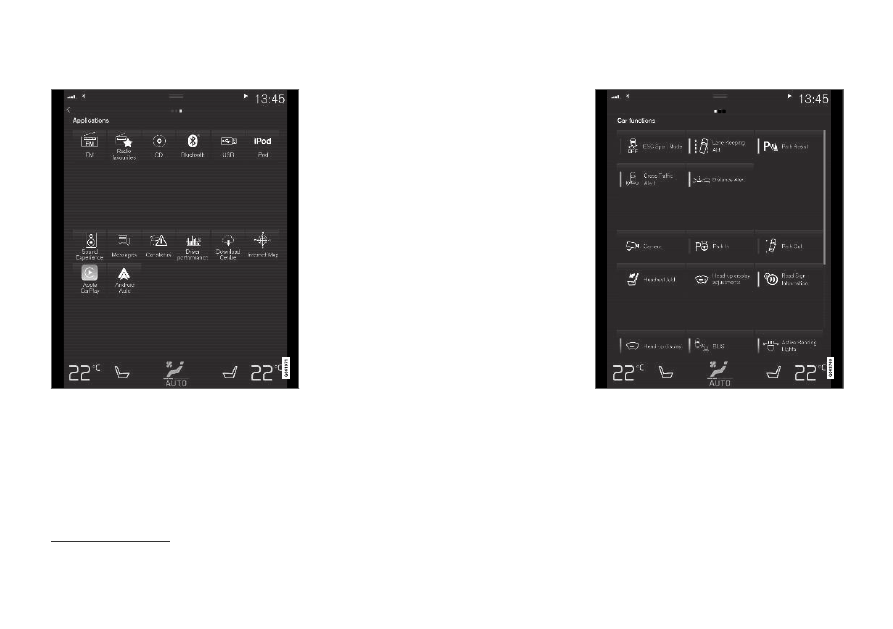

Function view

‒ vehicle functions that can be

activated or deactivated with one tap. Certain

functions, called "trigger functions", open
windows with settings options. One example

is the

Camera

. Settings for the head-up dis-

play* are also started from Function view, but

9

In right-hand drive vehicles, these views are mirror images of the ones shown here.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

109

adjusted using the right-side steering wheel
keypad.
Home view

‒ the initial view displayed when

the screen is turned on.
App view

‒ shows downloaded apps (third-

party apps) as well as apps for integrated
functions, such as

FM radio

. Tap an app icon

to open that app.
Status bar

‒ current vehicle activities are

shown at the top of the screen. Network and
connection information is shown to the left of
the status bar. Media-related information, the
clock and information about background
activities are shown to the right.
Top view

‒ pull the tab down to open Top

view. From here, you can access

Settings

,

Owner's manual

Profile

 and messages

stored in the vehicle. In certain cases, con-
textual setting (e.g.

Navigation Settings

)

and the contextual Owner's Manual (e.g.

Navigation Manual

) can also be accessed

in Top view.
Navigation

‒ takes you to map navigation

with e.g. Sensus Navigation*. Tap the tile to
expand it.
Media

‒ most recently used media-related

apps. Tap the tile to expand it.
Phone

‒ used to access phone-related func-

tions. Tap the tile to expand it.

Fourth tile

‒ most recently used apps or

vehicle functions not associated with the
other tiles. Tap the tile to expand it.
Climate row - information and direct interac-
tion to set temperature and seat heating for
example*. Tap the symbol in the center of the
climate bar to open Climate view and addi-
tional setting options.

Related information

Handling the center display (p. 110)

Navigating in the center display's views
(p. 113)

Function view in the center display (p. 120)

Apps (p. 464)

Symbols in the center display status bar
(p. 122)

Changing settings in the center display's Top
view (p. 130)

Opening contextual setting in the center dis-
play (p. 131)

Owner's Manual in the center display (p. 17)

Media player (p. 484)

Phone (p. 498)

Climate system controls (p. 212)

Turning off and adjusting the volume of the
center display system sounds (p. 129)

Changing the appearance of the center dis-
play (p. 129)

Changing system language (p. 130)

Changing system units of measurement
(p. 130)

Cleaning the center display (p. 610)

Messages in the center display (p. 138)

DISPLAYS AND VOICE CONTROL

110

Handling the center display

Many of the vehicle's functions and features can
be controlled and adjusted from the center dis-
play. The center display is a touchscreen that
reacts to taps and other gestures.

Using the center display's touchscreen

The touchscreen reacts differently depending on
whether the user taps, drags or swipes the
screen. It is possible to e.g. move between differ-

ent views, mark objects, scroll in a list and move
apps by touching the screen in various ways.

An infrared light curtain just above the surface of
the screen enables the screen to detect when a
finger is directly in front of the screen. This tech-
nology makes it possible to use the screen even
while wearing gloves.

Two people can interact with the screen at the
same time, e.g. to adjust climate system settings
for both the driver and passenger sides.

CAUTION

Do not use sharp objects on the screen as
this could cause scratches.

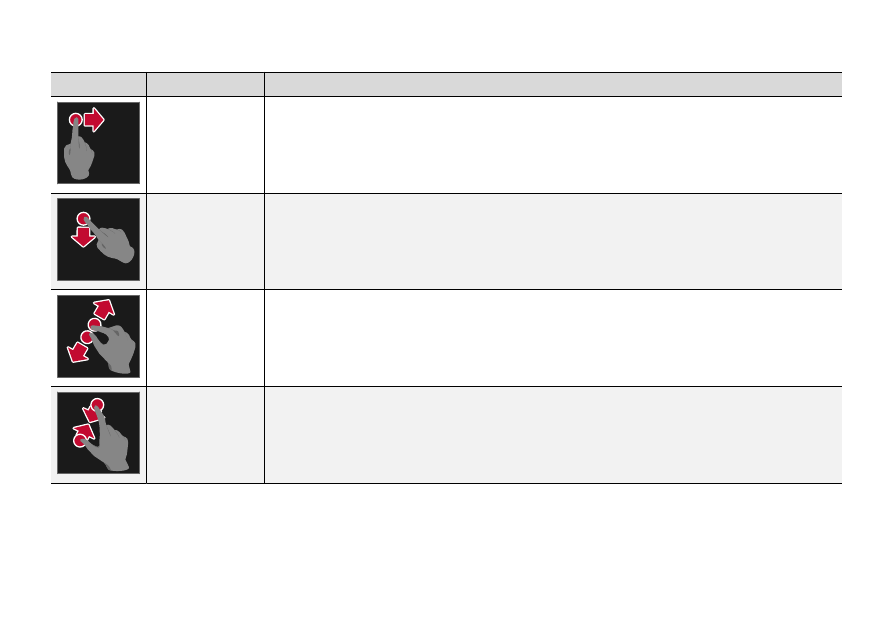

The following table presents the various proce-
dures for using the screen:

Procedure

Gesture

Result

Tap once.

Marks an object, confirms a selection or activates a function.

Double-tap.

Zooms in on a digital object, such as a map.

Press and hold.

Grabs hold of an object so it can be moved. Can be used to move apps or points on a map. Press and hold your
finger on the screen and drag the object to the desired position.

Tap once with two
fingers.

Zooms out from a digital object, such as a map.

DISPLAYS AND VOICE CONTROL

}}

111

Procedure

Gesture

Result

Drag

Moves between screen views or scrolls in a list, text or a view. Press and hold to drag apps or points on a map.
Drag horizontally or vertically over the screen.

Swipe

Moves between screen views or scrolls in a list, text or a view. Drag horizontally or vertically over the screen.

Note that touching the upper part of the screen could cause Top view to open.

Stretch

Zooms in.

Pinch

Zooms out.

||

DISPLAYS AND VOICE CONTROL

112

Returning to Home view from another
view

1. Briefly press the home button below the cen-

ter display.
> The most recent Home view mode will be

displayed.

2. Press briefly again.

> All of the Home view's tiles will return to

standard mode.

NOTE

In Home view's standard mode – short press
on the Home button. An animation describing
access to the various views is shown on the
screen.

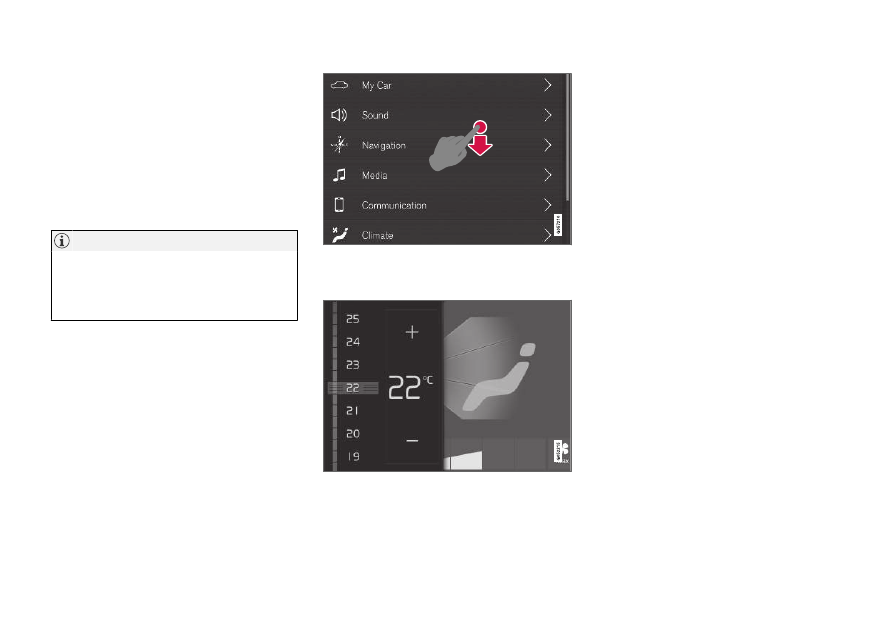

Scrolling in lists, articles or views

A scroll indicator is displayed on the screen when
it is possible to scroll up or down in the view.
Swipe down/up anywhere in the view.

The scroll indicator will be shown in the center display
when it is possible to scroll in the view.

Using the center display controls

Temperature control.

Digital controls are available for many of the vehi-
cle's functions. For example, to set the tempera-
ture:

drag the control to the desired temperature,

tap

+

 or

 to raise or lower the temperature

by degrees, or

tap the desired temperature on the control.

Related information

Activating and deactivating the center display
(p. 113)

Moving apps and buttons in the center dis-
play (p. 122)

Using the center display keyboard (p. 124)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

113

Activating and deactivating the

center display

The center display can be dimmed and reactiva-
ted using the home button under the screen.

Center display's home button.

When the home button is used, the screen will go
dark and the touchscreen no longer reacts to
touch. The climate bar will remain visible. All func-
tions connected to the screen continue to oper-
ate, such as climate, audio, guiding* and apps.
The center display screen can be cleaned when
the display is dimmed. The dimming function can
also be used to darken the screen so it is not a
distraction while driving.

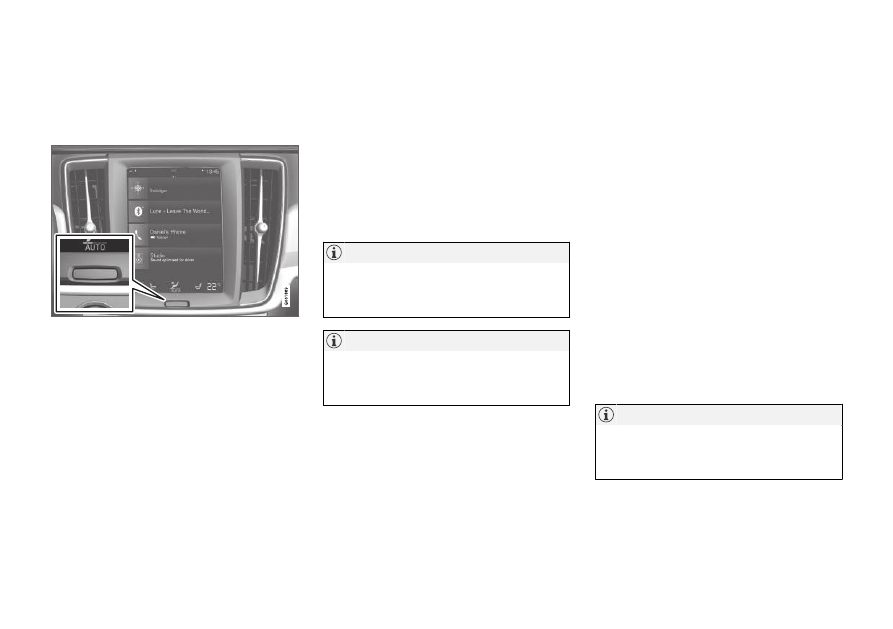

1. Press and hold the button beneath the

screen.
> The screen will go dark (the climate bar

will remain visible). All functions con-
nected to the screen continue to operate.

2. To reactivate the screen, briefly press the

Home button.
> The view that was displayed before the

screen was turned off will be displayed
again.

NOTE

The screen cannot be turned off when a
prompt to perform an action is being dis-
played on the screen.

NOTE

The center display is turned off automatically
when the engine is off and the driver's door is
opened.

Related information

Cleaning the center display (p. 610)

Changing the appearance of the center dis-
play (p. 129)

Center display overview (p. 107)

Navigating in the center display's

views

There are five different basic views in the center
display: Home view, Top view, Climate view, App
view and Function view. The screen is automati-
cally activated when the driver's door is opened.

Home view

Home view is the view displayed when the screen
is activated. It consists of four tiles:

Navigation

,

Media

Phone

 and a fourth tile.

An app or vehicle function selected from the App
or Function views will start in the respective tile in
Home view. For example,

FM radio

 will start in

the

Media

 tile.

The fourth tile contains the most recently used
app or vehicle function that is not related to the
other three tiles.

The tiles display brief information about the
respective apps.

NOTE

When the vehicle is started, information on
the current status of apps will be displayed in
the respective tile in Home view.

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

114

NOTE

In Home view's standard mode – short press
on the Home button. An animation describing
access to the various views is shown on the
screen.

NOTE

When the vehicle is moving:

Certain functions (e.g. using the center
display's keyboard) may be deactivated.

Certain texts (e.g. those generated by
apps) will be shortened to three rows.
Tap the

Read out

 button to have the

entire message read aloud.

The message will be shortened to one
row. Tap the

Read out

 button to have

the entire message read aloud.

Status bar

Current vehicle activities are shown at the top of
the screen in the status bar. Network and con-
nection information is shown to the left of the
status bar. Media-related information, the clock
and information about background activities are
shown to the right.

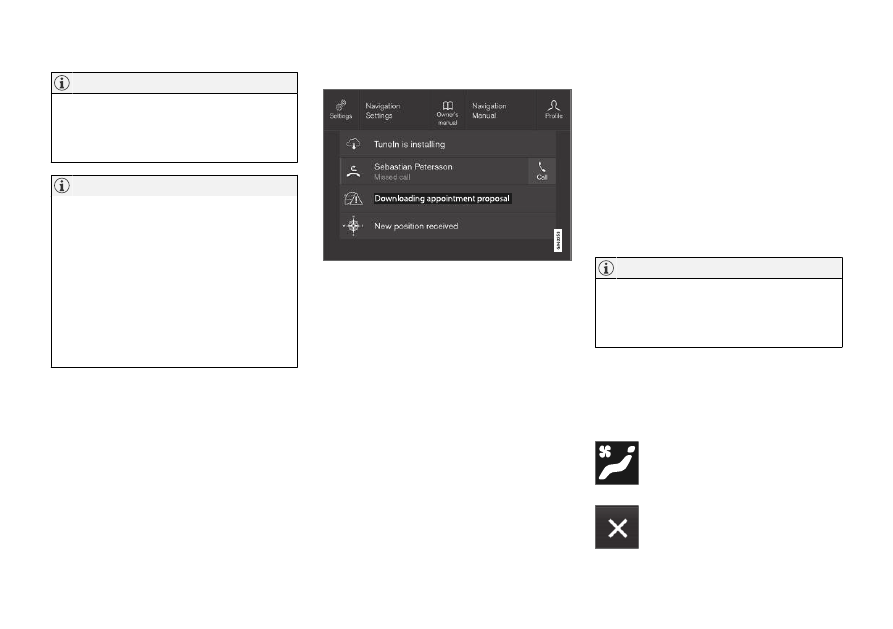

Top view

Top view when expanded.

There is a tab in the center of the status bar at
the top of the screen. Open Top view by tapping
the tab or by dragging/swiping from the top of
the screen downward.

Top view always provides access to:

Settings

Owner's manual

Profile

The vehicle's stored messages.

In certain cases, Top view provides access to:

Contextual setting (e.g.

Navigation

Settings

). Change settings directly in Top

view when an app (e.g. navigation) is being
used.

Contextual Owner's Manual (e.g.

Navigation

Manual

). Access articles in the digital

Owner's Manual related to the content
shown on the screen, directly in Top view.

To exit Top view, tap the screen outside Top view,
press the Home button or tap the screen at the
bottom of Top view and swipe upward. The views
behind will become visible again and can be
used.

NOTE

The top view is not available at start-up/shut-
down or when a message is being shown on
the screen. Similarly, it is not available when
the climate view is shown.

Climate view

The climate bar is always visible at the bottom of
the screen. The most common climate settings
can be made directly there, such as setting tem-
perature and seat heating*.

Tap the symbol in the center of the cli-
mate bar to open Climate view and
access additional climate system set-
tings.

Tap the symbol to close Climate view
and return to a previous view.

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

115

App view

App view showing the vehicle's apps.

Swipe the screen from right to left

10

 to access

App view from Home view. This view displays
downloaded apps (third-party apps) as well as
apps for integrated functions, such as

FM radio

.

Brief information will be displayed directly in App
view for certain apps, such as unread text mes-
sages for

Messages

.

Tap an app to open it. It will then be opened in its
associated tile, e.g.

Media

.

Depending on the number of apps, it is possible
to scroll down in the App view. This is done by
sweeping/dragging from the bottom upwards.

To return to Home view, swipe the screen from
left to right

10

 or press the Home button.

Function view

Function view with buttons for various vehicle functions.

Swipe the screen from left to right

10

 to access

Function view from Home view. From Function
view, you can activate or deactivate various vehi-
cle functions such as

BLIS

*

Lane Keeping Aid

*

and

Park Assist

*

.

10

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

||

DISPLAYS AND VOICE CONTROL

116

If there are many functions, you can also scroll
downward through the view. This is done by
sweeping/dragging from the bottom upwards.

Unlike in App view, where you tap an app to open
it, in Function view, tapping a function activates or
deactivates it. Certain functions (trigger func-
tions) open in their own window when tapped.

To return to Home view, swipe the screen from
right to left

10

 or press the Home button.

Related information

Handling tiles in the center display (p. 117)

Symbols in the center display status bar
(p. 122)

Changing settings in the center display's Top
view (p. 130)

Opening contextual setting in the center dis-
play (p. 131)

Owner's Manual in the center display (p. 17)

Driver profiles (p. 134)

Climate system controls (p. 212)

Apps (p. 464)

Function view in the center display (p. 120)

Center display overview (p. 107)

10

Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.















Content   ..  3  4  5  6   ..
