Volvo V50 (2012 year). Manual

09 Maintenance and service

Battery

232

Battery

Start

Standby

Cold start
capacity

CCA (A)

760

120

Dimen-
sions

L×W×H
(mm)

278×175×19

150×90×106

Capacity
(Ah)

In accordance with the SAE standard.

Largest possible size.

NOTE

•

The higher the current take-off in the car
(extra cooling/heating, etc.) the more
the batteries must be charged =
increased fuel consumption.

•

When the capacity of the battery has
fallen below the lowest permissible level
then the Start/Stop function is disen-
gaged.

Temporarily reduced Start/Stop function due
to high current take-off means:

•

The engine auto-starts

without the driver

depressing the clutch pedal.

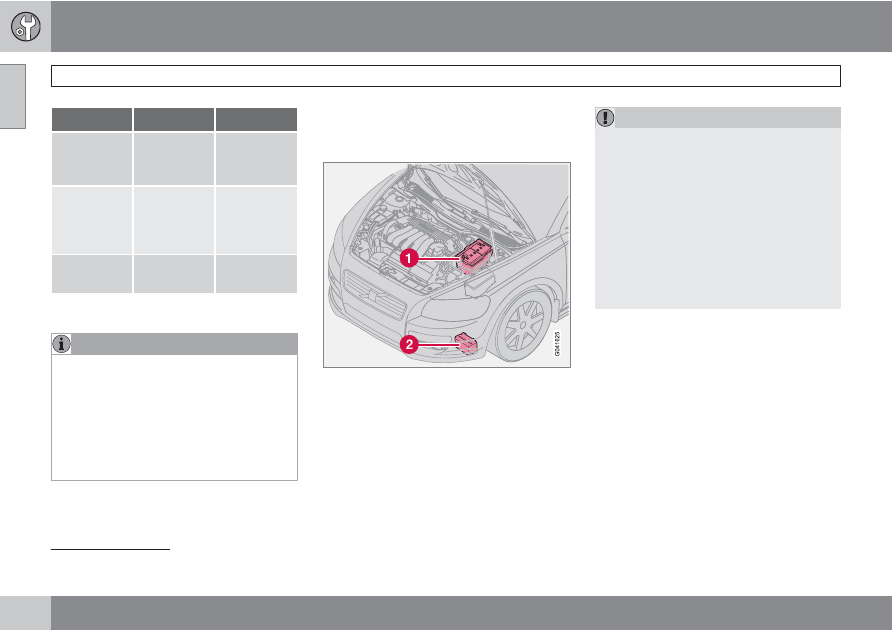

Location of the batteries

1. Battery

2. Standby battery.

The standby battery normally requires no more
service than the normal battery that is used for
starting. A workshop should be contacted in
the event of questions or problems - an author-
ised Volvo workshop is recommended.

IMPORTANT

If the following instruction is not observed
then the Start/Stop function may temporar-
ily cease to work after the connection of an
external battery or battery charger:

•

The negative battery terminal on the
car's main battery must never be used
for connecting an external battery or
battery charger - only the car chassis
may be used as the grounding point.

See the section "Start assistance" - for a
description of how the cable clamps must
be attached.

Auto-start can only take place if the gear lever is in neutral position.

The battery is described in detail on page 230.

09 Maintenance and service

Battery

233

NOTE

If the battery has become so discharged
that everything is "black" and in principle
the car does not have all the normal electri-
cal functions and the engine is subsequently
started using an external battery or battery
charger, then the Start/Stop function will be
activated. It will then be possible for the
engine to be auto-stopped but in the event
of an auto-stop the Start/Stop function may
fail to auto-start the engine due to inade-
quate capacity in the battery.

The battery must first be charged in order to
ensure a successful auto-start after an auto-
stop. At an outside temperature of +15 °C
the battery needs to be charged for at least
1 hour. At a lower outside temperature a
charging time of 3-4 hours is recom-
mended. The recommendation is that the
battery is charged using an external battery
charger.

If this is not possible then the recommen-
dation is to temporarily deactivate the
Start/Stop function until the battery has
been adequately recharged.

For more information about recharging the
battery, see the section "Battery" in the
chapter "Maintenance and service".

09 Maintenance and service

Replacing bulbs

234

General

All bulb specifications are given on page 301.

The following list contains locations of bulbs
and other light sources that are specialised or
unsuitable for changing except at a workshop:

•

Active Xenon headlamps - ABL (Xenon
lamps)

•

Xenon headlamps (Xenon lamps)

•

Daytime running lights (DRL) in the spoiler

•

Direction indicators, door mirror and
approach lighting

•

Reading lamps, courtesy lighting and glo-
vebox lighting

•

General interior lighting in the roof

•

Brake light

WARNING

On cars with Xenon headlamps, the
replacement of Xenon lamps must be car-
ried out at a workshop - an authorised Volvo
workshop is recommended. Working with
Xenon lamps demands extreme caution
because the headlamp is equipped with a
high voltage unit.

IMPORTANT

Never touch the glass part of the bulbs with
your fingers. Grease and oil from your fin-
gers are vaporised by the heat, coating the
reflector and then causing damage.

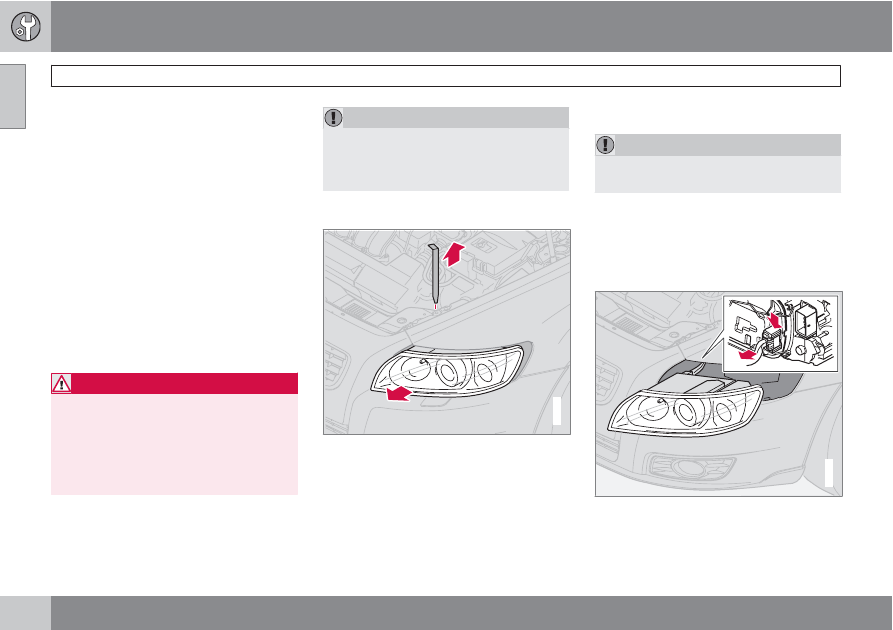

Changing front bulbs

G019599

All front bulbs (except for fog lamps) are
changed by first removing the lamp housing
from the engine compartment.

Removing the lamp housing

Remove the remote control key and turn
the light switch to position 0.

Withdraw the lamp housing's locking pin.

IMPORTANT

Do not pull the electrical cable, only the con-
nector.

Pull the lamp housing to the side and then
forward.

Unplug the connector by pressing down
the clip with a thumb while moving out the
connector with the other hand.

G019600

Lift out the lamp housing and place it on a
soft surface to avoid scratching the lens.

09 Maintenance and service

Replacing bulbs

235

Fitting the lamp housing

Plug in the connector and refit the lamp
housing and locking pin. Check that the pin
is correctly inserted.

Check the lighting.

The lamp housing must be plugged in and
secured in place before the lighting is switched
on or the remote control key inserted into the
ignition switch.

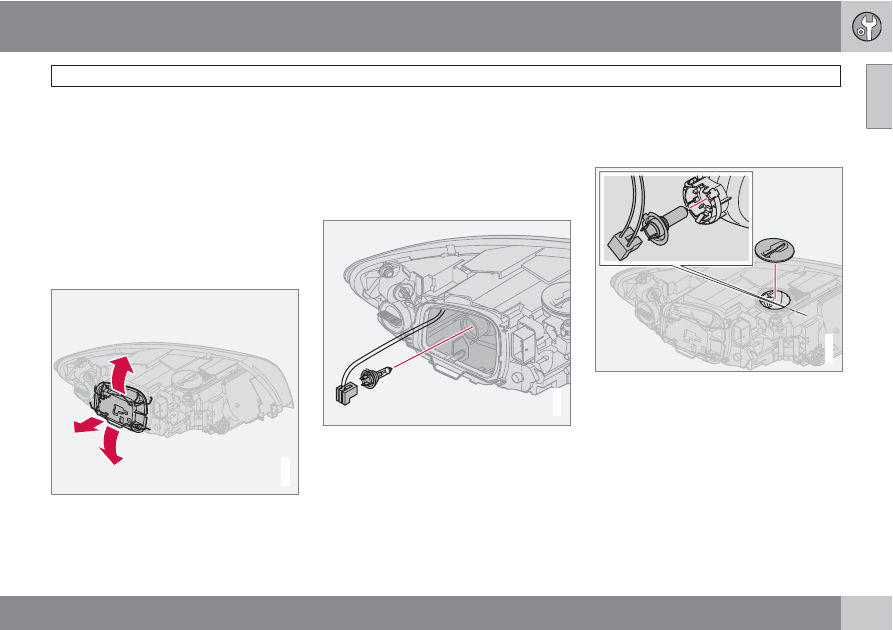

Dipped beam

G019131

Removing the cover and bulb

Undo the whole lamp housing, see
page 234.

Bend aside the catches and remove the
cover.

Unplug the connector from the bulb.

Release the spring clip securing the bulb.
Press it in/down.

Pull out the bulb.

G019133

Fitting a new bulb

Fit the new bulb. It can only fit in one posi-
tion.

Press the spring clip in/up and then slightly
to the right in order to snap it into position.

Press the connector back on.

Refit the plastic cover.

Refit the lamp housing, see page 234.

Main beam, Halogen

G019136

The illustration shows a halogen bulb.

Undo the whole lamp housing, see
page 234.

Undo the cover, located above the lamp
housing, by turning it anticlockwise.

Left-hand headlamp:

Turn the bulb holder anticlockwise.

Right-hand headlamp:

Turn the bulb holder clockwise.

09 Maintenance and service

Replacing bulbs

236

Option/accessory, for more information, see Introduction.

Withdraw the bulb holder and change the
bulb.

Refit the bulb holder. It can only be refitted
in one position.

Refit the cover, located above the lamp
housing, by turning it clockwise.

Refit the lamp housing, see page 234.

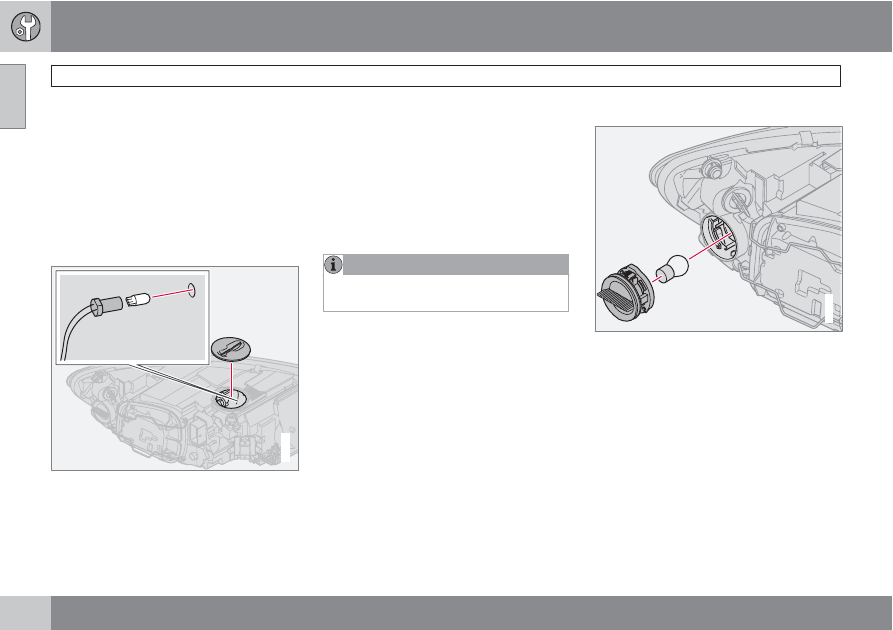

Position/parking lamps

G019145

Undo the lamp housing, see page 234.

Undo the cover, located above the lamp
housing, by turning it anticlockwise.

Withdraw the bulb holder and change the
bulb.

Press the bulb holder back on. A "click" is
heard when the bulb holder is fitted cor-
rectly.

Refit the cover, located above the lamp
housing, by turning it clockwise.

Refit the lamp housing, see page 234.

NOTE

ABL headlamps* have a position lamp (LED)
that cannot be replaced.

Direction indicators

G019150

Undo the lamp housing, see page 234.

Twist the bulb holder anticlockwise and
remove it.

To remove the bulb from the bulb holder,
press the bulb in and turn it anticlockwise.

Fit a new bulb and refit the bulb holder into
the lamp housing.

Refit the lamp housing, see page 234.

09 Maintenance and service

Replacing bulbs

237

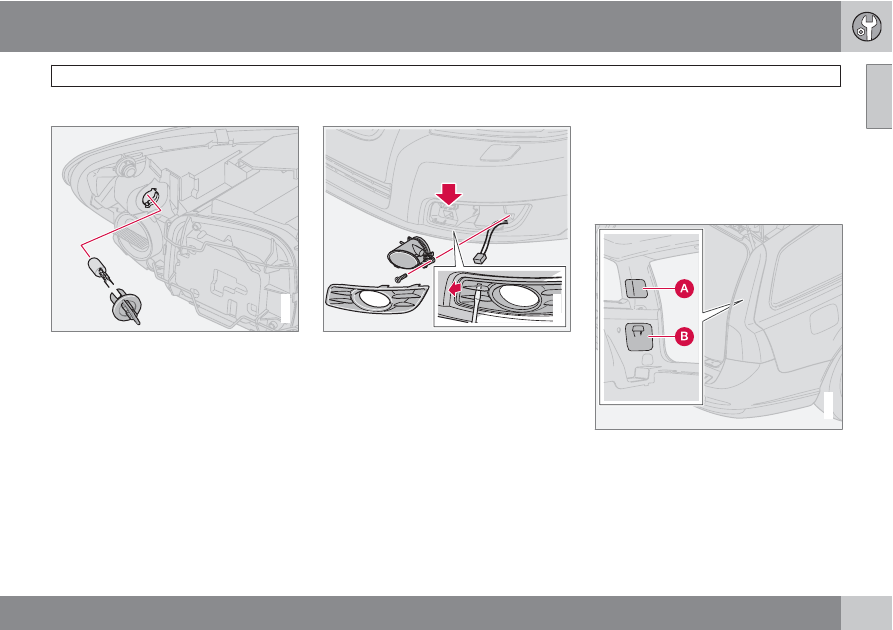

Side marker lamps

G018050

Undo the lamp housing, see page 234.

Twist the bulb holder anticlockwise and
withdraw it. Replace the bulb.

Refit the bulb holder. It can only fit in one
position.

Refit the lamp housing, see page 234.

Front fog lamps

G019605

Switch off all lights and turn the remote
control key to position 0.

Undo the cover by inserting a screwdriver
as illustrated (vertically) and continue to
press vertically in order to undo the clip
inside the cover.

Grip the edge of the cover and pull straight
out.

Unscrew the lamp housing screw and pull
it out.

Turn the bulb anticlockwise and remove it.

Fit a new bulb by turning clockwise. (The
profile of the bulb holder corresponds to
the profile of the foot of the bulb.)

Refit the bulb holder. The TOP mark on the
bulb holder must always be upward.

Removing the bulb holder

G019166

All bulbs in the rear lamp cluster are replaced
from inside the cargo area.

Switch off all lights and turn the remote
control key to position 0.

Remove the cover (A or B) in the left/right-
hand panel to access the bulbs.

09 Maintenance and service

Replacing bulbs

238

The bulbs are located in separate bulb
holders.

Unplug the connector from the bulb holder.

Press the catches together and pull out the
bulb holder.

Replace the bulb.

Plug in the connector.

Press the bulb holder into place and refit
the cover (A or B).

NOTE

If an error message remains after the broken
bulb has been replaced then we recom-
mend that you visit an authorised Volvo
workshop.

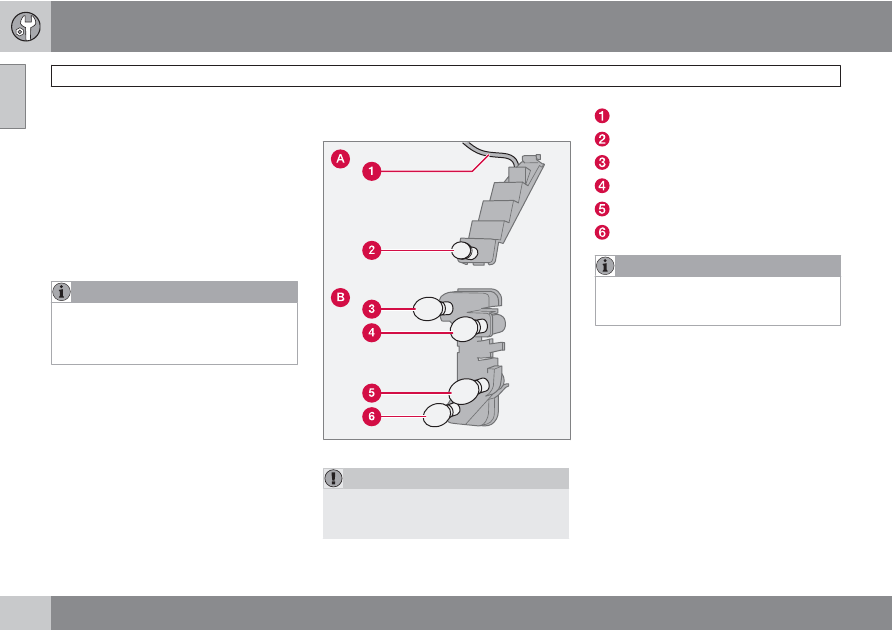

Location of bulbs in the rear bulb
holder

G018058

Bulb holder.

IMPORTANT

The cable for the brake light's LED lamps is
moulded into the upper bulb holder. It shall
not be removed.

Brake light (LED)

Position lamp

Position/parking lamps

Direction indicators

Reversing lamp

Rear fog lamp (one side)

NOTE

The rear fog lamp only illuminates in the left
rear light cluster on a left-hand drive car and
in the right on a right-hand drive.

09 Maintenance and service

Replacing bulbs

Option/accessory, for more information, see Introduction.

239

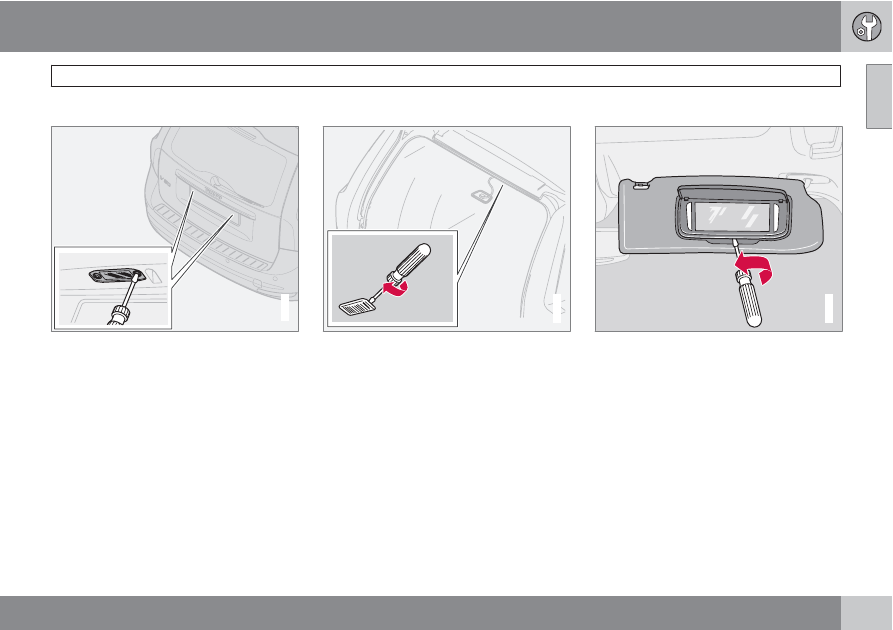

Number plate lighting

G014849

Switch off all lights and turn the remote
control key to position 0.

Remove the screws with a screwdriver.

Detach the lens carefully.

Replace the bulb.

Refit and screw in the lens.

Cargo area

G014852

Insert a screwdriver and gently turn so that
the lamp housing comes loose.

Remove the blown bulb.

Fit a new bulb.

Vanity mirror lighting*

G020253

Removing the mirror glass

Insert a screwdriver underneath the lower
edge, in the centre. Carefully prize up the
lug on the edge.

Insert the screwdriver underneath the edge
on the left and right-hand sides (by the
black rubber sections), and prize carefully
so that the glass comes loose in the lower
edge.

Carefully detach and lift aside the entire
mirror glass and cover.

Remove the blown bulb and replace it with
a new one.

09 Maintenance and service

Fuses

241

General

All electrical functions and components are
fused to protect the car's electrical system
from damage by short circuiting and overload-
ing.

The fuses are in two different locations in the
car:

•

Relay/Fuse box in the engine compart-
ment.

•

Relay/Fuse box in the passenger compart-
ment.

Changing

If an electrical component or function does not
work, it may be because the component's fuse
was temporarily overloaded and blew.

Look in the fuse diagram to locate the fuse.

Pull out the fuse and check from the side
to see whether the curved wire has blown.

If this is the case, replace it with a new fuse
of the same colour and amperage.

Each fuse box has space for several spare
fuses. If the same fuse fails repeatedly then
there is a fault in the component. In which case,
Volvo recommends that you visit an authorised
Volvo workshop for this to be checked.

WARNING

Never use a foreign object, or a fuse with an
amperage higher than that specified when
replacing a fuse. This could cause signifi-
cant damage to the electrical system and
possibly lead to fire.

09 Maintenance and service

Fuses

242

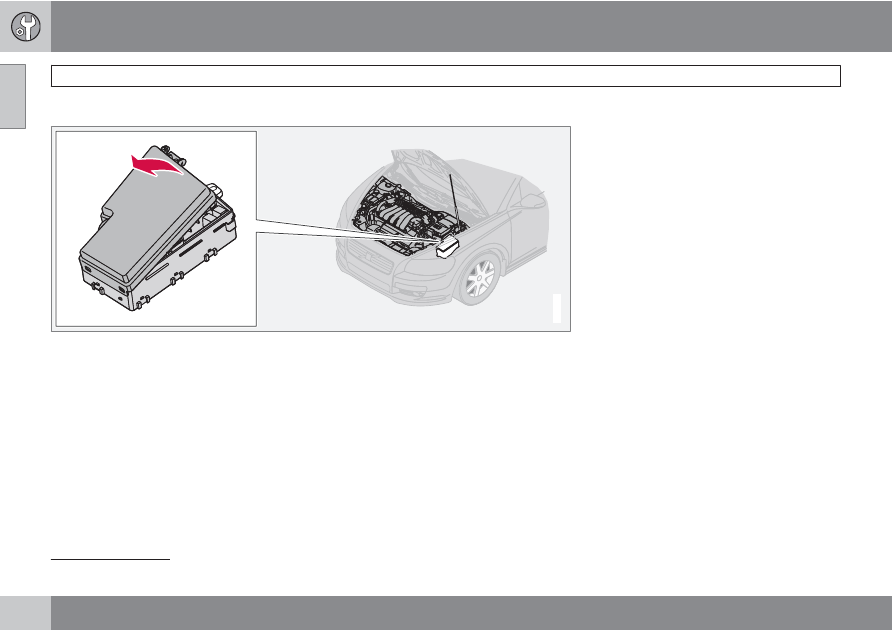

Relay/fuse box in the engine compartment

G007446

The fuse box has 36 fuse positions. Be sure to
replace a blown fuse with a new fuse of the
same colour and amperage.

•

Fuses 19-36 are of the "Mini Fuse" type.

•

Fuses 7-18 are of the "JCASE" type and
should be replaced by a workshop.

•

Fuses 1-6 are of the "Midi Fuse" type and
must only be replaced by a workshop.

On the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

An authorised Volvo workshop is recommended.

09 Maintenance and service

Fuses

Option/accessory, for more information, see Introduction.

243

G020250

Cooling fan

50 A

Power steering

80 A

Supply to passenger compart-
ment fuse box

60 A

Supply to passenger compart-
ment fuse box

60 A

PTC element, air preheater*

80 A

Glow plugs (DRIVe)

60 A

Glow plugs (5-cyl. diesel)

70 A

ABS pump

40 A

ABS valves

20 A

Engine functions

30 A

10.

Ventilation fan

40 A

11.

Headlamp washers

20 A

12.

Heated rear window

30 A

13.

Actuator solenoid, starter
motor

30 A

14.

Trailer wiring*

40 A

15.

Reserve

–

16.

Infotainment system

30 A

17.

Windscreen wipers

30 A

18.

Supply to passenger compart-
ment fuse box

40 A

19.

Reserve

–

20.

Horn

15 A

21.

Fuel-driven additional heater,
passenger compartment
heater*

20 A

22.

Reserve

–

09 Maintenance and service

Fuses

244

Option/accessory, for more information, see Introduction.

23.

Engine control module (5-cyl.
petrol), Transmission control
module (5-cyl.)

10 A

Transmission control module
(4-cyl.)

15 A

24.

Heated fuel filter (5-cyl. diesel),
PTC element, oil trap (5-cyl.
diesel)

20 A

25.

Central electronic module
(CEM) (Start/Stop)

10 A

26.

Ignition switch

15 A

27.

A/C compressor

10 A

28.

Reserve

–

29.

Front fog lamps

Daytime running lights (DRL)*

15 A

30.

Coolant pump (Start/Stop)

10 A

31.

Voltage regulator, alternator
(4-cyl. petrol)

10 A

32.

Injectors (5-cyl. petrol), Turbo
control valve (5-cyl. diesel), Oil
level sensor (5-cyl. diesel)

Control valve, fuel flow
(DRIVe), Mass air flow sensor
(DRIVe), Control motor turbo
(DRIVe)

10 A

33.

Vacuum pump (5-cyl. petrol),
Relay coil, relay, vacuum
pump (5-cyl. petrol), Engine
control module (5-cyl. diesel),
Heated fuel filter (DRIVe)

20 A

34.

Ignition coils (petrol), Pressure
switch, climate control system
(5-cyl.), Control module, glow
plugs (5-cyl. diesel), EGR
emission control (5-cyl. diesel),
Fuel pump (DRIVe), Lambda-
sond (DRIVe), Engine control
module (Start/Stop), Relay
coils, relays Start/Stop

10 A

35.

Relay coil, relay, climate con-
trol system, PTC element, oil
trap (5-cyl. petrol), Mass air
flow sensor (5-cyl. petrol),
Turbo control valve (5-cyl. pet-
rol), Solenoids, variable valve
timing (5-cyl. petrol), Injectors
(2.0 l petrol), EVAP valve (2.0 l
petrol), Valve, air/fuel mixture
(2.0 l petrol), Control valve, fuel
pressure (5-cyl. diesel), Engine
control module (5-cyl. diesel),
Engine EGR (DRIVe)

15 A

36.

Engine control module (petrol,
DRIVe), Accelerator pedal
position sensor (5-cyl. diesel),
Lambda-sond (5-cyl. diesel)

10 A

09 Maintenance and service

Fuses

Option/accessory, for more information, see Introduction.

245

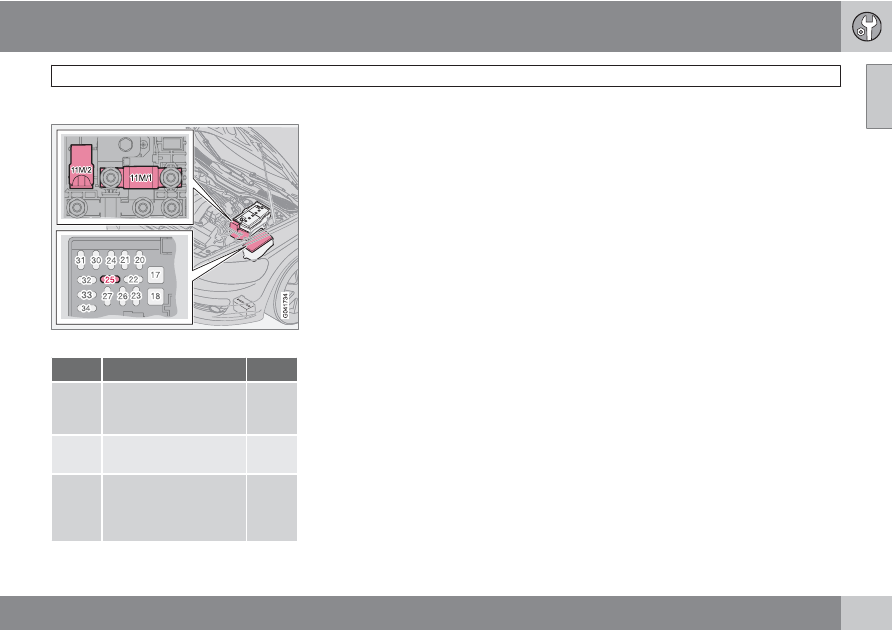

DRIVe Start/Stop*

Location of fuses for the Start/Stop function.

No.

Component

11M/1

Engine compartment,
electrical distribution
unit

125

11M/2

Sensor, battery monitor-
ing

Central electronic mod-
ule (CEM) (Reference
voltage standby bat-
tery), diesel engine

For more information on DRIVe Start/Stop -
see page 165.

09 Maintenance and service

Fuses

246

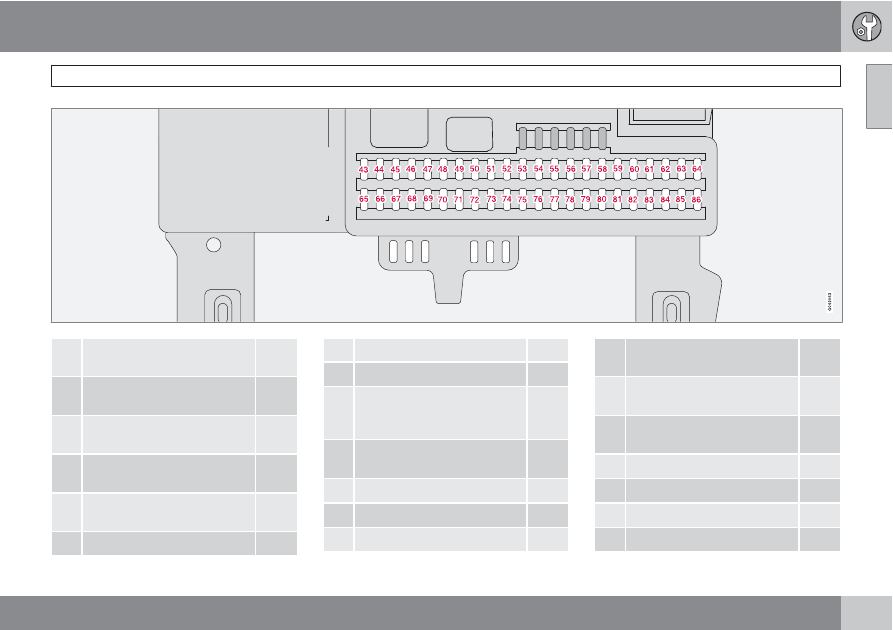

Relay/Fuse box in the passenger compartment

G020601

The fuse box has 50 fuse positions. The fuses
are located under the glovebox. The box also
provides space for several spare fuses. Tools
for fuse replacement are located in the relay/
fuse box in the engine compartment, see
page 242.

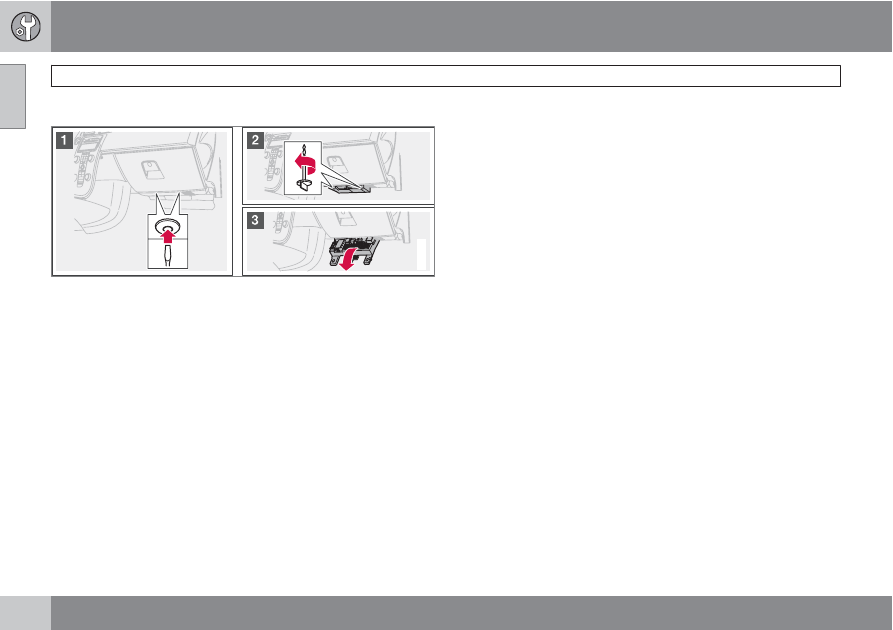

Replacing fuses

Remove the trim concealing the fuse box
by pressing in the pin in the centre of the
clips (1) about one cm and then withdraw-
ing the clips.

Turn the two wing screws (that secure the
fuse box) (2) anticlockwise and remove
them.

Lower the fuse box (3) half way. Pull it
towards the seat until it stops. Lower it

completely. The fuse box can be fully
unhooked.

Close the fuse box in the reverse order.

Remove the pins from the centre of the
clips. Fit the trim and the clips. Reinsert the
pins into the clips. This expands the clips
and secures the trim.

09 Maintenance and service

Fuses

Option/accessory, for more information, see Introduction.

247

43.

Telematics*, Audio system,
RTI*, Bluetooth*

15 A

44.

SRS system, Engine control
module (5-cyl, DRIVe)

10 A

45.

Electrical socket, passenger
compartment

15 A

46.

Passenger compartment, glo-
vebox and courtesy lighting

5 A

47.

Interior lighting, Remote con-
trolled garage door opener*

5 A

48.

Washer, rear window

15 A

49.

SRS system

10 A

50.

Reserve

–

51.

PTC element, air preheater*,
Relay coil, relay, heated fuel
filter (5-cyl. diesel), AWD

10 A

52.

Transmission control module,
ABS system

5 A

53.

Power steering

10 A

54.

Parking assistance*, Xenon*

10 A

55.

Control module Keyless*

20 A

56.

Remote control receiver,
Siren*

10 A

57.

Data link connector (DLC),
brake light switch

15 A

58.

Main beam, right, Relay coil,
relay, auxiliary lamps*

7.5 A

59.

Main beam, left

7.5 A

60.

Seat heating (driver's side)

15 A

61.

Seat heating (passenger side)

15 A

62.

Sunroof*

20 A

09 Maintenance and service

Fuses

248

Option/accessory, for more information, see Introduction.

63.

Supply to rear right door

20 A

64.

Reserve

–

65.

Audio, Infotainment

5 A

66.

Audio, Infotainment, Climate
control system

10 A

67.

Reserve

–

68.

Cruise control

5 A

69.

Climate control system, Rain
sensor, Buttons for BLIS*,
parking assistance*, DRIVe

5 A

70.

Reserve

–

71.

Reserve

–

72.

Reserve

–

73.

Sunroof*, Overhead console
for interior lighting, Seatbelt
reminder, rear, Dimming, inte-
rior rearview mirror*

5 A

74.

Fuel pump

15 A

75.

Reserve

–

76.

Reserve

–

77.

Electrical socket cargo area,
Control module, accessories*

15 A

78.

Reserve

–

79.

Reversing lamp, Dimming,
interior rearview mirror (signal)

5 A

80.

Reserve

81.

Supply to rear left door

20 A

82.

Supply to front right door

25 A

83.

Supply to front left door

25 A

84.

Power seat, passenger

25 A

85.

Power seat, driver

25 A

86.

Interior lighting, cargo area
lighting, power seats, fuel
level display (2.0F)

5 A

Volvo V50 (2012 year). Manual - part 13
