Collision warning system*

"Collision Warning with Auto Brake and Cyclist
and Pedestrian Detection" is an aid to assist the
driver when there is a risk of colliding with a
pedestrian, cyclist or vehicle in front that are sta-
tionary or moving in the same direction.

"Collision Warning with Auto Brake and Cyclist
and Pedestrian Detection" is activated in situa-
tions where the driver should have started brak-
ing earlier, which is why it cannot help the driver
in every situation.

"Collision Warning with Auto Brake and Cyclist
and Pedestrian Detection" is designed to be acti-
vated as late as possible in order to avoid unnec-
essary intervention.

"Collision Warning with Auto Brake and Cyclist
and Pedestrian Detection" can prevent a collision
or reduce collision speed.

"Collision Warning with Auto Brake and Cyclist
and Pedestrian Detection" must not be used as
an excuse for the driver to change his/her driving
style. If the driver solely relies on Collision Warn-
ing with Auto Brake to do the braking, there
might be a risk of a collision sooner or later.

Two system levels

Depending on how the car is equipped, the "Col-
lision Warning with Auto Brake and Cyclist and

Pedestrian Detection" function may appear in
two variants:

Level 1

The driver is merely warned

19

 of occurring obsta-

cles by means of visual and acoustic signals - no
automatic braking intervenes, the driver must
himself brake.

Level 2

The driver is warned of occurring obstacles by
means of visual and acoustic signals - the car is
braked automatically if the driver himself does not
act within a reasonable time.

IMPORTANT

Maintenance of the internal components of
the "Collision Warning with Auto Brake and
Cyclist and Pedestrian Detection" must only
be performed at a workshop - an authorised
Volvo workshop is recommended.

Related information

•

Collision warning system

* - function (p. 229)

•

Collision warning system

* - detection of

pedestrians (p. 231)

•

Collision warning system

* - detection of

cyclists (p. 230)

•

Collision warning system

* - operation

(p. 232)

•

Collision warning system

* - limitations

(p. 234)

•

Collision warning system

* - camera sensor

limitations (p. 235)

•

Collision warning system

* - symbols and

messages (p. 236)

19

No warning for cyclists with "Level 1".

DRIVER SUPPORT

}}

* Option/accessory.

229

Collision warning system* - function

Function overview

20

.

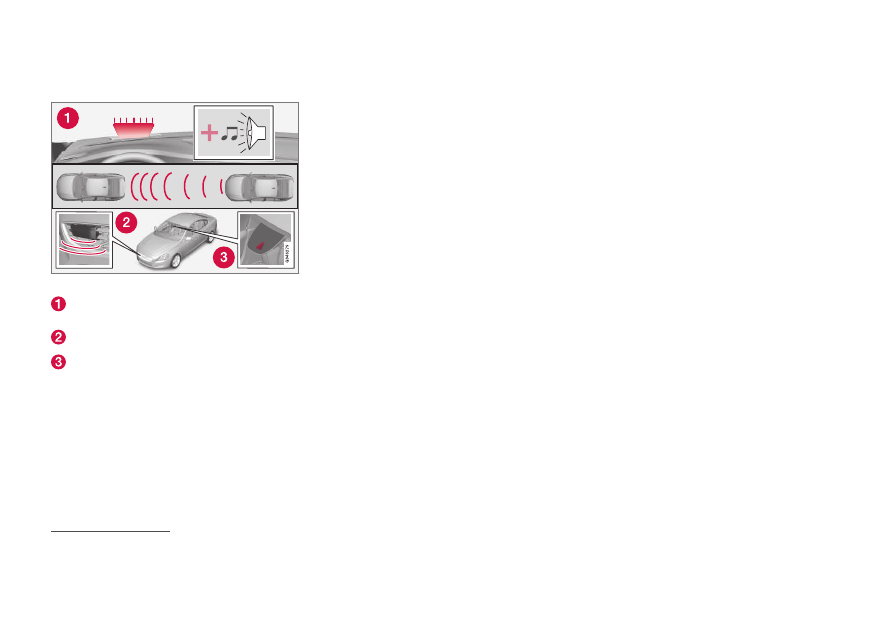

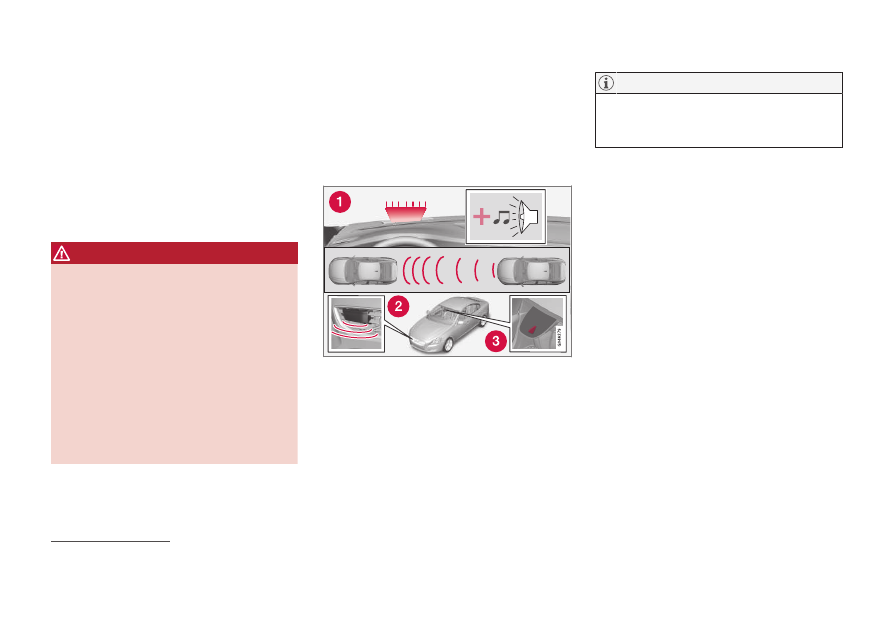

Audio-visual warning signal in the event of a
collision risk.
Radar sensor

21

Camera sensor

Collision Warning with Auto Brake executes
three steps in the following order:

1. Collision warning
2. Brake support

21

3. Auto Brake

21

The collision warning system and City
Safety

™ (p. 221) complement each other.

1 - Collision warning

The driver is first warned of a potentially immi-
nent collision.

The collision warning system can detect pedes-
trians, cyclists or vehicles that are stationary or
moving in the same direction as your car and are
located in front of you.

If there is a risk of collision with a pedestrian,
cyclist or a vehicle then the driver's attention is
attracted with a flashing red warning signal (1)
and an acoustic signal.

2 - Brake support

If the risk of collision has increased further after
the collision warning then the brake support is
activated.

This means that the brake system is prepared for
rapid braking by applying the brakes lightly, which
may feel like a slight jolt.

If the brake pedal is depressed sufficiently
quickly then full brake function is implemented.

Brake support also reinforces the driver's braking
if the system considers that the braking is not
sufficient to avoid a collision.

3 - Auto Brake

The automatic brake function is activated last.

If in this situation the driver has not yet started to
take evasive action and the risk of collision is
imminent then the automatic braking function is
deployed - this takes place irrespective of
whether or not the driver brakes. Braking then
takes place with full brake force in order to
reduce collision speed, or with limited brake force
if it is sufficient to avoid a collision. For cyclists,
the warning and full brake intervention may come
very late or simultaneously.

20

NOTE: The illustration is schematic - details may vary depending on car model.

21

With system Level 2 only.

||

DRIVER SUPPORT

* Option/accessory.

230

WARNING

The collision warning system does not

engage in all driving situations or traffic,

weather or road conditions. The collision

warning system does not react to vehicles or

cyclists driving in another direction to the car

or to animals.
Warning only activated in the event of a high

risk for collision. This section "Function" and

the section "Limitations" inform about limita-

tions that the driver must be aware of before

using the Collision Warning system with Auto

Brake.
Warnings and brake interventions for pedes-

trians and cyclists are deactivated at vehicle

speeds above 80 km/h (50 mph).
Warnings and brake interventions for pedes-

trians and cyclists do not work in darkness

and tunnels - not even when streetlights are

lit.
The auto-brake function can prevent a colli-

sion or reduce collision speed. To ensure full

brake performance, the driver should always

depress the brake pedal - even when the car

auto-brakes.
Never wait for a collision warning. The driver is

always responsible that the correct distance

and speed are maintained - even when the

collision warning system with auto-brake is

used.

Related information

•

Collision warning system

* (p. 228)

Collision warning system* -

detection of cyclists

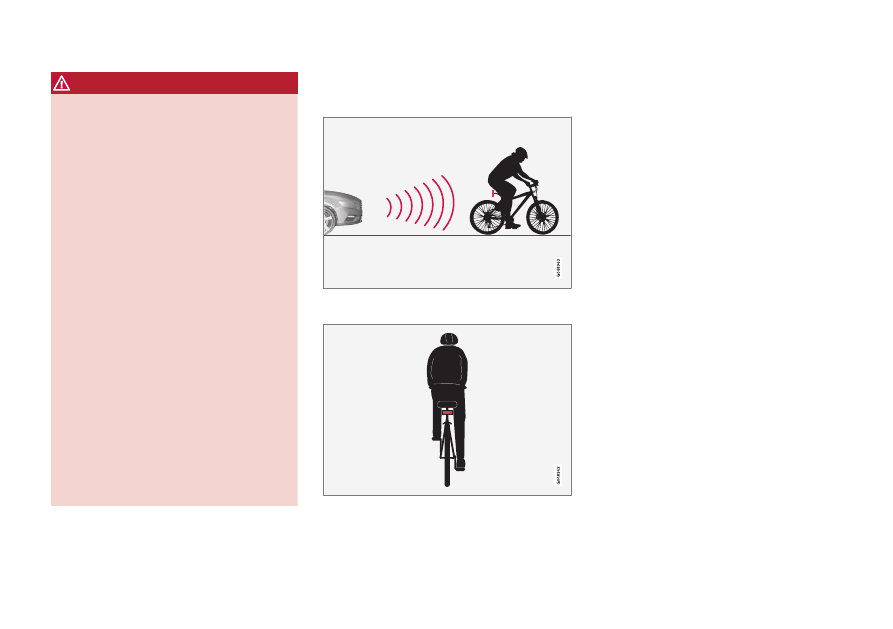

The function only "sees" cyclists from behind, who are

travelling in the same direction.

Optimal example of what the system interprets as a

cyclist - with clear body and bicycle contours, directly

from behind and in the car's centre line.

Optimal performance of the system requires that
the system function that detects a cyclist
receives as unambiguous information as possible
about the body and bicycle contours - this implies
the opportunity to identify the bicycle, head, arms,
shoulders, legs, upper and lower body combined
with a normal human pattern of movement.

If large parts of the cyclist's body or bicycle are
not visible to the function's camera then the sys-
tem cannot detect a cyclist.

•

For the function to be able to detect a cyclist,
he/she must be an adult and riding an "adult
bicycle".

•

The function can only detect cyclists directly
from behind and who are travelling in the
same direction - not at an angle from behind,
not from the side.

DRIVER SUPPORT

}}

* Option/accessory.

231

•

The bicycle must be equipped with a highly
visible and approved

22

 rearward-facing red

reflector, fitted at least 70 cm above the
roadway.

•

Cyclists travelling on the left or right-hand
edge of the car's imagined/extended side
lines may be detected late or not at all.

•

The function's capacity to detect cyclists at
dusk and dawn is limited - just like the
human eye.

•

The function's capacity to detect cyclists is
deactivated when driving in darkness and
tunnels - even when streetlights are lit.

•

For optimum bicycle detection, the City
Safety

™ function must be activated, see City

Safety

™ (p. 221).

WARNING

Collision Warning with Auto Brake & Cyclist

Detection is a means of assistance.
The function cannot detect:

•

all cyclists in all situations and does not
see partially obscured cyclists, for exam-
ple.

•

cyclists in clothing that obscures the con-
tours of the body or who are approaching
from the side.

•

bicycles that have no rearward-facing red
reflector.

•

bicycles loaded with large objects.

The driver is always responsible that the vehi-

cle is driven properly and with a safety dis-

tance adapted to the speed.

Related information

•

Collision warning system

* (p. 228)

Collision warning system* -

detection of pedestrians

Optimal examples of what the system regards as pedes-

trians with clear body contours.

Optimal performance of the system requires that
the system function that detects pedestrians
receives as unambiguous information as possible
about the contours of the body - this implies the
opportunity to identify the head, arms, shoulders,
legs, upper and lower body combined with a nor-
mal human pattern of movement.

If large parts of the body are not visible to the
function's camera then the system cannot detect
a pedestrian.

22

The reflector must fulfil the recommendations and conditions of the traffic authority in the market in question.

||

DRIVER SUPPORT

* Option/accessory.

232

•

In order for a pedestrian to be detected
he/she must appear full-length and have a
height of at least 80 cm.

•

The camera sensor's ability to see pedes-
trians at dusk and dawn is limited - just like
the human eye.

•

The camera sensor's capacity to detect
pedestrians is deactivated when driving in
darkness and tunnels - even when street-
lights are lit.

WARNING

"Collision Warning with Auto Brake and

Cyclist and Pedestrian Detection" is a means

of assistance. The function cannot detect all

pedestrians in all situations and does not see,

for example:

•

partially obscured pedestrians, people in
clothing that hides their body contour or
pedestrians shorter than 80 cm.

•

pedestrians who are carrying larger
objects.

The driver is always responsible that the vehi-

cle is driven properly and with a safety dis-

tance adapted to the speed.

Related information

•

Collision warning system

* (p. 228)

Collision warning system* -

operation

Settings for the collision warning system are
made from MY CAR via the centre console
screen and menu system, see MY CAR (p. 113).

Warning signals On and Off

1. Acoustic and visual warning signal in the event of a
collision risk

23

.

It is possible to select whether the collision warn-
ing system's acoustic and visual warning signals
should be switched on or off.

When starting the engine, the setting that was
selected when the engine was switched off is
obtained automatically.

NOTE

The Brake Support and Auto Brake functions
are always activated - they cannot be deacti-
vated.

Settings for the collision warning system are
made via the centre console's screen and the
menu system MY CAR, see (p. 113).

Light and acoustic signals

When the collision warning system's light and
acoustic warnings are activated, the warning lamp
(no. [1] in previous illustration) is tested each
time the engine is started by briefly illuminating
the warning lamp's separate points of light.

After starting the engine, both light and acoustic
signals are switched off:

•

Search for

Collision warning

 in

Driver

support system

 in the menu system MY

CAR (p. 113) - and there select to uncheck
the function.

Audible signal

After starting the engine the warning sound can
be activated/deactivated separately:

•

Search for

Warning sound

 in

Collision

warning

 in the menu system MY CAR

(p. 113) - and there select On or Off.

Following which, the collision warning system is
only indicated with a light signal.

23

The illustration is schematic - car model and details may differ.

DRIVER SUPPORT

* Option/accessory.

233

Set warning distance

The warning distance regulates the distance at
which the visual and acoustic warnings are
deployed.

•

Search for

Warning distance

 in

Collision

warning

 in the menu system MY CAR

(p. 113) - and there select

Long

,

Normal

 or

Short

.

The warning distance determines the system's
sensitivity. Warning distance

Long

 provides an

earlier warning. First test with

Long

 and if this

setting produces too many warnings, which could
be perceived as irritating in certain situations,
then change to warning distance

Normal

.

Only use warning distance

Short

 in exceptional

cases, e.g. for dynamic driving.

NOTE

When the adaptive cruise control is in use the
warning lamp and warning sound will be used
by the cruise control even if the collision
warning system is switched off.

The collision warning system warns the driver
in the event of a risk of a collision, but the
function cannot shorten driver reaction time.

In order for the collision warning system to be
effective, always drive with Distance Alert
(p. 199) set at time interval 4–5.

NOTE

Even if the warning distance has been set to

Long

 warnings could be perceived as being

late in certain situations, e.g. when there are
large differences in speed or if vehicles in
front brake heavily.

WARNING

No automatic system can guarantee 100 %

correct function in all situations. Therefore,

never test Collision Warning with Auto Brake

by driving at people or vehicles - this may

cause severe damage and injury and risk lives.

Checking settings

The settings required can be controlled on the
centre console display screen.

•

Search in the menu system MY CAR (p. 113)
for

Collision warning

 in

Driver support

system

.

Maintenance

Camera and radar sensor

24

.

For the sensors to work correctly, they must be
kept clear of dirt, ice and snow, and be cleaned
regularly with water and car shampoo.

NOTE

Dirt, ice and snow covering the sensors will
reduce their function and may prevent meas-
urement.

Related information

•

Collision warning system

* (p. 228)

24

NOTE: The illustration is schematic - details may vary depending on car model.

DRIVER SUPPORT

* Option/accessory.

234

Collision warning system* -

limitations

The function has certain limitations - for example,
it is not active until 4 km/h (3 mph).

The collision warning system's visual warning sig-
nal may be difficult to notice in the event of
strong sunlight, reflections, when sunglasses are
being worn or if the driver is not looking straight
ahead. The warning sound should therefore
always be activated.

On slippery road surfaces the braking distance is
extended, which may reduce the capacity to avoid
a collision. In such situations the ABS and ESC
(p. 186) systems will provide best possible brak-
ing force with maintained stability.

NOTE

The visual warning signal can be temporarily
disengaged in the event of high passenger
compartment temperature caused by strong
sunlight for example. If this occurs then the
warning sound is activated even if it is deacti-
vated in the menu system.

•

Warnings may not appear if the distance
to the vehicle in front is small or if steer-
ing wheel and pedal movements are
large, e.g. a very active driving style.

WARNING

Warnings and brake interventions could be

implemented late or not at all if the traffic sit-

uation or external influences mean that the

radar or camera sensor cannot detect a

pedestrian, a vehicle or a cyclist in front cor-

rectly.
The sensor system has a limited range for
pedestrians and cyclists

25

 - the system can

give effective warnings and brake interven-

tions for them at vehicle speeds up to

50 km/h (30 mph). For stationary or slow-

moving vehicles, warnings and brake interven-

tions are effective at vehicle speeds up to

70 km/h (43 mph).
Warnings for stationary or slow-moving vehi-

cles could be disengaged due to darkness or

poor visibility.
Warnings and brake interventions for pedes-

trians and cyclists are deactivated at vehicle

speeds exceeding 80 km/h (50 mph).

The collision warning system uses the same
radar sensors as the adaptive cruise control
(p. 203).

If warnings are perceived as being too frequent
or disturbing then the warning distance can be
reduced. This then leads to the system providing
a warning at a later stage, which reduces the

total number of warnings; see Collision warning
system - operation (p. 232).

Collision Warning with Auto Brake is temporarily
deactivated with reverse gear engaged.

Collision Warning with Auto Brake is not acti-
vated at low speeds - below 4 km/h (3 mph),
which is why the system does not intervene in sit-
uations where the car is approaching a vehicle in
front very slowly, e.g. when parking.

In situations where the driver demonstrates
active, aware driving behaviour, a collision warn-
ing may be postponed slightly in order to keep
unnecessary warnings to a minimum.

When Auto Brake has prevented a collision with
a stationary object the car remains stationary for
a maximum of 1.5 seconds. If the car is braked
for a vehicle in front that is moving, then speed is
reduced to the same speed as that maintained by
the vehicle in front.

On a car with manual gearbox the engine stops
when Auto Brake has stopped the car, unless the
driver manages to depress the clutch pedal
beforehand.

Related information

•

Collision warning system

* (p. 228)

25

For cyclists, the warning and full brake intervention may come very late or simultaneously.

DRIVER SUPPORT

* Option/accessory.

235

Collision warning system* - camera

sensor limitations

The function uses the car's camera sensor,
which has certain limitations.

The car’s camera sensor is also used - as well as
by Collision Warning with Auto Brake - by the
functions:

•

Active main beam (p. 92)

•

Road sign information (p. 243)

•

Driver Alert Control - DAC (p. 247)

•

Lane Keeping Aid (p. 250).

NOTE

Keep the windscreen surface in front of the
camera sensor free from ice, snow, mist and
dirt.

Do not stick or attach anything to the wind-
screen in front of the camera sensor as this
may reduce effectiveness or cause one or
more of the systems dependent on the cam-
era to stop working.

The camera sensors have limitations similar to
the human eye, i.e. they "see" worse in darkness,
heavy snowfall or rain and in thick fog for exam-
ple. Under such conditions the functions of cam-
era-dependent systems could be significantly
reduced or temporarily disengaged.

Strong oncoming light, reflections in the carriage-
way, snow or ice on the road surface, dirty road
surfaces or unclear lane markings could also sig-
nificantly reduce camera sensor function when it
is used to scan the carriageway and detect
pedestrians and other vehicles.

The field of vision of the camera sensor is limited,
which is why pedestrians, cyclists and vehicles
cannot be detected in some situations, or they
are detected later than anticipated.

During very high temperatures the camera is
temporarily switched off for about 15 minutes
after the engine is started in order to protect
camera functionality.

Fault tracing and action

If the display shows the message

Windscreen

sensors blocked See manual

 then this means

that the camera sensor is blocked and cannot
detect pedestrians, cyclists, vehicles or road
markings in front of the car.

At the same time, this means that - besides Colli-
sion Warning with Auto Brake - the following
functions will not have full functionality either:

•

Active main beam

•

Driver Alert Control

•

Lane Keeping Aid

•

Road sign information

The following table presents possible causes for
a message being shown along with the appropri-
ate action.

Cause

Action

The windscreen sur-
face in front of the
camera is dirty or cov-
ered with ice or snow.

Clean the windscreen
surface in front of the
camera from dirt, ice
and snow.

Thick fog, heavy rain
or snow means that
the camera does not
work sufficiently well.

No action. At times
the camera does not
work during heavy rain
or snowfall.

The windscreen sur-
face in front of the
camera has been
cleaned but the mes-
sage remains.

Wait. It may take sev-
eral minutes for the
camera to measure
the visibility.

Dirt has appeared
between the inside of
the windscreen and
the camera.

Visit a workshop to
have the windscreen
inside the camera
cover cleaned - an
authorised Volvo
workshop is recom-
mended.

Related information

•

Collision warning system

* (p. 228)

DRIVER SUPPORT

* Option/accessory.

236

Collision warning system* - symbols

and messages

Symbol

A

Message

Specification

Collision warning system
OFF

Collision warning system switched off.

Shown when the engine is started.

The message clears after about 5 seconds or after one press of the OK button.

Collision warning system
Unavailable

The collision warning system cannot be activated.

Shown when the driver attempts to activate the function.

The message clears after about 5 seconds or after one press of the OK button.

Auto Braking was acti-
vated

Auto Brake has been active.

The message clears after one press of the OK button.

Windscreen sensors
blocked See manual

Camera sensor (p. 235) is temporarily disengaged.

Shown in the event of snow, ice or dirt on the windscreen for example.

•

Clean the windscreen surface in front of the camera sensor.

Radar blocked See man-
ual

Collision Warning with Auto Brake is temporarily disengaged.

Radar sensor (p. 216) is blocked and cannot detect other vehicles. For example, in the event of heavy rain or if
slush has collected in front of the radar sensor.

Collision warning Service
required

Collision Warning with Auto Brake is fully or partially disengaged.

•

Visit a workshop if the message remains - an authorised Volvo workshop is recommended.

A

Symbols are schematic - may vary by market and car model.

DRIVER SUPPORT

* Option/accessory.

238

BLIS

BLIS (Blind Spot Information System) is a func-
tion designed for providing support for the driver
when driving in dense traffic on roads with sev-
eral lanes in the same direction.

BLIS is a driver's aid intended to provide a warn-
ing about:

•

vehicles in the car's blind spot

•

quickly approaching vehicles in the left and
right lanes closest to the car.

WARNING

BLIS is a supplementary aid and does not

work in all situations.
BLIS is no substitute for a safe driving style

and the use of rearview and door mirrors.
BLIS can never replace the driver's responsi-

bility and attention - it is always the driver's

responsibility to change lanes in a safe man-

ner.

Overview

Position of the BLIS lamp

26

.

Indicator lamp

BLIS symbol

NOTE

The lamp illuminates on the side of the car
where the system has detected the vehicle. If
the car is overtaken on both sides at the
same time then both lamps illuminate.

Maintenance

The sensors for the BLIS functions are located
inside the rear wing/bumper on each corner of
the car.

Keep this surface clean - also on the left-hand side.

•

To ensure optimal functionality, the areas in
front of the sensors must be kept clean.

Related information

•

BLIS - operation (p. 239)

•

BLIS and CTA - symbols and messages
(p. 242)

•

CTA

* (p. 240)

26

NOTE: The illustration is schematic - details may vary depending on car model.

DRIVER SUPPORT

}}

239

BLIS - operation

BLIS (Blind Spot Information System) is a func-
tion designed for providing support for the driver
when driving in dense traffic on roads with sev-
eral lanes in the same direction.

Activate/deactivate BLIS

BLIS is activated when the engine is started. This
is confirmed by the indicator lamps in the door
panels flashing once.

Button for activating/deactivating.

The BLIS function can be deactivated/activated
by pressing the BLIS button on the centre con-
sole.

Some combinations of the selected equipment
leave no vacant space for a button in the centre

console - in which case the function is handled
by the car's menu system MY CAR

27

:

•

Select On or Off at

Settings

Car

settings

BLIS

.

When BLIS is deactivated/activated the lamp in
the button goes out/illuminates and the com-
bined instrument panel confirms the change with
a text message. The door panel indicator lamps
flash once upon activation.

To extinguish the message:

•

Press the left stalk switch OK button.

or

•

Wait approx. 5 seconds – the message extin-
guishes.

When BLIS operates

Principle for BLIS: 1. Zone in blind spot. 2. Zone for

quickly approaching vehicle.

The BLIS function is active at speeds above
10 km/h (6 mph).

The system is designed to react when:

•

the vehicle is overtaken by other vehicles

•

another vehicle is quickly approaching the
vehicle.

When BLIS detects a vehicle in zone 1 or a
quickly approaching vehicle in zone 2, the door
panel BLIS lamp illuminates with a constant glow.
If the driver activates the direction indicator on
the same side as the warning in this situation
then the BLIS lamp will change from a constant
glow to flashing with a more intense light.

27

For information on the menu system - MY CAR (p. 113).

||

DRIVER SUPPORT

* Option/accessory.

240

WARNING

BLIS does not work in sharp bends.
BLIS does not work when the car is being

reversed.

Limitations

•

Dirt, ice and snow covering sensors can
reduce functionality and make it impossible
to provide warnings. BLIS cannot detect haz-
ards if it is covered.

•

Do not affix any objects, tape or labels in the
area of the sensors.

•

BLIS is deactivated when a trailer is con-
nected to the car's electrical system.

IMPORTANT

Repair of the BLIS and CTA functions' com-
ponents or repainting the bumpers must only
be performed by a workshop - an authorised
Volvo workshop is recommended.

Related information

•

BLIS (p. 238)

•

BLIS and CTA - symbols and messages
(p. 242)

CTA*

The BLIS function CTA (Cross Traffic Alert) is a
driver aid intended to warn about crossing traffic
when the car is reversing. CTA is a supplement
to BLIS (p. 238).

Activate/deactivate CTA

CTA is activated when the engine is started. This
is confirmed by the indicator lamps in the door
panels flashing once.

On/Off for parking assistance and CTA sensors.

In cars equipped with Parking assistance
(p. 255), the CTA function can be deactivated/
activated separately with the parking assistance
On/Off button.

In cars without a button for parking assistance,
the CTA function can be operated in the menu
system MY CAR (p. 113), as follows:

•

Search for

Cross Traffic Alert

 under

BLIS

and uncheck - the CTA function is then
deactivated.

However, the BLIS function remains activated
after the CTA has been deactivated.

WARNING

CTA is a supplementary aid and does not

work in all situations.
CTA is no substitute for a safe driving style

and the use of rearview and door mirrors.
CTA can never replace the driver's responsi-

bility and attention - it is always the driver's

responsibility to reverse in a safe manner.

When CTA operates

Principle for CTA.

CTA supplements the BLIS function by being
able to see crossing traffic from the side during

DRIVER SUPPORT

}}

241

reversing, such as when reversing out of a park-
ing space.

CTA is primarily designed to detect vehicles. In
favourable conditions, it may also be able to
detect smaller objects, such as cyclists and
pedestrians.

CTA is only active during reversing and is acti-
vated automatically when reverse is selected at
the gearbox.

•

If CTA detects something approaching from
the side, an acoustic warning signal sounds.
The signal comes from either the left or the
right speaker depending on which direction
the approaching object is coming from.

•

CTA also warns by illuminating the BLIS
lamps.

•

An additional warning is provided in the form
of an illuminated icon in the display screen's
PAS graphics (p. 255).

Limitations

CTA does not perform optimally in all situations,
but has a certain limitation - for example, the CTA
sensors cannot "see" through other parked vehi-
cles or obstructing objects.

Here are some examples of when CTA's "field of
vision" may be limited from the beginning and
approaching vehicles cannot therefore be
detected until they are very close:

The car is parked deep inside a parking slot.

Blind CTA sector.

Sector where CTA can detect/"see".

In an angled parking slot CTA can be completely "blind"

on one side.

However, when the driver is slowly reversing the
car, the angle is changed in relation to the vehi-

cle/object that is blocking, at which the blind
sector rapidly decreases.

Examples of further limitations:

•

Dirt, ice and snow covering sensors can
reduce functionality and make it impossible
to provide warnings. CTA cannot detect haz-
ards if it is covered.

•

CTA is deactivated when a trailer is con-
nected to the car’s electrical system.

IMPORTANT

Repair of the BLIS and CTA functions' com-
ponents or repainting the bumpers must only
be performed by a workshop - an authorised
Volvo workshop is recommended.

Maintenance

The sensors for the BLIS and CTA functions are
located inside the rear wing/bumper on each
corner of the car.

||

DRIVER SUPPORT

* Option/accessory.

242

Keep this surface clean - also on the left-hand side.

•

To ensure optimal functionality, the areas in
front of the sensors must be kept clean.

•

Do not affix any objects, tape or labels in the
area of the sensors.

Related information

•

BLIS (p. 238)

•

BLIS and CTA - symbols and messages
(p. 242)

BLIS and CTA - symbols and

messages

In situations where the BLIS (Blind Spot
Information System) (p. 238) and CTA (p. 240)
functions fail or are interrupted, the combined
instrument panel may show a symbol, supple-
mented by an explanatory message. Follow any
recommendation given.

Message examples:

Message

Specification

CTA OFF

CTA has been deactivated
manually. BLIS is active.

BLIS and
CTA OFF
Trailer
attached

BLIS and CTA are temporarily
disabled because a trailer is
connected to the car’s electri-
cal system.

BLIS and
CTA Service
required

BLIS and CTA are not work-
ing.

•

Visit a workshop if the
message remains - an
authorised Volvo work-
shop is recommended.

A text message can be acknowledged by briefly
pressing the OK button on the direction indicator
stalk.

Related information

•

BLIS (p. 238)

•

CTA

* (p. 240)

DRIVER SUPPORT

* Option/accessory.

243

Road Sign Information* (RSI)

The Road Sign Information function (RSI

28

)

helps the driver to observe speed-related road
signs and certain prohibition signs as the car
passes them.

Examples of readable signs

29

.

RSI provides information about such things as
current speed, when a motorway or road is star-
ting/ending, when overtaking is prohibited or
when the direction of travel is one-way.

If both a sign for motorway/road for motorised
traffic and a sign showing the maximum permit-
ted speed are passed, RSI decides to show the
sign symbol for motorway/road for motorised
traffic.

WARNING

•

The Road Sign Information function is
supplementary driver support intended to
facilitate driving and make it safer – it
cannot handle all situations in all traffic,
weather and road conditions.

•

Road Sign Information is not a substitute
for the driver's attention and judgement.
The driver is always responsible for
ensuring the car is driven in a safe man-
ner, at the appropriate speed, with an
appropriate distance to other vehicles,
and in accordance with current traffic
rules and regulations.

RSI On/Off

The function for Road Sign Information is select-
able - the driver can select On or Off.

Activate RSI as follows:

1. Search and locate the function in the menu

system MY CAR, see MY CAR (p. 113).

2. Highlight

Road sign information

 by press-

ing the OK/MENU button once and go back
out with EXIT.

Related information

•

Road Sign Information (RSI)

* - operation

(p. 244)

•

Road Sign Information

* (RSI) - limitations

(p. 246)

28

Road Sign Information

29

Road signs are market-dependent - illustrations in these instructions only show a few examples.

DRIVER SUPPORT

* Option/accessory.

244

Road Sign Information (RSI)* -

operation

The Road Sign Information function (RSI

30

) reg-

isters and shows road signs in different ways
depending on the sign and the situation.

Example

31

 of detected speed information.

When RSI has recorded a road sign with an
imposed speed, the combined instrument panel
displays the sign as a symbol.

An additional

31

 sign, such as

"no overtaking", may be shown
together with the speed limit
symbol.

End of speed limit or motorway

When RSI detects an "indirect speed sign" that
means end of current speed limit - e.g. at end of
motorway - a symbol with the corresponding road
sign is shown in the combined instrument panel.

Examples of indirect speed sign

31

 are:

End of all restrictions.

End of motorway.

The symbol in the combined instrument panel
extinguishes after 10-30 seconds and remains
extinguished until the next speed-related sign is
passed.

Changed speed limit

On passing a direct speed sign when the speed
limit changes, a symbol with the corresponding
road sign is shown in the combined instrument
panel.

Example of a direct speed
sign

31

.

The symbol in the combined instrument panel
extinguishes after approx. 5 minutes and remains
extinguished until the next speed-related sign is
passed.

Sensus Navigation

If the car is equipped with Sensus Navigation,
speed information is read from the navigation
unit in the following cases:

•

On detection of signs that indirectly indicate
a speed limit, such as motorway, dual car-
riageway and city limit signs.

•

If a previously detected speed sign is
assumed not to apply any longer, but no new
sign has been detected.

30

Road Sign Information

31

Road signs are market-dependent - the illustrations in these instructions only show examples.
