02 Safety

02

}}

49

Infant seats

Suitable child restraints should always be

used when children (depending on their age/

size) are seated in the vehicle.

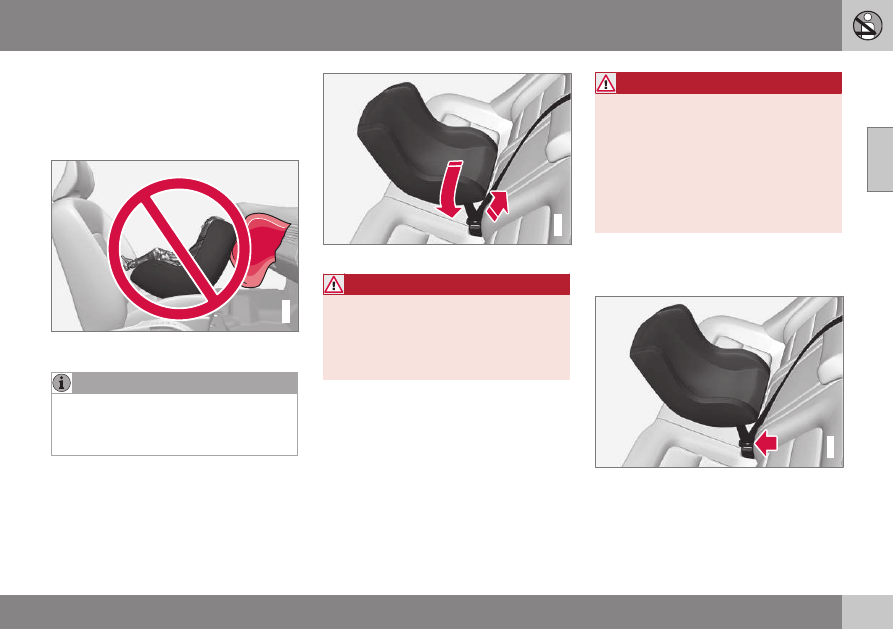

Securing an infant seat with a seat belt

G022844

Do not place the infant seat in the front passeng-

er's seat

NOTE

Refer to (p. 54)  and (p. 55)  for infor-

mation on securing a child restraint using

ISOFIX/LATCH lower anchors and/or top

tether anchorages.

1. Place the infant seat in the rear seat of

the vehicle.

2. Attach the seat belt to the infant seat

according to the manufacturer's instruc-

tions.

G023270

Positioning the seat belt through the infant seat

WARNING

An infant seat must be in the rear-facing

position only.

The infant seat should not be positioned

behind the driver's seat unless there is

adequate space for safe installation.

WARNING

A child seat should never be used in the

front passenger seat of any vehicle with a

front passenger airbag – not even if the

"Passenger airbag off" symbol near the

rear-view mirror is illuminated (on vehicles

equipped with Occupant Weight Sensor). If

the severity of an accident were to cause

the airbag to inflate, this could lead to seri-

ous injury or death to a child seated in this

position.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct

click is audible.

G023271

Fasten the seat belt

||

02 Safety

02

50

G

0

2

2

8

4

6

Pull out the shoulder section of the seat belt

4. Pull the shoulder section of the seat belt

out as far as possible to activate the

belt's automatic locking function.

NOTE

The locking retractor will automatically

release when the seat belt is unbuckled

and allowed to retract fully.

5. Press the infant seat firmly in place, let

the seat belt retract and pull it taut. A

sound from the seat belt retractor's auto-

matic locking function will be audible at

this time and is normal. The seat belt

should now be locked in place.

G

0

2

2

8

5

0

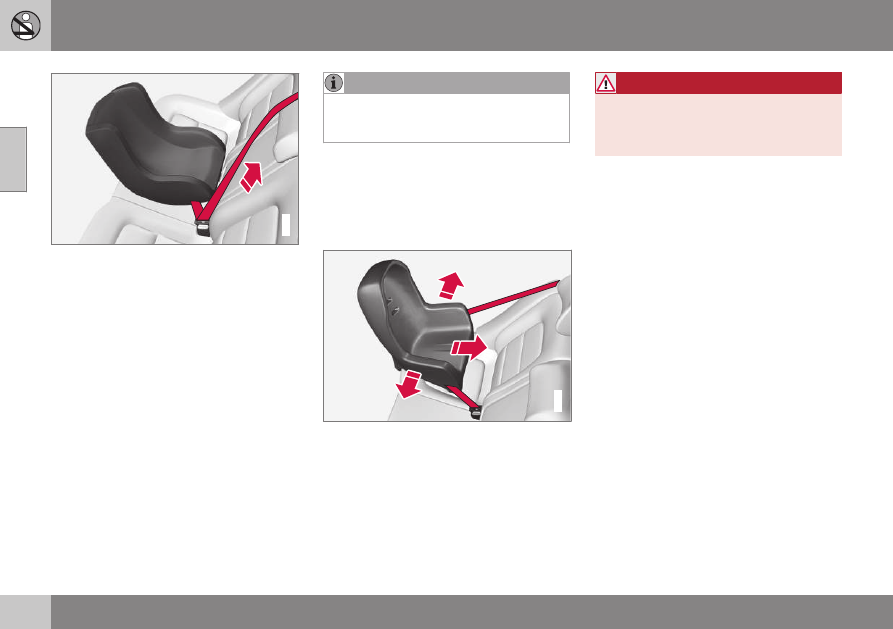

Ensure that the seat is securely in place

6. Push and pull the infant seat along the

seat belt path to ensure that it is held

securely in place by the seat belt.

WARNING

It should not be possible to move the child

restraint (child seat) more than 1 in.

(2.5 cm) in any direction along the seat belt

path.

The infant seat can be removed by unbuck-

ling the seat belt and letting it retract com-

pletely.

Related information

Child safety (p. 45)

Child restraints (p. 47)

Convertible seats (p. 51)

ISOFIX/LATCH lower anchors (p. 54)

Top tether anchors (p. 55)

02 Safety

02

}}

51

Convertible seats

Suitable child restraints should always be

used when children (depending on their age/

size) are seated in the vehicle.

Securing a convertible seat with a seat
belt

G018630

Do not place the convertible seat in the front

passenger's seat

NOTE

Refer to (p. 54) and (p. 55) for informa-

tion on securing a child restraint using

ISOFIX/LATCH lower anchors and/or top

tether anchorages.

Convertible seats can be used in either a for-

ward or rearward-facing position, depending

on the age and size of the child.

G022847

Route the seat belt through the convertible seat

WARNING

Always use a convertible seat that is suita-

ble for the child's age and size. See the

convertible seat manufacturer's recom-

mendations.

1. Place the convertible seat in the rear seat

of the vehicle.

WARNING

A small child's head represents a con-

siderable part of its total weight and its

neck is still very weak. Volvo recom-

mends that children up to age 4 travel,

properly restrained, facing rearward. In

addition, Volvo recommends that chil-

dren should ride rearward facing, prop-

erly restrained, as long as possible.

Convertible child seats should be instal-

led in the rear seat only.

A rear-facing convertible seat should

not be positioned behind the driver's

seat unless there is adequate space for

safe installation.

2. Attach the seat belt to the convertible

seat according to the manufacturer's

instructions.

||

02 Safety

02

52

G

0

2

2

8

4

8

Fasten the seat belt

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct

click is audible.

4. Pull the shoulder section of the seat belt

out as far as possible to activate the

belt's automatic locking function.

NOTE

The locking retractor will automatically

release when the seat belt is unbuckled

and allowed to retract fully.

5. Press the convertible seat firmly in place,

let the seat belt retract and pull it taut. A

sound from the seat belt retractor's auto-

matic locking function will be audible at

this time and is normal. The seat belt

should now be locked in place.

G

0

2

2

8

4

9

Pull out the shoulder section of the seat belt

6. Push and pull the convertible seat along

the seat belt path to ensure that it is held

securely in place by the seat belt.

WARNING

It should not be possible to move the child

restraint (child seat) more than 1 in.

(2.5 cm) in any direction along the seat belt

path.

The convertible seat can be removed by

unbuckling the seat belt and letting it retract

completely.

G

0

2

2

8

5

0

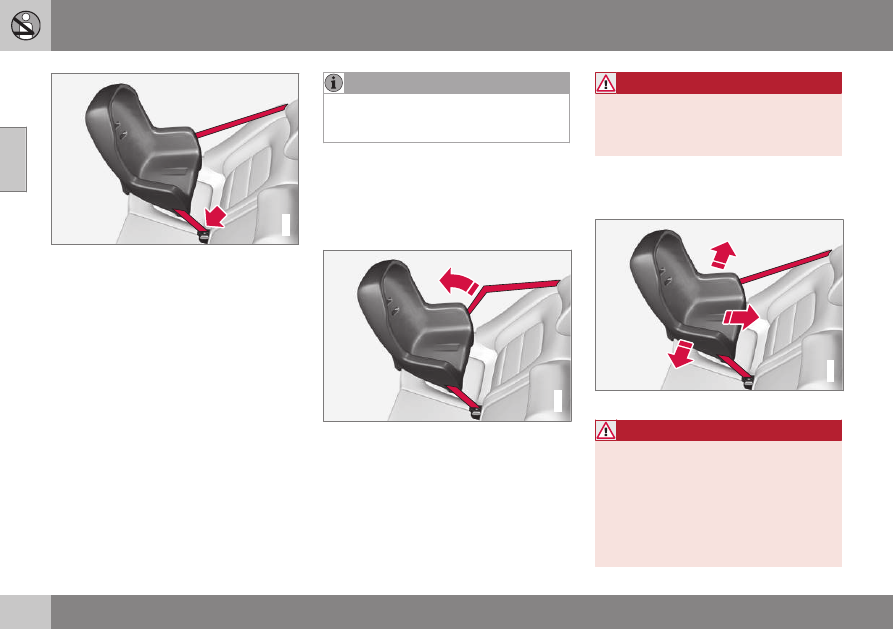

Ensure that the seat is securely in place

WARNING

A child seat should never be used in the

front passenger seat of any vehicle with a

front passenger airbag – not even if the

"Passenger airbag off" symbol near the

rear-view mirror is illuminated. If the

severity of an accident were to cause the

airbag to inflate, this could lead to serious

injury or death to a child seated in this

position.

02 Safety

02

}}

53

Related information

Child safety (p. 45)

Child restraints (p. 47)

Infant seats (p. 49)

ISOFIX/LATCH lower anchors (p. 54)

Top tether anchors (p. 55)

Booster cushions

Booster cushions should be properly posi-

tioned in the vehicle.

Securing a booster cushion

G022851

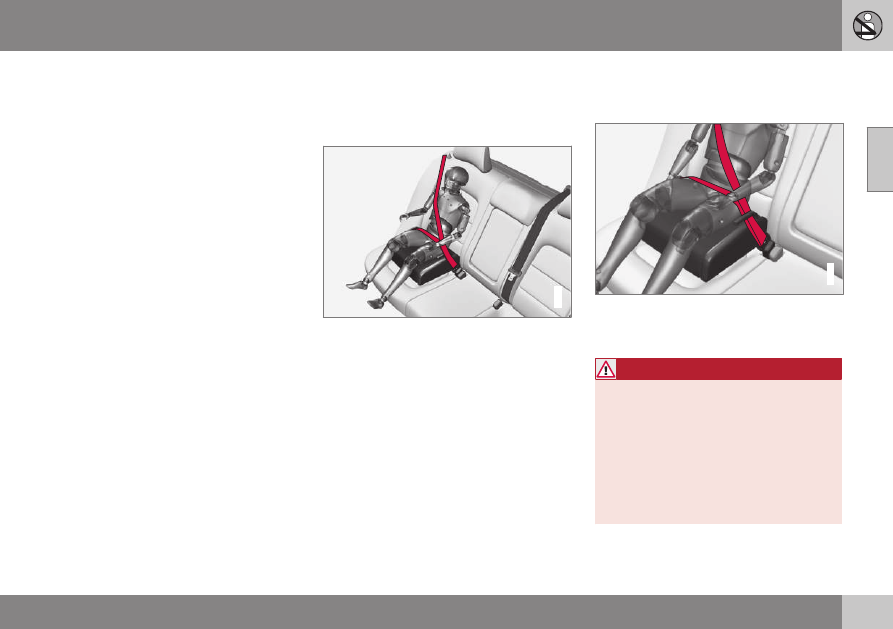

Position the child correctly on the booster cush-

ion

Booster cushions are recommended for chil-

dren who have outgrown convertible

seats (p. 51).
1. Place the booster cushion in the rear seat

of the vehicle.

2. With the child properly seated on the

booster cushion, attach the seat belt to or

around the cushion according to the

manufacturer's instructions.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct

click is audible.

G022852

Positioning the seat belt

4. Ensure that the seat belt is pulled taut

and fits snugly around the child.

WARNING

The hip section of the three-point seat

belt must fit snugly across the child's

hips, not across the stomach.

The shoulder section of the three-point

seat belt should be positioned across

the chest and shoulder.

The shoulder belt must never be

placed behind the child's back or

under the arm.

||

02 Safety

02

54

Related information

Child safety (p. 45)

Child restraints (p. 47)

Infant seats (p. 49)

Convertible seats (p. 51)

ISOFIX/LATCH lower anchors (p. 54)

Top tether anchors (p. 55)

ISOFIX/LATCH lower anchors

Lower anchors for ISOFIX/LATCH-equipped

child seats are located in the rear, outboard

seats, hidden below the backrest cushions.

Using the ISOFIX/LATCH lower child
seat anchors
Symbols on the seat back upholstery mark

the ISOFIX/LATCH anchor positions as

shown. To access the anchors, kneel on the

seat cushion and locate the anchors by feel.

Always follow your child seat manufacturer's

installation instructions, and use both ISOFIX/

LATCH lower anchors and top teth-

ers (p. 55) whenever possible.

To access the anchors

1. Put the child restraint in position.
2. Kneel on the child restraint to press down

the seat cushion and locate the anchors

by feel.

3. Fasten the attachment on the child

restraint's lower straps to the ISOFIX/

LATCH/LATCH lower anchors.

4. Firmly tension the lower child seat straps

according to the manufacturer's instruc-

tions.

WARNING

Volvo's ISOFIX/LATCH anchors conform to

FMVSS/CMVSS standards. Always refer to

the child restraint system's manual for

weight and size ratings.

NOTE

The rear seat's center position is not

equipped with ISOFIX/LATCH lower

anchors. When installing a child

restraint in this position, attach the

restraint's top tether strap (if it is so

equipped) to the top tether anchorage

point and secure the restraint with the

vehicle's center seat belt.

Always follow your child seat manufac-

turer's installation instructions, and

use both ISOFIX/LATCH lower anchors

and top tethers whenever possible.

02 Safety

02

}}

}}

55

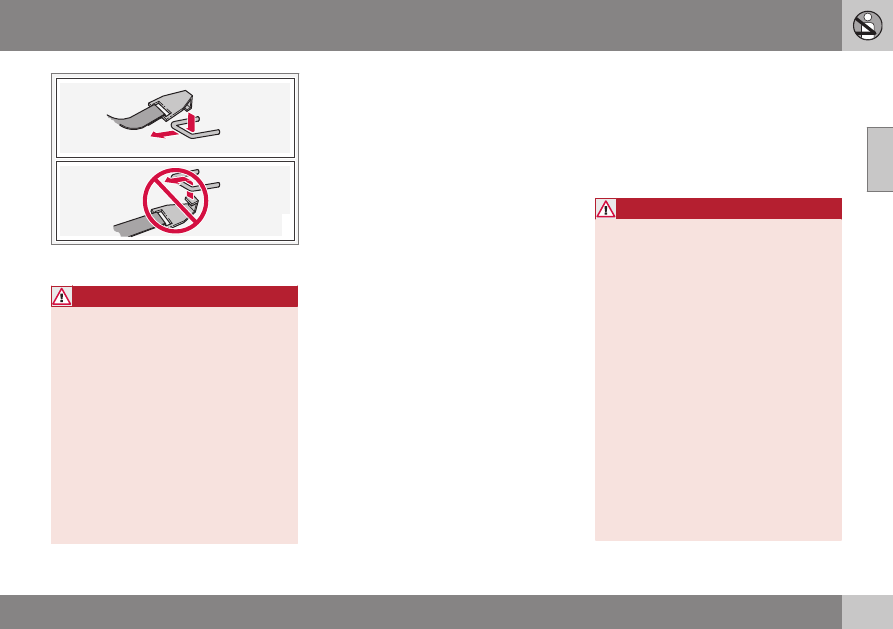

G018631

Fasten the attachment correctly to the ISOFIX/

LATCH lower anchors

WARNING

Be sure to fasten the attachment cor-

rectly to the anchor (see the illustra-

tion). If the attachment is not correctly

fastened, the child restraint may not

be properly secured in the event of a

collision.

The ISOFIX/LATCH lower child

restraint anchors are only intended for

use with child seats positioned in the

outboard seating positions. These

anchors are not certified for use with

any child restraint that is positioned in

the center seating position. When

securing a child restraint in the center

seating position, use only the vehicle's

center seat belt.

Related information

Child safety (p. 45)

Infant seats (p. 49)

Convertible seats (p. 51)

Top tether anchors

Child restraint anchorages

Securing a child seat

Refer also to the child seat manufacturer's

instructions for information on securing the

child seat.

WARNING

Always refer to the recommendations

made by the child restraint manufac-

turer.

Volvo recommends that the top tether

anchors be used when installing a for-

ward-facing child restraint.

Never route a top tether strap over the

top of the head restraint. The strap

should be routed beneath the head

restraint.

Child restraint anchorages are

designed to withstand only those

loads imposed by correctly fitted child

restraints. Under no circumstances are

they to be used for adult seat belts or

harnesses. The anchorages are not

able to withstand excessive forces on

them in the event of collision if full har-

ness seat belts or adult seat belts are

installed to them. An adult who uses a

belt anchored in a child restraint

anchorage runs a great risk of suffer-

||

02 Safety

02

56

ing severe injuries should a collision

occur.

Do not install rear speakers that

require the removal of the top tether

anchors or interfere with the proper

use of the top tether strap.

Related information

Child safety (p. 45)

Infant seats (p. 49)

Convertible seats (p. 51)

ISOFIX/LATCH lower anchors (p. 54)

Child safety locks

Manual child safety locks

Child safety locks – rear doors

The controls are located on the rear door

jambs. Use the remote control's key blade or

a screwdriver to adjust these controls.

The rear doors can only be opened from

the outside when the slot is in the hori-

zontal position.
The rear doors can be opened from the

inside when the slot is in the vertical posi-

tion.

Related information

Detachable key blade – general informa-

tion (p. 128)

Locking/unlocking – from inside (p. 135)

03 Instruments and controls

03

58

*



Option/accessory, for more information, see Introduction.

Instrument overview

This overview shows the location of the

instrument panel and center console displays,

and controls/buttons/switches.

Related information

Information displays – ambient tempera-

ture sensor (p. 67)

Information displays – trip odometer and

clock (p. 67)

Information displays – introduction

The displays show information on some of the

vehicle's functions, such as cruise control, the

trip computer and messages. The information

is shown with text and symbols.

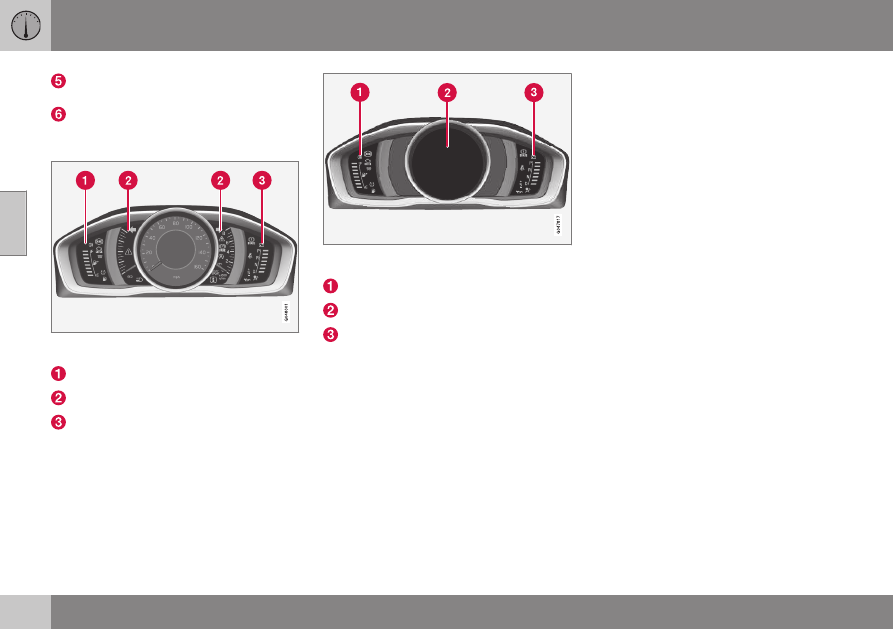

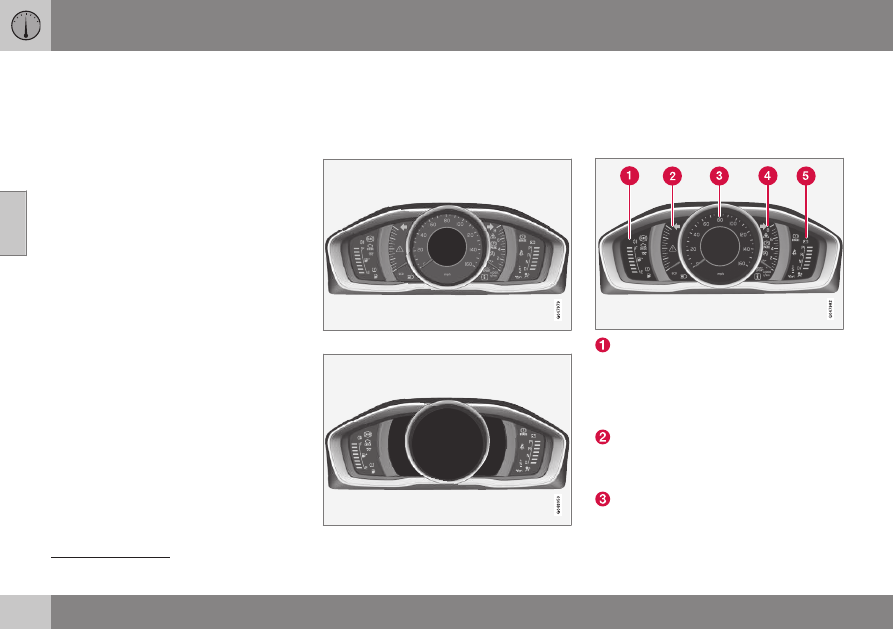

Information displays: analog instrument panel

Information displays: digital instrument panel*

More detailed information can be found in the

descriptions of the functions that use the

information displays.

Gauges and indicators: analog
instrument panel

Fuel gauge: When the indicator shows
one white marking

1

, a yellow indicator

light will illuminate to indicate a low fuel

level. See also Trip computer – introduc-

tion (p. 98) and Refueling – fuel require-

ments (p. 239) for additional information.
Eco meter: Indicates how economically

the vehicle is being driven. The higher the

needle moves on the scale, the more

economically the vehicle is being driven.
Speedometer

1

When the message Distance to empty fuel tank: shows "

----

", the marker turns red

03 Instruments and controls

03

}}

*



Option/accessory, for more information, see Introduction.

59

Tachometer: Shows engine speed in

thousands of revolutions per minute (rpm)
Gear indicator: Shows the currently

selected gear

Gauges and indicators: digital
instrument panel*
Different themes (display alternatives) can be

selected for the digital instrument panel:

Elegance

Eco

Performance

To change themes, press the OK button on

the left steering wheel lever and use the

thumb wheel to scroll to

Themes

. Press OK

to confirm your choice.

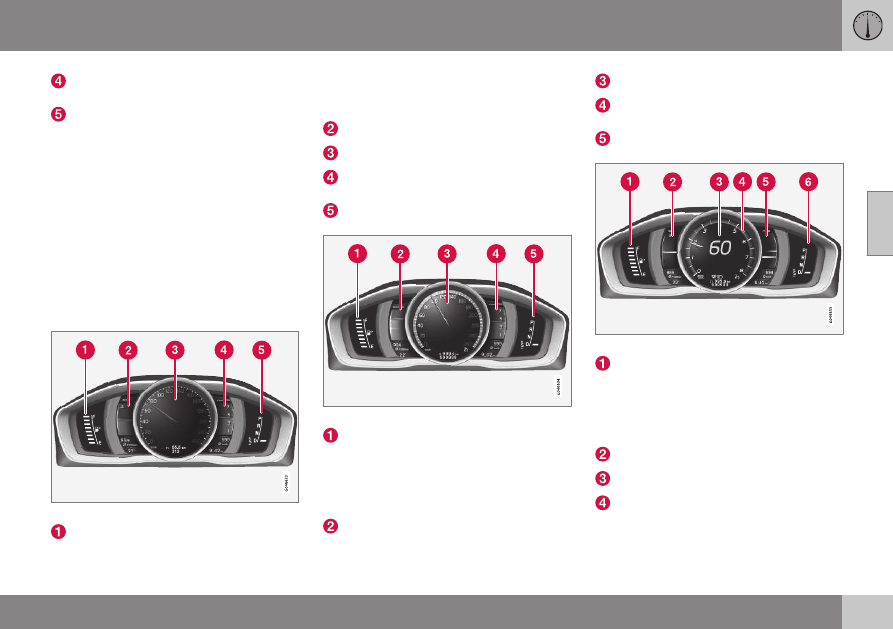

Theme Elegance: gauges and indicators

Fuel gauge. When the indicator shows

one white marking, a yellow indicator light

will illuminate to indicate a low fuel level.

See also Trip computer – introduction

(p. 98) and Refueling – fuel require-

ments (p. 239) for additional information.
Coolant temperature gauge

Speedometer

Tachometer (engine speed in thousands

of revolutions per minute (rpm))
Gear indicator: Shows the currently

selected gear

Theme Eco: gauges and indicators

Fuel gauge. When the indicator shows a

white marking, a yellow indicator light will

illuminate to indicate a low fuel level. See

also Trip computer – introduction (p. 98)

and Refueling – fuel requirements

(p. 239) for additional information.
Eco Guide (see Eco Guide* and Power

Meter* (p. 61))

Speedometer

Tachometer (engine speed in thousands

of revolutions per minute (rpm))
Gear indicator: Shows the currently

selected gear

Theme Performance: gauges and indicators

Fuel gauge. When the indicator shows a

white marking, a yellow indicator light will

illuminate to indicate a low fuel level. See

also Trip computer – introduction (p. 98)

and Refueling – fuel requirements

(p. 239) for additional information.
Coolant temperature gauge

Speedometer

Tachometer (shows engine speed in

thousands of revolutions per minute

(rpm))

||

03 Instruments and controls

03

60

*



Option/accessory, for more information, see Introduction.

Power Meter (see Eco Guide* and Power

Meter* (p. 61)).
Gear indicator: Shows the currently

selected gear

Indicator and warning symbols

Indicator and warning symbols: analog instru-

ment panel

Indicator symbols

Indicator and warning symbols

Warning symbols

Indicator and warning symbols: digital instrument

panel

Indicator symbols

Indicator and warning symbols

Warning symbols

Function check

All indicator and warning symbols light up in

ignition mode II or when the engine is started.

When the engine has started, all the symbols

should go out except the parking brake sym-

bol, which only goes out when the brake is

disengaged.
If the engine does not start or if the function

check is carried out in ignition mode II, all

symbols go out after 5 seconds except the

malfunction indicator light, which may indi-

cate a fault in the vehicle's emissions system,

and the symbol for low oil pressure.

Some of the symbols shown may not be

available in all markets or models.

Related information

Instrument overview (p. 58)

Information displays – indicator symbols

(p. 62)

Information displays – warning symbols

(p. 64)

03 Instruments and controls

03

}}

*



Option/accessory, for more information, see Introduction.

61

Eco Guide* and Power Meter*

Eco guide and Power guide are two gauges in

the instrument panel that help improve driving

economy.
The vehicle also stores driving-related statis-

tics in the form of a bar graph, see Trip com-

puter – Trip statistics (p. 105).

Introduction
To display or remove these functions from the

instrument panel, select the "Eco" theme (see

Information displays – introduction (p. 58)).
Driving statistics are also stored and can be

displayed in the form of a bar chart (see Trip

computer – Trip statistics (p. 105)).

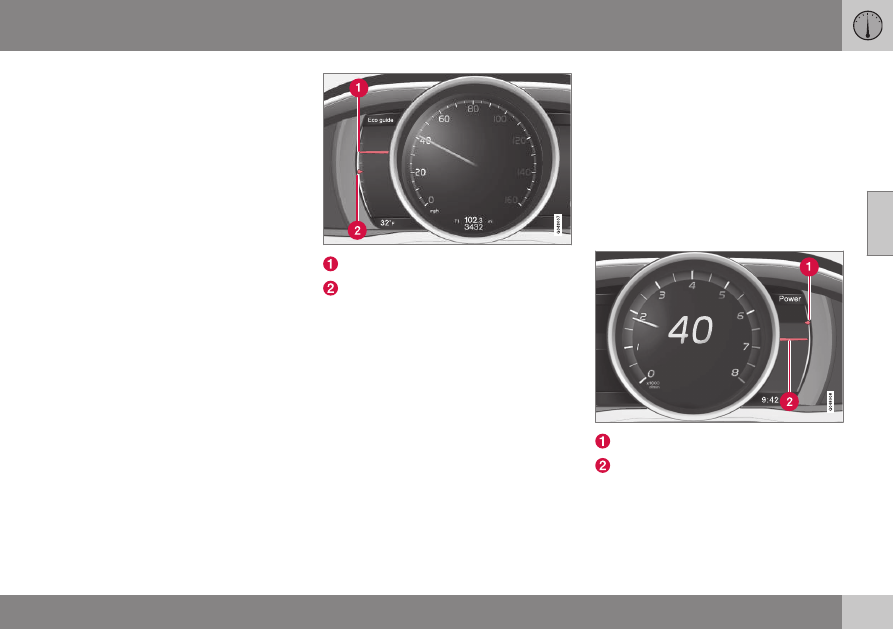

Eco Guide
This gauge gives an indication of how eco-

nomically the vehicle is being driven.

Current (instantaneous) reading

Average

Current (instantaneous) reading

This is the current level of economical driving;

the higher the reading, the more economically

the vehicle is being driven.
This value is calculated based on the vehi-

cle's speed, engine speed (rpm), engine load

and brake use.
The optimal speed range is between approxi-

mately 30–50 mph (50–80 km/h), preferably at

as low rpm as possible. The markers fall

when the brake or accelerator pedal is

pressed.
If the current reading is very low, the red field

in the gauge will illuminate after a slight delay,

indicating low driving economy.

Average

The average reading changes gradually

according to changes in the current reading

to indicate how economically the vehicle has

been driven recently. The higher the average

reading, the more economically the vehicle

has been driven.

Power Meter
This gauge indicates the engine power that

has been utilized and the amount of power

remaining.

Available power

Utilized power

||

03 Instruments and controls

03

62

*



Option/accessory, for more information, see Introduction.

Available power

The smaller, upper indicator shows the
engine's available power

2

. The higher the

reading on the scale, the greater the amount

of power remaining in the current gear.

Utilized power

The larger, lower indicator shows the amount
of engine power that has been utilized

2

. The

higher the reading on the scale, the greater

the amount of power that is being utilized.
The larger the gap between the two indica-

tors, the greater the amount of power remain-

ing.

Information displays – indicator

symbols

The indicator symbols alert the driver when

certain functions are activated, that a system

is actively working or that a fault may have

occurred in a system or function.

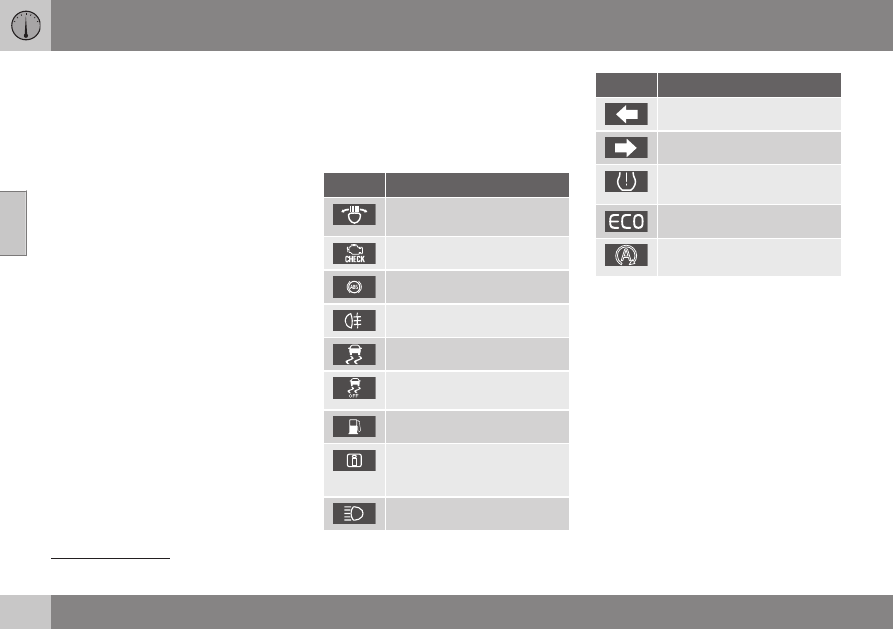

Symbol Description

Fault in the Active Bending

Light (ABL)*system

Malfunction indicator light

Anti-lock brake system (ABS)

Rear fog lights on

Stability system

The stability system's Sport

mode is activated

Low fuel level

Information symbol, read the

text displayed in the instrument

panel

High beam indicator

Symbol Description

Left turn signal indicator

Right turn signal indicator

Tire pressure monitoring sensor
(TPMS)

A

The Eco function is on.

TheStart/Stop function is active

(the engine has auto-stopped)

A

Option in Canada

Fault in the Active Bending Light (ABL)
system

This symbol will illuminate if there is a fault in

the ABL system. See Active Bending Lights

(ABL)* (p. 79) for more information about

this system.

2

Depending on rpm

03 Instruments and controls

03

}}

*



Option/accessory, for more information, see Introduction.

63

Malfunction Indicator Light

As you drive, a computer called On-Board

Diagnostics II (OBDII) monitors your vehicle's

engine, transmission, electrical and emission

systems.
The malfunction indicator light will illuminate if

the computer senses a condition that poten-

tially may need correcting. When this hap-

pens, please have your vehicle checked by a

trained and qualified Volvo service technician

as soon as possible.
A malfunction indicator light may have many

causes. Sometimes, you may not notice a

change in your car's behavior. Even so, an

uncorrected condition could hurt fuel econ-

omy, emission controls, and drivability.

Extended driving without correcting the cause

could even damage other components in

your vehicle.
This light may illuminate if the fuel filler cap is

not closed tightly or if the engine was running

while the vehicle was refueled.

Anti-lock Brake System (ABS)

If the warning light comes on, there may be a

malfunction in the ABS system (the standard

braking system will still function). Check the

system by:
1. Stopping in a safe place and switching off

the ignition.

2. Restart the engine.

3. If the warning light goes off, no further

action is required.

If the indicator light remains on, the vehicle

should be driven to a trained and qualified

Volvo service technician for inspection, see

Brakes – general (p. 228) for additional infor-

mation.

Rear fog lights

This symbol indicates that the rear fog lights

are on.

Stability system

This indicator symbol flashes when the stabil-

ity system is actively working to stabilize the

vehicle, see Stability system – introduction

(p. 141) for more detailed information.

Stability system - Sport mode

This symbol illuminates to indicate that the

stability system's Sport mode has been acti-

vated to help provide maximum tractive force,

for example when driving with snow chains,

or driving in deep snow or loose sand.

Low fuel level

When this light comes on, the vehicle should

be refueled as soon as possible. See Refuel-

ing – fuel requirements (p. 239) for informa-

tion about fuel and refueling.

Information symbol

The information symbol lights up and a text

message is displayed to provide the driver

with necessary information about one of the

vehicle's systems. The message can be

erased and the symbol can be turned off by

pressing the OK button (see Information dis-

play – menu controls (p. 96) for information)

or this will take place automatically after a

short time (the length of time varies, depend-

ing on the function affected).
The information symbol may also illuminate

together with other symbols.

High beam indicator

This symbol illuminates when the high beam

headlights are on, or if the high beam flash

function is used.

Left turn signal indicator
Right turn signal indicator

NOTE

Both turn signal indicators will flash

when the hazard warning flashers are

used.

If either of these indicators flash faster

than normal, the direction indicators

are not functioning properly.

Tire pressure monitoring system
(TPMS)*

This symbol illuminates to indicate that tire

pressure in one or more tires is low, see Tire

Pressure Monitoring System (TPMS) – general

information (p. 266) for detailed information.

Eco* function on

The symbol will illuminate when the Eco func-

tion is activated.

||

03 Instruments and controls

03

64

*



Option/accessory, for more information, see Introduction.

Start/stop*

The symbol illuminates when the engine has

auto-stopped.

Related information

Information displays – introduction (p. 58)

Information displays – warning symbols

(p. 64)

Information displays – warning

symbols

The warning lights alert the driver that an

important function is activated or that a seri-

ous fault has occurred.

Symbol Description

Low oil pressure

A

Parking brake applied

B

SRS airbags

Seat belt reminder

Generator not charging

Fault in the brake system

Warning symbol, read the text

displayed in the instrument

panel

A

Certain engines do not use this symbol to indicate low oil

pressure. On these models, a text message will be dis-

played on the instrument panel instead, see Engine com-

partment – engine oil (p. 286).

B

The symbol is Park only on models with the optional digital

instrument panel.

Low oil pressure

If the light comes on while driving, stop the

vehicle, stop the engine immediately, and

check the engine oil level. Add oil if neces-

sary. If the oil level is normal and the light

stays on after restart, have the vehicle towed

to the nearest trained and qualified Volvo

service technician.

Parking brake applied

This symbol flashes while the brake is being

applied and then glows steadily when the

parking brake has been set.
See Parking brake – general information

(p. 232) for more information about using the

parking brake.

Airbags – SRS

If this light comes on while the vehicle is

being driven, or remains on for longer than

approximately 10 seconds after the vehicle

has been started, the SRS system's diagnos-

tic functions have detected a fault in a seat

belt lock or pretensioner, a front airbag, side

impact airbag, and/or an inflatable curtain.

Have the system(s) inspected by a trained

and qualified Volvo service technician as

soon as possible.
See Supplemental Restraint System (SRS)

(p. 31) for more information about the airbag

system.

Seat belt reminder

This symbol comes on for approximately

6 seconds if the driver has not fastened his or

her seat belt.

03 Instruments and controls

03

}}

65

Generator not charging

This symbol comes on during driving if a fault

has occurred in the electrical system. Contact

an authorized Volvo workshop.

Engine temperature

Engine overheating can result from low oil or

coolant levels, towing or hard driving at high

heat and altitude, or mechanical malfunction.

Engine overheating will be signaled with text

and a red warning triangle in the middle of the

instrument display. The exact text will depend

on the degree of overheating. It may range

from

High engine temp Reduce speed

 to

High engine temp Stop engine

. If appropri-

ate, other messages, such as

Coolant level

low, Stop safely

 will also be displayed. If

your engine does overheat so that you must

stop the engine, always allow the engine to

cool before attempting to check oil and cool-

ant levels.
See Engine compartment – coolant (p. 288)

for more information.

Fault in brake system

If this symbol lights, the brake fluid level may

be too low. Stop the vehicle in a safe place

and check the level in the brake fluid reser-

voir, see Engine compartment – brake fluid

(p. 289). If the level in the reservoir is below

MIN, the vehicle should be transported to an

authorized Volvo workshop to have the brake

system checked.

If the

 and

 symbols come on

at the same time, there may be a fault in the

brake force distribution system.
1. Stop the vehicle in a safe place and turn

off the engine.

2. Restart the engine.

If both symbols extinguish, continue driv-

ing.

If the symbols remain on, check the level

in the brake fluid reservoir, see Engine

compartment – brake fluid (p. 289). If the

brake fluid level is normal but the sym-

bols are still lit, the vehicle can be driven,

with great care, to an authorized Volvo

workshop to have the brake system

checked.

If the level in the reservoir is below MIN,

the vehicle should be transported to an

authorized Volvo workshop to have the

brake system checked.

WARNING

If the fluid level is below the MIN mark

in the reservoir or if a warning mes-

sage is displayed in the text window:

DO NOT DRIVE. Have the vehicle

towed to a trained and qualified Volvo

service technician and have the brake

system inspected.

If the

 and

 symbols

are on at the same time, there is a risk

of reduced vehicle stability.

Warning symbol

The red warning symbol lights up to indicate

a problem related to safety and/or drivability.

A message will also appear in the instrument

panel. The symbol remains visible until the

fault has been rectified but the text message

can be cleared with the OK button, see Infor-

mation display – menu controls (p. 96). The

warning symbol can also come on in conjunc-

tion with other symbols.
Action:
1. Stop in a safe place. Do not drive the

vehicle further.

2. Read the information on the display.

Implement the action in accordance with

the message in the display. Clear the

message using OK.















Content   ..  1  2  3  4   ..
