WHEELS AND TYRES

344

The sealing fluid bottle and the hose must be
replaced after use. Volvo recommends that
this replacement is performed by an author-
ised Volvo workshop.

WARNING

Check the tyre pressure regularly.

Volvo recommends that the car is driven to the
nearest authorised Volvo workshop for the
replacement/repair of the damaged tyre. Advise
the workshop that the tyre contains sealing fluid.

WARNING

You should not drive faster than 80 km/h

(50 mph) after the emergency tyre repair kit

has been used. Volvo recommends a visit to

an authorised Volvo workshop for inspection

of the sealed tyre (maximum driving distance

is 200 km). The staff there can determine

whether or not the tyre can be repaired or if it

needs to be replaced.

Related information

•

Emergency puncture repair (p. 339)

•

Emergency puncture repair - operation
(p. 341)

•

Emergency puncture repair kit - overview
(p. 340)

Emergency puncture repair kit -

inflating the tyres

The car's original tyres can be inflated using the
compressor in the emergency puncture repair kit
(p. 340).

1. The compressor must be switched off. Make

sure that the switch is in position 0 (Off) and
take out the electrical cable and air hose.

2. Unscrew the tyre's dust cap and screw in the

air hose's valve connection to the bottom of
the thread on the tyre's air valve.

3. Plug the electrical cable into the closest

12 V socket and start the car.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine running

in sealed areas or areas that lack sufficient

ventilation.

WARNING

Do not leave children in the car without

supervision when the engine is running.

4. Start the compressor by flicking the switch to

position I (On).

IMPORTANT

The compressor must not be operated for
longer than 10 minutes - risk of overheating.

5. Inflate the tyre to the pressure specified in

accordance with the tyre pressure table, see
Tyres - approved tyre pressures (p. 421).
Release air using the pressure reducing
valve if the tyre pressure is too high.

6. Switch off the compressor. Detach the air

hose and the electrical cable.

7. Refit the dust cap on the tyre.

Related information

•

Emergency puncture repair (p. 339)

•

Emergency puncture repair kit - overview
(p. 340)

•

Emergency puncture repair - rechecking
(p. 343)

MAINTENANCE AND SERVICE

MAINTENANCE AND SERVICE

* Option/accessory.

346

Volvo service programme

To keep the car as safe and reliable as possible,
follow the Volvo service programme as specified
in the Service and Warranty Booklet.

Volvo recommends engaging an authorised Volvo
workshop to perform the service and mainte-
nance work. Volvo workshops have the personnel,
special tools and service literature to guarantee
the highest quality of service.

IMPORTANT

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Related information

•

Climate control system - fault tracing and
repair (p. 359)

Book service and repair*

Manage service, repair and booking information
directly in your Internet-connected car.

This service

provides a convenient way to book a

service and workshop visit directly in the car. Car
information is sent to your dealer, who can pre-
pare the workshop visit. The dealer will contact
you to schedule an appointment time. For certain
markets, the system reminds you of a scheduled
appointment time as it approaches and the navi-
gation system

can also guide you to the work-

shop when the time comes.

Before the service can be used

Volvo ID and my profile

•

Go to www.volvocars.com, log in and proceed
as follows:

1. Check that the car is connected to your pro-

file.

2. Check that your contact information is cor-

rect.

3. Select the Volvo dealer you want to contact

for service and repair.

4. Choose preferred communication channel

(phone). Booking information is always sent
to the car and to you via email.

Prerequisite for booking from car

•

To send and receive booking information
from and to the car, the car must be con-
nected to the Internet, see the Sensus Info-
tainment supplement for information about
how to connect the car to the Internet.

•

Since the booking information is sent over
your private phone subscription, you will be
asked whether you want to send the informa-
tion. The question is asked once and then
applies to the selected connection for a lim-
ited time.

•

For the service to work and for the system to
communicate via the car's screen, notifica-
tions/pop-up messages must be accepted.
In the normal view for the MY CAR source,
press OK/MENU and then

Service & repair

Display notifications

Using the service

All menus and settings are accessed from the
normal view in MY CAR by pressing OK/MENU
and then

Service & repair

When it is time for service, and in some cases
when the car is in need of repair, this is notified

Applies to certain markets.

Applies to Sensus Navigation.

MAINTENANCE AND SERVICE

}}

347

in the combined instrument panel (p. 62) and via
a pop-up menu in the screen.

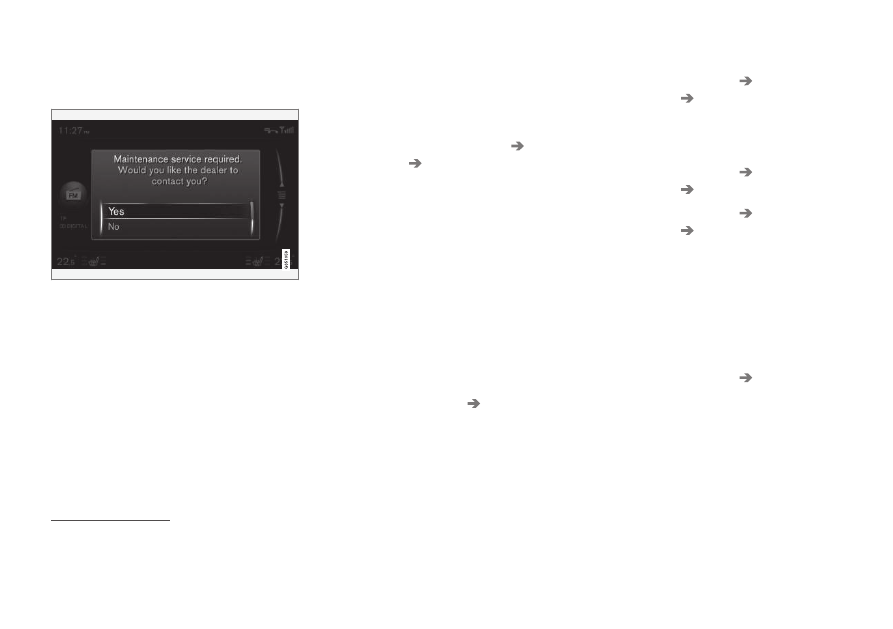

Service message in the screen.

Meaning of the answer options in the screen's
pop-up menu:

•

Yes

- A booking enquiry is sent to your

dealer who then comes back with a booking
proposal. The service lamp and service mes-
sage in the combined instrument panel are
extinguished.

•

- No more pop-up messages will be

shown in the screen. The message in the
combined instrument panel remains. After
this option has been selected, it is possible
to start the manual booking in the car, see
below.

•

Postpone

- The pop-up menu is shown the

next time the car is started.

Book a service or repair manually

1. Press the MY CAR button in the centre con-

sole and select

Service & repair

Dealer

information

Request service or repair

> Vehicle data is sent automatically to your

dealer.

2. The dealer sends a booking proposal to the

car.

3. Accept or request a new booking proposal.

After the booking has been accepted the book-
ing information is stored in the car, see My book-
ings. The car will automatically communicate with
you via the screen by means of reminders about
the booking and guide you to the workshop visit.

My bookings

Show booking information in the car's screen.
Accept or request a new booking proposal.

–

Select

Service & repair

My bookings

Call the dealer

With a phone connected to the car via
Bluetooth

, you can call your dealer. For connect-

ing the phone, see the Sensus Infotainment sup-
plement.

–

Select

Service & repair

Dealer

information

Call dealer

Using the navigation system

Enter your workshop as destination or waypoint
in the navigation system.

–

Select

Service & repair

Dealer

information

Set single destination

–

Select

Service & repair

Dealer

information

Add as waypoint

Sending vehicle data

Vehicle data are sent to a central Volvo database
(not your dealer) from which Volvo dealers can
retrieve vehicle information using the car's identi-
fication number (VIN

). The number is printed in

the car's service and warranty booklet, alterna-
tively inside the windscreen's bottom left-hand
corner.

–

Select

Service & repair

Send car data

Booking information and vehicle data

When you decide to book a service from your car,
the booking information and vehicle data will be
sent. Vehicle data information consists of infor-
mation within the following areas:

Applies to certain markets.

Applies to Sensus Navigation.

Vehicle Identification Number

MAINTENANCE AND SERVICE

348

•

service requirement

•

function status

•

fluid levels

•

meter reading

•

the car's vehicle identification number (VIN

)

•

the car's software version.

Related information

•

Volvo ID (p. 20)

Vehicle Identification Number

MAINTENANCE AND SERVICE

}}

349

Raising the car

When raising the car it is important that the jack
or lifting arms are fitted in the intended points on
the car's underbody.

NOTE

Volvo recommends only using the jack that
belongs to the car model in question. If a jack
is selected other than the one recommended
by Volvo, follow the instructions supplied with
the equipment.

MAINTENANCE AND SERVICE

350

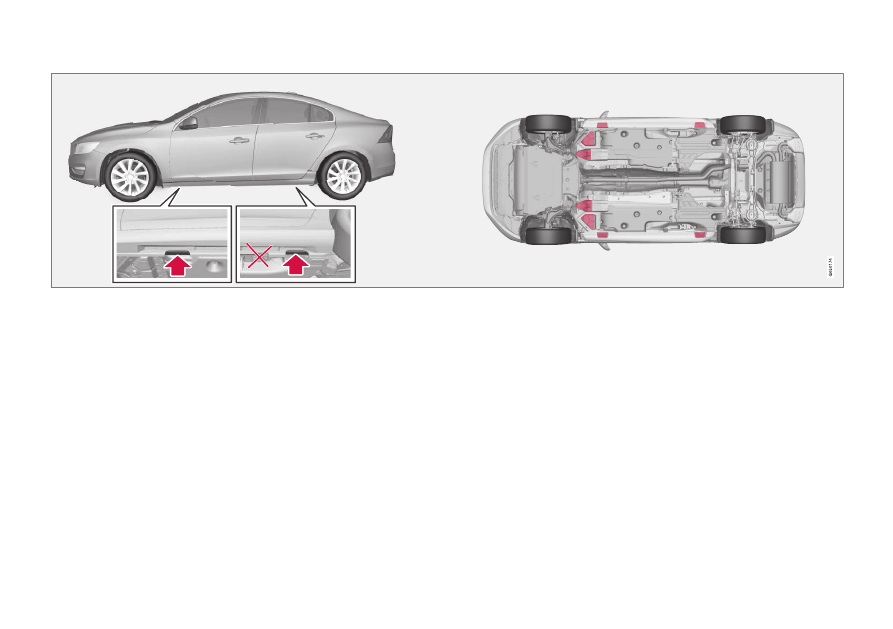

Jacking points (arrows) for the jack that belongs to the car and lifting points (marked in red).

If the car is raised with a front workshop jack
then this must be positioned under one of the
four lifting points furthest in under the car. If the
car is raised with a rear workshop jack then it
must be positioned under one of the lifting
points. Ensure that the workshop jack is posi-
tioned so that the car cannot slide off the jack.
Always use axle stands or similar.

If the car is raised with a two-pillar workshop lift
then the front and rear lifting arms can be posi-
tioned under the outer lifting points (jacking
points). Alternatively, the inner lifting points can
be used at the front.

Related information

•

Changing wheels - removing wheels (p. 331)

MAINTENANCE AND SERVICE

}}

351

Bonnet - opening and closing

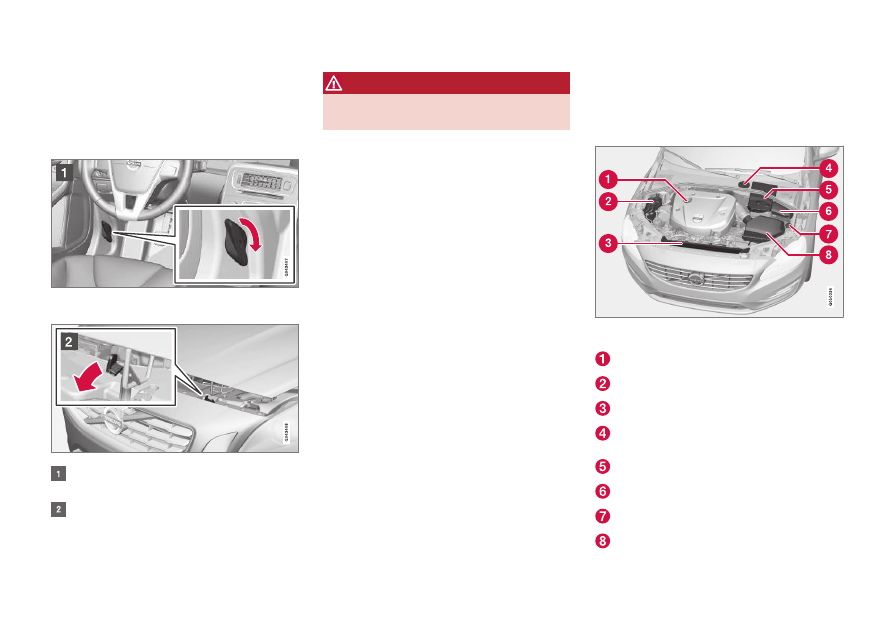

The bonnet can be opened when the handle in
the passenger compartment has been turned
clockwise and the lock by the radiator grille has
been moved to the left.

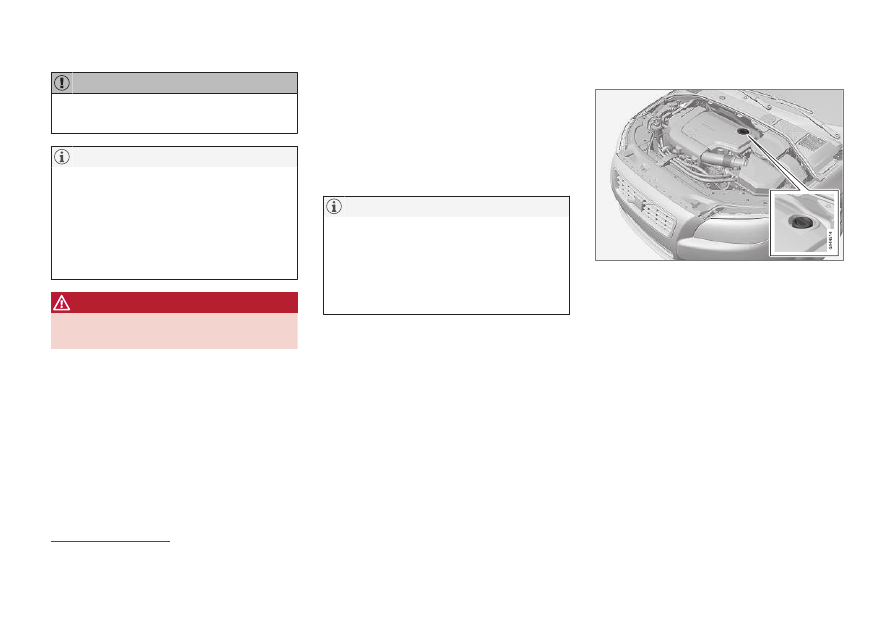

The handle for bonnet opening is always on the left-

hand side.

Turn the handle about 20-25 degrees clock-
wise. You will hear when the catch releases.

Move the catch to the left and open the bon-
net. (The catch hook is located between the
headlamp and radiator grille, see illustration.)

WARNING

Check that the bonnet locks properly when

closed.

Related information

•

Engine compartment - checking (p. 352)

•

Engine compartment - overview (p. 351)

Engine compartment - overview

The overview shows some service-related com-
ponents.

Engine compartment 4-cyl.

The appearance of the engine compartment may differ

depending on model and engine variant.

Engine oil filler pipe

Coolant expansion tank

Radiator

Reservoir for brake and clutch fluid (located
on the driver's side)
Starter battery

Relay and fuse box

Washer fluid filler pipe

Air filter

MAINTENANCE AND SERVICE

352

WARNING

The ignition system has very high voltage and

output. The voltage in the ignition system is

highly dangerous. The car's electrical system

must always be in key position 0 when work is

being performed in the engine compartment;

see Key positions - functions at different lev-

els (p. 77).
Do not touch the spark plugs or ignition coil

when the car's electrical system is in key

position II or when the engine is hot.

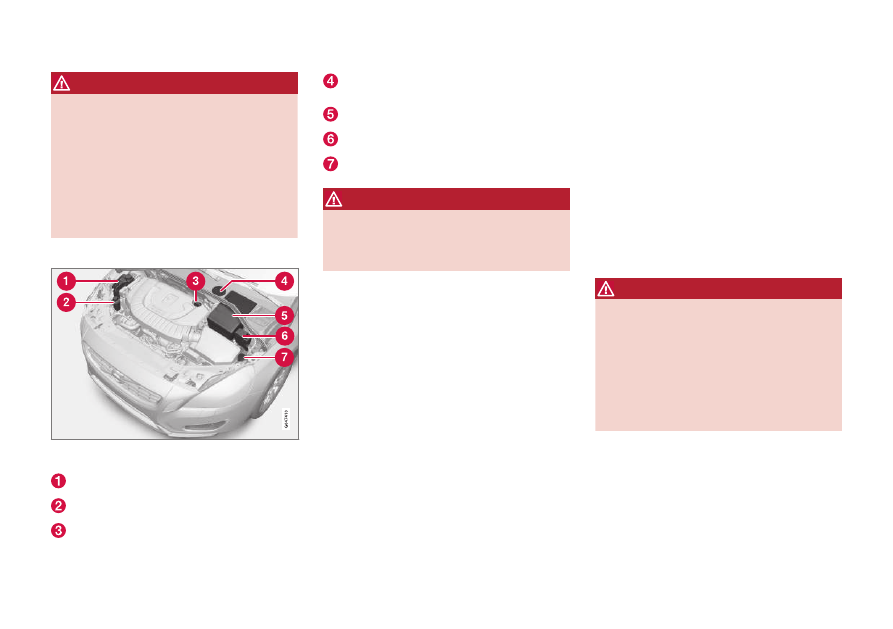

Engine compartment 5-cyl. diesel

The appearance of the engine compartment may differ

depending on model and engine variant.

Coolant expansion tank

Power steering fluid reservoir

Engine oil filler pipe

Reservoir for brake and clutch fluid (located
on the driver's side)
Starter battery

Relay and fuse box

Washer fluid filler pipe

WARNING

The car's electrical system must always be in

key position 0 when work is being performed

in the engine compartment; see Key positions

- functions at different levels (p. 77).

Related information

•

Bonnet - opening and closing (p. 351)

•

Engine compartment - checking (p. 352)

Engine compartment - checking

Some oils and fluids should be checked at regu-
lar intervals.

Regular checking

Check the following oils and fluids at regular
intervals, e.g. when refuelling:

•

Coolant

•

Engine oil

•

Power steering fluid (not cars with 4-cyl.
engine)

•

Washer fluid

WARNING

Remember that the radiator fan (located at

the front of the engine compartment, behind

the radiator) may start or continue to operate

automatically for up to approx. 6 minutes after

the engine has been switched off.
Always have the engine cleaned by a work-

shop - an authorised Volvo workshop is rec-

ommended. There is a risk of fire if the engine

is hot.

Related information

•

Bonnet - opening and closing (p. 351)

•

Engine compartment - overview (p. 351)

•

Coolant - level (p. 357)

•

Engine oil - checking and filling (p. 354)

MAINTENANCE AND SERVICE

}}

353

•

Power steering fluid - level (p. 358)

•

Washer fluid - filling (p. 369)

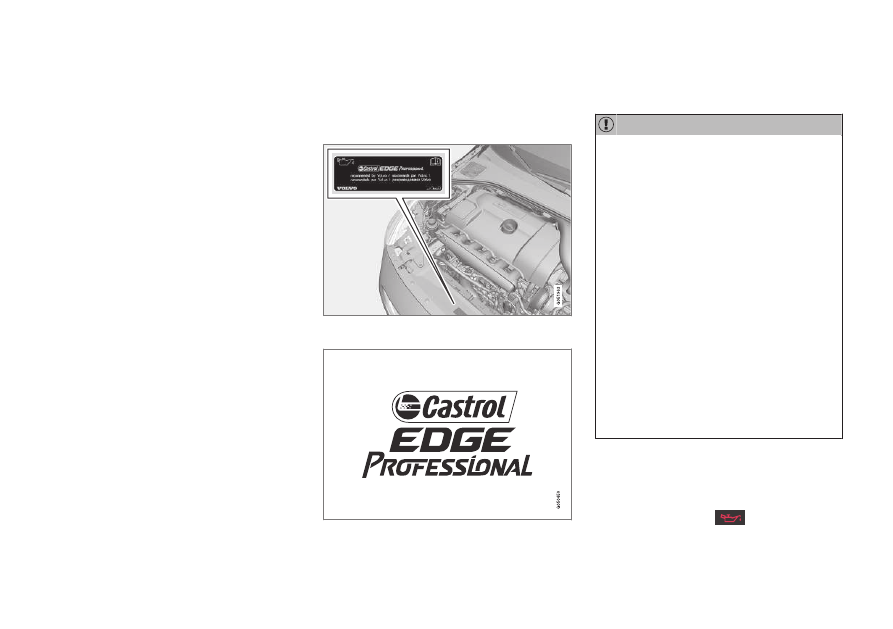

Engine oil - general

An approved engine oil must be used in order
that the recommended service intervals can be
applied.

Volvo recommends:

When driving under adverse conditions, see
Engine oil - adverse driving conditions (p. 407).

IMPORTANT

In order to fulfil the requirements for the
engine's service intervals all engines are filled
with a specially adapted synthetic engine oil
at the factory. The choice of oil has been
made very carefully with regard to service life,
starting characteristics, fuel consumption and
environmental impact.

An approved engine oil must be used in order
that the recommended service intervals can
be applied. Only use a prescribed grade of oil
for both filling and oil change, otherwise you
will risk affecting service life, starting charac-
teristics, fuel consumption and environmental
impact.

Volvo Car Corporation disclaims all warranty
liability if engine oil of the prescribed grade
and viscosity is not used.

Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.

Volvo uses different systems for warning of low/
high oil level or low oil pressure. Certain engine
variants have an oil pressure sensor, and then the
combined instrument panel's warning symbol for
low oil pressure is used

. Other variants

have an oil level sensor, when the driver is

MAINTENANCE AND SERVICE

354

informed via the instrument's warning symbol

and display texts. Certain variants have

both systems. Contact a Volvo dealer for more
information.

Change the engine oil and oil filter in accordance
with the intervals specified in the Service and
Warranty Booklet.

Using oil of a higher than specified grade is per-
mitted. If the car is driven in adverse conditions,
Volvo recommends using an oil of a higher grade
than the one specified, see Engine oil - adverse
driving conditions (p. 407).

For filling capacities, see Engine oil - grade and
volume (p. 408).

Related information

•

Engine oil - checking and filling (p. 354)

Engine oil - checking and filling

The oil level is detected with the electronic oil
level sensor.

4-cyl.

Filler pipe

In some cases, oil may need to be topped up
between service intervals.

No action needs to be taken on engine oil level
until a message is shown in the combined instru-
ment panel's display, see the following illustra-
tion.

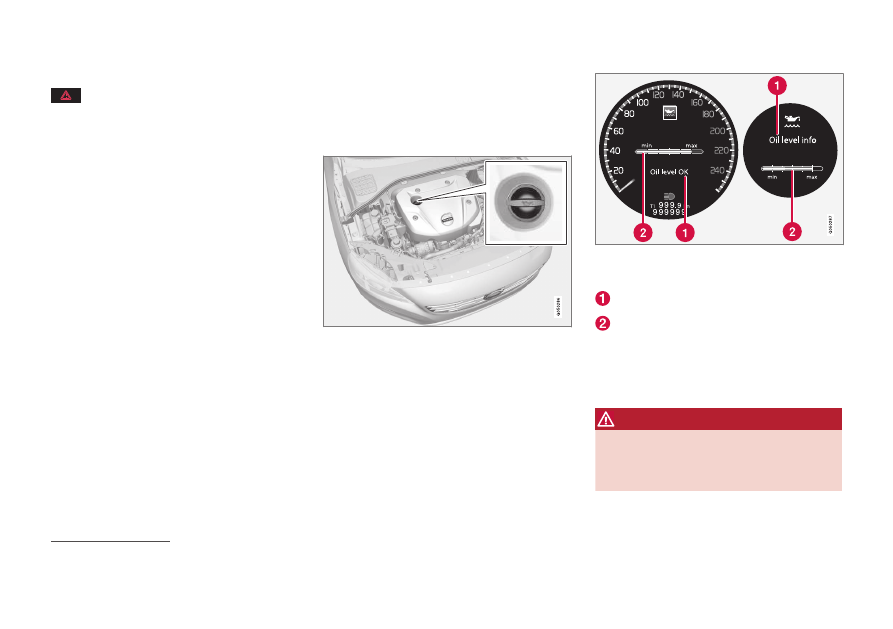

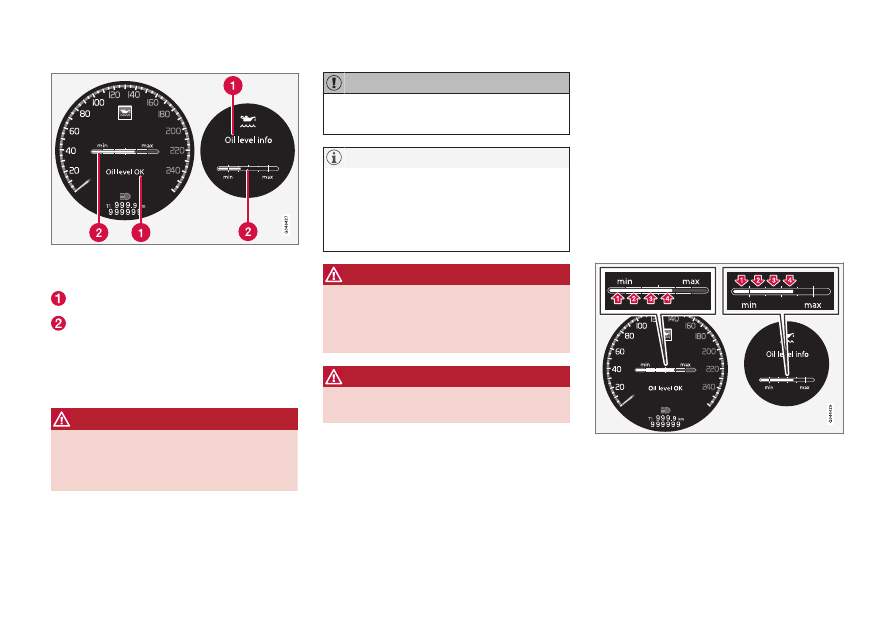

Message and graphic shown in the display. The left-

hand display is shown in the digital combined instrument

panel and the right-hand in the analogue.

Message

Engine oil level

The oil level is checked using the electronic oil
level gauge with the thumbwheel when the
engine is switched off, see Menu navigation -
combined instrument panel (p. 106).

WARNING

If the message

Oil service required

shown, visit a workshop - an authorised Volvo

workshop is recommended. The oil level may

be too high.

Engines with electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICE

}}

355

IMPORTANT

If notified of low oil level, only fill with the vol-
ume specified, for example, 0.5 litres.

NOTE

The system cannot directly detect changes
when the oil is filled or drained. The car must
have been driven approx. 30 km (approx.
20 miles) and have been stationary for
5 minutes with the engine switched off and
on level ground before the oil level indication
is correct.

WARNING

Do not spill oil onto the hot exhaust manifold

due to the risk of fire.

Measuring the oil level, 4-cyl.

If the oil level needs to be checked then it should
be carried out in accordance with the following
sequence.

1. Activate key position II; see Key positions -

functions at different levels (p. 77).

2. Rotate the thumbwheel on the left-hand

stalk switch to position

Oil level

> You will then see information displayed

about the engine oil level.

For more information on menu navigation,
see Menu navigation - combined instru-
ment panel (p. 106).

NOTE

If the right conditions for measuring the oil
level (time after engine shutdown, the car's
inclination, outside temperature, etc.) are not
met, the message

Not available

will be

shown. This does not mean that there is
something wrong in the car's systems.

5-cyl. diesel

Filler pipe

No action needs to be taken on engine oil level
until a message is shown in the combined instru-
ment panel's display, see the following illustra-
tion.

Engines with electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICE

356

Message and graphic shown in the display. The left-

hand display is shown in the digital combined instrument

panel and the right-hand in the analogue.

Message

Engine oil level

The oil level is checked using the electronic oil
level gauge with the thumbwheel when the
engine is switched off, see Menu navigation -
combined instrument panel (p. 106).

WARNING

If the message

Oil service required

shown, visit a workshop - an authorised Volvo

workshop is recommended. The oil level may

be too high.

IMPORTANT

In the event of the message

Oil level low

Refill 0.5 litre

, only fill with 0.5 litres.

NOTE

The oil level is only detected by the system
during driving. The system cannot directly
detect changes when the oil is filled or
drained. The car must be driven about 30 km
before the oil level display is correct.

WARNING

Do not fill more oil if filling level (3) or (4)

appears as shown in the illustration below.

The level must never be above MAX or below

MIN, as this could lead to engine damage.

WARNING

Do not spill oil onto the hot exhaust manifold

due to the risk of fire.

Measuring the oil level, 5-cyl. diesel

If the oil level needs to be checked then it should
be carried out in accordance with the following
sequence.

1. Activate key position II; see Key positions -

functions at different levels (p. 77).

2. Rotate the thumbwheel on the left-hand

stalk switch to position

Oil level

> Information is then displayed on the

engine's oil level; see the following illus-
tration, which shows the message and
graphic in the display. The left-hand dis-
play is shown in the digital combined
instrument panel and the right-hand in the
analogue.

For more information on menu navigation,
see Menu navigation - combined instru-
ment panel (p. 106).

The figures 1-4 represent filling level. Do not fill more oil

if filling level (3) or (4) is shown. Recommended filling

level is 4.

Related information

•

Engine oil - general (p. 353)

MAINTENANCE AND SERVICE

357

Coolant - level

The coolant cools the internal combustion
engine to the correct operating temperature. The
heat that is transferred from the engine to the
coolant can be used to heat the passenger com-
partment.

Checking the level

The coolant level must lie between the MIN and
MAX marks on the expansion tank. If the cooling
system is not filled sufficiently, excessively high
temperatures could occur, causing a risk of dam-
age to the engine.

NOTE

Check the coolant level regularly when the
engine is cold.

Filling

When topping up the coolant, follow the instruc-
tions on the packaging. Never top up with water
only. The risk of freezing increases with both too
little and too much coolant concentrate.

If there is coolant under the car, if there is cool-
ant smoke, or if more than 2 litres have been
filled, always call for recovery to avoid the risk of
engine damage when starting due to a defective
cooling system.

WARNING

Coolant can be very hot. If the coolant

requires topping up when the engine is at

operating temperature, unscrew the expan-

sion tank cap slowly to gently release the

overpressure.

IMPORTANT

•

A high content of chlorine, chlorides and
other salts may cause corrosion in the
cooling system.

•

Always use coolant with anti-corrosion
agent as recommended by Volvo.

•

Ensure that the coolant mixture is 50%
water and 50% coolant.

•

Mix the coolant with approved quality
water. In the event of any doubt about
water quality, used ready-mixed coolant in
accordance with Volvo recommendations.

•

When changing coolant/replacing cool-
ing system components, flush the cooling
system clean with approved quality water
or flush with ready-mixed coolant.

•

The engine must only be run with a well-
filled cooling system. Otherwise, tempera-
tures that are too high may occur result-
ing in the risk of damage (cracks) in the
cylinder head.

For capacities and for standards regarding water
quality; see Coolant - grade and volume (p. 410).

MAINTENANCE AND SERVICE

358

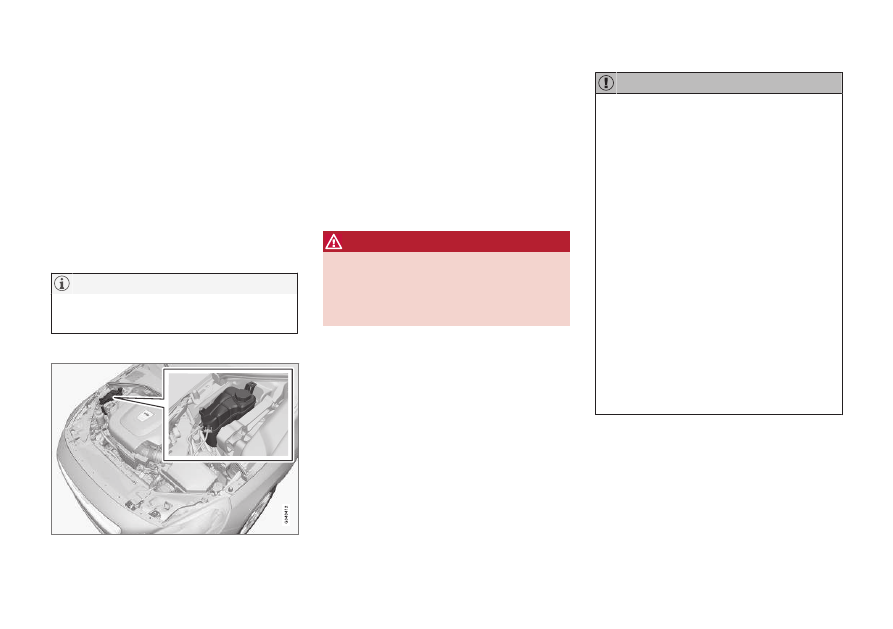

Brake and clutch fluid - level

Brake and clutch fluid level should be between
the reservoir

MIN and MAX marks.

Checking the level

Brake and clutch fluid have a common reservoir.
The level must be between the MIN and MAX
marks that are visible inside the reservoir. Check
the level regularly.

Change the brake fluid every other year or at
every other regular service.

The fluid should be changed annually on cars
driven in conditions requiring hard, frequent brak-
ing, such as driving in mountains or tropical cli-
mates with high humidity.

For capacities and recommended brake fluid
grade, see Brake fluid - grade and volume
(p. 412).

WARNING

If the brake fluid is under the MIN level in the

brake fluid reservoir, do not drive further

before topping up the brake fluid. Volvo rec-

ommends that the reason for the loss of

brake fluid is investigated by an authorised

Volvo workshop.

Filling

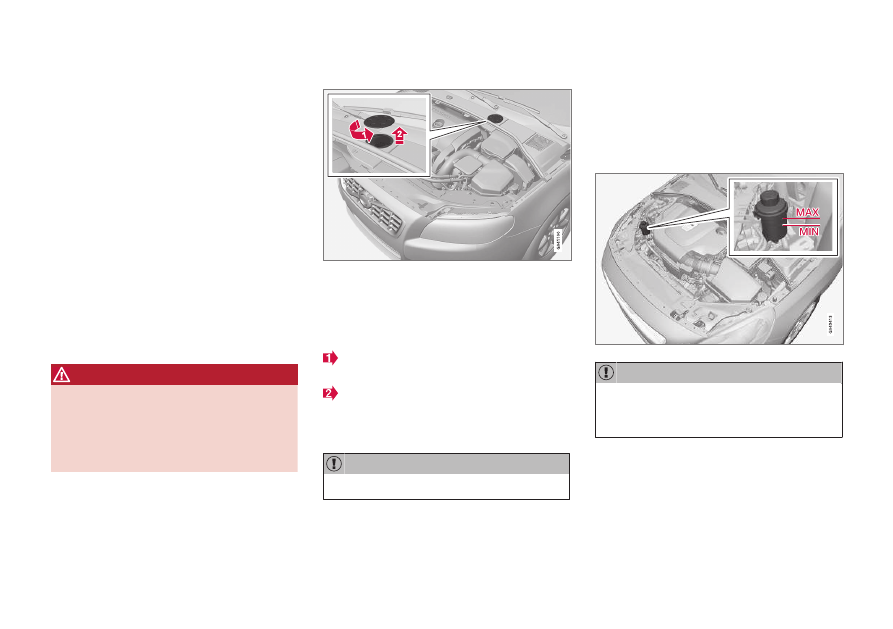

The fluid reservoir is located on the driver's side.

The fluid reservoir is protected under the cover
over the cold zone in the engine compartment.
The round cover must be removed first before the
reservoir cap can be reached.

Turn and open the cover located on the cov-
ering.

Unscrew the reservoir cap and fill the fluid.
The level must be between the MIN and
MAX marks, which are located on the inside
of the reservoir.

IMPORTANT

Do not forget to refit the cap.

Power steering fluid - level

Cars with 4-cyl. engine do not have power steer-
ing fluid. For cars with another engine, the level
of the power steering fluid must be between the
reservoir's

MIN and MAX marks. The fluid does

not need to be changed.

IMPORTANT

Keep the area around the power steering
fluid reservoir clean when checking. The cover
must not be opened.

Check the level frequently. The fluid does not
require changing. The level must be between the
MIN and MAX marks.
