Volkswagen Corrado (1993 year). Manual - part 172





SCHEDULED SERVICES

         RADIATOR FAN

WARNING: Keep hands away from radiator fan. Fan is controlled by a
         thermostatic switch which may come on or run for up to
         15 minutes even after engine is turned off.

         WHEELS & TIRES

         Only wheels tested and approved by the manufacturer should be
used on models equipped with Air Dam aerodynamic components.

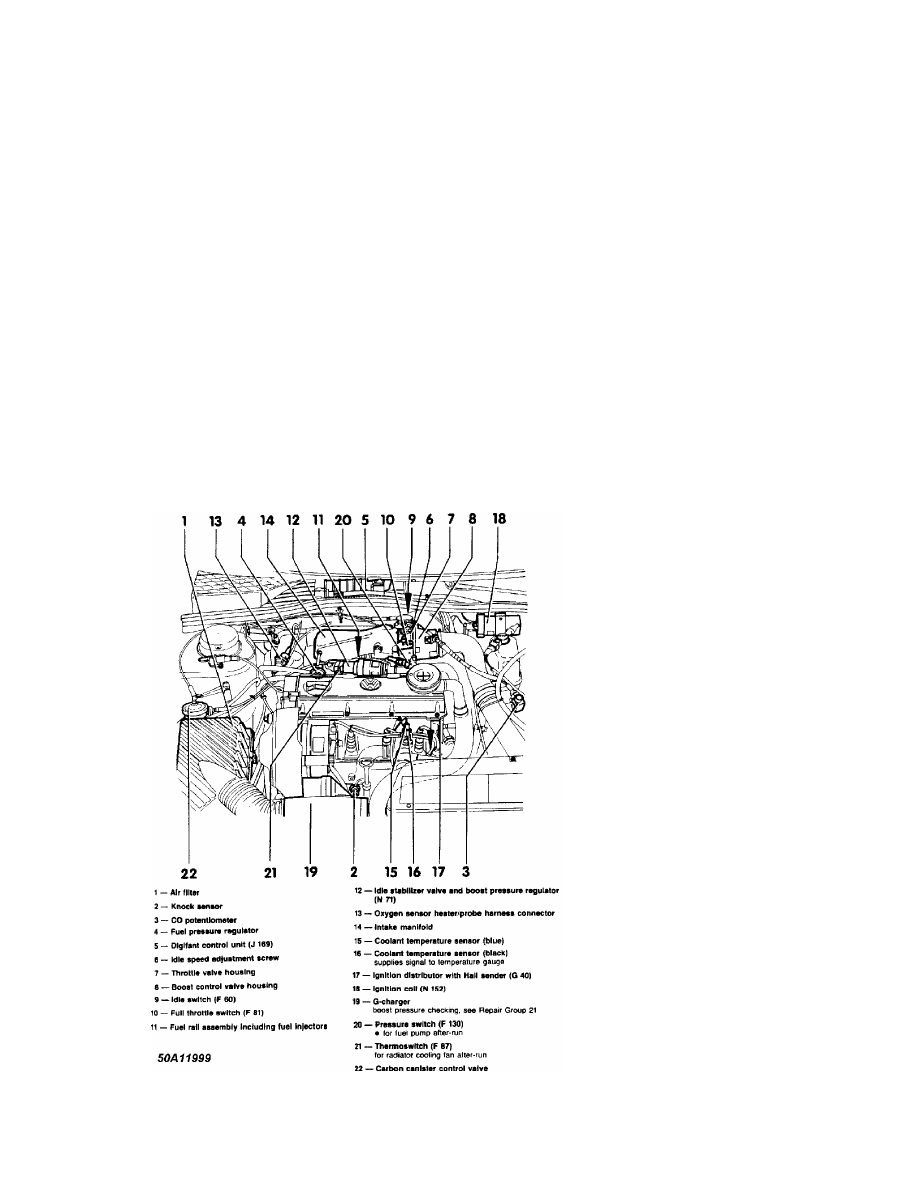

         SERVICE POINT LOCATIONS

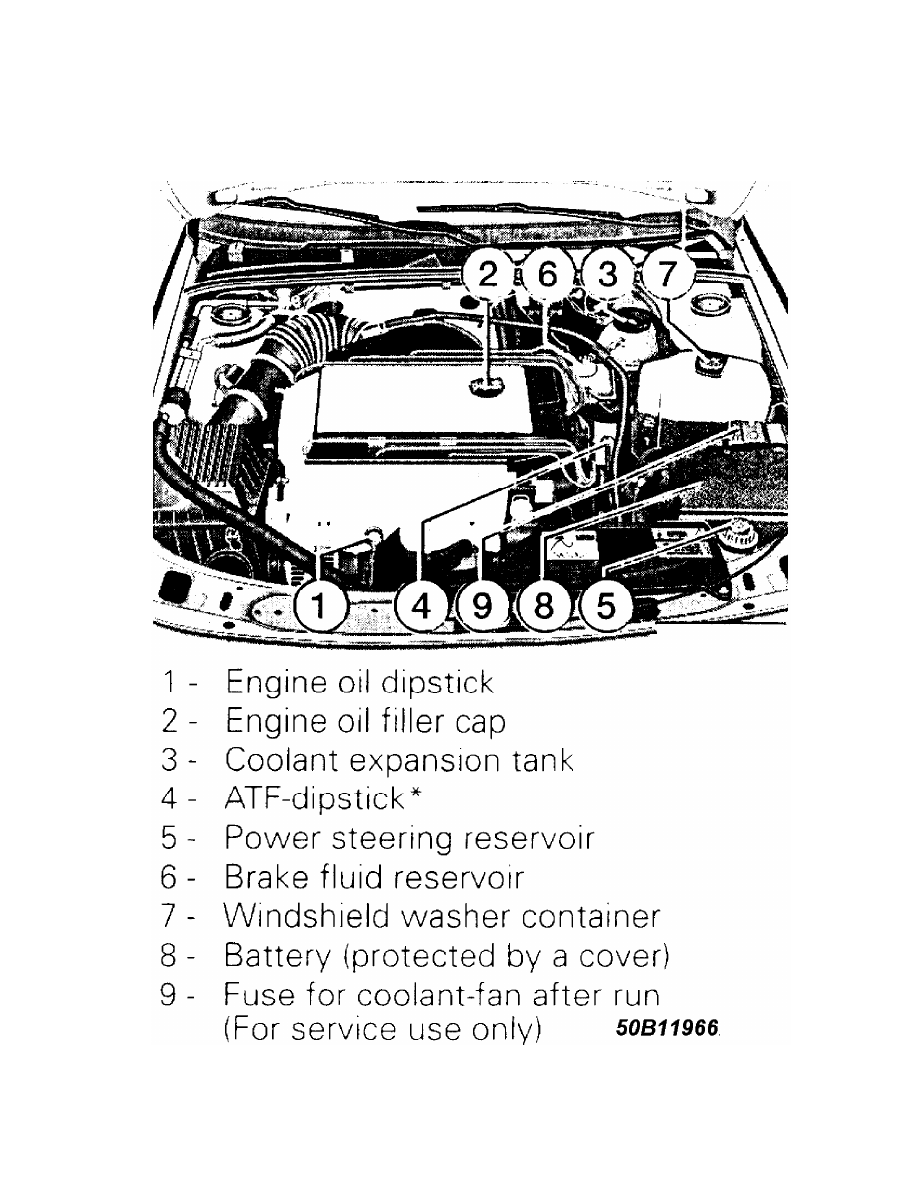

Fig. 1:  Service Point Locations (1.8L 4-Cylinder)
Courtesy of Volkswagen United States, Inc.

SCHEDULED SERVICES

         ADDITIONAL SERVICE INFORMATION

SCHEDULED SERVICES

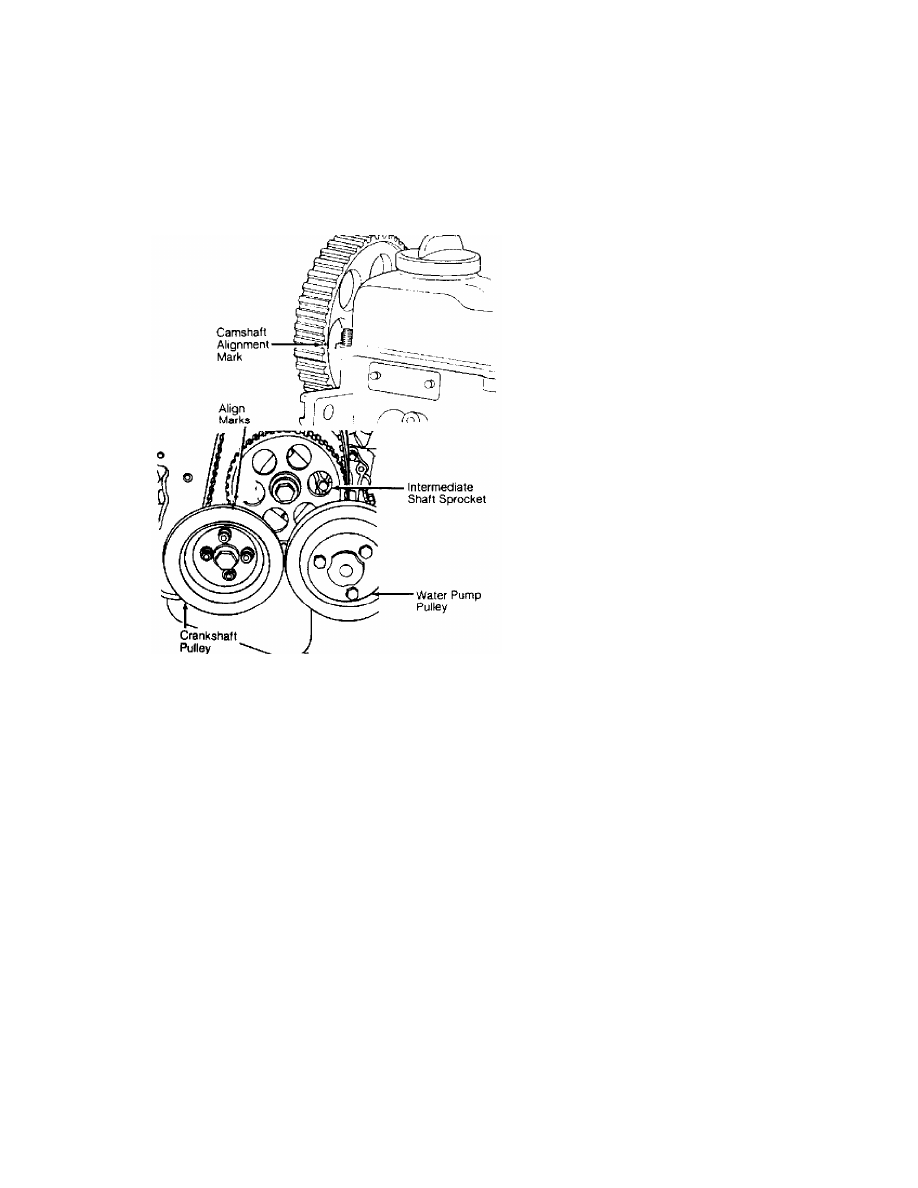

Fig. 3:  Aligning 1.8L Timing Marks (8-Valve)
Courtesy of Volkswagen United States, Inc.

NOTE:    For more information on camshaft timing belt service refer to
         the 1.8L 4-CYL 8-VALVE & 2.0L 4-CYL 16-VALVE
         article in the ENGINE MECHANICAL section.

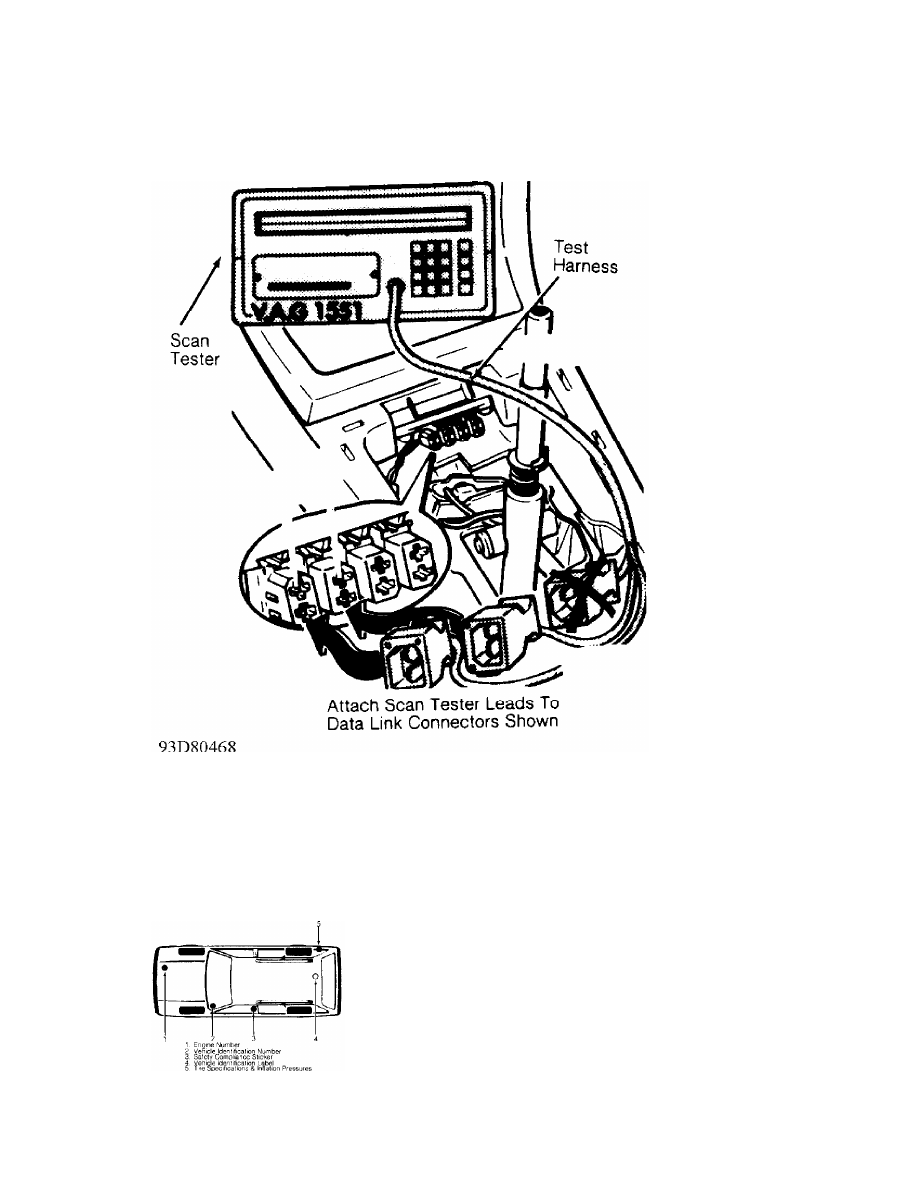

         ATTACHING VAG 1551 SCAN TESTER

SCHEDULED SERVICES

NOTE:    For more information on scan tester connections
         refer to the G - TESTS W/CODES article in
         the ENGINE PERFORMANCE section.

         INFORMATION LABEL LOCATIONS

Fig. 5:  Information Label Locations
Courtesy of Volkswagen United States, Inc.
