ANTI-LOCK BRAKE SYSTEM

         Rear Hydraulic Modulator Inlet Valve Resistance Test
         Using an ohmmeter, measure resistance between ECU connector
terminals No. 11 and 17. See Fig. 2. If resistance is 5-7 ohms, go to
next test. If resistance is not 5-7 ohms, measure between hydraulic
modulator block terminals No. 1 (Brown wire) and No. 5 (Gray wire).
See Fig. 4. If resistance is 5-7 ohms, check wiring between hydraulic
modulator and ECU for open circuit. If resistance is not 5-7 ohms,
replace hydraulic modulator.

         Right Front Hydraulic Modulator Inlet Valve Resistance Test
         Using an ohmmeter, measure resistance between ECU connector
terminals No. 11 and 15. See Fig. 2. If resistance is 5-7 ohms, go to
next test. If resistance is not 5-7 ohms, measure between hydraulic
modulator terminals No. 1 (Brown wire) and No. 2 (Yellow wire). See
Fig. 4. If resistance is 5-7 ohms, check wiring between hydraulic
modulator and ECU for open circuit. If resistance is not 5-7 ohms,
replace hydraulic modulator.

         Left Front Hydraulic Modulator Inlet Valve Resistance Test
         Using an ohmmeter, measure resistance between ECU connector
terminals No. 11 and 35. See Fig. 2. If resistance is 5-7 ohms, go to
next test. If resistance is not 5-7 ohms, measure between hydraulic
modulator terminals No. 1 (Brown wire) and No. 7 (Blue or Black/Green
wire). See Fig. 4. If resistance is 5-7 ohms, check wiring between
valve block and ECU for open circuit. If resistance is not 5-7 ohms,
replace hydraulic modulator.

         Rear Hydraulic Modulator Outlet Valve Resistance Test
         Using an ohmmeter, measure resistance between ECU connector
terminals No. 11 and 33. See Fig. 2. If resistance is 3-5 ohms, go to
next test. If resistance is not 3-5 ohms, measure between valve block
terminals No. 1 (Brown wire) and No. 4 (White wire). See Fig. 4. If
resistance is 3-5 ohms, check wiring between hydraulic modulator and
ECU for open circuit. If resistance is not 3-5 ohms, replace hydraulic
modulator.

         Right Hydraulic Modulator Block Outlet Valve Resistance Test
  Using an ohmmeter, measure resistance between ECU connector
terminals No. 11 and 34. See Fig. 2. If resistance is 3-5 ohms, go to
next test. If resistance is not 3-5 ohms, measure between hydraulic
modulator terminals No. 1 (Brown wire) and No. 3 (Green wire). See
Fig. 4. If resistance is 3-5 ohms, check wiring between hydraulic
modulator and ECU for open circuit. If resistance is not 3-5 ohms,
replace hydraulic modulator.

ANTI-LOCK BRAKE SYSTEM

         Hydraulic Modulator/Pump Relay Resistance Test
         Turn ignition off. Unplug pressure switch connector from
hydraulic modulator. Using an ohmmeter, measure resistance between ECU
connector terminals No. 2 and 14. See Fig. 2. If resistance is 50-100
ohms, go to next test. If resistance is not 50-100 ohms, check wiring.
If wiring is faulty, repair wiring and retest. If wiring is okay,
replace relay and retest.

         ABS Main Valve Function Test
         Connect a jumper wire between ECU connector terminals No. 2
and 18. See Fig. 2. Depress brake pedal. Turn ignition on. Brake pedal
should rise slightly. If brake pedal did not rise slightly, check
wiring between terminals and hydraulic modulator. If wiring is okay,
replace hydraulic modulator.

         Hydraulic Modulator/Pump Test
         Turn ignition off. Depress brake pedal 25 times. Turn
ignition on. BRAKE and ANTILOCK lights should come on for 2-60
seconds. Pump should operate for 2-60 seconds, then turn off. If
lights do not come on, check wiring and warning light bulbs, and
retest. Also check bulb(s). If lights come on, then turn off, and pump
operates for 60 seconds maximum, then turns off, go to next test. If
pump does not operate and all other preceding tests have been
performed, replace hydraulic modulator/pump.

CAUTION: During VALVE BLOCK FUNCTION TESTS, DO NOT turn ignition on
         longer than 60 seconds during any test.

         Rear Valve Block Function Test
         Connect a jumper wire ECU between ECU connector terminals No.
2, 17 and 33. See Fig. 2. Depress brake pedal. Rear wheels should be
locked up. Turn ignition on. Rear wheels should rotate. If wheels do
not rotate, replace hydraulic modulator. Turn ignition off.

         Right Front Valve Block Function Test
         Connect a jumper wire ECU between ECU connector terminals No.
2, 15 and 34. See Fig. 2. Depress brake pedal. Right front wheel
should be locked up. Turn ignition on. Right front wheel should
rotate. If wheel does not rotate, replace hydraulic modulator. Turn
ignition off.

         Left Front Valve Block Function Test

ANTI-LOCK BRAKE SYSTEM

         REMOVAL & INSTALLATION

         HYDRAULIC MODULATOR/PUMP

         Removal & Installation
         1) Depressurize brake system. See DEPRESSURIZING BRAKE
SYSTEM. Disconnect negative battery cable. Unplug all electrical
connectors from hydraulic modulator/pump. Identify and disconnect all
hydraulic lines from hydraulic modulator/pump. Plug all line openings.
         2) From inside passenger compartment, remove push rod clevis
pin. Remove hydraulic modulator/pump retaining nuts. Remove hydraulic
modulator/pump. To install, reverse removal procedure. Tighten all
fittings to specification. See TORQUE SPECIFICATIONS table. Bleed
brake system. See BLEEDING BRAKE SYSTEM.

         WHEEL SPEED SENSORS

NOTE:    To protect magnetic part of sensor, always leave new wheel
         speed sensor in special packaging until ready for
         installation.

         Removal & Installation
         Remove bolt retaining wheel speed sensor. Unplug connector.
Remove wheel speed sensor. To install, apply Lubricant (G-000-650) to
sensor. Install sensor, and tighten retaining bolt to 84 INCH lbs. (10
N.m).

         TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Applications                                            Ft. Lbs. (N.m)

Brake Lines-To-Hydraulic Modulator/Pump  ....................  11 (15)
Hydraulic Modulator/Pump Retaining Nuts  ....................  18 (25)

                                                       INCH Lbs. (N.m)

Wheel Sensor Retaining Bolt  ................................  89 (10)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

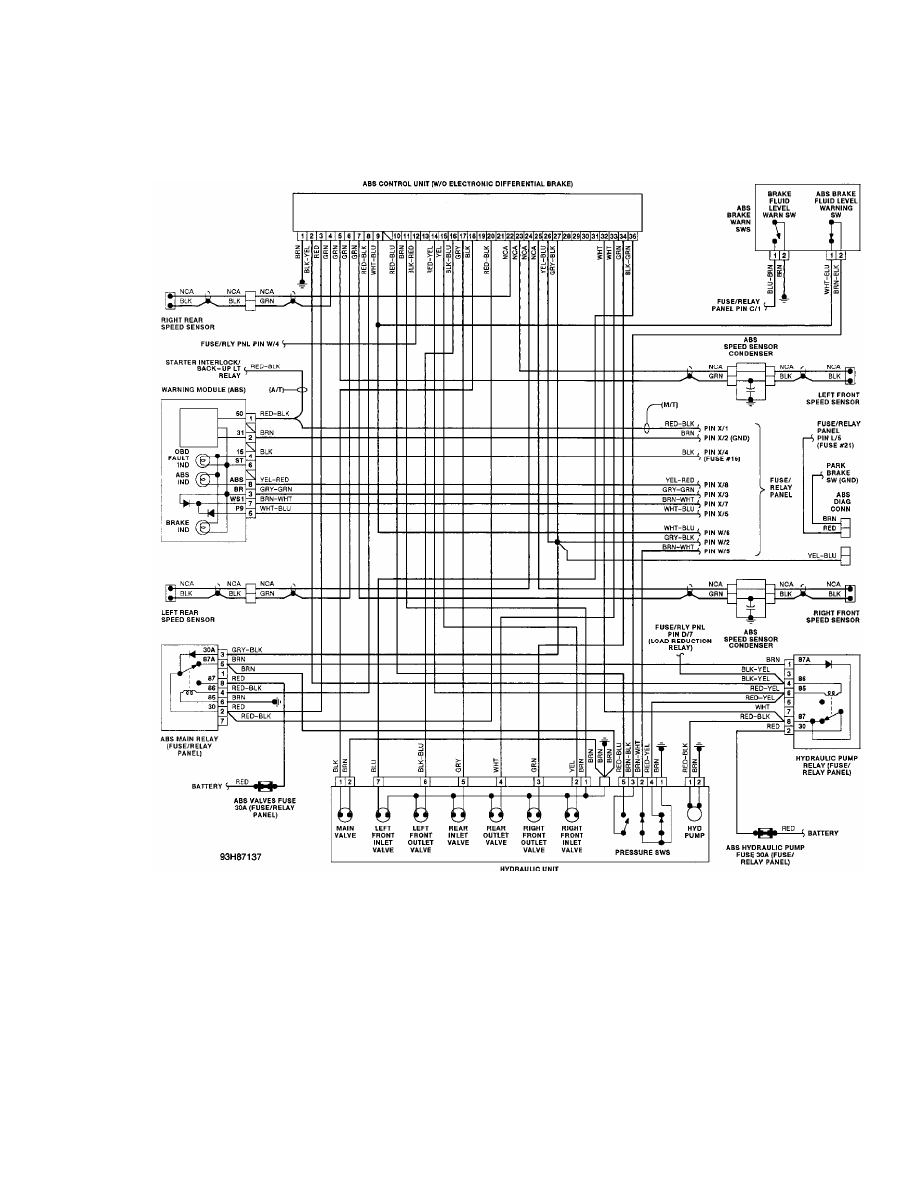

         WIRING DIAGRAMS

ANTI-LOCK BRAKE SYSTEM

END OF ARTICLE
