Volkswagen New Beetle. Manual - part 805





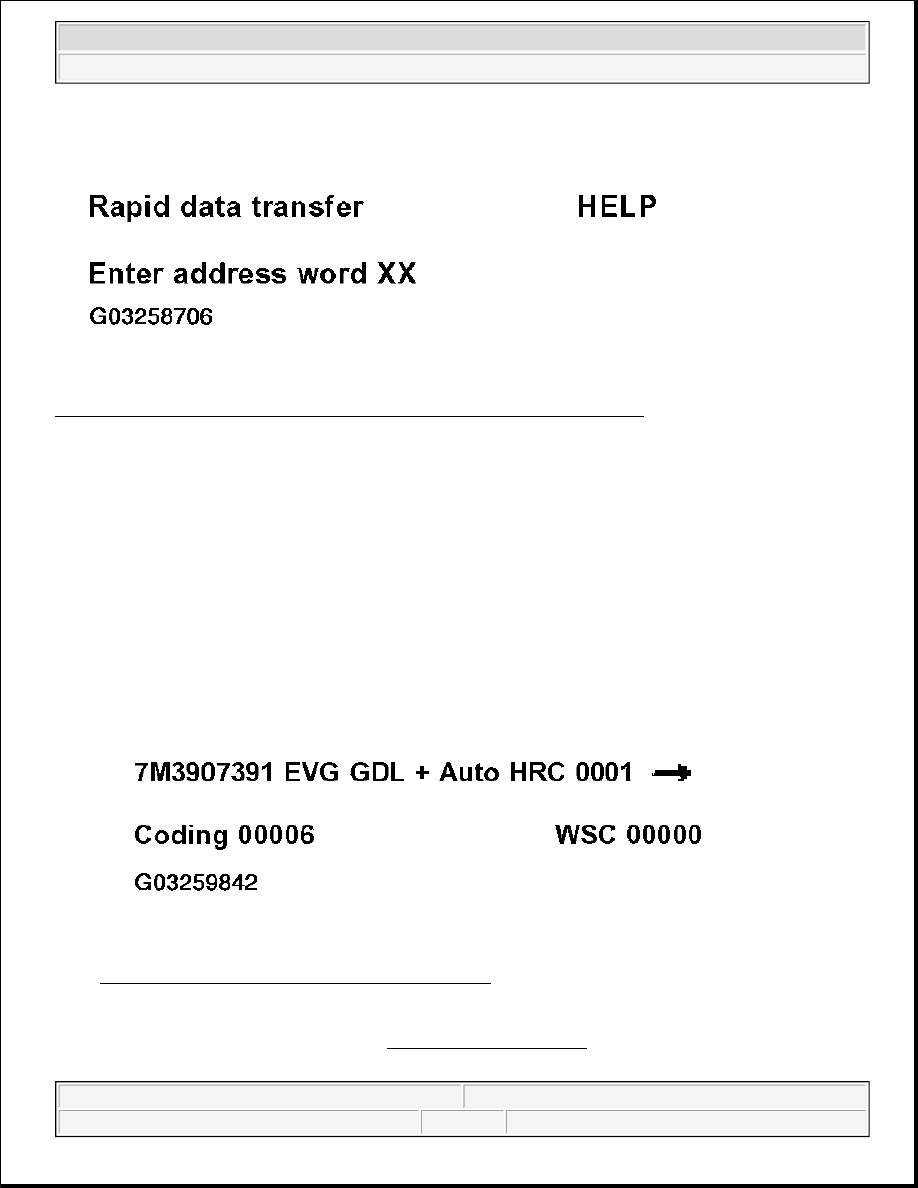

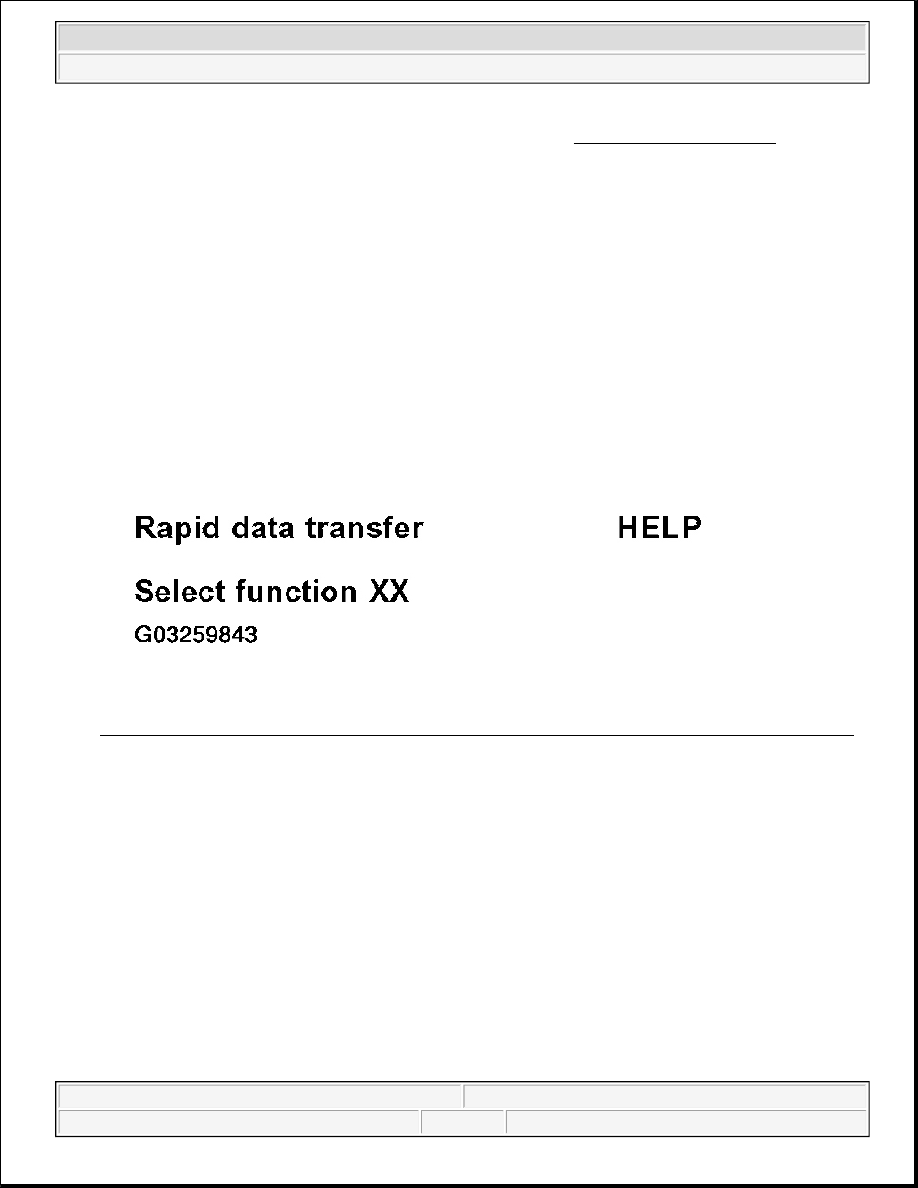

Fig. 283: V.A.G 1551 Scan Tool Display - Initiating Login Procedure (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y. 10.00

SPECIAL TOOLS AND EQUIPMENT

z

VAG 1598/36 Adapter

z

VAG 1594 A Adapter set

z

VAG 1526 A Hand multimeter

z

VAG 1921 Pliers

z

VAG 1598 A Test box

Fig. 284: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

The test steps from, see TEST STEP OVERVIEW apply only to vehicles with
ABS/EDL/ASR/ESP.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



An overview of all the test steps in the electrical check can be found on TEST STEP OVERVIEW .

z

For vehicles on which the On Board Diagnostic (OBD) does not give any indication of the source of the
malfunction. Work through the complete electrical check.

z

For vehicles on which the OBD provides a direct indication of the source of the malfunction. Only carry
out the test steps recommended in the DTC table (directed entry).

Test prerequisites

z

Before starting the test, switch ignition and all electrical consumers off (headlights, lighting, fans etc.).

z

Fuses must be OK. (pull fuse out of holder to check)

z

Pull fuse holder out of cable channel.

z

Release ABS control module (w/EDL) -J104- connector -arrow- 1 and pull off -arrow 2-.

Fig. 285: Releasing ABS Control Module (W/EDL) -J104- Connector 1 And Pulling Off Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Connect test box V.A.G 1598/36-1 to multi-pin connector of ABS control module (w/EDL) -J104-2-.

The specified values are matched to the VAG 1526 and are not necessarily applicable for other test modules.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 286: Connecting Test Box V.A.G 1598/36-1 To Multi-Pin Connector Of ABS Control Module
(W/EDL) -J104-2

Courtesy of VOLKSWAGEN OF AMERICA, INC.

MULTI-PIN CONNECTOR WITH CONTACT ASSIGNMENTS

Contact assignment of connectors for voltage supply and self-diagnosis with the V.A.G 1551 scan tool

Fig. 287: Identifying Contact Assignment Of Connectors For Voltage Supply
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Contact 4 = Ground (terminal 31)

Contact 16 = Positive (terminal 30)

NOTE:

All contacts not listed are currently not assigned and must never be connected
to other components!



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Contact 7 = K-wire to contact 2 of ABS Control Module (w/EDL) -J104- multi-pin connector T47

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104-.

Fig. 288: Identifying Contact Assignment Of Connector T47 Wiring Harness/ABS Control Module
(W/EDL) -J104

Courtesy of VOLKSWAGEN OF AMERICA, INC.

TERMINAL ASSIGNMENT - T47 WIRING HARNESS/ABS CONTROL MODULE (W/EDL)

Contact Wiring connection to component...
1

Voltage supply from battery +

2

Connector T16/7, K wire

3

Vacant

4

Voltage supply from ignition/starter switch

5

Vacant

6

Sensor for transverse acceleration -G200-

7

Vacant

8

Vehicles with navigation system only

9

Vacant

10

Vehicles with navigation system only

11

Data bus wire, see wiring diagrams

12

Coding bridge to contact 38

13

ASR/ESP button -E256-

14

Coding bridge to contact 38 (vehicles with ABS only)

15

Data bus wire, see wiring diagrams

16

Ground point on left-hand longitudinal member

17

Vacant

18

Sender 1 for brake booster -G201- voltage supply

19

Sender 1 for brake booster -G201- signal wire

20

Sender 1 for brake booster 1 -G201- Ground wire



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
