Indicated on display

z

Press --> key.

Fig. 210: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (7 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

ABS hydraulic pump -V64- must run.

Brake pedal must not give.

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced. See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND
INSTALLING
 .

Indicated on display

{

Indicate to 2nd mechanic which wheel requires turning by hand.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



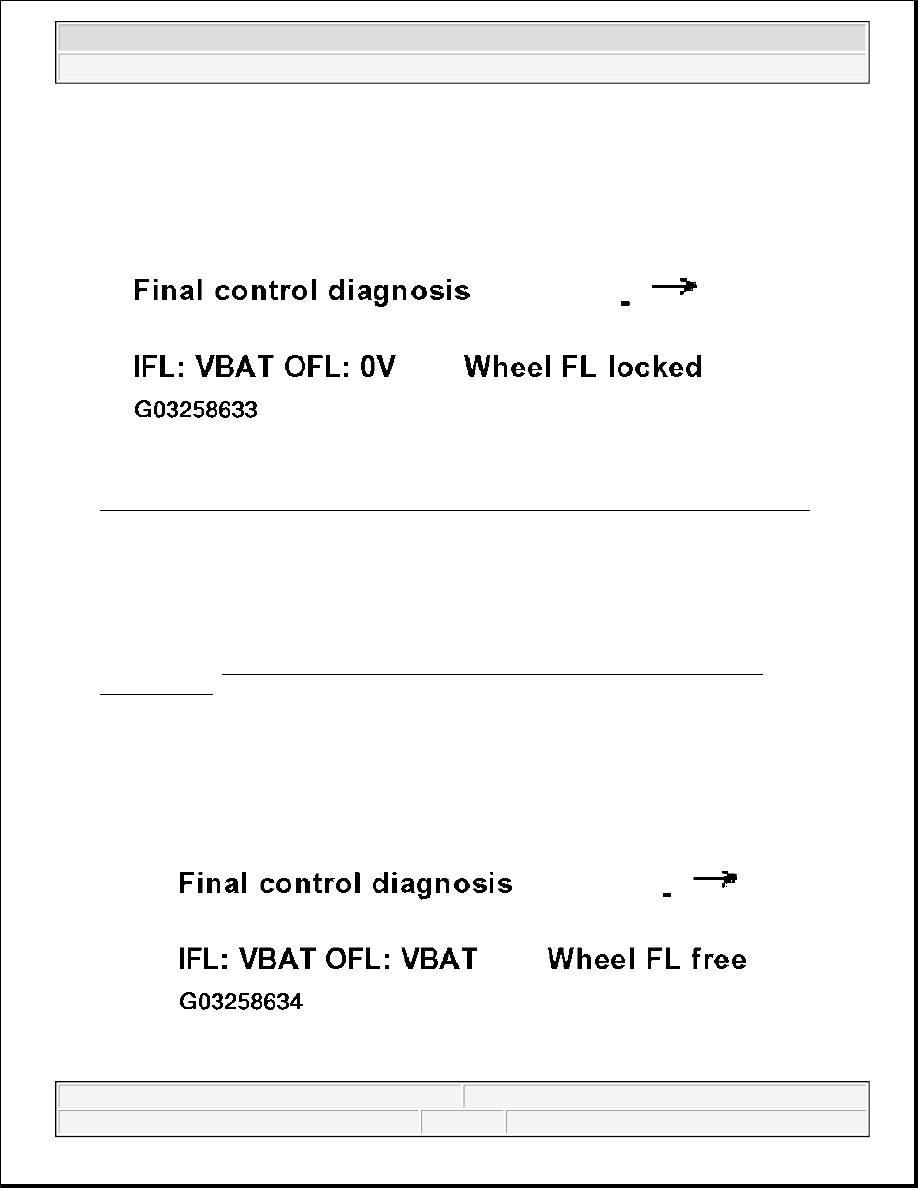

Fig. 211: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (8 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> key.

ABS hydraulic pump -V64- no longer runs.

Indicated on display

z

Press --> key.

Brake pedal must give perceptibly

If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced. See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

Fig. 212: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (9 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

NOTE:

If the wheel locks there is a possibility that the brake lines to the
wheel calipers/cylinders have been interchanged.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



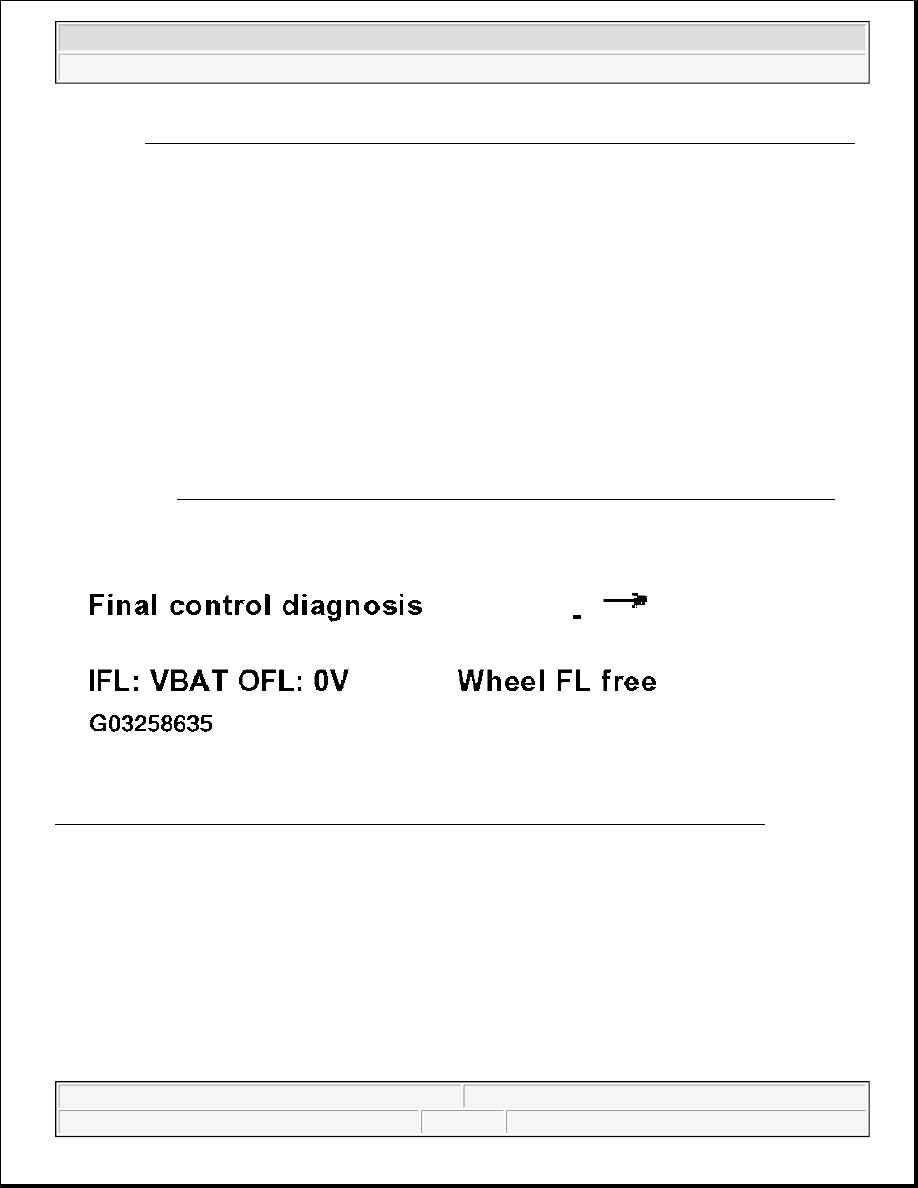

Fig. 213: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (10 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

Indicated on display

z

Remove foot from brake pedal.

z

Press --> key.

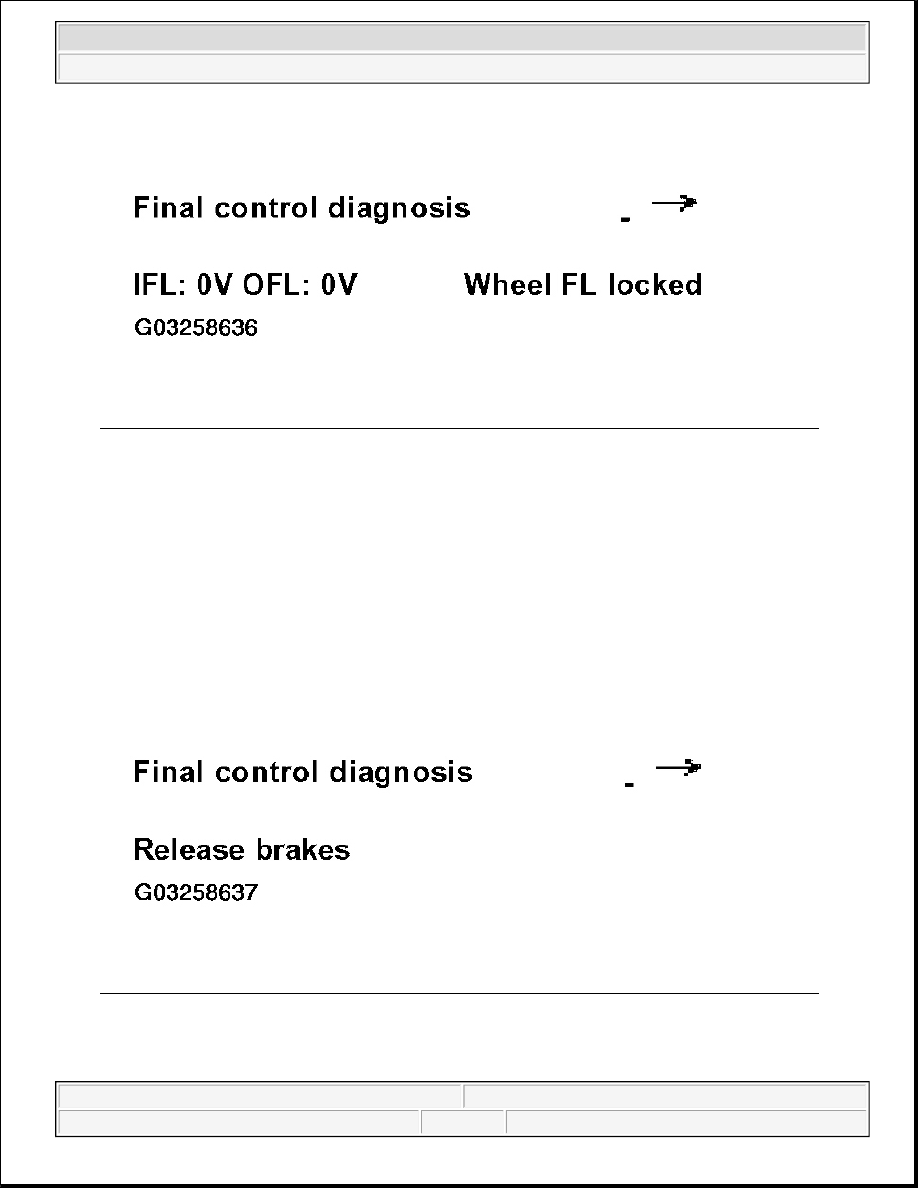

Fig. 214: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (11 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Operate brake pedal.

z

Press --> key.

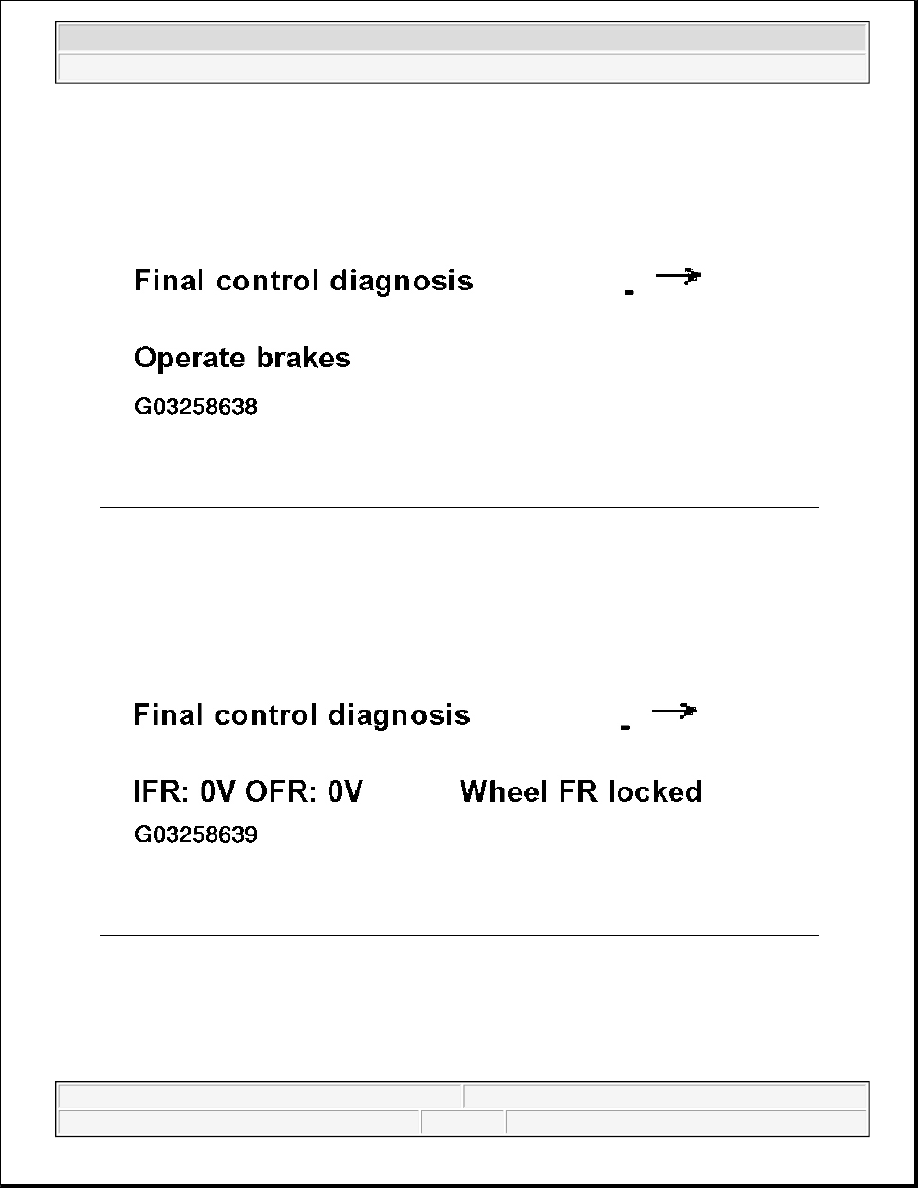

Fig. 215: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (12 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

Fig. 216: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (13 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
