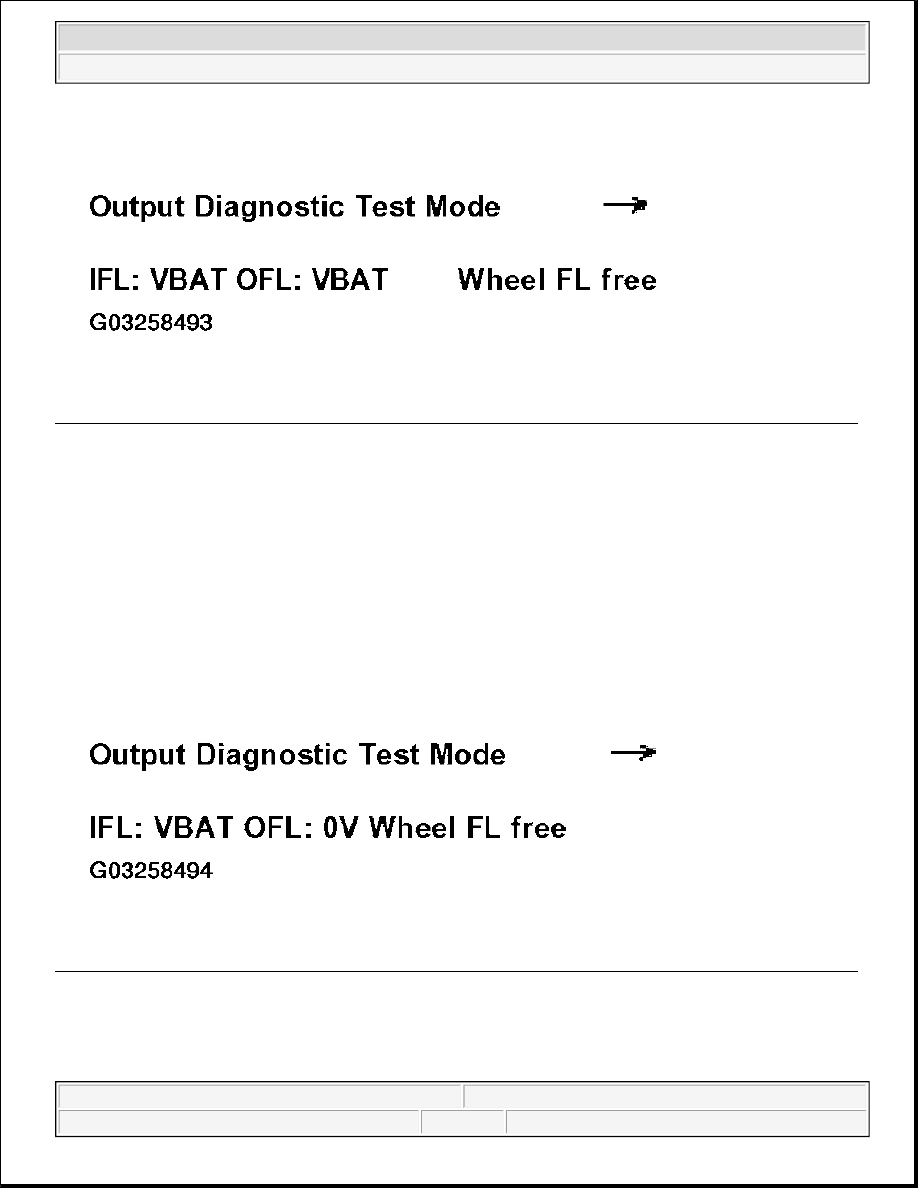

Fig. 70: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (10 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

ABS hydraulic pump display group number: -V64- no longer runs.

Indicated on display

z

Press --> button.

Brake pedal must give noticeably.

Fig. 71: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (11 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



See

Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel does not lock, a malfunction may exist in the mechanical and/or hydraulic section of the brake
system.

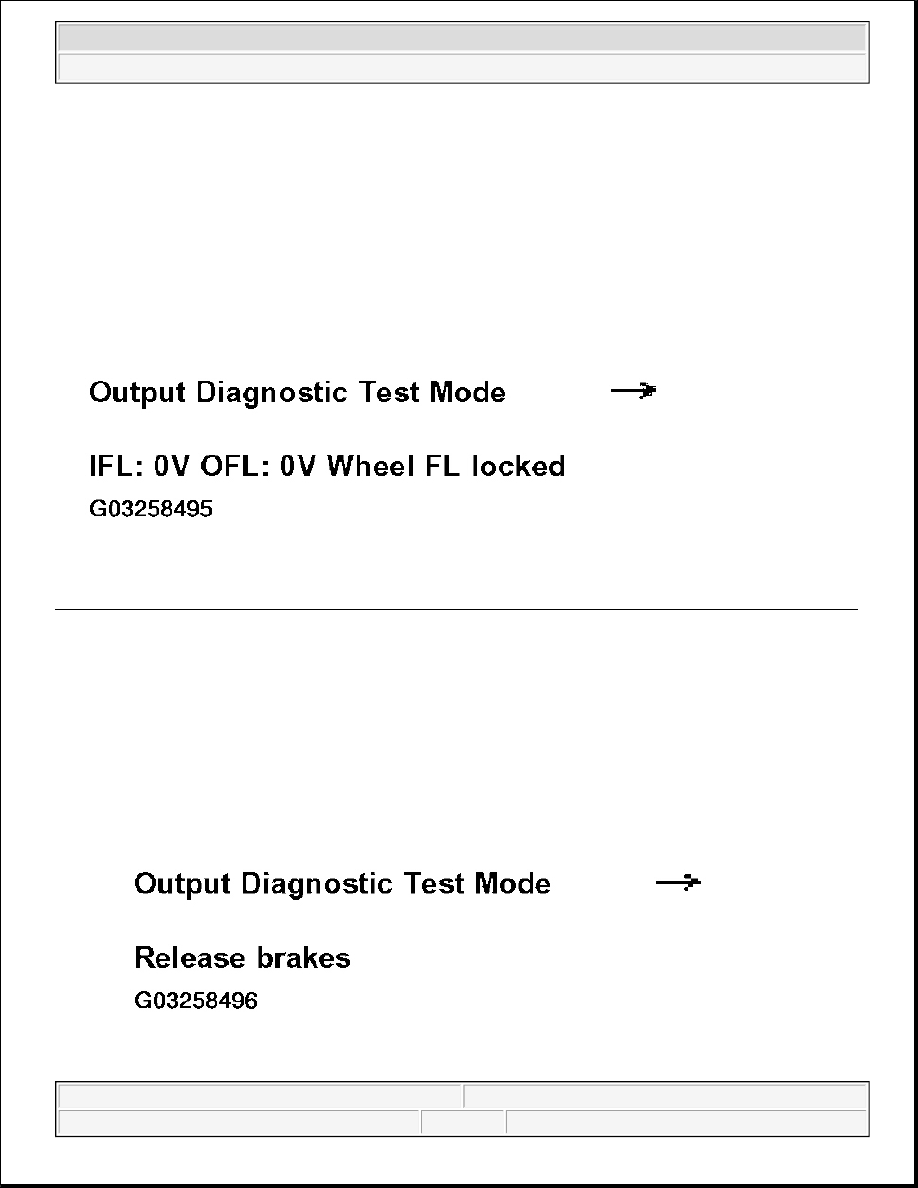

Fig. 72: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (12 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

Indicated on display

z

Remove foot from brake pedal.

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

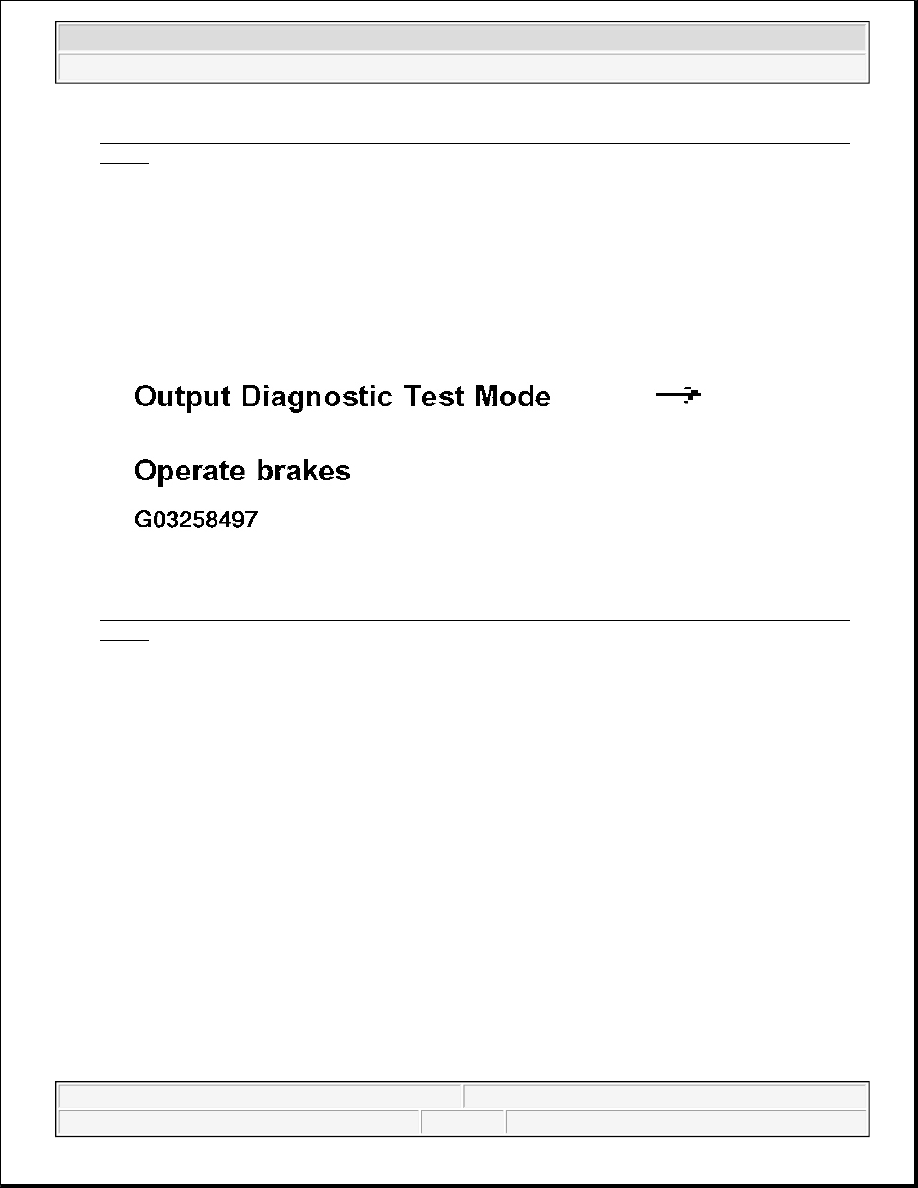

Fig. 73: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (13
Of 37)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate brake pedal.

z

Press --> button.

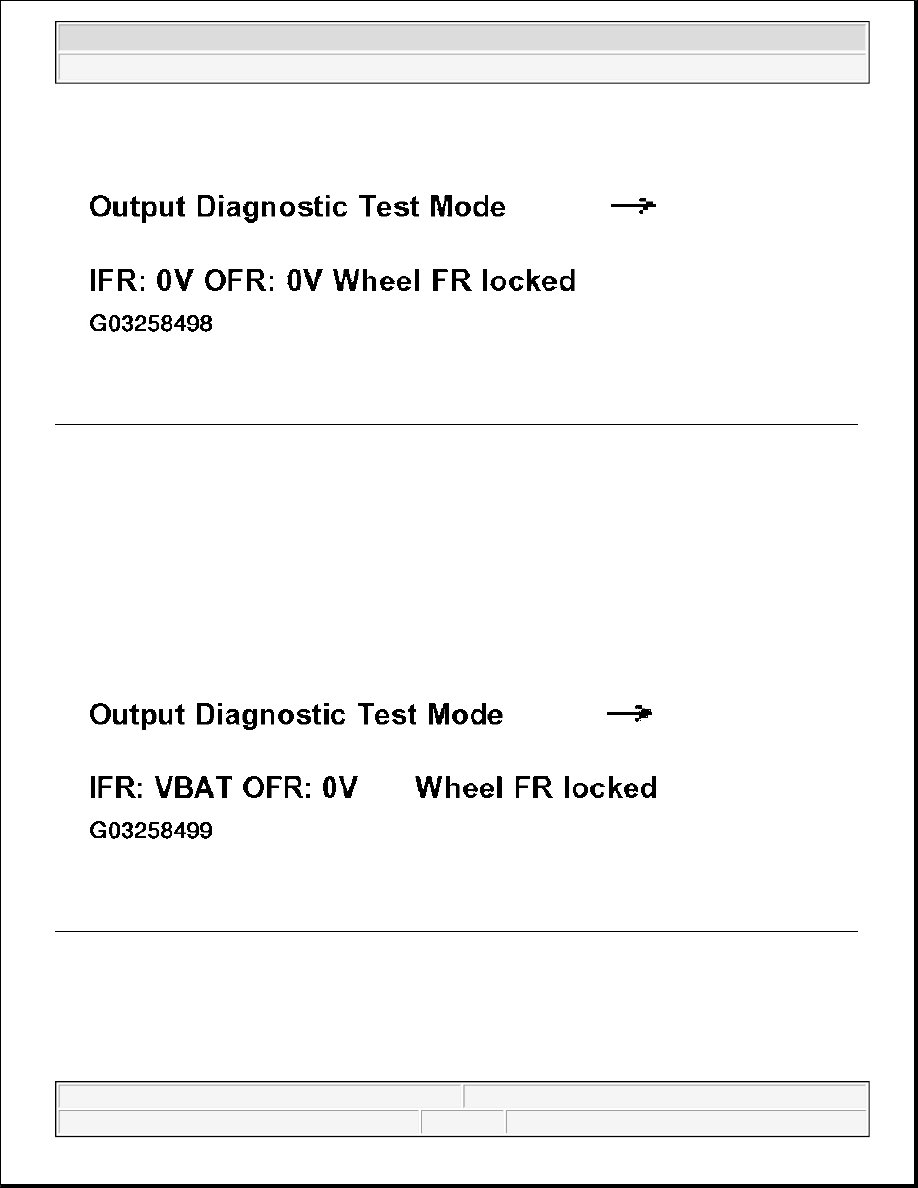

Fig. 74: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (14
Of 37)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel does not lock, a malfunction may exist in the mechanical and/or hydraulic section of the brake
system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 75: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (15 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

Indicated on display

z

Press --> button.

ABS hydraulic pump display group number: must run.

Fig. 76: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (16 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Brake pedal must not give.

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must be
replaced:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
