Volkswagen New Beetle. Manual - part 733





Fig. 238: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (35 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INITIATING BASIC SETTING

Function 04 "Initiate basic setting" performs several functions with ABS Mark 60:

z

Display group number 001 is required only to bleed the hydraulic system, see DISPLAY GROUP
NUMBER 01: BLEEDING HYDRAULIC UNIT


NOTE:

z

The basic setting is only necessary to bleed the hydraulic unit if at least
one chamber of the brake fluid reservoir has completely run dry.


z

Display group number 060

1

 ) is required to perform a zero compensation

of steering angle sensor -G85-, see DISPLAY GROUP NUMBER 60: ZERO
COMPENSATION OF STEERING ANGLE SENSOR -G85- . Then a driving
test must be performed, see DISPLAY GROUP NUMBER 93: ACTIVATION
OF ESP DRIVING TEST .

z

Display group number 063

1

 ) is required to perform a zero compensation

of sensor for transverse acceleration -G200-, see DISPLAY GROUP
NUMBER 063: ZERO COMPENSATION OF SENSOR FOR TRANSVERSE
ACCELERATION -G200- . Then a driving test must be performed, see
DISPLAY GROUP NUMBER 93: ACTIVATION OF ESP DRIVING TEST .

z

Display group number 066

1

 ) is required to perform a zero compensation

of sender 1 for brake booster -G201-, see DISPLAY GROUP NUMBER 66:
ZERO COMPENSATION FOR BRAKE PRESSURE SENDER 1 -G201- . Then
a driving test must be performed, see DISPLAY GROUP NUMBER 93:
ACTIVATION OF ESP DRIVING TEST .

1)

 With ABS/EDL/ASR/ESP only.



z

Display group number 093

1)

 is required to perform the driving test, see



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



When the ABS Control Module (w/EDL) -J104- is replaced, a zero compensation must be performed for the
following components:

z

Sensor for transverse acceleration -G200-.

z

Steering angle sensor -G85-.

z

Sender 1 for brake booster -G201-.

When replacing a sensor, only a zero compensation of the respective sensor must be performed.

Display group number 01: Bleeding hydraulic unit

Special tools and equipment

VAS 5234 Brake filler and bleeder unit

Bleeding hydraulic unit

z

Connect brake filling and bleeder unit VAS 5234.

z

Pre-bleed brake system

See BLEEDING BRAKE SYSTEM .

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS

DISPLAY GROUP NUMBER 93: ACTIVATION OF ESP DRIVING TEST . It is
used to check the plausibility of the signals from steering angle sensor -
G85-, Sensor for transverse acceleration -G200-, Sender for rotation rate -
G202- and Sender 1 for brake booster -G201-.

1)

 With ABS/EDL/ASR/ESP only.



NOTE:

All functions which could previously be performed with V.A.G 1551 can now
also be carried out with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 239: Identifying VAS 5234 Brake Filler And Bleeder Unit
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z



z

Press keys 0 and 4. (The function "Initiating basic setting" is selected with 04).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

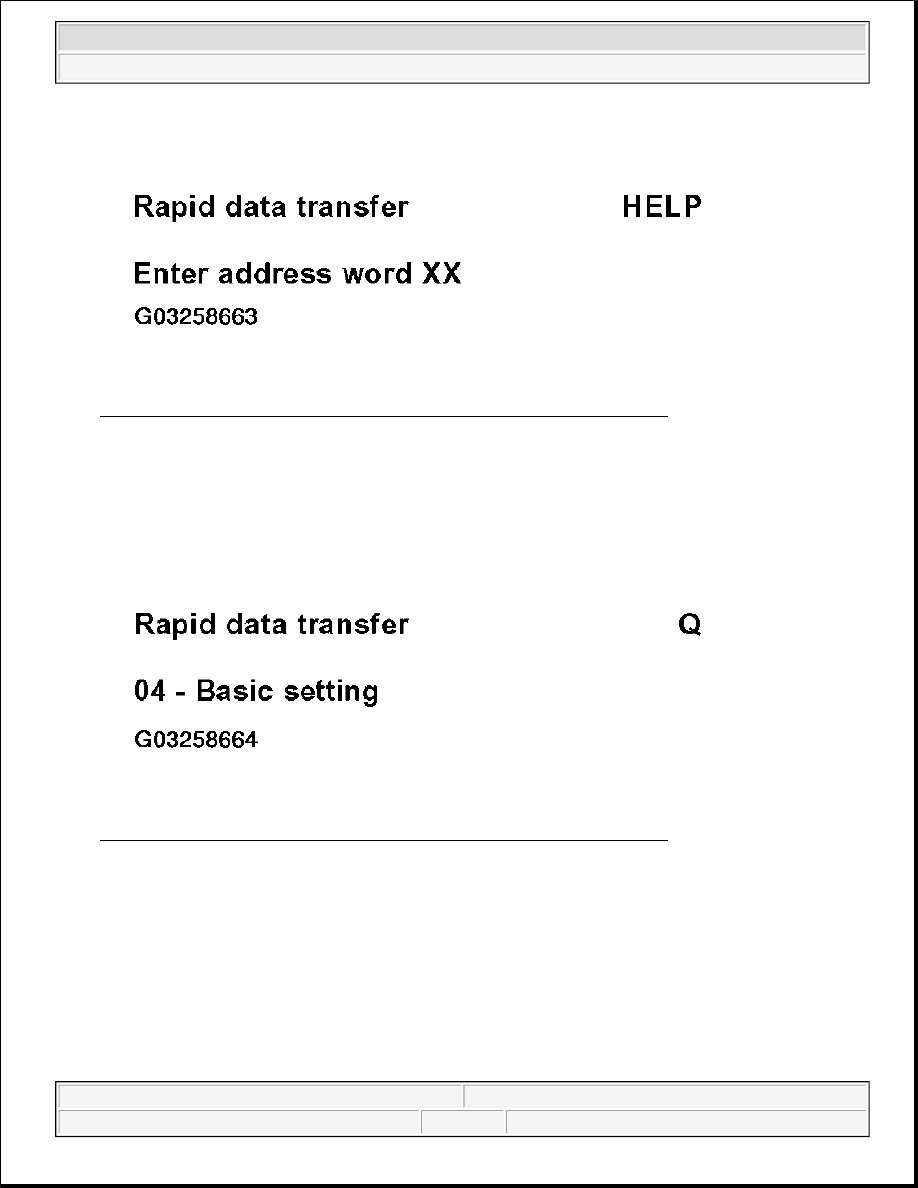

Fig. 240: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (1 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

Fig. 241: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (2 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys 0, 0 and 1

z

Confirm entry with key Q.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
