Volkswagen New Beetle. Manual - part 705





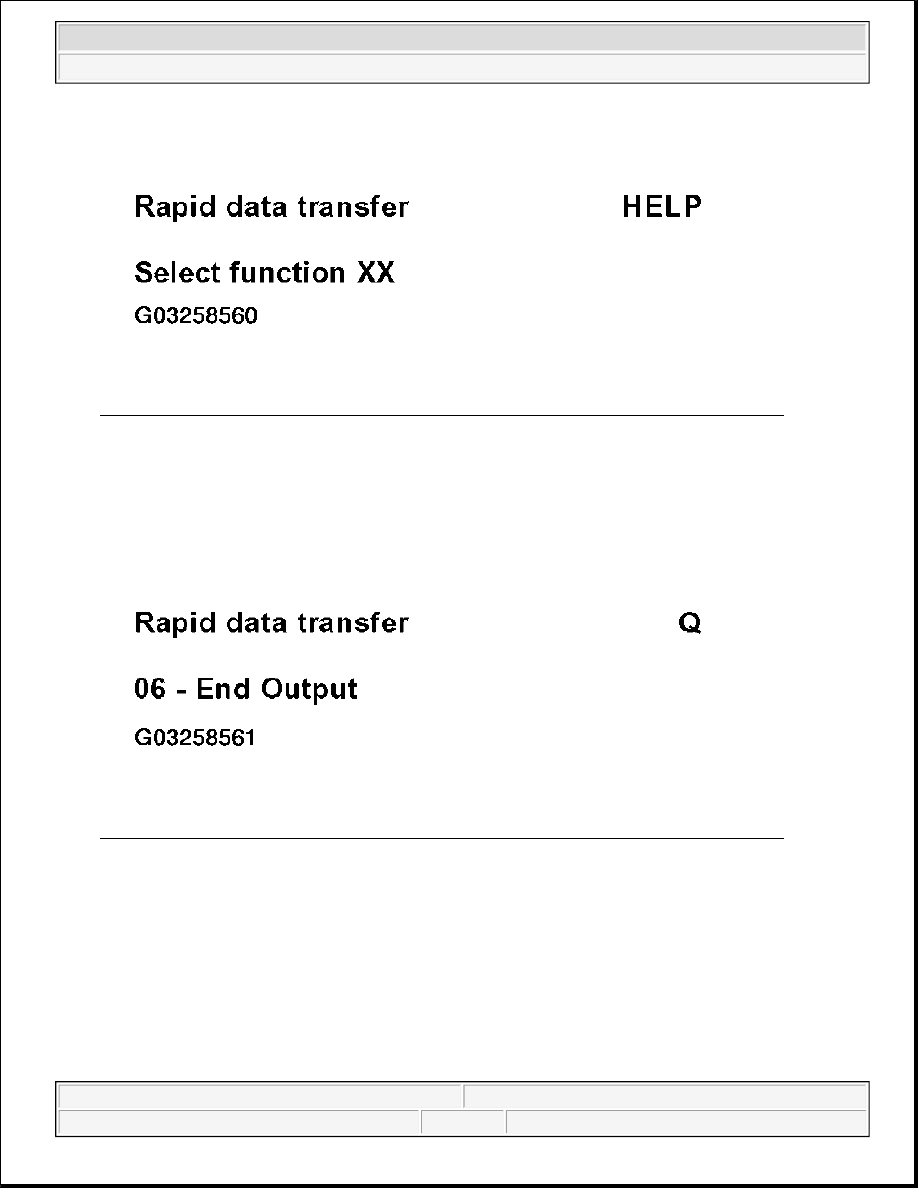

Fig. 137: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (37 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

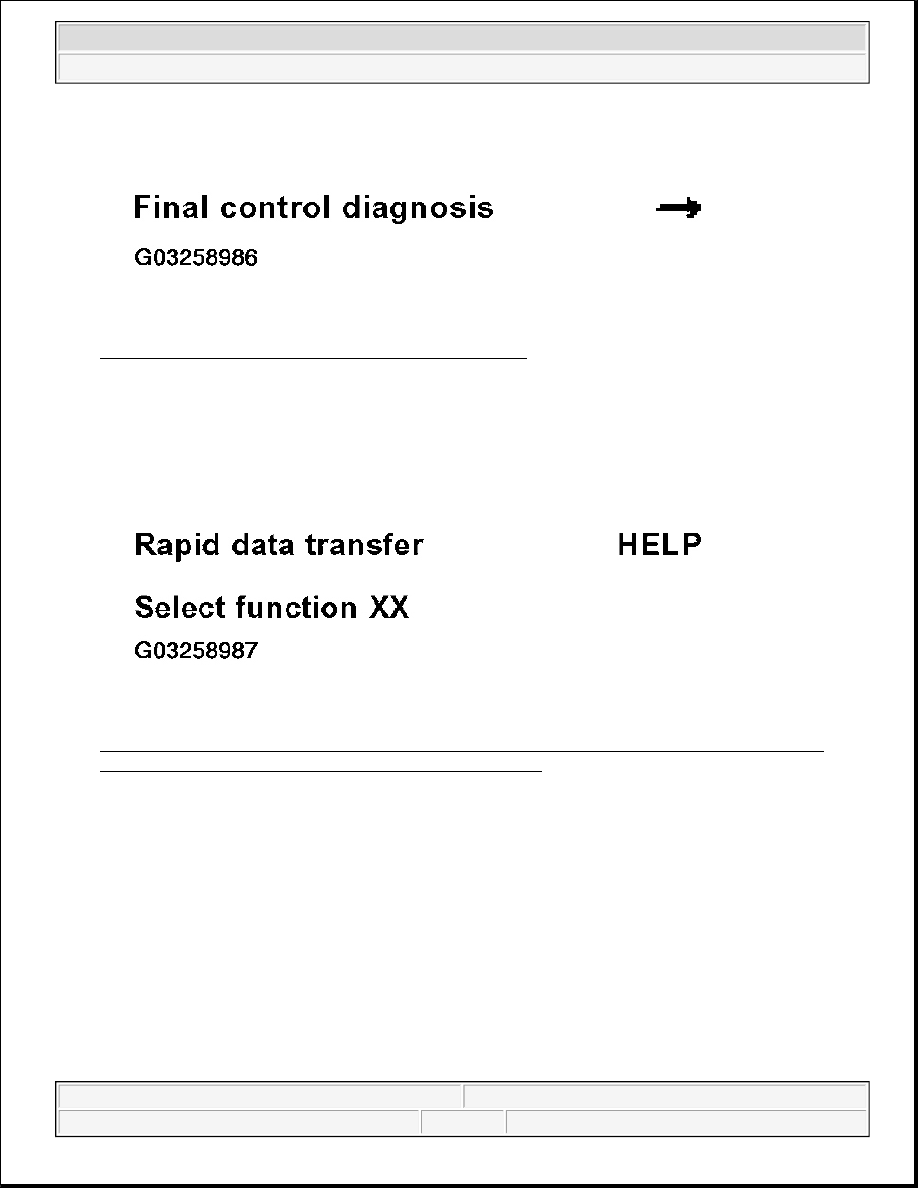

Fig. 138: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (38 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -C- button.

z

Switch ignition off.

z

Disconnect VAG1551 scan tool from Data Link Connector (DLC).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

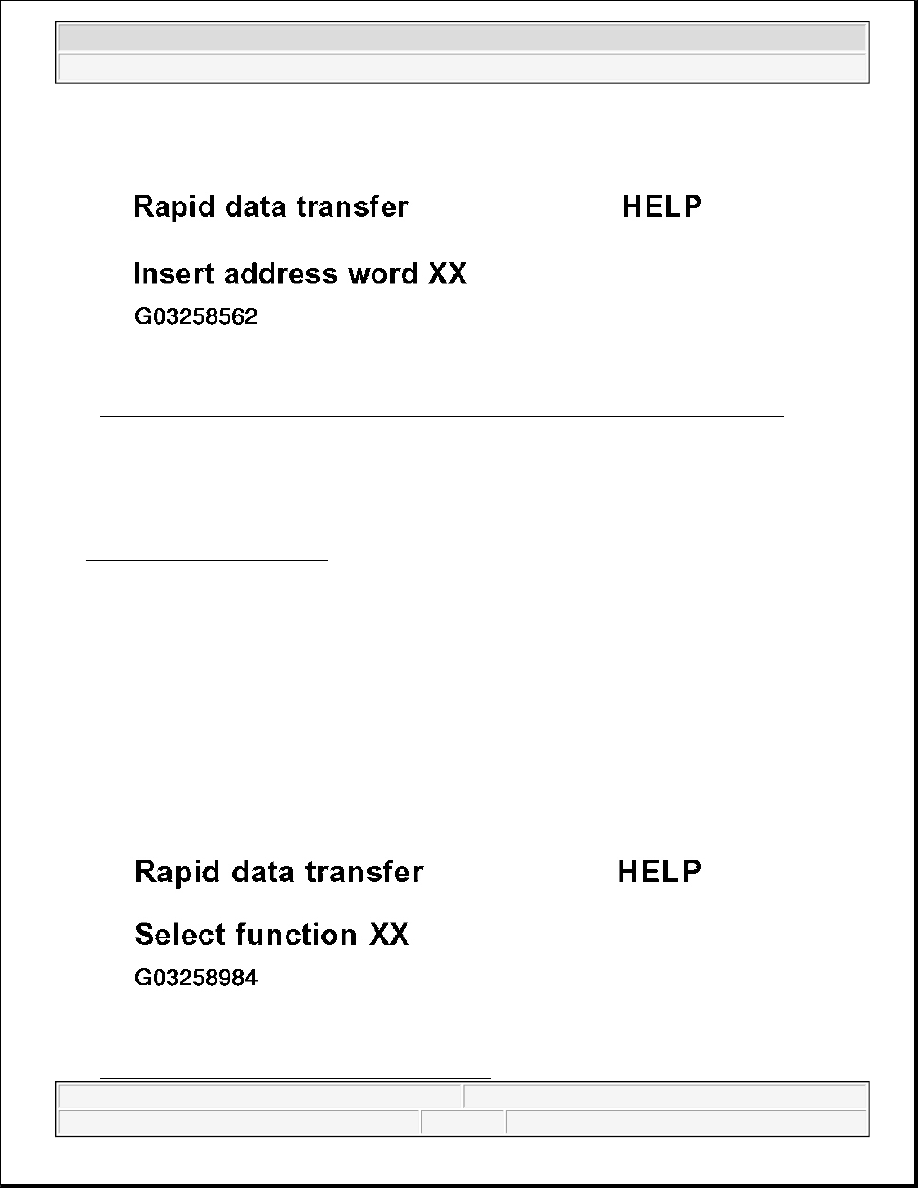

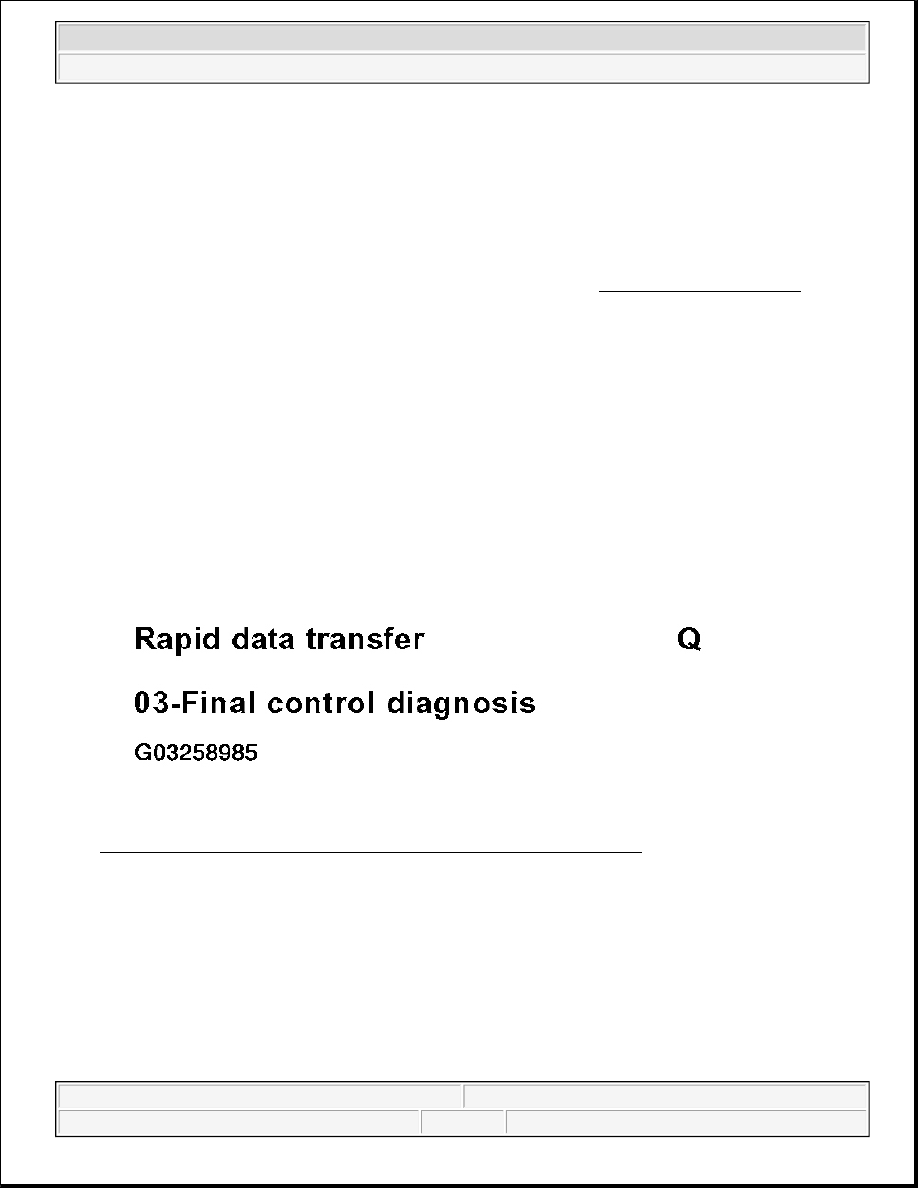

Fig. 139: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (39 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The brake system must be bled.

The basic setting is used to bleed the hydraulic unit only. The brake system must be bleed separately .

See BLEEDING BRAKE SYSTEM .

ELECTRICAL TESTING

SPECIAL TOOLS AND EQUIPMENT

z

VAG1598/21 adapter

z

VW1594A connector test kit

z

Multimeter (Fluke 83 or equivalent)

z

VAG1921 pliers

Fig. 140: Identifying Special Tools And Equipment



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If On Board Diagnostic (OBD) does not give any indication of the source of the malfunction, carry out all
of the electrical test steps.

z

If On Board Diagnostic (OBD) provides a direct indication of the source of the malfunction, only carry
out the test steps recommended in the DTC table (specific testing).

An overview of all the test steps in the Electrical test table can be found on TEST STEP OVERVIEW .

TEST REQUIREMENTS

z

Ignition and electrical consumers switched off before beginning the check (headlights, lighting, fan, etc.)

z

Fuses -S9-, -S13-, -S20-, -S178-, -S179- must be OK (remove fuses from fuse holder to check)

REMOVING AIR CLEANER

z

Pull harness connector -2- off Mass Air Flow (MAF) sensor.

z

Release spring-type clip on air duct hose -1- using VAG1921 pliers and pull hose off air cleaner.

z

Remove air cleaner bolts -3- -4- and take out air cleaner

Fig. 141: Pulling Harness Connector Off Mass Air Flow (MAF) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release control module harness connector (arrow -1-) and pull off (arrow -2-).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 142: Releasing Control Module Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull multi-pin harness connector off ABS control module (w/EDL) -J104- and connect
VAG1598/21 test box (-1-) to harness connector -2-.

Fig. 143: Pulling Multi-Pin Harness Connector Off ABS Control Module (W/EDL) -J104- And
Connecting VAG1598/21 Test Box To Harness Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.

The specified values are matched to the multimeter (Fluke 83 or equivalent) and are not necessarily applicable
for other test units.

MULTI-PIN HARNESS CONNECTOR WITH TERMINAL ASSIGNMENT

NOTE:

All terminals not listed are currently not assigned and must never be connected
to other components!



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
