Volkswagen New Beetle. Manual - part 700





If the --> key is pressed, keys 0 and 8 for work sequence "Read measured value block" must be pressed again
afterwards to regain entry.

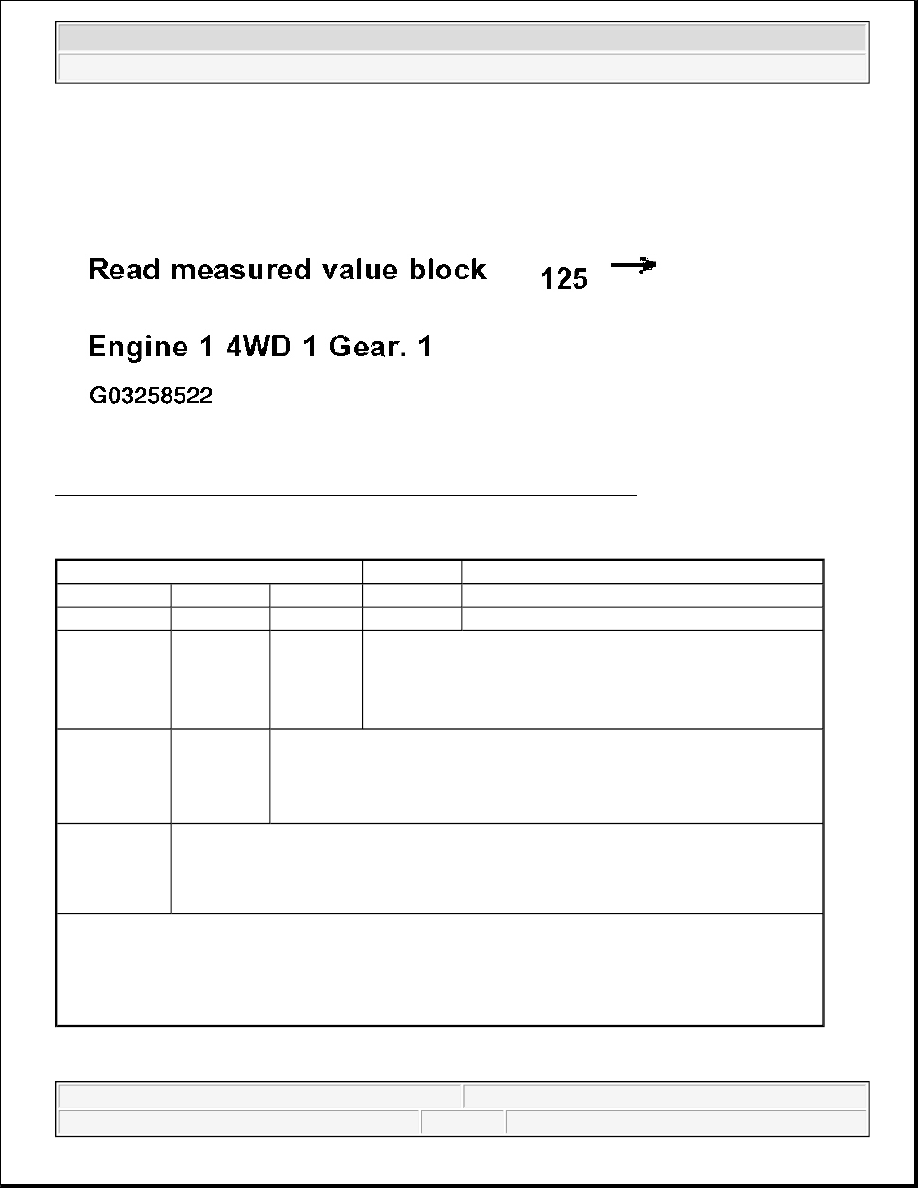

Fig. 99: V.A.G 1551 Scan Tool Display - Checking Data Bus Wiring (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

MEASURING VALUE BLOCK 125

BASIC SETTING (FUNCTION 04)

Read measured value block

125 -->

Display group number: 125

Engine 1

AWD 1

Gear. 1



Indicated on display (example)









Vacant







Data bus connection for transmission

(1)

 )

z

1 --> Data bus connection is available.

z

0 --> Data bus connection is not available.

(3)









Data bus for all-wheel drive

(2)



z

1 --> Data bus connection is available.

z

0 --> Data bus connection is available.



Data bus for engine

z

1 --> Data bus connection is available.

z

0 --> Data bus connection is not available.

(1)

Vehicles with automatic transmission only. Incorrect transmission control module or incorrect
transmission control module coding. Transmission control module faulty.

(2)

All wheel drive vehicles with Haldex coupling only.

(3)

Data bus connection is interrupted or data bus wires are interchanged.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Special tools and test equipment

z

VAS 5234 brake filler and bleeder unit

On vehicles with EDL the basic setting is used to bleed the hydraulic unit only. The brake system must be
bleed separately
 .

See BLEEDING BRAKE SYSTEM .

Basic setting is only necessary when at least one brake fluid reservoir chamber is completely empty (e.g. leaks
in brake system).

Basic settings must also be carried out after a leaking brake system has been serviced.

z

Connect VAS 5234 brake filler and bleeder unit.

z

Connect VAG1551 scan tool and insert "Brake Electronics" address word 03 with ignition switched on
VAG1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTION .

Fig. 100: Identifying VAS 5234 Brake Filler And Bleeder Unit
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -4- to select "Basic Setting" function 04.

NOTE:

The basic setting to bleed the hydraulic unit is only required when one
chamber of the brake fluid reservoir is completely empty.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

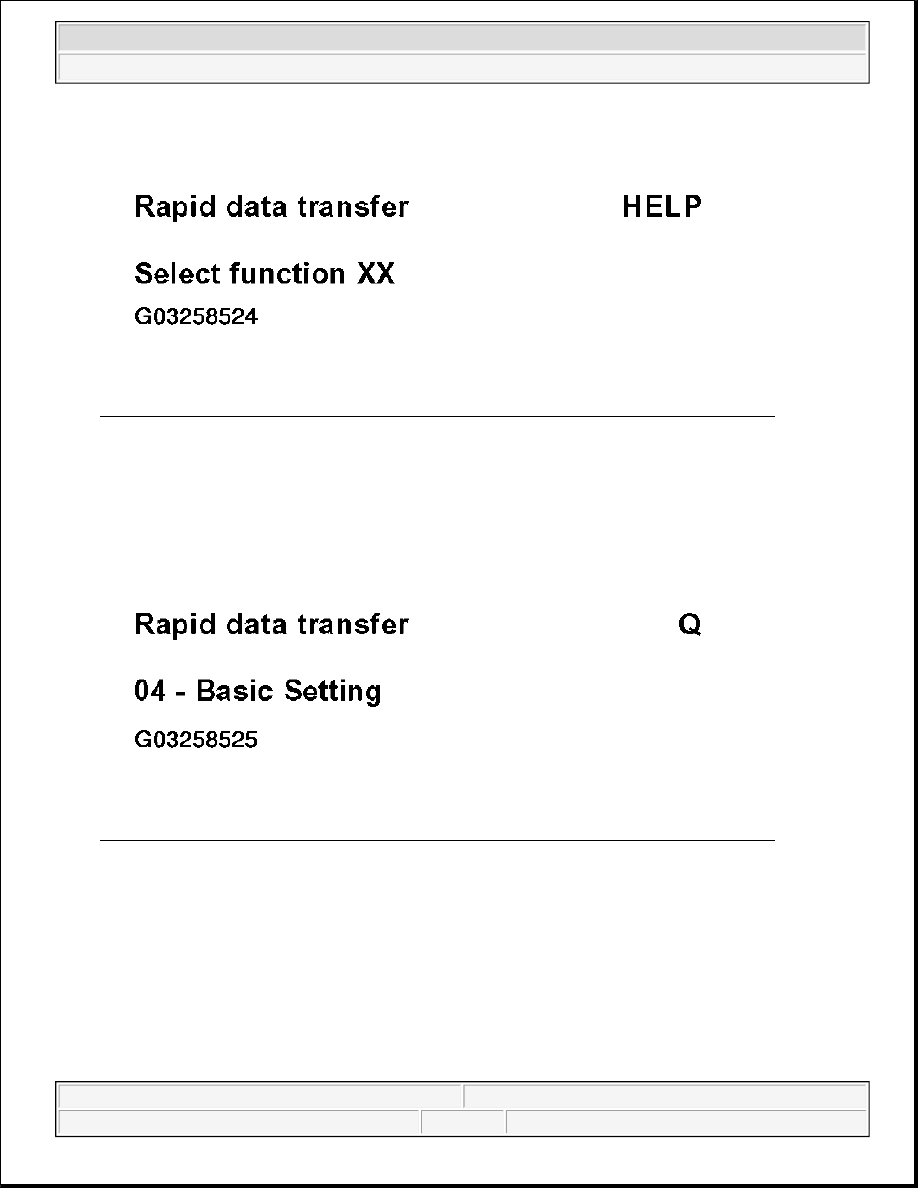

Fig. 101: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (1 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 102: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (2 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0-, -0- and -1- to input display group number 1 (001).

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

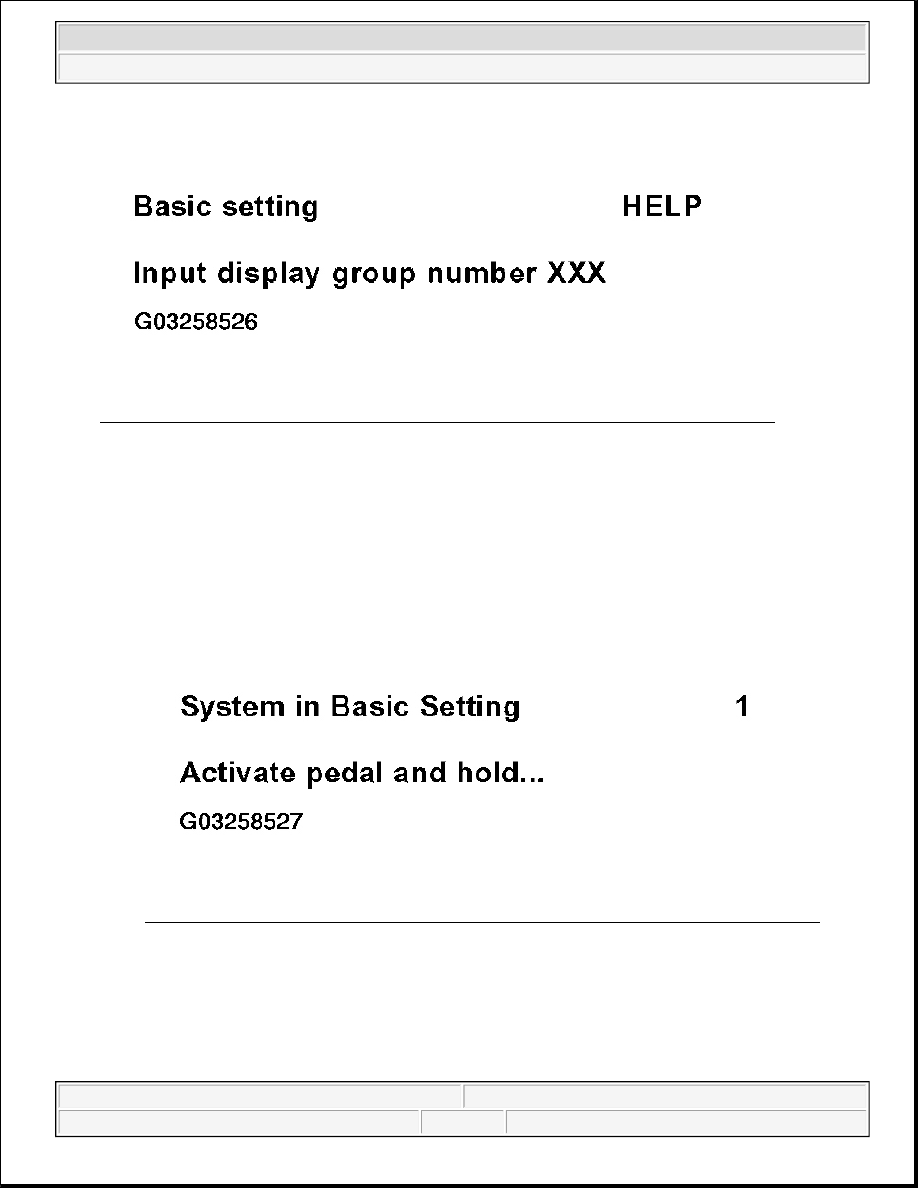

Fig. 103: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (3 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down.

z

Hydraulic pump runs.

z

Pedal comes back.

Fig. 104: V.A.G 1551 Scan Tool Display - Initiating Basic Setting - Function 04 (4 Of 39)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press key 3 on VAG 1551 or arrow up key on VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
