Volkswagen New Beetle. Manual - part 697

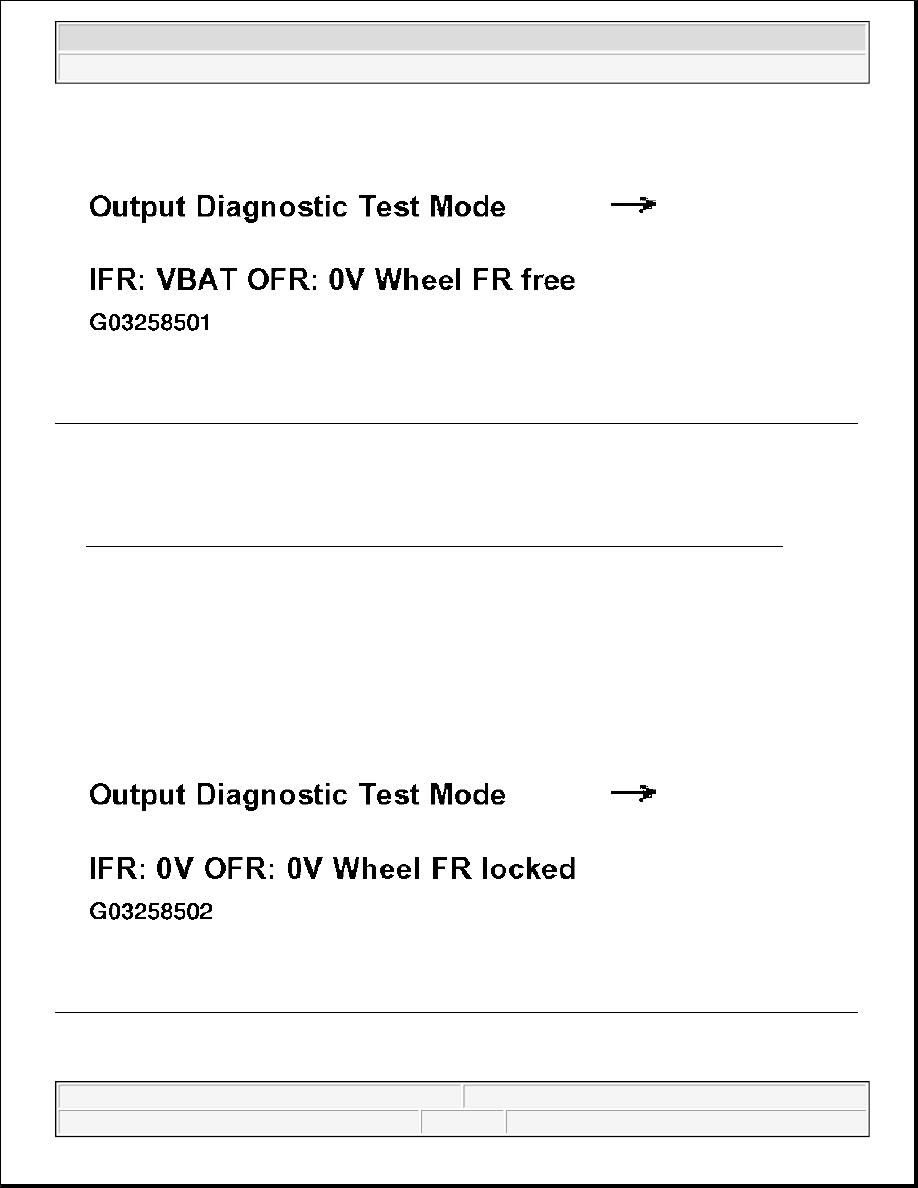

Fig. 78: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (18 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced:

See ABS CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel does not lock, a malfunction may exist in the mechanical and/or hydraulic section of the brake
system.

Fig. 79: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (19 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display

z

Remove foot from brake pedal.

z

Press --> button.

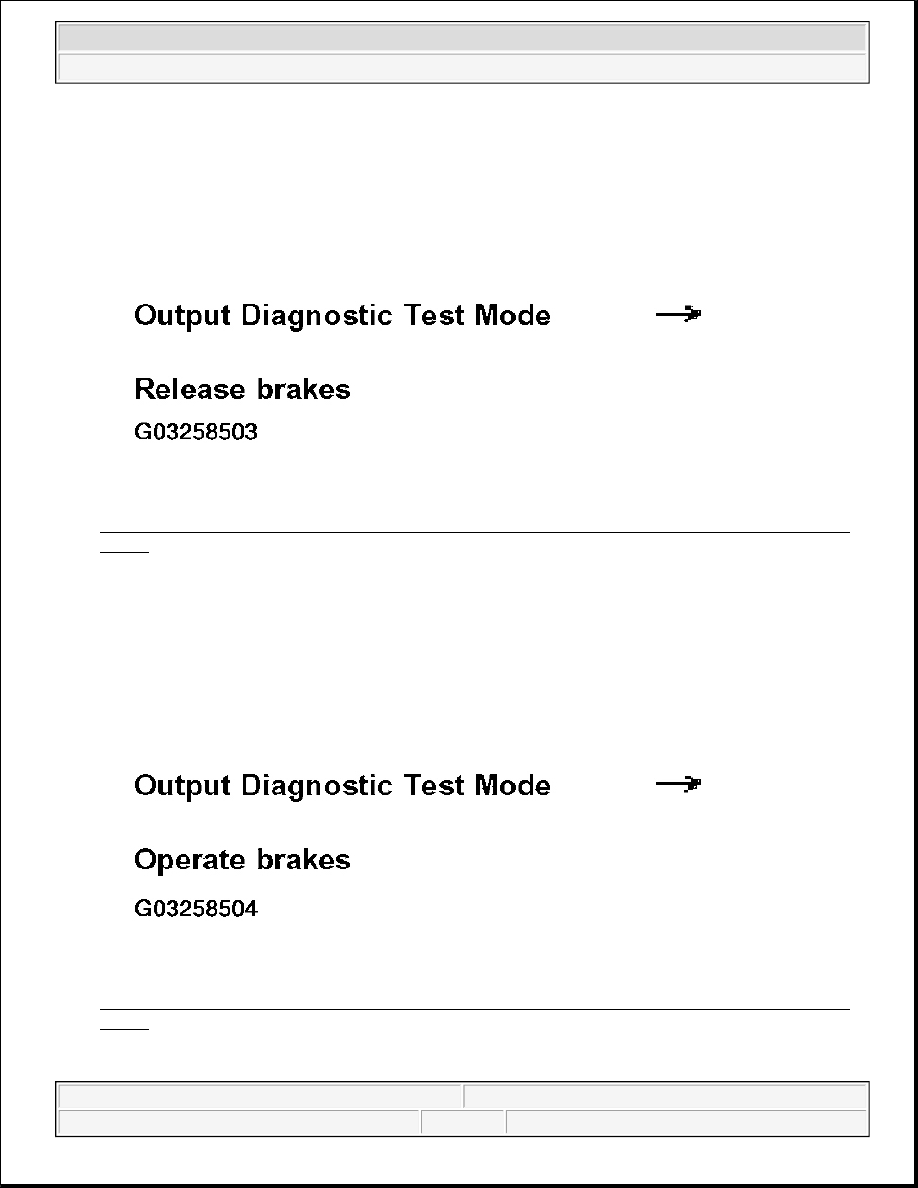

Fig. 80: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (20
Of 37)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate brake pedal.

z

Press --> button.

Fig. 81: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (21
Of 37)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel does not lock, a malfunction may exist in the mechanical and/or hydraulic section of the brake
system.

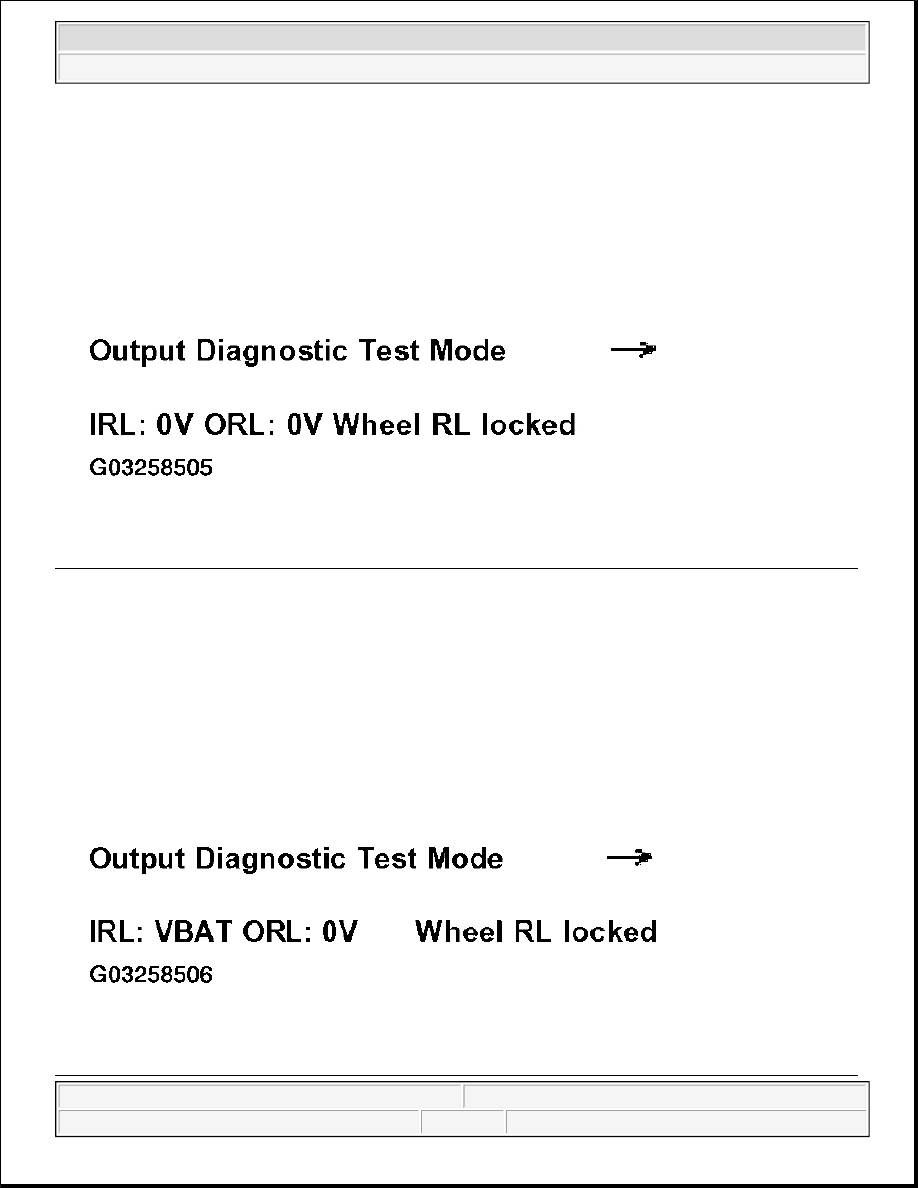

Fig. 82: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (22 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

Indicated on display

z

Press --> button.

ABS hydraulic pump display group number: must run.

Fig. 83: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (23 Of 37)



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Brake pedal must not give.

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must be
replaced:

See ABS CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

Indicated on display

z

Indicate to second technician which wheel requires turning by hand.

If the wheel locks it is possible that the brake lines to the wheel calipers have been interchanged.

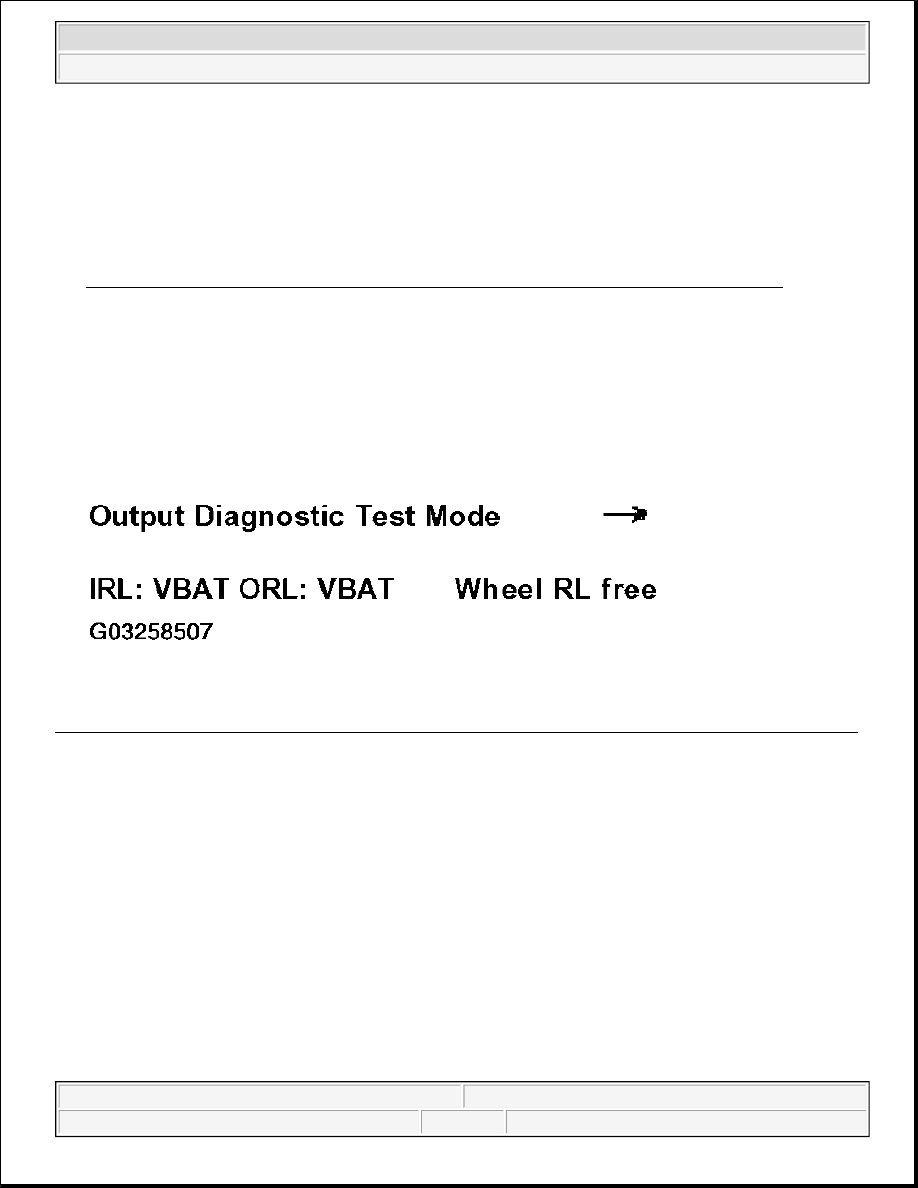

Fig. 84: V.A.G 1551 Scan Tool Display - Initiating Output Diagnostic Test Mode - Function 03 (24 Of 37)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

ABS hydraulic pump display group number: no longer runs.

Indicated on display

z

Press --> button.

Brake pedal must give noticeably.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
