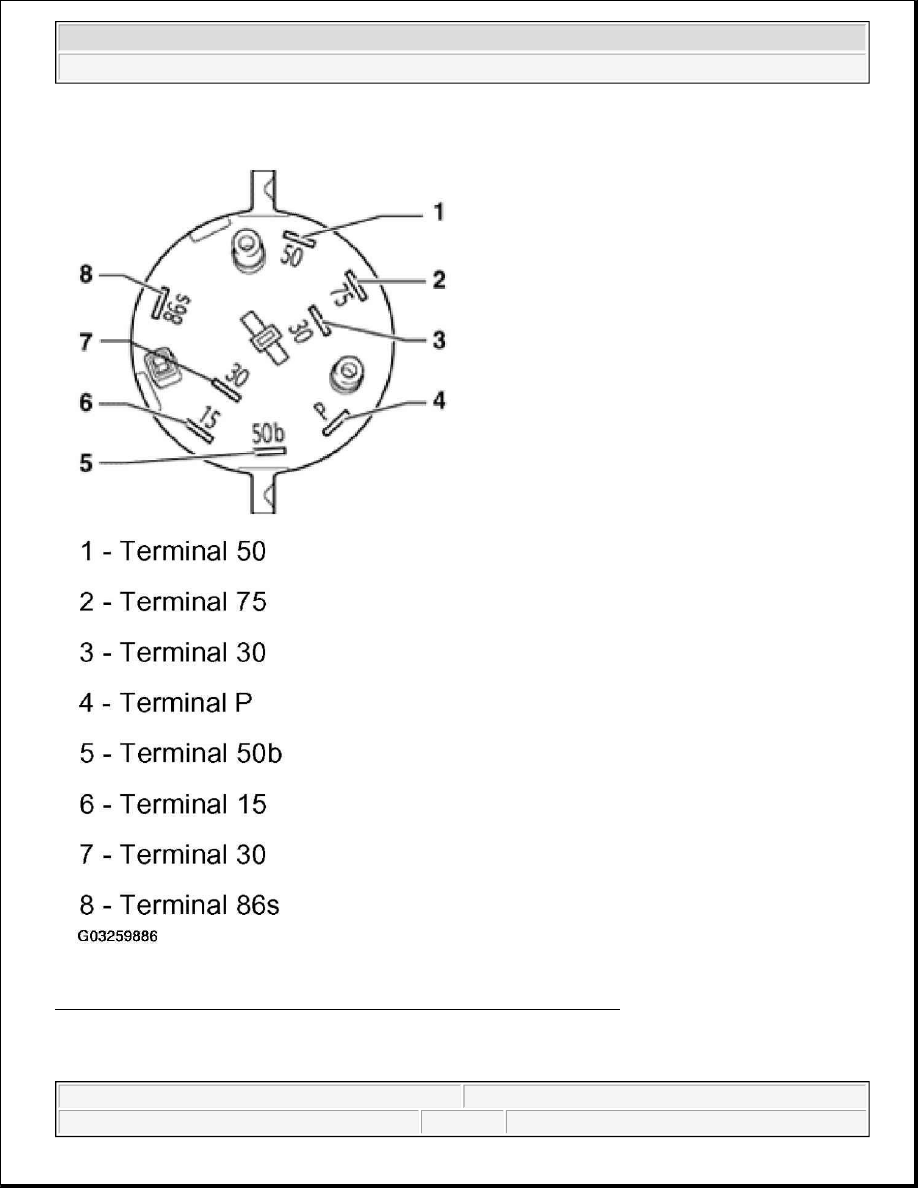

Fig. 100: Identifying Ignition/Starter Switch Connector (8-Pin) Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

Wiper/Washer Systems - New Beetle

DESCRIPTION & OPERATION

FRONT WIPER

New Beetle is equipped with a 2-speed front wiper motor with intermittent and one-tap function capabilities.
Front wiper and washer operations are controlled from the steering column mounted wiper/washer switch.
Intermittent timing for wipers is controlled by the wiper/washer intermittent relay. Wiper and washer systems
work only when the ignition is on. The heated washer jets do not have a separate switch. Heated washer jet
operation is dependent on the outside temperature.

WIPER OPERATION

The wiper switch is controlled by lever built into the combination switch. See Fig. 1 .

Wiper switch positions are:

z

Position 0 - Wiper OFF

z

Position 1 - Intermittent

z

Position 2 - Low Speed

z

Position 3 - High Speed

z

Position 4 - One-Tap Wiping

z

Position 5 - Automatic Wiper/Washer (Pulling forward and holding wiper switch will cause wipers to
operate until lever is released. When lever is released, wipers will continue to operate for about 4
seconds.)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:44 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:54 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

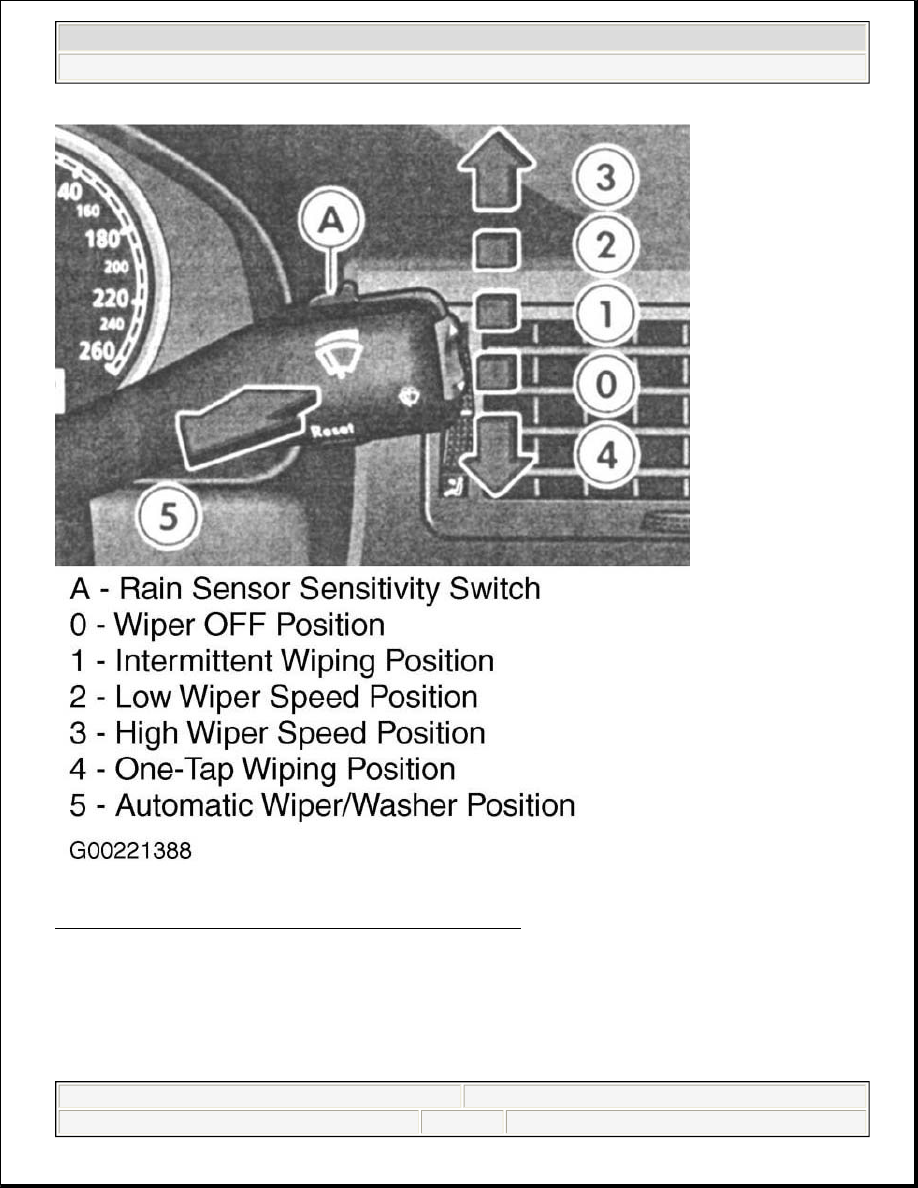

Fig. 1: Identifying Wiper & Washer System Switch Positions
Courtesy of VOLKSWAGEN UNITED STATES, INC.

HEADLIGHT WASHER

Headlight washers, if equipped, operate with windshield washers.

COMPONENT LOCATIONS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:44 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

COMPONENT LOCATIONS

Component

Location

See Figure

No.

Headlight Washer
Components

Behind & Attached To Front Bumper

Fig. 2

Washer Fluid Reservoir

In Engine Compartment

.....

Washer Pump

Attached To Washer Fluid Reservoir



.....

Windshield Washer Jets

Behind Cowl Trim

.....

Windshield Wiper Motor

Attached To Wiper Assembly

Fig. 3

Wiper Assembly

Under Cowl At Firewall

Fig. 3

Wiper/Washer Switch

On Steering Column

Fig. 1 .

Wiper/Washer Intermittent
Relay

In 13-Fold Auxiliary Relay Panel Under

Driver's Side Of Dash

Fig. 4



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:44 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
