Volkswagen New Beetle. Manual - part 630





Parking light bulbs, removing

z

Remove headlight housing, See HEADLIGHT HOUSING WITH HIGH INTENSITY GAS
DISCHARGE (HID) LAMP, REMOVING AND INSTALLING
 .

z

Remove sealing cap, See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, REPLACING BULBS
 .

z

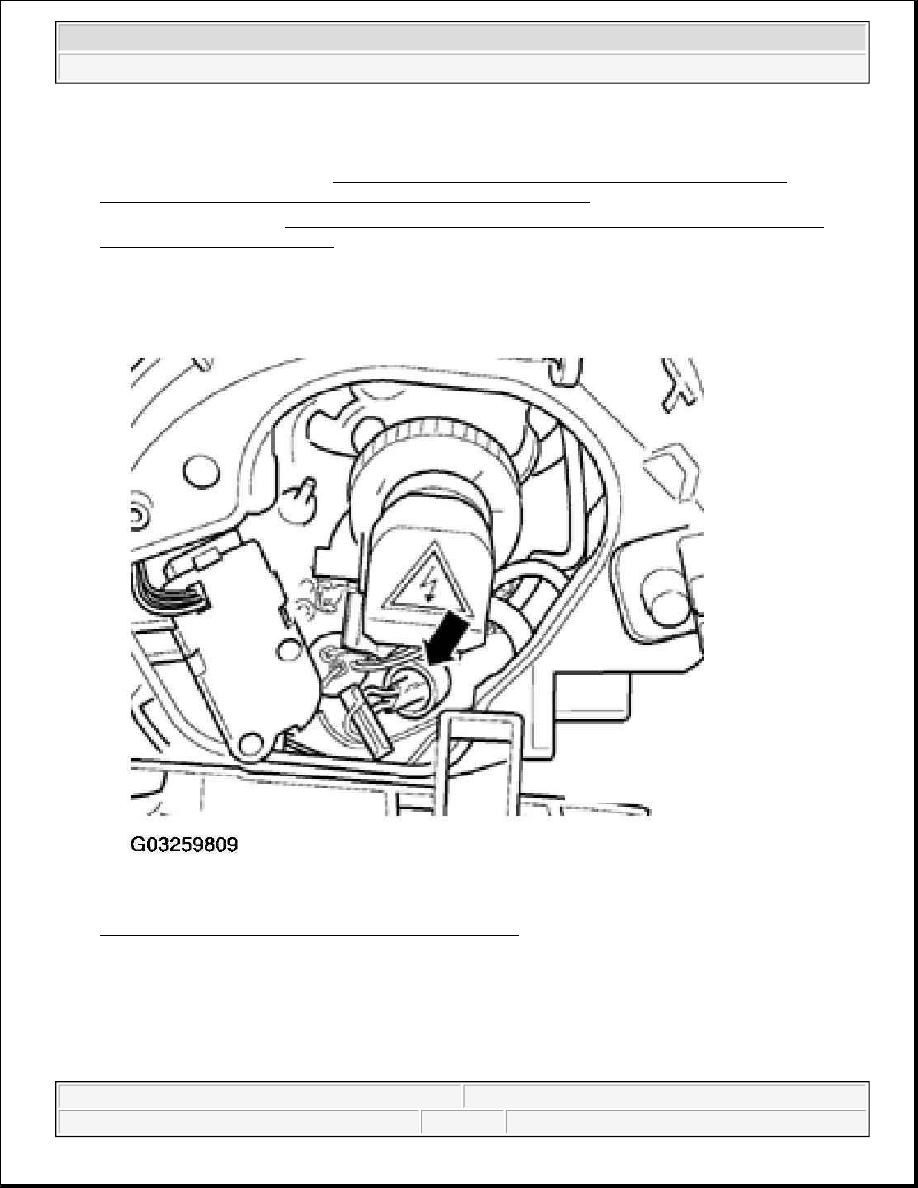

Pull parking light bulb with mounting -arrow- out from reflector.

Fig. 23: Removing Parking Light Bulb With Mounting
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Parking light bulbs, installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest

amount of moisture and/or contaminants from fingers that evaporates on
the bulb during operation can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Install in reverse order of removal.

z

Check parking light (bulb) function.

z

Check headlight aim, See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, ADJUSTING


HEADLIGHT HOUSING WITH HIGH INTENSITY GAS DISCHARGE (HID) LAMP, REMOVING
AND INSTALLING

Left HID headlight, removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

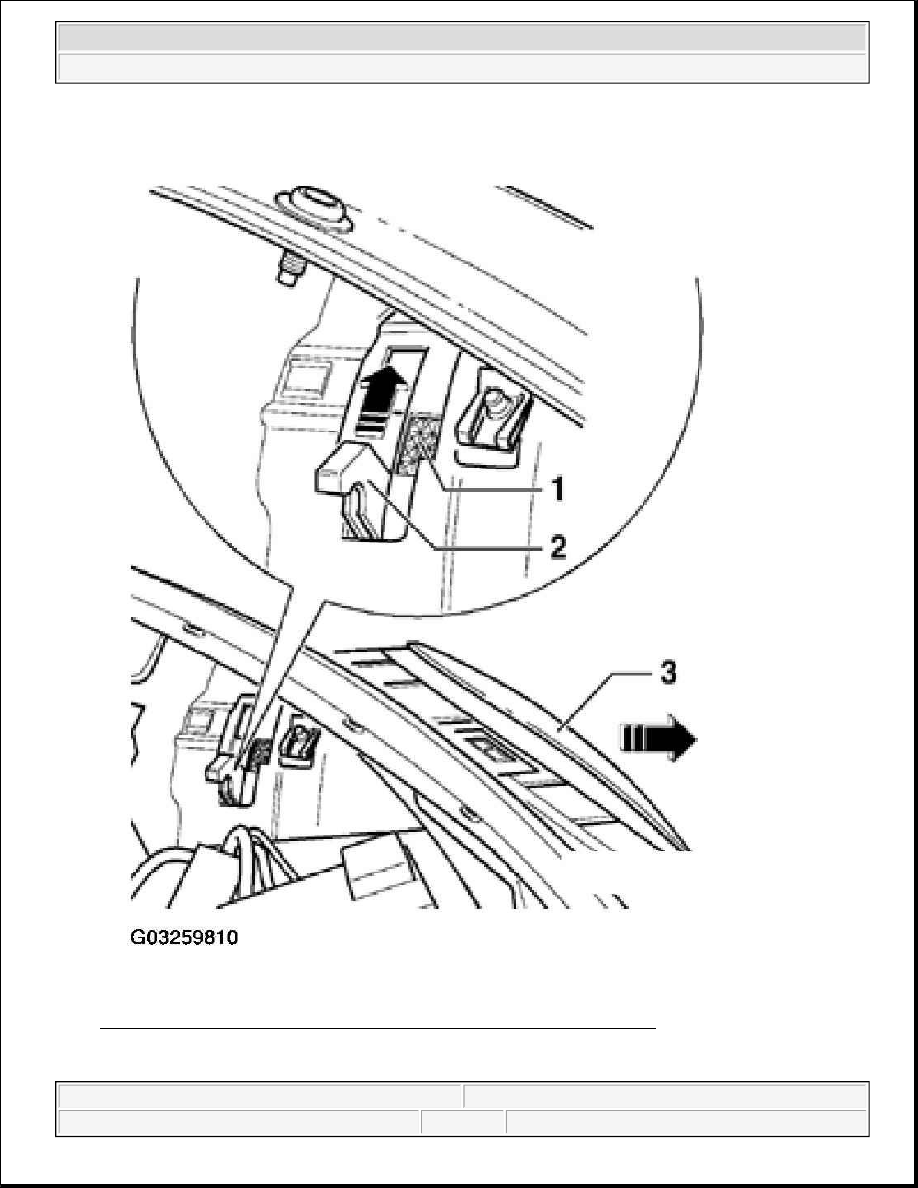

Disengage retainer -1- downwards and slide lever -2- upwards.

z

Pull headlight housing -3- forward slightly.

z

Disconnect electrical connection from headlight.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 24: Disconnecting Electrical Connection From Headlight (Left Side)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Slide headlight housing forward and out from fender opening.

Left HID headlight, installing

z

Reconnect electrical connection -1- to headlight.

z

Position headlight insert in guide rails -arrows- and slide unit to rear.

z

Move lever in engine compartment down again to engage retainer.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check headlight aim. See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, ADJUSTING
 .

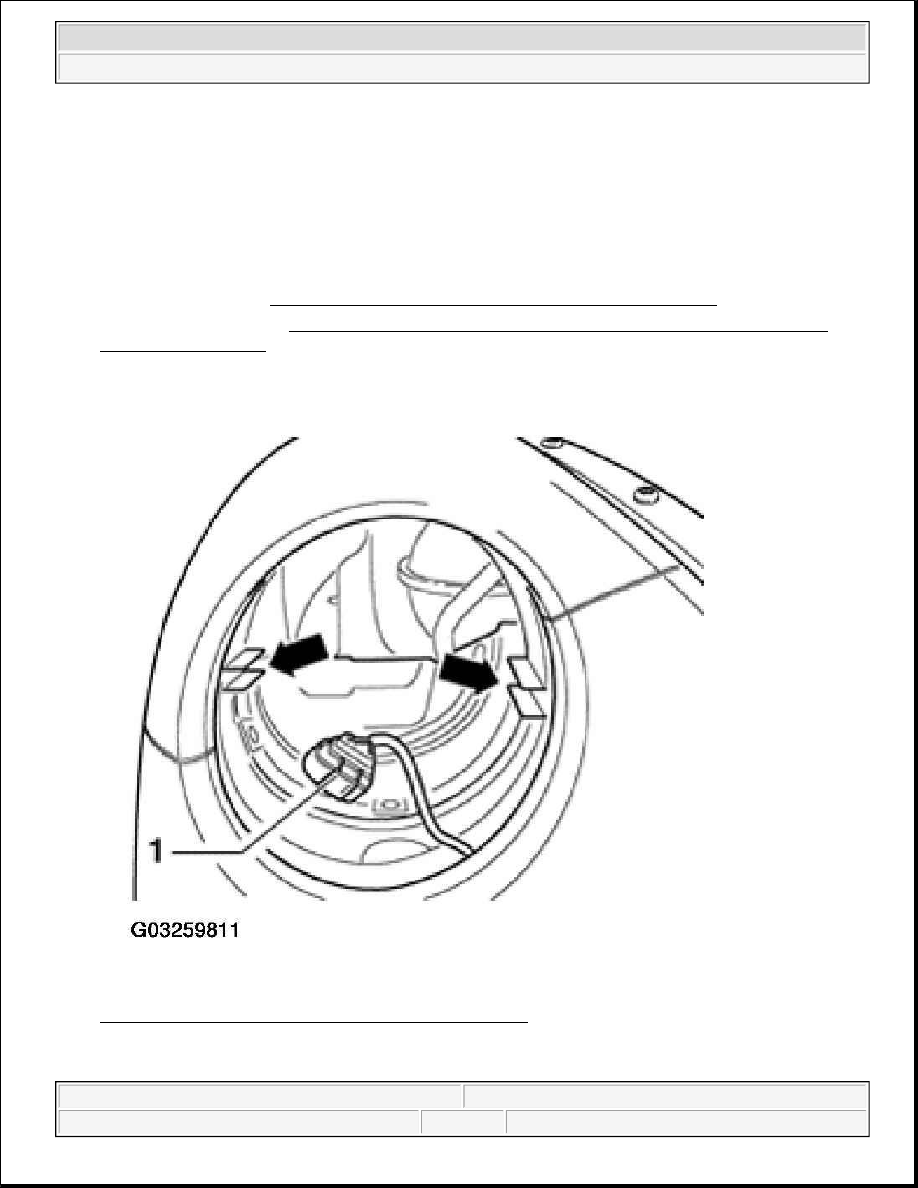

Fig. 25: Connecting Electrical Connection To Headlight
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Right HID headlight, removing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
