Volkswagen New Beetle. Manual - part 605





z

Check rear level sensor adjustment, See LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-,
CHECKING
 .

LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, CHECKING

Special tool, testers, and auxiliary items needed

z

VAG 1551/1552 Scan Tool (ST) or VAS 5051 Vehicle Diagnostic Testing and Information System tester.

z

VAG 1551/3B Adapter Cable

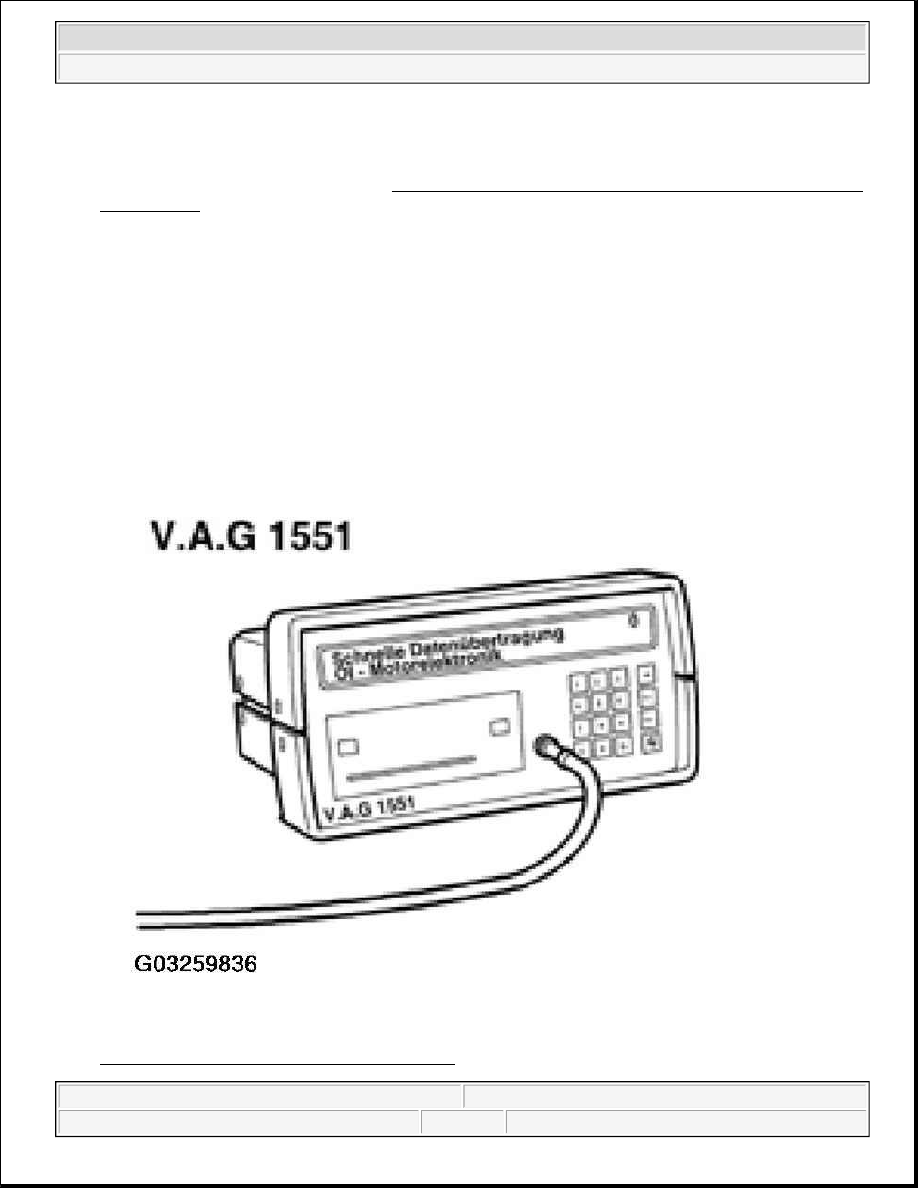

Fig. 50: Identifying VAG 1551/1552 Scan Tool

must be checked after installation is complete.

NOTE:

The rear level control system sensor is not externally adjustable. However, it
must be checked after installation is complete,



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites

z

Vehicle must be standing on all four wheels on a flat level surface.

z

Handbrake lever must be in off position and a drive gear must not be selected.

z

Steering must be in straight-ahead position.

z

Vehicle must be unoccupied and not loaded.

z

Vehicle must not be moved during basic settings process (i.e.: opening and closing of doors, people
leaning on vehicle, people entering vehicle is not permitted).

z

If vehicle was raised using a lifting platform/hoist or a vehicle/workshop jack, then it must be rolled back
and forth several times so that the springs etc. settle, before starting adjustments.

VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and Service System,
selecting functions

See ON BOARD DIAGNOSTIC (OBD), FUNCTION .

VAG 1551/1552 Scan Tool (ST), connecting and selecting functions (function 01)

Prerequisites:

z

All fuses OK., according to wiring diagram

z

Voltage supply OK. (minimum 9.0 V).

{

Connect Scan Tool (ST) using cable VAG 1551/3B.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

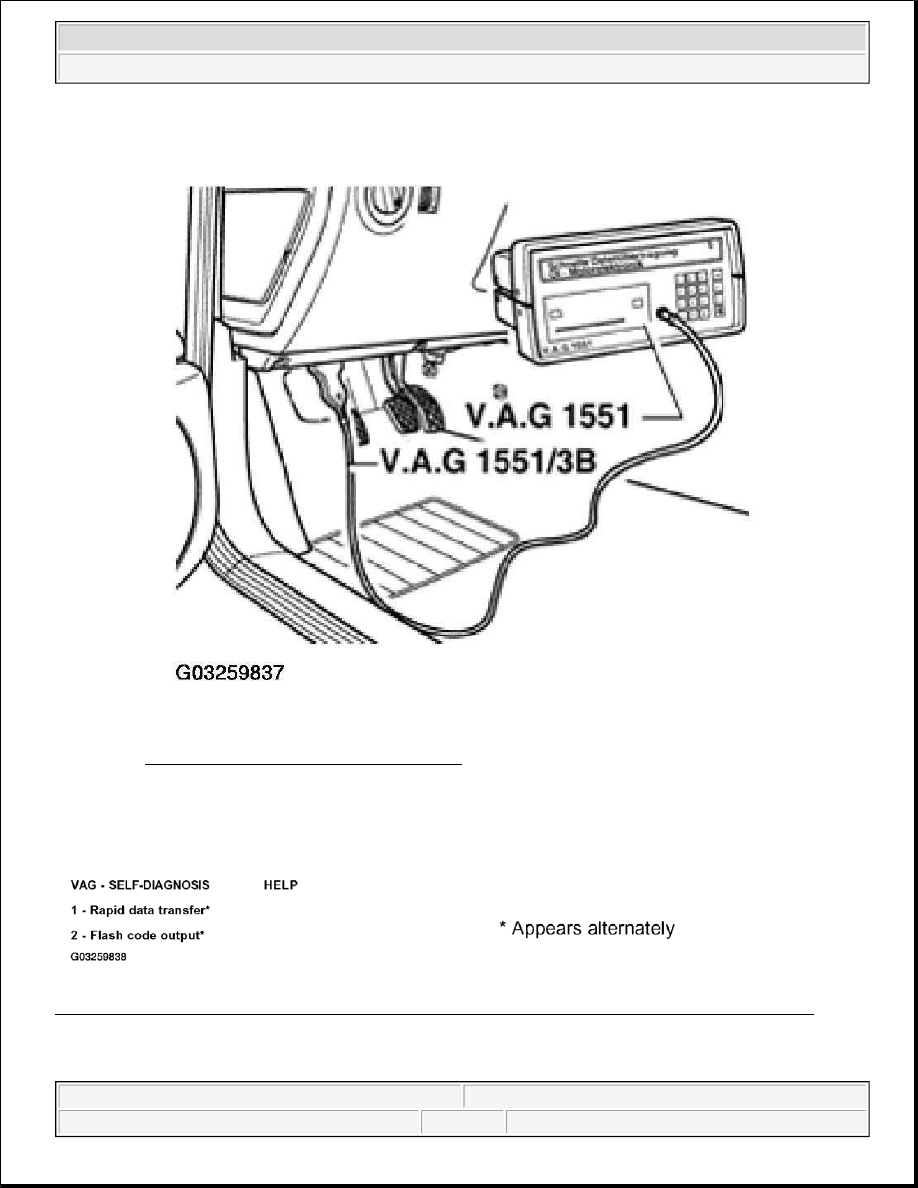

Fig. 51: Connecting VAG 1551 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Fig. 52: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (1 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

* Appears alternately



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Switch ignition on.

z

Switch printer on with the Print key (warning lamp in the key will light up).

z

Press key 1 for "Rapid data transfer" operating mode.

Indicated on display:

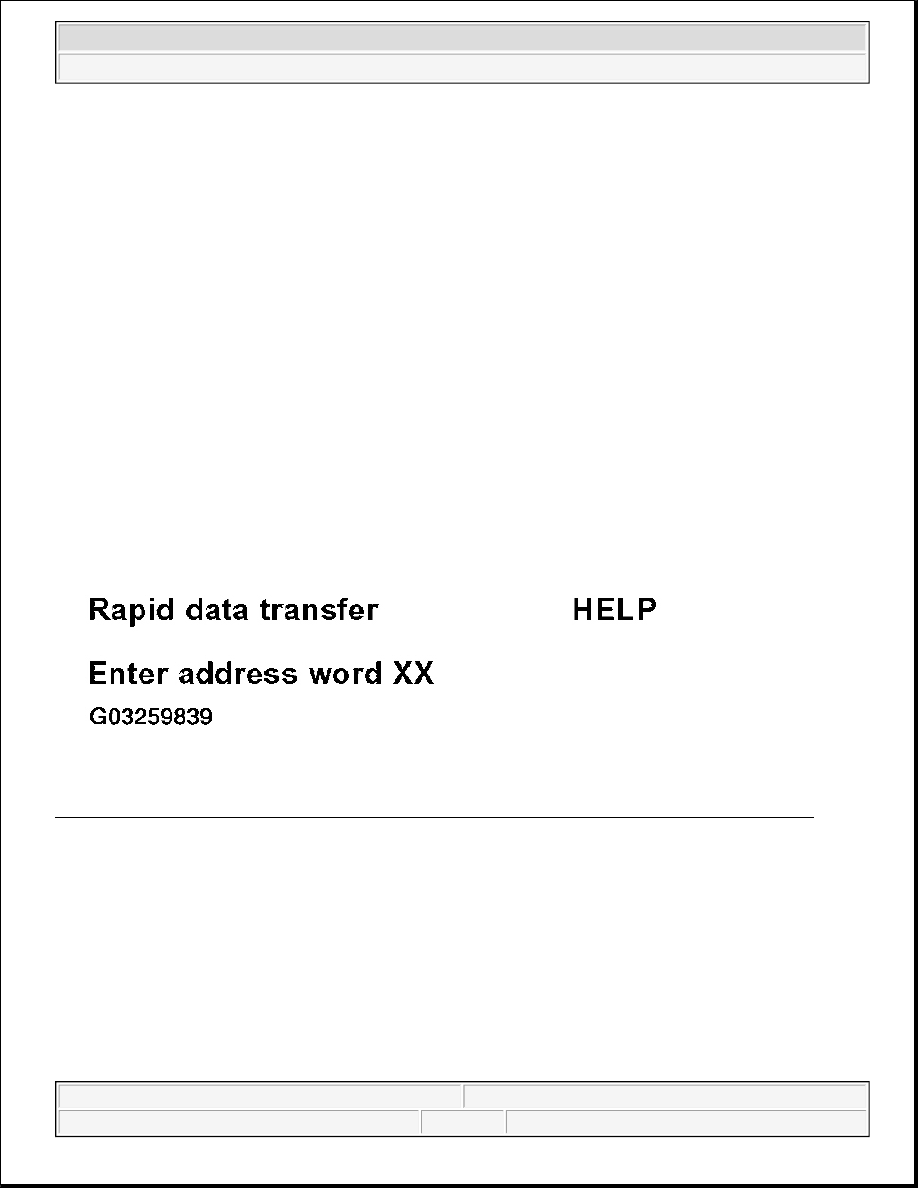

Fig. 53: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (2 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -2- and -9- to select "Light control, left" address word "29".

Indicated on display:

NOTE:

z

If display remains blank, check VAG 1551 voltage supply according to
wiring diagram.

See SYSTEM WIRING DIAGRAM article.

z

Additional operating instructions can be called up with the scan tool HELP
key.

z

The --> key advances the program sequence.

z

In operating mode 1 "Rapid data transfer" function 00 "Automatic test
sequence" can be carried out. The DTC memory of all vehicle control units
is checked automatically with function 00.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
