HID lamp bulb, removing

z

Remove applicable headlight housing, See HEADLIGHT HOUSING WITH HIGH INTENSITY
GAS DISCHARGE (HID) LAMP, REMOVING AND INSTALLING
 .

z

Remove screw -1- and open sealing cap by releasing retaining clip -2-.

z

Disengage sealing cap from mounting -3-.

WARNING:

z

HIGH VOLTAGE!

z

Always disconnect negative (-) battery terminal prior to servicing
any parts of the HID lamp system marked with the yellow "HIGH
VOLTAGE!"symbol.

z

After disconnecting battery, briefly turn headlights on and off in
order discharge any residual voltage.

z

Internal pressure of HID glass bulb may exceed 10 bar.

z

The physical and mechanical properties of HID bulbs are very
sensitive. Always wear safety glasses when removing and installing
HID bulb



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



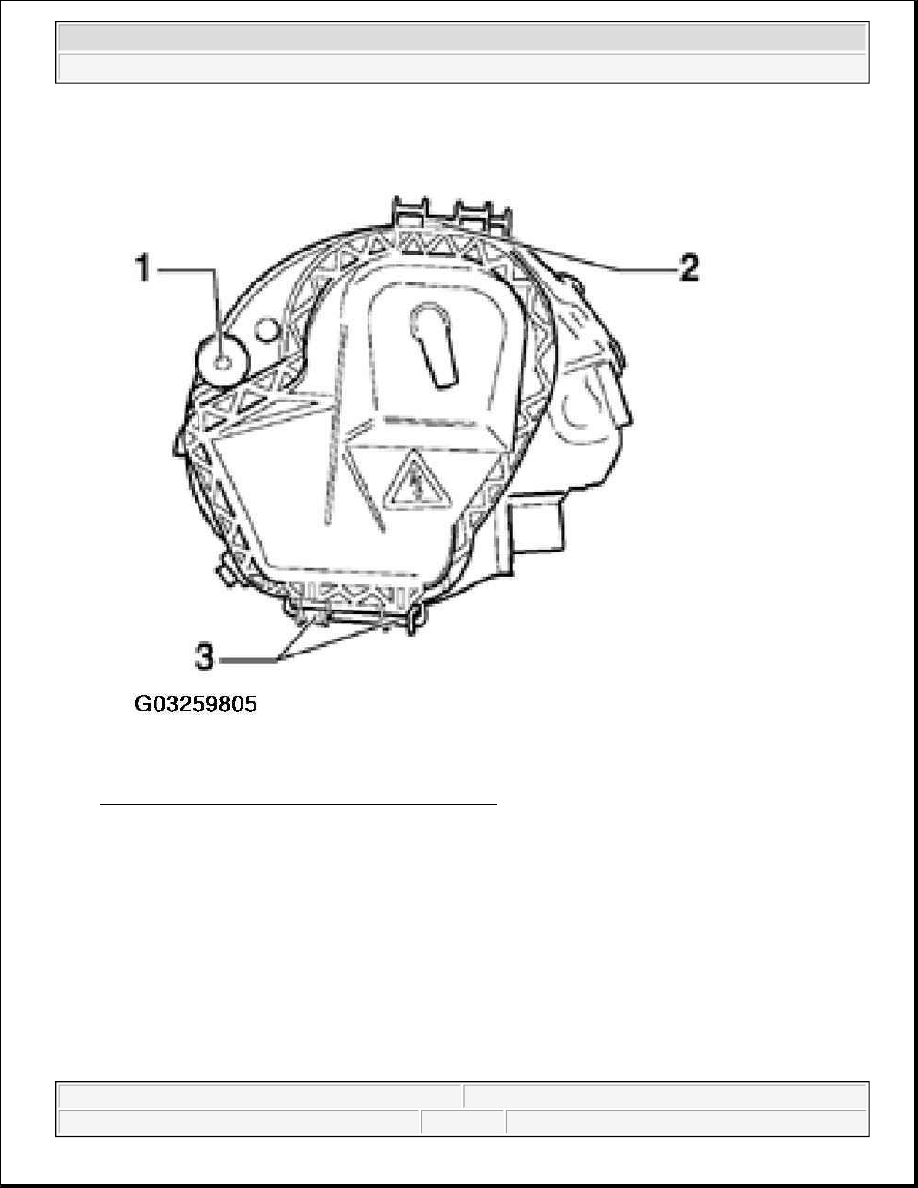

Fig. 19: Removing Screw And Opening Sealing Cap
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release connector -1-, by turning 90° to the left -arrow- and pull off.

z

Turn gas discharge bulb retaining ring -2- to the left and remove bulb.

z

Carefully remove HID bulb.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

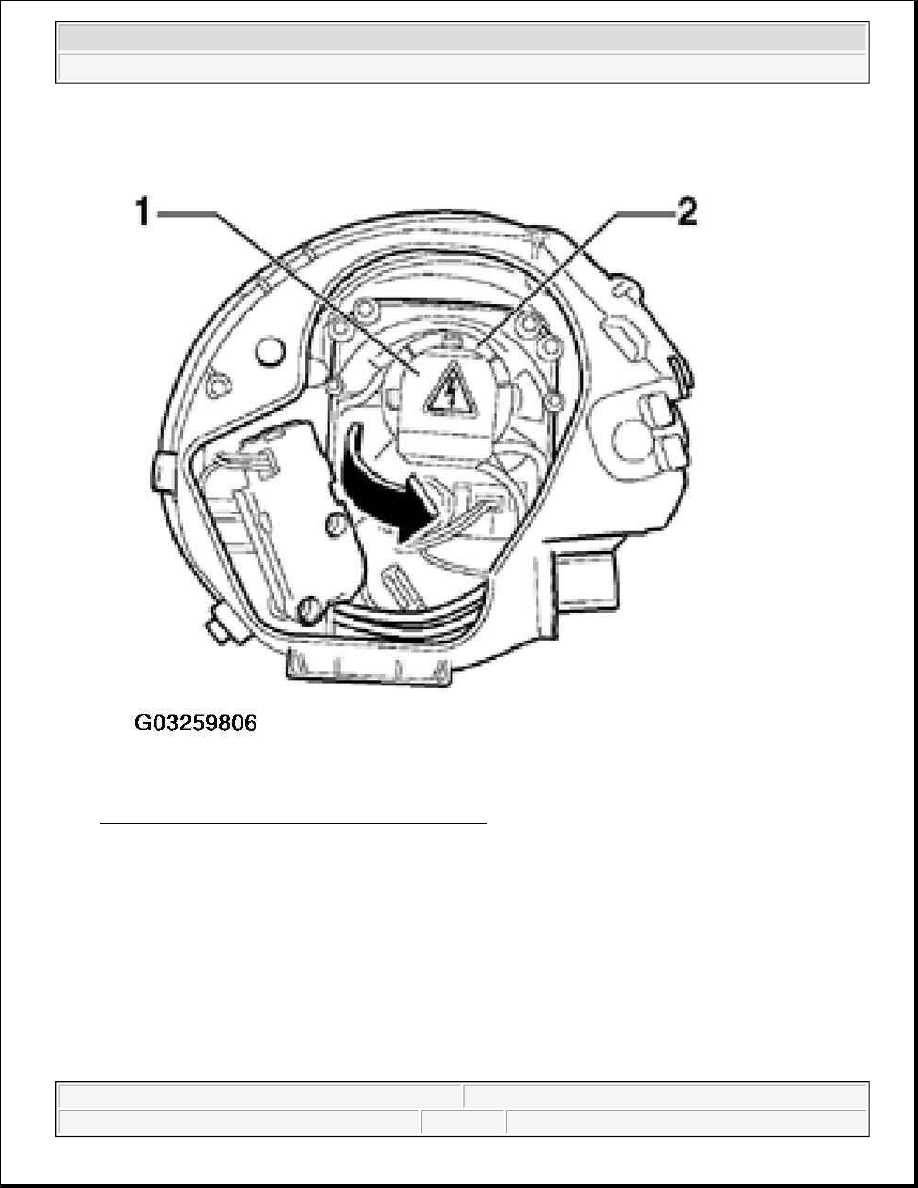

Fig. 20: Disconnecting HID Lamp Bulb Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

HID lamp bulb, installing

z

Insert new bulb, making sure that the bulb mounting aligns with the locating lugs in the housing.

z

Position retaining ring -1- recesses -arrows-over locking tabs -2- of HID bulb -3- and secure by turning
clockwise.

z

Reinstall headlight housing, See HEADLIGHT HOUSING WITH HIGH INTENSITY GAS

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest

amount of moisture and/or contaminants from fingers that evaporates on
the bulb during operation can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



DISCHARGE (HID) LAMP, REMOVING AND INSTALLING

z

Check headlight (HID lamp) function.

z

Check headlight aim, See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, ADJUSTING
 .

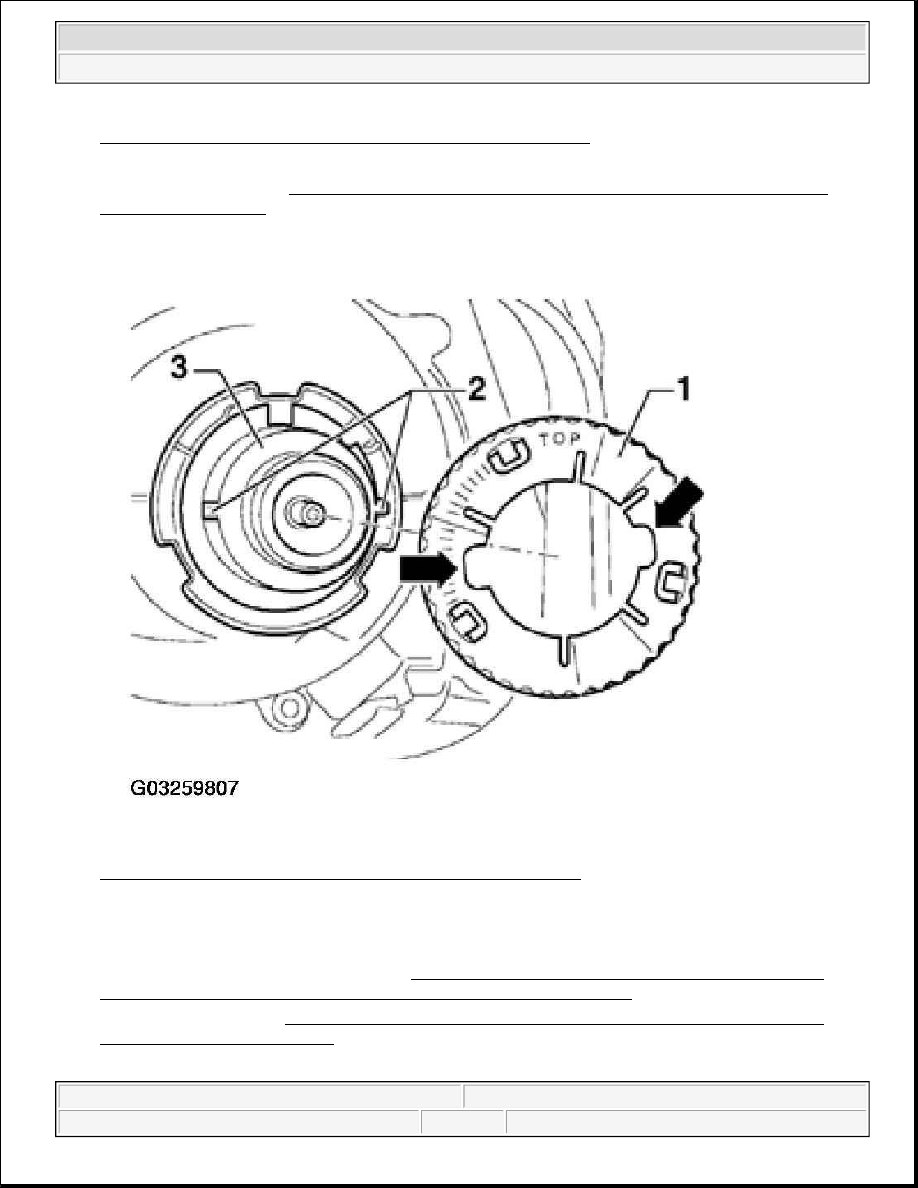

Fig. 21: Installing Retaining Ring Recesses Over Locking Tabs
Courtesy of VOLKSWAGEN OF AMERICA, INC.

High beam bulb, removing

z

Remove applicable headlight housing, See HEADLIGHT HOUSING WITH HIGH INTENSITY
GAS DISCHARGE (HID) LAMP, REMOVING AND INSTALLING
 .

z

Remove sealing cap, See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID)
LAMP, REPLACING BULBS
 .

z

Turn lever -1- on bulb mounting to left -arrow- to release.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
