Volkswagen New Beetle. Manual - part 302





EVALUATING DISPLAY GROUP NUMBER 001 CHART - 3RD GENERATION VEHICLES FROM
06.01


Break down of display content for display group number 002

Display
zone

Designation

Display

contents

Corrective action

1

Front left window

regulator switch -E40-

1)

autom. open,

autom. close,

man. open,

man. close,

not operated,

implausible

z

Visual check of wiring

z

Check that connections of relevant current circuit

are correctly connected and install tightly

together while simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Perform functional check

z

Check DTC memory again

2

Window regulator

thermo-protection

active, driver

yes, no

3

Child lock button -

E318-

(1)

off, on,

not installed

(1)

Part of door operating unit



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

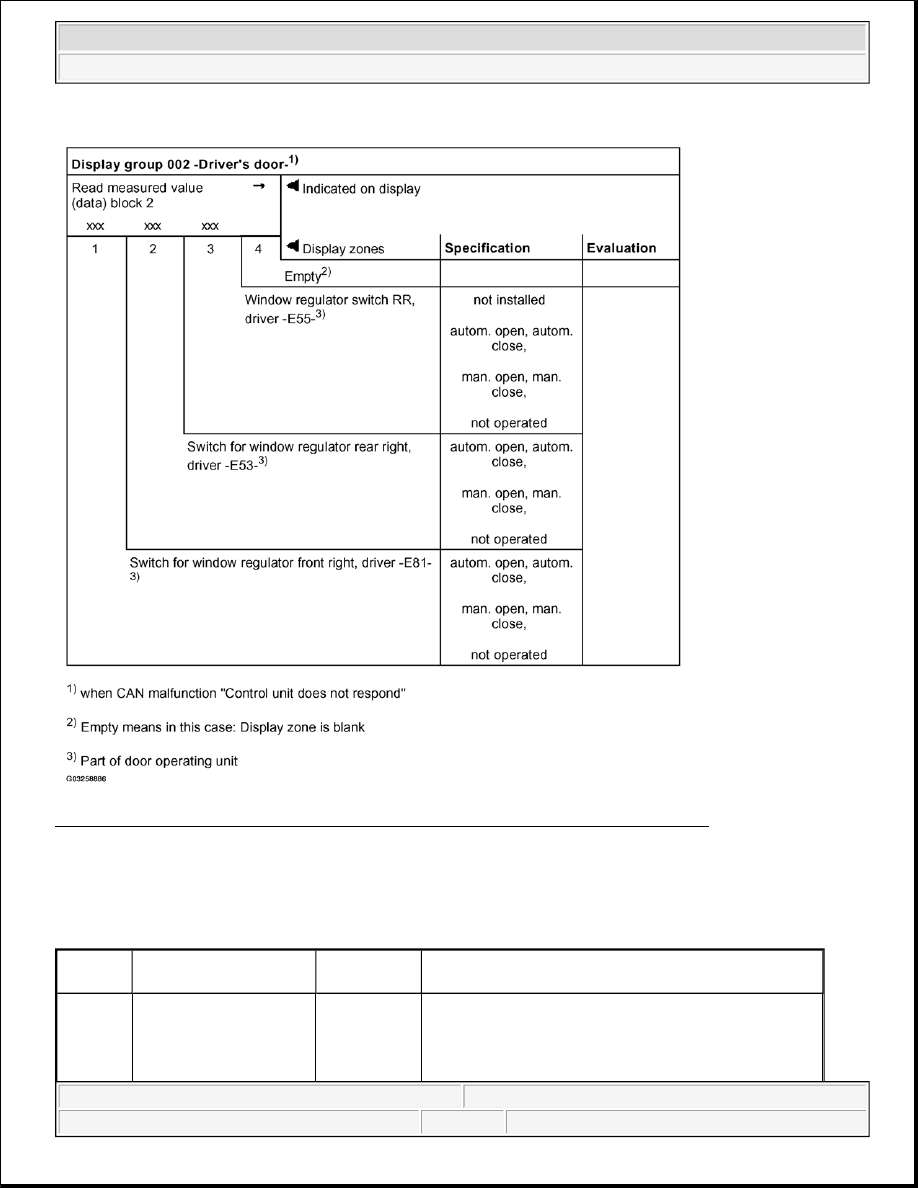

Fig. 86: Break Down Group Display 002 Chart - 3rd Generation Vehicles From 06.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 002

EVALUATING DISPLAY GROUP NUMBER 002 CHART - 3RD GENERATION VEHICLES FROM
06.01


Display
zone

Designation

Display

contents

Corrective action

1

Switch for window

regulator front right,

driver -E81-

(1)

autom. open,

autom.

close,

man. open,

z

Visual check of wiring

z

Check that connections of relevant current

circuit are correctly connected and install tightly



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle



Break down of display content for display group number 003

man. close,

not operated,

implausible

together while simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Perform functional check

z

Check DTC memory again

2

Switch for window

regulator rear right,

driver -E53-

(1)

not installed,
autom. open,

autom.

close,

man. open,

man. close,

not operated,

implausible

3

Window regulator

switch RR, driver -E55-

(1)

not installed,
autom. open,

autom.

close,

man. open,

man. close,

not operated,

implausible

(1)

Part of door operating unit



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle

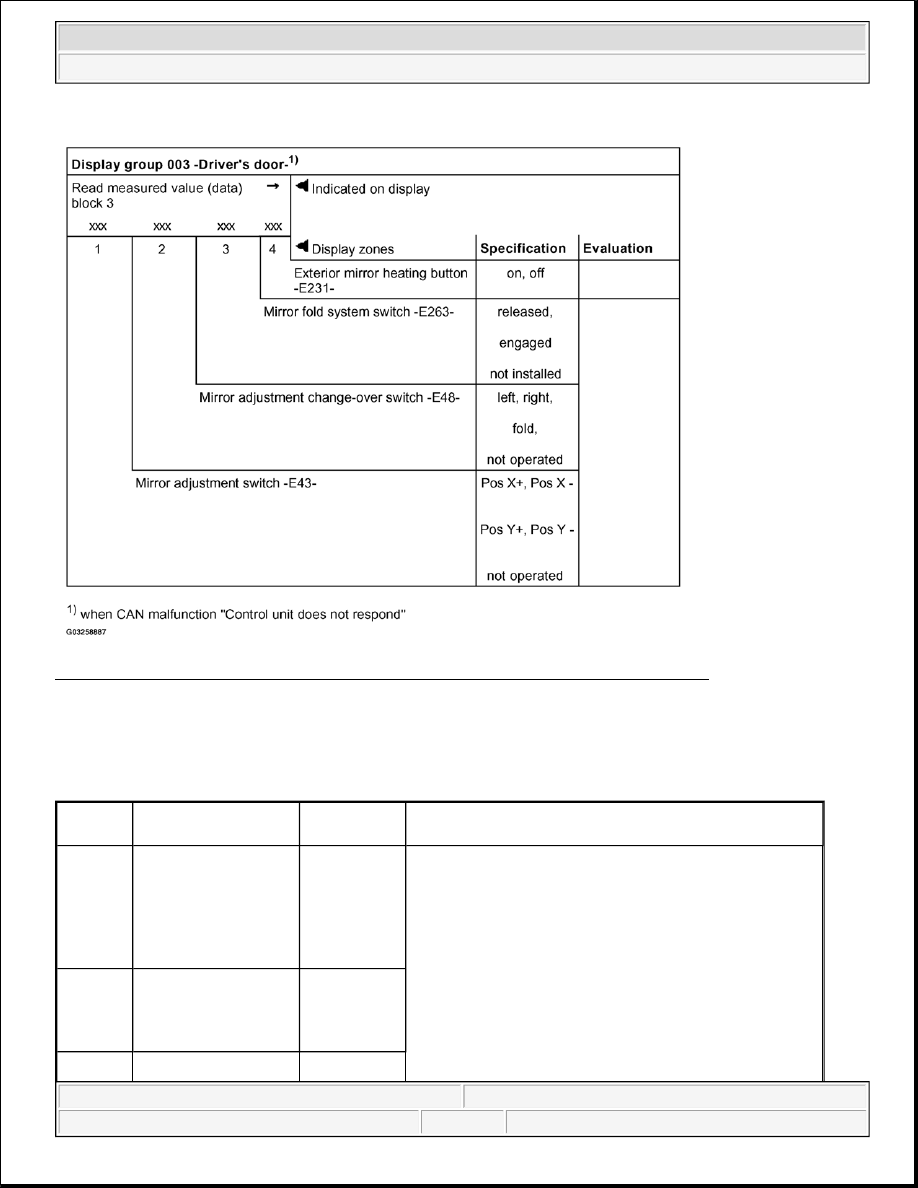

Fig. 87: Break Down Group Display 003 Chart - 3rd Generation Vehicles From 06.01
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 003

EVALUATING DISPLAY GROUP NUMBER 003 CHART - 3RD GENERATION VEHICLES FROM
06.01


Display
zone

Designation

Display

contents

Corrective action

1

Mirror adjustment

switch -E43-

Pos X+, Pos

X-,

Pos Y+, Pos

Y-,

not operated,

implausible

z

Visual check of wiring

z

Check that connections of relevant current circuit

are correctly connected and install tightly together

while simultaneously observing display

z

If the display does not change after checking

connections, correct malfunction or replace

relevant component

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Mirror adjustment

change-over switch -

E48-

left, right

fold,

not operated,

implausible

3

Mirror fold system

released,



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle
