Fig. 56: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

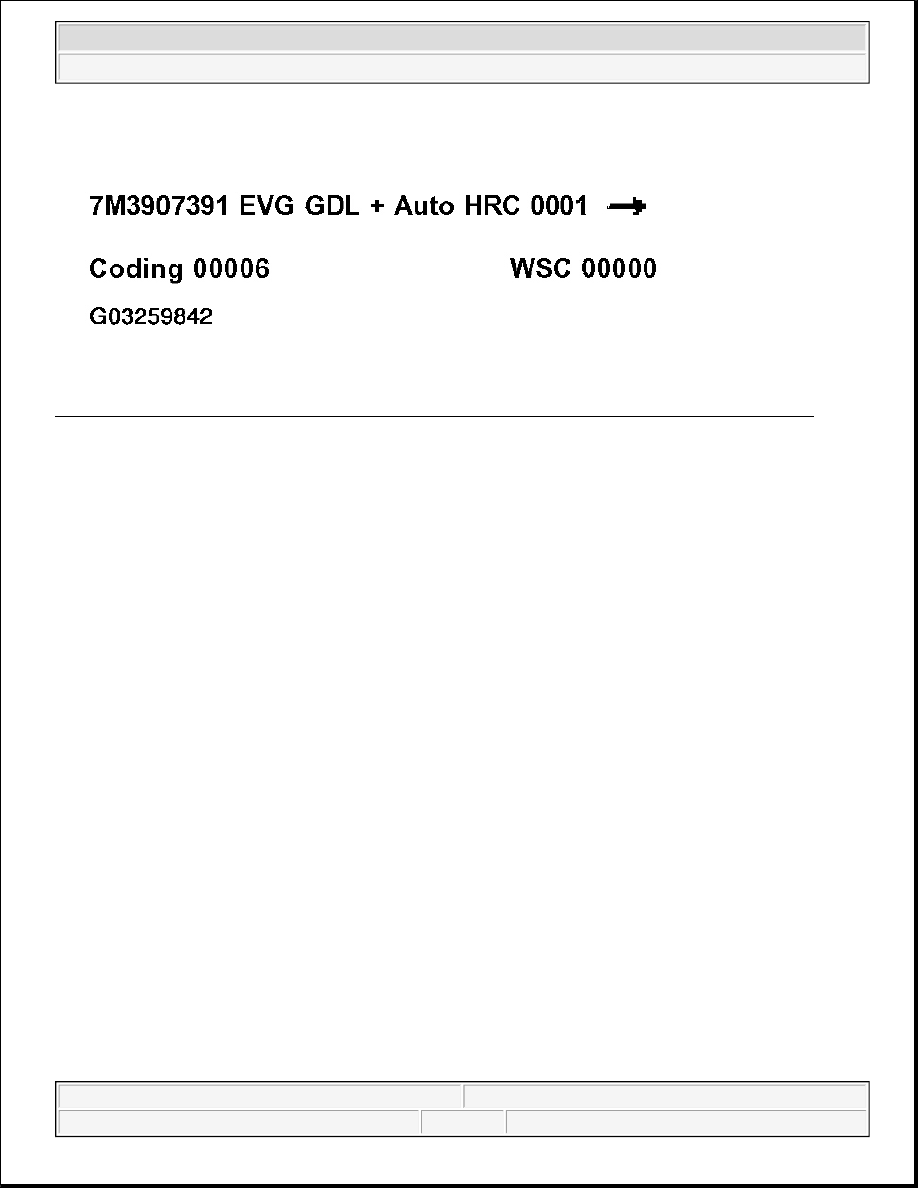

Indicated on display

Upper line:

z

Part No. of control module (Part and version numbers illustrated here are examples only)

z

System designation (headlight range control)

z

Version number (Part and version numbers illustrated here are examples only)

Bottom line:

z

Coding number (Dependent on type of drive.)

z

Dealership number

z

Press --> key.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 57: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

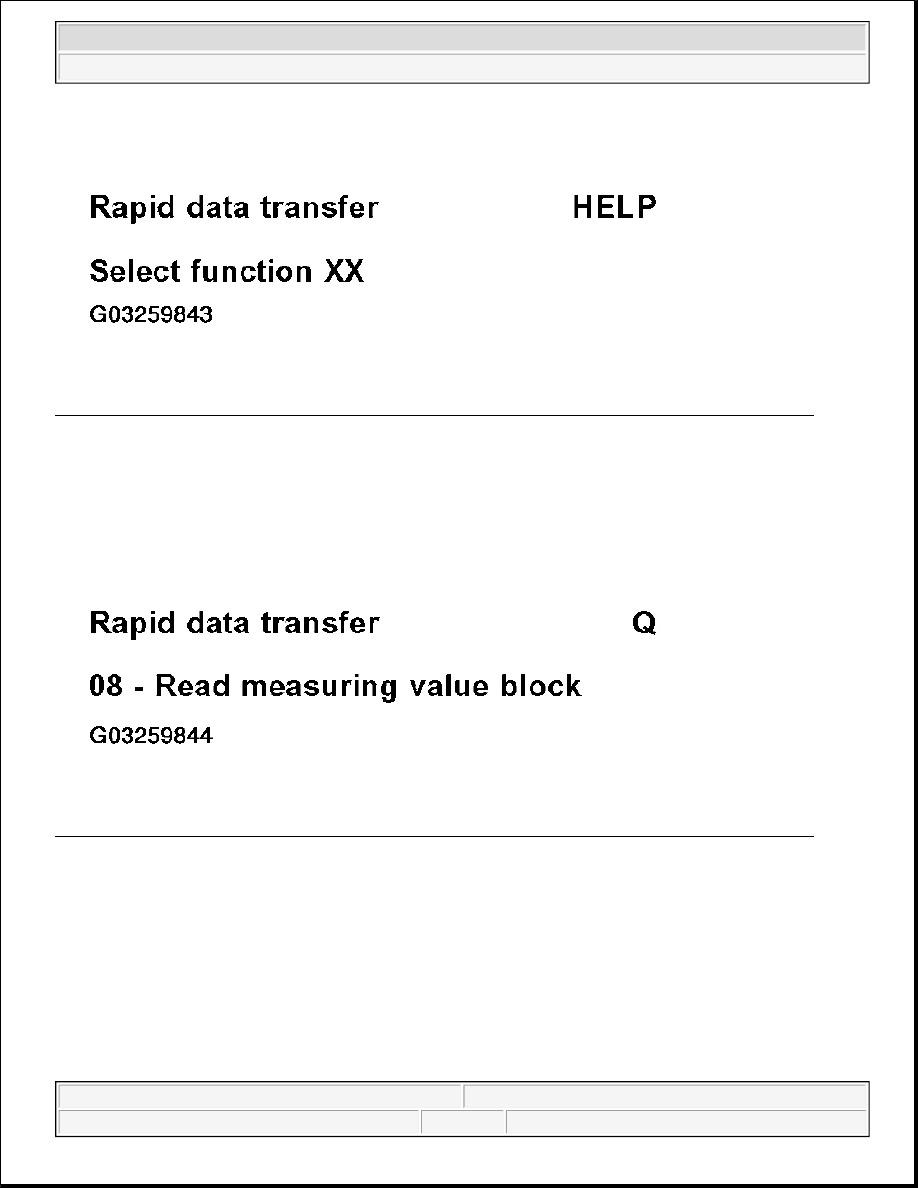

Press keys -0- and -8- to select "Read measuring value block" address word 08.

Indicated on display:

Fig. 58: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Fig. 59: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

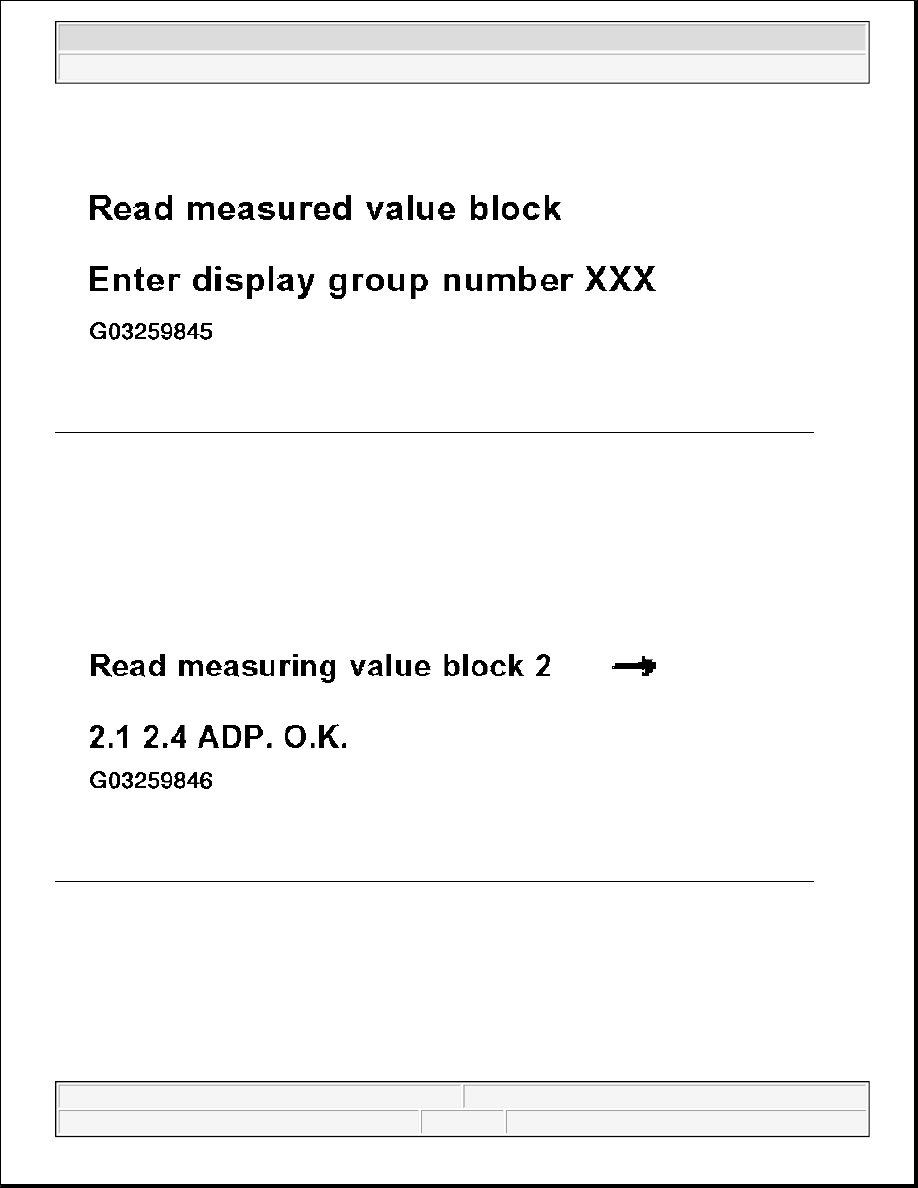

Press key 0 twice and press key 2 once to select display group number 002.

z

Press -Q- button to confirm input.

Indicated on display:

Fig. 60: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Specification for rear level control system sensor, shown in display zone 2,
must lie between 2.0 - 3.5 Volt.

NOTE:

If voltage is outside specified tolerances, then check for the following:

z

sensor is not loose in it's mounting.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



If malfunctions cannot be located in the above items, then perform troubleshooting using the Automatic
Headlight Range Control On Board Diagnostic (OBD) program.

See On Board Diagnostic (OBD), function .

z

Press --> key.

Indicated on display:

Fig. 61: VAG 1551/1552 Scan Tool Display - Left Rear Level Control System Sensor -G76 (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

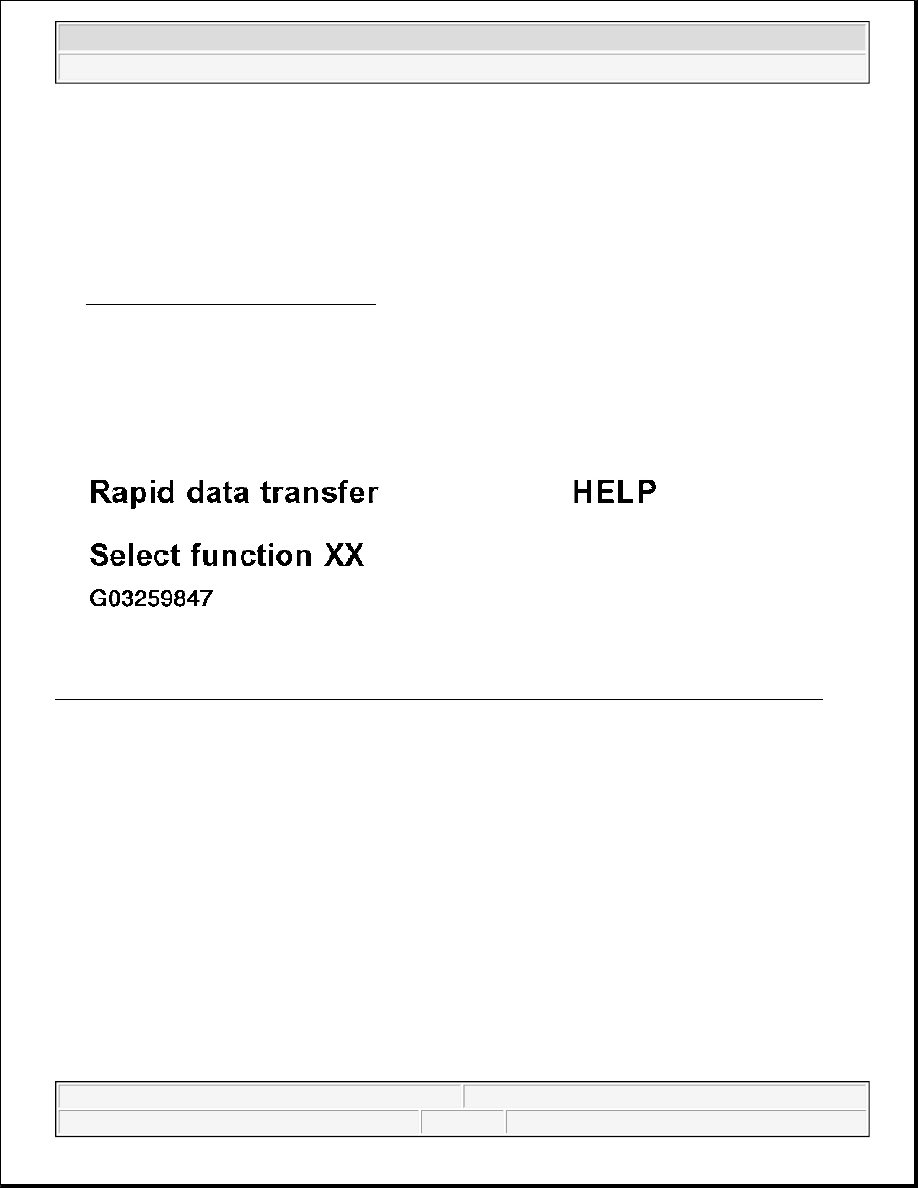

Press keys 0 and 6 to select "End output" function 06.

Indicated on display:

z

sensor coupling rod is not bent.

z

electrical connections are correctly connected, free from corrosion and
are locked in position.
